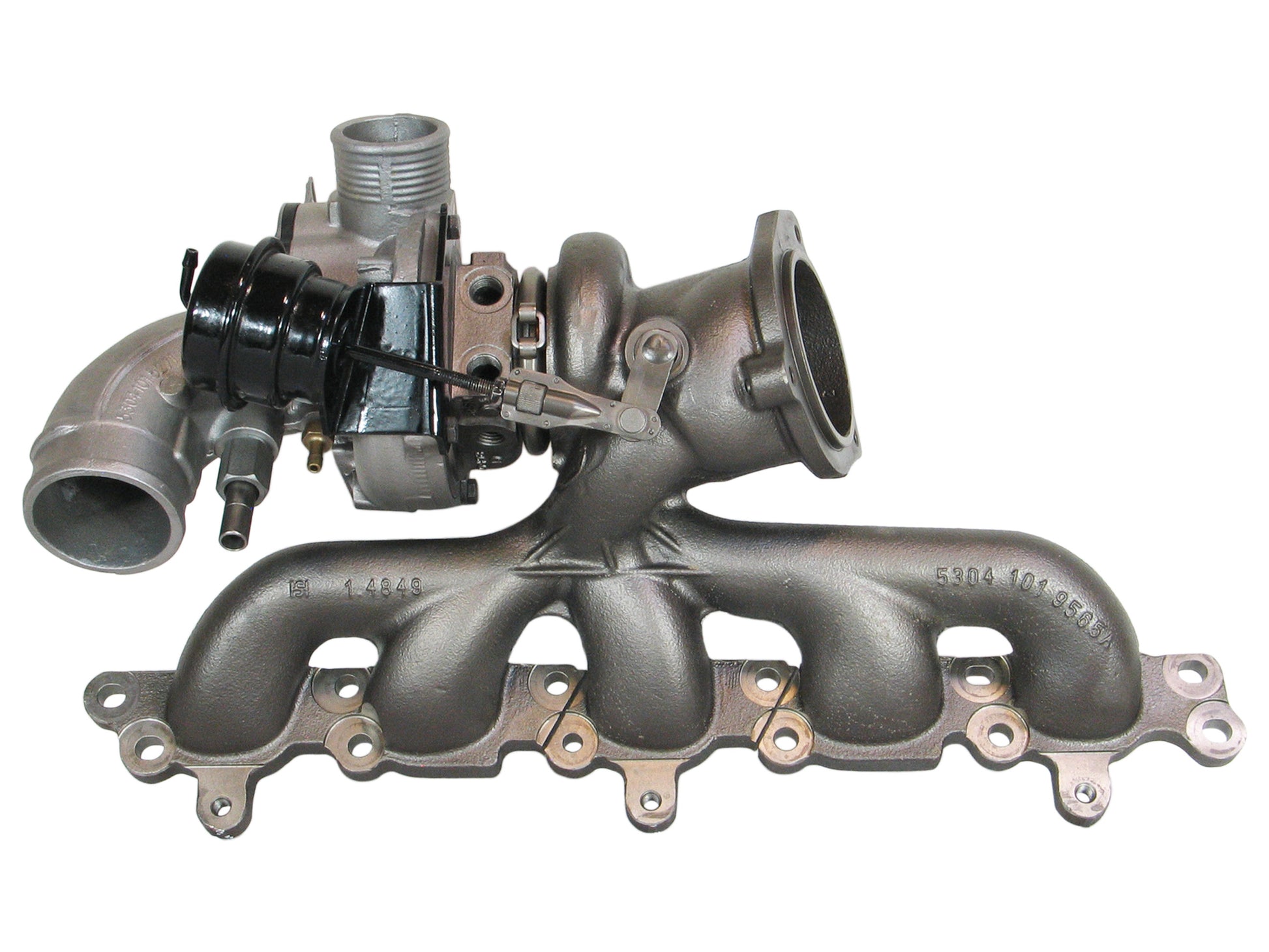

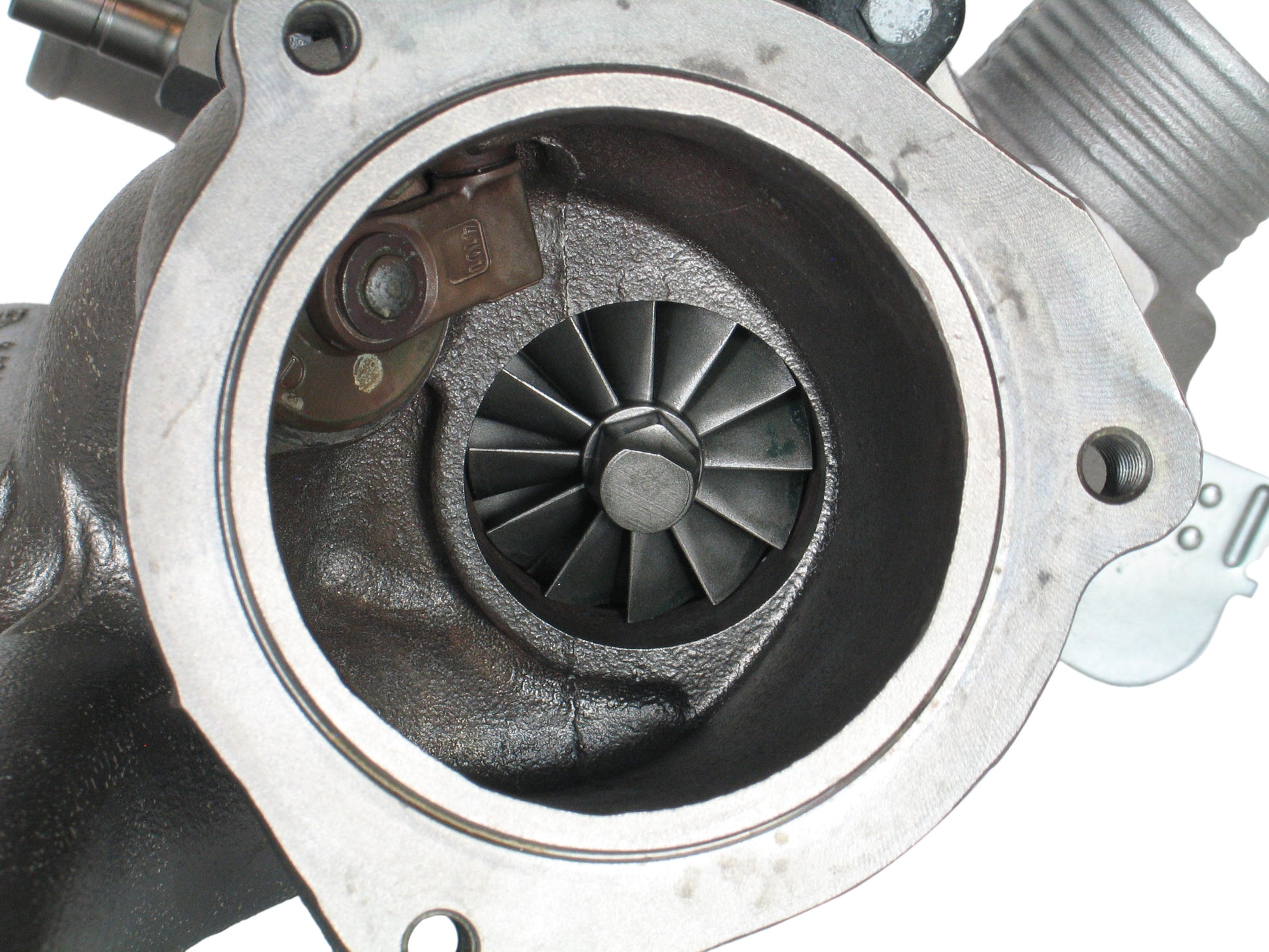

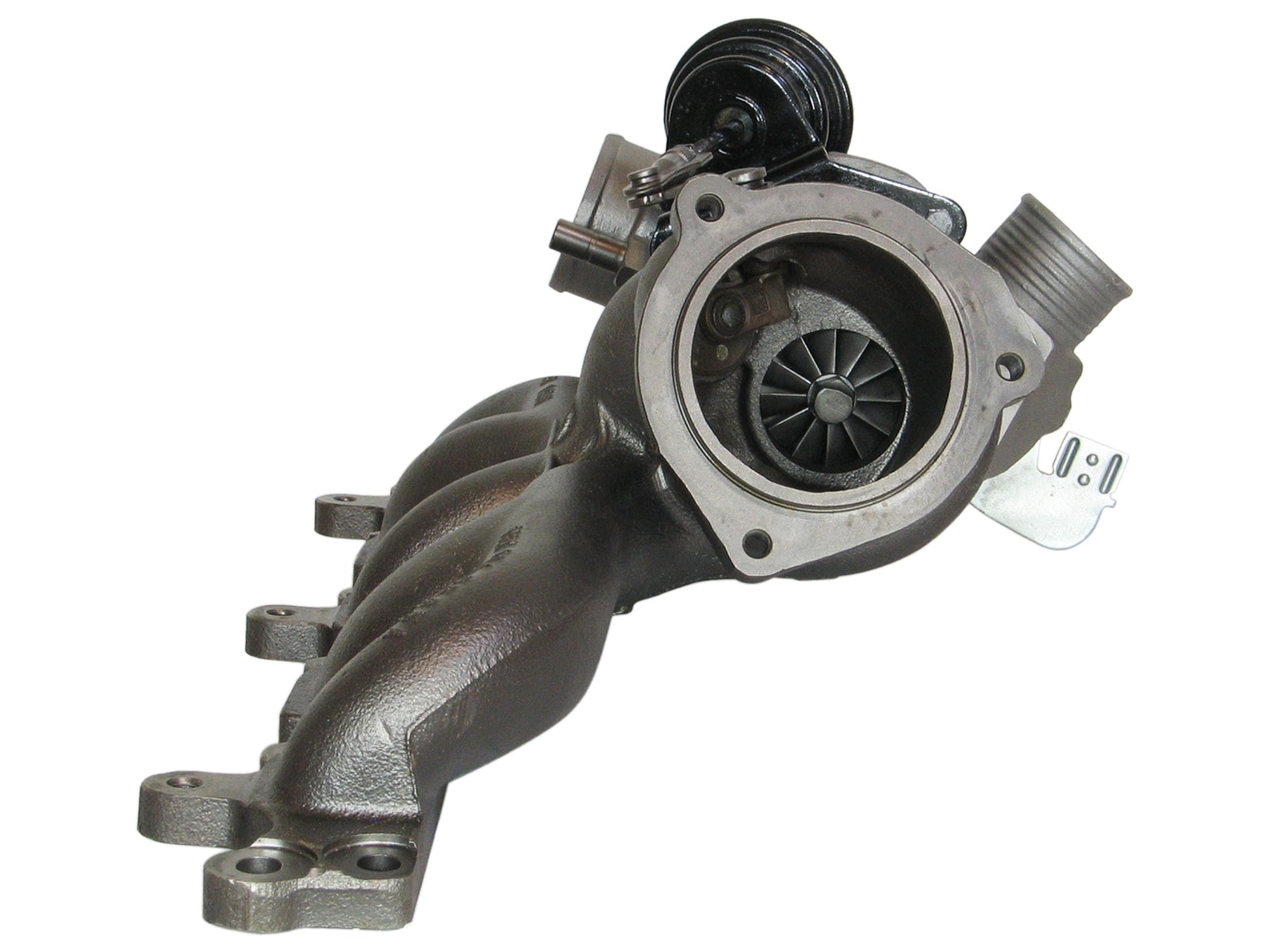

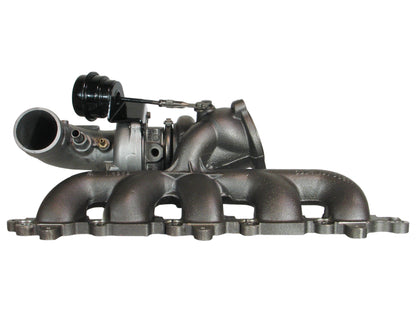

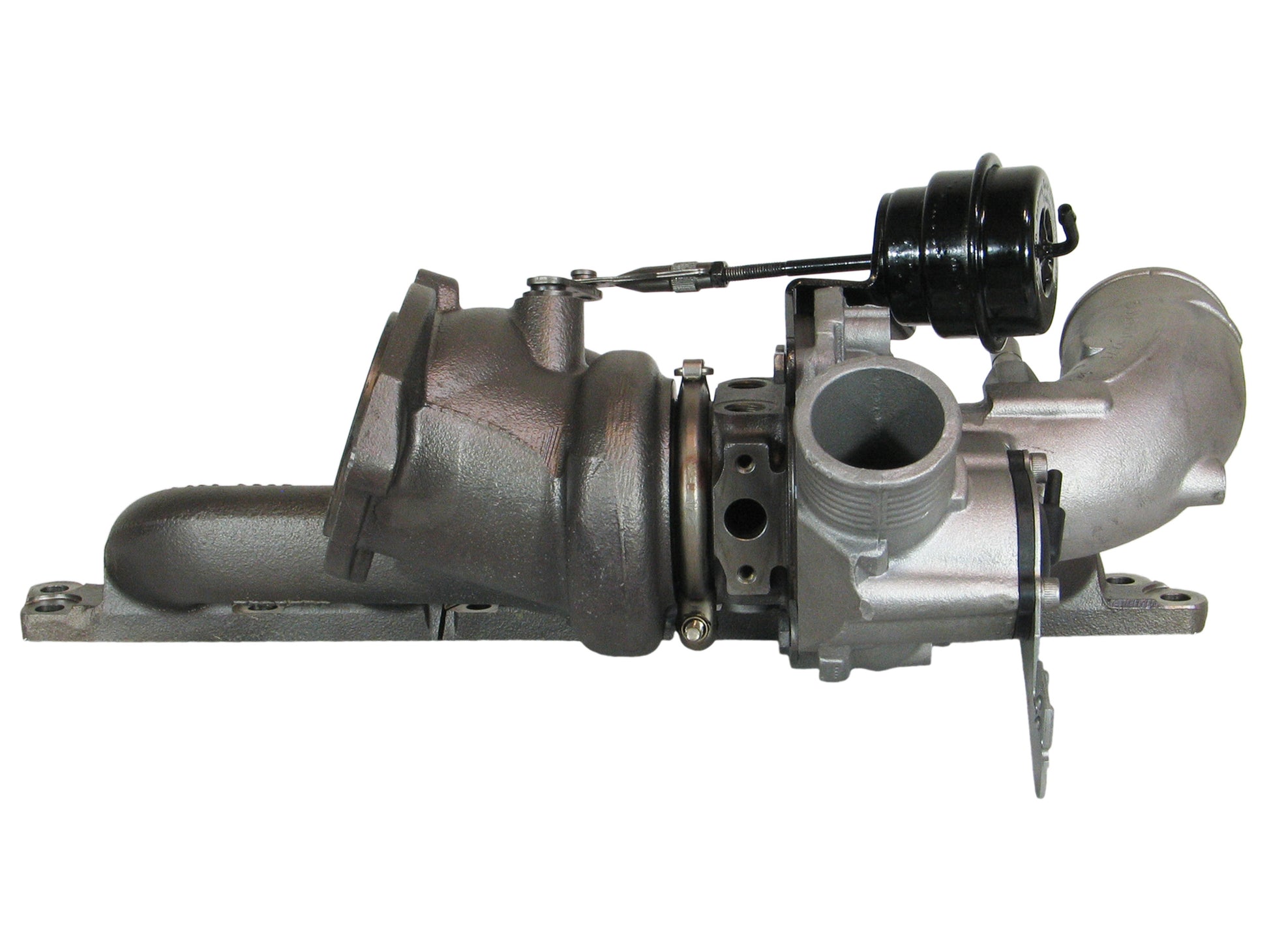

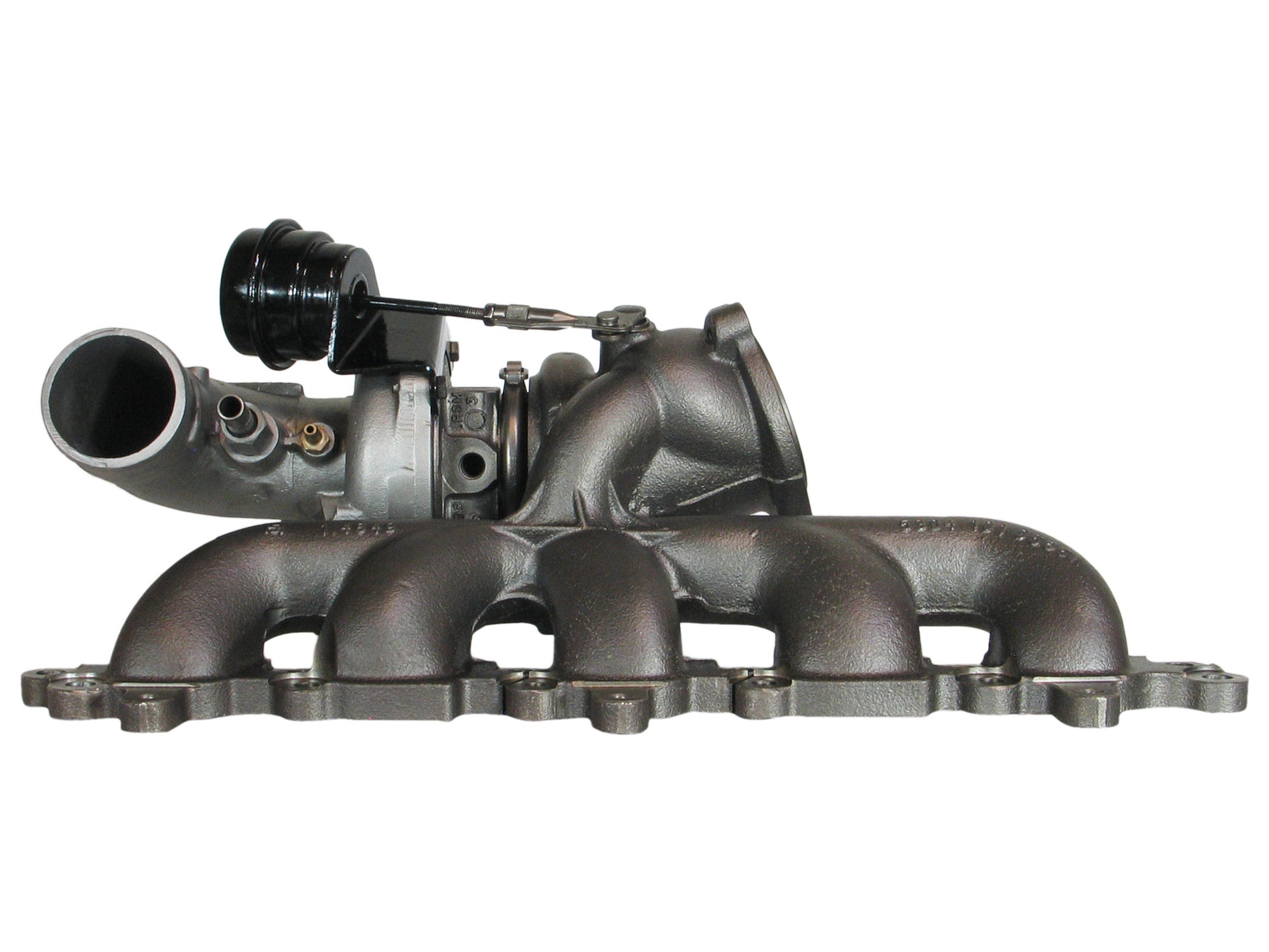

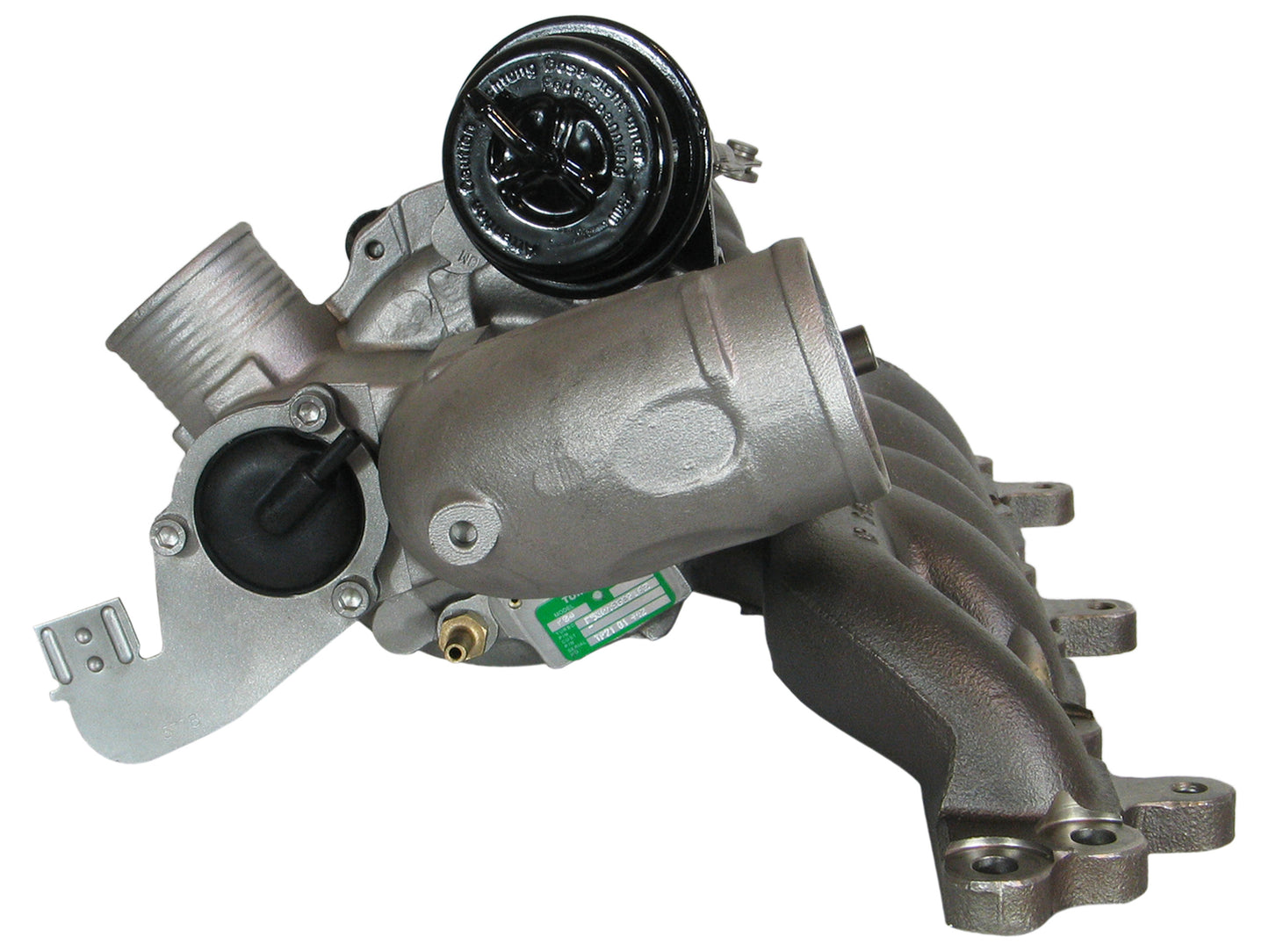

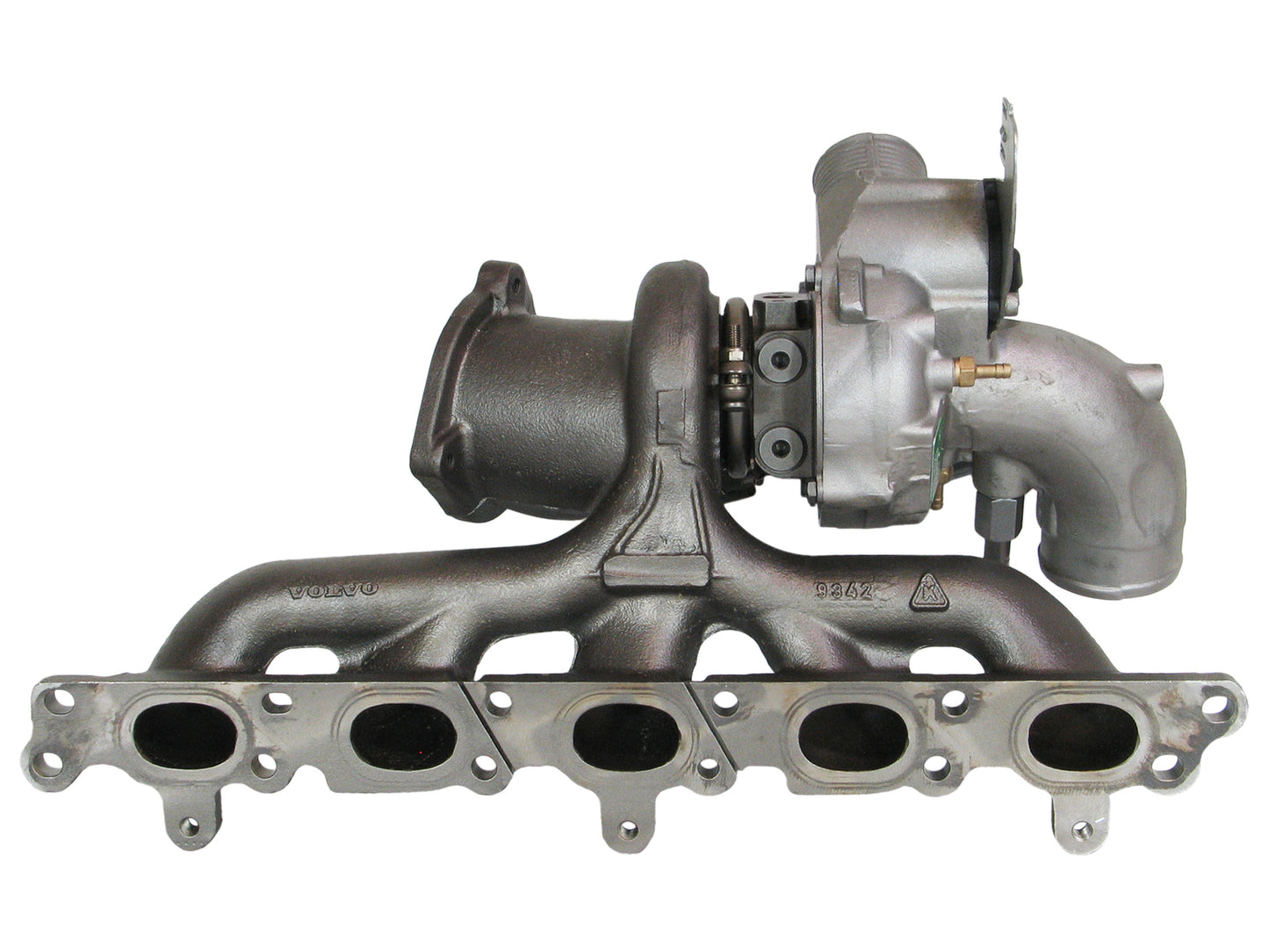

K04 Turbo Volvo S60 S80 V40 V60 B5254T12 B5254T14 B5254T5 2.5L Gas 53049880162

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 53049880162
Interchangeable Number: 5304 988 0162, 5304-988-0162, 53049700162, 5304 970 0162, 5304-970-0162, 53049710162, 5304 971 0162, 5304-971-0162, 53049700130, 5304 970 0130, 5304-970-0130
OEM Number: 31319315, 31397862, 36001511, 36010092
Turbo Model: K04, K04-2280DCBAA6.88GCCXM

Year: 2014-07
Engine: B5254T12, B5254T14, B5254T5, RNC 2P25-LT
Displacement: 2.5L
Fuel: Gas
Power: 169 kW/230 HP
Speed: 5000 RPM

Angle α (Compressor Housing): 44.5°
Angle β (Turbine Housing): 88°

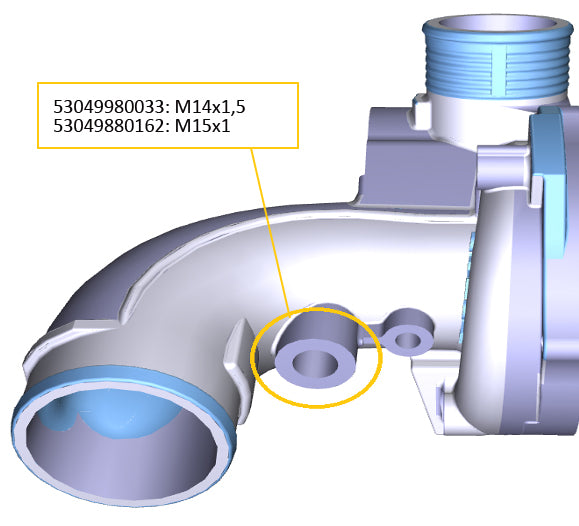

NOTE: Intercooler, integrated manifold, water cooled bearing housing. 53049880162 is almost identical with 53049980033 except for the thread size of the indicated port in the compressor housing and the hose arrangement around the boost control solenoid valve.

Application:
2010-16 Volvo S60, S80, V40, V60 CC, XC60, XC70 with B5254T12, B5254T14, B5254T5 Engine
2014-07 Volvo Passenger Car with RNC 2P25-LT Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
