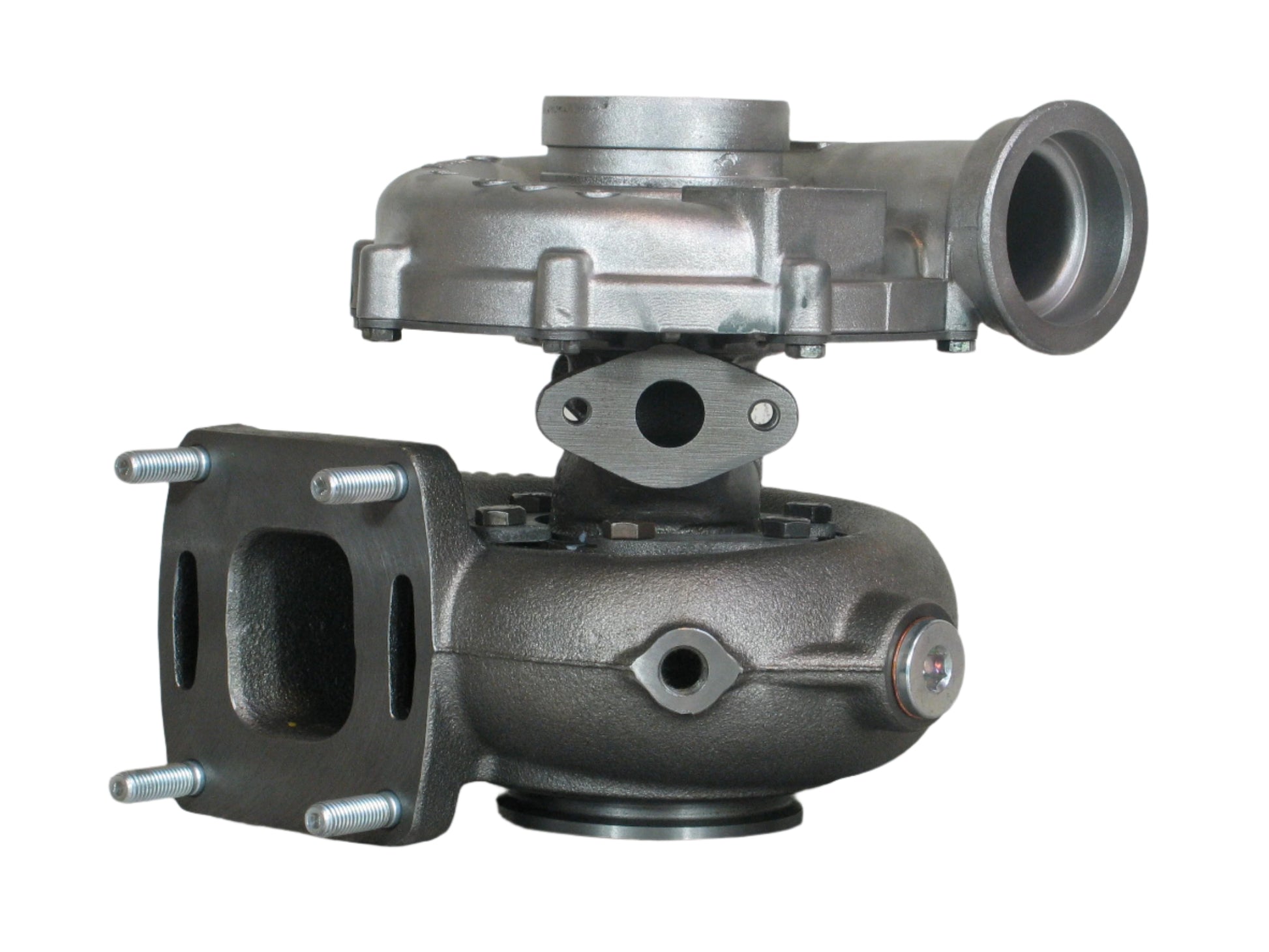

K26 Turbocharger Volvo Penta Marine TKAMD41 3.6L Engine 860352R 53269886496SKU: F53269706496
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 53269886496
Interchangeable Number: 5326-988-6496, 5326 988 6496, 53269706496, 5326-970-6496, 5326 970 6496, 53269706293, 5326-970-6293, 5326 970 6293, 53269886293, 5326-988-6293, 5326 988 6293
OEM Number: 860352R
Turbo Model: K26, K26-3264MGA10.71GAAXB
Engine: TKAMD 41, TKAMD41
Displacement: 3.6L, 3600 ccm
Power: 170 kW/231 HP
Speed: 3800 RPM
Angle α (Compressor Housing): 43°
Angle ß (Turbine Housing): 315°
Back Plate: 53271516700/53271515739
Bearing Housing: 53241500004 (858705)
CHRA: 53267100064 (5326-710-0064)
Compressor Cover: 53271015338/53271015127/53271015113
Compressor Wheel: 53271232223/53271232212 (Ind. 51.73 mm, Exd. 80.81 mm, Trim 3.47, 7+7 Blades, Super Back)(858708)
Gasket (Oil Inlet): 210023 (420641)
Gasket (Oil Outlet): 210060 (860105)
Gasket (Turbine Inlet): 210294 (Inox Steel)
Heat Shield: 53261652005 (858668)
Repair Kit: 53267110042 (53247110029, 53267110039, 53267110001)(858709, 861501, 3827366)(1301026752)
Turbine Housing (Water Cooled): 53261006427
Turbine Housing A/R: 10
Turbine Wheel: 53261205001 (53261202119, 53261202107, 53261205002)(Ind. 64.3 mm, Exd. 54.5 mm, 12 Blades)(858672)(1301026436, 1301026435)
1991-03 Volvo Penta Marine with TKAMD41 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
