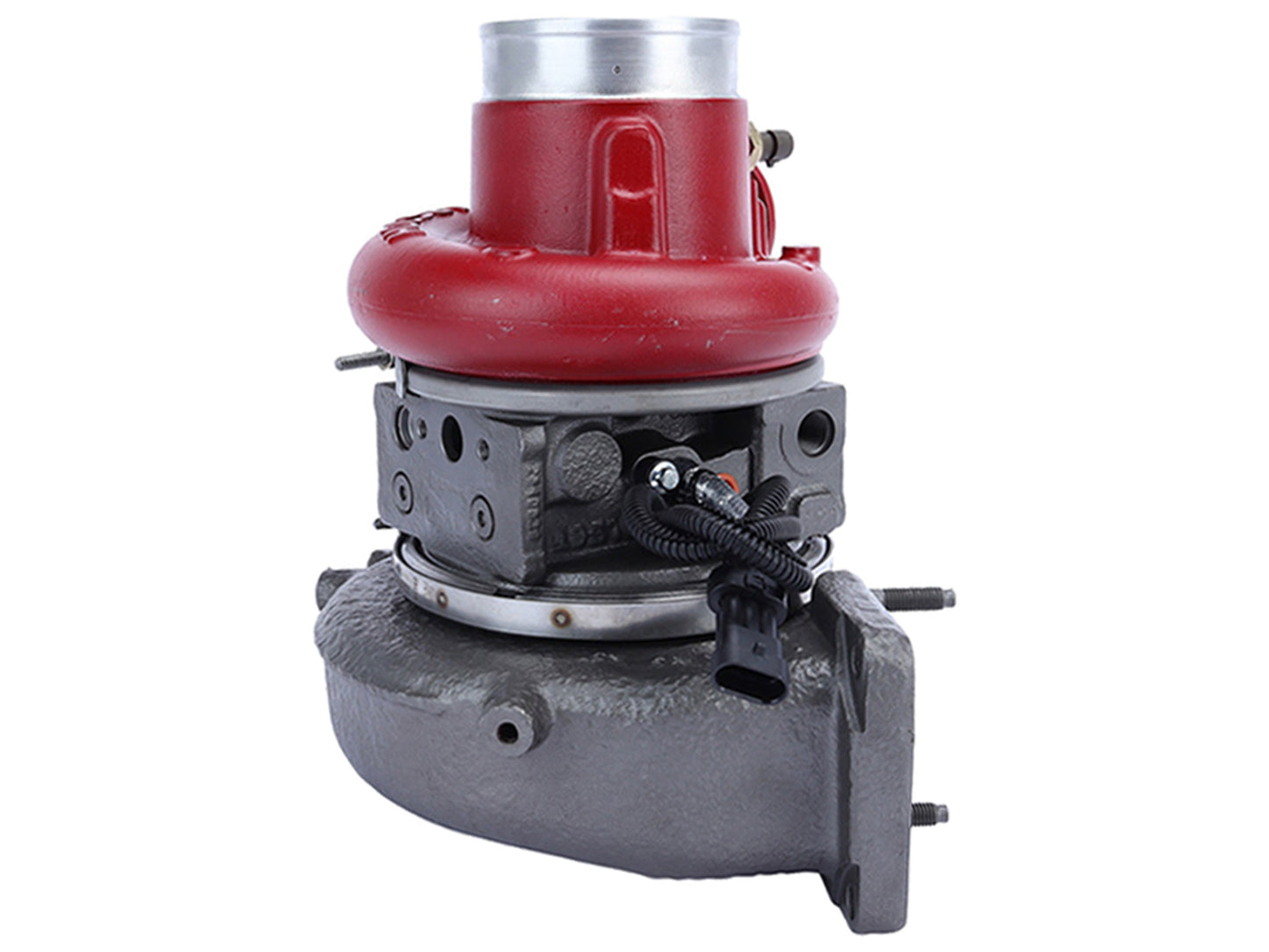

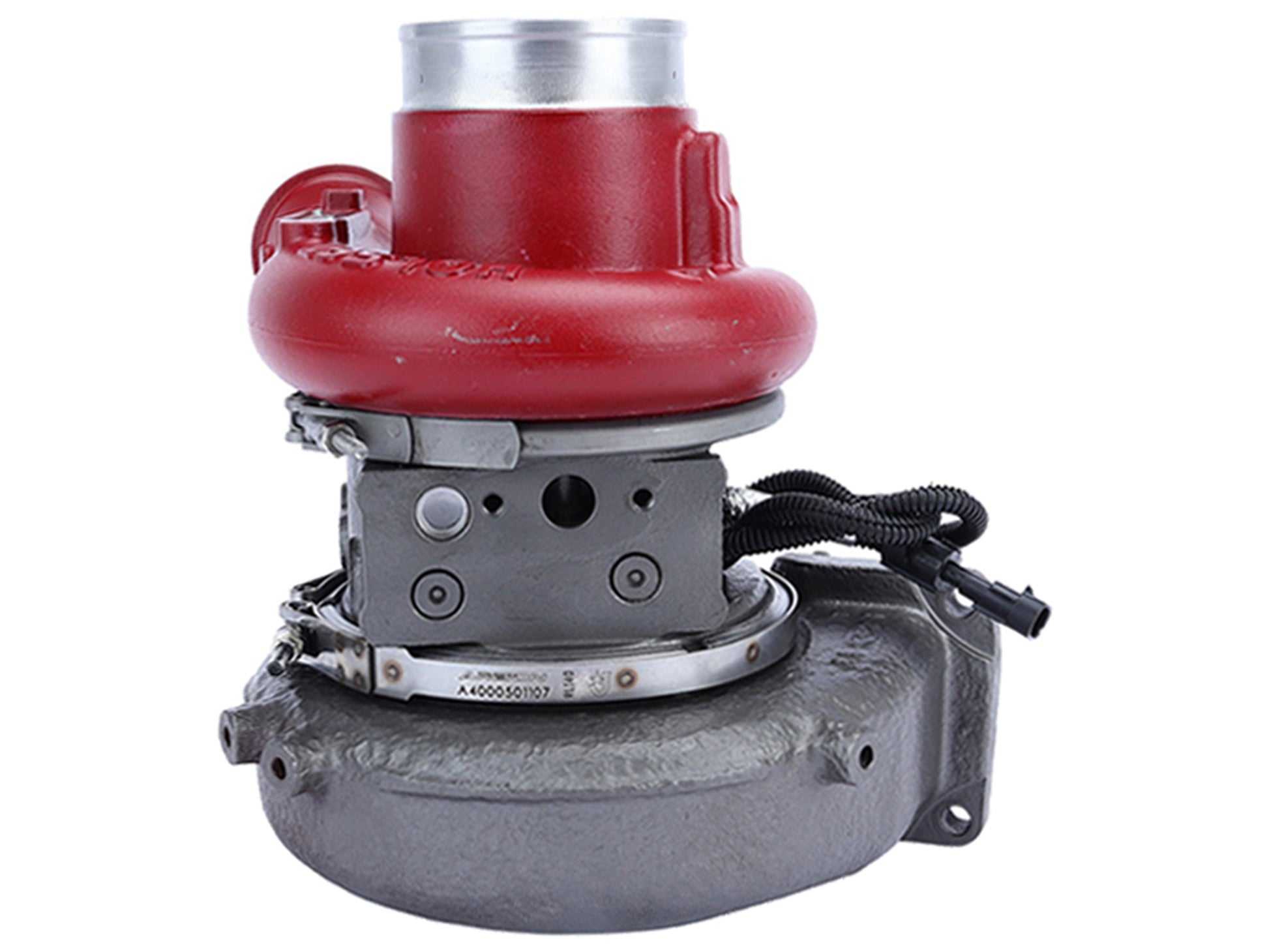

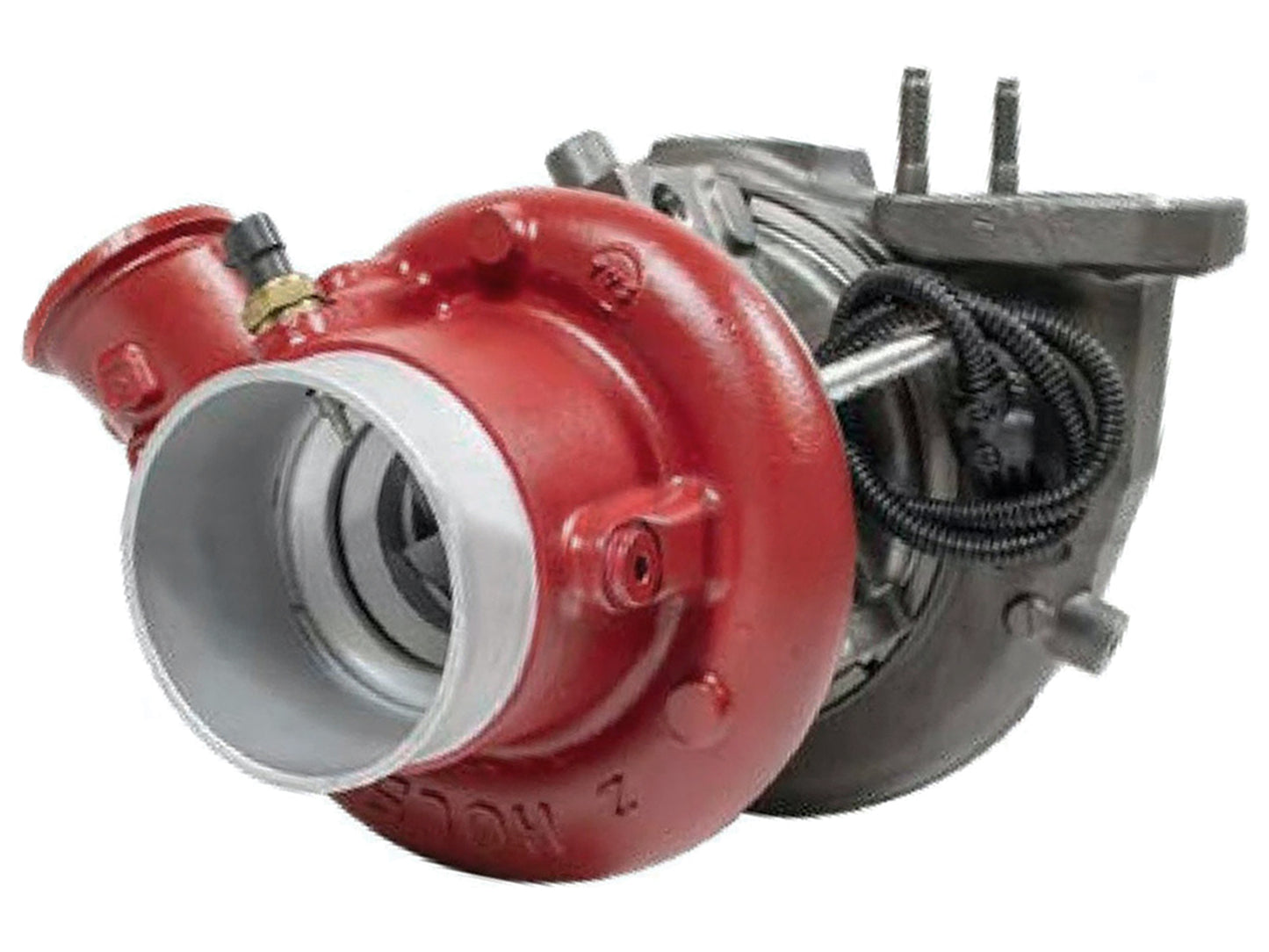

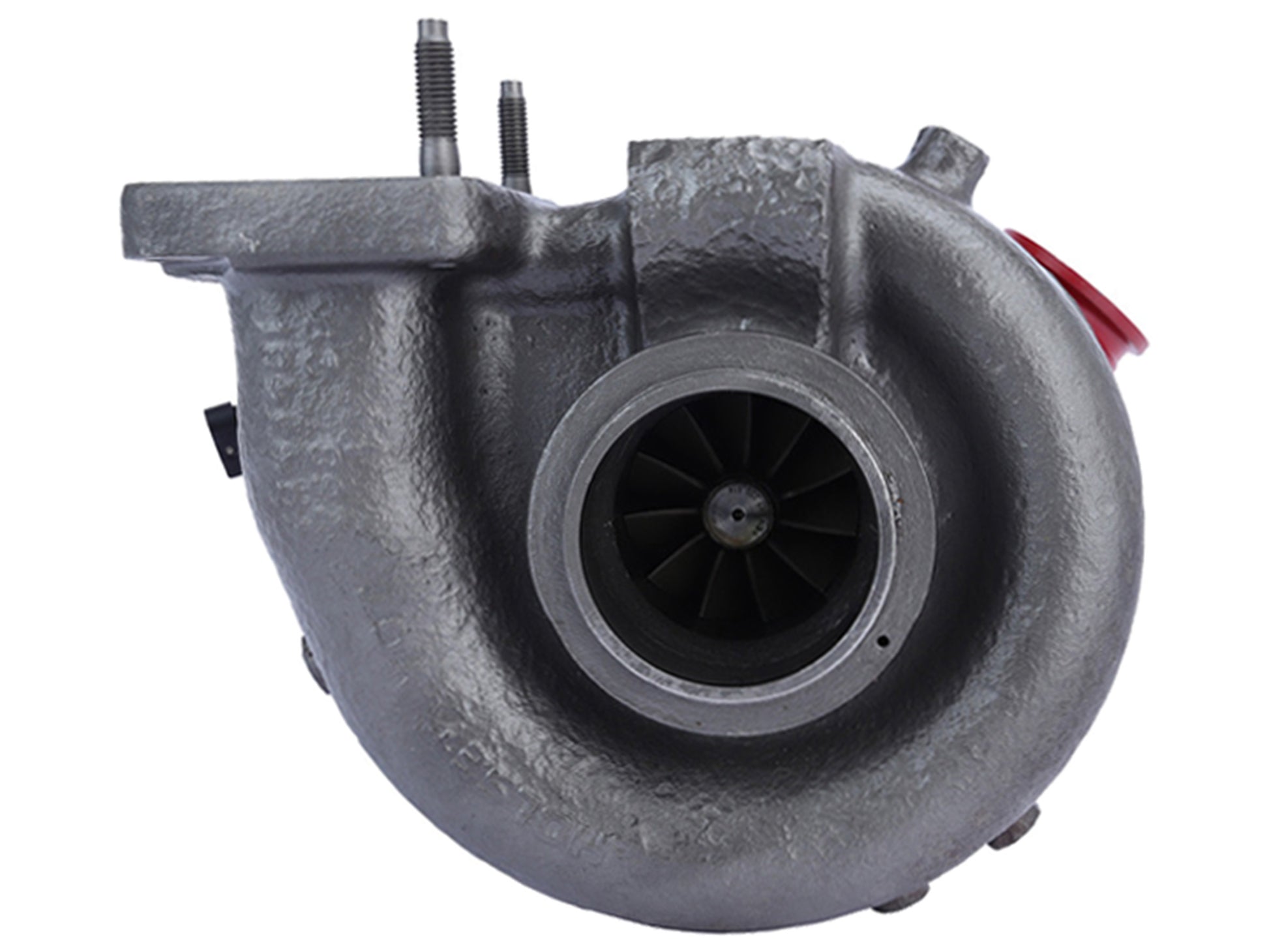

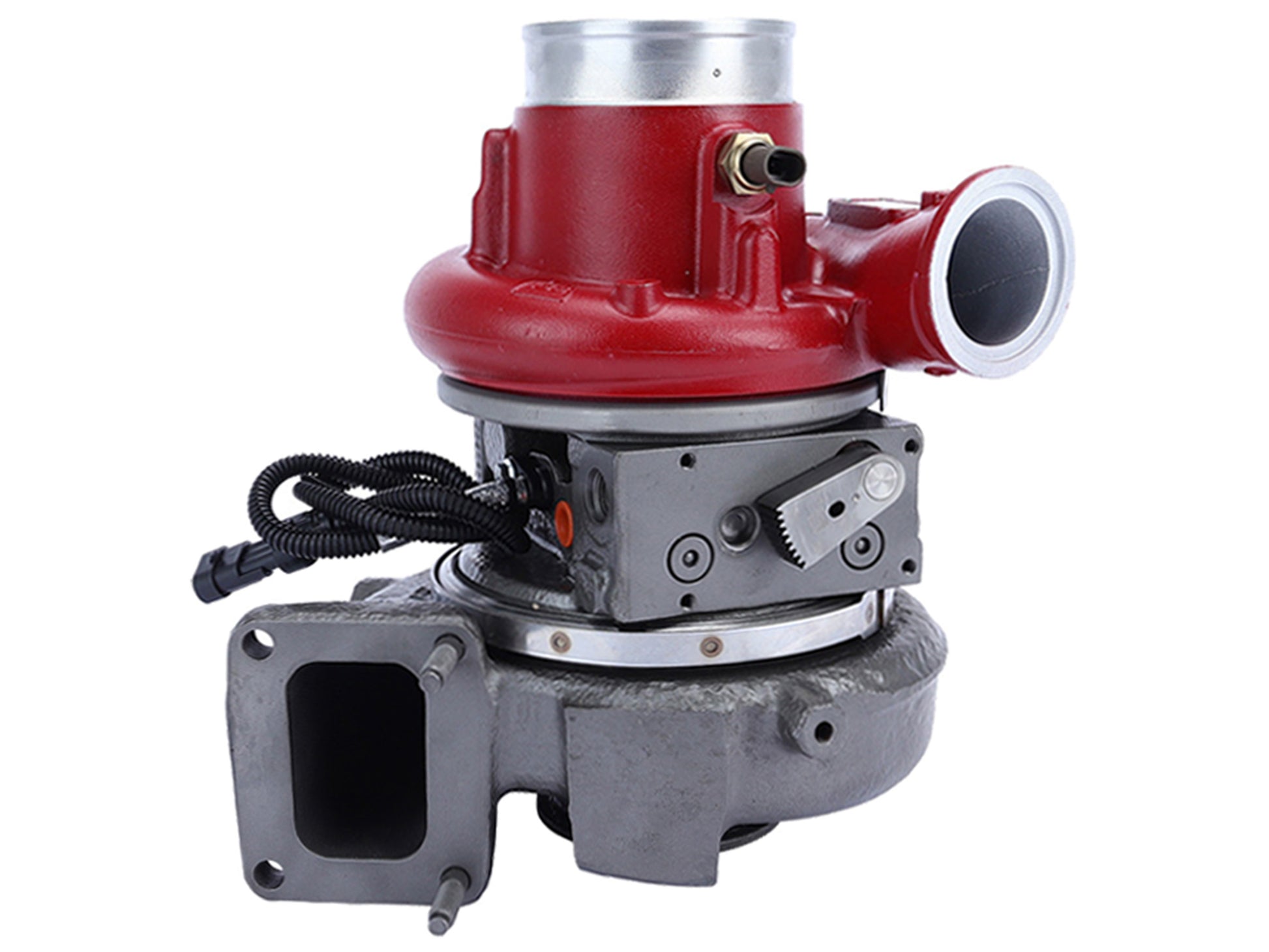

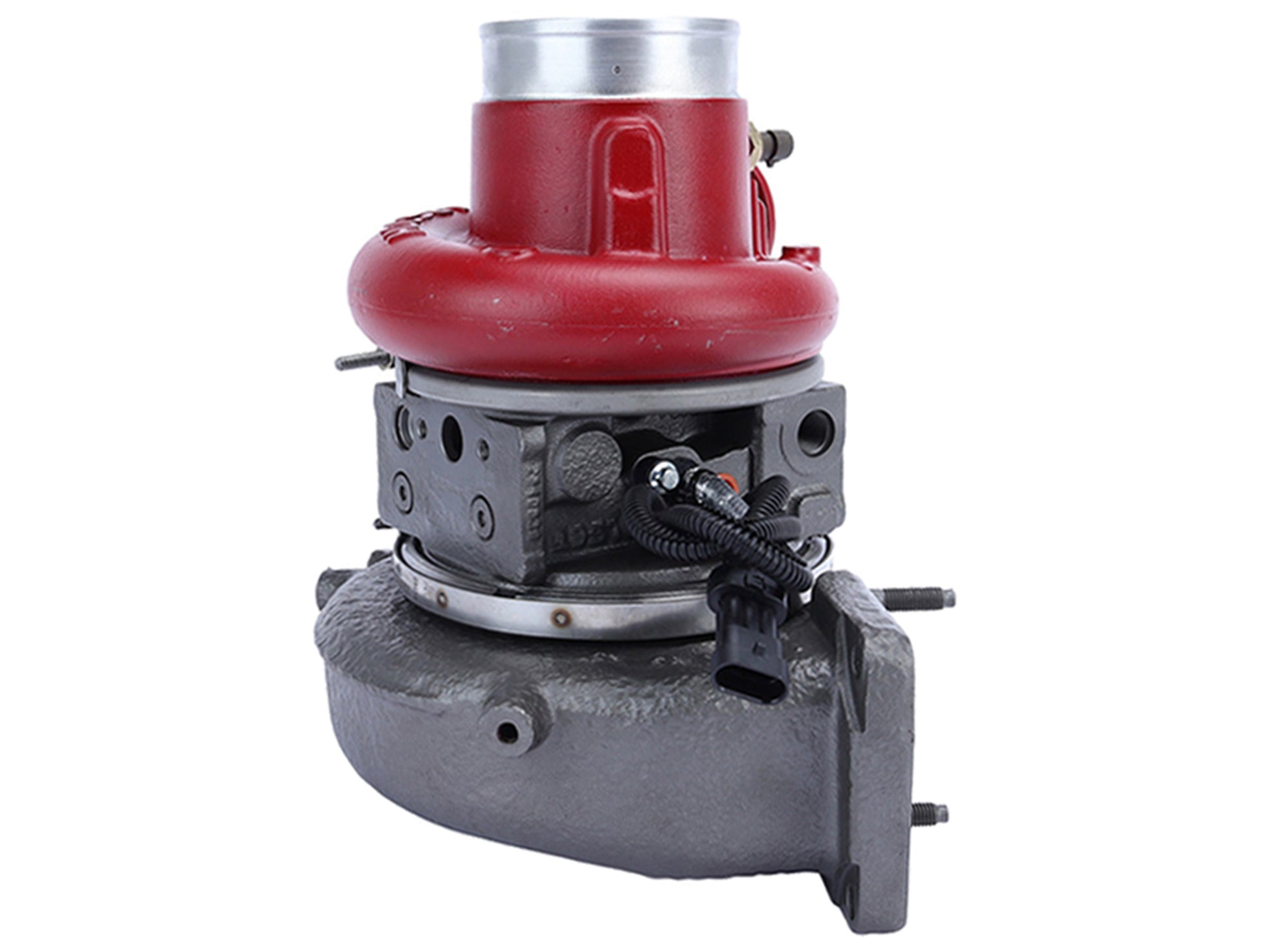

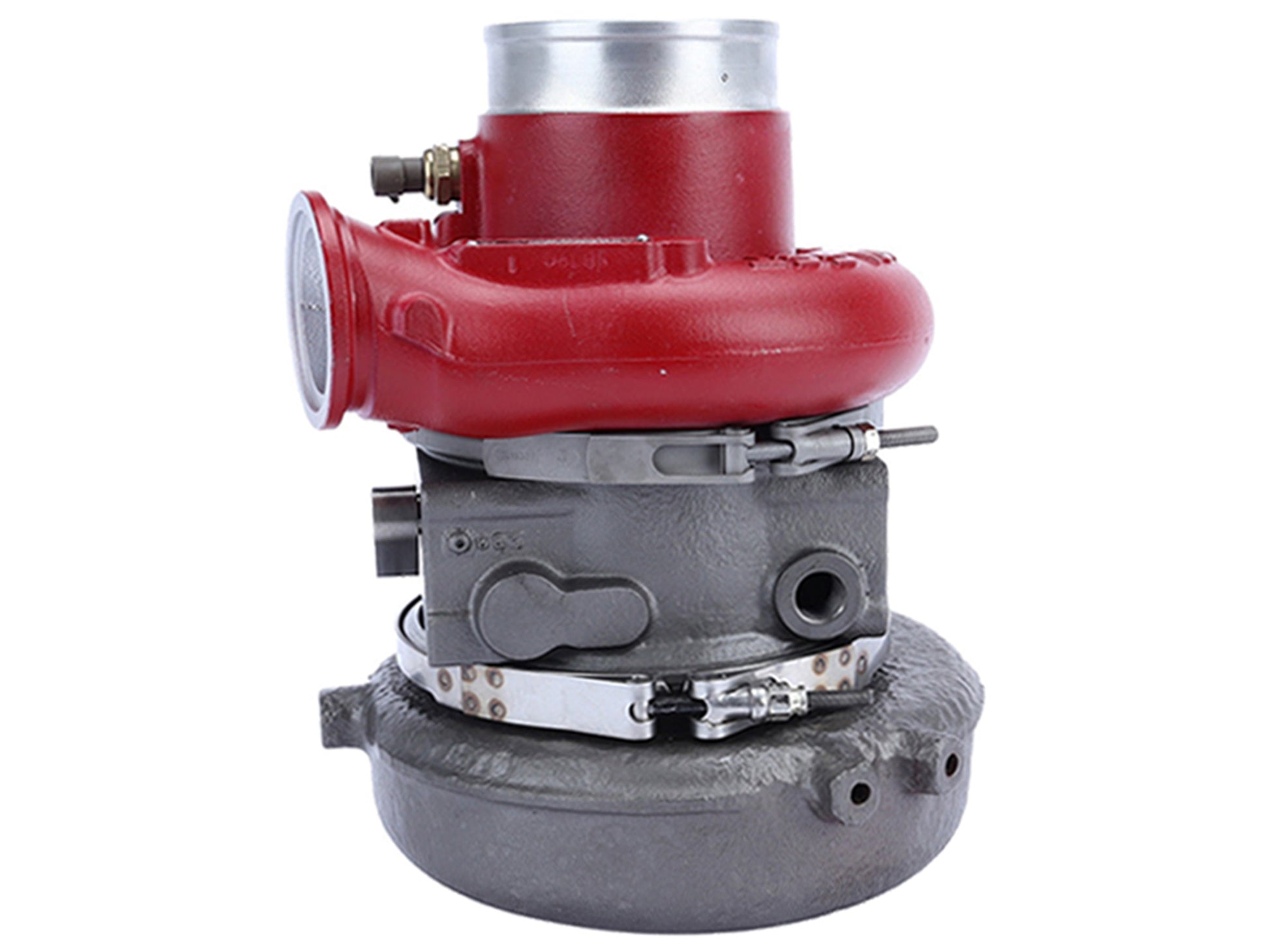

HE400VG Turbo Trucks Cummins ISX ISX15 QSX 15.0L Diesel Engine 5458260 5354719

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 5354719
Interchangeable Number: 3781362, 3795159, 3796346, 3796351, 379639100, 379639100H, 379639100HX, 3796391H, 3796391HX, 3798515, 3798515RX, 3798519, 379851900, 379851900H, 379851900HX, 3798519H, 3798519HX, 4309273NX, 4309273RX, 5354720H, 5354721, 5354721H, 5354721HX, 5359594, 5458260, 5458260NX, 5458260RX
OEM Number: 3781369, 3796391, 4309273, 5354720, 5359608
Turbo Model: HE400VG, HE431VE

Year: 2005-10
Engine: ISX, ISX15, QSX
Engine Manufacturer: Cummins
Displacement: 15.0L, 1500 ccm
Fuel: Diesel
CPL Number: 3938, 3939, 4584, 4585, 4587, 4588

Angle α (Compressor Housing): 275°
Angle β (Turbine Housing): 155°
Back Plate: 2841376
Compressor Wheel: 2843562 (Ind. 73.00 mm, Exd. 114.46 mm, 8+8 Blades, Super Back)
Electronic Actuator: 4034289 (28087185, 28087185-10, 2808718510, 28169119, 28169119-10, 2816911910, 2835940, 2837201, 3789667, 3789676, 3789677, 3791991, 379199100, 4032066, 4032673, 4032760, 4032760NX, 4032760RX, 4034116, 4034208, 4034210, 4034210NX, 4034210RX, 4034289, 403428900, 403428900HX, 4034289H, 4034289HX, 4034289NX, 4034289RX, 4034403, 4034403NX, 4034403RX, 4042307, 4043340, 4045108, 4045991)(12 Volts)
Gasket Kit: 3786275
Repair Kit: (Major)(1154400755)
Turbine Housing A/R: VGT
Turbine Wheel: 2840238 (Ind. 73.92 mm, Exd. 85.94 mm, 12 Blades)

Application:
2005-10 Various Trucks with Cummins ISX, QSX Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
