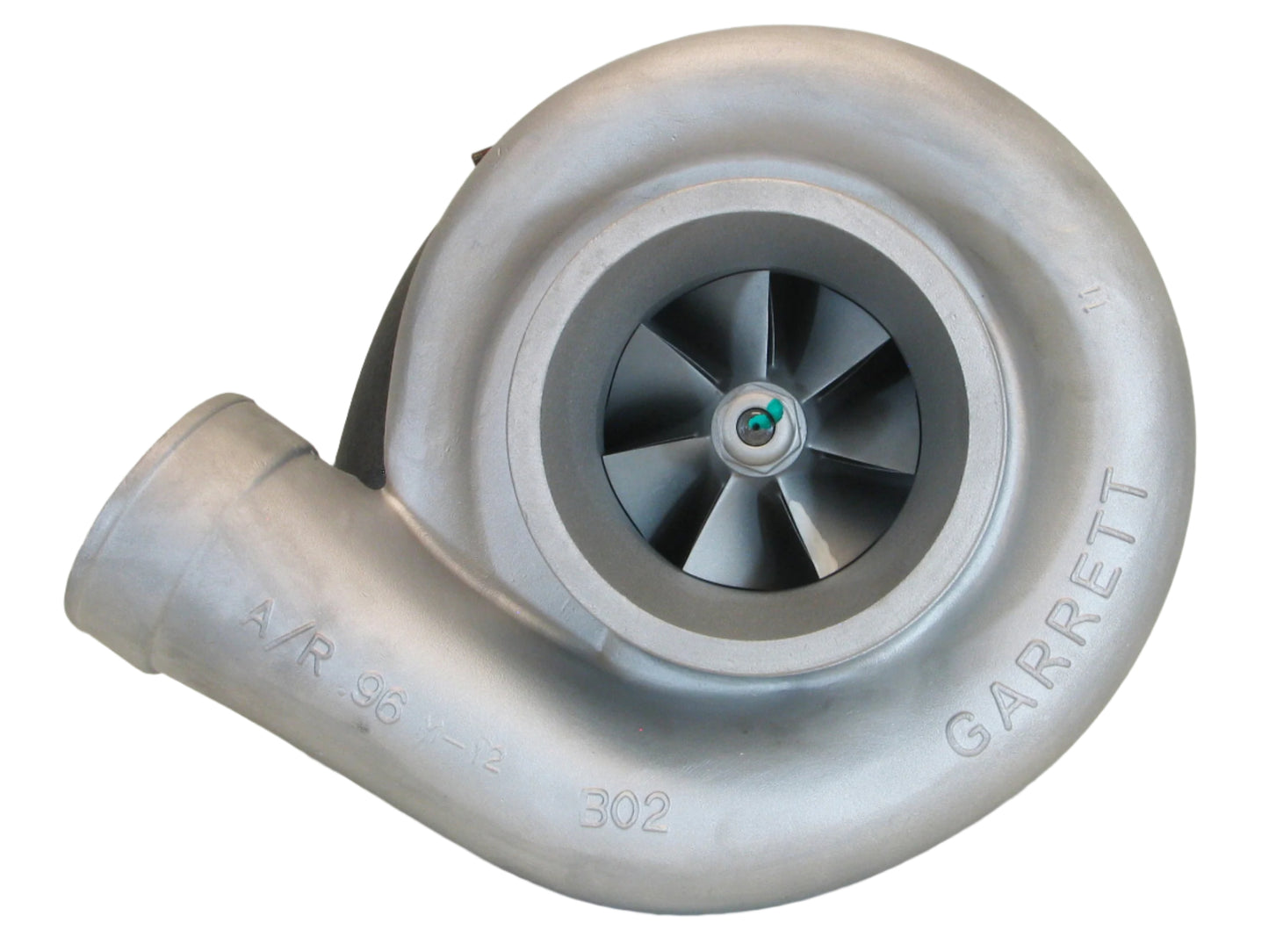

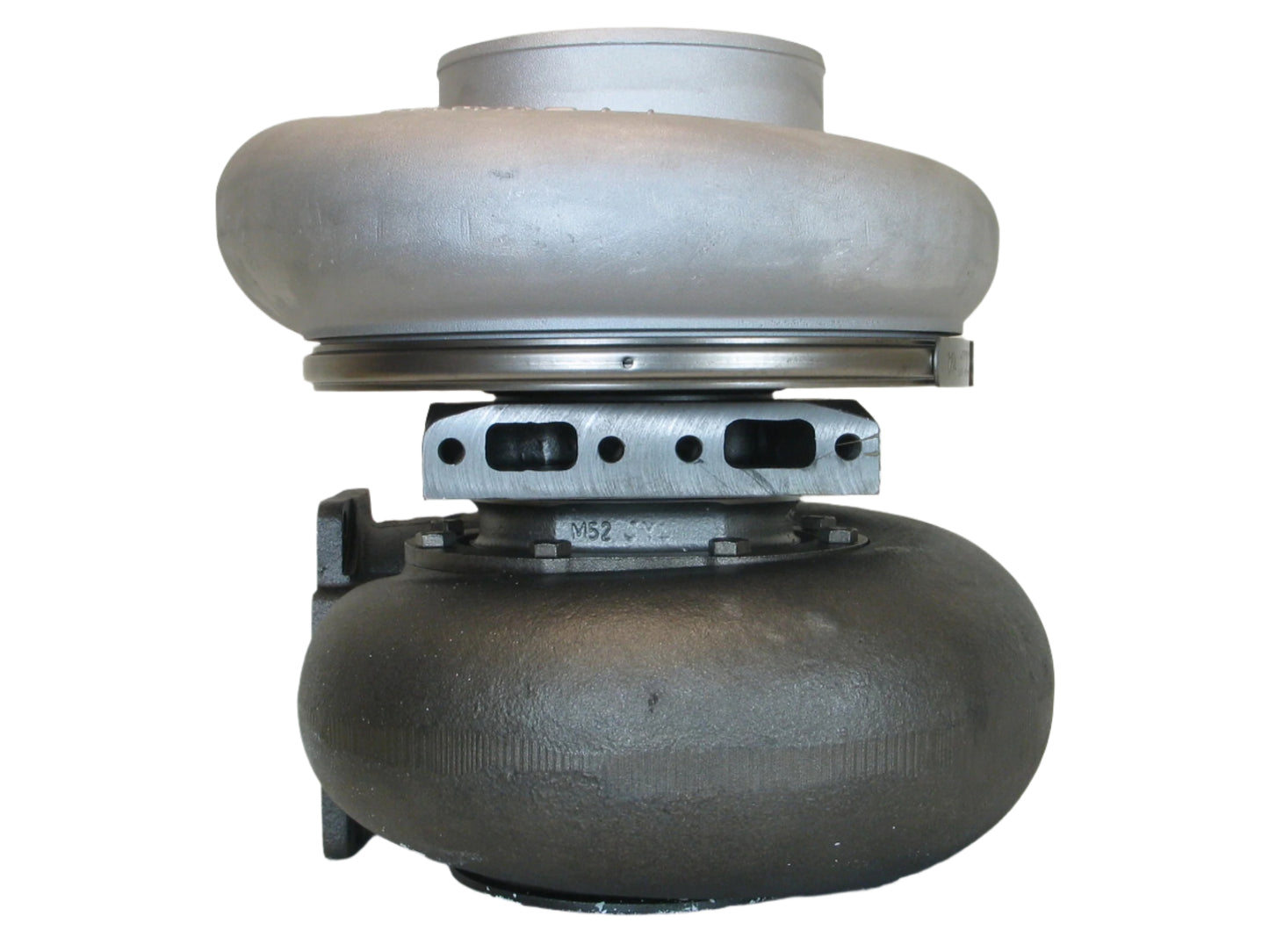

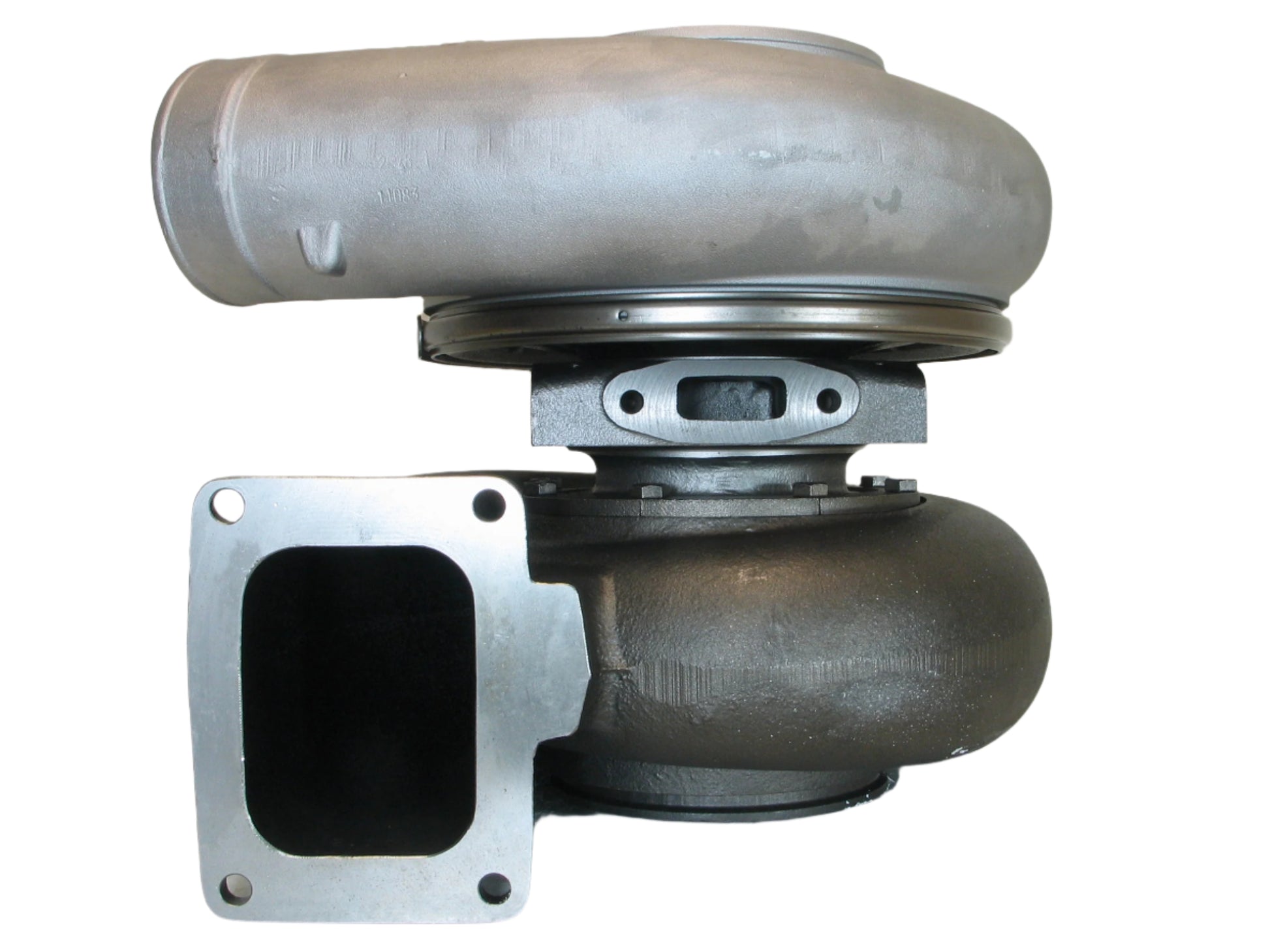

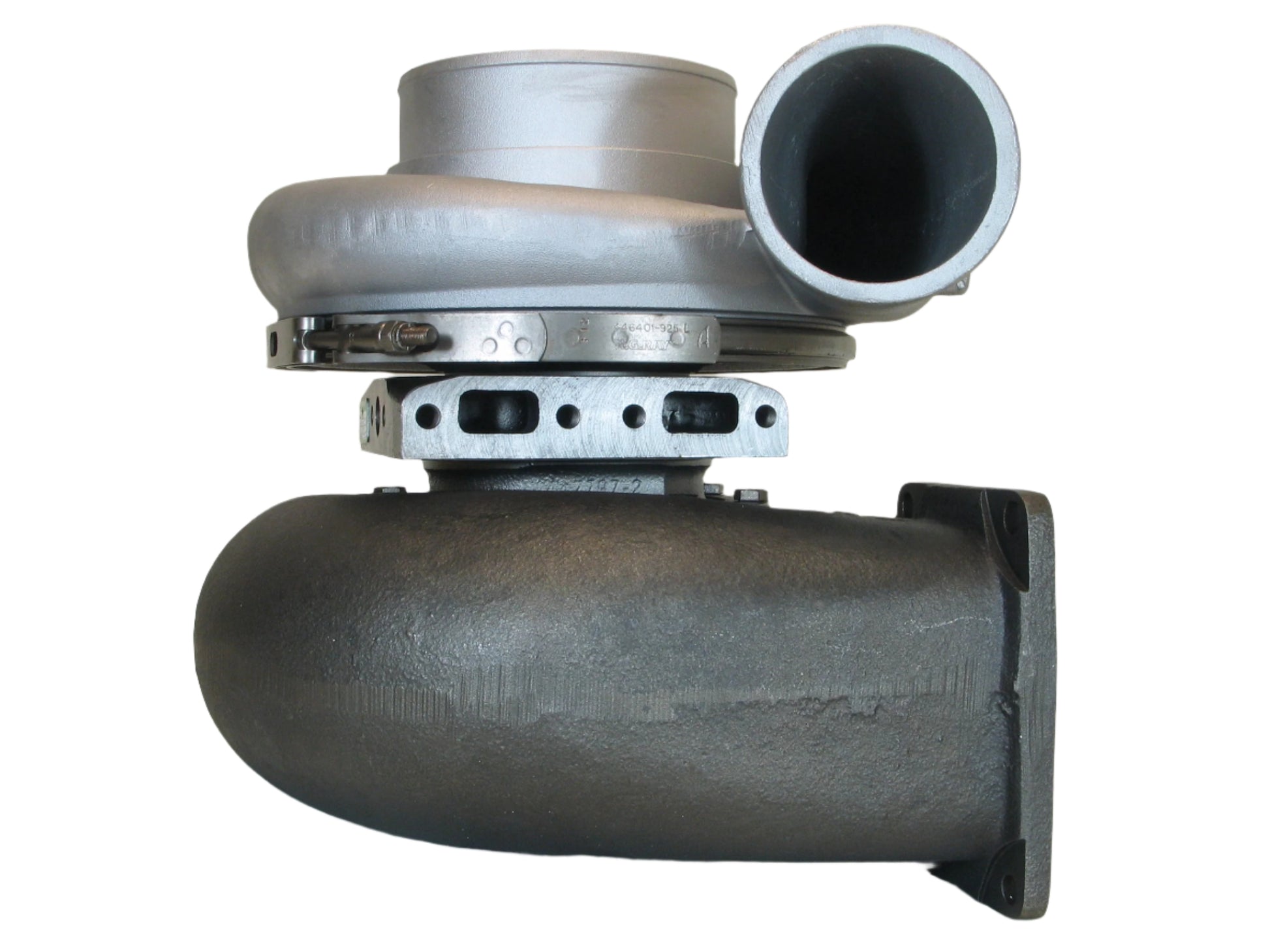

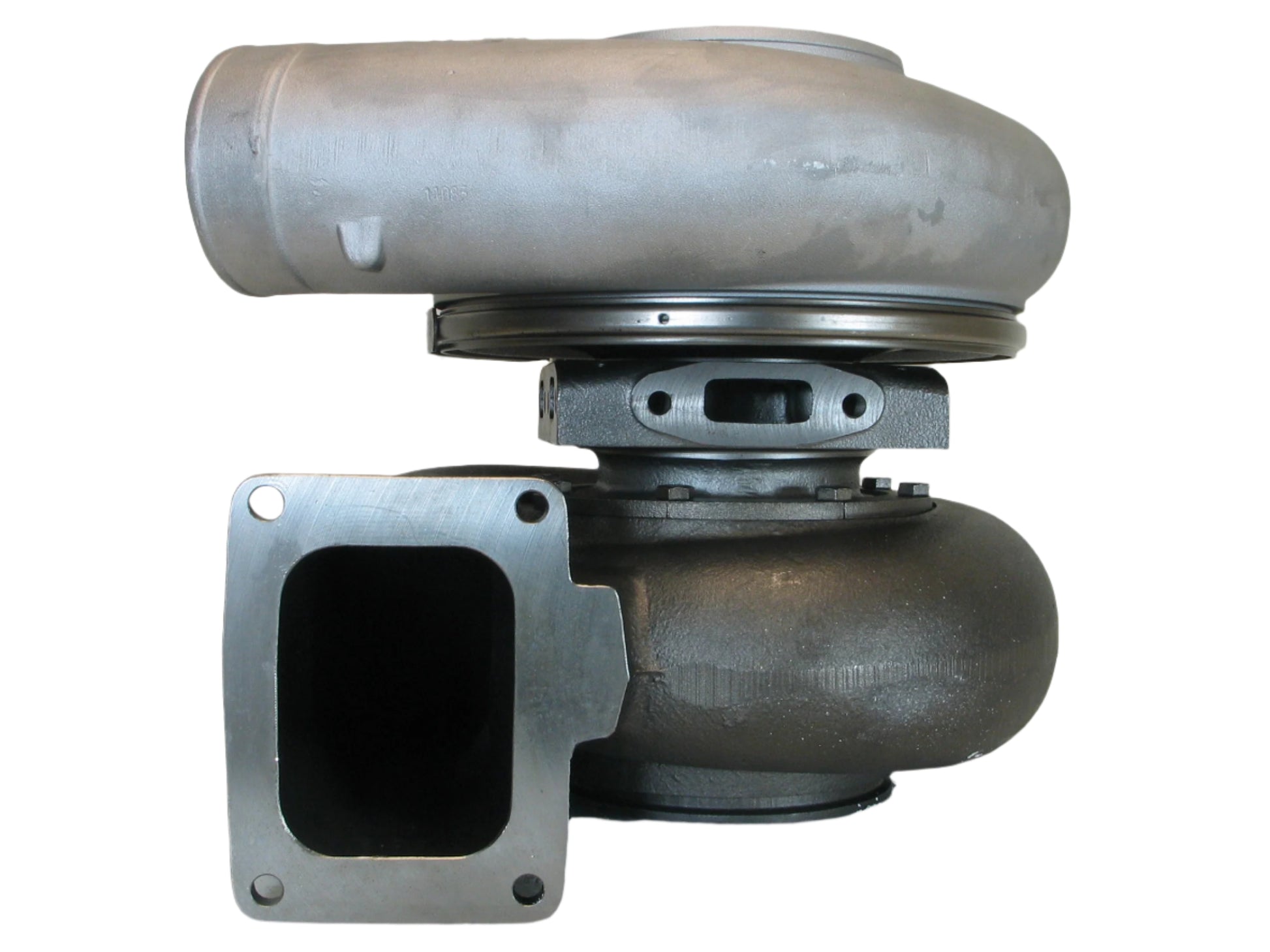

UTL9406 Turbo CAT Waukesha Industrial F3524GSI CNG Engine 704837-5002

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 704837-5002S
Interchangeable Number: 704837-0002, 704837-5002, 704837-0004, 704837-5004, 704837-5004S
OEM Number: 211896, 211896.0, 214007
Replacement Number: 701100-0009, 701100-5009, 701100-5009S
Turbo Model: UTL9406

Year: 1999-
Engine: F3524, F3524GSI, L7044GSI Engines Draw Thru, L7044GSI
Fuel: CNG (Compressed Natural Gas)

Back Plate: 452668-0001
Bearing Housing (Water Cooled): 451861-0002 (Water Cooled)
CHRA: 452669-0006 (452669-5006)
Compressor Cover: 432078-0001/432078-0004

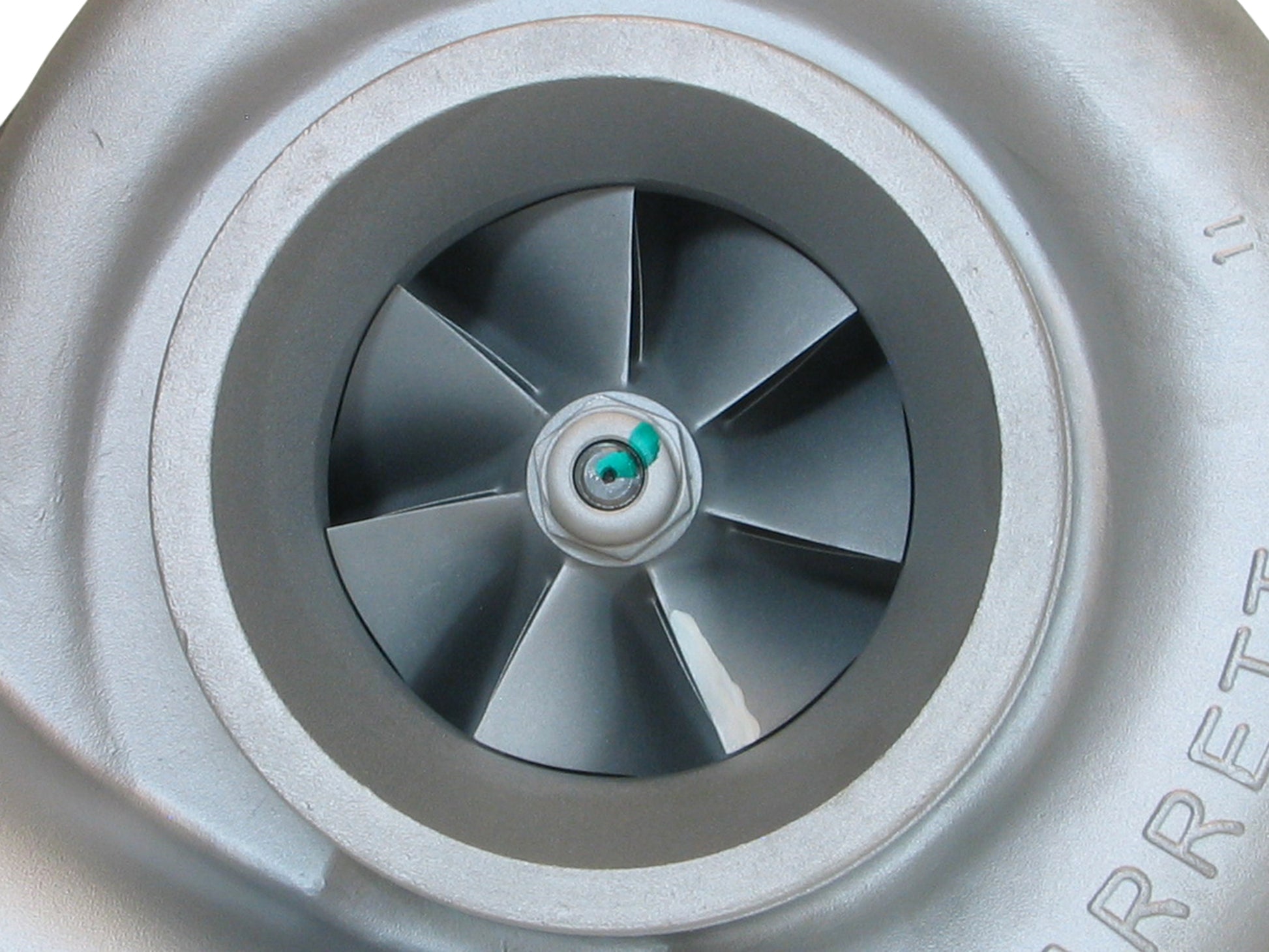

Compressor Wheel: 451883-0008 (Ind. 97.9 mm, Exd. 141.3 mm, 7+7 Blades, Super Back)
Gasket (Oil Inlet): 210161 (paper)
Gasket (Oil Outlet): 210172 (Paper)
Gasket (Water Inlet & Outlet): 210021 (148062, 311496)
Repair Kit: 705731-0001

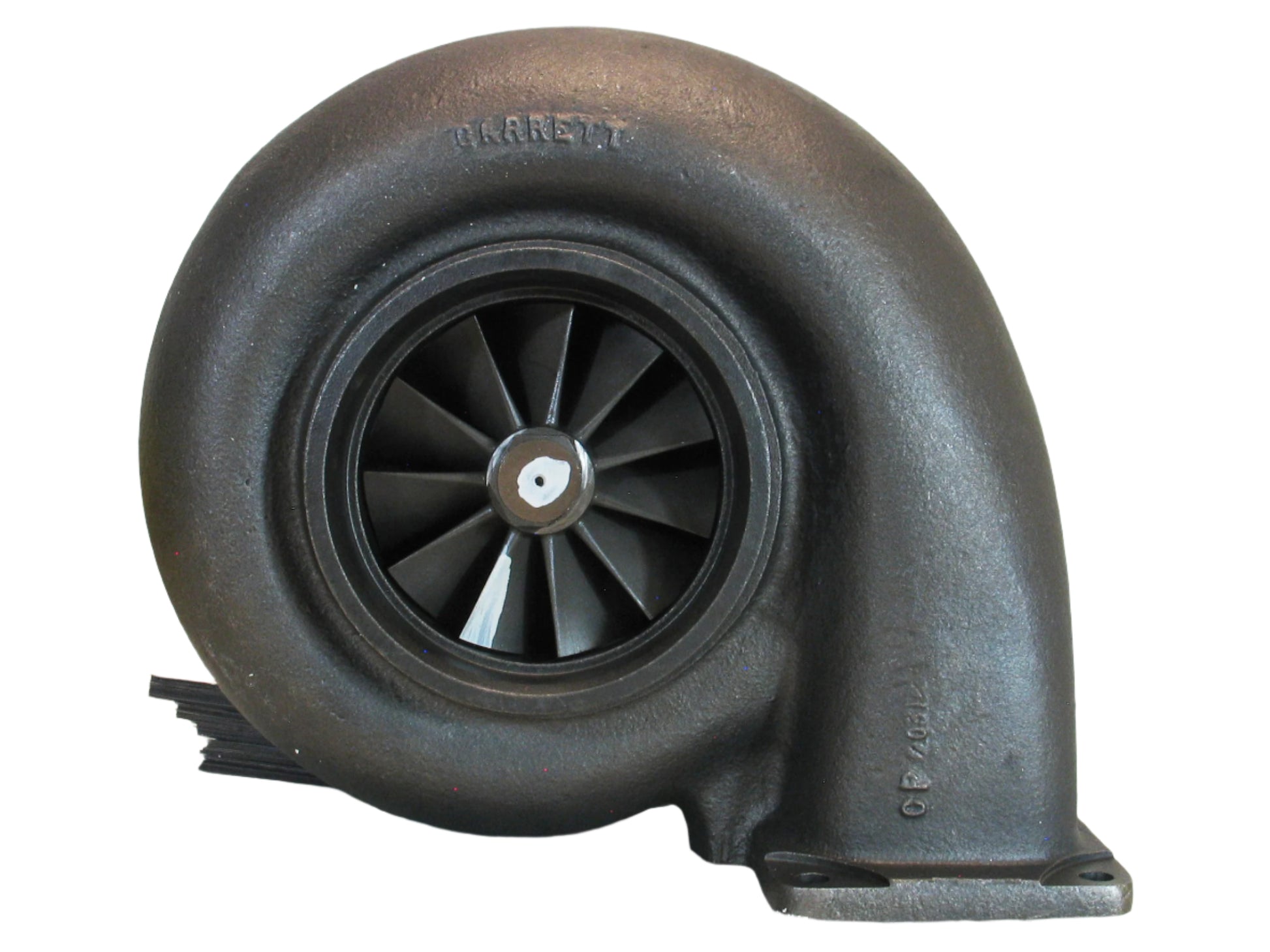

Turbine Housing: 409688-0033

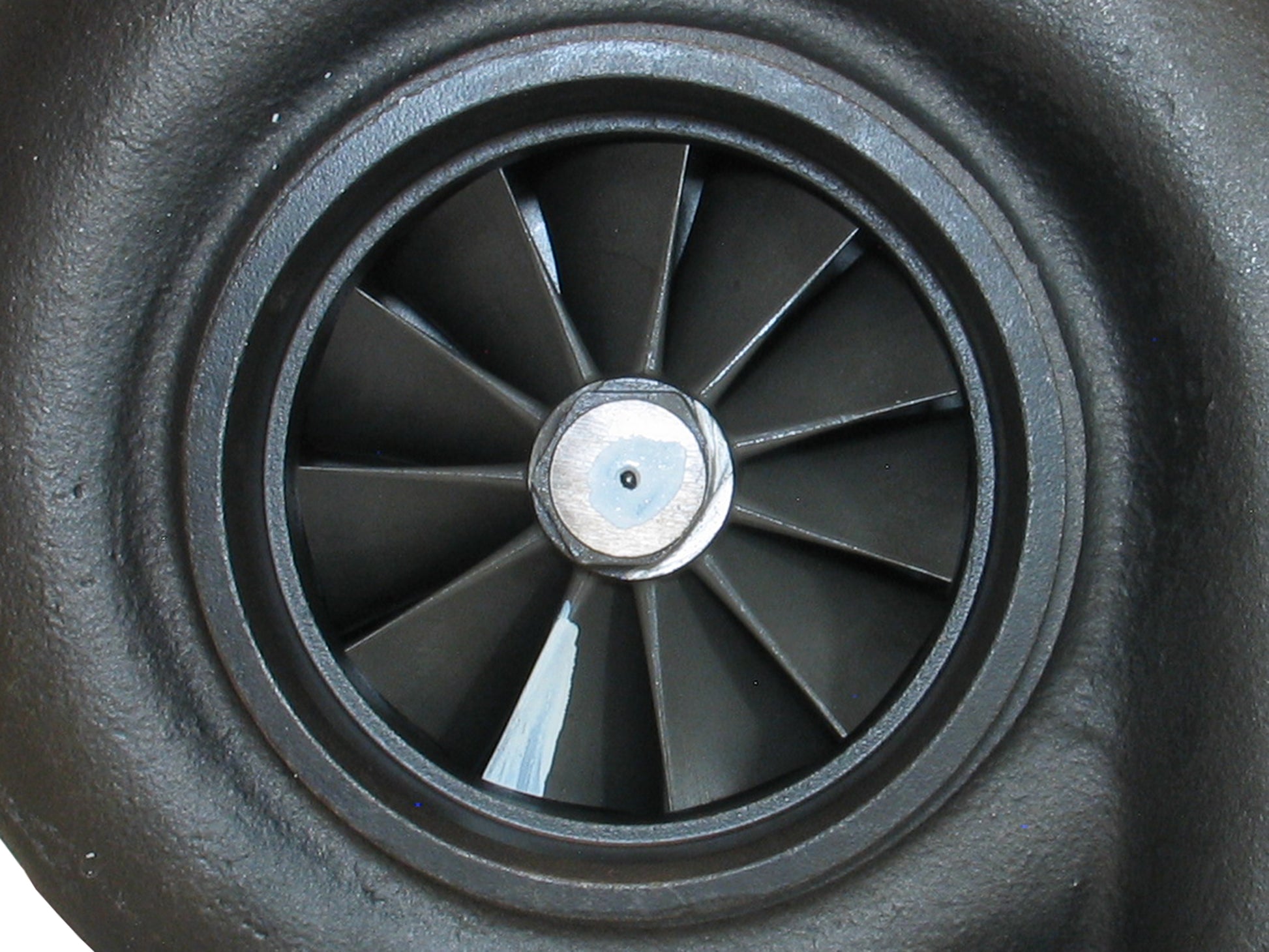

Turbine Wheel: 451882-0004 (Ind. 129 mm, Exd. 111.6 mm, 11 Blades)

Application:
1999- Caterpillar Industrial, CV Off Highway with F3524GSI Engine
1999- Waukesha Industrial, CV Off Highway with F3524GSI Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
