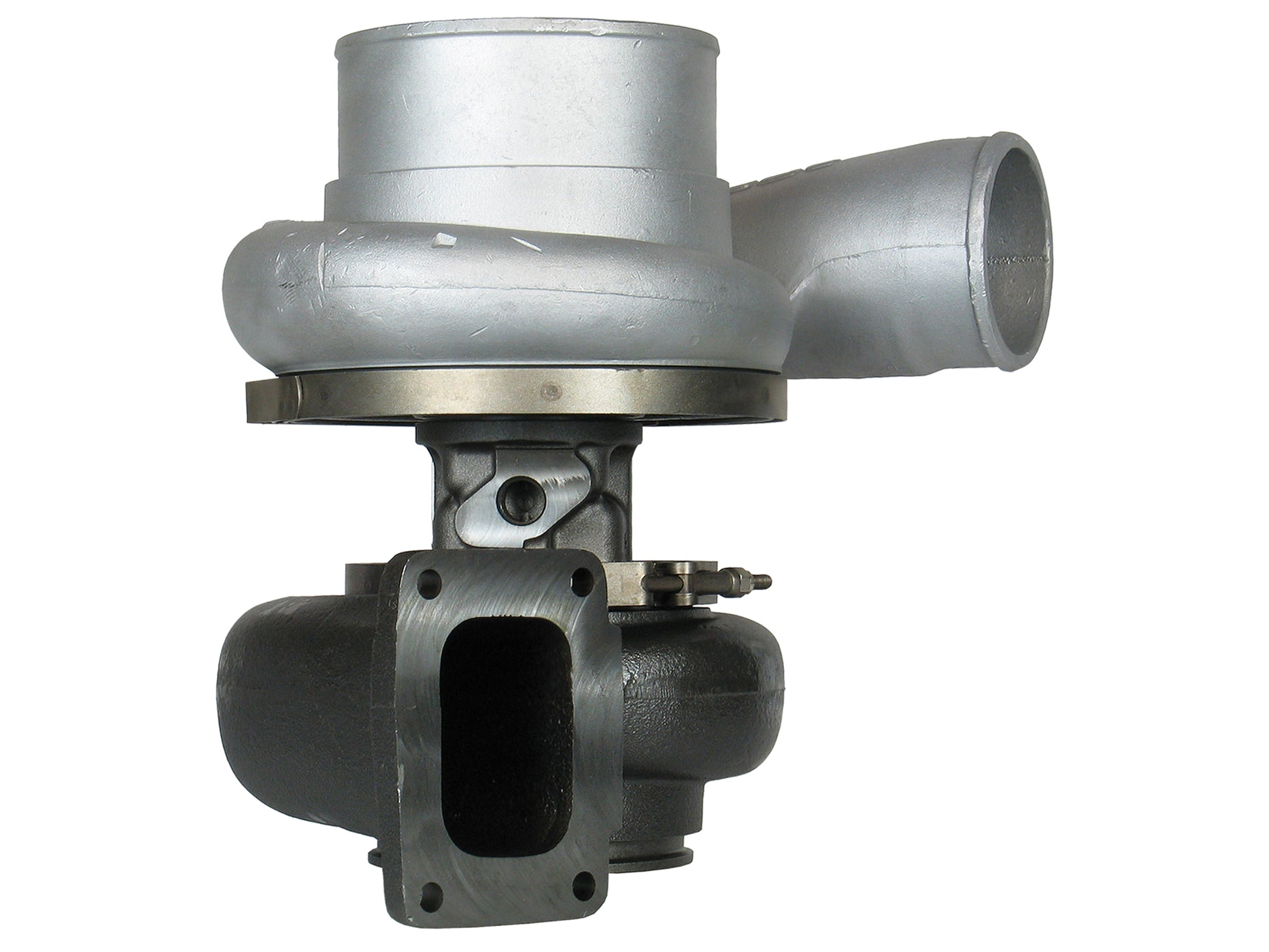

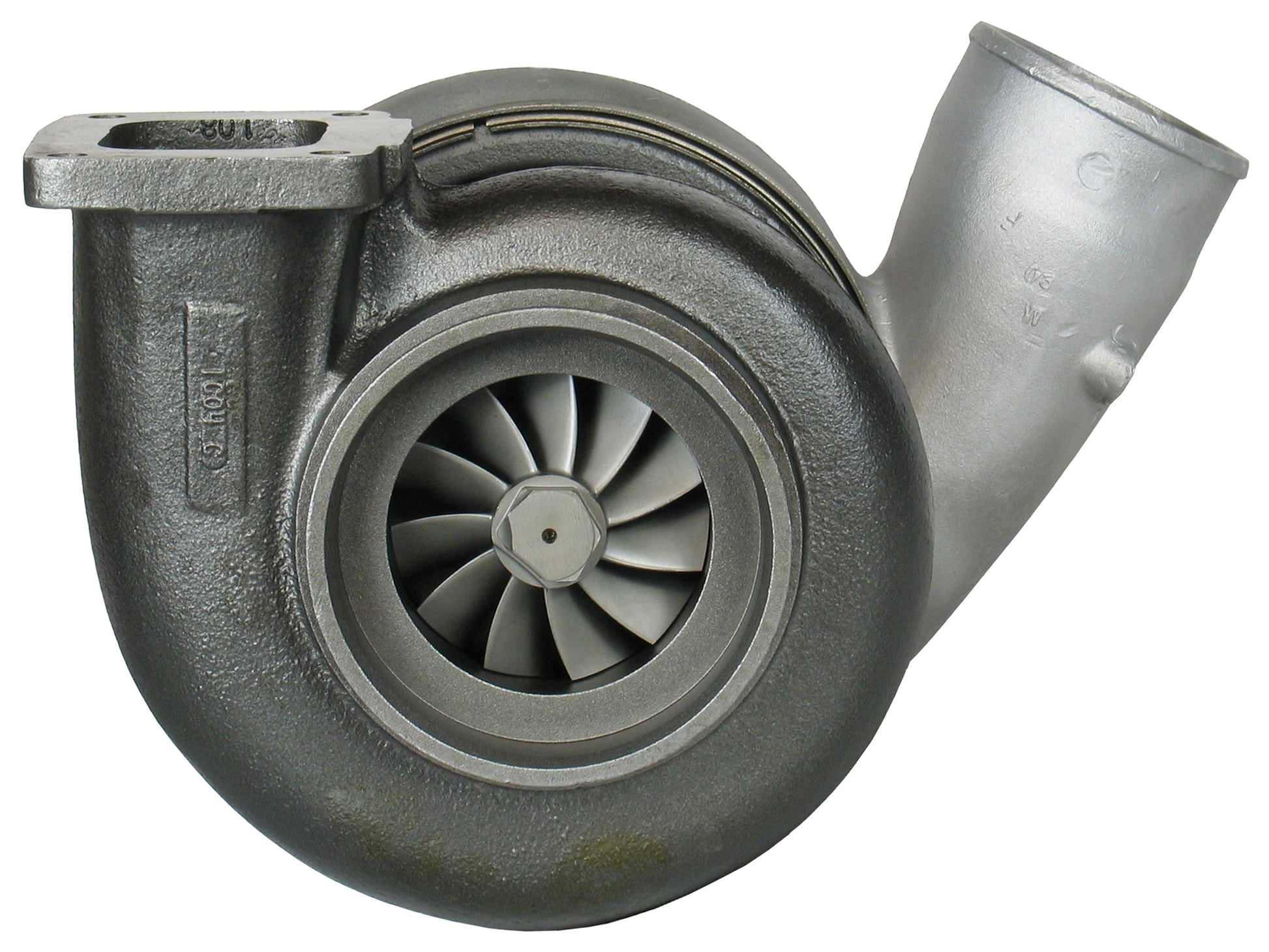

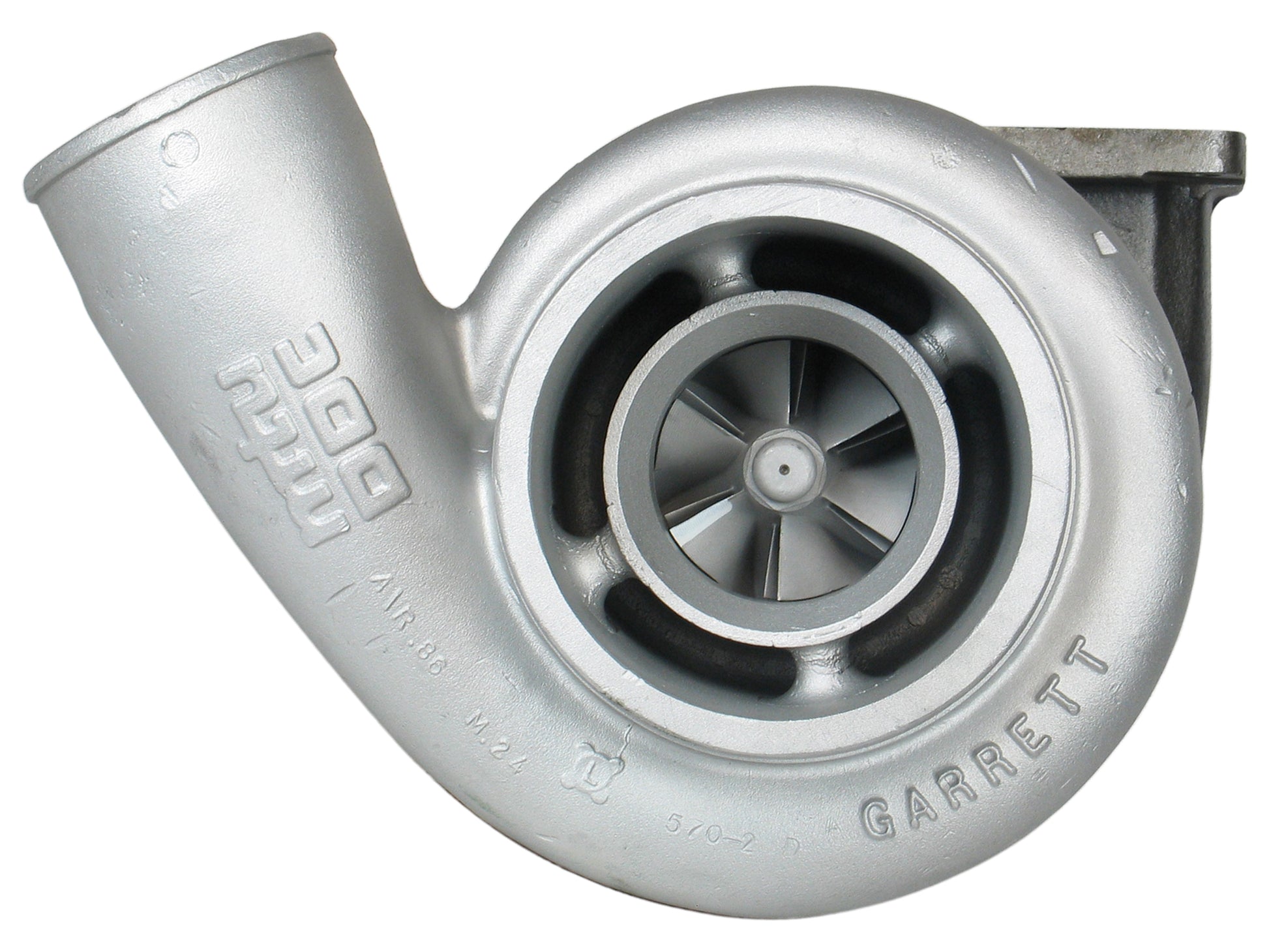

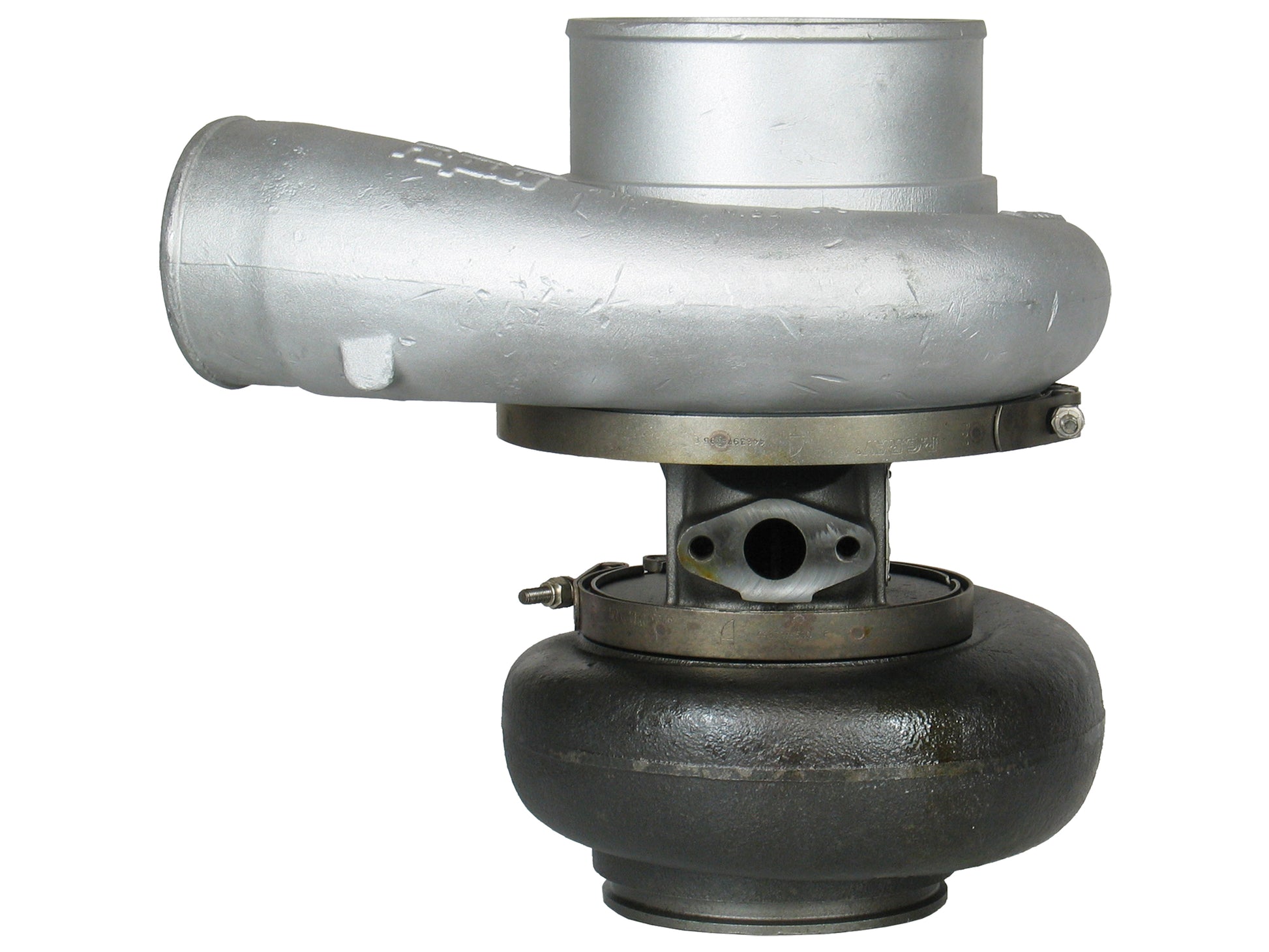

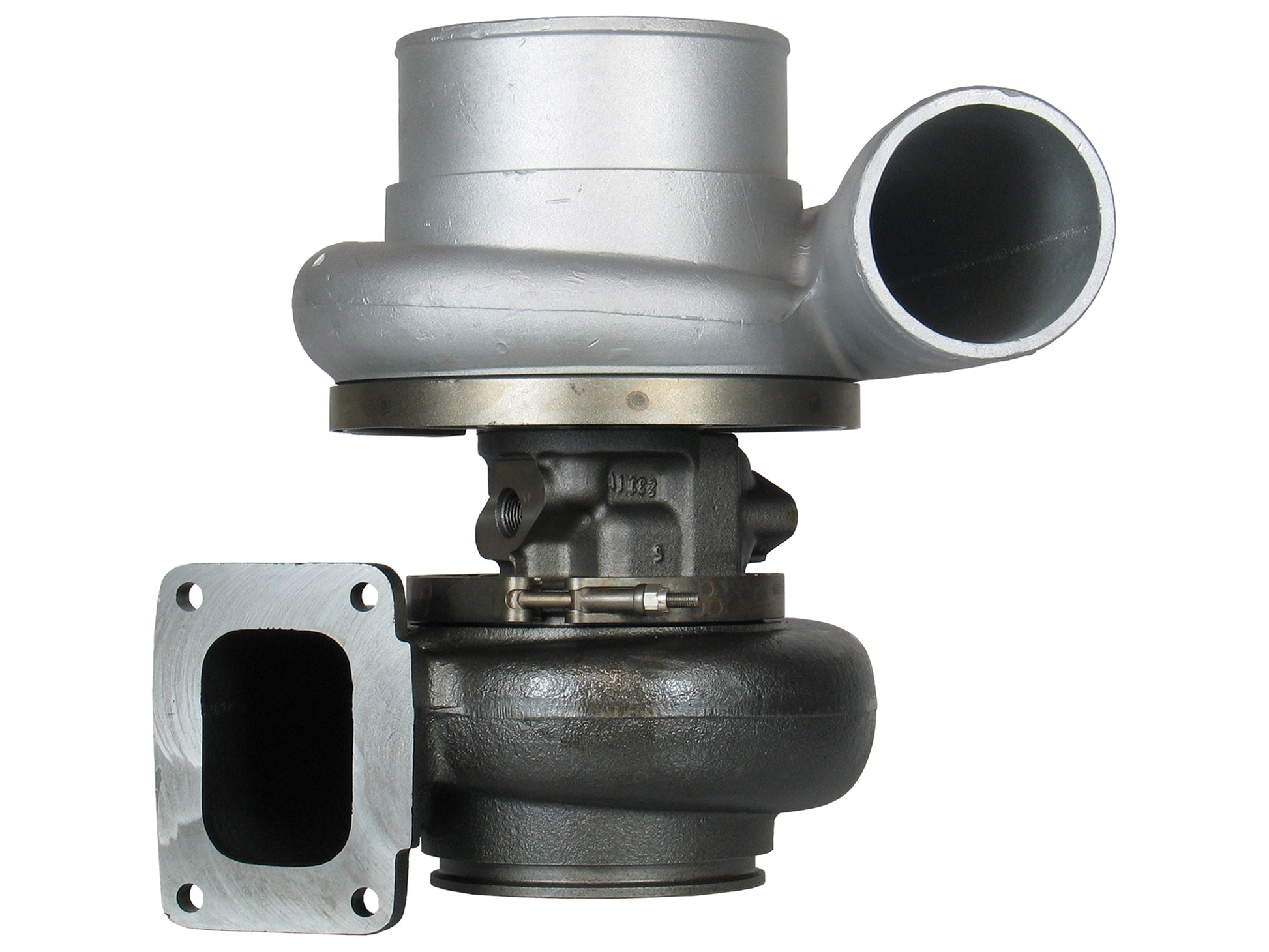

BTV7501 BTV8501 Turbo DDC-MTU Genset 12V4000 4.8L Diesel Engine 714322-5005SKU: F714322-5005
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 714322-5005S
Interchangeable Number: 714322-0005, 714322-5005, 471084-0006, 471084-5006, 471084-5006S, 471084-0008, 471084-5008, 471084-5008S, 714322-0002, 714322-5002, 714322-5002S
OEM Number: 23540088, 5260200805, 5260201005, E23540088
Turbo Model: BTV7501, BTV8501
Engine Manufacturer: DDC-MTU
Displacement: 48.0L, 48000 ccm, 12V Cylinders
Power: 2025 HP
Speed: 1900 RPM
Back Plate: 451361-0001
Bearing Housing: 451358-0006 (Water Cooled)
CHRA: 451491-0016 (451491-5016S, 5260200305)
Compressor Cover: 706505-0002 (23540091)
Compressor Wheel: 448671-0019 (Ind. 74.7 mm, Exd. 102.3 mm, Trim 53, 6+6 Blades, Boreless)
Gasket (Oil Outlet): 210018 (129120)
Gasket (Turbine Inlet): 409038-0001 (7M7273)
Heat Shield: 407967-0003
Repair Kit: 468267-0007 (468267-0006, 468267-0000)
Turbine Housing A/R: 1.08
Turbine Housing: 441881-0037 (5240810101)
Turbine Wheel: 448953-0003 (Ind. 99.1 mm, Exd. 87.9 mm, 11 Blades)
2000- Genset with DDC-MTU 12V4000 Engine
2010- Mine Truck (60Hz Genset) with with DDC-MTU 12V4000 Engine
Generator (50Hz) with DDC-MTU 12V4000 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
