TURBOTURBOS REMANUFACTURED TURBOCHARGER
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

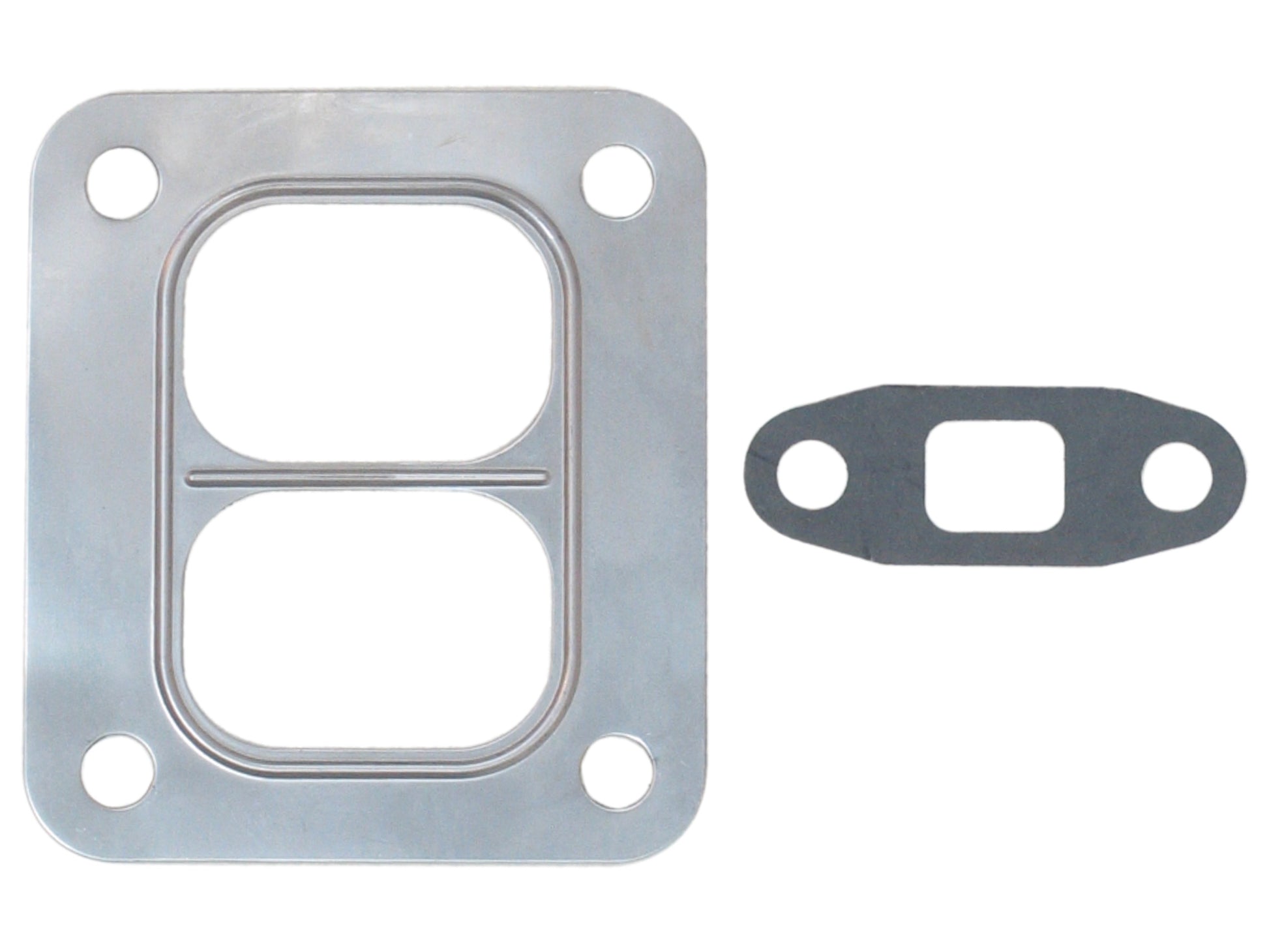

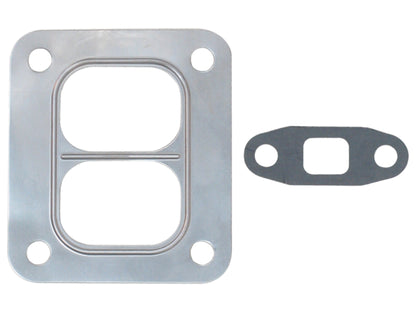

NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 716236-5001
Interchangeable Number: 716236-0001, 716236-5001S, C61CND-S0044B, C61CND-S0044G, CI89, VA240044
OEM Number: 02800132, 114400-2710, 1144002710, 114400-272, 114400272, 114400-2720, 1144002720, 114400-2721, 1144002721, 6T-577
Turbo Model: TB4154
Year: 2001-
Engine: 6BD1-T, 6BD1T, 6BD1-TPJ, 6BD1TPJ
Engine Manufacturer: Isuzu
Displacement: 5.8L, 5800 ccm, 6 Cylinders
Fuel: Diesel
Power: 153 HP
Speed: 2500 RPM
Angle α (Compressor Housing): 180°
Angle β (Turbine Housing): 299°
Back Plate: 408045-0077
Bearing Housing: 430027-0082 (Oil Cooled)
CHRA: 447450-0243 (447450-5243S)
Compressor Cover: 408274-0025
Compressor Wheel: 409179-0025 (5149541, 331640917925)(Ind. 55.37 mm, Exd. 70 mm, Trim V, 8+8 Blades, Flat Back)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Heat Shield: 409299-0001 (409299-0000)
Repair Kit: 468100-0000 (3524796, 2W0716, 6N7236, 168984, 310063, 188401-0000, 188006-0000)(1100040750)
Turbine Housing: 716237-0001
Turbine Wheel: 451309-0003 (407276-0006, 407276-0019, 410188-0003, 410188-0006, 410188-0037, 446905-0002, 446905-0005, 446905-0007, 446905-0010, 451309-0004)(Ind. 74. mm, Exd. 64.62 mm, Trim 10.79, 11 Blades)
Application:
2001- Hitachi EX200-2, EX200-3 Hydraulic Excavator with 6BD1T, 6BD1-TPJ Engine
2001- Hitachi Earth Moving with 6BD1T, 6BD1-TPJ Engine
2001- Hitachi Off-Highway Truck with 6BD1T, 6BD1-TPJ Engine
2001- Hitachi Power Shovel with 6BD1T, 6BD1-TPJ Engine
Isuzu Earth Moving with 6BD1T, 6BD1-TPJ Engine
Isuzu Offway with 6BD1T, 6BD1-TPJ Engine
JCB 200XO Offway with 6BD1T, 6BD1-TPJ Engine
JCB Earth Moving with 6BD1T, 6BD1-TPJ Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
