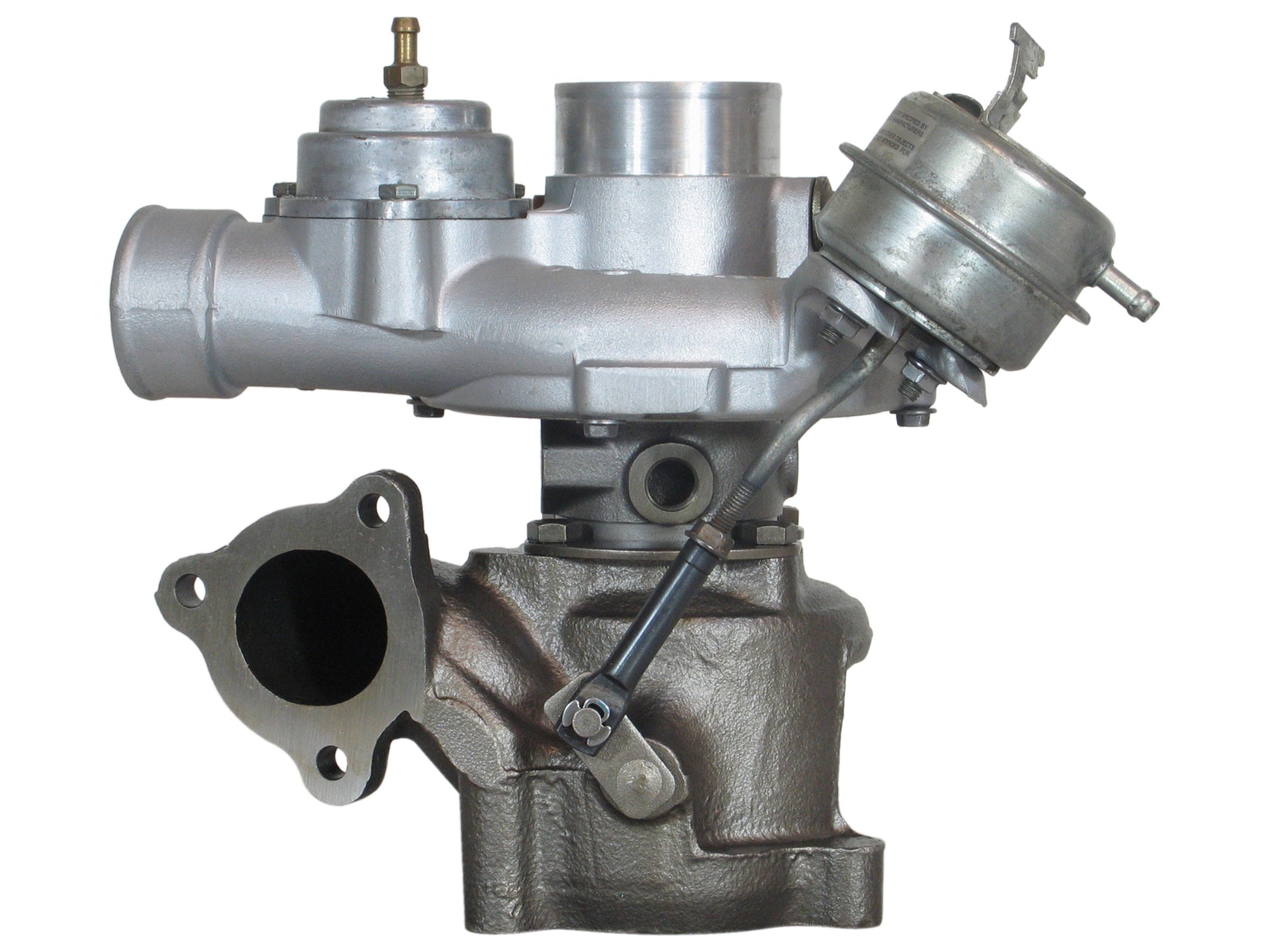

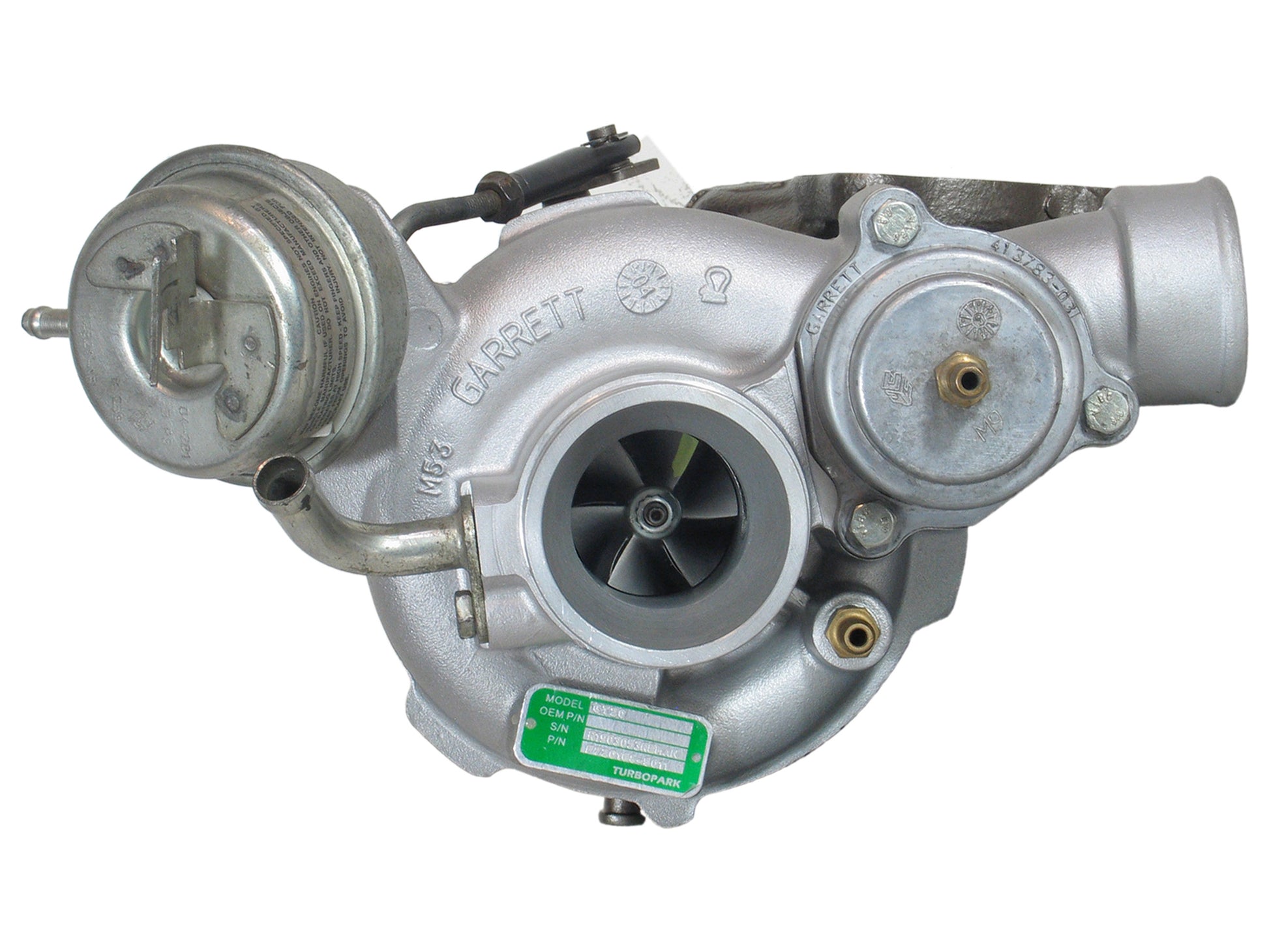

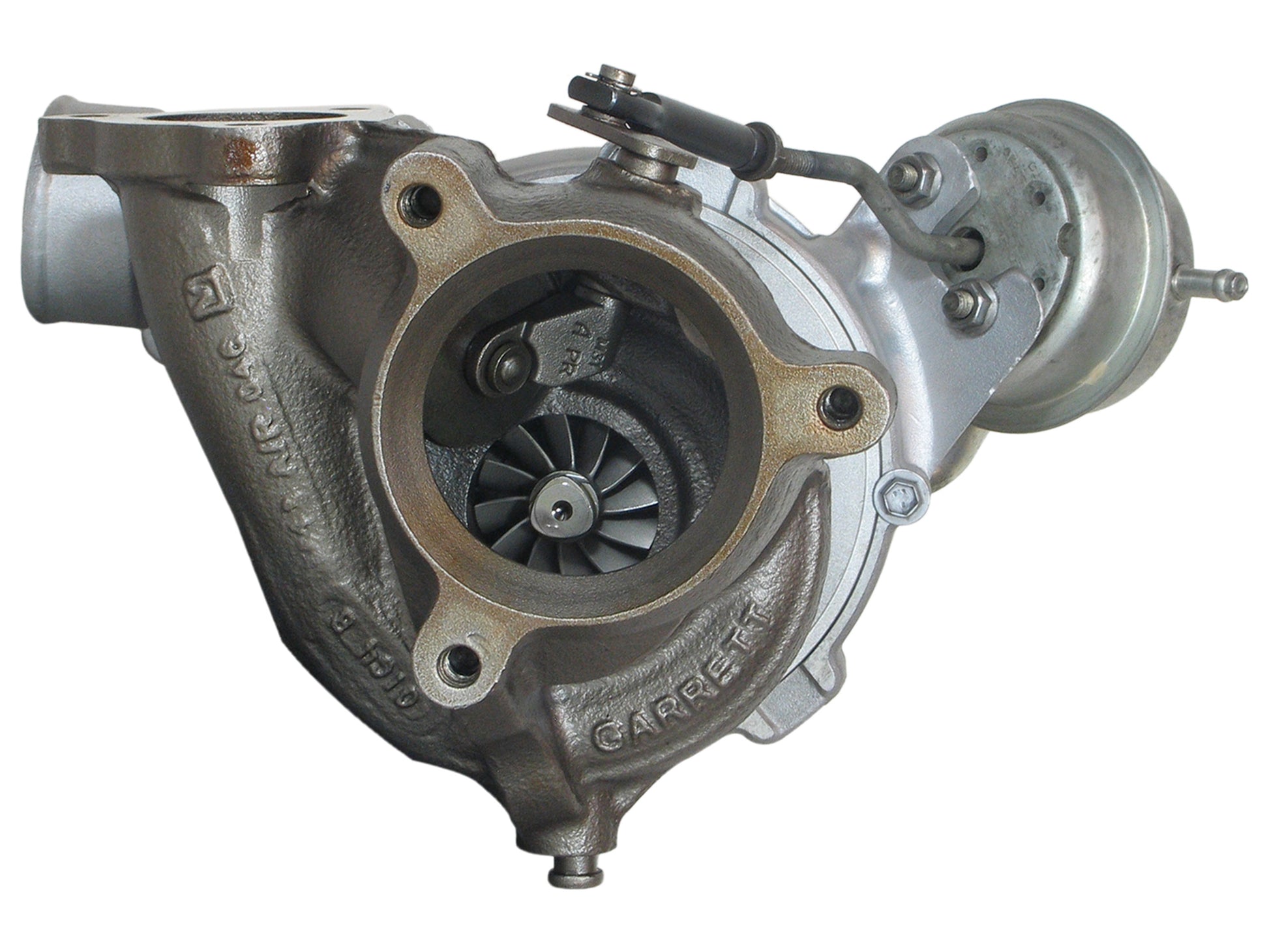

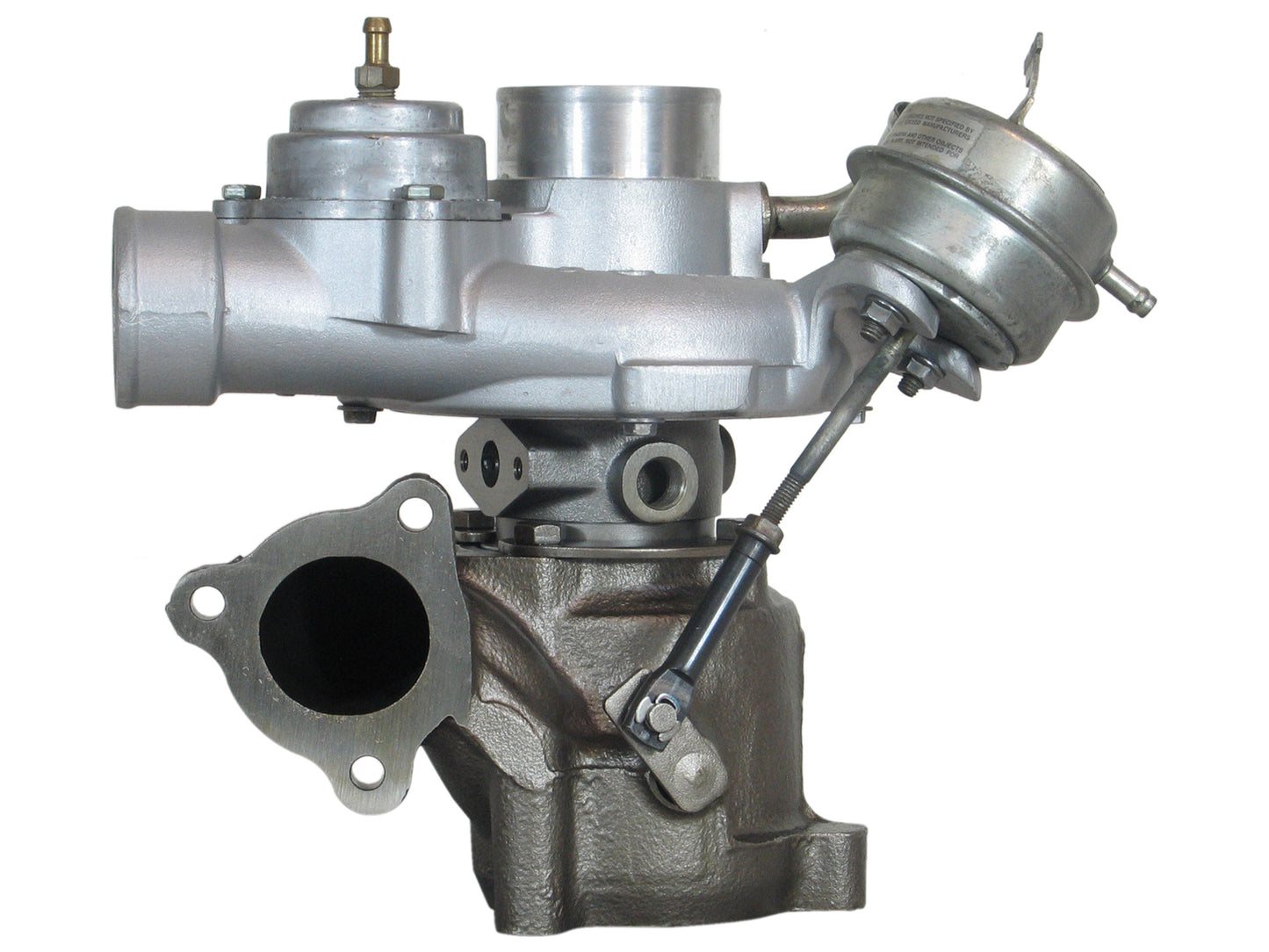

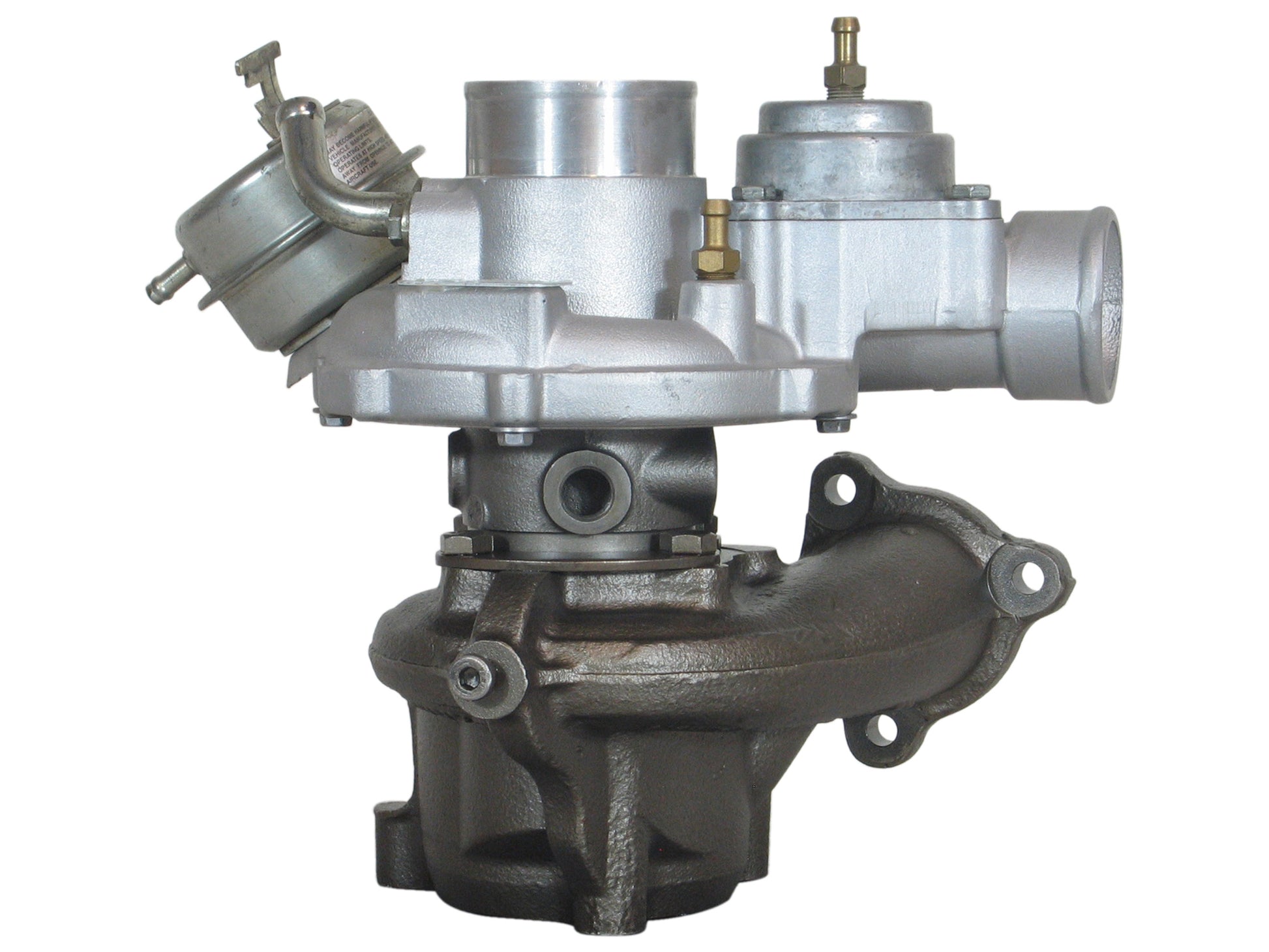

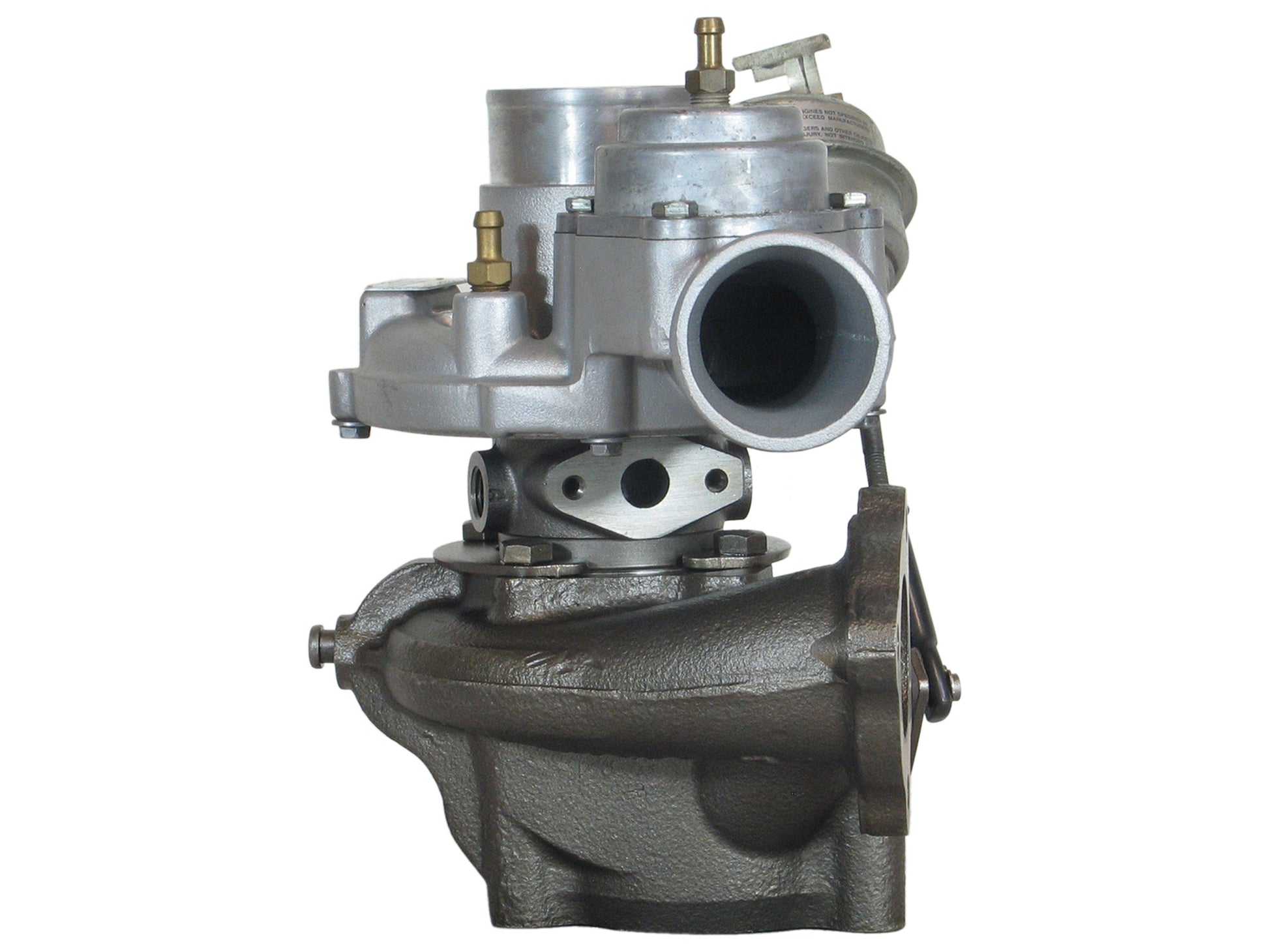

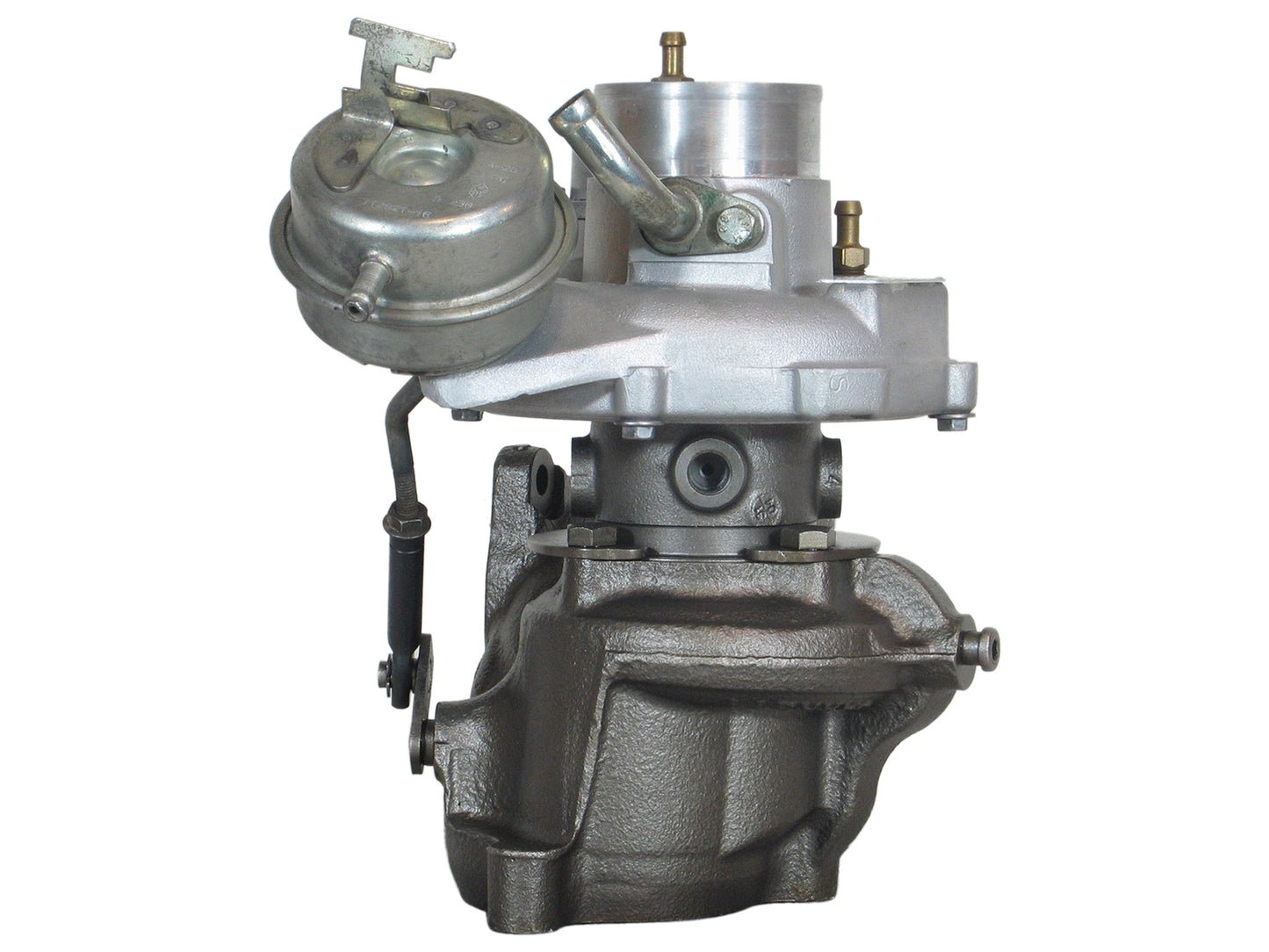

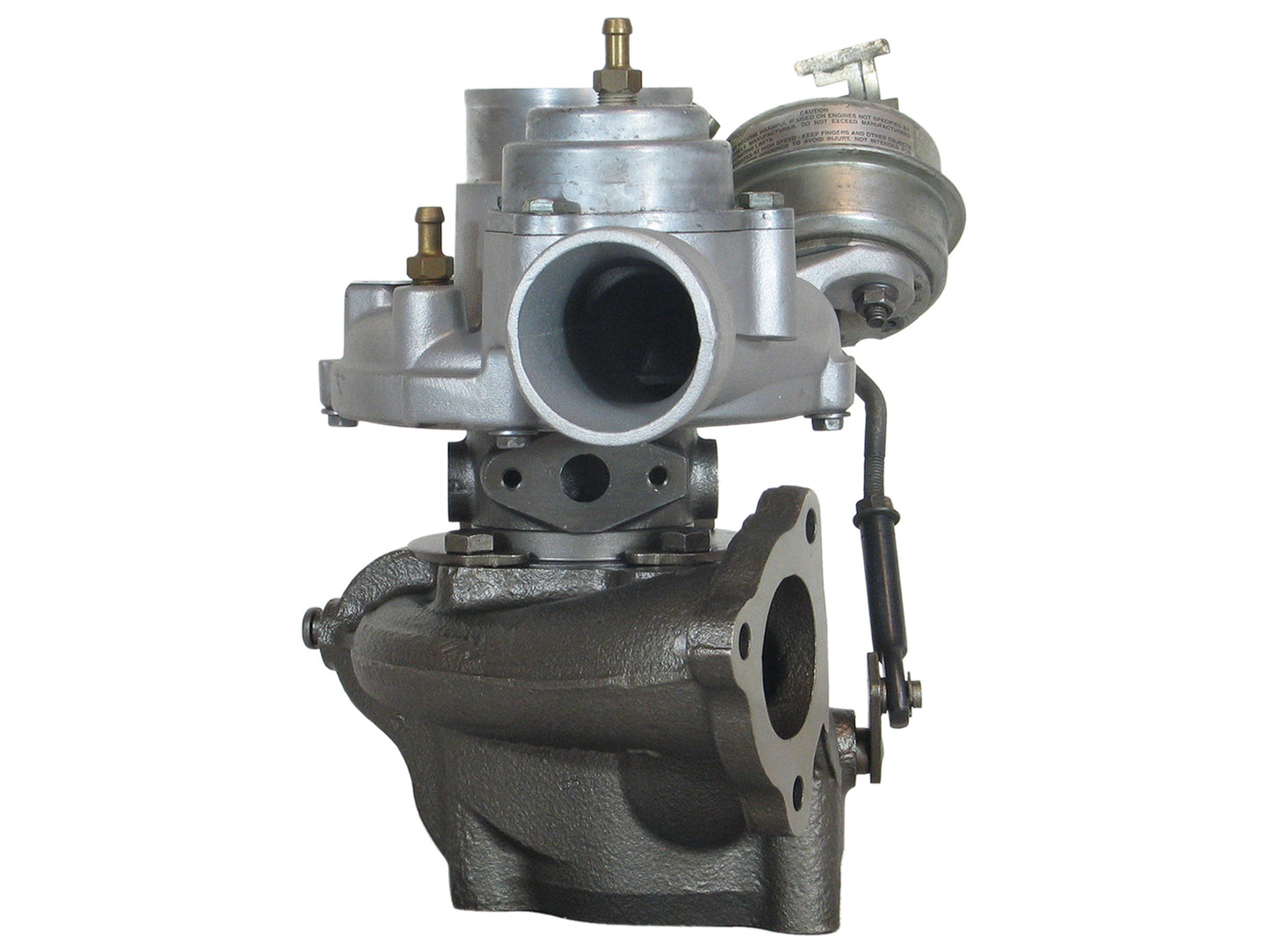

GT20 Turbo Saab 9-3 9-5 Opel Vauxhall Signum Vectra L850 Z20NET 2.0L 720168-5011SKU: F720168-5011
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 720168-5011S
Interchangeable Number: 720168-0011, 720168-5011, 720168-0001, 720168-5001, 720168-5001S
OEM Number: 12755106, 55562671
Turbo Model: GT20, GT2052ELS, GT2052LS
Engine: L850, Z20NET
Engine Manufacturer: Saab
Displacement: 2.0L, 1998 ccm, 4 Cylinders
Power: 130 kW/175 HP
Speed: 5500 RPM
Angle α (Compressor Housing): 185°
Angle ß (Turbine Housing): 294°
Back Plate: 701335-0003 (766035-0002, 766035-0008)(1102015302)
Bearing Housing: 434578-0015/713782-0014/702372-0007 (1102015463)
CHRA: 433352-0052/433352-0088 (1102020902, 1000010345)
Compressor Cover: 413663-0039/413663-0142
Compressor Wheel: 436131-0005/729612-0005 (Ind. 38.6 mm, Exd. 52 mm, 6+6 Blades, Super Back)(1102015406)
Diaphragm (Recirculation Valve): 432441-0003
Gasket (Oil Outlet): 210243 (Paper)
Gasket (Turbine Inlet): 210830 (Inox Steel)
Heat Shield: 443768-0003 (702486-0011)(1102015340)
Repair Kit: 732252-0001 (1102015756)
Thrust Kit: 732248-0003 (1102015762)
Turbine Housing A/R: 0.46
Turbine Housing: 720167-0013

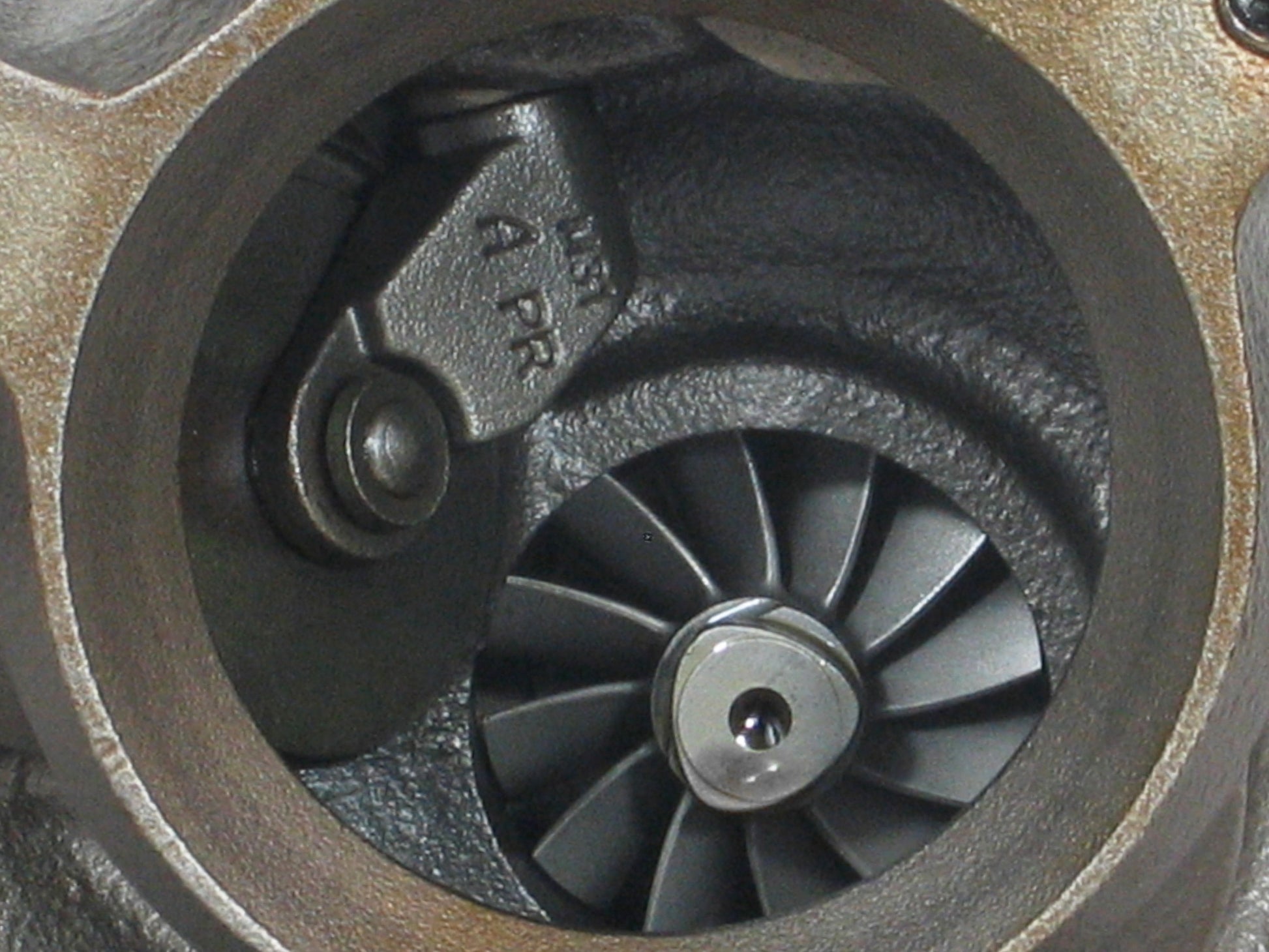

Turbine Wheel: 434715-0028/434715-0072 (Ind. 47 mm, Exd. 38.5 mm, 12 Blades)(1102020443)
Wastegate Settings (Lift Shaft): 0.38 mm
Wastegate Settings (Pressure): 0.435-0.475 bar
NOTE: Not interchangeable with MHI (Mitsubishi Heavy Industries) turbocharger.
2002- Opel Signum with L850 Engine
2002- Saab 9-3, 9-3 II, 9-5 with L850 Engine
2002- Vauxhall Signum, Vectra with L850 Engine
2003-05 Vauxhall Vectra, Vectra C with Z20NET Engine
2003-08 Opel Signum, Vectra, Vectra C with Z20NET Engine
2003-09 Vauxhall Signum, Vectra, Vectra C with Z20NET Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
