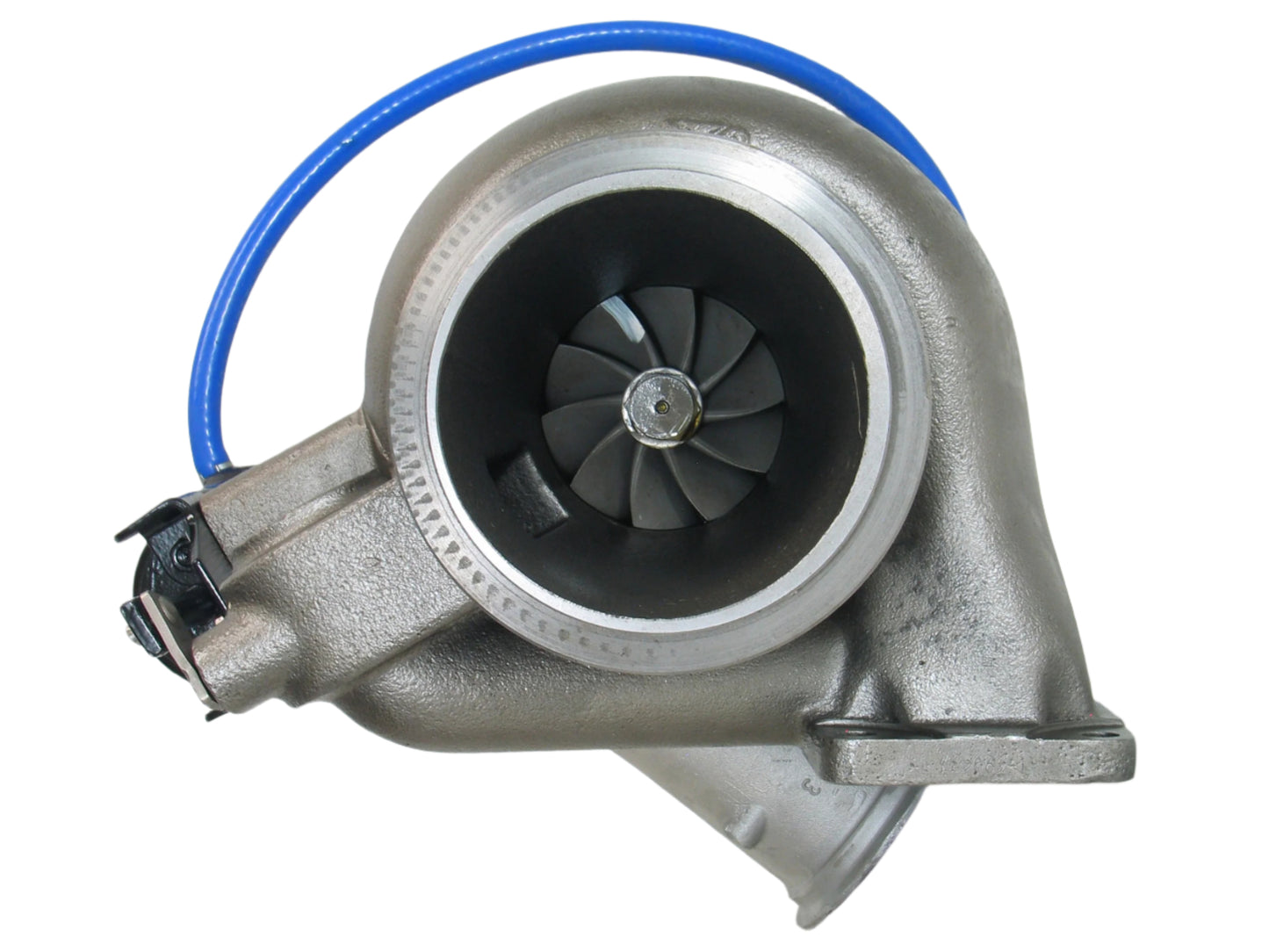

GTA429402BS Turbo Caterpillar Industrial C10 12.0L Diesel Engine 724390-5002
GTA429402BS Turbo Caterpillar Industrial C10 12.0L Diesel Engine 724390-5002
SKU:F724390-5002
Regular price
$1,395.00
Regular price
$0.00
Sale price
$1,395.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Orders ship Monday-Friday, usually within 24 hours of purchase.
International shipping subject to VAT and/or other import tax calculated during checkout.
TURBOTURBOS REMANUFACTURED TURBOCHARGER
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 724390-5002
Interchangeable Number: 724390-0002, 724390-5002S, 724390-0001, 724390-5001, 724390-5001S, 724390-0003, 724390-5003, 724390-5003S, 724390-0004, 724390-5004, 724390-5004S, 724390-0005, 724390-5005, 724390-5005S, 724390-0008, 724390-5008, 724390-5008S, 724390-0009, 724390-5009, 724390-5009S
OEM Number: 10R-0457, 10R0457, 10R-0759, 10R0759, 203-3376, 2033376, 203-6124, 2036124, 20R-3172, 20R3172, 214-6091, 2146091, 238-4450, 2384450, 241-1700, 2411700, 247-2967, 2472967, 255-8140, 2558140
Serial Number: BCX00001-UP, BCX121-UP
Turbo Model: GTA4294BS
Engine: C10
Displacement: 12.0L, 12000 ccm, 6 Cylinders
Emission Standard: Tier 2
Fuel: Diesel
Angle α (Compressor Housing): 134°
Angle β (Turbine Housing): 30°
Actuation: Pressure
Actuator: 729592-0005
Back Plate: 712339-0001 (451333-0001)(6N7962, 331640848713)
Bearing Housing: 712342-0001 (432104-0001)(Oil Cooled)
CHRA: 712401-0001 (712401-5001S, 451814-0005, 451814-5005S, 451814-0009, 451814-5009S, 150-6304, 1506304, 190-6222, 1906222)
Compressor Cover: 452616-0035/452616-0043/451963-0007 (1923358, 1378930)
Compressor Wheel: 712340-0003 (451193-0005, 712340-0009, 712340-0010, 434354-0014)(Ind. 67.7 mm, Exd. 94 mm, 6+6 Blades, Super Back)
Gasket (Oil Inlet): 210019 (409266-0003, 3819900, 9737, 1S6595, 201049, 129119)(1900000035)
Gasket (Oil Outlet): 210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 201048, 311585, 3709738, 3500682, 1S4810, 9988, 9738, 3519763, 210018-0000)(Paper)(1900000025)
Heat Shield: 410366-0007 (410366-0003, 410366-0004)
Repair Kit: 709153-0001 (468132-0010, 709153-0002, 709153-0005)(13***75)
Turbine Housing: 723684-0001/723864-0005 (2033377)
Turbine Wheel: 715713-0001 (451724-0002)(Ind. 75 mm, Exd. 82.17 mm, 10 Blades)
Turbo Technology: Wastegate
Application:
Caterpillar Industrial with C10 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 724390-5002
Interchangeable Number: 724390-0002, 724390-5002S, 724390-0001, 724390-5001, 724390-5001S, 724390-0003, 724390-5003, 724390-5003S, 724390-0004, 724390-5004, 724390-5004S, 724390-0005, 724390-5005, 724390-5005S, 724390-0008, 724390-5008, 724390-5008S, 724390-0009, 724390-5009, 724390-5009S
OEM Number: 10R-0457, 10R0457, 10R-0759, 10R0759, 203-3376, 2033376, 203-6124, 2036124, 20R-3172, 20R3172, 214-6091, 2146091, 238-4450, 2384450, 241-1700, 2411700, 247-2967, 2472967, 255-8140, 2558140
Serial Number: BCX00001-UP, BCX121-UP
Turbo Model: GTA4294BS
Engine: C10
Displacement: 12.0L, 12000 ccm, 6 Cylinders
Emission Standard: Tier 2
Fuel: Diesel
Angle α (Compressor Housing): 134°
Angle β (Turbine Housing): 30°
Actuation: Pressure
Actuator: 729592-0005
Back Plate: 712339-0001 (451333-0001)(6N7962, 331640848713)
Bearing Housing: 712342-0001 (432104-0001)(Oil Cooled)
CHRA: 712401-0001 (712401-5001S, 451814-0005, 451814-5005S, 451814-0009, 451814-5009S, 150-6304, 1506304, 190-6222, 1906222)
Compressor Cover: 452616-0035/452616-0043/451963-0007 (1923358, 1378930)
Compressor Wheel: 712340-0003 (451193-0005, 712340-0009, 712340-0010, 434354-0014)(Ind. 67.7 mm, Exd. 94 mm, 6+6 Blades, Super Back)
Gasket (Oil Inlet): 210019 (409266-0003, 3819900, 9737, 1S6595, 201049, 129119)(1900000035)
Gasket (Oil Outlet): 210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 201048, 311585, 3709738, 3500682, 1S4810, 9988, 9738, 3519763, 210018-0000)(Paper)(1900000025)
Heat Shield: 410366-0007 (410366-0003, 410366-0004)
Repair Kit: 709153-0001 (468132-0010, 709153-0002, 709153-0005)(13***75)
Turbine Housing: 723684-0001/723864-0005 (2033377)
Turbine Wheel: 715713-0001 (451724-0002)(Ind. 75 mm, Exd. 82.17 mm, 10 Blades)
Turbo Technology: Wastegate
Application:
Caterpillar Industrial with C10 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
