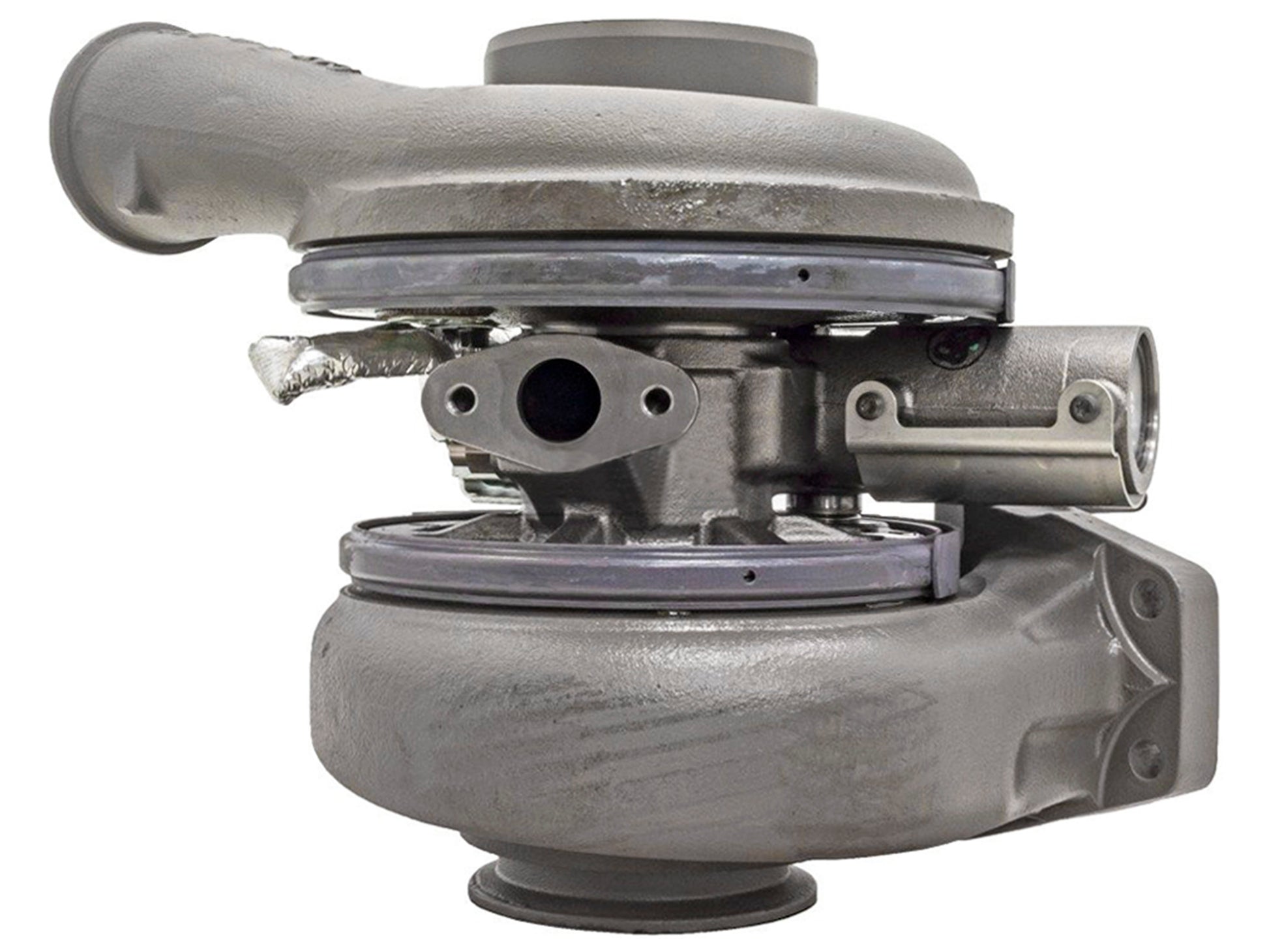

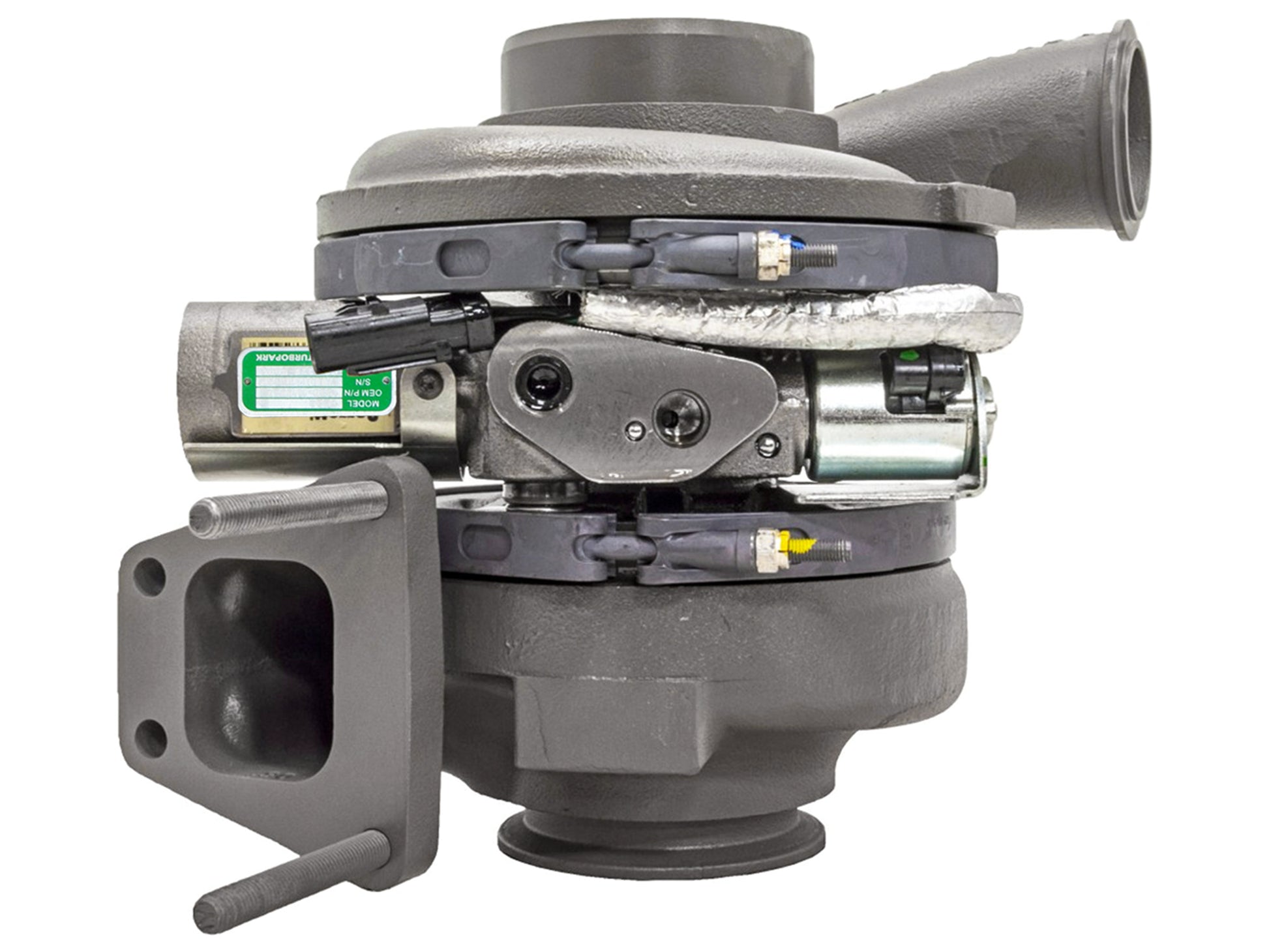

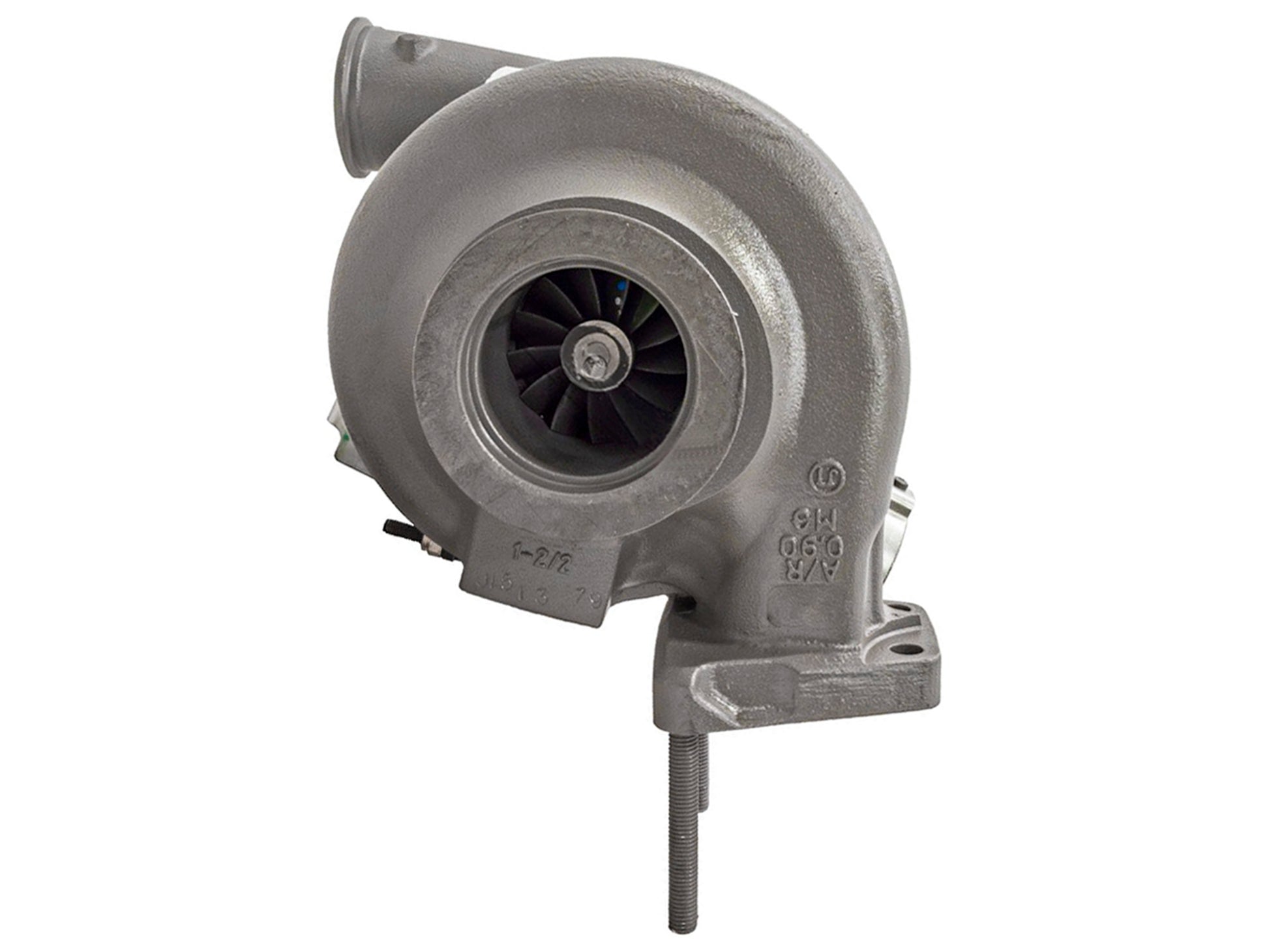

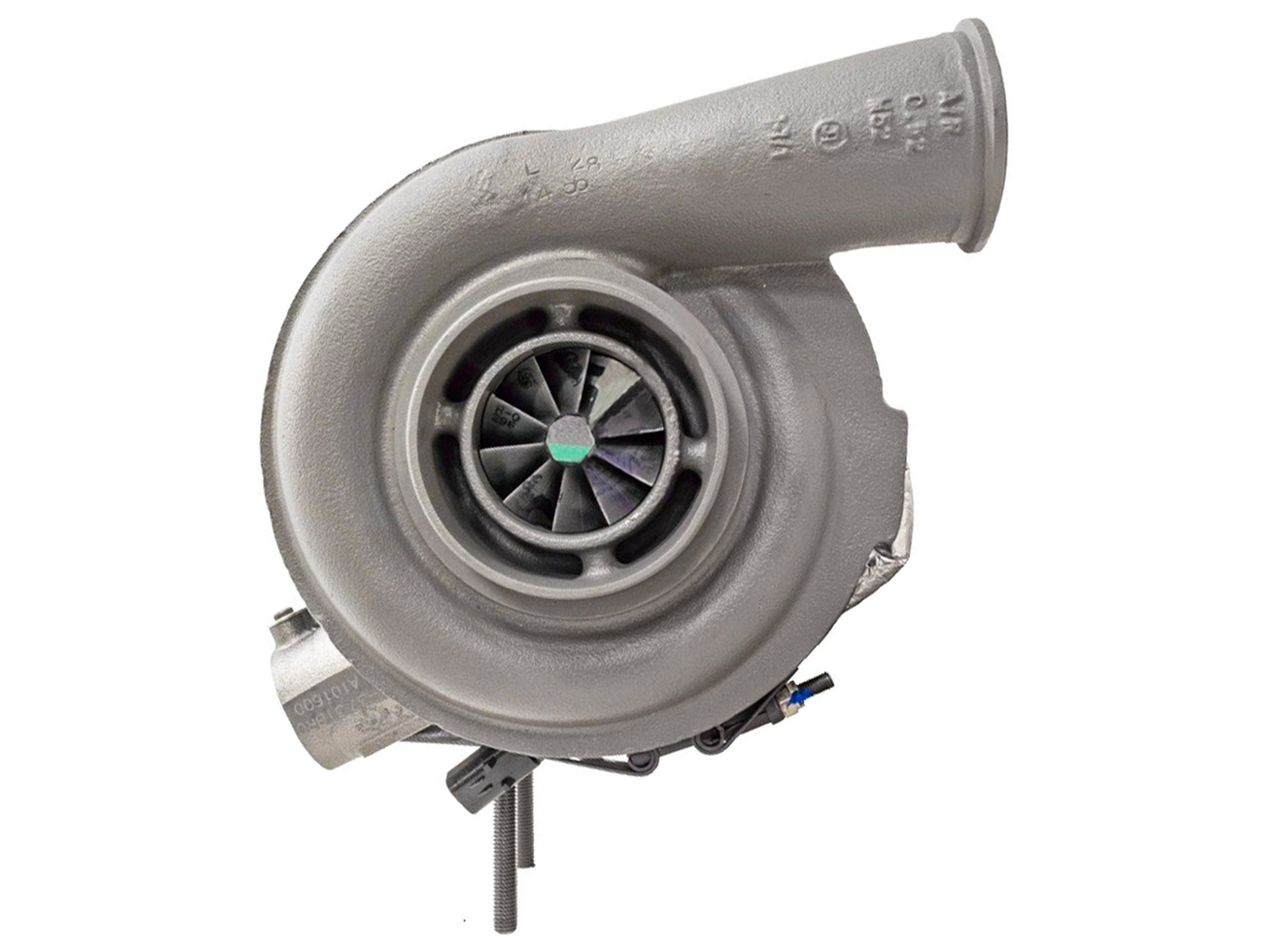

GTB3782VA Turbocharger CAT Bus Truck C7 Acert 7.2L Diesel Engine 764146-5009

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 764146-5009
Interchangeable Number: 764146-0009, 764146-5009S, 764146-0002, 764146-5002, 764146-5002S, 764146-0004, 764146-5004, 764146-5004S, 764146-0005, 764146-5005, 764146-5005S, 764146-0006, 764146-5006, 764146-5006S, 764146-0007, 764146-5007, 764146-5007S, 764146-0008, 764146-5008, 764146-5008S, 764146-0010, 764146-5010, 764146-5010S, 764146-0011, 764146-5011, 764146-5011S, 764146-0012, 764146-5012, 764146-5012S, 764146-0013, 764146-5013, 764146-5013S, 764146-0014, 764146-5014, 764146-5014S, 764146-0015, 764146-5015, 764146-5015S, 764146-0016, 764146-5016, 764146-5016S, 764146-0017, 764146-5017, 764146-5017S, 764146-0018, 764146-5018, 764146-5018S, 764146-0019, 764146-5019, 764146-5019S, 813016-0001, 813016-5001, 813016-5001S
OEM Number: 043-3519, 0433519, 261-3167, 2613167, 261-3168, 2613168, 261-3169, 2613169, 278-4380, 2784380, 280-2018, 2802018, 280-6886, 2806886, 288-5467, 2885467, 288-5468, 2885468, 288-5469, 2885469, 290-0508, 2900508, 290-0511, 2900511, 290-0513, 2900513, 291-3994, 2913994, 291-3995, 2913995, 291-3996, 2913996, 326-1205, 3261205, 7363-PP, 7363PP
Serial Number: C7S00001-UP, C7S1-3133, C7S1-403, C7S1-416, C7S349-416, C7S349-UP, C7S417-3155, C7S4474-UP, C7S5473-UP, C7S857-UP
Turbo Model: GTB3782VA

Year: 2006-
Engine: C7, C7 Acert
Engine Manufacturer: Caterpillar
Displacement: 7.2L, Inline 6 Cylinders
Emission Standard: Tier 3
Fuel: Diesel
Power: 299 HP
Speed: 2200 RPM

Actuation: Electro-Hydraulic
Actuator Solenoid Assembly: 792593-0001 (711122-0016)(904268, 7111220008, 7111220013, 7111220016, 7111220017, 3C3Z6F089A, 3X3Z6F089AA, 5C3Z6F089AA, 5C3Z6F089BA, A1371201N, ROTA1371201N)
Back Plate: 772959-0001
Bearing Housing: 752727-0027 (Oil Cooled)
CHRA: 726529-0057 (726529-5057S, 726529-0031, 726529-5031S)
Compressor Cover: 764150-0001
Compressor Wheel: 765092-0001 (Ind. 59.09 mm, Exd. 82.96 mm, 5+5 Blades)
Gasket (Turbine Inlet): 2692904 (269-2904)
Heat Shield: 720416-0006 (773730-0004)
Repair Kit: 740659-0010
Speed Sensor: 2913979 (291-3979)
Turbine Housing A/R: 0.9, AVNT, VNT
Turbine Housing: 764148-0002
Turbine Wheel: 759331-0010 (759331-0004)(Ind. 65.83 mm, Exd. 64.61 mm, 13 Blades)
Turbo Technology: AVNT

Application:
2006-11 Caterpillar Truck, Bus, Various with C7 Engine
2014- Caterpillar Bus with C7, C7 Acert Engine
2014- Caterpillar Fire Truck with C7, C7 Acert Engine
2014- Caterpillar RV with C7, C7 Acert Engine
2014- Caterpillar Truck with C7, C7 Acert Engine
2014- Caterpillar Various On-Off Highway with C7, C7 Acert Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
