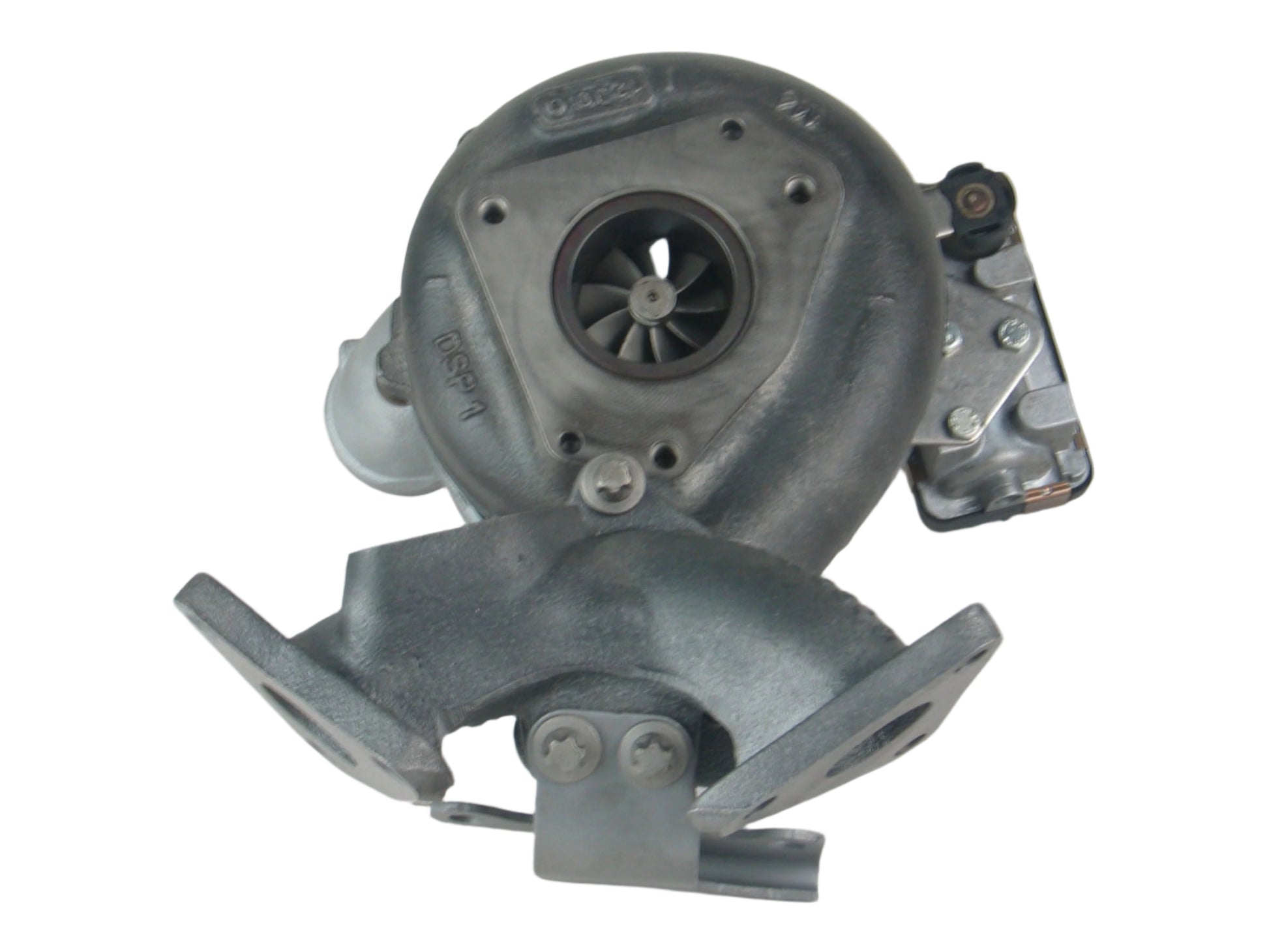

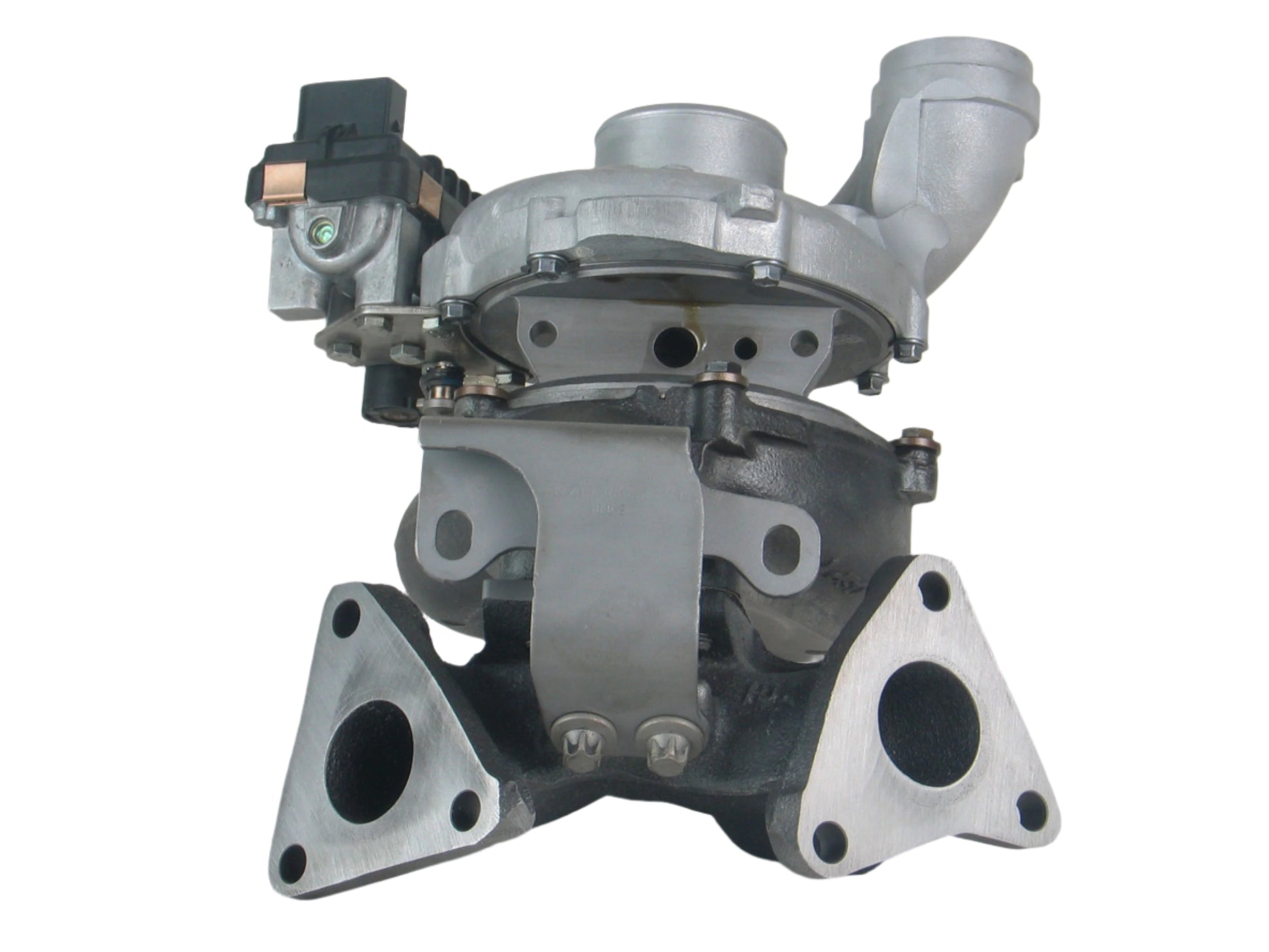

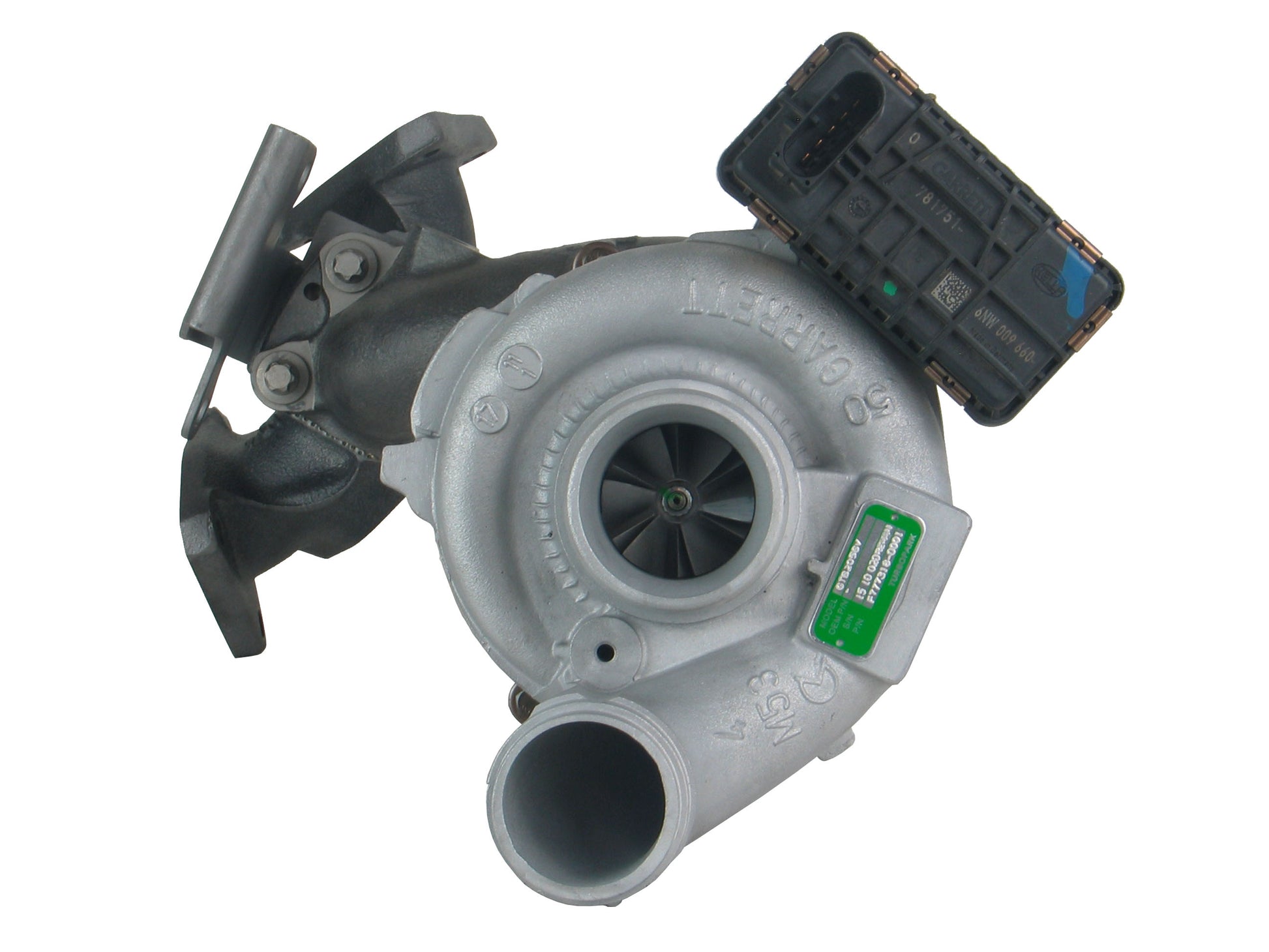

GTB2056VK Turbo Jeep Grand Cherokee Mercedes E M Sprinter II 777318-5001SKU: F777318-5001
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 777318-5001S
Interchangeable Number: 777318-0001, 777318-5001, 764809-0001, 764809-5001, 764809-5001S, 764809-0002, 764809-5002, 764809-5002S, 764809-0004, 764809-5004, 764809-5004S, 781743-0001, 781743-5001, 781743-5001S, 781743-0001, 781743-5001, 781743-5001S
OEM Number: A6420908590, A6420908580, A6420901680, 6420901680, 68004663AA
Serial Number: OFO00646
Turbo Model: GTB2056VK
Engine: OM642, OM642 W2123.0, OM642836, OM642850, OM642852, OM642DE30LA
Engine Manufacturer: Mercedes-Benz
Displacement: 3.0L, 3000 ccm, V6 Cylinders
Category Emission: 5
Power: 165/170 kW, 224 HP
Speed: 1800/4000 RPM
Actuator: 712120- Electronic, G-001 (1850100001)
Back Plate: 730078-0002 (730082-0002)(1102320300, 1300016107)
Bearing Housing: (1900011379)
Compressor Wheel: 737689-0001 (784366-0001)(Ind. 43.4 mm, Exd. 56 mm, 6+6 Blades, Super Back)(1102020401, 1200016402)
Gasket (Oil Inlet and Outlet): 210863
Gasket (Turbine Inlet): 210864
Gasket Kit: (1900100546)
Heat Shield: 400749-0006 (49170-23400, 49177-23100, 128936, 143232, 310279, 313783, 3545928)(1102015340, 2030016127)
Nozzle Ring Assembly: 743595-0012 (1102020832, 30000160661)
Repair Kit: 732252-0001 (5000010066)
Turbine Housing A/R: VNT3
Turbine Wheel: (Ind. 46.78 mm, Exd. 42.87 mm, 9 Blades)(1102022439, 100016248)
2005-13 Mercedes-Benz M-Class ML320 CDi (W164) with OM642 Engine
2007-13 Jeep Grand Cherokee 3.0 CRD with OM642 Engine
2009-13 Mercedes-Benz Sprinter II 219 CDI, 319 CDI, 419 CDI, 519 CDI with OM642DE30LA Engine
2010-13 Mercedes-Benz E-Class E300, E350 CDi (W212) Blue Efficiency with OM642836, OM642850, OM642852 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
