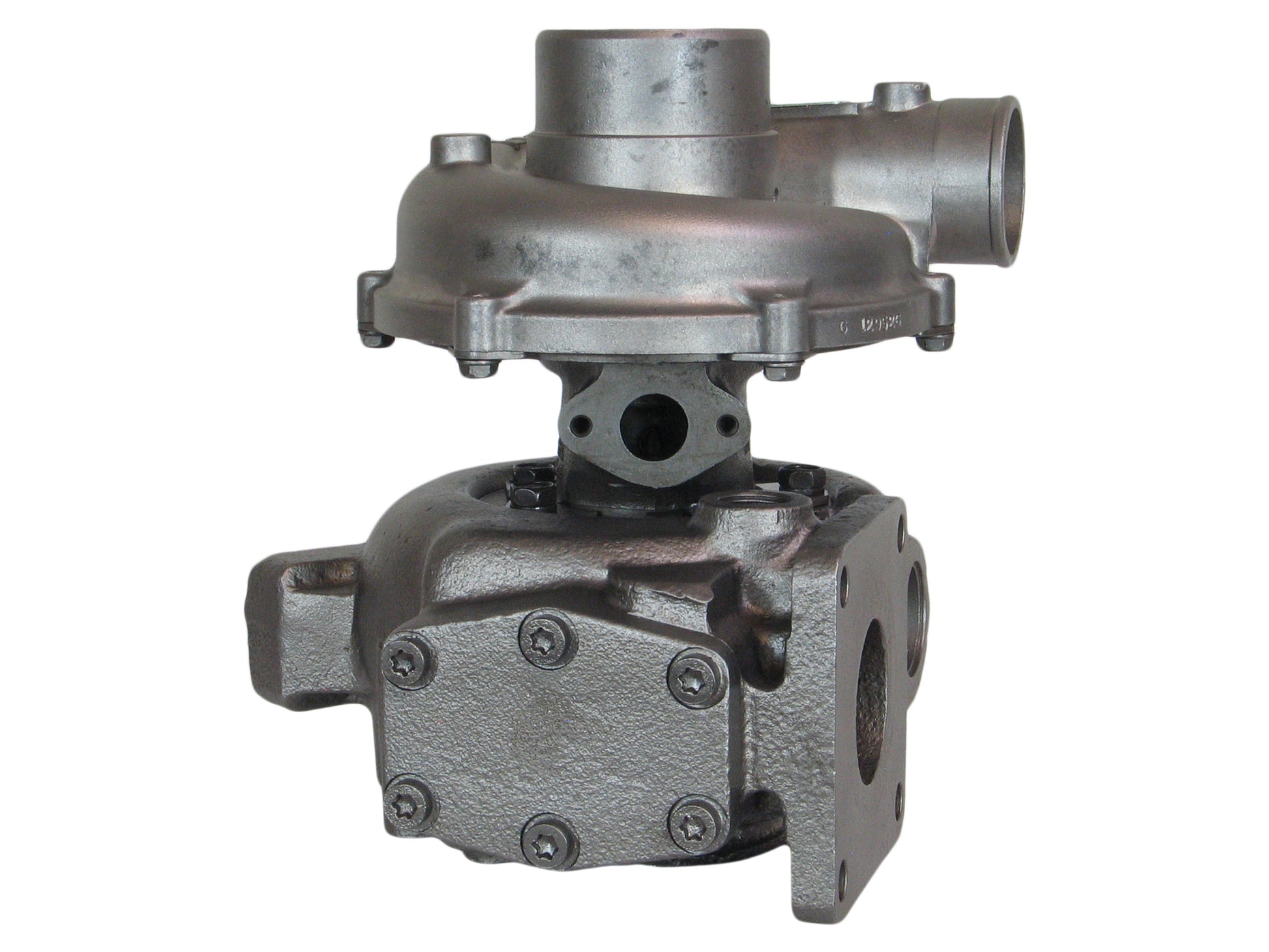

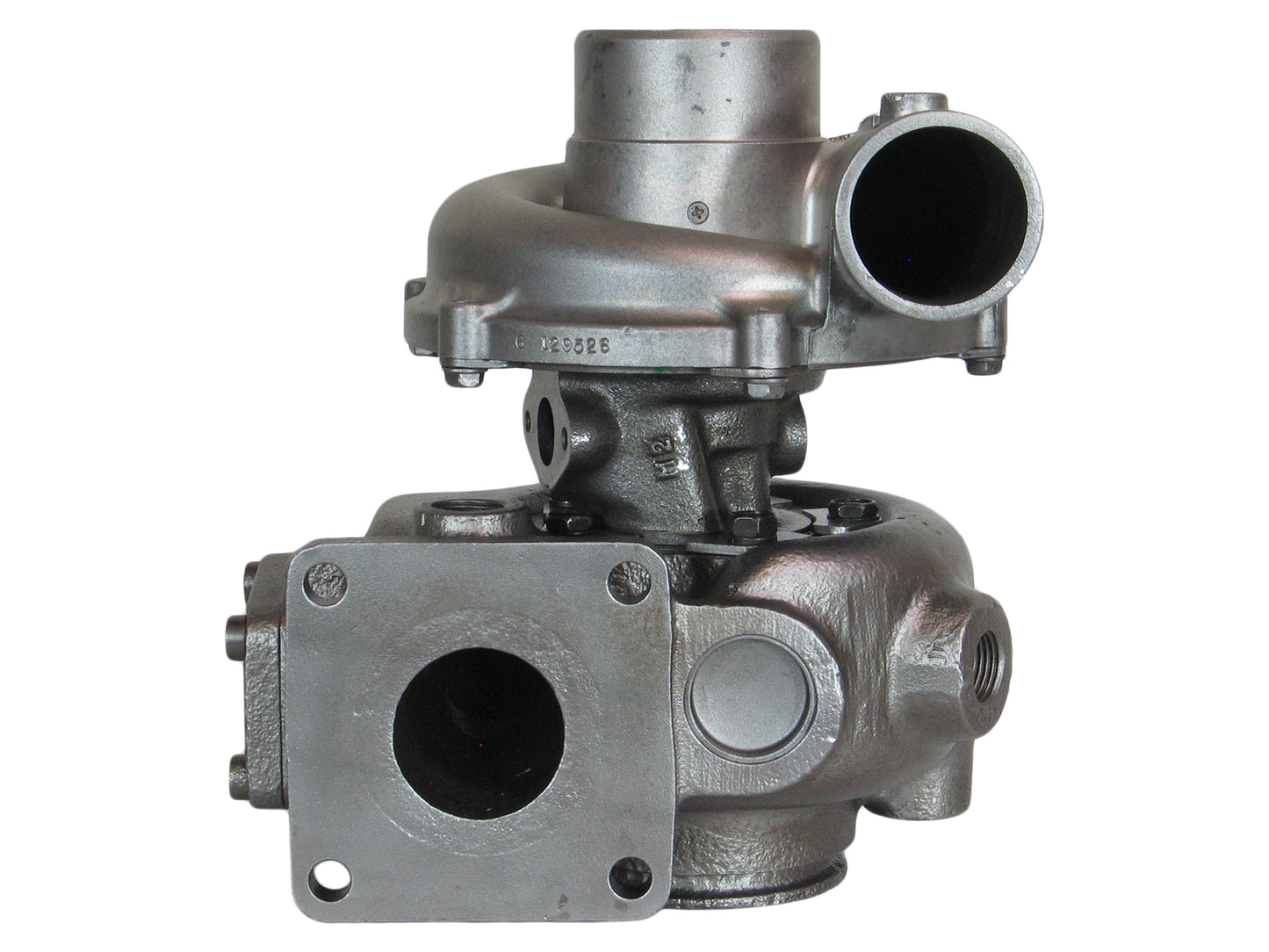

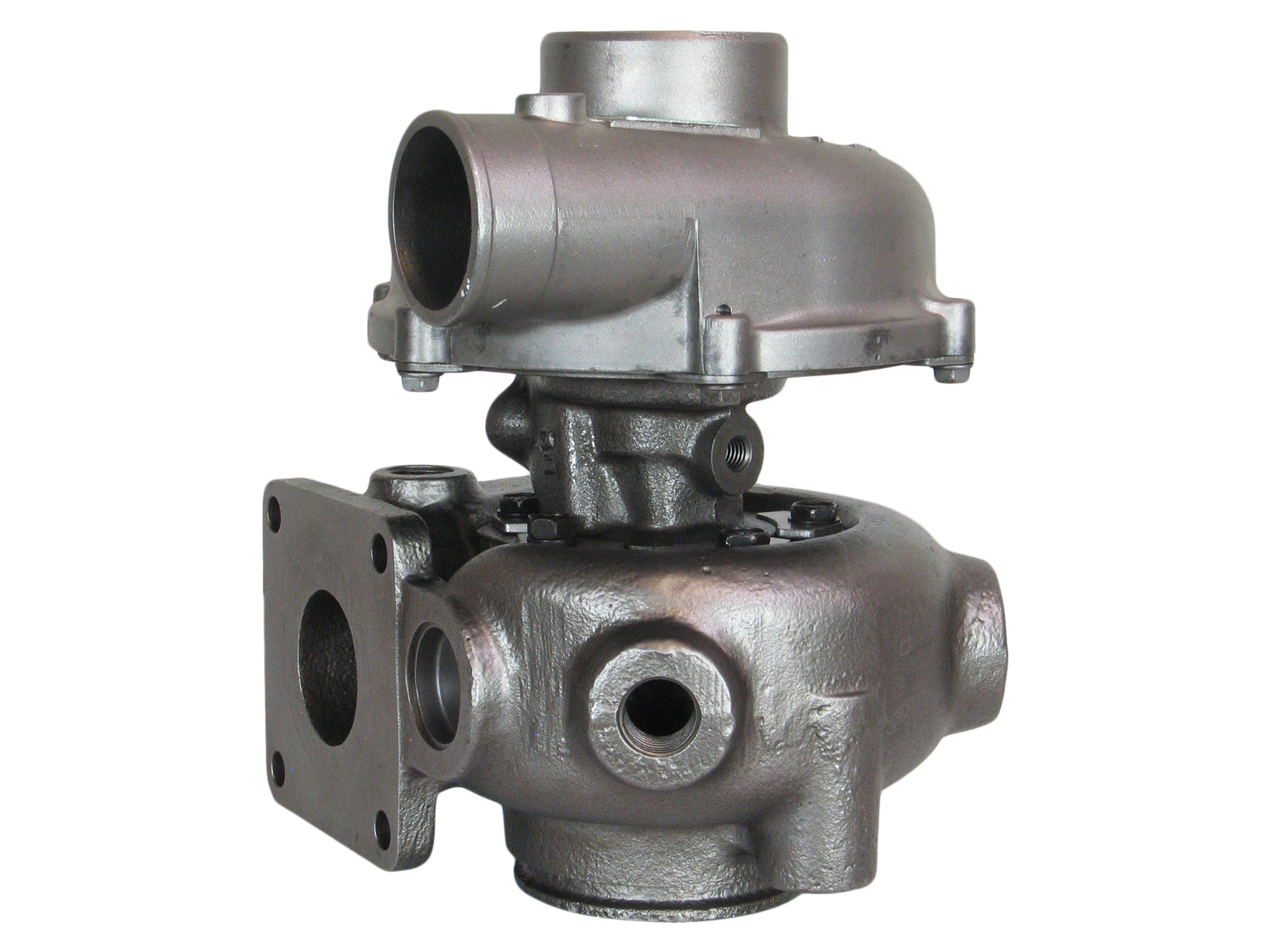

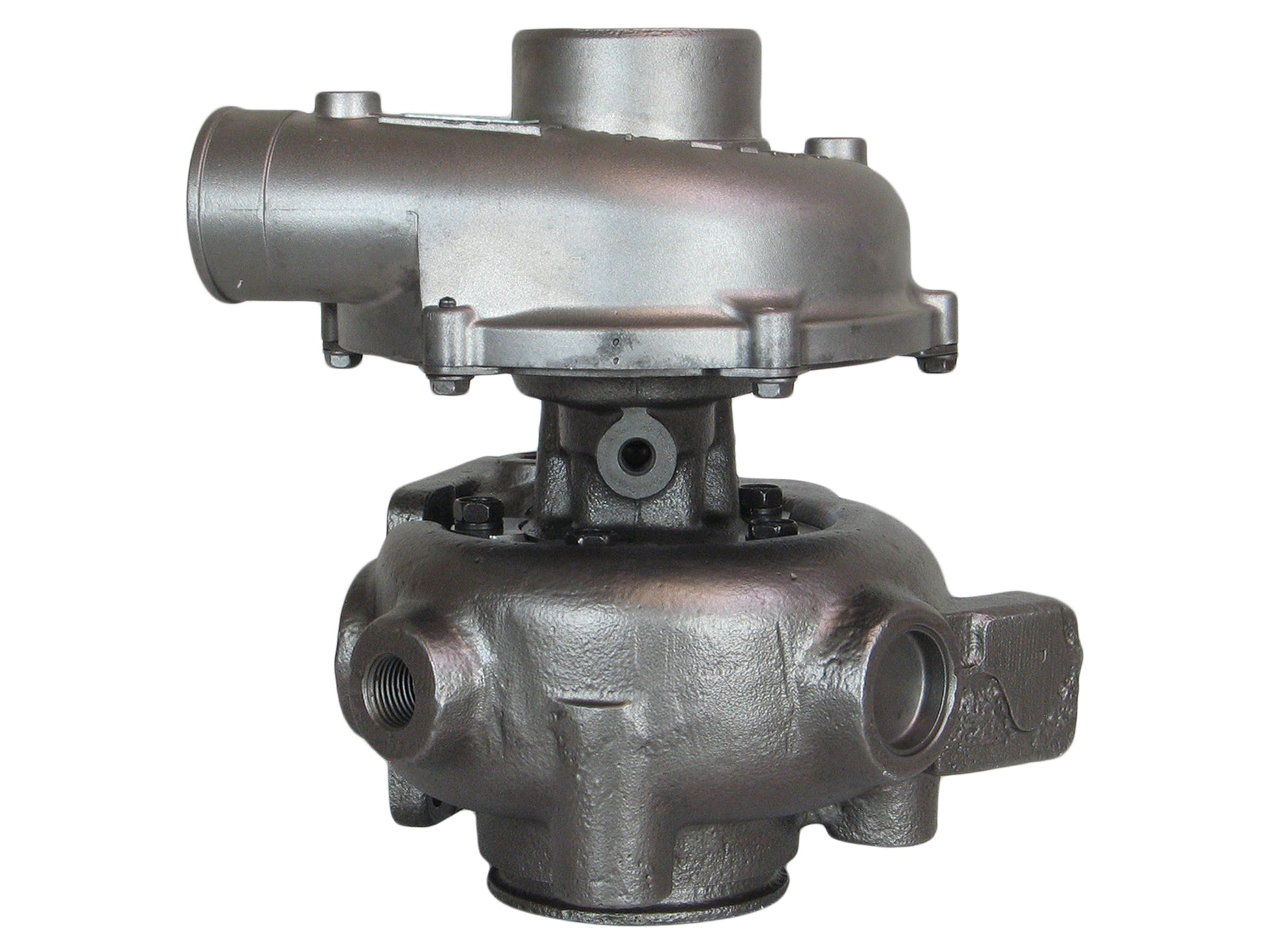

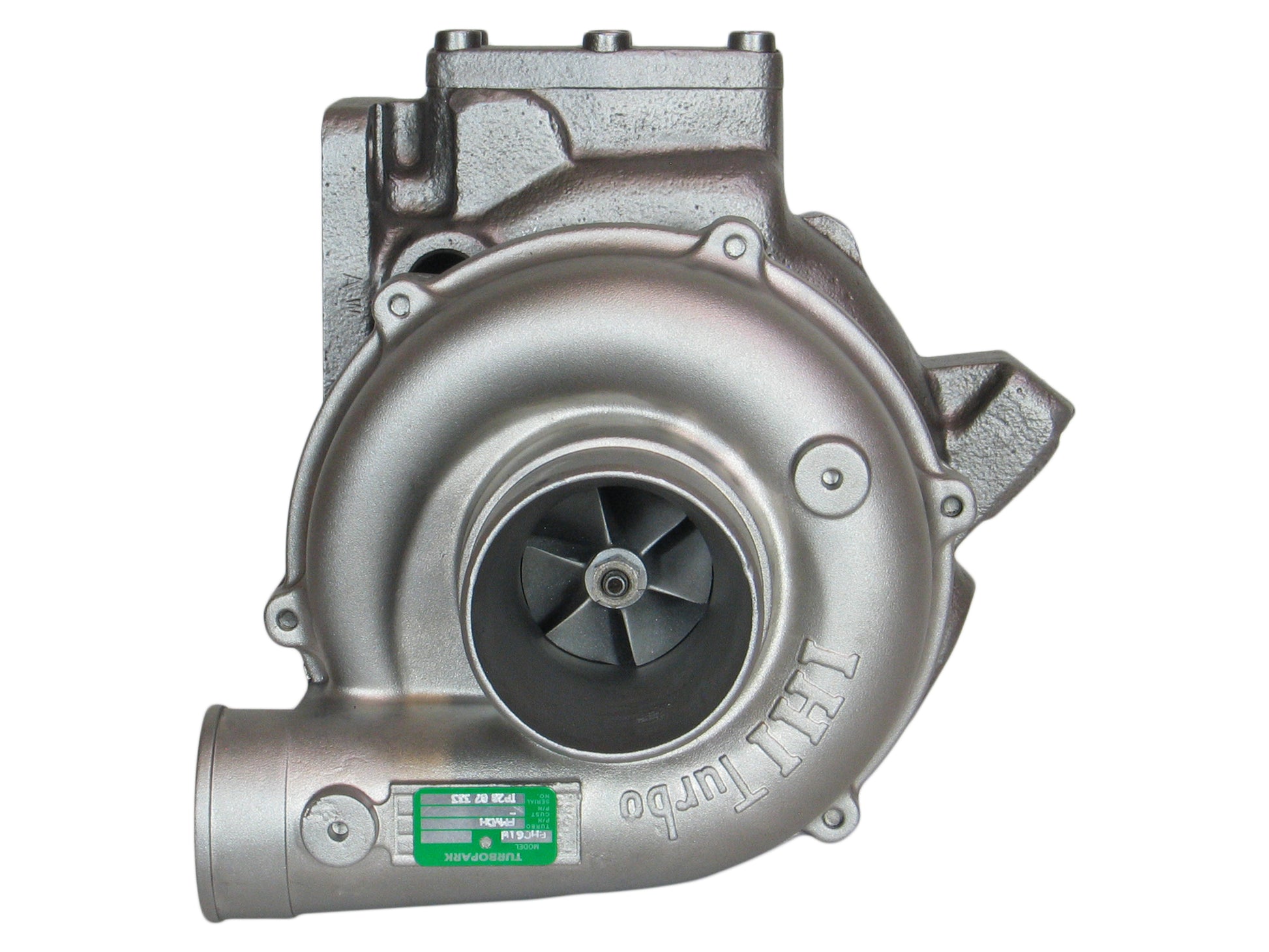

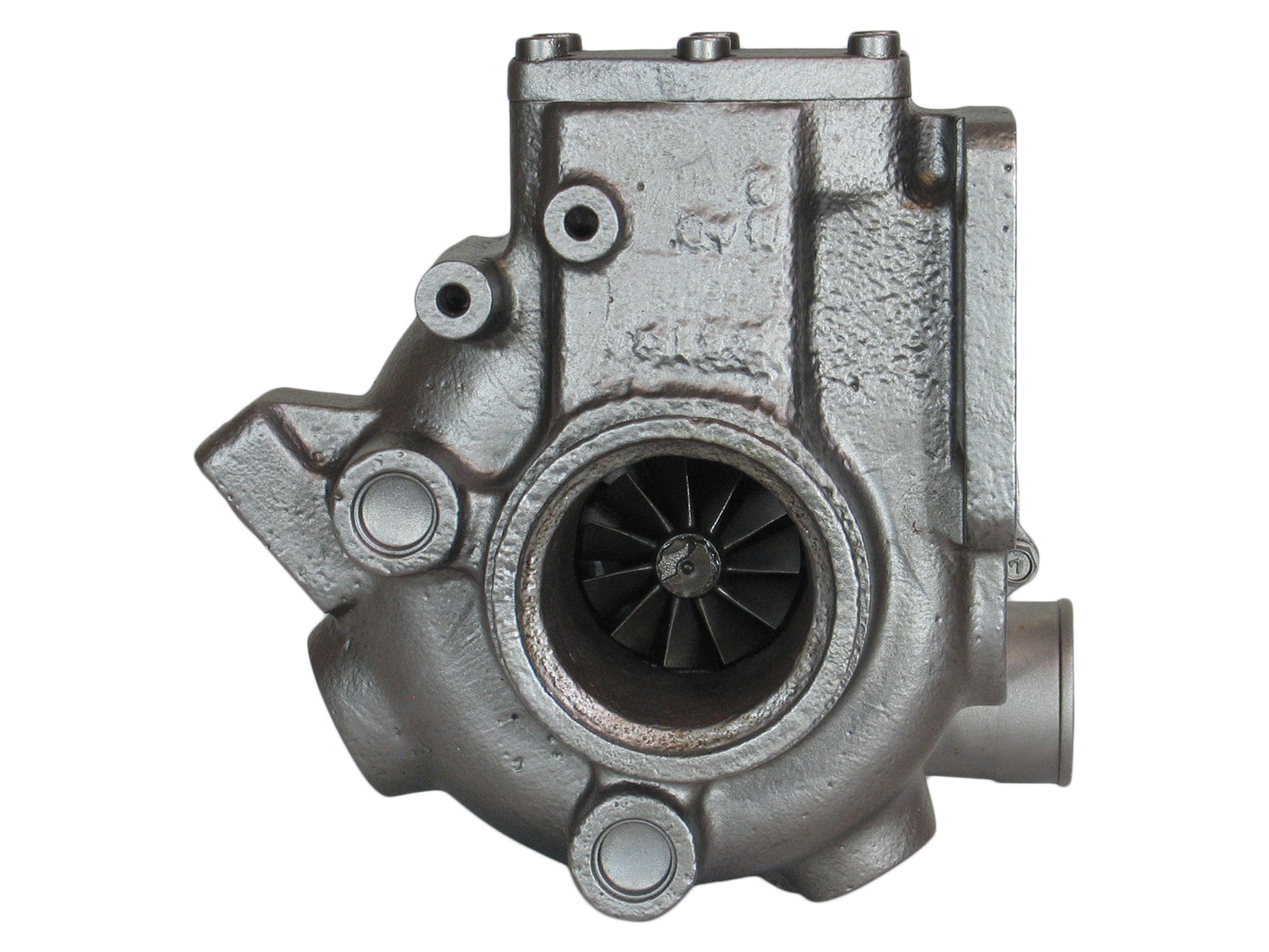

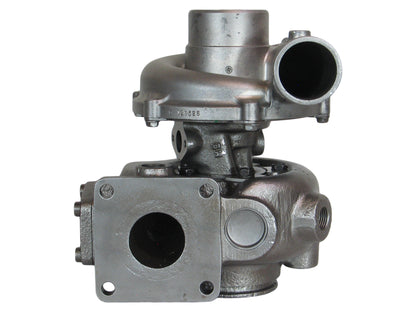

RHC61W Turbo Yanmar Marine 4LHA-DTE 3.5L Diesel Engine VC240101 MYDHSKU: FMYDH
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: VC240101
Short Spec.: MYDH
Interchangeable Number: C61CND-S0101B, C61CND-S0101G, VD240101
OEM Number: 119173-13041, 119173-18040, 11917318040, 11917318041
Turbo Model: RHC61W, RHC61W-1036P16NWBRLL4715CC
Engine: 4LHA-DTZE, 4LHA-DTE, 4LHA-DTP, 4LHA-DT(Z)E(P)
Displacement: 3.5L, 3456 ccm, 4 Cylinders
Power: 140/190/200 HP
Angle α (Compressor Housing): 70°
Angle ß (Turbine Housing): 100°
Actuator: NH961640 (NH961641)
Back Plate: NN193012
Bearing Housing (Water Cooled): NH163331 (NH163376)(831211260)(831211090)
Compressor Cover: NH264962

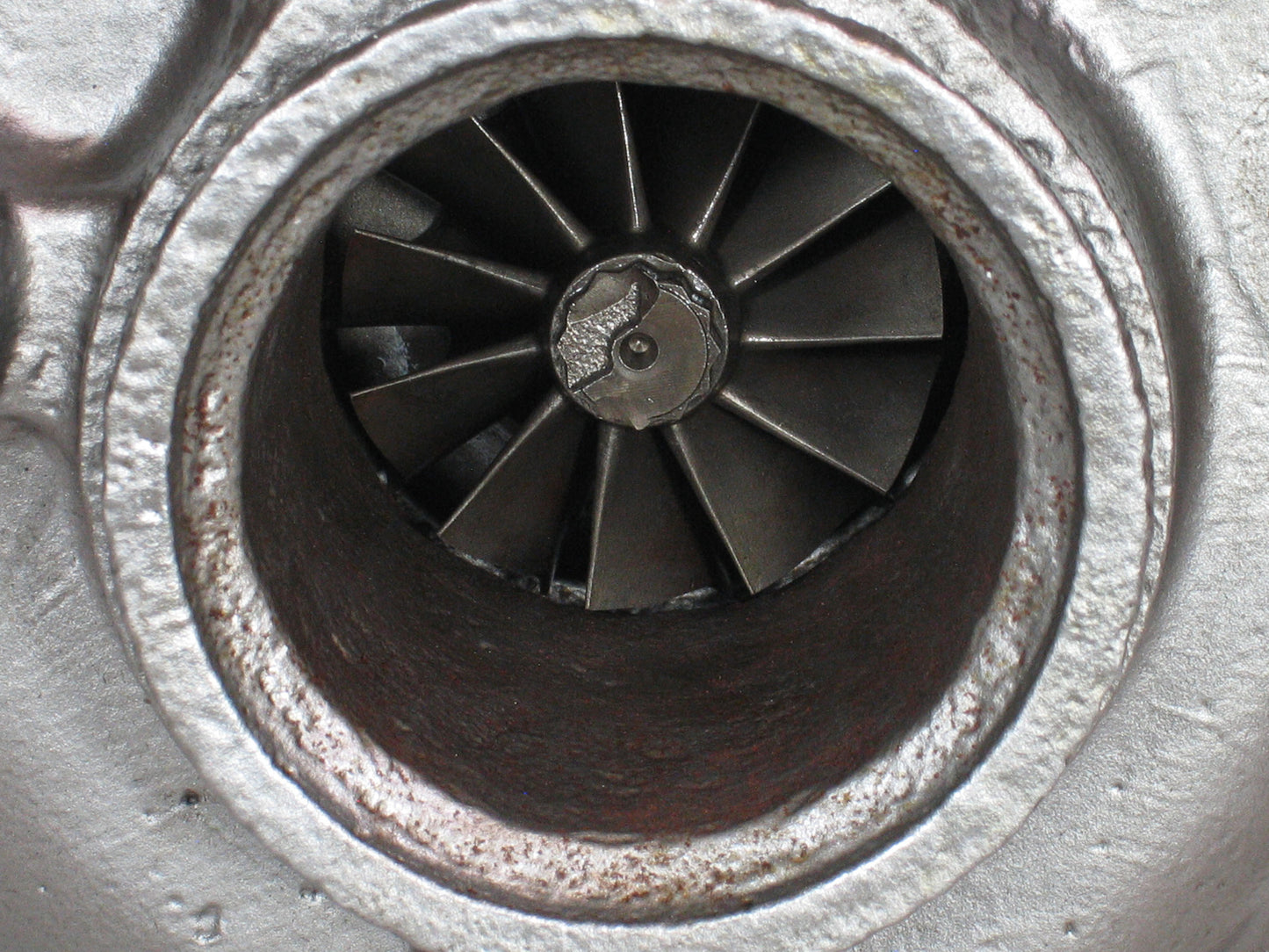

Compressor Wheel: NH265520 (170268)(NH2655207)(Ind. 51.3 mm, Exd. 69.97 mm, 6+6 Blades, Super Back)
Gasket (Oil Outlet): 210161 (128300-1323, Gasket Paper)
Gasket (Turbine Outlet): 128300-13230
Heat Shield: NH163329
Repair Kit: GF169846/NH169843 (509T-538)
Turbine Housing A/R: 16
Turbine Wheel: NH261301D
2000-01 Yanmar Marine with 4LHA-DTE Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
