NEW HX55W Turbo V-Band Adapter Volvo Mack Mercedes 3599996 4027901SKU: K-0034

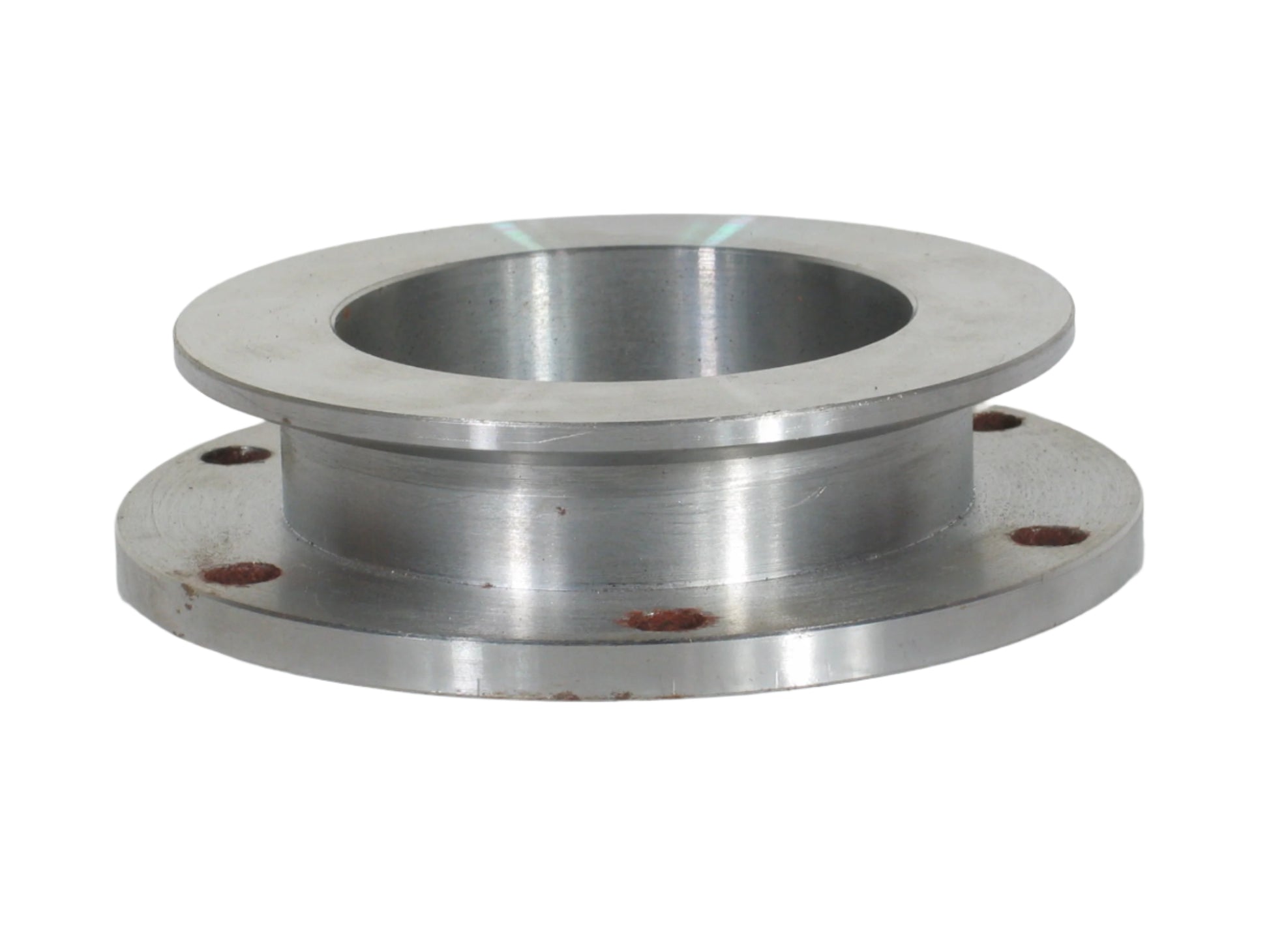

This is a BRAND NEW TURBOCHARGER V-BAND ADAPTER. This is an exact, direct fit replacement turbo v-band adapter.
NOTE: This listing contains only the v-band adapter. Adapter screws are not included.

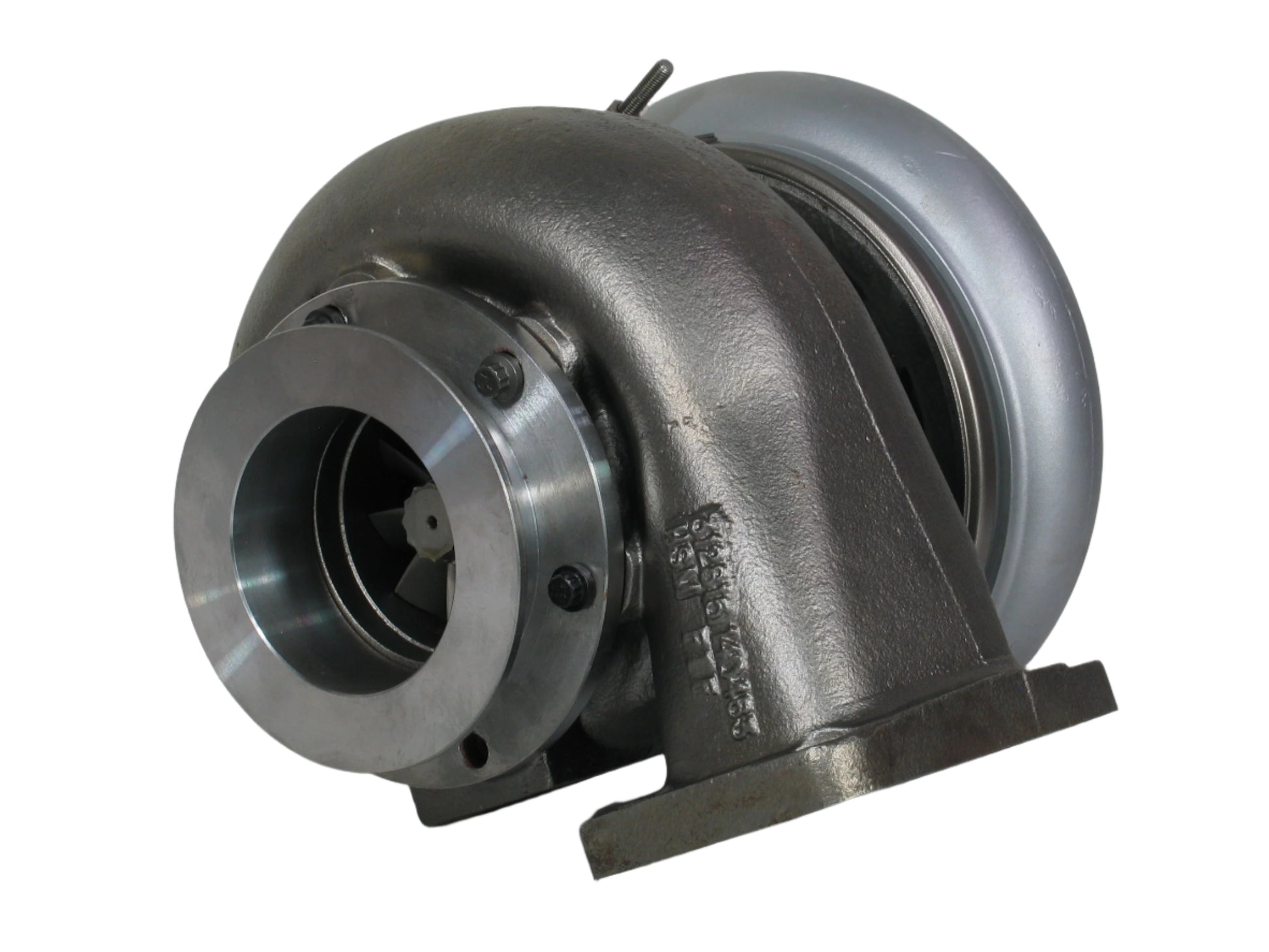

With the adapter installed on Holset HX55 turbo (4027901-D), you can use it to replace Holset HX52 turbo (3599996).
Fits the following:
Part Number: K-0034
Description: V-Band Adapter Kit
NOTE: This adapter can be installed on 4027901 to replace 3599996.
V-Band Diameter: 120 mm
Size of Bolt Hole: 10 mm
Fit for Turbo Model:
GT42, HX50, HX55, S3B
Part Number: 4027901D
Interchangeable Number: 4027901, 4027901-D, 4031064, 403106400, 4031064H
OEM Number: 0060965399, 315489, 315495, 316057, 316062, 316428, 316756, 4033836, 50965399, 60965499, 60967399, A0060695499, A0060965399
Turbo Model: HE500FG, HX55, HX55-B98K68RD/C86L90NP25BF
Engine Manufacturer: Mercedes-Benz
Power: 422 HP
Back Plate: 3528096
Bearing Housing: 3533542 (Oil Cooled)
Compressor Wheel: 3593686 (3593686H, 4035468, 359368600)(Ind. 67 mm, Exd. 97.68 mm, 7+7 Blades, Super Back)
Heat Shield: 3529846 (3533038)
Repair Kit: 3575181 (3580762, 3580762H)(1153055750)
Turbine Wheel: 3535983 (3535983H, 353598300)(Ind. 86 mm, Exd. 76.98 mm, 12 Blades)
NOTE: This turbo can also be used on modification for T3, T4, T6.
1996-05 Mercedes-Benz Actros Truck with OM0501LA Engine
Part Number: 3599996
Interchangeable Number: 3599995, 3599996-D, 3599996D, 3599997, 3599998, 4031148, 4031148H
OEM Number: 20516147, 20516242, 85000288
Turbo Model: HX52
Engine: D12, D12C, D12D
Engine Manufacturer: Volvo
Power: 465 HP
Angle α (Compressor Housing): 130°
Angle ß (Turbine Housing): 171°
Back Plate: 33528096 (1153055300)
Bearing Housing: 3590231/4039258 (1153055451)
CHRA: 4032332 (403233200)(1153052900)
Compressor Wheel: 4035468 (Ind. 67 mm, Exd. 99 mm, 6+6 Blades)(1153052400)
Gasket (Oil Outlet): 210060 (2475013, 311585, 148062)(Paper)
Gasket (Turbine Inlet): 409123-0002 (310694)(Inox Steel)
Heat Shield: 3529846/3533038 (1153055340)
Repair Kit: 3580762/3575181 (1153055750)
Turbine Wheel: 3592602 (Ind. 84 mm, Exd. 70 mm, 12 Blades)(1153052435)
NOTE: This turbocharger can upgrade to 4027901, 4027901-D with adapter.
2002-09 Mack Truck with D12 Engine
2002-09 Volvo Truck with D12C, D12D Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
Any questions or concerns, please feel free to email or call us.
