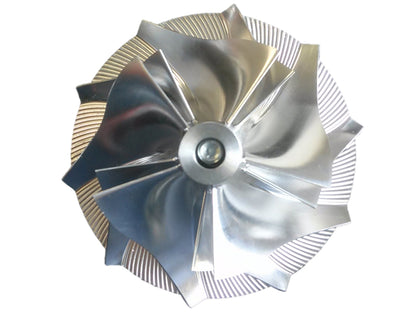

NEW HY35 Turbo Billet Compressor Wheel Dodge Cummins 5.9L Engine MFS3627CSKU: MFS3627C
This is a BRAND NEW TURBOCHARGER BILLET COMPRESSOR WHEEL. This is an exact, direct fit replacement turbo compressor wheel.
Fits the following:
Part Number: MFS3627C, 3627
Description: Billet Compressor Wheel

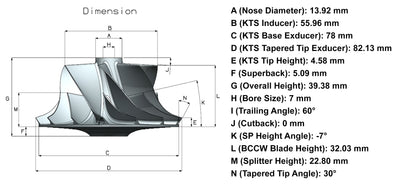

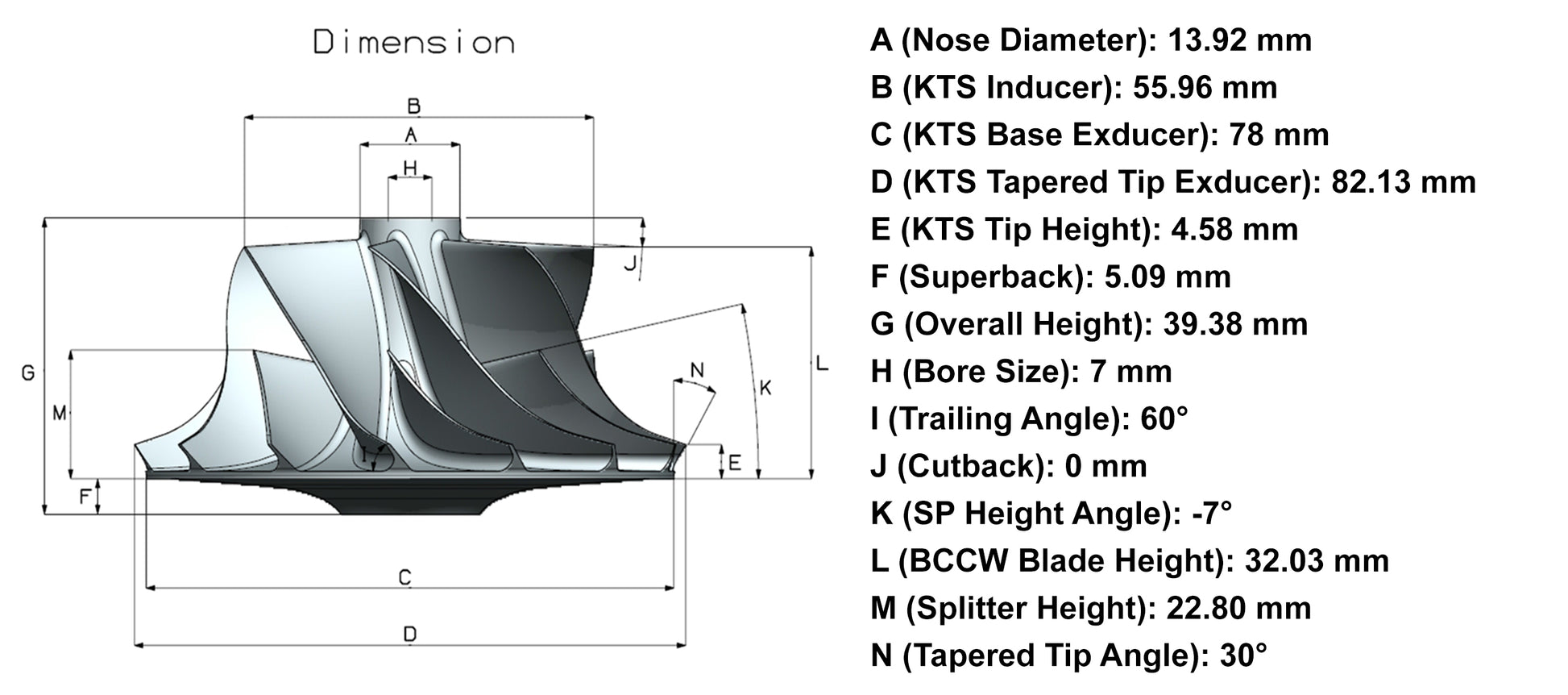

BCCW Blades: 5+5
Nose Diameter: 13.92 mm
KTS Inducer: 55.96 mm
KTS Base Exducer: 78 mm
KTS Tapered Tip Exducer: 82.13 mm
KTS Tip Height: 4.58 mm
Superback: 5.09 mm
Overall Height: 39.38 mm
Bore Size: 7 mm
Trailing Angle: 60°
Cutback: 0 mm
SP Height Angle: -7°
BCCW Blade Height: 32.03 mm
Splitter Height: 22.80 mm
Tapered Tip Angle: 30°
Racing or Non-Racing: Racing
STD or Custom Size: STD
Bore Type: Through
OE or Custom Compressor House Fitment: OE
Fit for Turbo Models:
Fit for Applications:
2003-2004 Dodge with 5.9L Cummins Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
