NEW GT3788R Turbo Billet Wheel Chevy 6.6L Duramax LB7 766172-5001 MFS3720CSKU: MFS3720C

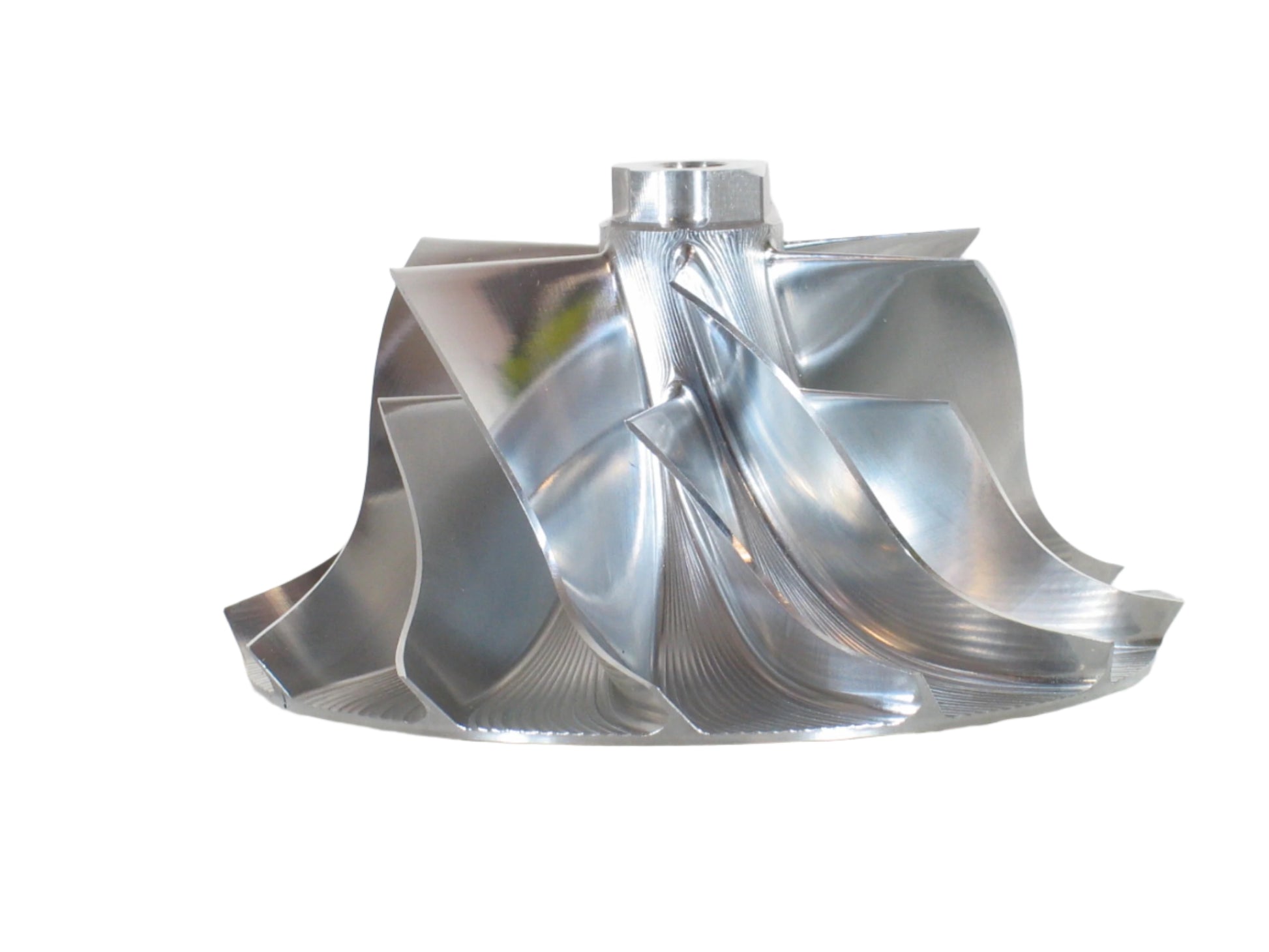

This is a BRAND NEW TURBOCHARGER BILLET COMPRESSOR WHEEL. This is an exact, direct fit replacement turbo compressor wheel.
NOTE: This billet compressor wheel only works for the Garrett ball bearing turbo. It will not work for IHI turbos, please check the measurements before purchasing.
Fits the following:
Part Number: MFS3720C, 3720
Interchangeable Number: 449521-0026
Description: Billet Compressor Wheel

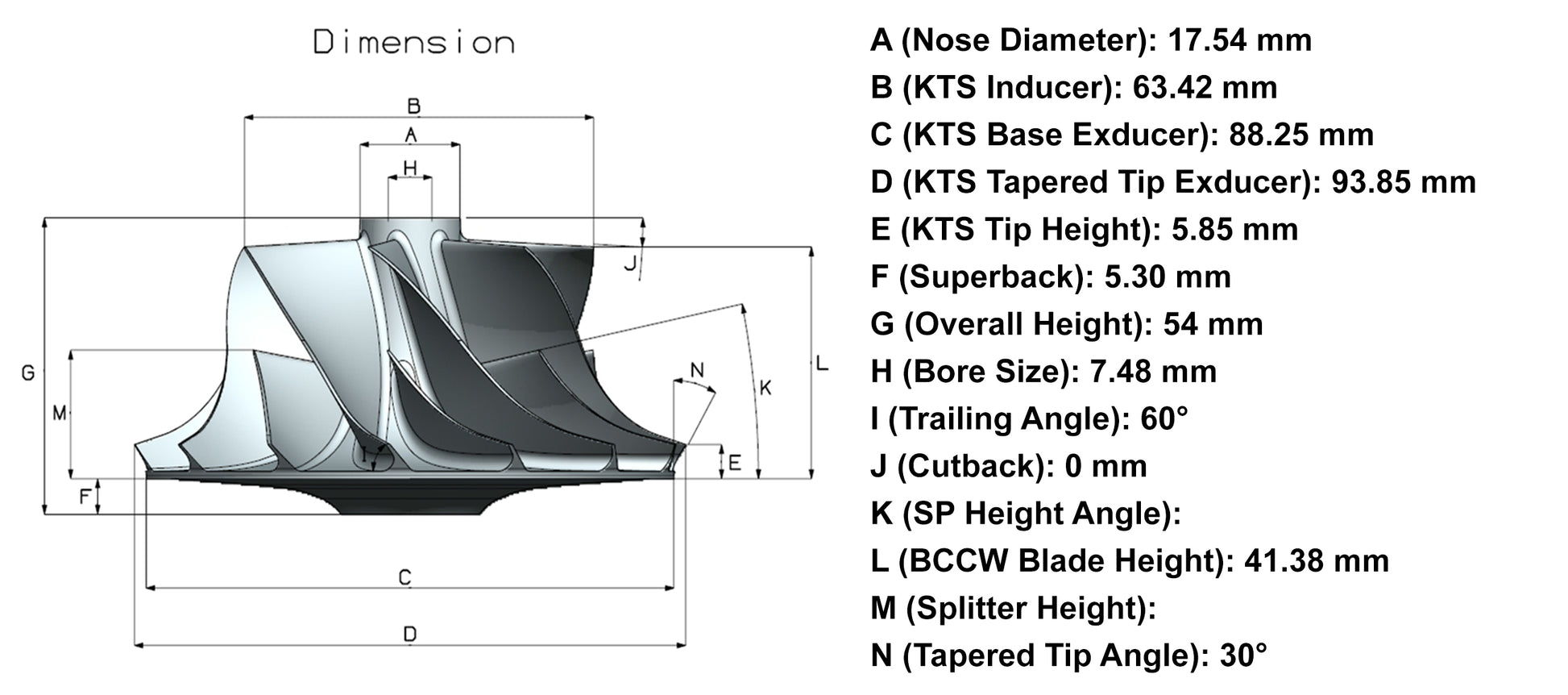

BCCW Blade Height: 41.38 mm
BCCW Blades: 6+6
Bore Size: 7.48 mm
Cutback: 0 mm
KTS Base Exducer: 88.25 mm
KTS Inducer: 63.42 mm
KTS Tapered Tip Exducer: 93.85 mm
KTS Tip Height: 5.85 mm
Nose Diameter: 17.54 mm
Overall Height: 54 mm
SP Height Angle:
Super Back: 5.30 mm
Tapered Tip Angle: 30°
Trailing Angle: 60°
Bore Type: Threaded-M7x1.0LHT
OE or Custom Compressor House Fitment: OE
Racing or Non-Racing: Racing
STD or Custom Size: STD
Fit for Part Number:
766172-0001, 766172-5001, 766172-5001S
Fit for Turbo Model:
Fit for Turbo Type:
PowerMax, Ball Bearing
Fit for Application:
2001-04 Chevy Silverado, Truck with 6.6L Duramax LB7 Diesel Engine
2001-04 GMC Sierra with 6.6L Duramax LB7 Diesel Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
Any questions or concerns, please feel free to email or call us.
