NEW H1C Turbo Billet Compressor Wheel Dodge 5.9L 6BTA Volvo 7.0L TD73ES MFS4008C

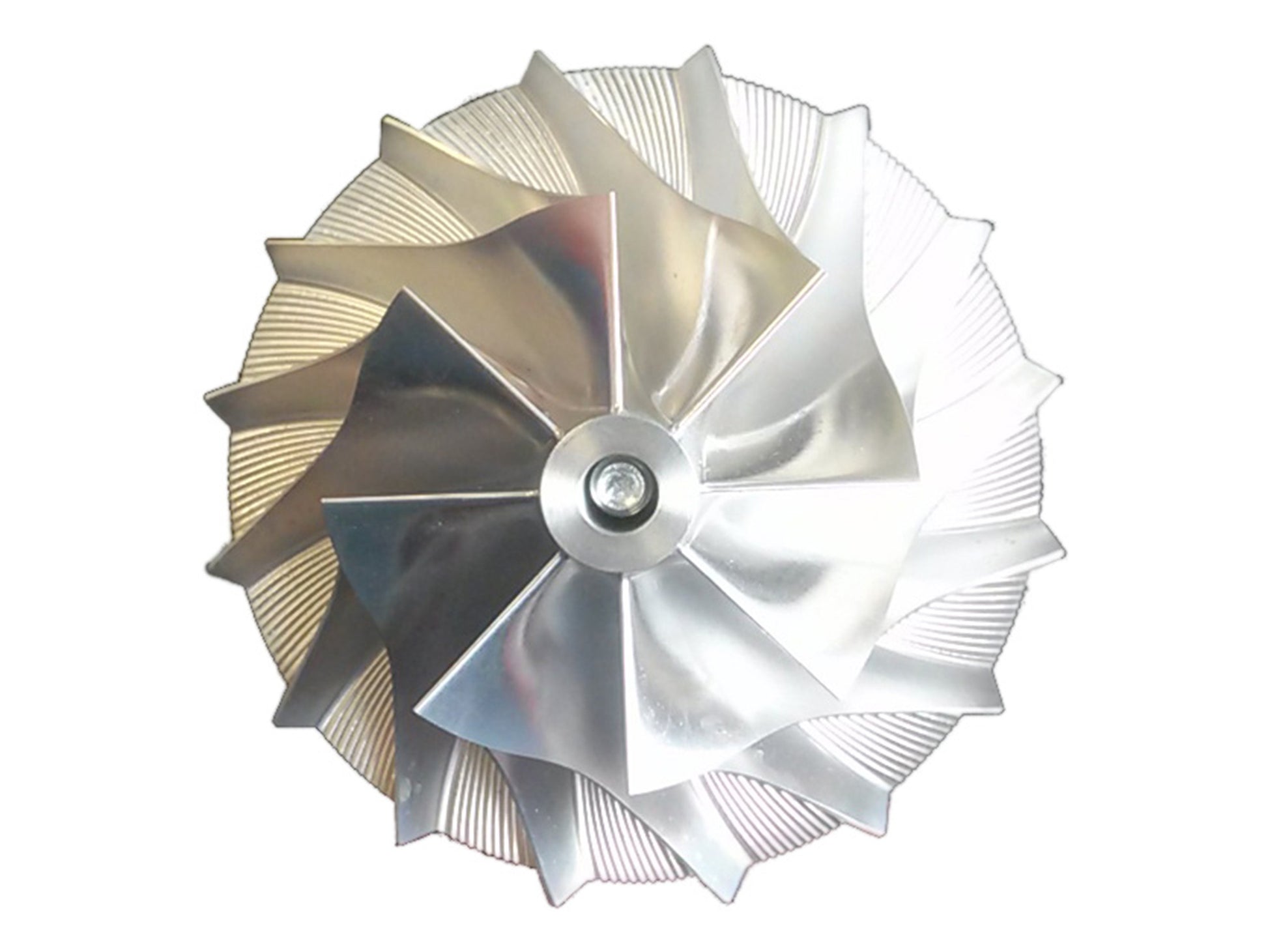

SKU: MFS4008CThis is a BRAND NEW TURBOCHARGER BILLET COMPRESSOR WHEEL. This is an exact, direct fit replacement turbo compressor wheel.
Fits the following:
Part Number: MFS4008C, 4008
Interchangeable Number: 3599646
Description: Billet Compressor Wheel
Brand: KTS

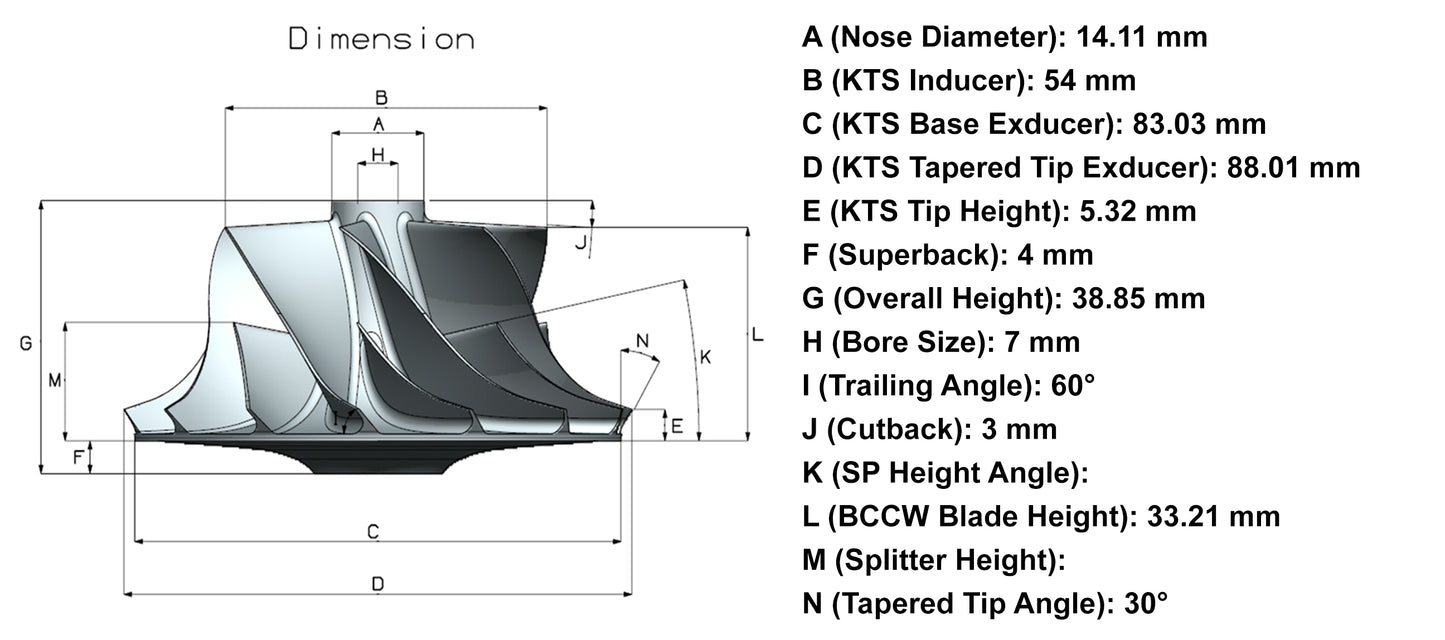

BCCW Blades: 8+8
Nose Diameter: 14.11 mm
KTS Inducer: 54 mm
KTS Base Exducer: 83.03 mm
KTS Tapered Tip Exducer: 88.01 mm
KTS Tip Height: 5.32 mm
Superback: 4 mm
Overall Height: 38.85 mm
Bore Size: 7 mm
Trailing Angle: 60°
Cutback: 3 mm
SP Height Angle:
BCCW Blade Height: 33.21 mm
Splitter Height:
Tapered Tip Angle: 30°
Racing or Non-Racing: Non-Racing
STD or Custom Size: STD
Bore Type: Through
OE or Custom Compressor House Fitment: OE
Rotation: Forward
Fit for Turbo Part Numbers:
3528087, 3528237, 3528238, 3528894, 3528920, 3531040, 3531456, 3531457, 3531697, 3532211, 3532296, 3533121, 3533563, 3533595, 3533741, 3534023, 3534241, 3535088, 3535666, 3536050, 3537551, 4033262, 4033307, 3533595-D, 3533741-D
Fit for OEM Numbers:
477834, 477835, 477836, 477865, 477867, 477868, 477889, 865752, 3802348, 3802392, 3802586, 3825928, 8015295, 8114138, 8192580
Fit for Turbo Models:
H1C, H1C-8264BT/E18DA11, H1E-8264AD/H18VA8, H1E-8264AX/H14JA8, H1E-8264AX/H14P8, H1E-8264BV/H14JA8, HX40, WH1C, WH1C-8264AX/E12PB11, WH1C-8264BF/E14NC11, WH1E-8264BV/H14EC8
Fit for Applications:
1989- Various with Cummins 6BTAA Engine
1989-01 Iveco Marine with 5.9L 8361SRI25 Diesel Engine
1989-1993 Dodge with 5.9L Cummins Engine
1992- Various with 5.9L Cummins 6BT, 6BTA Diesel Engine
1992- Volvo Truck with TXD73 Diesel Engine
1993- Volvo FE42 Various with 7.0L TD73ES Diesel Engine
1993-03 Volvo B7 CH 30000 Truck with 7.0L TD73ES Diesel Engine
1993-03 Volvo White Truck with 7.0L VED7 Diesel Engine
1993-94 Iveco Truck with 8061 SI 36 Engine
1995- Volvo Truck with TD730ME Diesel Engine
Leyland with Cummins 6BTA, 6BTAA Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
