NEW HE531VE Turbo Billet Compressor Wheel Truck Detroit Diesel S60 MFS5083C

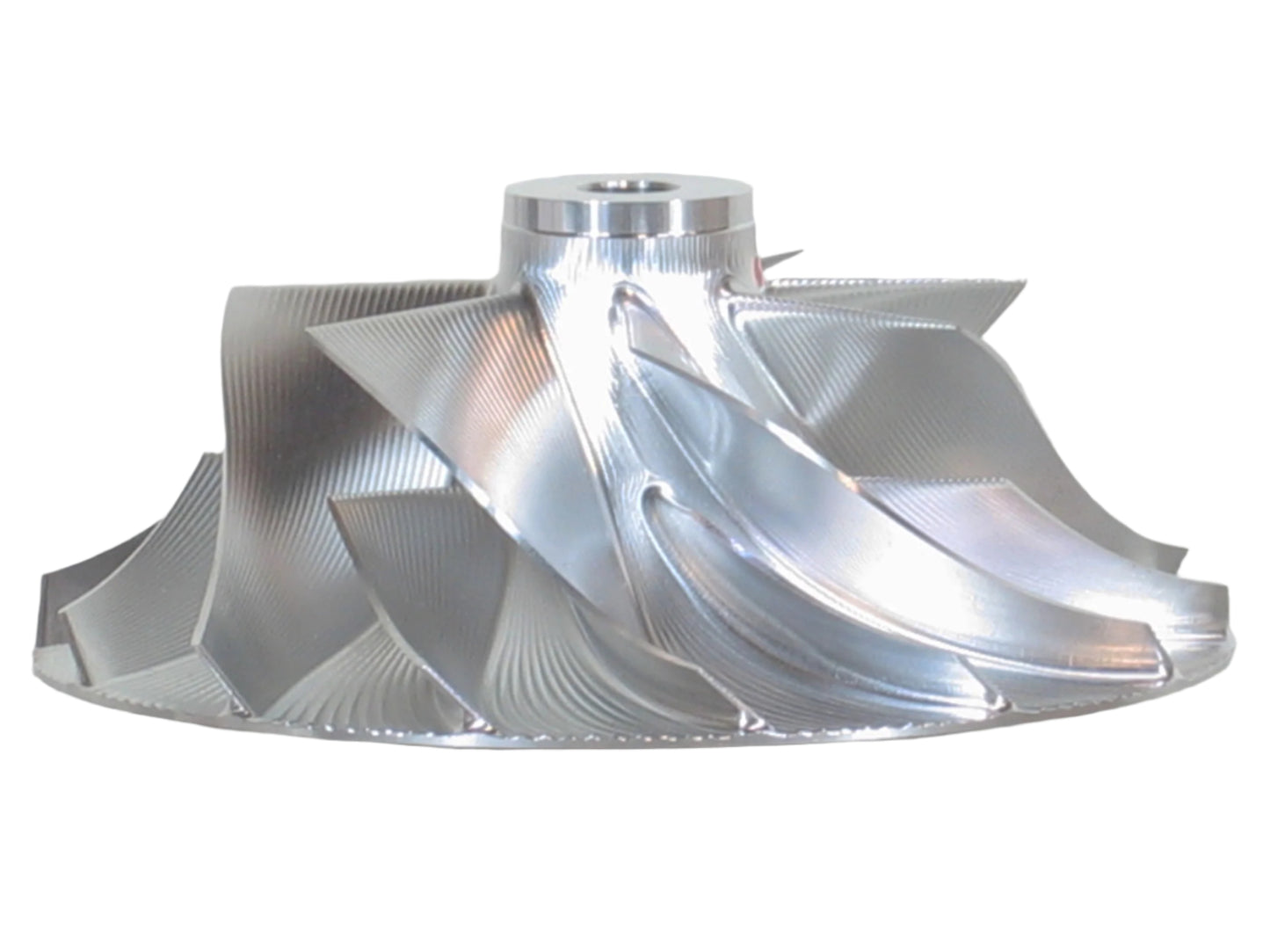

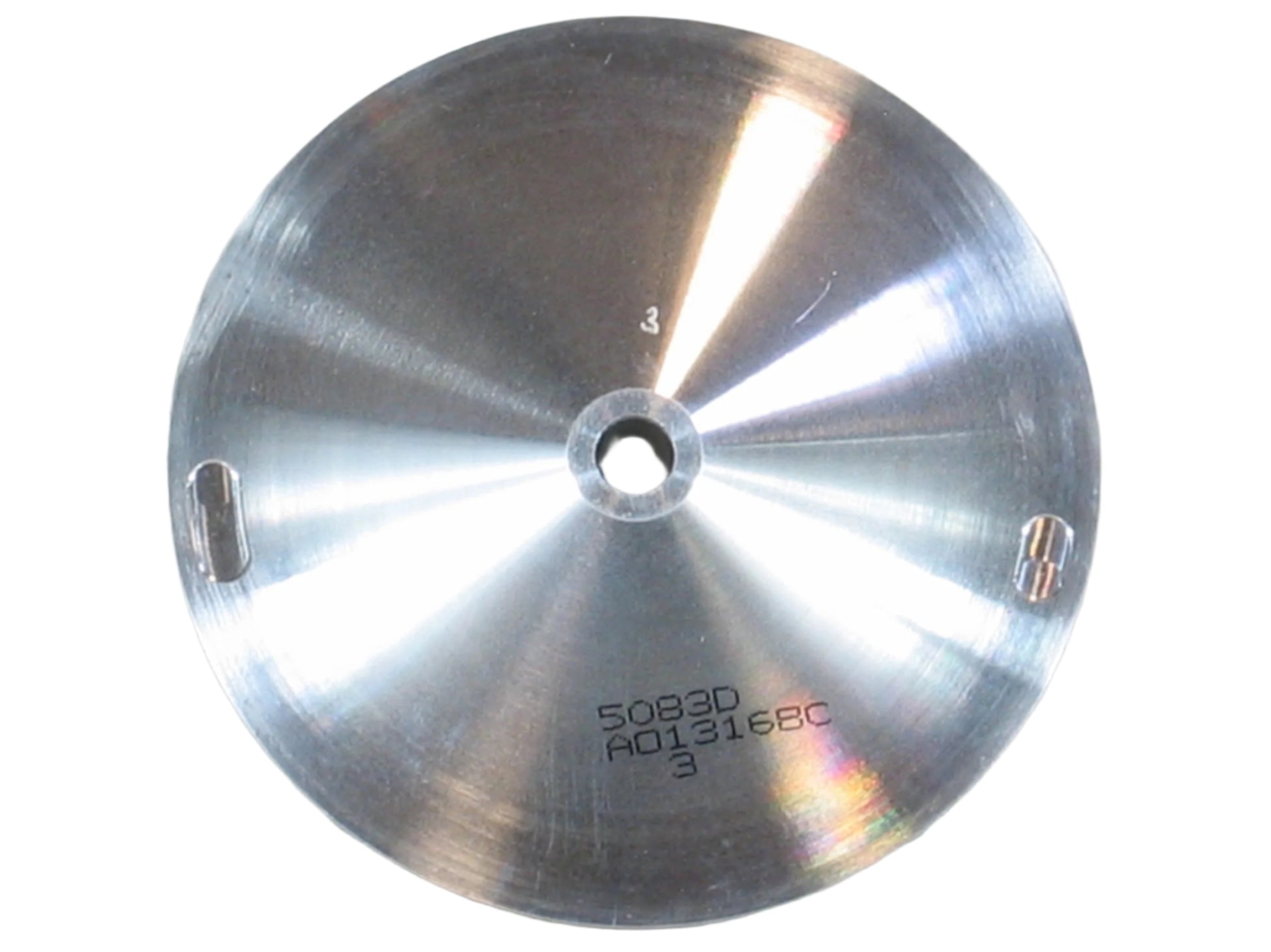

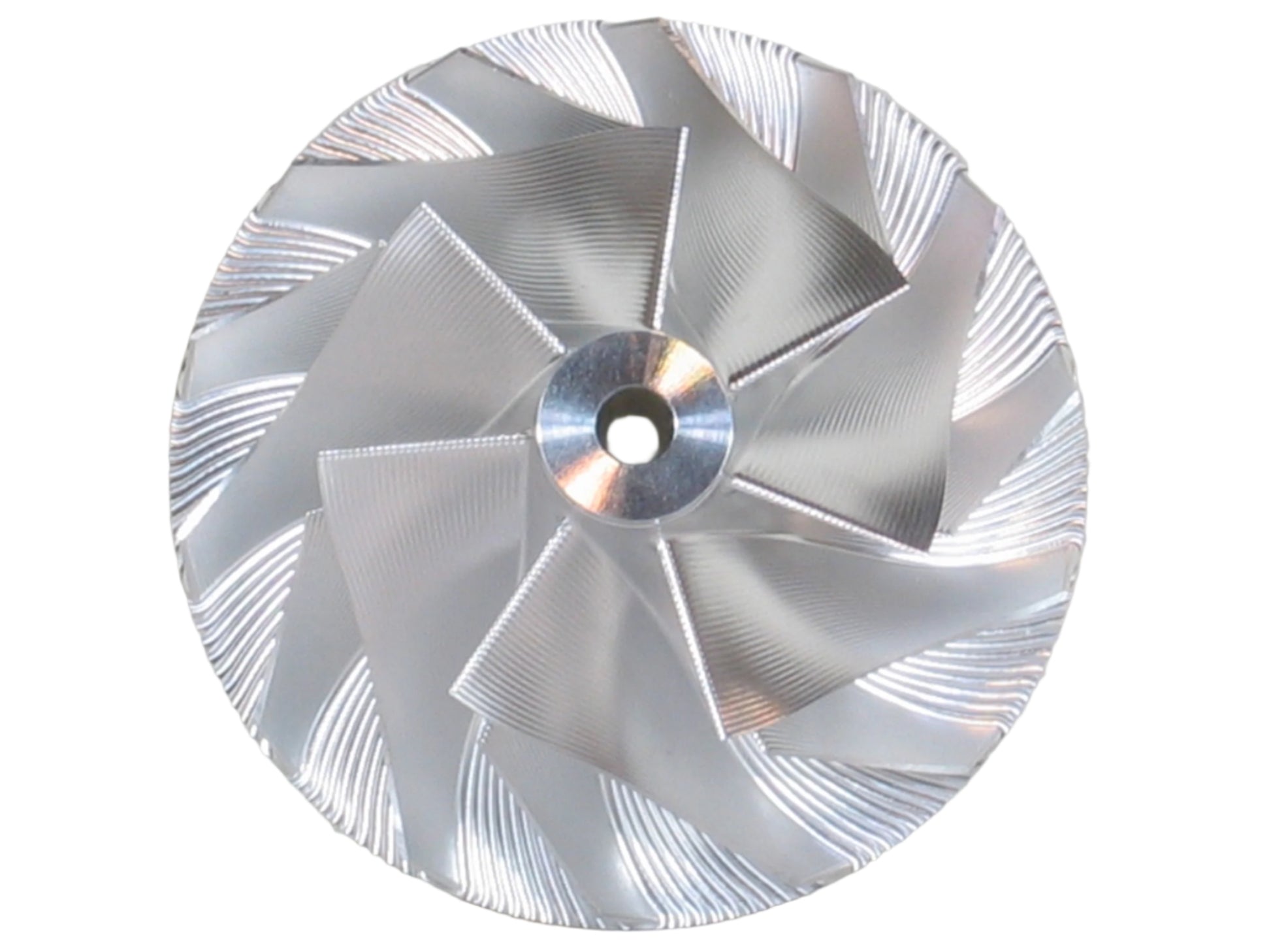

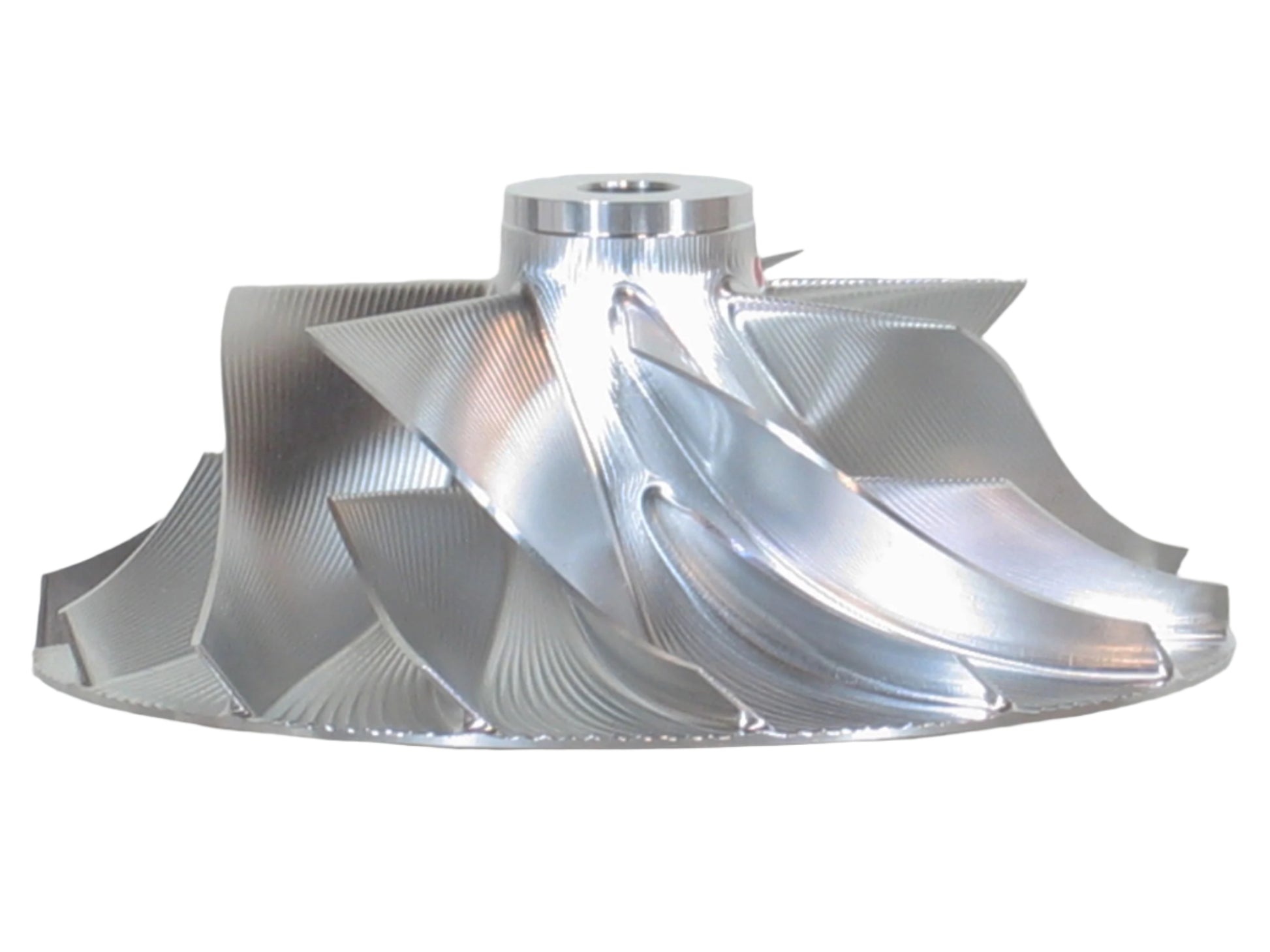

BRAND NEW TURBOCHARGER BILLET COMPRESSOR WHEEL

This is a BRAND NEW TURBOCHARGER BILLET COMPRESSOR WHEEL. This is an exact, direct fit replacement turbo compressor wheel.

Fits the following:

Part Number: MFS5083C, 5083
Interchangeable Number: 4035468
Description: Billet Compressor Wheel
Brand: KTS

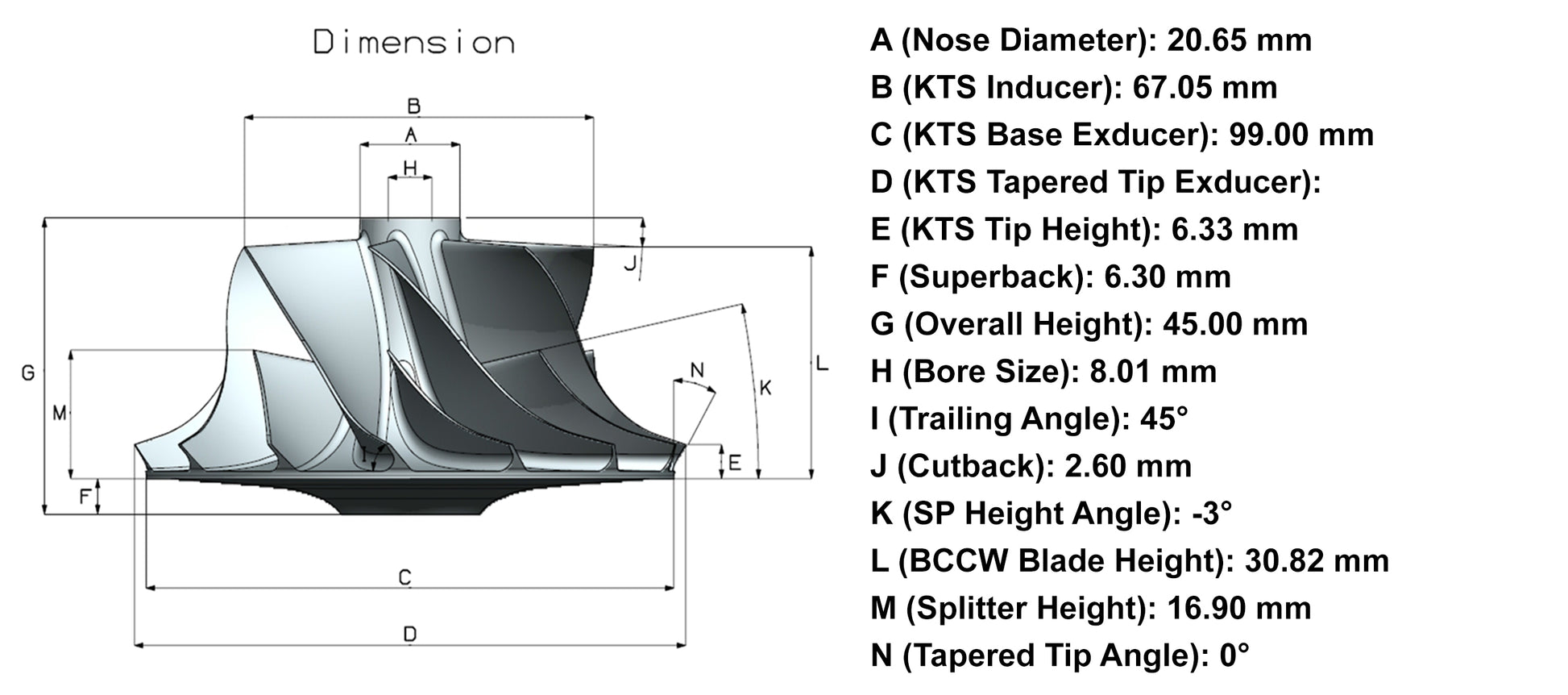

BCCW Blade Height: 30.82 mm
BCCW Blades: 7+7
Bore Size: 8.01 mm
Cutback: 2.60 mm
KTS Base Exducer: 99.00 mm
KTS Inducer: 67.05 mm
KTS Tip Height: 6.33 mm
Nose Diameter: 20.65 mm
Overall Height: 45.00 mm
SP Height Angle: -3°
Splitter Height: 16.90 mm
Super Back: 6.30 mm
Tapered Tip Angle: 0°
Trailing Angle: 45°

Bore Type: Through
OE or Custom Compressor House Fitment: OE
Racing or Non-Racing: Non-Racing
Rotation: Forward
STD or Custom Size: STD

Fit for Part Number:
2834990, 2836376, 2836378, 2836825, 2836826, 2841619, 3537066, 3597285, 3597358, 3599955, 3599956, 3599965, 3599996, 3599997, 3781169, 3792069, 3792069, 3792071, 3798597, 4040344, 4040345, 4042439, 4042439, 4043261, 4044200, 4045291, 4046017, 4046018, 4046020, 4046021, 4047223, 4047223, 4047269, 4047597, 4047598, 4047598, 4049886, 5324768, 5329513, 5352845, 5352845

Fit for OEM Number:
20516147, 20516242, 20857657, 23536422, 23536802, 23539062, 23539570, 3804537, 4089599, 4089988, 4089988RX, 4720960699, 4720960799, 4720961199, 504231403, 5042314030, 504231411, 5042314110, 504327397, 51.09100-7487, 51.09100-7516, 51.09100-7541, 85000288, A4720960699, A4720960799, A4720961199, R23536422, R23539062, R23539570

Fit for Turbo Model:
HE531VE, HX50, HX50-E9871BH/TA19Q11D, HX50-E9871CM/P22W3, HX50-P9871BH/TA19Q11D, HX52, HX55, HX55-D98K68RM/C86L90PH22EX

Fit for Application:
1995-03 Bus, Truck with Cummins M11, ISM Diesel Engine
2001- MAN Truck TGA with D2866LF28, D2866LF Engine
2002- Volvo Truck with 5.9L D12C, D12D Diesel Engine
2003-04 Dodge Truck with 5.9L Cummins 6BT Diesel Engine
2003-05 Volvo Truck with 5.9L D12 US'02 Diesel Engine
2003-06 Bus with Cummins ISM, M11 Diesel Engine
2004- Earth Moving, Front End Loader with Cummins QSM11 Engine
2004-14 Kenworth, Peterbilt, Freightliner, Fire Truck, Various with 14.0L Detroit Diesel Series 60 Diesel Engine
2005- Iveco Agricultural with 13.0L Cursor 13 Tier-3 Engine
2005-06 Volvo FH-FM 13 Truck with 13.0L MD13 (EURO 3) Diesel Engine
2005-08 Truck with 14.6L Detroit Diesel DD15 Diesel Engine
2007- Iveco Agricultural Truck with CURSOR 10, CURSOR 13, TIER 3 Engine
2008- Chrysler Truck with 14.6L DD15 Diesel Engine
2008- Daimler Truck, Various with 14.6L Detroit Diesel DD15 Diesel Engine
2008- Freightliner Truck with 14.6L DD15 Diesel Engine
2008- Truck with 14.6L Detroit Diesel DD15 Diesel Engine
2009- Daimler Freightliner EPA07 Truck with 14.6L OM473 LA AG Diesel Engine
2009- Daimler Freightliner Export, Sterling, Western Star EPA07 Truck with 14.6L OM472 LA AG Diesel Engine
2014-14 Fire Truck, Various with Detroit Diesel Series 60, Series 60 (VGT) EPA07 Diesel Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
