NEW RHF55 Turbo Billet Compressor Wheel Subaru Impreza WRX STI EJ20 MFS5524C

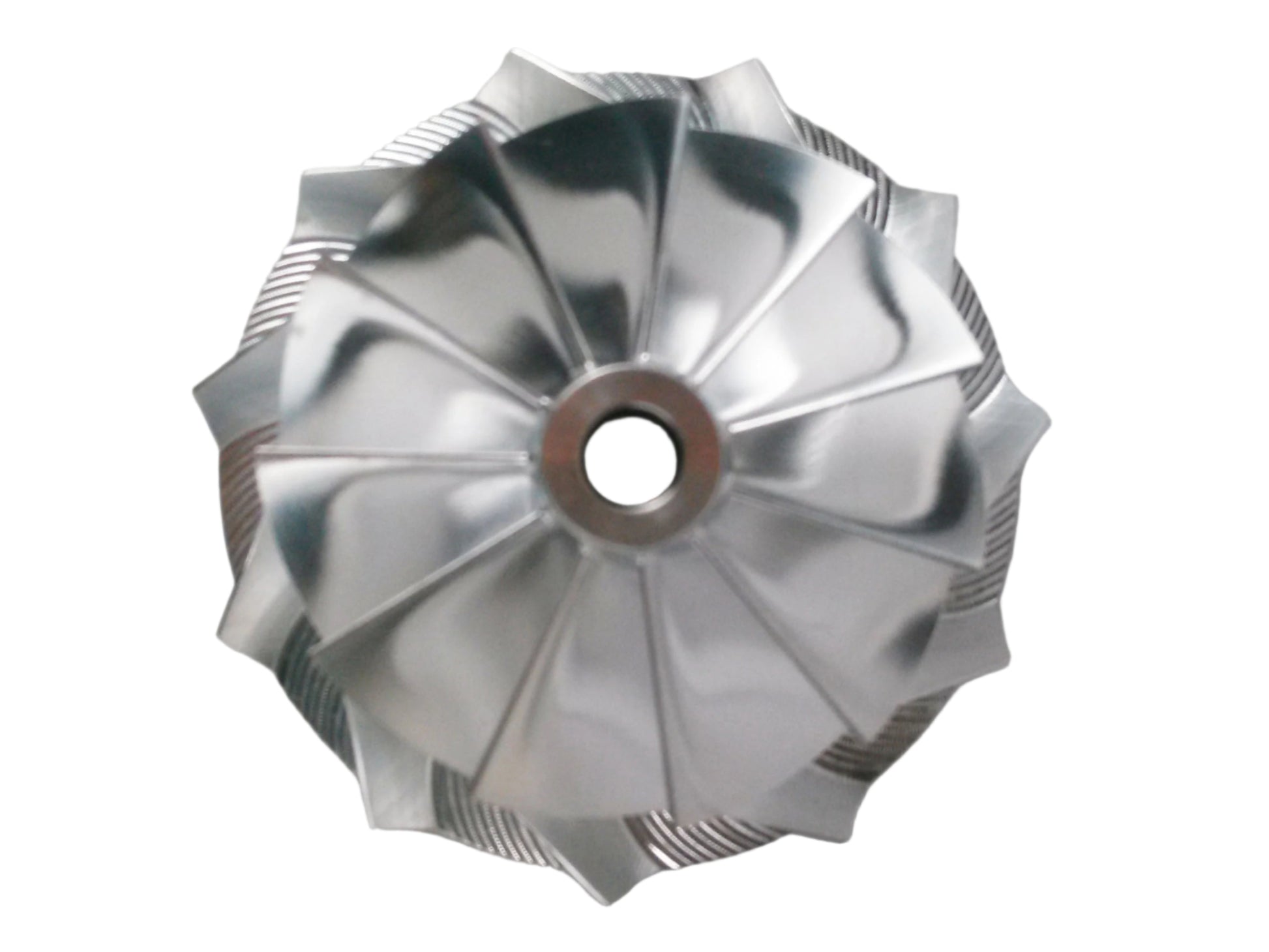

SKU: MFS5524CThis is a BRAND NEW TURBOCHARGER BILLET COMPRESSOR WHEEL. This is an exact, direct fit replacement turbo compressor wheel.
Fits the following:
Part Number: MFS5524C, 5524
Description: Billet Compressor Wheel
Brand: KTS

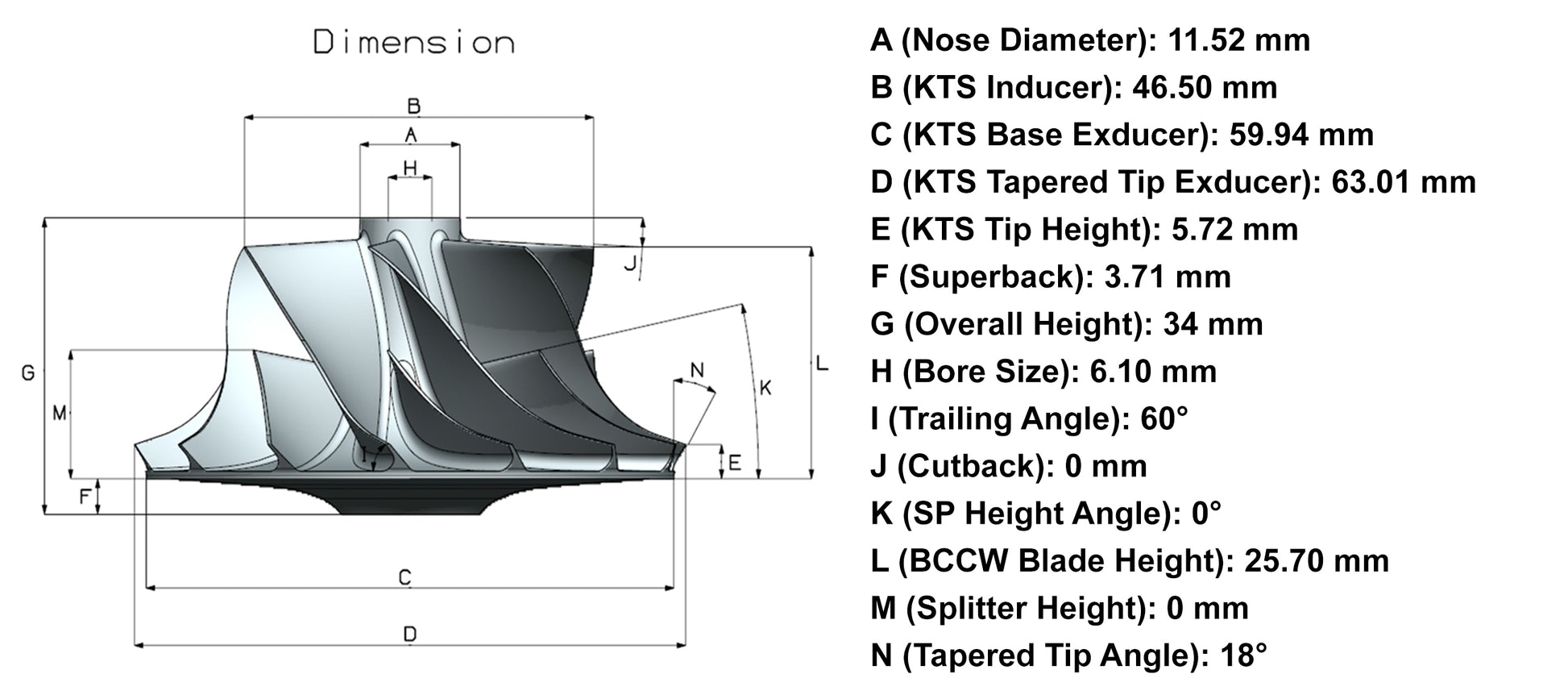

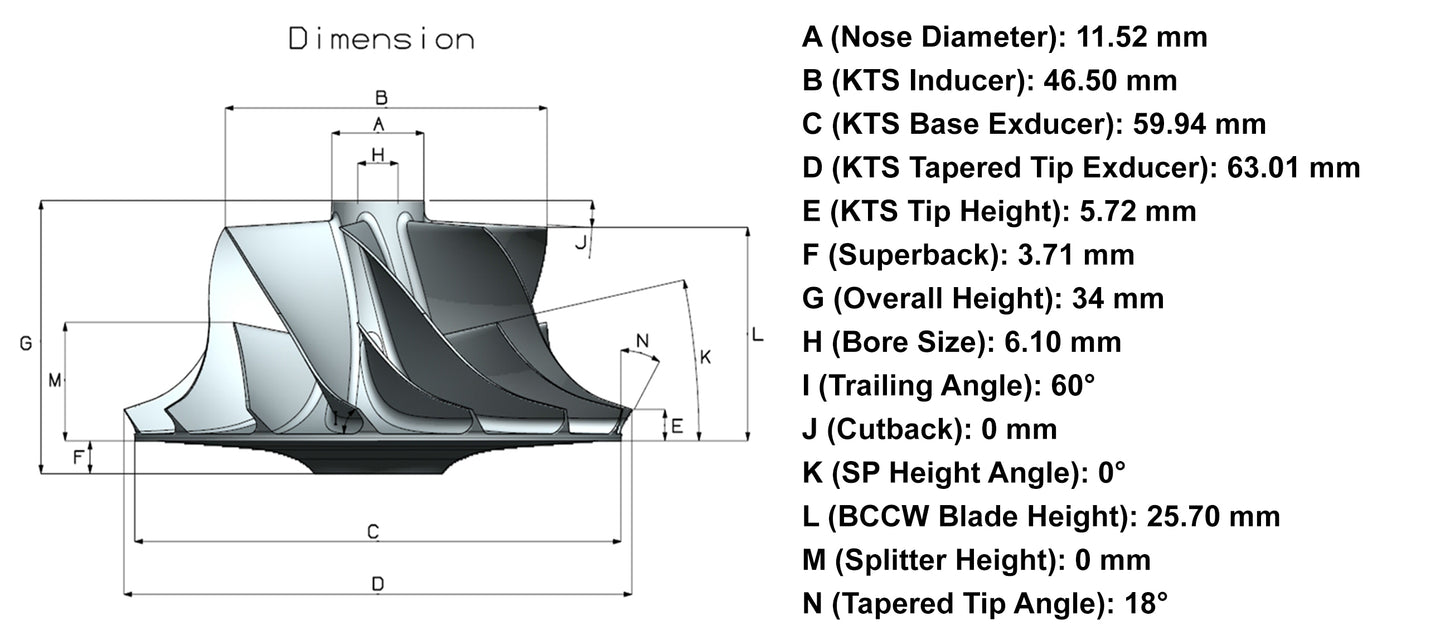

BCCW Blades: 11+0
Nose Diameter: 11.52 mm
KTS Inducer: 46.50 mm
KTS Base Exducer: 59.94 mm
KTS Tapered Tip Exducer: 63.01 mm
KTS Tip Height: 5.72 mm
Superback: 3.71 mm
Overall Height: 34.00 mm
Bore Size: 6.10 mm
Trailing Angle: 60°
Cutback: 0.0 mm
SP Height Angle: 0°
BCCW Blade Height: 25.70 mm
Splitter Height: 0.0 mm
Tapered Tip Angle: 18°
Racing or Non-Racing: Racing
STD or Custom Size: STD
Bore Type: Through
OE or Custom Compressor House Fitment: OE
Rotation: Forward
Fit for Turbo Part Numbers (V-Code):
V*440035, V*440057, V*660074, VD440047, VE440028, VE660065, VG440027, VG660060, VH440022, VJ440017
Fit for Turbo Part Numbers (Short Spec):
VF30, VF34, VF35, VF36, VF37, VF39, VF41, VF42, VF43, VF48, VF52, 479
Fit for OEM Numbers:
144114S000, 14411AA321, 14411-AA321, 14411AA371, 14411AA372, 14411AA373, 14411AA440, 14411-AA440, 14411AA493, 14411-AA493, 14411AA540, 14411AA541, 14411AA542, 14411AA572, 14411-AA572, 14411AA610, 14411AA620, 14411-AA620, 14411AA700, 14411AA760, 1-4411-AA760, 14411AA800, 1-4411-AA800, 5T-630, 5T-631
Fit for Turbo Models:
RHF55, RHF55-94001P15NHBRL479CBZ, RHF55-94001P18NHBRL479CBZ, RHF55-94001P18NR5BRL479CBZ, RHF5H, RHF5H 09 098E, RHF5HB, RHF5HB-94001P18NHBRLL479CBZ
Fit for Applications:
2000- Subaru Impreza WRX STI with 2.0L EJ20, EJ20 G/E Gas Engine
2001- Subaru Impreza WRX STI with 2.0L EJ20, EJ25 Engine
2001- Subaru Impreza WRX with 2.5L EJ20 Engine
2003- Subaru Impreza WRX STi with 2.5L EJ20 Gas Engine
2004- Subaru Impreza WRX STI with 2.5L EJ20 Engine
2004-07 Subaru Impreza WRX STI with DOHC 2.5L Engine
2006-07 Subaru Impreza WRX STi Spec. C with EJ20 Engine
2008- Subaru Legacy, Outback GT with 2.5L TD EJ25 2.5 GT Gas Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
