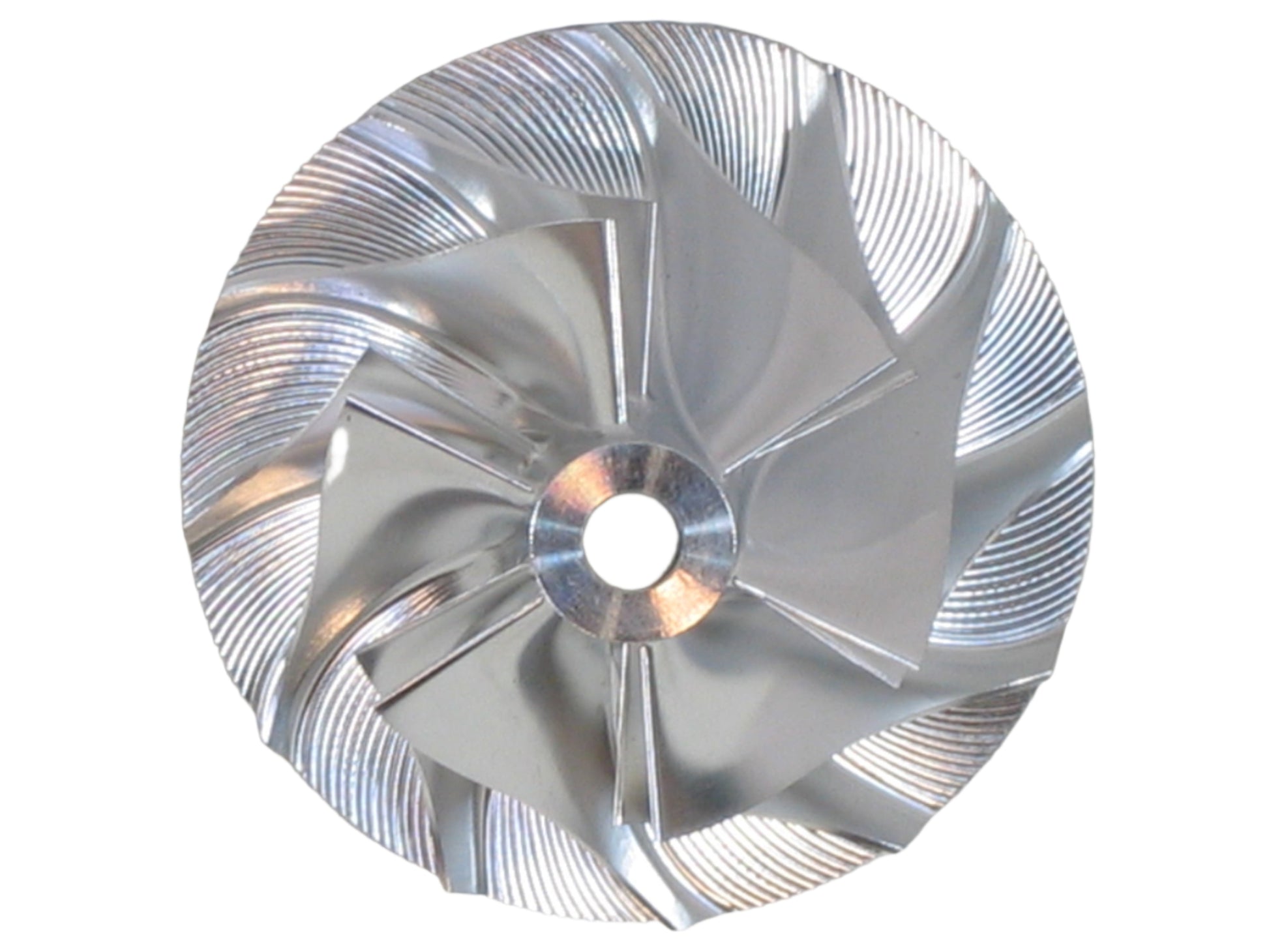

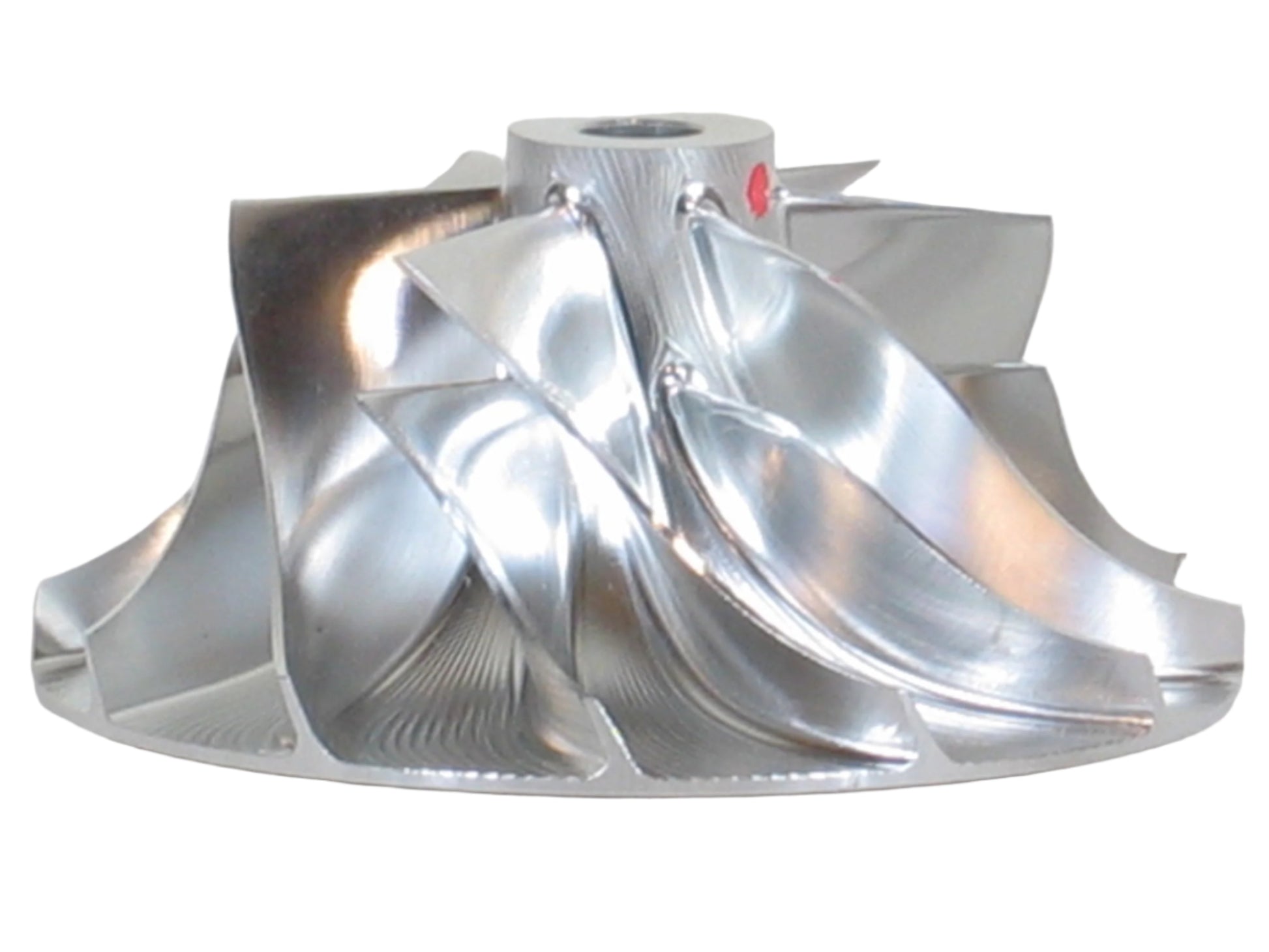

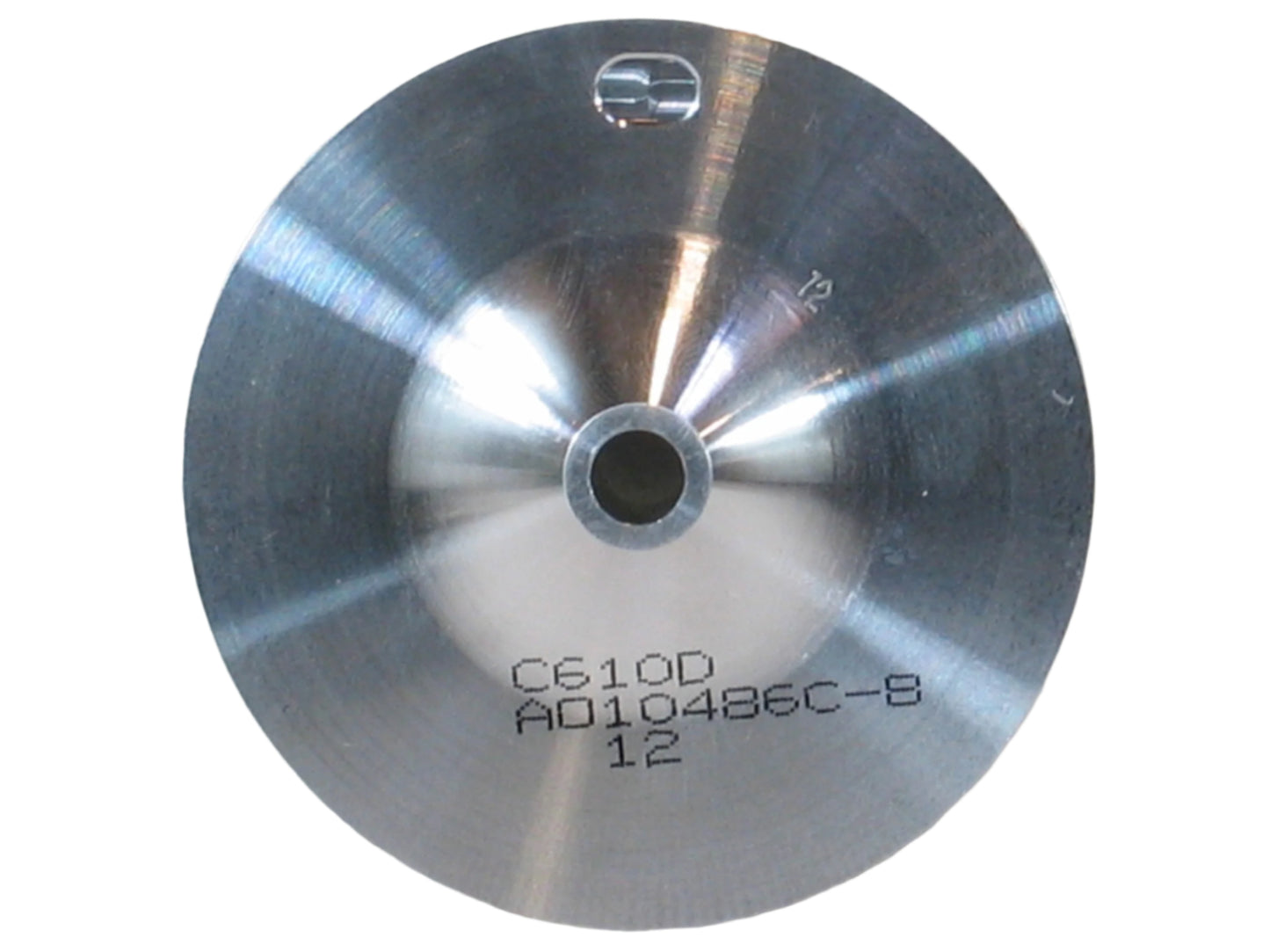

NEW RHC61W Turbo Billet Compressor Wheel Yanmar 4LH-STE Diesel Engine MFSC610CSKU: MFSC610C
This is a BRAND NEW TURBOCHARGER BILLET COMPRESSOR WHEEL. This is an exact, direct fit replacement turbo compressor wheel.
Fits the following:
Part Number: MFSC610C, C610
Interchangeable Number: NH265520
Description: Billet Compressor Wheel

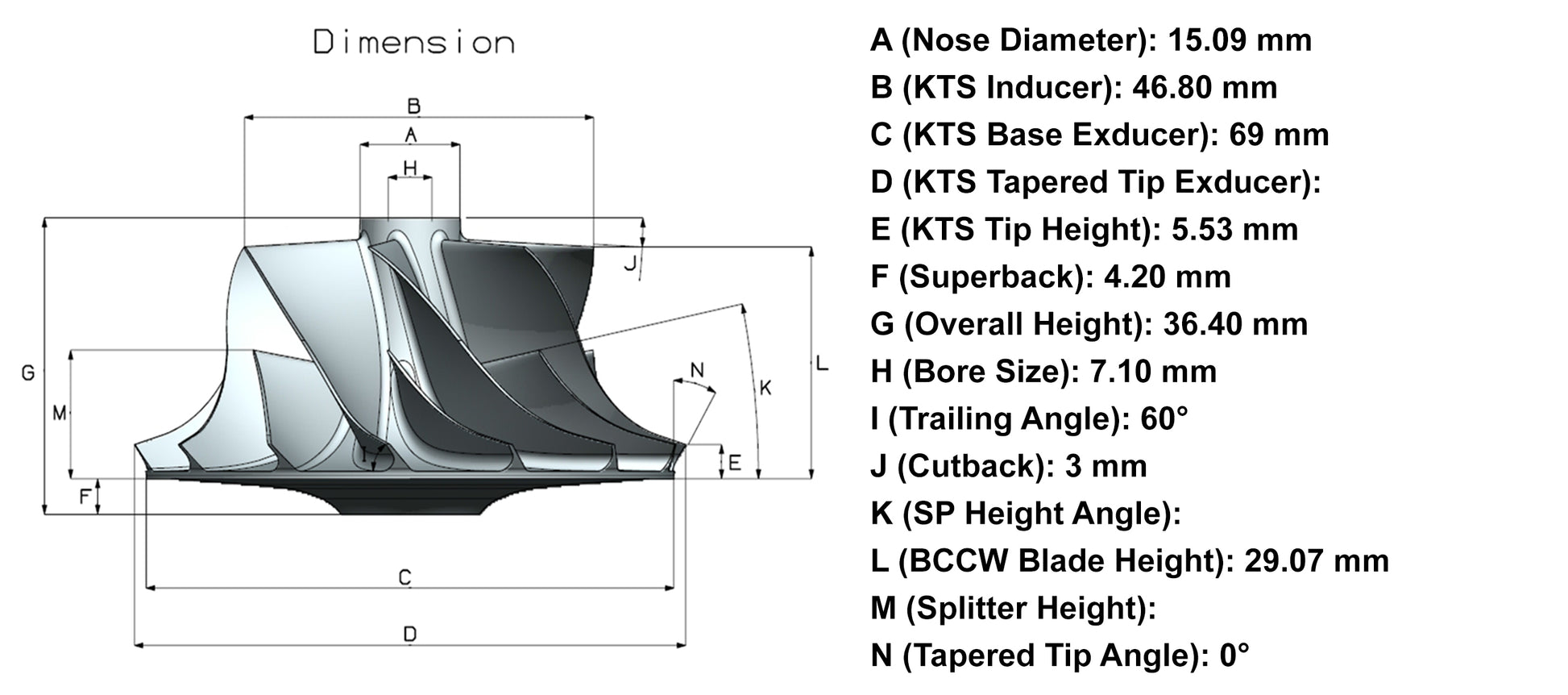

BCCW Blades: 6+6
Nose Diameter: 15.09 mm
KTS Inducer: 46.80 mm
KTS Base Exducer: 69.00 mm
KTS Tapered Tip Exducer:
KTS Tip Height: 5.53 mm
Superback: 4.20 mm
Overall Height: 36.40 mm
Bore Size: 7.10 mm
Trailing Angle: 60°
Cutback: 3.00 mm
SP Height Angle:
BCCW Blade Height: 29.07 mm
Tapered Tip Angle: 0°
Racing or Non-Racing: Non-Racing
STD or Custom Size: STD
Bore Type: Through
OE or Custom Compressor House Fitment: OE
Fit for Turbo Part Numbers (V-Code):
VA240086, VB240107, VC240080, VC240101, VD240083, VD240090
Fit for Turbo Part Numbers (Short Spec):
MYAV, MYAV0310, MYBC, MYBF, MYDA, MYDH, MYDN, 4715
Fit for OEM Numbers:
11917218010, 11917218011, 11917218030, 11917318040, 11917318041, 11917518030, 11917518031, 11919518020, 11919518021, 11919518030, 11919518031, 119172-18010, 119172-18011, 119172-18030, 119173-13041, 119173-18040, 119175-18030, 119175-18031, 119195-18020, 119195-18021, 119195-18030, 1-19195-18030, 119195-18031, 1-19195-18031, 6T-583
Fit for Turbo Models:
RHC61W, RHC61W-1036P16NWBRLL4715CC, RHC61W-1036P18NWBRLL4715CC, RHC61W-1063P16NWBRLL4715CCZ, RHC61W-1063P18NWBRLL4715CC, RHC61W-1183P18NWBRLL4715CC, RHC61W-943P18NWBRLL4715CC
Fit for Applications:
1987-01 Yanmar Marine with 4LH-HTE Engine
1995-98 Yanmar Marine with 4.0L 4LH-STE Diesel Engine
1998-01 Yanmar Marine with 3.5L 4LHA-STE, STE-4LHA, 4LHA-STZE-YA Diesel Engine
2000-01 Yanmar Marine with 3.5L 4LHA-DTZE, 4LHA-DTE, 4LHA-DTP, 4LHA-DT(Z)E(P) Diesel Engine
2000-02 Yanmar Marine with 4.0L 4LHA-HTE, 4LHAHTE Diesel Engine
Yanmar Marine with 4.0L 4LH-ST, 4LH-WST, 4LH-WSTZAY Diesel Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
