NEW RHG6 Turbo Billet Compressor Wheel Chevy 6.6L Duramax LB7 VIDR MFSG612C

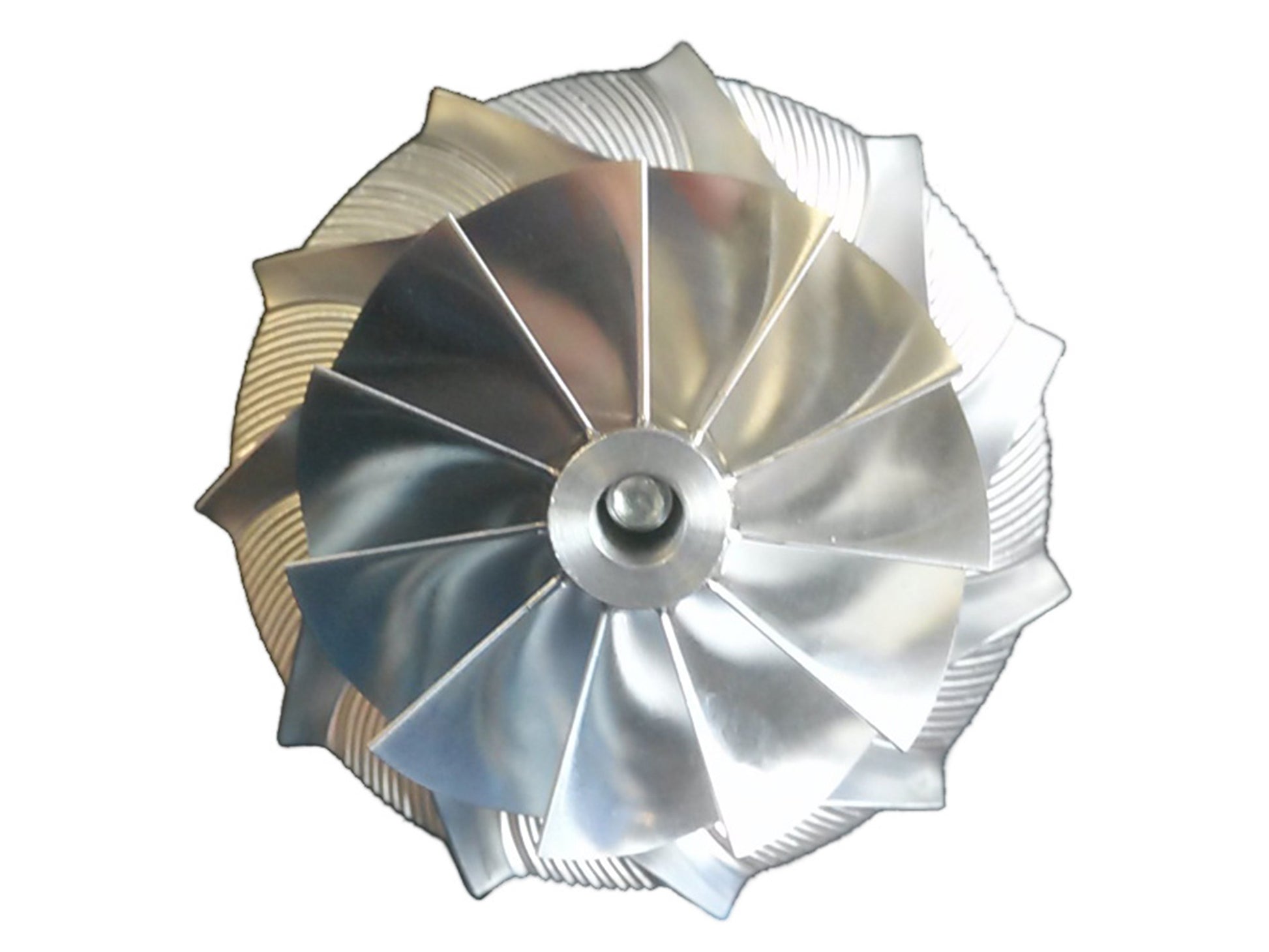

BRAND NEW TURBOCHARGER BILLET COMPRESSOR WHEEL

This is a BRAND NEW TURBOCHARGER BILLET COMPRESSOR WHEEL. This is an exact, direct fit replacement turbo compressor wheel.

Fits the following:

Part Number: MFSG612C, G612
Description: Billet Compressor Wheel
Brand: KTS

BCCW Blades: 11+0

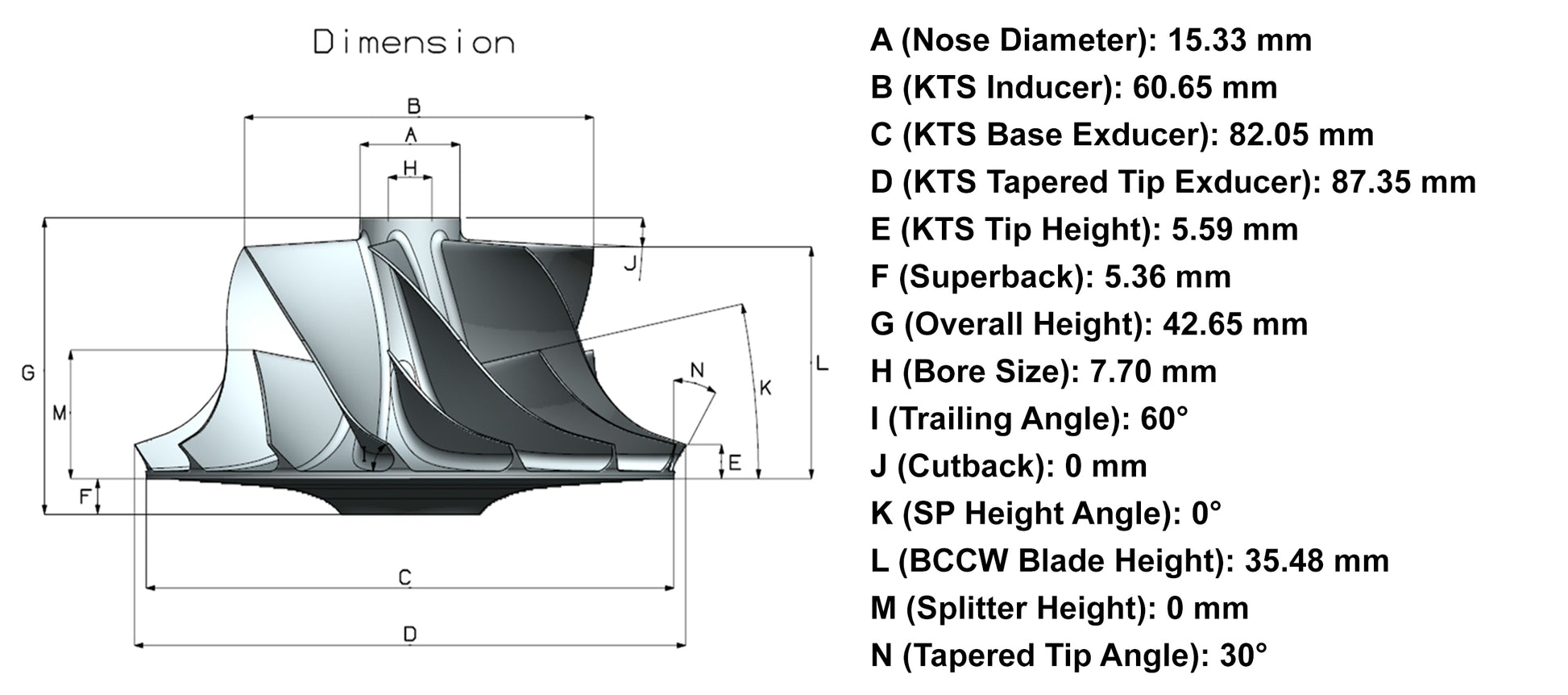

Nose Diameter: 15.33 mm
KTS Inducer: 60.65 mm
KTS Base Exducer: 82.05 mm
KTS Tapered Tip Exducer: 87.35 mm
KTS Tip Height: 5.59 mm
Superback: 5.36 mm
Overall Height: 42.65 mm
Bore Size: 7.70 mm
Trailing Angle: 60°
Cutback: 0 mm
SP Height Angle: 0°
BCCW Blade Height: 35.48 mm
Splitter Height: 0 mm
Tapered Tip Angle: 30°

Racing or Non-Racing: Racing
STD or Custom Size: STD
Bore Type: Through
OE or Custom Compressor House Fitment: OE
Rotation: Forward

Fit for Turbo Part Numbers:
VIDR

Fit for OEM Numbers:
97307711, 97720748, 8973077111

Fit for Turbo Models:
RHG6

Fit for Applications:
2001-2004 Chevy with 6.6L Duramax LB7 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
