NEW K03 Turbo Billet Compressor Wheel Audi VW 1.8L-5V langs along MFSK309C
SKU: MFSK309CThis is a BRAND NEW TURBOCHARGER BILLET COMPRESSOR WHEEL. This is an exact, direct fit replacement turbo compressor wheel.
Fits the following:
Part Number: MFSK309C, K309
Interchangeable Number: 53041232029, 1302003404
Description: Billet Compressor Wheel
Brand: KTS

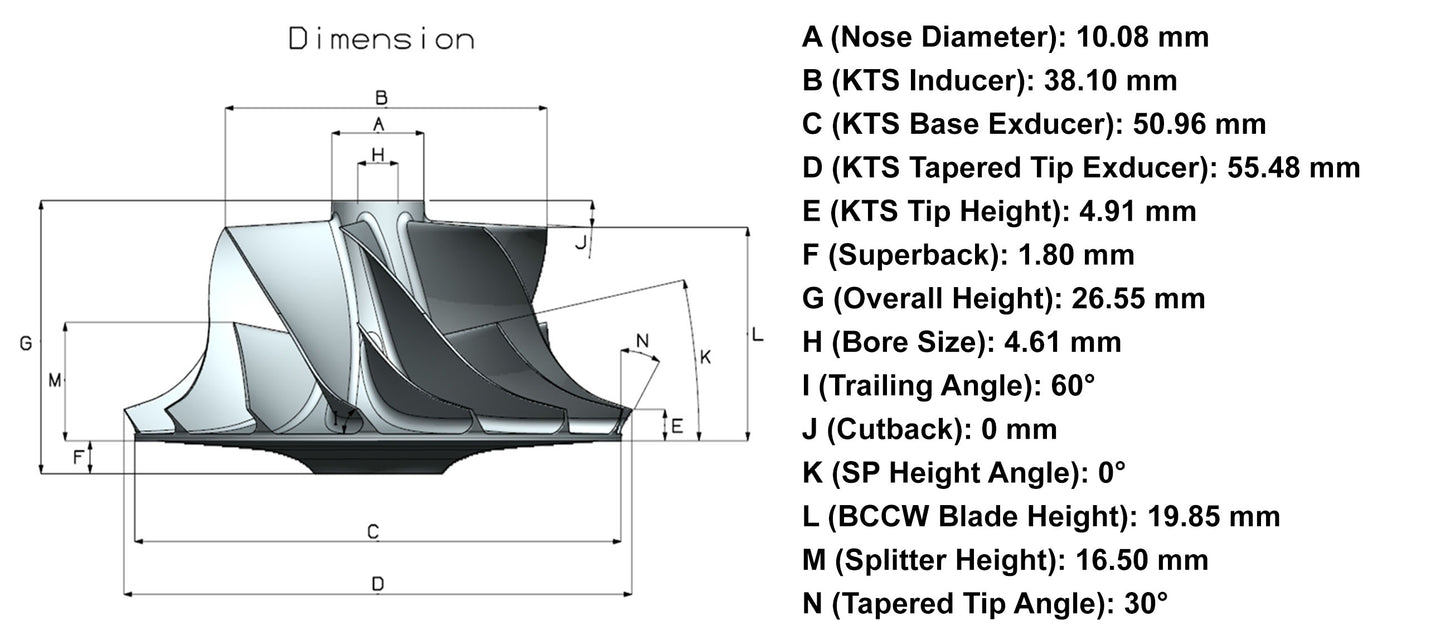

BCCW Blades: 4+4
Nose Diameter: 10.08 mm
KTS Inducer: 38.10 mm
KTS Base Exducer: 50.96 mm
KTS Tapered Tip Exducer: 55.48 mm
KTS Tip Height: 4.91 mm
Superback: 1.80 mm
Overall Height: 26.55 mm
Bore Size: 4.61 mm
Trailing Angle: 60°
Cutback: 0 mm
SP Height Angle: 0°
BCCW Blade Height: 19.85 mm
Splitter Height: 16.50 mm
Tapered Tip Angle: 30°
Racing or Non-Racing: Racing
STD or Custom Size: STD
Bore Type: Through
OE or Custom Compressor House Fitment: OE
Rotation: Forward
Fit for Turbo Part Numbers:
53039700052, 5303 970 0052, 5303-970-0052, 53039880052, 5303 988 0052, 5303-988-0052, 53039700053, 5303 970 0053, 5303-970-0053, 53039880053, 5303 988 0053, 5303-988-0053, 53039700058, 5303 970 0058, 5303-970-0058, 53039880058, 5303 988 0058, 5303-988-0058, 53039700073, 5303 970 0073, 5303-970-0073, 53039880073, 5303 988 0073, 5303-988-0073, 53039700082, 5303 970 0082, 5303-970-0082, 53039880082, 5303 988 0082, 5303-988-0082, 53049700024, 5304 970 0024, 5304-970-0024, 53049880024, 5304 988 0024, 5304-988-0024, 53049700027, 5304 970 0027, 5304-970-0027, 53049880027, 5304 988 0027, 5304-988-0027, 53049700048, 5304 970 0048, 5304-970-0048, 53049880048, 5304 988 0048, 5304-988-0048
Fit for OEM Numbers:
06A145704S, 06A145704T, 06A145713B, 06A145713D, 06A145713E, 06A145713F, 06A145713L, 06A145713M, 06A145713N, 06B145703B, 849147, 5849040, 55559848, 90423508
Fit for Turbo Models:
K03, K03-(1302003916), K03-2075EYD5.88KCAXH, K03-2075EYD5.88KCAXK, K04, K04-024, K04-2075ECD/6.88, K04-2075ECD5.82GCAAD, K04-2075ECD6.88GCCXK
Fit for Applications:
2000-04 Opel Astra G Cabriolet, Zafira A F75 with 2.0L Z20LET Gasoline Engine
2000-05 Audi A3 1.8T with 1.78L 1.8-5V quer/transversal Gasoline Engine
2000-05 Audi A3 with 1.8L-5V langs, along Gasoline Engine
2000-05 Skoda Octavia with 1.8L-5V langs, along Gasoline Engine
2000-05 Skoda Octavia, Laura 1.8T with 1.78L 1.8-5V quer/transversal Gasoline Engine
2000-05 Volkswagen Golf IV, Bora, New Beetle with 1.8L-5V langs, along Gasoline Engine
2000-05 VW Golf IV, Bora, New Beetle 1.8T with 1.78L 1.8-5V quer/transversal Gasoline Engine
2000-08 Opel Astra Coupe, Zafira OPC with 2.0L Y20LET Gasoline Engine
2000-09 Audi A3, TT 1.8T with 1.78L 1.8-5V quer/transversal Gasoline Engine
2000-09 Seat Leon 1.8T with 1.78L 1.8-5V quer/transversal Gasoline Engine
2000-09 Skoda Octavia, Laura RS with 1.78L 1.8-5V quer/transversal Gasoline Engine
2000-09 VW Golf, Bora, Jetta 1.8T with 1.78L 1.8-5V quer/transversal Gasoline Engine
2000-13 Opel Speedster with 2.0L Z20LET Gasoline Engine
2001-01 Mahindra Pick-up with 2.6L EUV3800TCI Engine
2001-07 Audi A3, TT 1.8T with 1.78L 1.8-5V quer/transversal Gasoline Engine
2001-07 Seat Leon 1.8T with 1.78L 1.8-5V quer/transversal Gasoline Engine
2001-07 Skoda Octavia, Laura RS with 1.78L 1.8-5V quer/transversal Gasoline Engine
2001-07 VW Golf, Bora, Jetta 1.8T with 1.78L 1.8-5V quer/transversal Gasoline Engine
2002-04 Audi A4 with 1.8T (B6) BEX, AVJ Gasoline Engine
2002-12 Audi A4 (B6) Quattro with 1.78L BEX Engine
2002-12 Audi A4 with 1.8L-5V langs, along Gasoline Engine
2003- Opel Astra H with 2.0L Z20LEL, Z20LER Gasoline Engine
2003- Opel Zafira B with 2.0L Z20LER Gasoline Engine
2003-04 Opel Astra G with 2.0L 16V Z20LET Gasoline Engine
2003-04 Seat Ibiza Cupra 1.8T with 1.78L 1.8-5V quer/transversal Gasoline Engine
2005-03 Opel Passenger Car with 2.0L Z20LEL, Z20LER Gasoline Engine
2005-09 Audi TT with 1.78L 1.8-5V quer/transversal Gasoline Engine
2006-01 VW New Beetle 1.8T with 1.78L 1.8-5V quer/transversal Gasoline Engine
2006-09 Audi A3 1.8T with 1.78L 1.8-5V quer/transversal Gasoline Engine
2006-09 Skoda Octavia, Laura 1.8T with 1.78L 1.8-5V quer/transversal Gasoline Engine
2006-09 VW Passenger Car with 1.78L 1.8-5V quer/transversal Gasoline Engine
2006-12 Audi A3, TT 1.8T with 1.78L 1.8-5V quer/transversal Gasoline Engine
2006-12 Seat Leon 1.8T with 1.78L 1.8-5V quer/transversal Gasoline Engine
2006-12 Skoda Octavia, Laura RS with 1.78L 1.8-5V quer/transversal Gasoline Engine
2006-12 VW Golf, Bora, Jetta 1.8T with 1.78L 1.8-5V quer/transversal Gasoline Engine
2007-01 Seat Ibiza Cupra 1.8T with 1.78L 1.8-5V quer/transversal Gasoline Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
