NEW OEM IHI RHC61W Turbo Yanmar Marine 4LH-HT 4LH-TE Diesel Engine VD240076 MY58

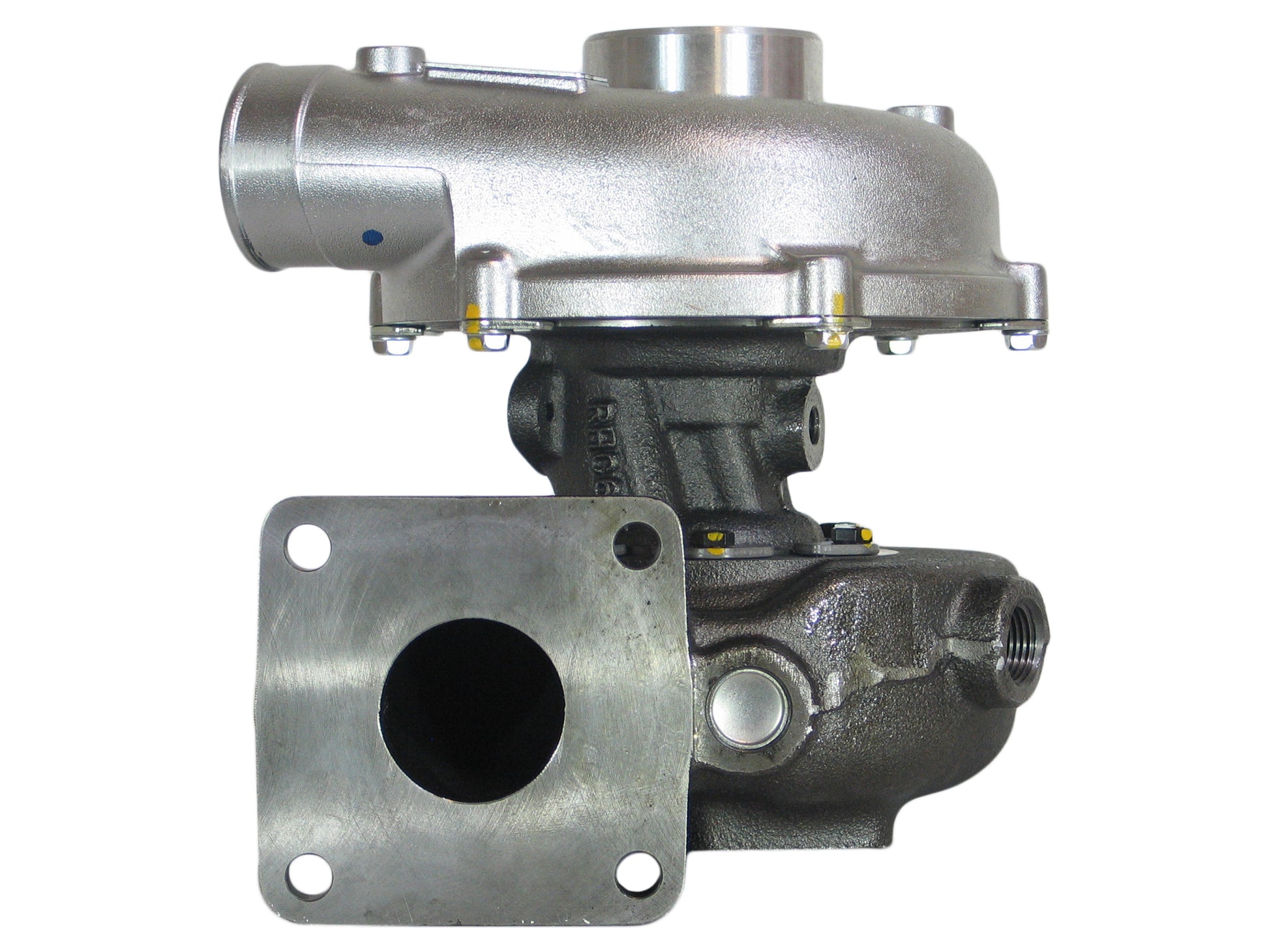

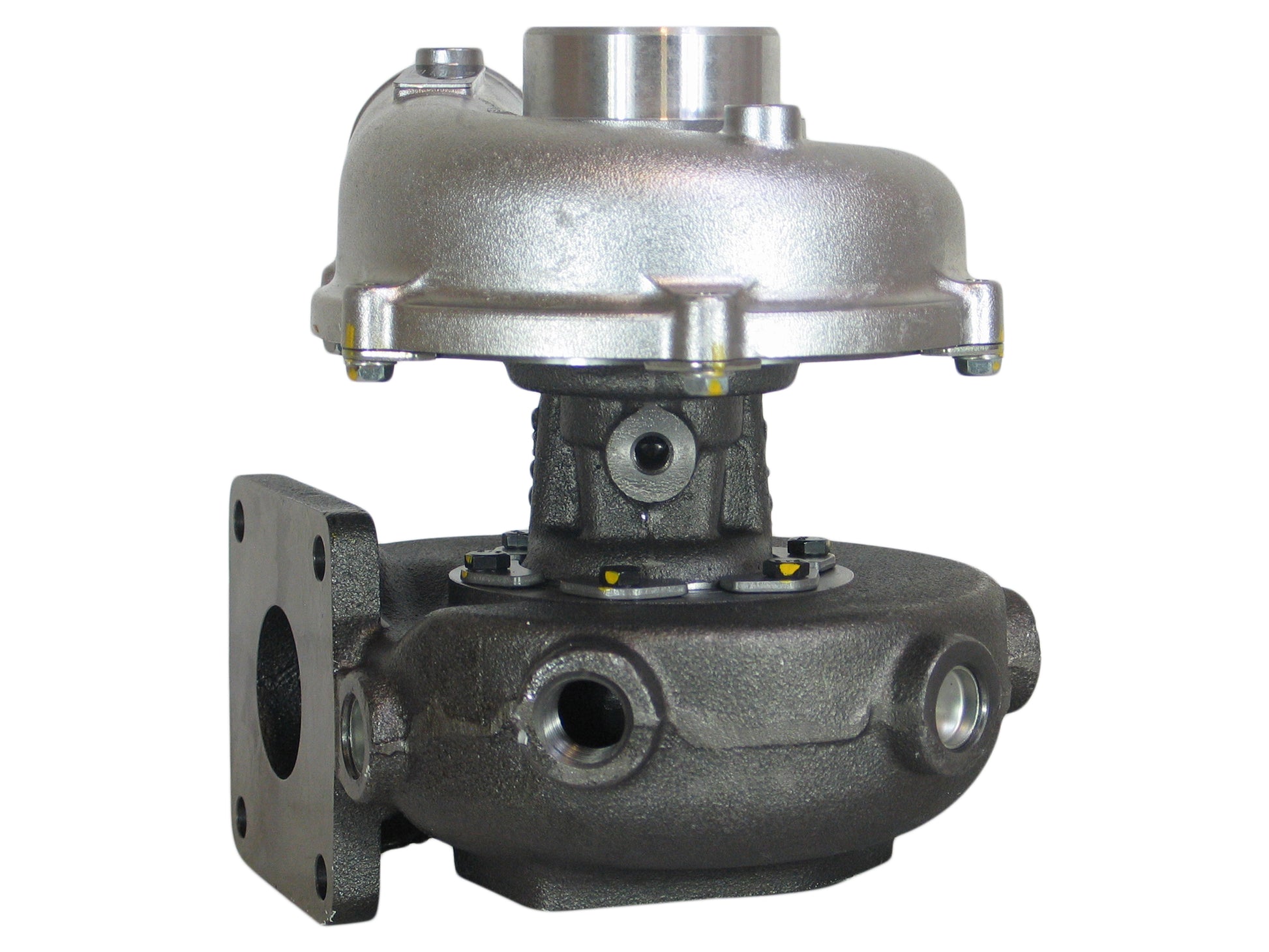

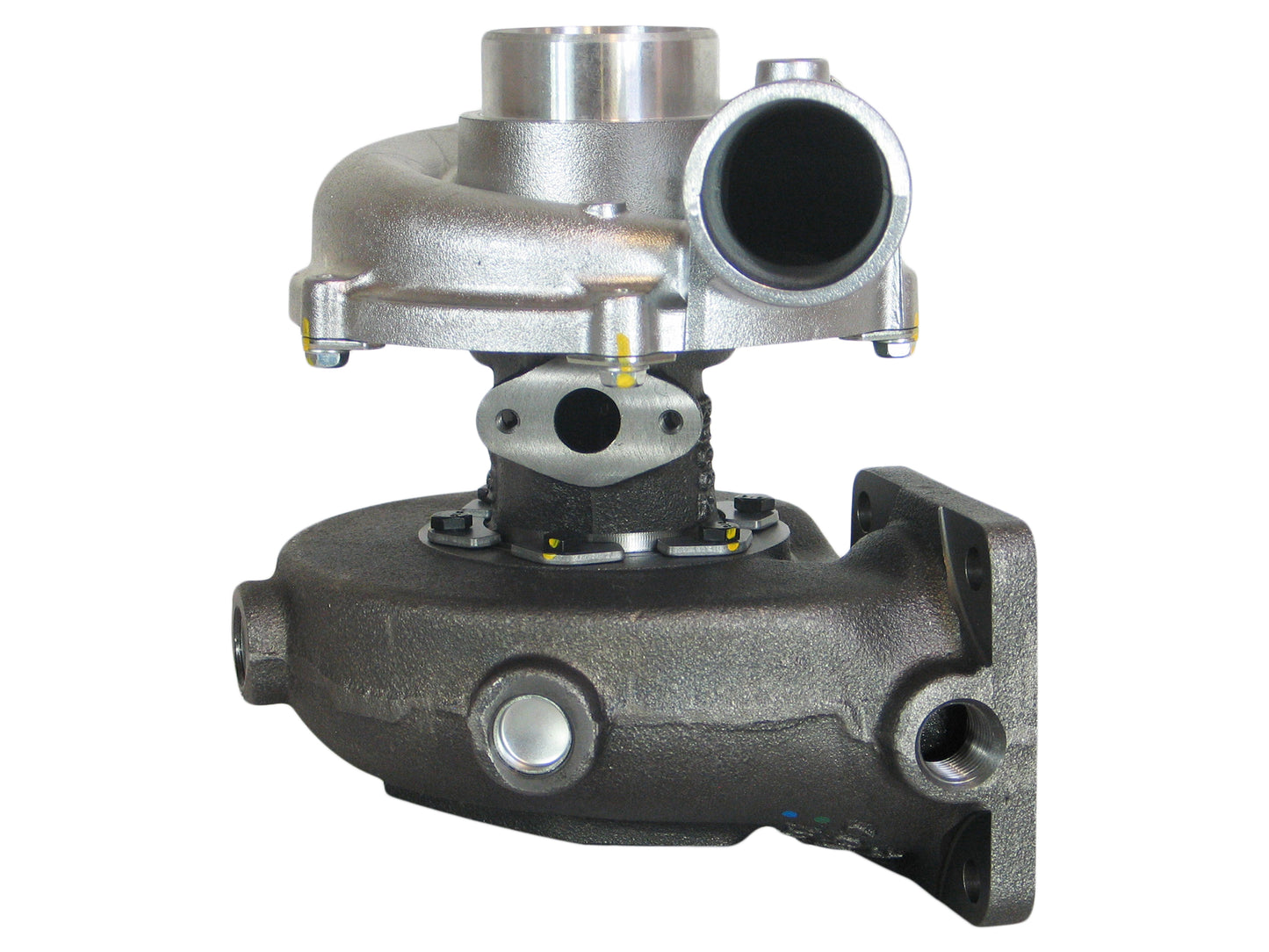

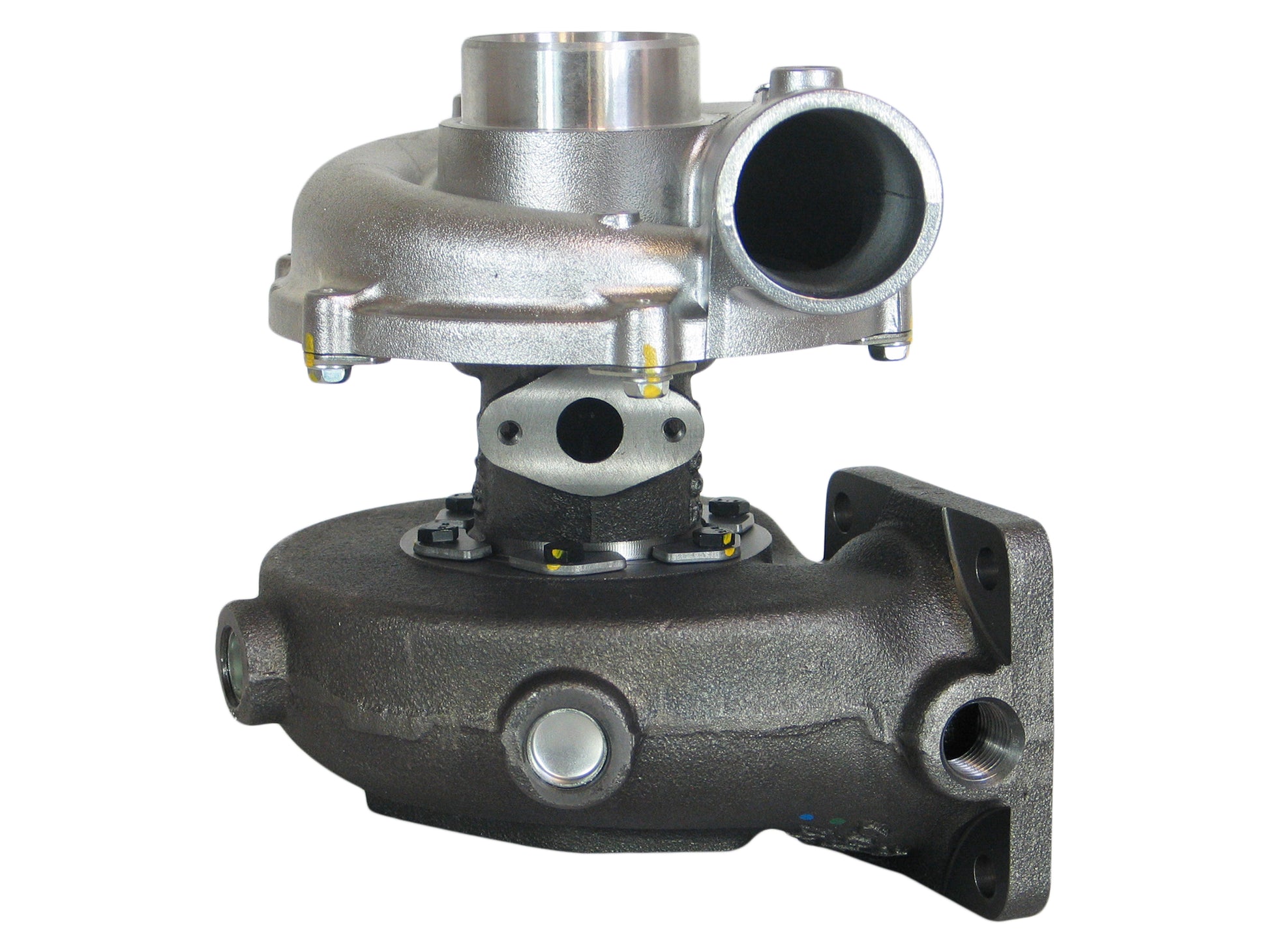

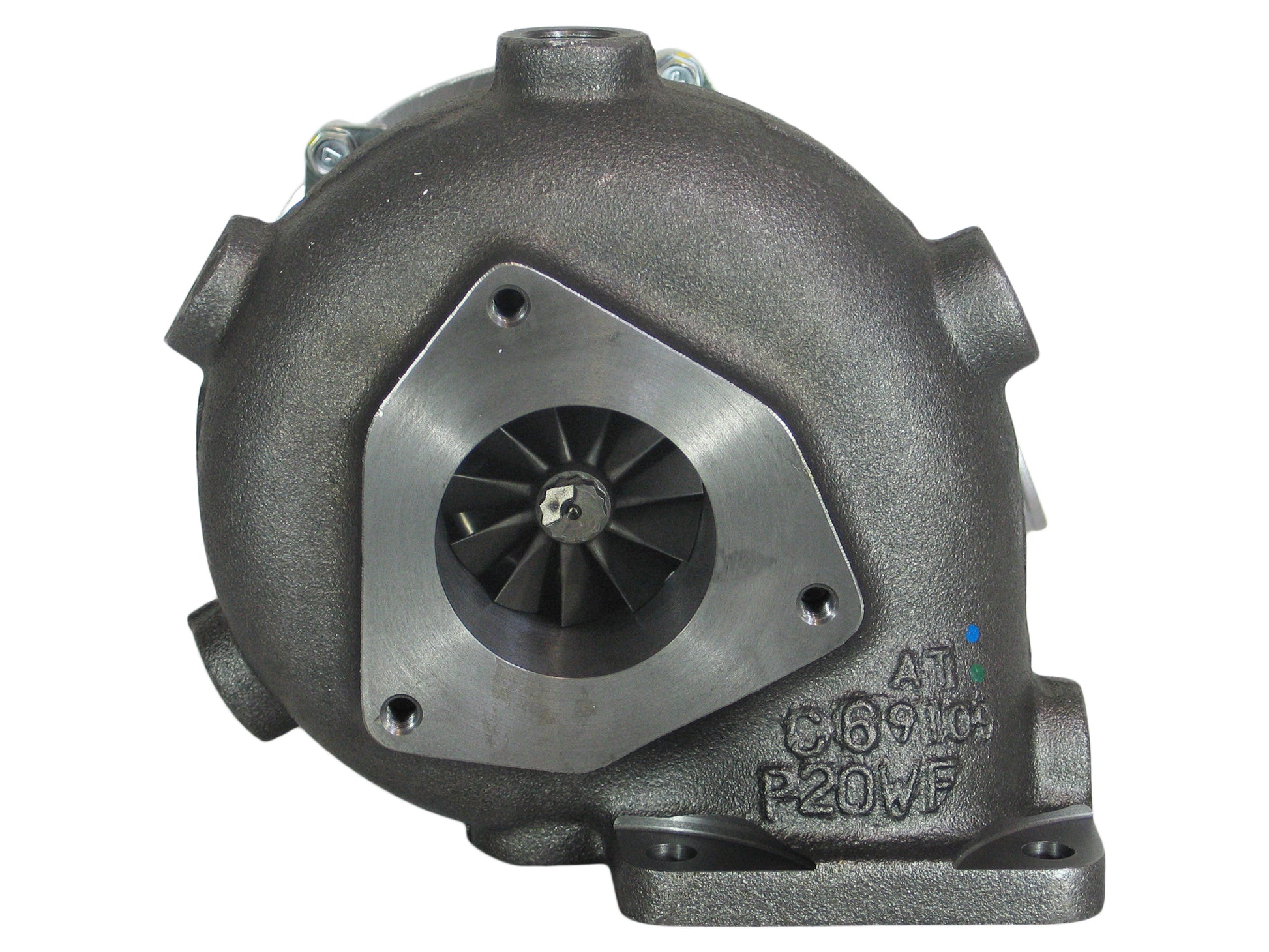

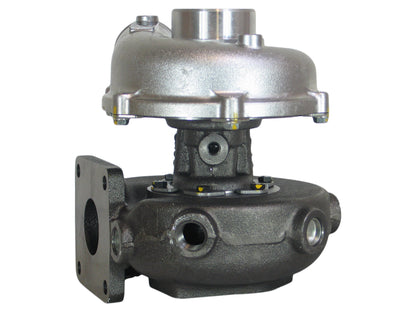

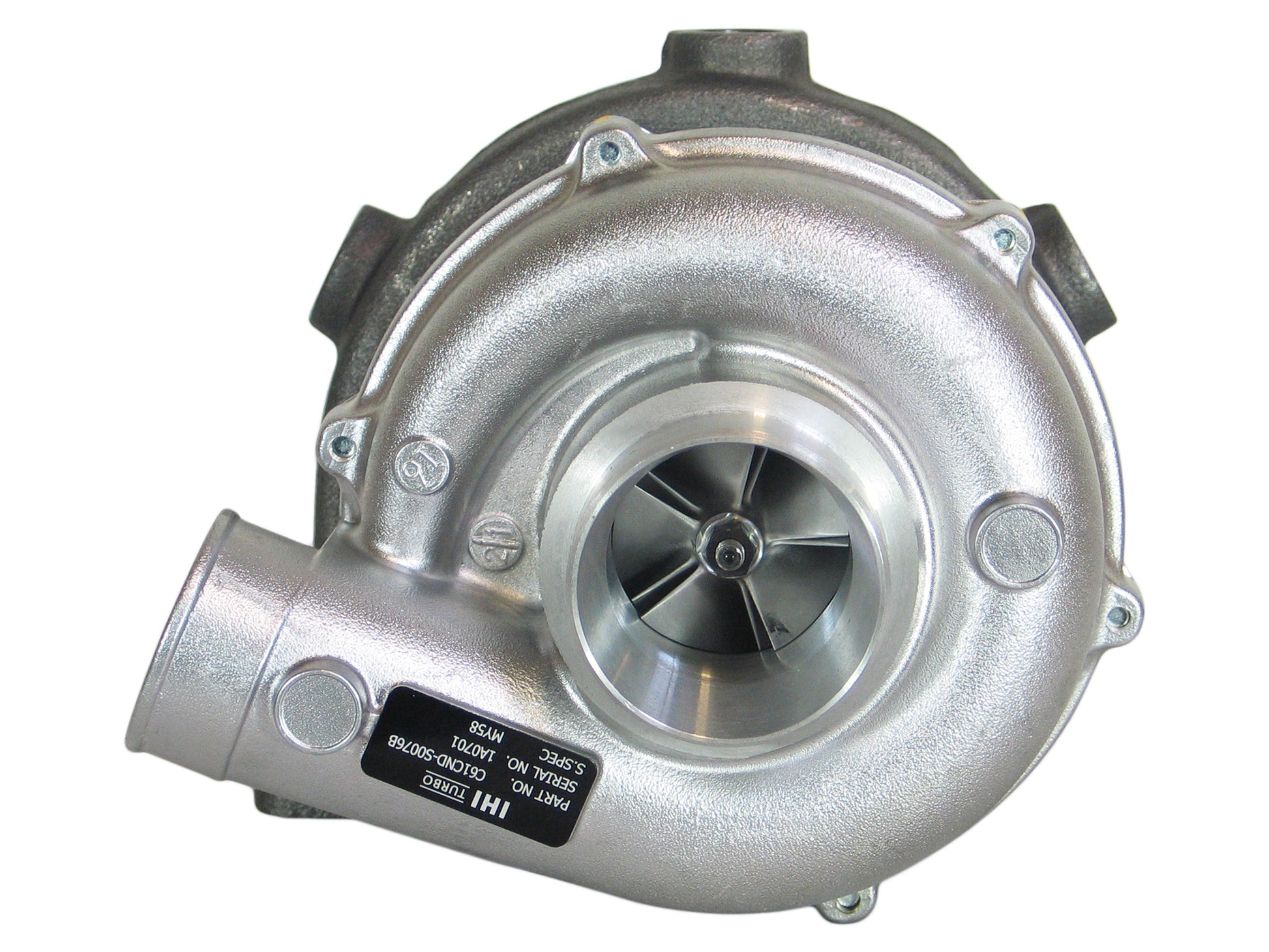

BRAND NEW GENUINE IHI TURBOCHARGER

This is a BRAND NEW GENUINE IHI TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: VD240076
Short Spec.: MY58
Interchangeable Number: C61CND-S0076B, NH160022, VA240076, VB240076, VC240076
OEM Number: 119171-18010, 11917118010, 119171-18011, 11917118011, 6T-582
Turbo Model: RHC61W, RHC61W-1183P20NWBRL504A
Manufacturer: IHI Turbo - CloverTurbo

Year: 1988-01
Engine: 4LH-HT, 4LH-TE
Displacement: 3455 ccm, 4 Cylinders
Fuel: Diesel
Power: 110 HP

Angle α (Compressor Housing): 70°
Angle β (Turbine Housing): 182°
Back Plate: NN193012
Bearing Housing: NH163155 (Oil Cooled)
Compressor Cover: NH164602 (NE964530)
Compressor Wheel: NH165203 (NH161300)(Ind. 45.63 mm, Exd. 65 mm, 5+5 Blades, Super Back)
Gasket (Oil Outlet): 210161 (128300-1323, Gasket Paper)
Gasket (Turbine Inlet): 210235 (Stainless Steel)
Heat Shield: NH261107
Repair Kit: GF169846NS/NH169836 (NN169836)
Turbine Housing (Water Cooled): NH167519 (NE967160)
Turbine Housing A/R: 20
Turbine Wheel: NH161402 (NH161312, NH165203)(Wheel BR504A)(Ind. 56.33 mm, Exd. 30.91 mm, 11 Blades)

Application:
1988-01 Yanmar Marine with 4LH-TE Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
