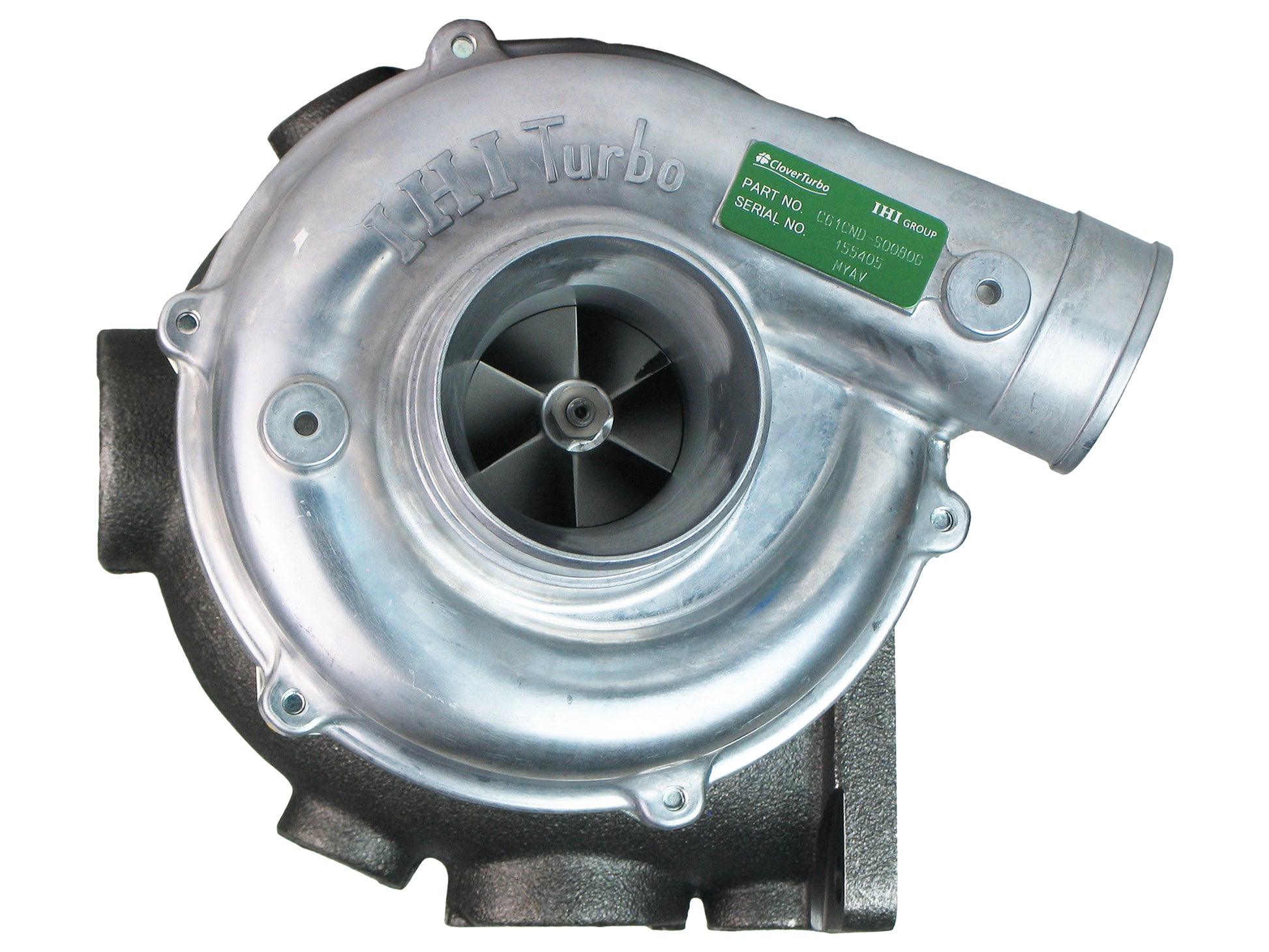

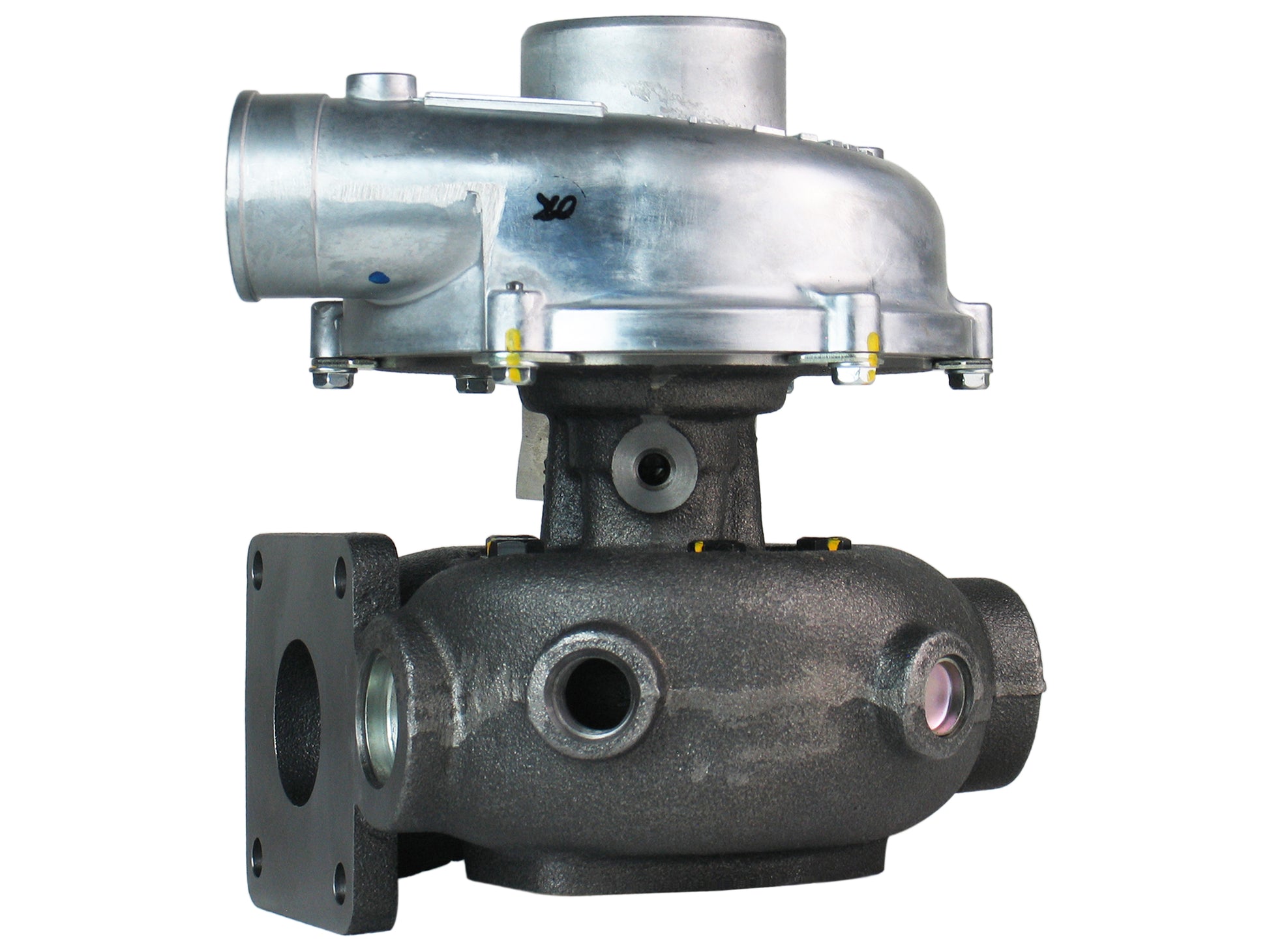

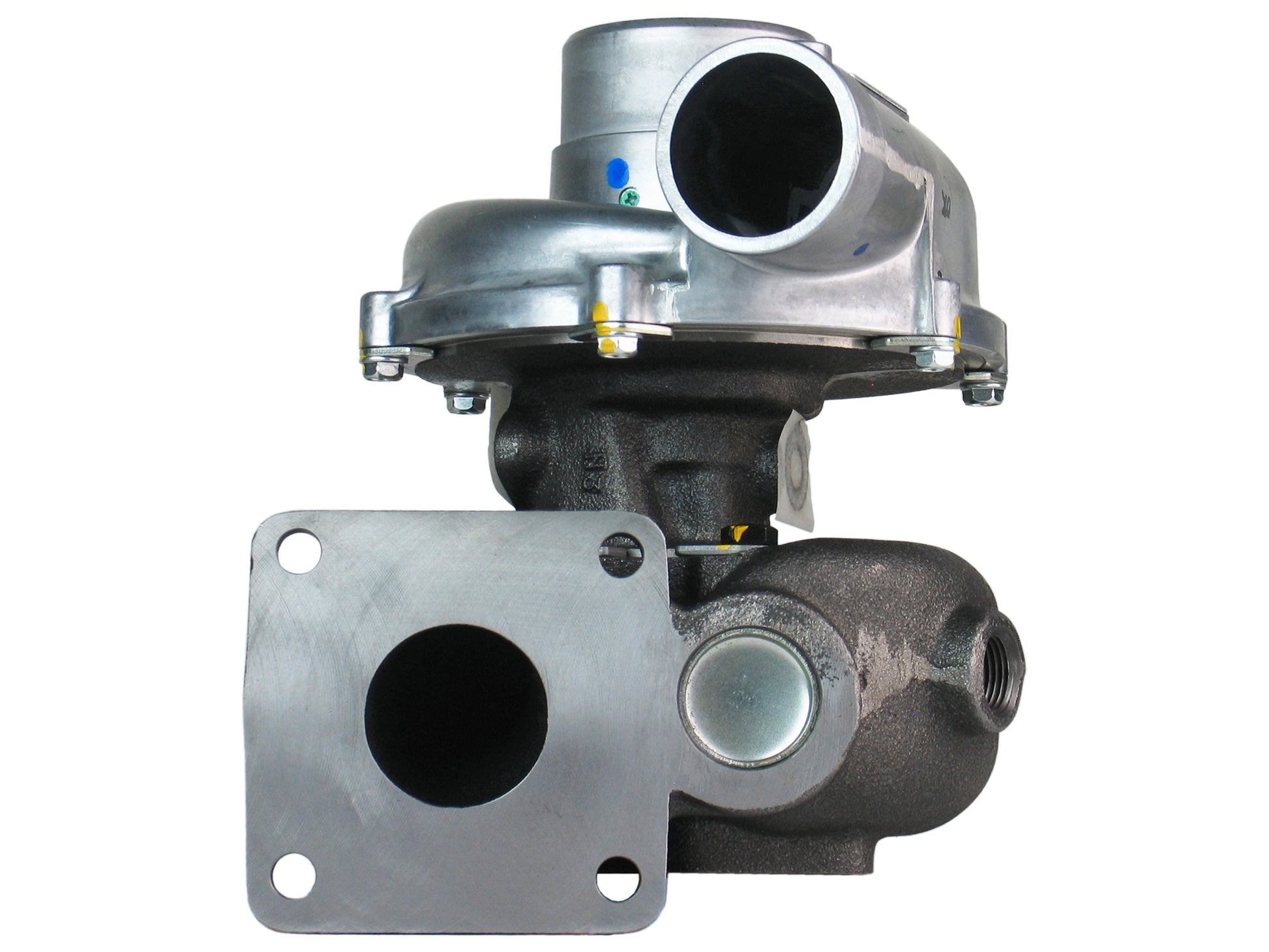

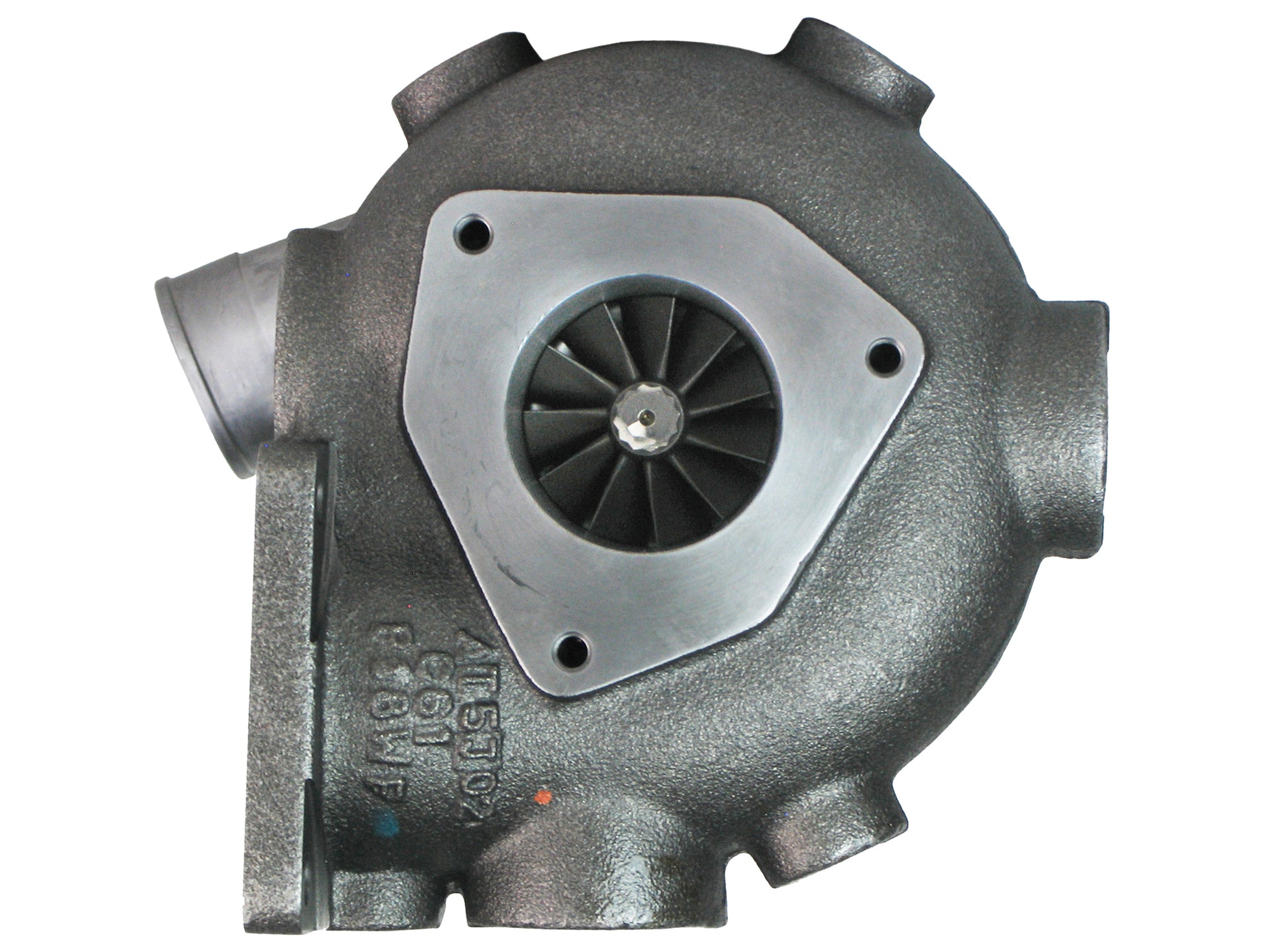

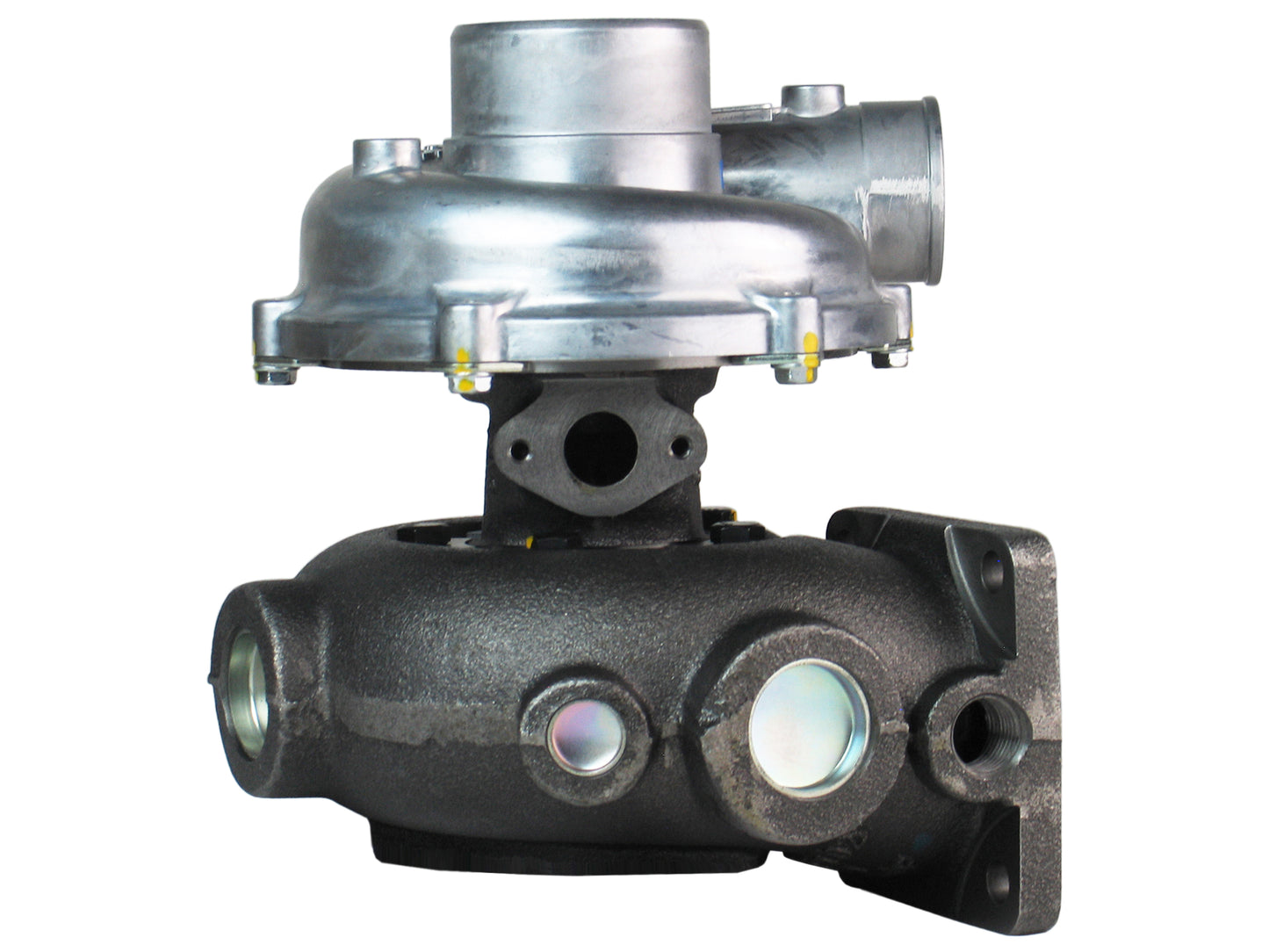

NEW OEM IHI RHC61W Turbo Yanmar Marine 4.0L 4LH-STE Engine 6T-583 VC240080 MYAV

BRAND NEW GENUINE IHI TURBOCHARGER

This is a BRAND NEW GENUINE IHI TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: VC240080
Short Spec.: MYAV, MYAV0310
Interchangeable Number: C61CND-S0080B, C61CND-S0080B, VA240080, VB240080, VD240080
OEM Number: 119195-18031, 119195-18030, 11919518031, 11919518030, 6T-583
Turbo Model: RHC61W, RHC61W-1063P18NWBRLL4715CC
Manufacturer: IHI Turbo - CloverTurbo

Year: 1995-98
Engine: 4LH-STE
Displacement: 4.0L, 3455 ccm, 4 Cylinders
Fuel: Diesel
Power: 169 kW/230 HP

Angle α (Compressor Housing): 70°
Angle β (Turbine Housing): 95°
Back Plate: NN193012
Bearing Housing (Water Cooled): NH163331 (831211260)(831211090)
CHRA: NZ870535
Compressor Cover: NH164602 (NE964530)
Compressor Wheel: NH265520 (170268)(NH2655207)(Ind. 51.3 mm, Exd. 69.97 mm, 6+6 Blades, Super Back)
Gasket (Oil Outlet): 831351080 (831351080, 241351081)
Heat Shield: NH261107
Insulator, Silencer: NH163329
Repair Kit: NH169843/GF169846 (509T-538)
Turbine Housing (Water Cooled): NH167606
Turbine Housing A/R: 18
Turbine Wheel: NH261320/NH261301D

Application:
1995-98 Yanmar Marine with 4LH-STE Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
