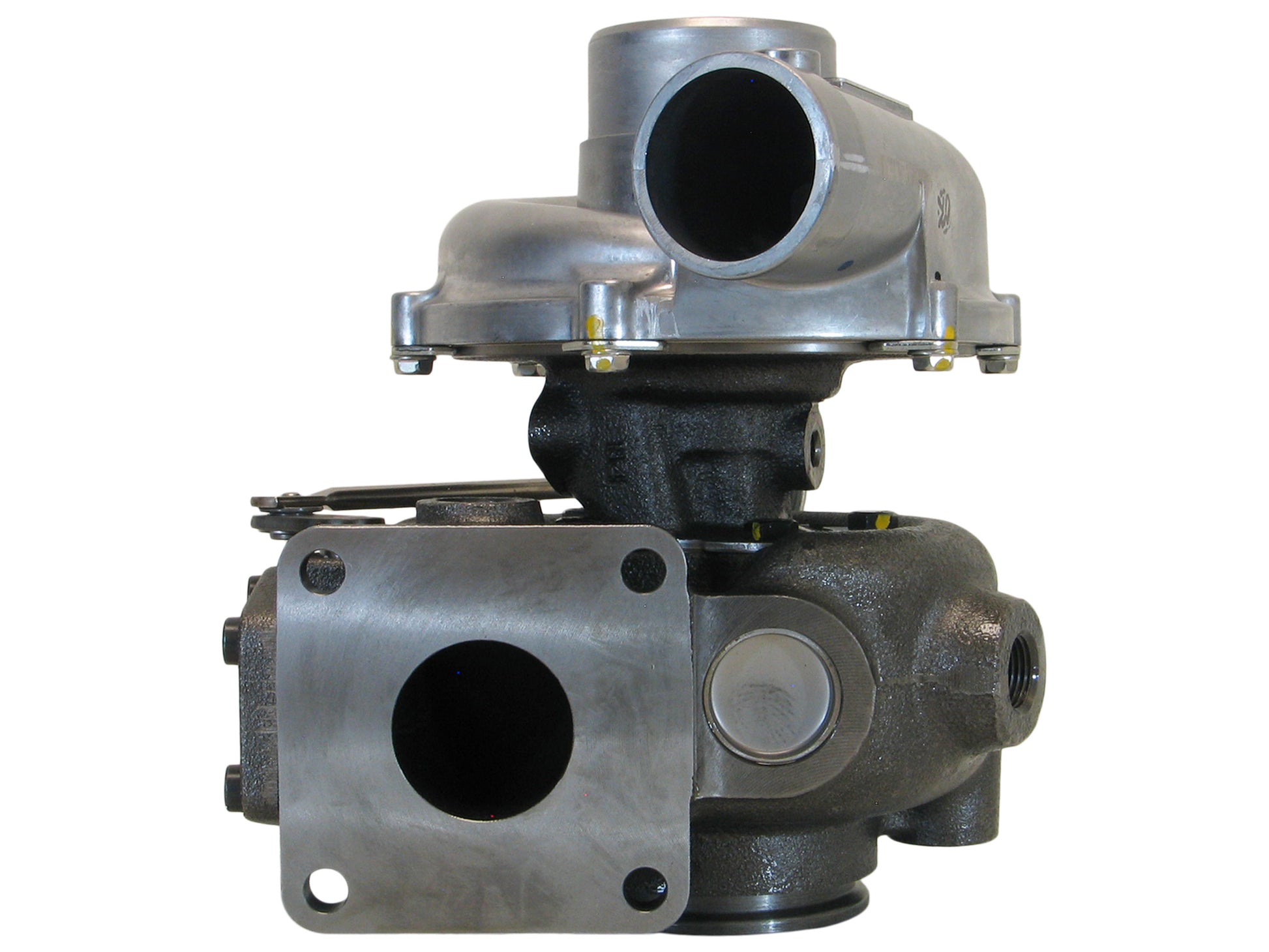

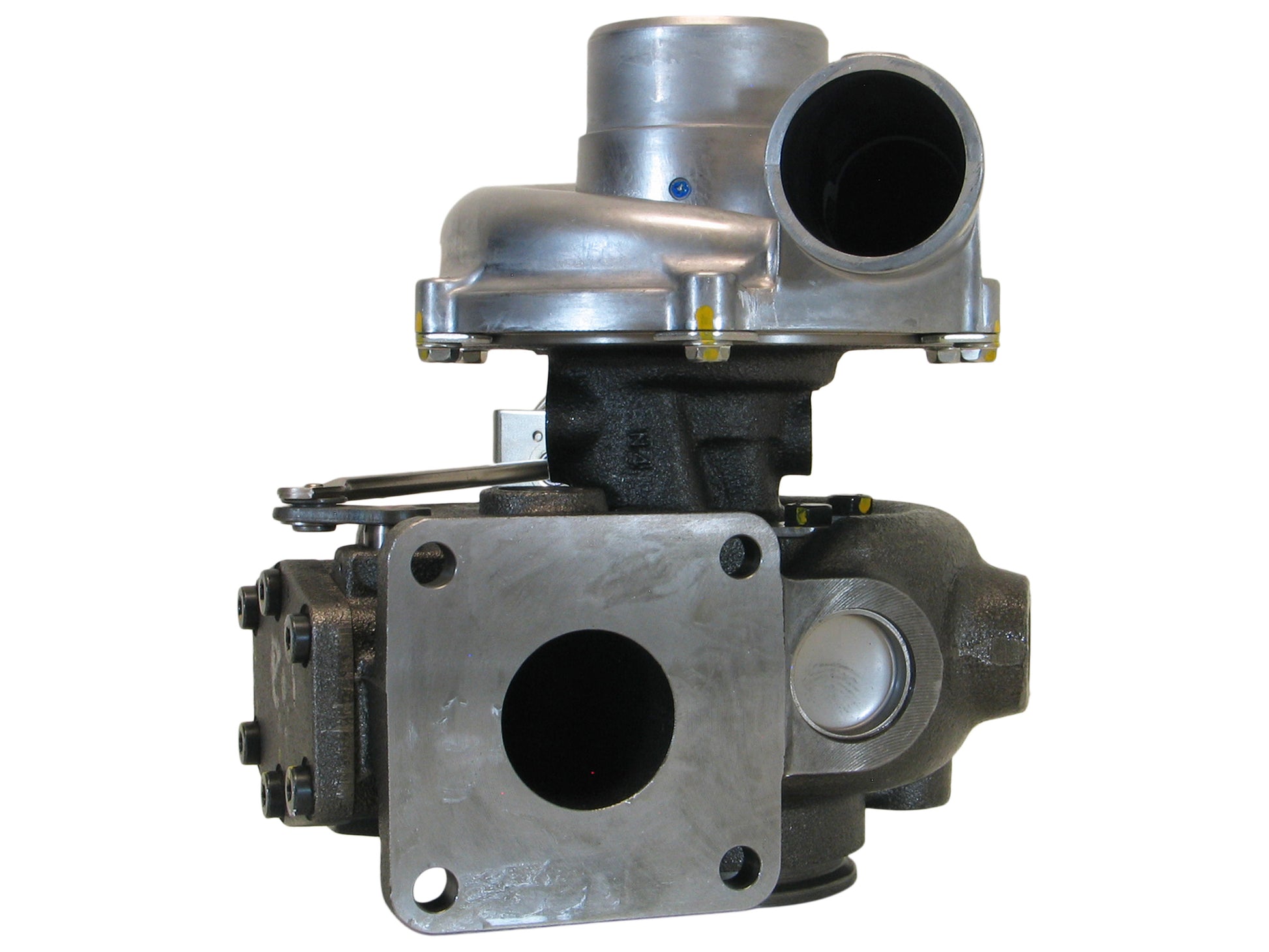

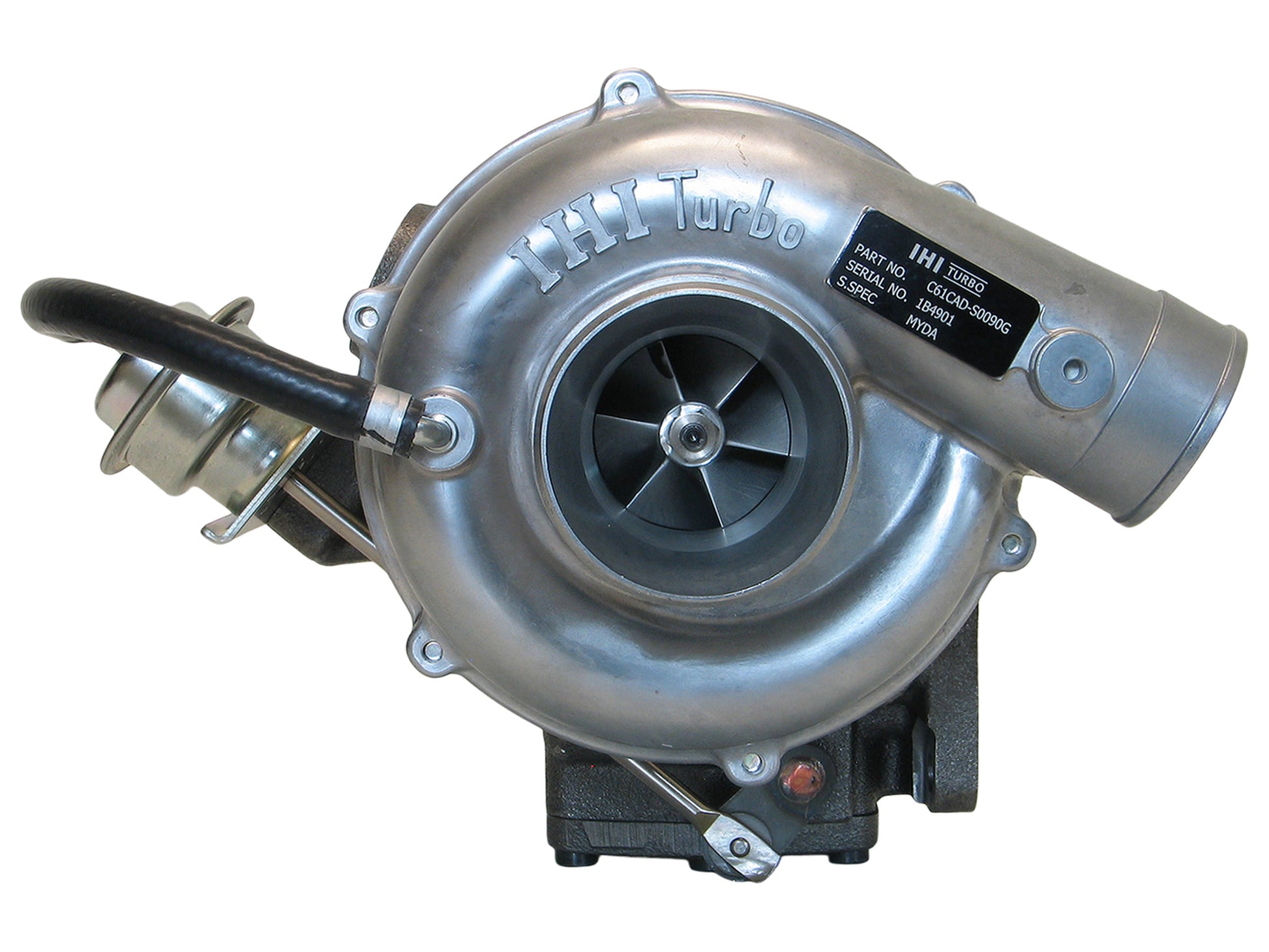

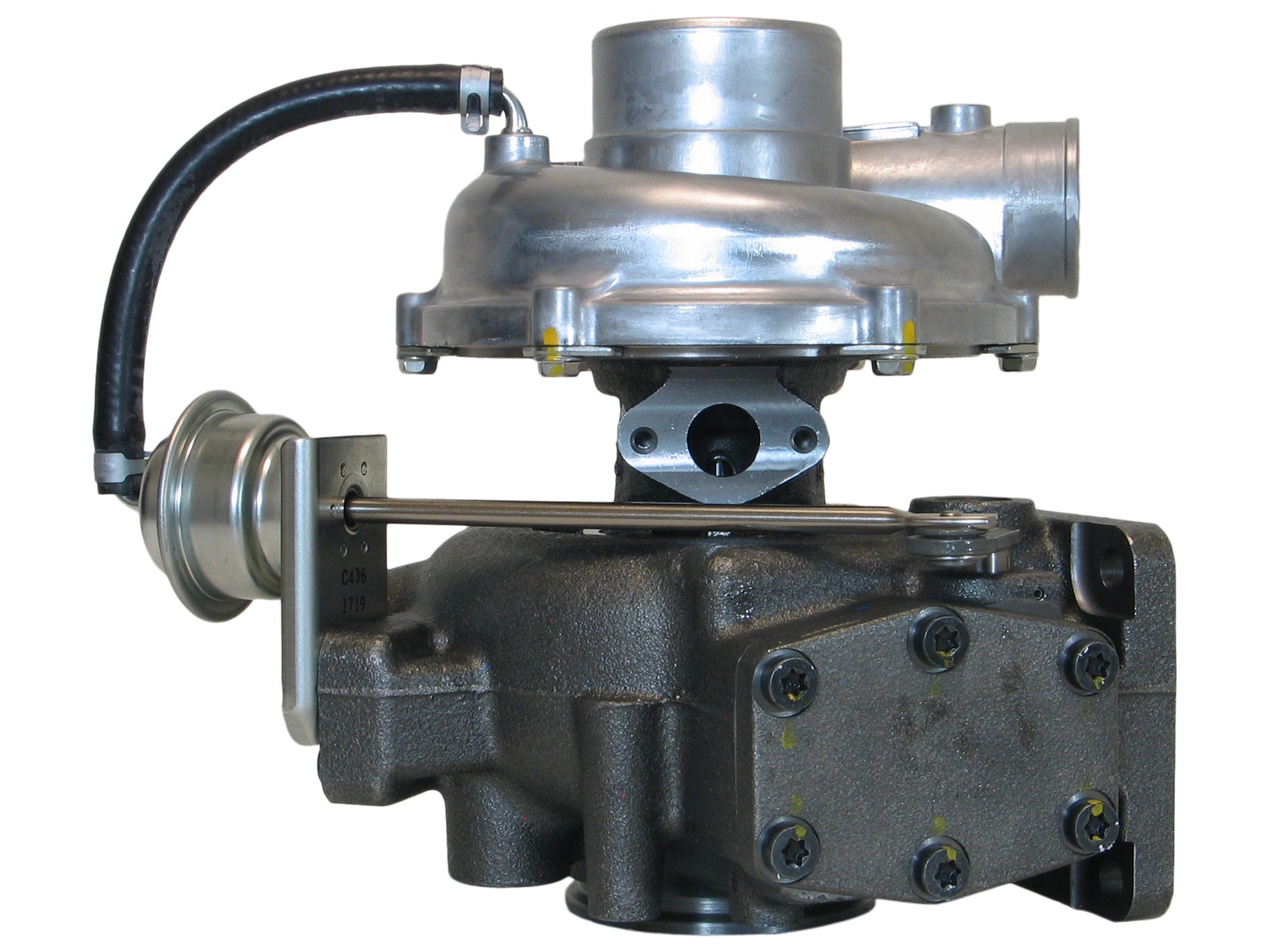

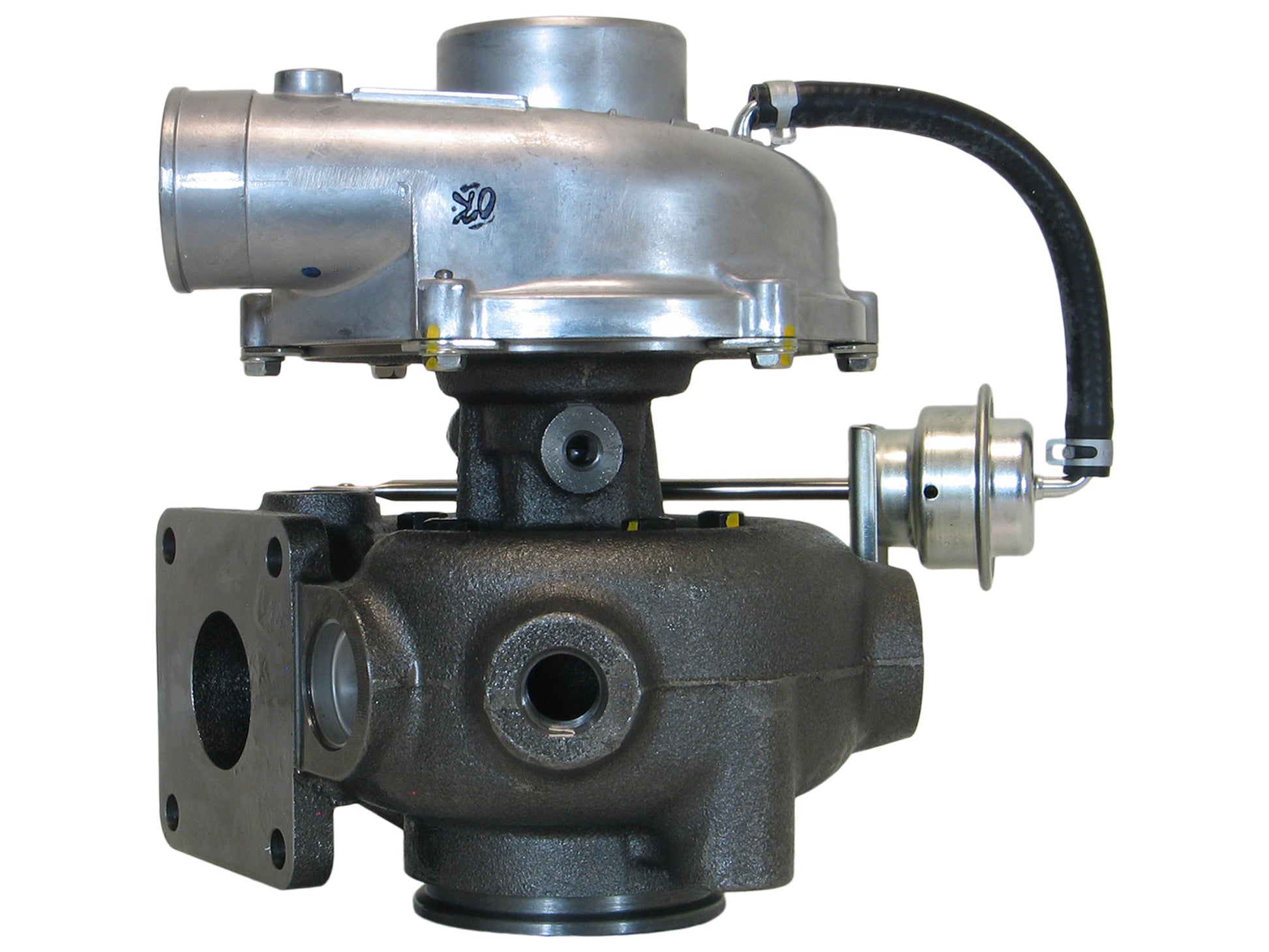

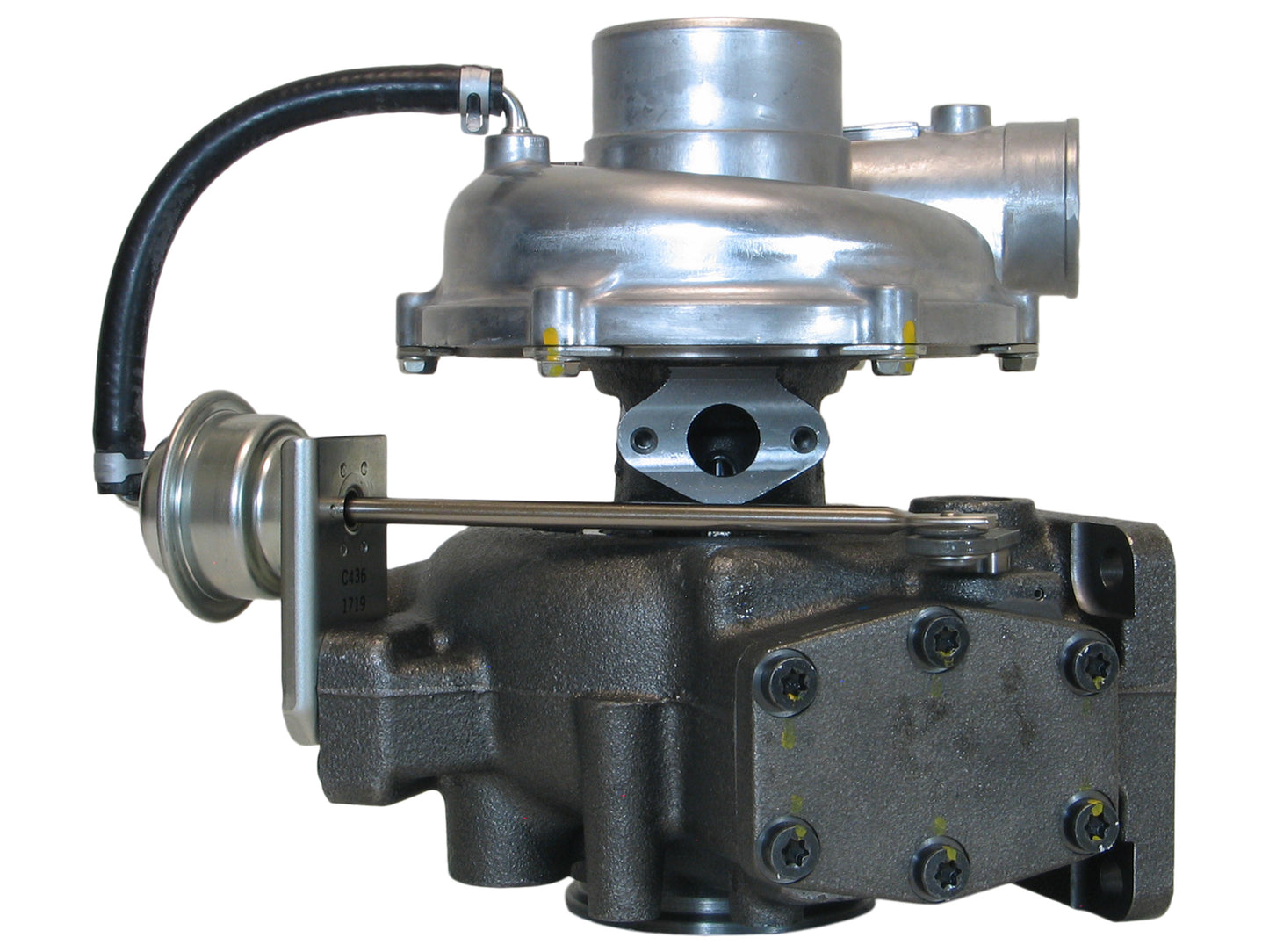

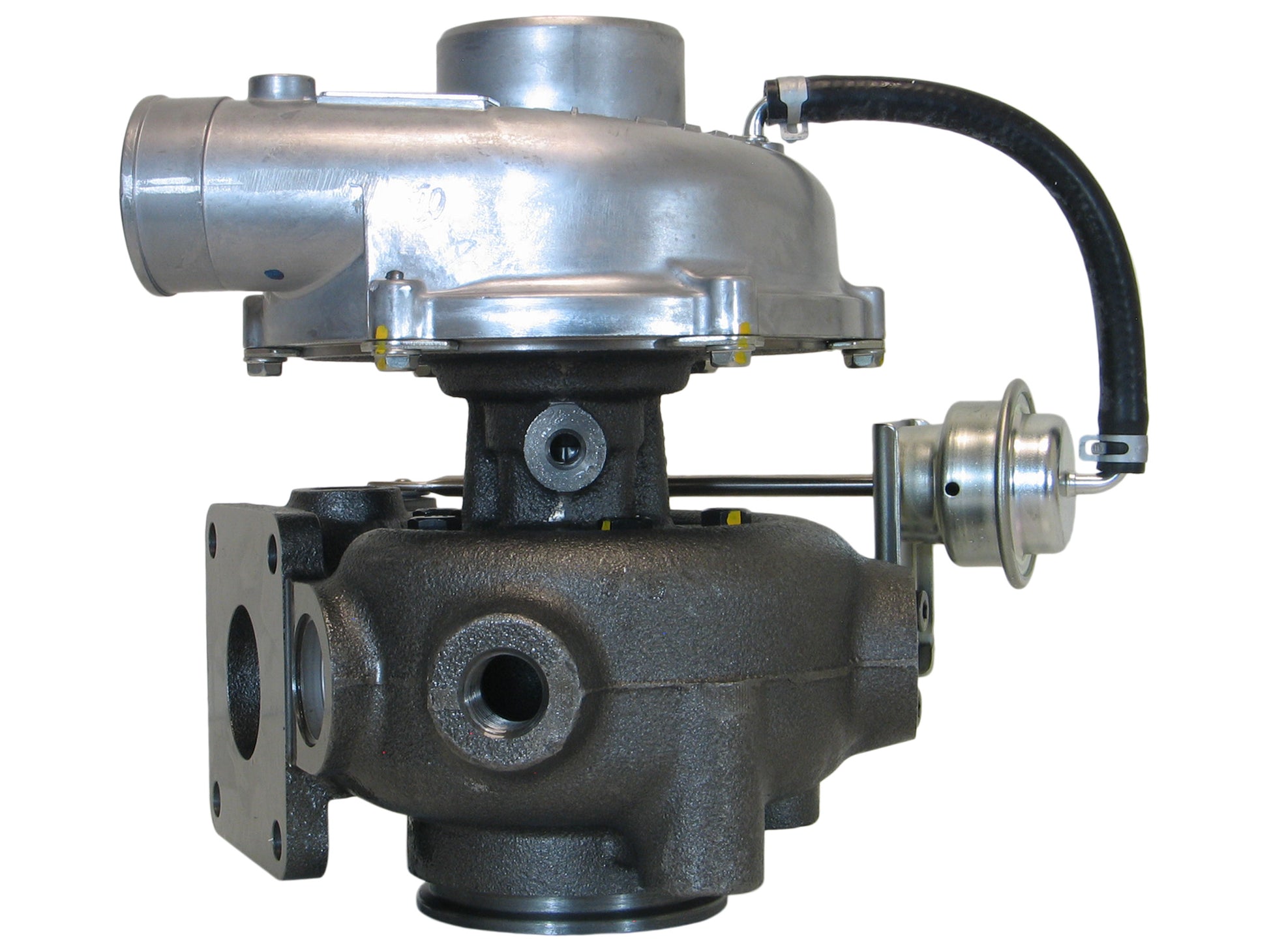

NEW OEM IHI RHC61W Turbocharger Yanmar Marine 4LHA-STE Engine VD240090 MYDA

BRAND NEW GENUINE IHI TURBOCHARGER

This is a BRAND NEW GENUINE IHI TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: VD240090
Short Spec.: MYDA
Interchangeable Number: C61CAD-S0090B, C61CAD-S0090G, VB240090
OEM Number: 119175-18031, 119175-18030, 11917518031, 11917518030
Turbo Model: RHC61W, RHC61W-1063P16NWBRLL4715CCZ
Manufacturer: IHI Turbo - CloverTurbo

Year: 1998-01
Engine: 4LHA-STE, STE-4LHA, 4LHA-STZE-YA
Displacement: 3.5L, 3456 ccm
Fuel: Diesel
Power: 230 HP

Angle ? (Compressor Housing): 70°
Angle β (Turbine Housing): 182°
Actuator: NH961640 (NH961641)
Back Plate: NN193012
Bearing Housing (Water Cooled): NH163331/NH163376 (831211260)(831211090)
CHRA: NZ854798
Compressor Cover: NH164718
Compressor Wheel: NH265520 (170268)(NH2655207)(Ind. 51.3 mm, Exd. 69.97 mm, 6+6 Blades, Super Back)
Gasket (Oil Outlet): 210161 (128300-1323)(Gasket Paper)
Gasket (Turbine Outlet): 128300-13230
Heat Shield: NH163329
Repair Kit: NH169843 (509T-538)/GF169846

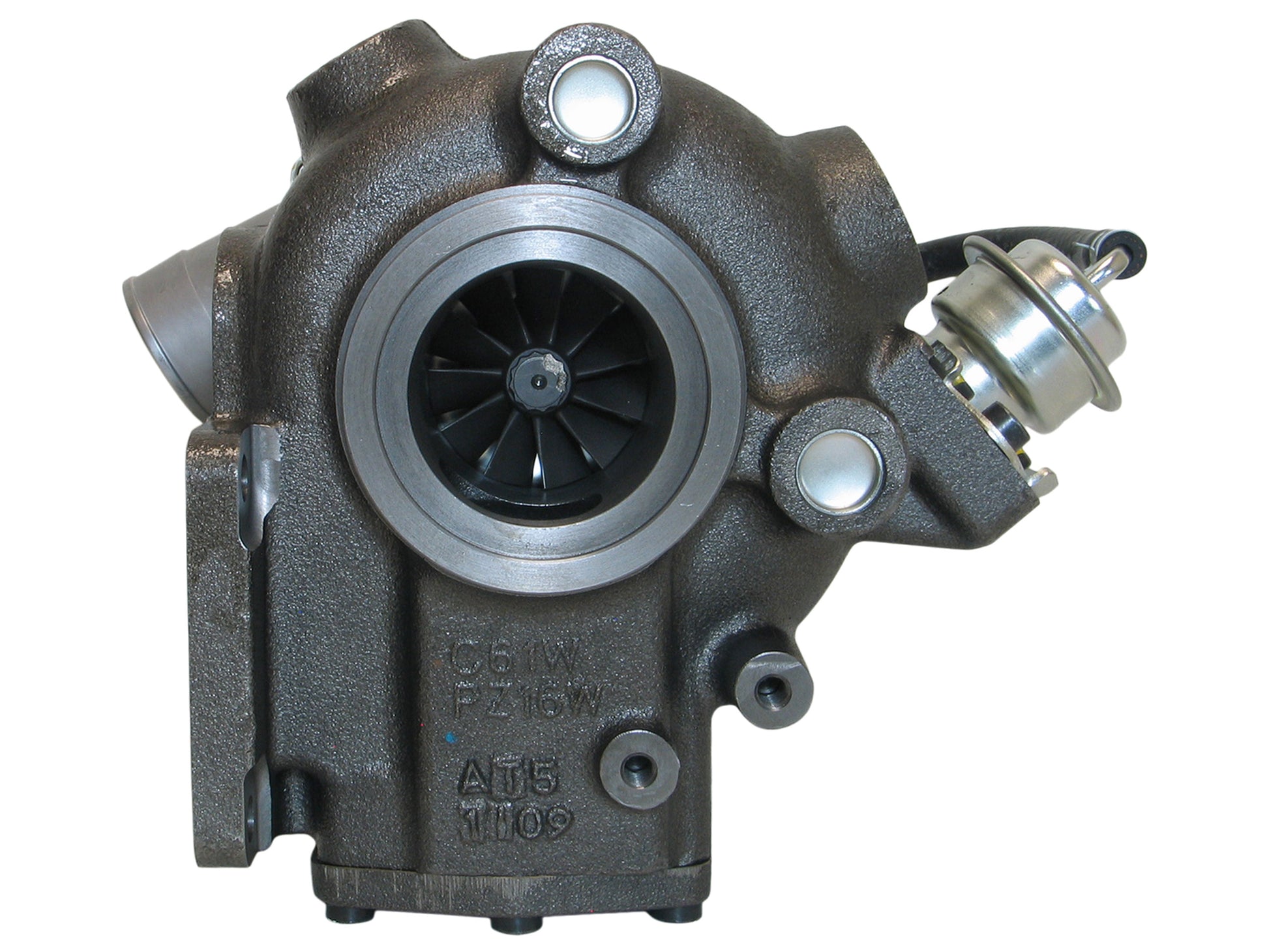

Turbine Housing (Water Cooled): NH167595
Turbine Housing A/R: 16

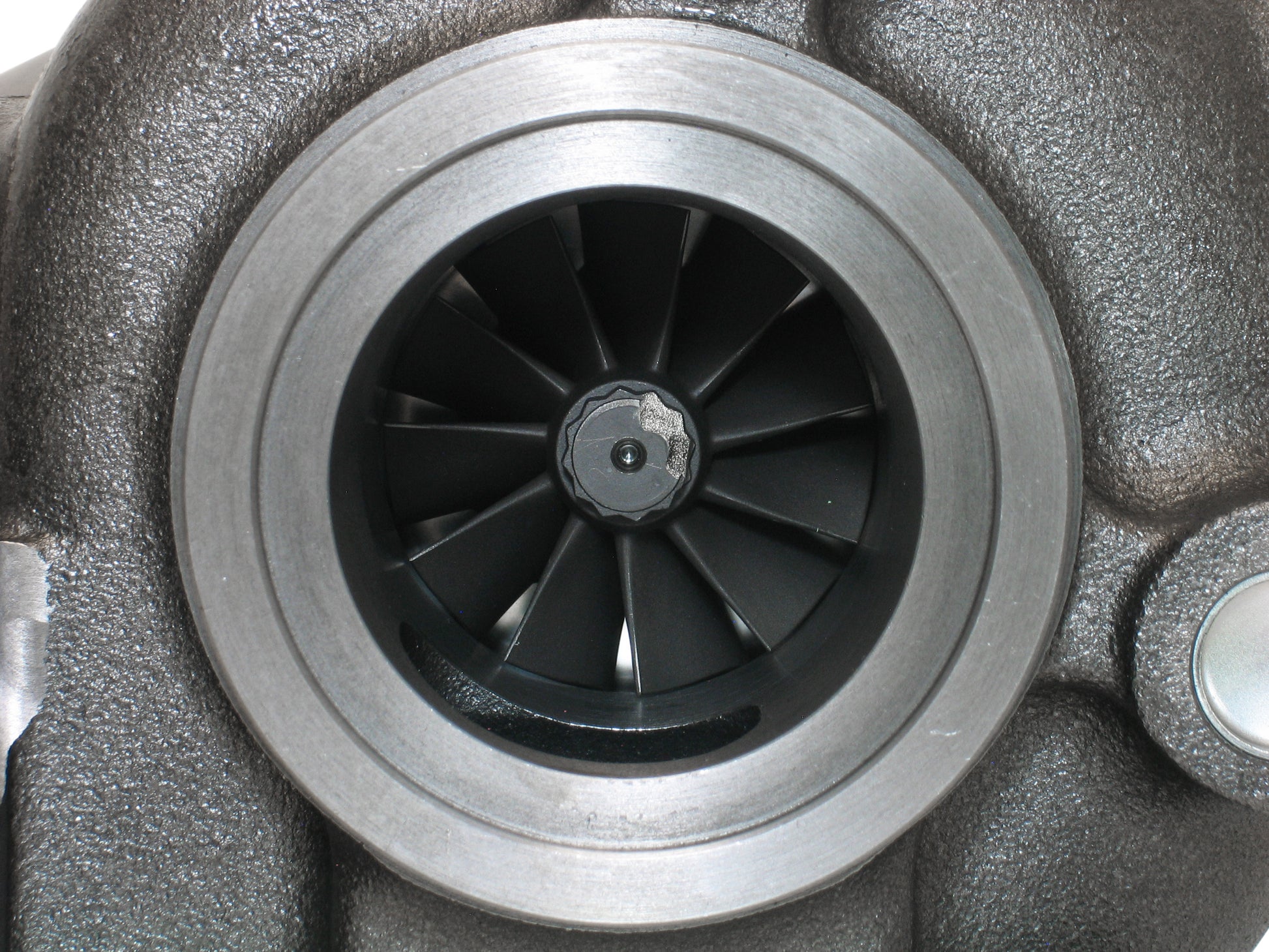

Turbine Wheel: NH261301D

Application:
1998-01 Yanmar Marine with 4LHA-STE Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
