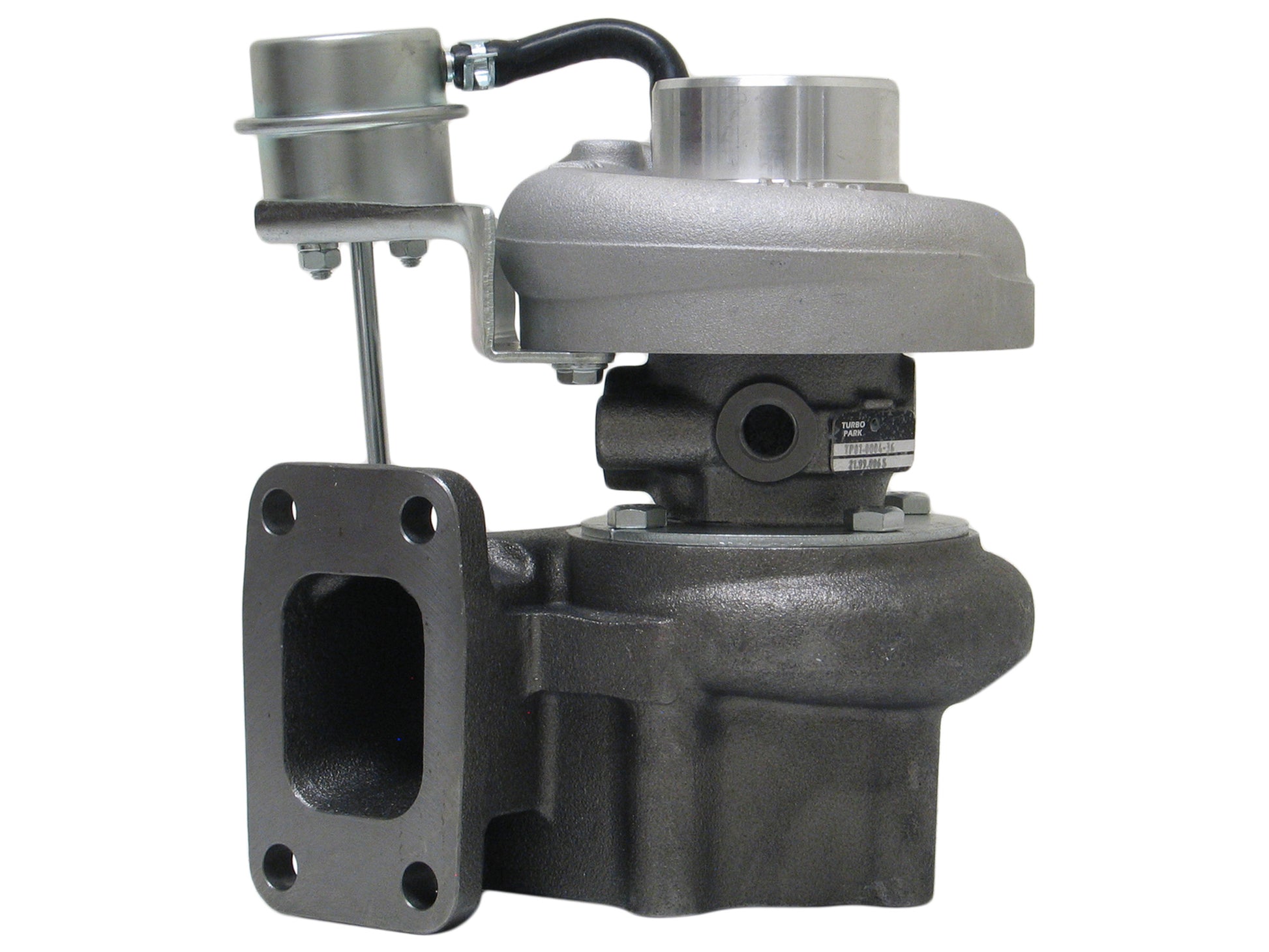

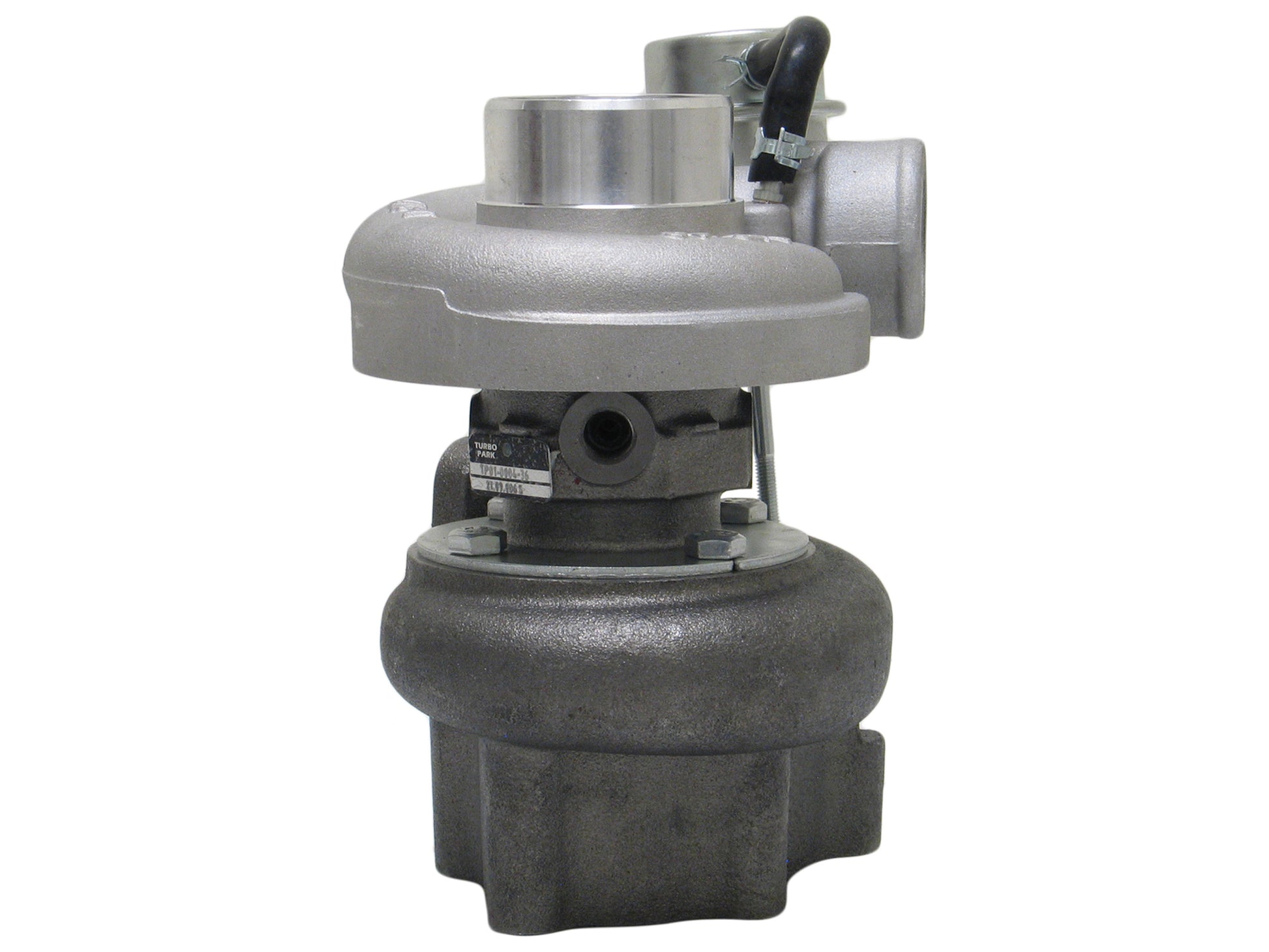

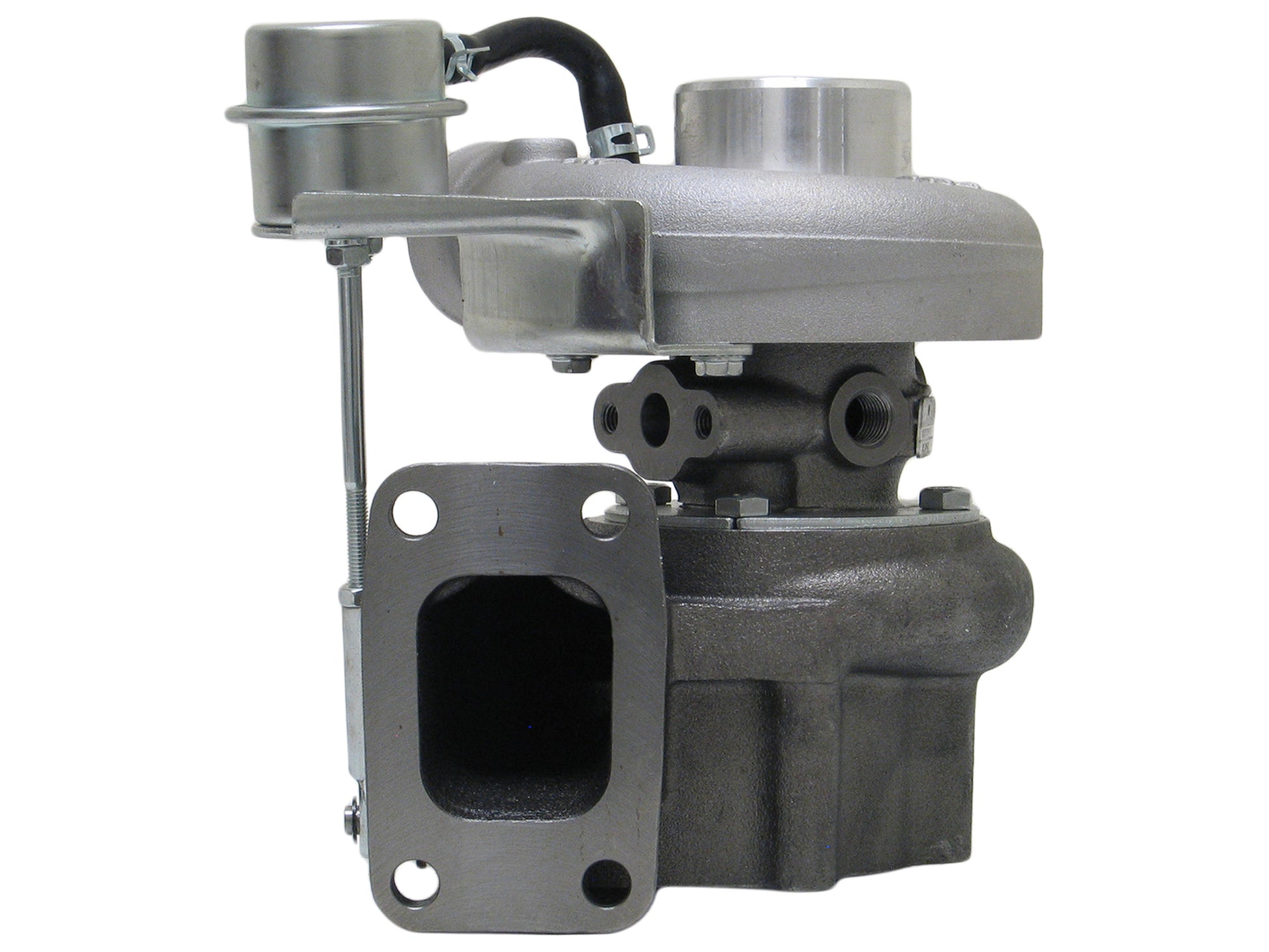

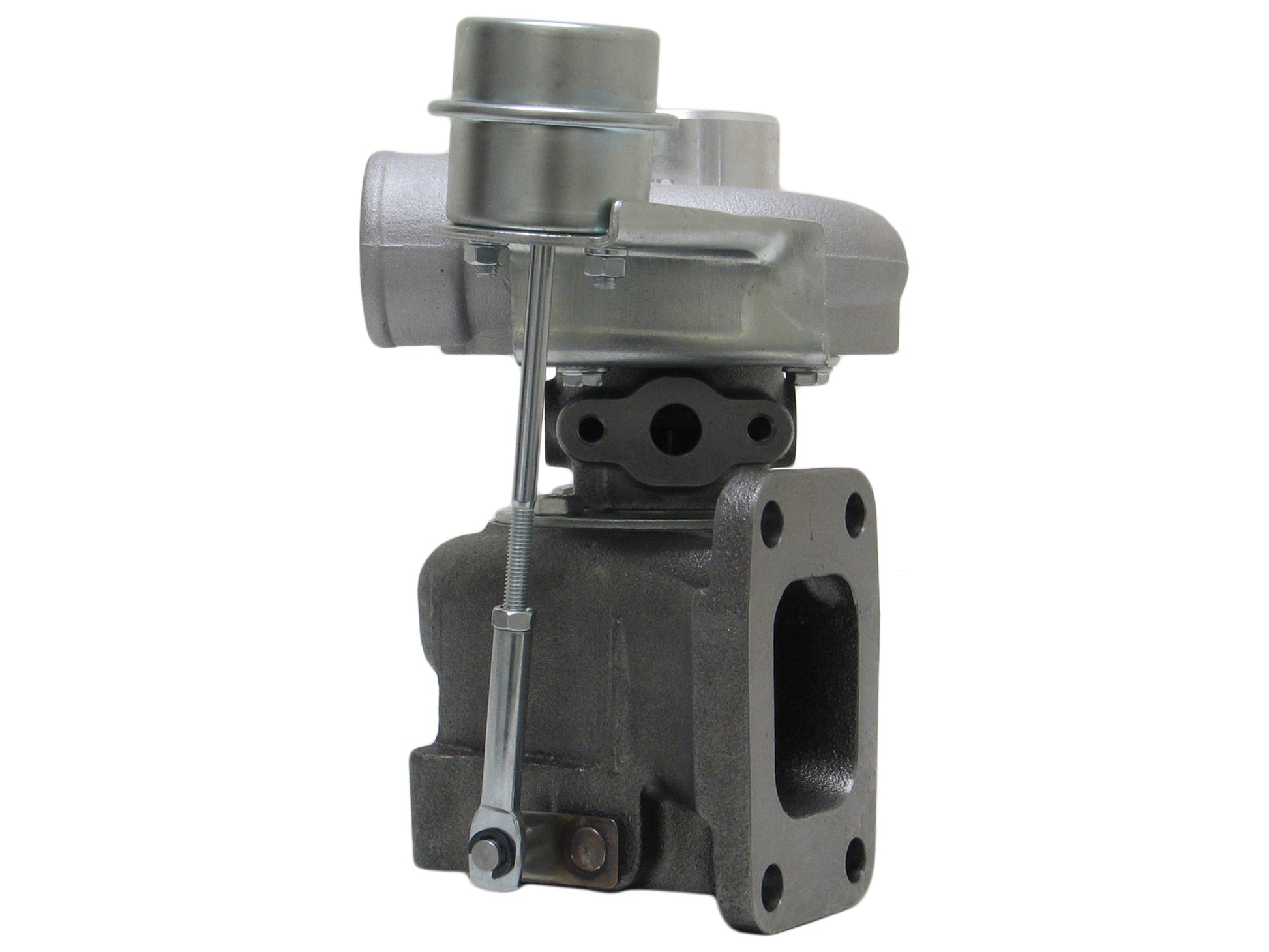

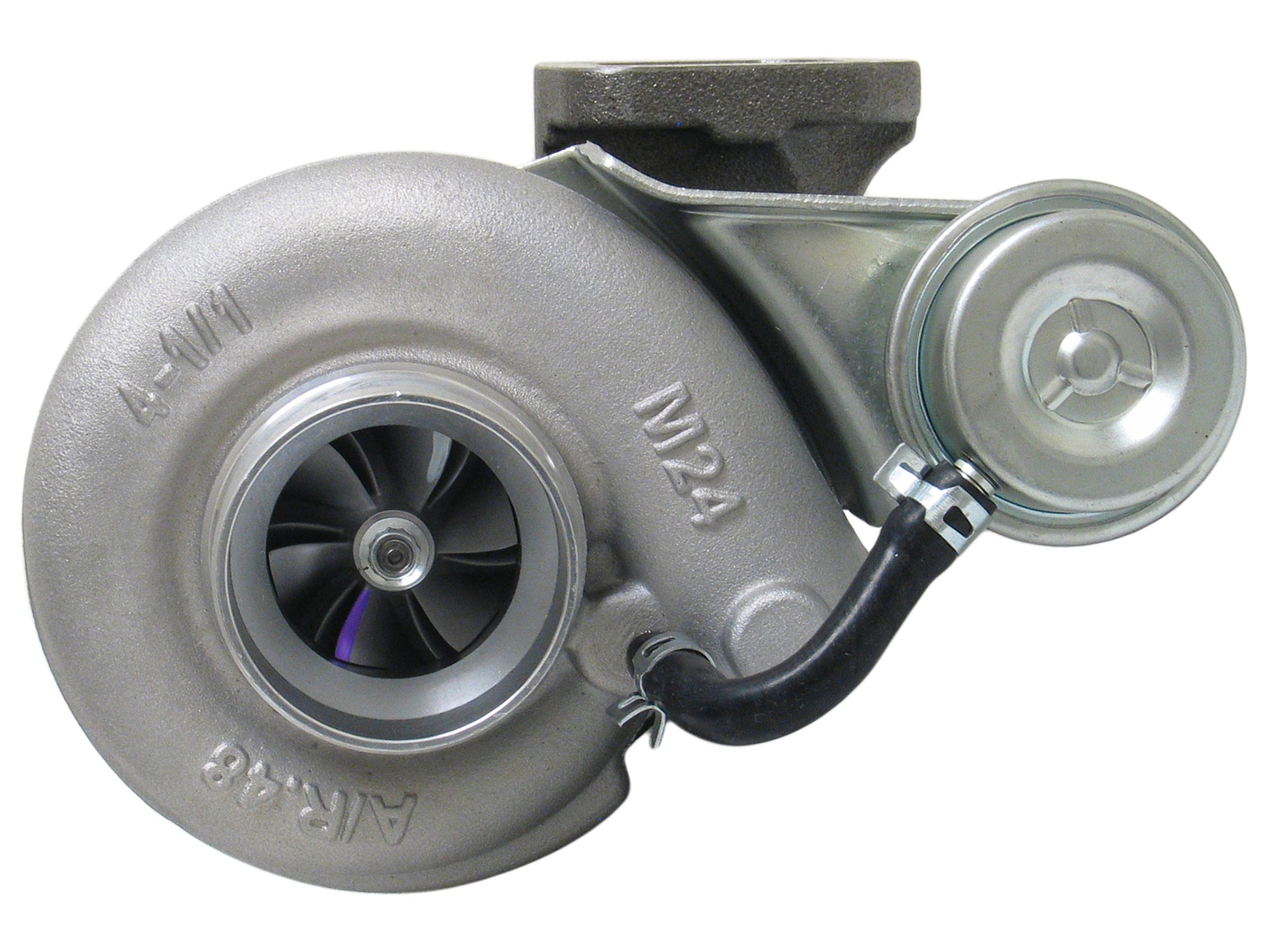

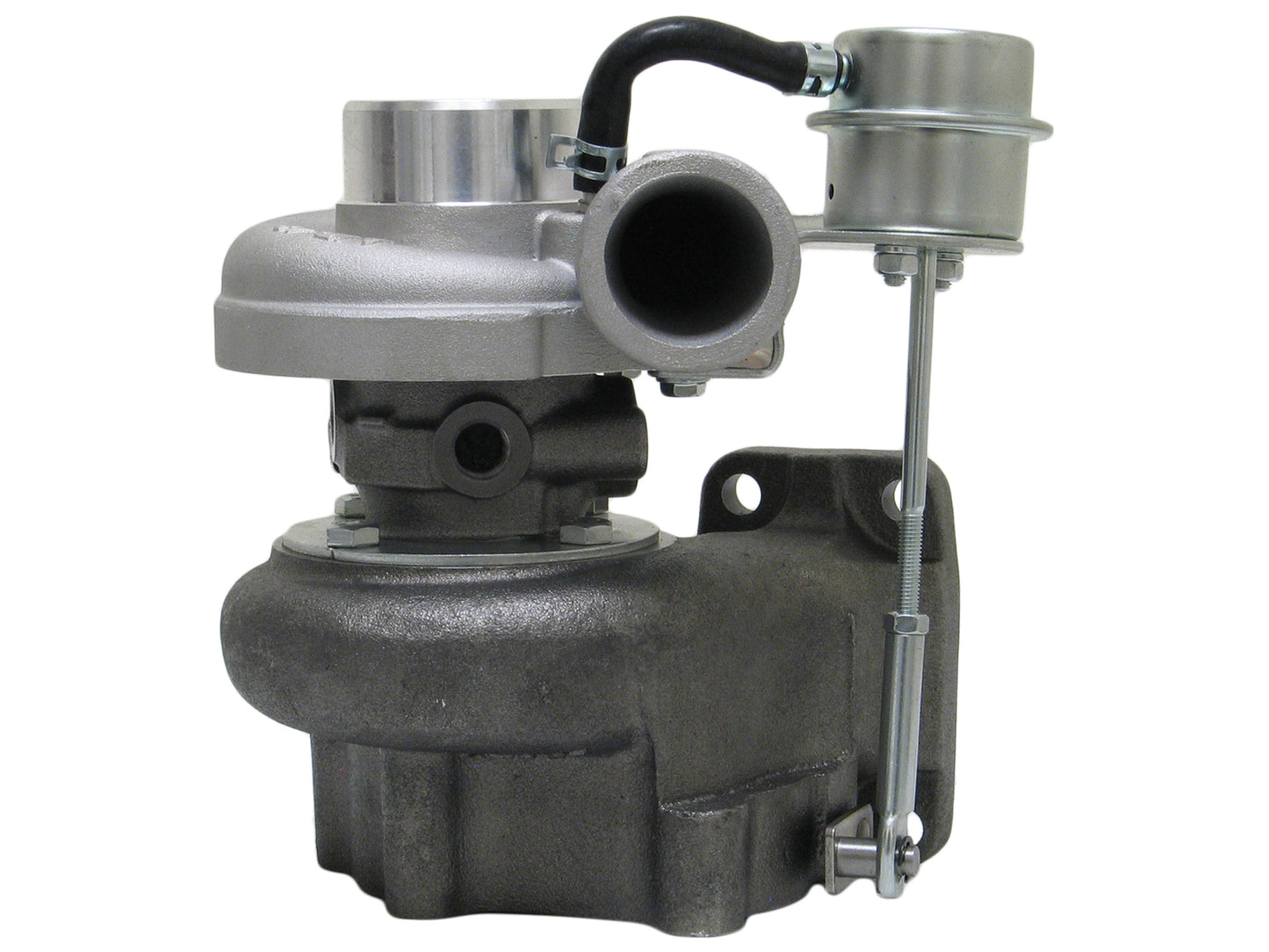

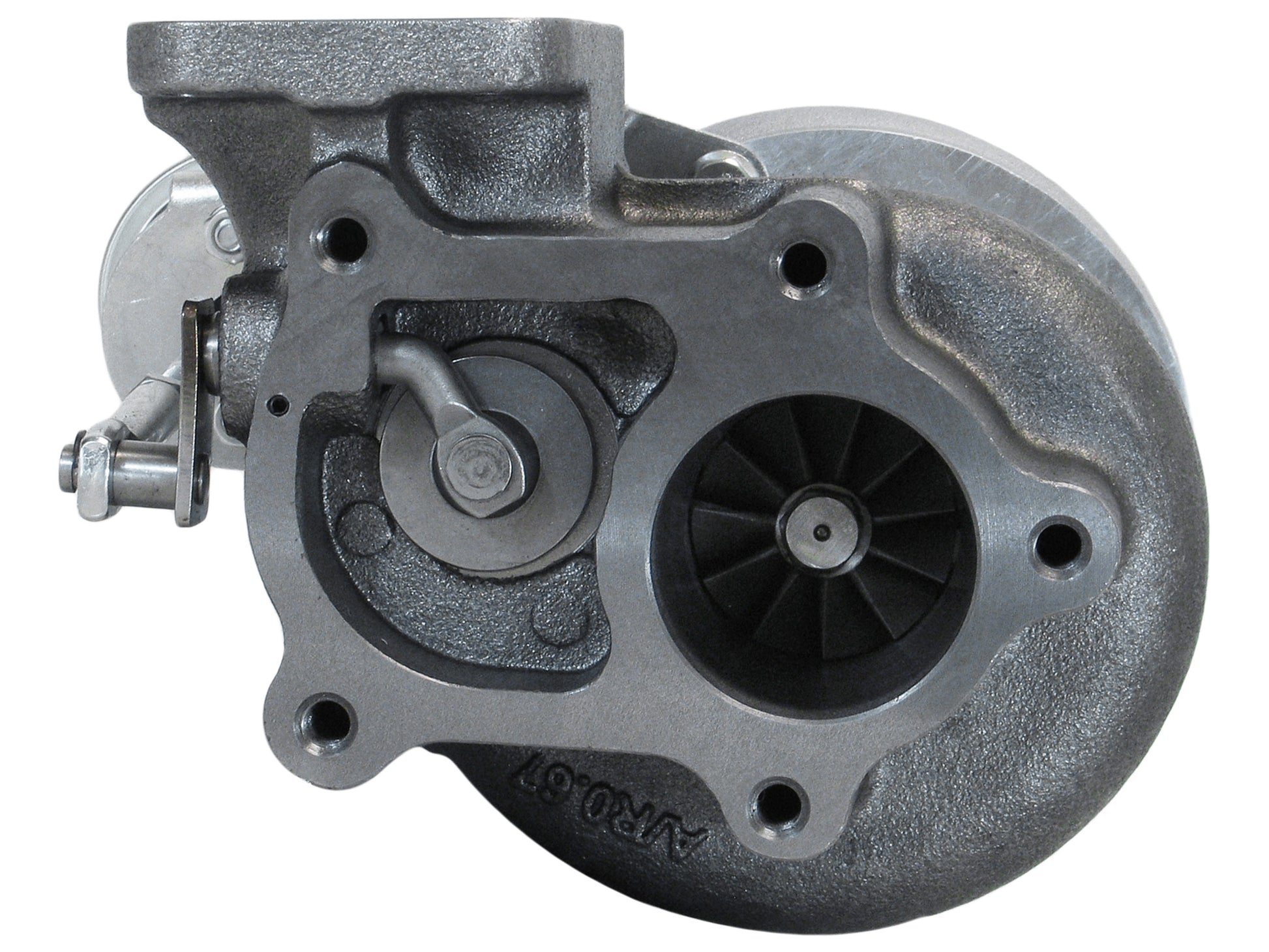

NEW TB2568 Turbo Isuzu Truck NPR NQR NKR 4DB2 4BD2-TC 3.9L Diesel 466409-5002

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

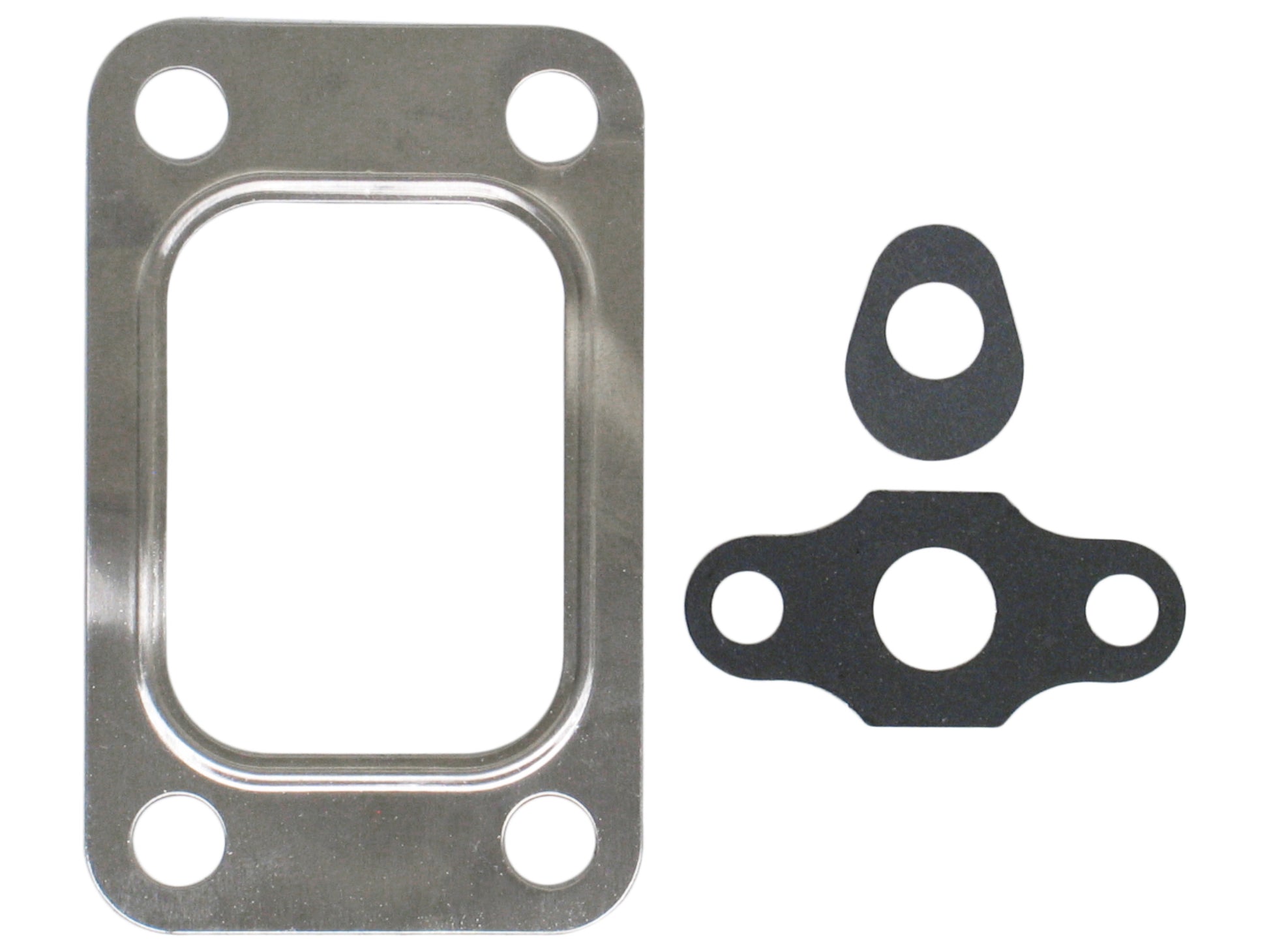

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 466409-5002S
Interchangeable Number: 466409-0002, 466409-5002, 466409-0001, 466409-5001, 466409-5001S
OEM Number: 2901095100, 2901095100, 8971056180, 8971056181, 94052836
Turbo Model: TB2568

Year: 1994-
Engine: 4DB2, 4BD2-TC
Displacement: 3.9L, 3900 ccm, 4 Cylinders
Fuel: Diesel
Power: 139 HP
Speed: 3000 RPM

Actuator: 430819-0336
Back Plate: 430612-0003 (432280-0001)
Bearing Housing: 446931-0006 (W/C)
CHRA: 430425-0059 (430425-5059S)
Compressor Cover: 409589-0394
Compressor Wheel: 445347-0003
Gasket (Oil Outlet): 210636 (Paper Gasket)
Gasket (Turbine Inlet): 210973
Gasket (Turbine Outlet): 210974
Heat Shield: 431055-0003 (431055-0001)
Repair Kit: 709143-0001
Turbine Housing A/R: 0.67
Turbine Housing: 430609-0207

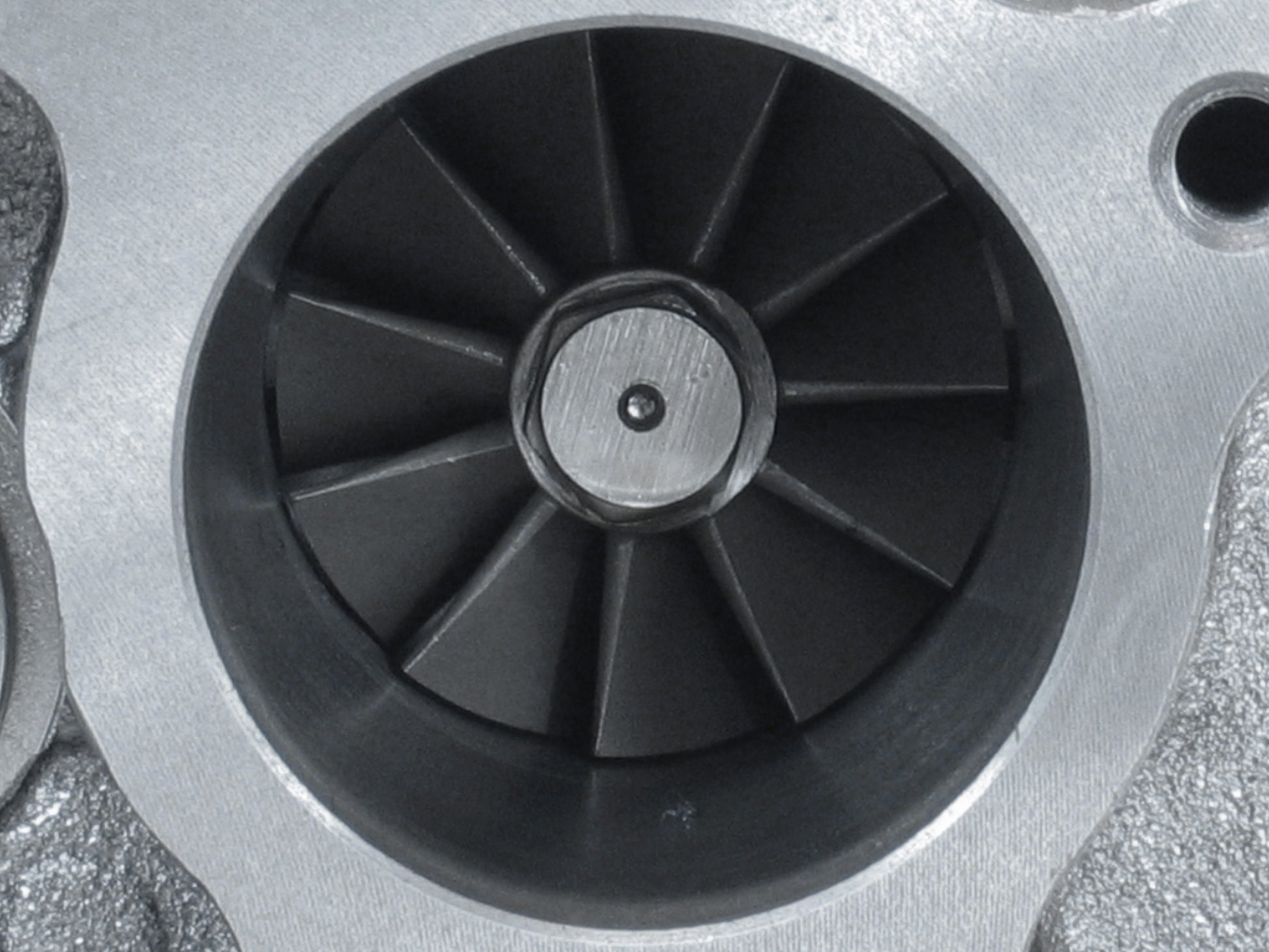

Turbine Wheel: 435257-0002 (432620-0002, 435257-0001, 435737-0005, 435922-0001)

Application:
1994- Isuzu Truck NKR, NPR, NQR with 4DB2, 4BD2-TC Engine

TurboTurbos Part Number: TP01-0004-36

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
