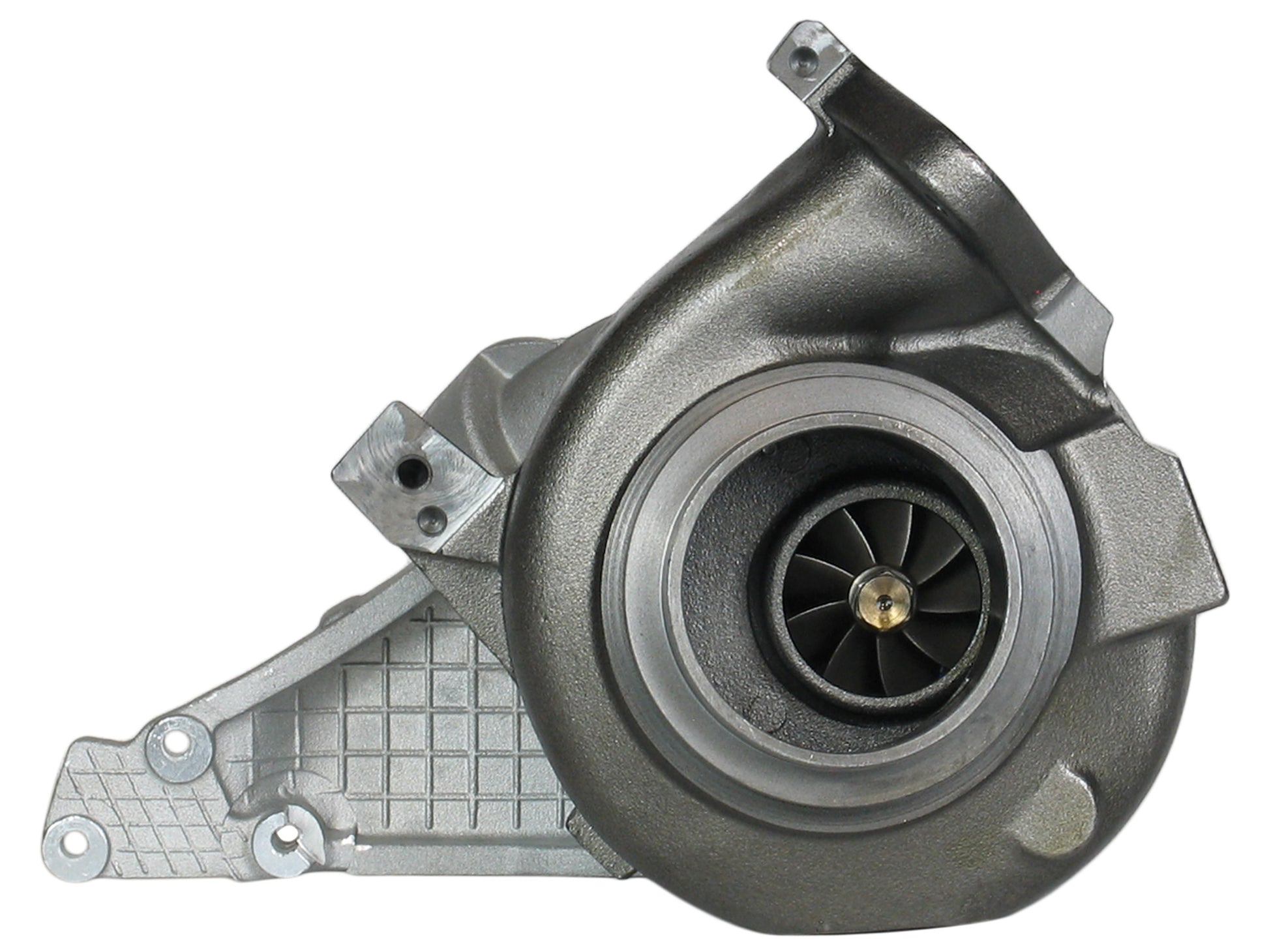

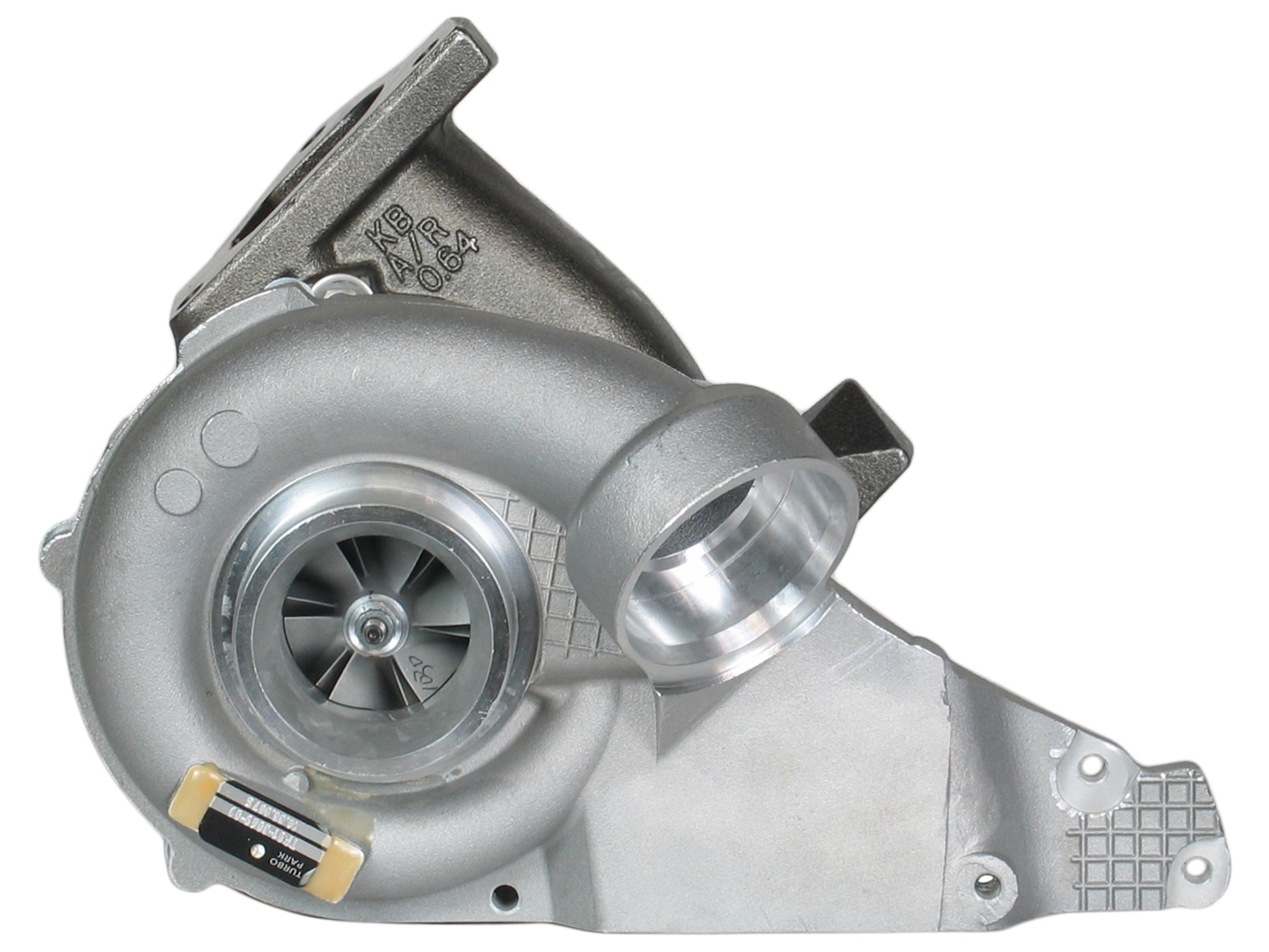

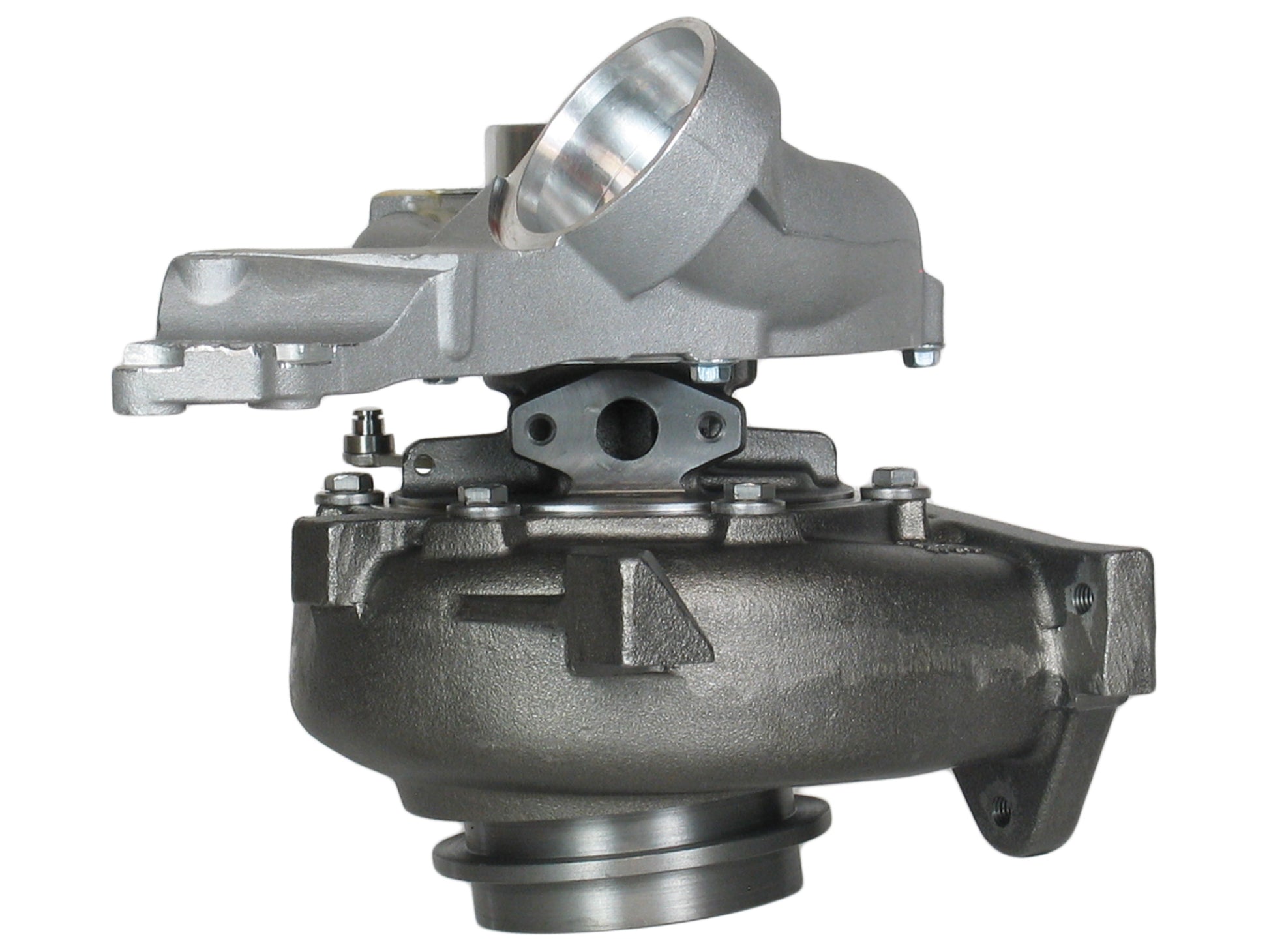

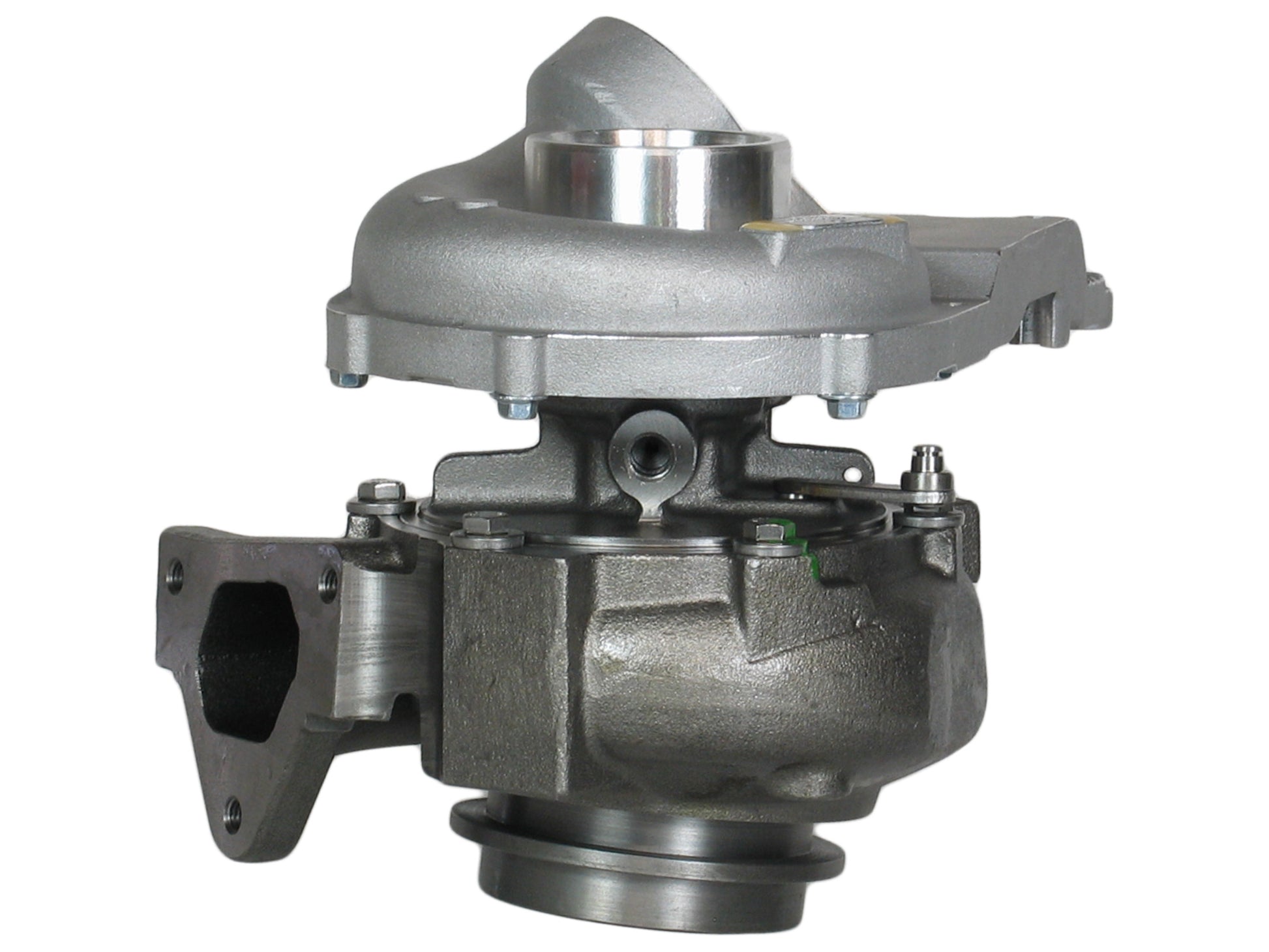

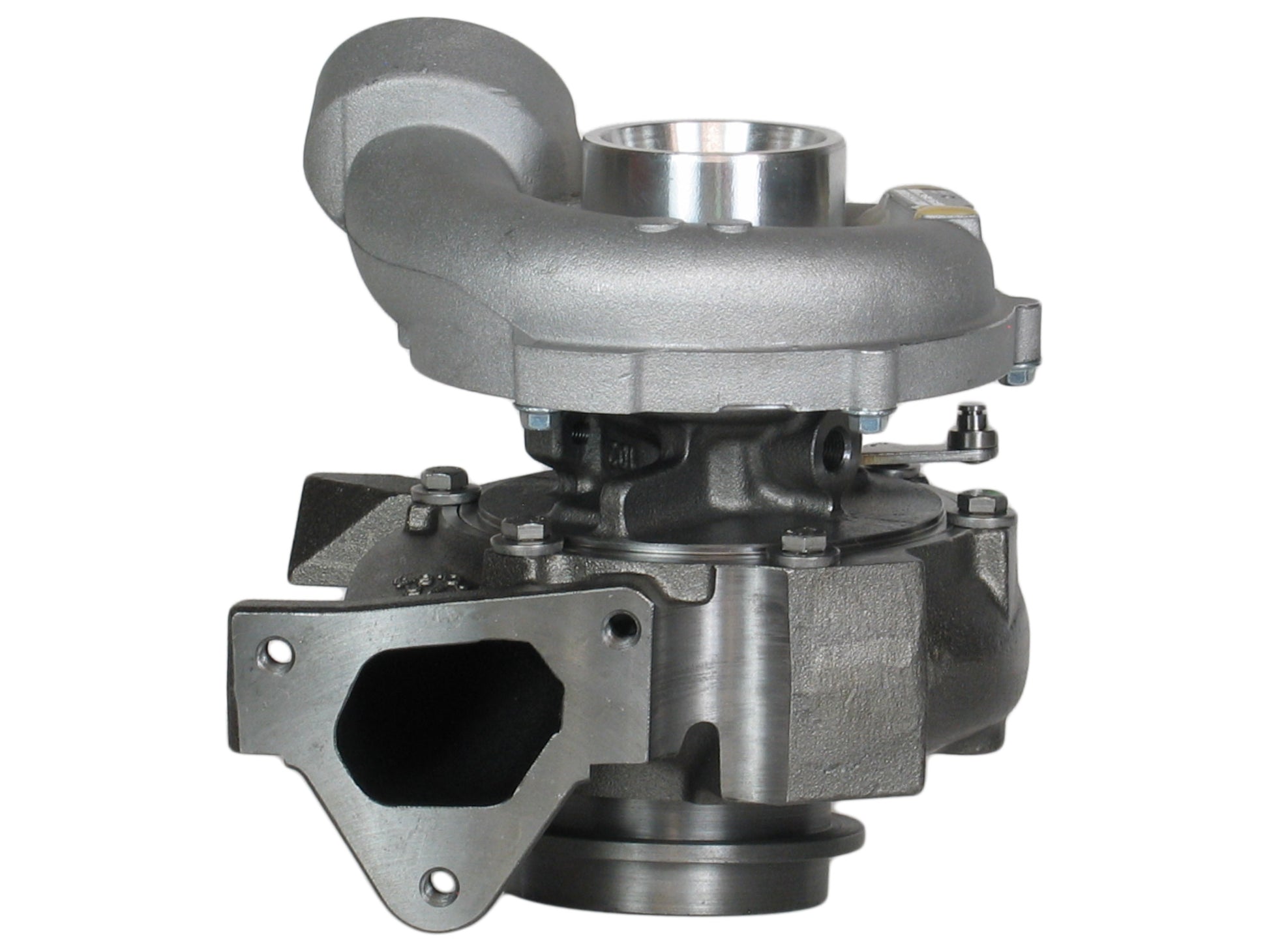

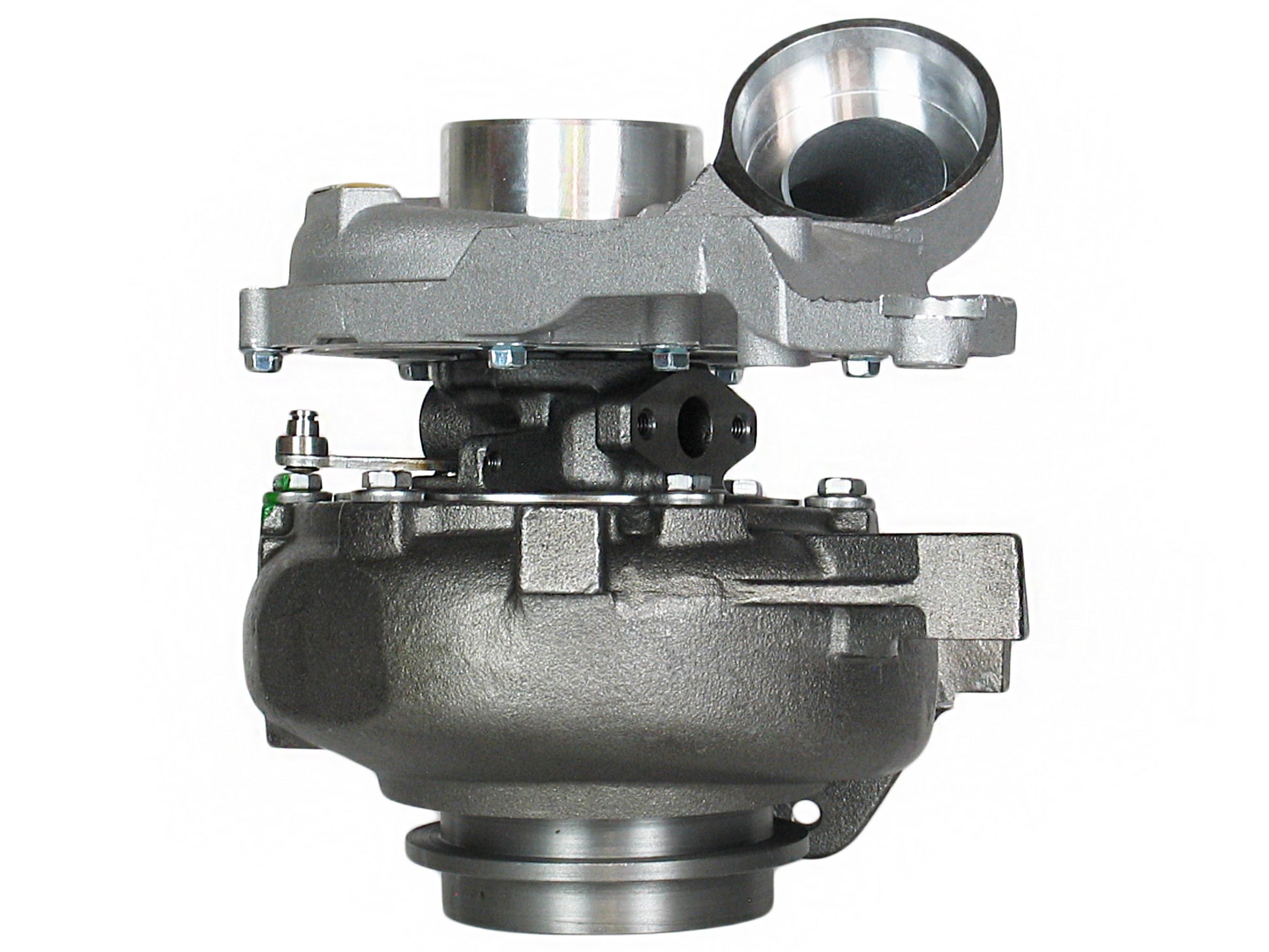

NEW GT2256VK Turbo Mercedes Benz Sprinter OM647 DE LA 27 A6470900280 736088-5003

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

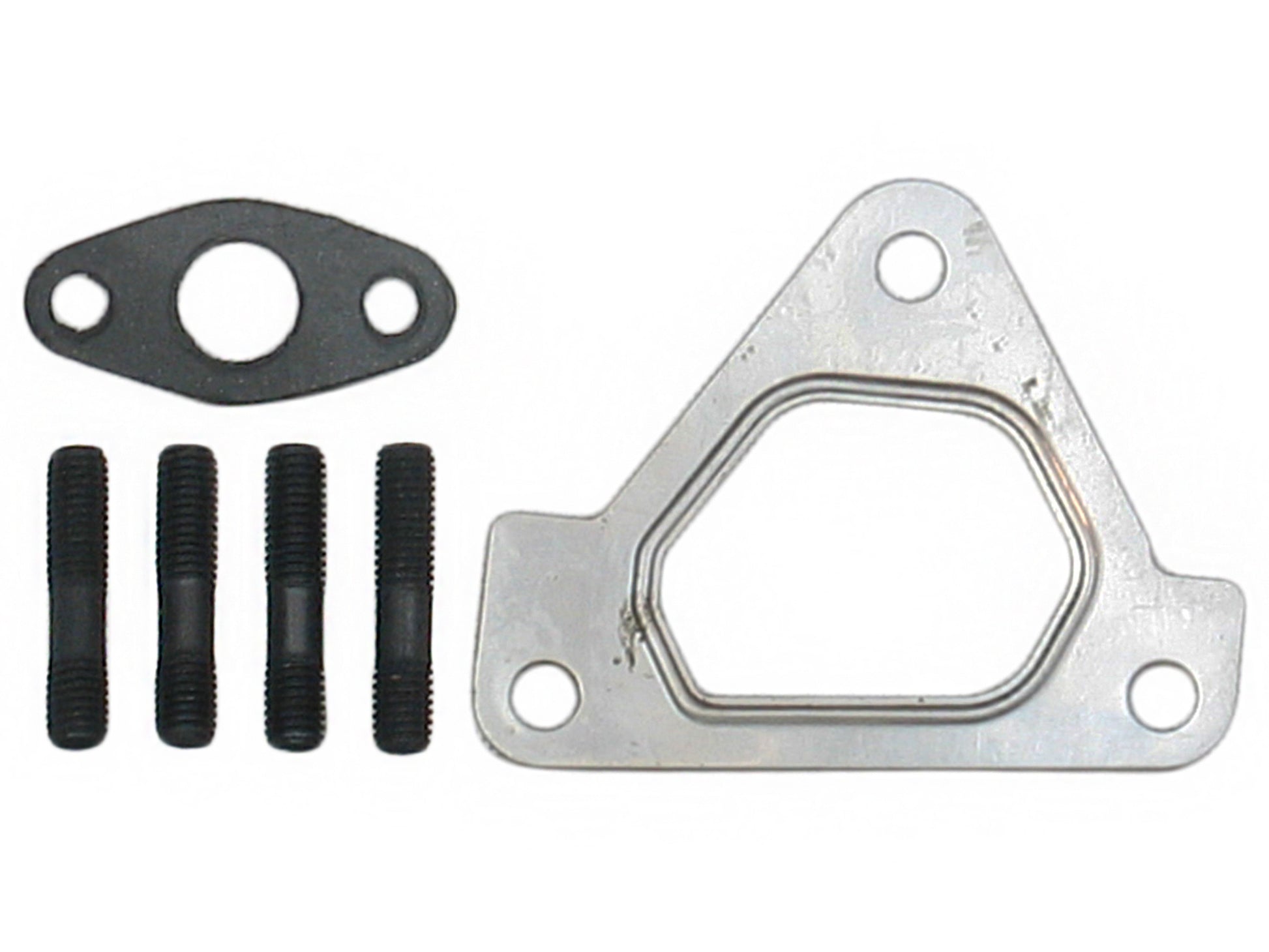

NOTE: This turbocharger is missing the actuator, but comes with the bolts and gaskets.

Fits the following:

Part Number: 736088-5003S
Interchangeable Number: 736088-0003, 736088-5003, 736088-0001, 736088-5001, 736088-5001S, 736088-0005, 736088-5005, 736088-5005S
OEM Number: 6470900280, A6470900280
Turbo Model: GT2256VK

Year: 2004-
Engine: OM647, OM647 DE LA 27, OM647 NAFTA
Displacement: 2.7L, 2686 ccm
Fuel: Diesel
Power: 154 HP
Speed: 3800 RPM

Actuator: 712120-
Back Plate: 434820-0003 (1102322301)
Bearing Housing: 702486-0011
CHRA: 703891-0137 (703891-5137S, 1102020927)
Compressor Wheel: 702486-0011
Gasket (Oil Outlet): 210243
Gasket (Turbine Inlet): 210378
Heat Shield: 443768-0003 (702486-0011)
Nozzle Ring Assembly: 743595-0012
Repair Kit: 732252-0001 (1102015756)
Turbine Housing A/R: VNT2
Turbine Wheel: 1102022439

Application:
2004- Mercedes-Benz Commercial Vehicle with OM647 DE LA 27 Engine
2004- Mercedes-Benz Sprinter 216 CDI with OM647 NAFTA Engine
2004- Mercedes-Benz Sprinter 316 CDI with OM647 NAFTA Engine
2004- Mercedes-Benz Sprinter 416 CDI with OM647 NAFTA Engine
2004- Mercedes-Benz Sprinter 616 CDI with OM647 NAFTA Engine

TurboTurbos Part Number: TP01-0069-09

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
