Perkins 1104D T4.40 CAT C4.4 Acert 2674A202 711736-5003 NEW GT2556S TurboSKU: TP01-0081-12
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

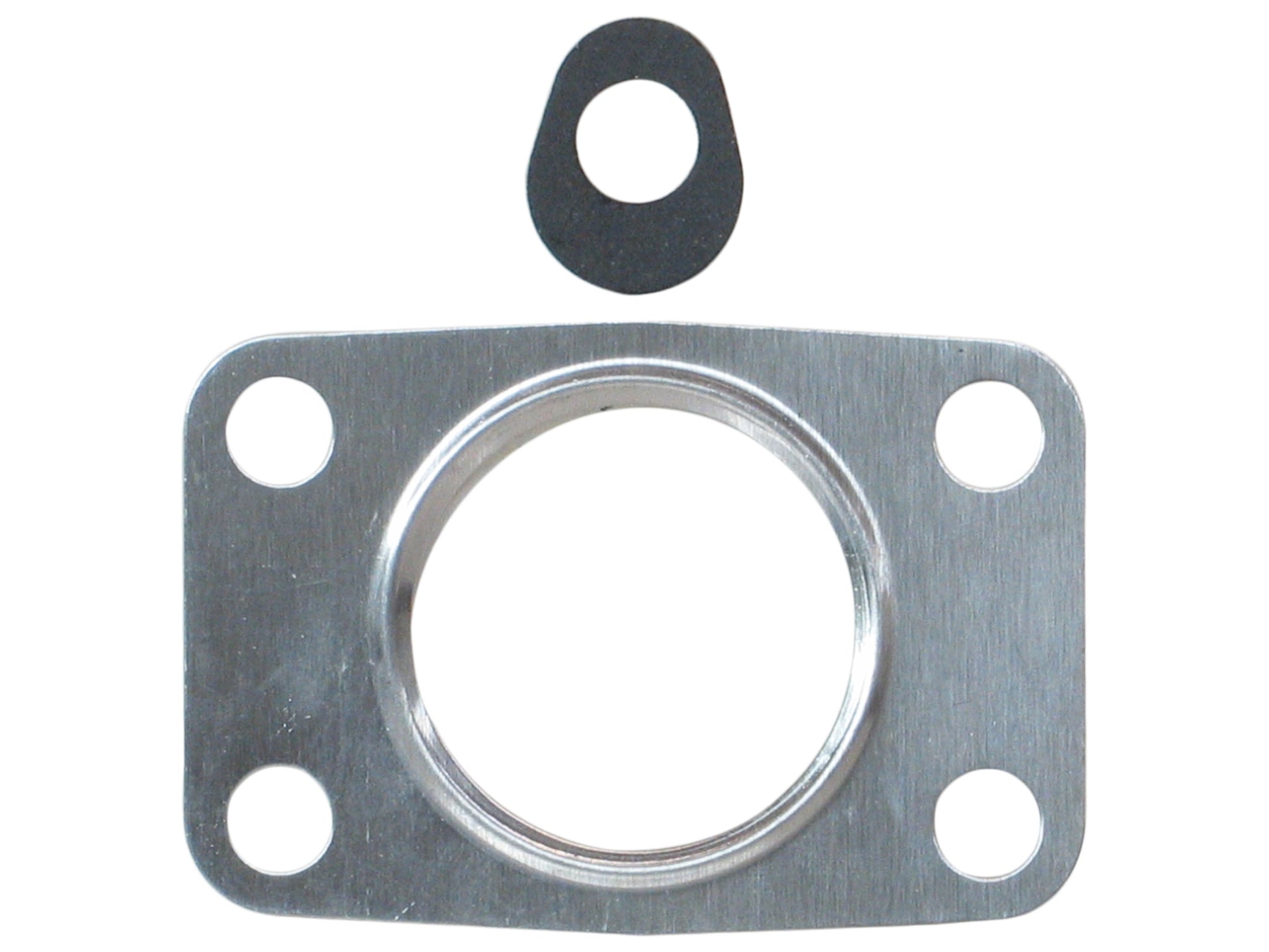

NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 711736-5003S
Interchangeable Number: 711736-0003, 711736-5003
OEM Number: 2674A202
Turbo Model: GT2556S
Engine: 1104D, C4.4 Acert, T4.40, Vista 4 EPA Tier 2
Displacement: 4.4L, 4400 ccm, 4 Cylinders
Power: 99 kW/133 HP
Speed: 2200 RPM
Angle α (Compressor Housing): 260°
Angle ß (Turbine Housing): 295°
Back Plate: 721086-0001
Bearing Housing: 713782-0010 (433275-0002, 433275-0005, 435793-0002, 713782-0002)(Oil Cooling)
CHRA: 433289-0185 (433289-5185S, 433289-0255)(1000010381, 1102025901)
Compressor Cover: 721260-0001
Compressor Wheel: 436336-0019 (436563-0002) (Ind. 39.7 mm, Exd. 56 mm, 6+6 Blades, Super Back)(1102022408)
Gasket (Oil Outlet): 210553 (210243)(Non Metallic)
Gasket (Turbine Inlet): 210658 (Inox Steel)
Heat Shield: 434686-0001
Repair Kit: 732252-0001 (1102015756)
Turbine Housing A/R: 0.52
Turbine Housing: 711739-0001
Turbine Wheel: 436563-0003 (436563-0010)(Ind. 54 mm, Exd. 45.72 mm, 12 Blades)
2003- Perkins Various with T4.40, Vista 4 EPA Tier 2 Engine
2006- Caterpillar Construction, Various with C4.4 Acert Engine
2006- Perkins Various with 1104D Engine
TurboTurbos Part Number: TP01-0081-12
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
