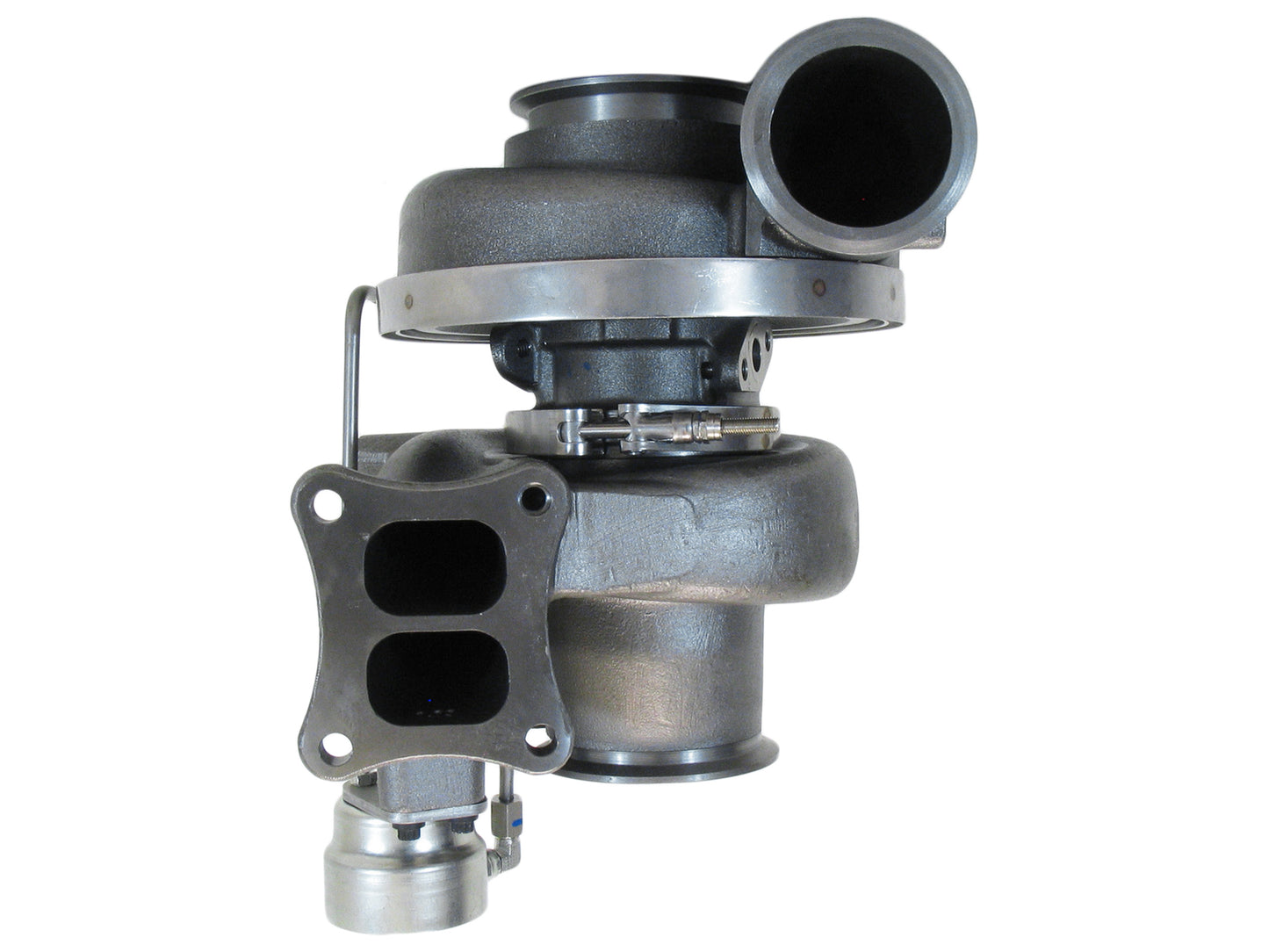

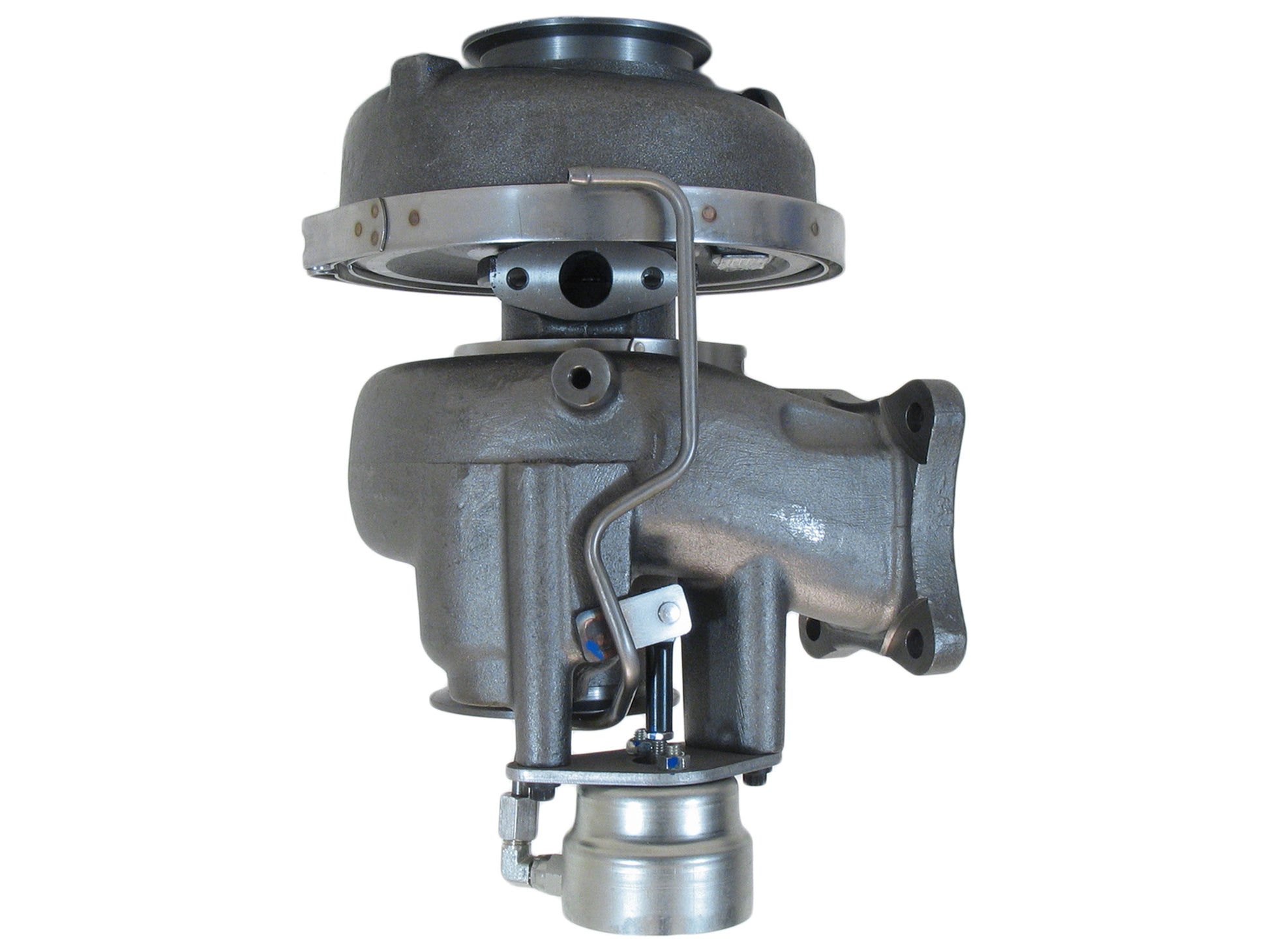

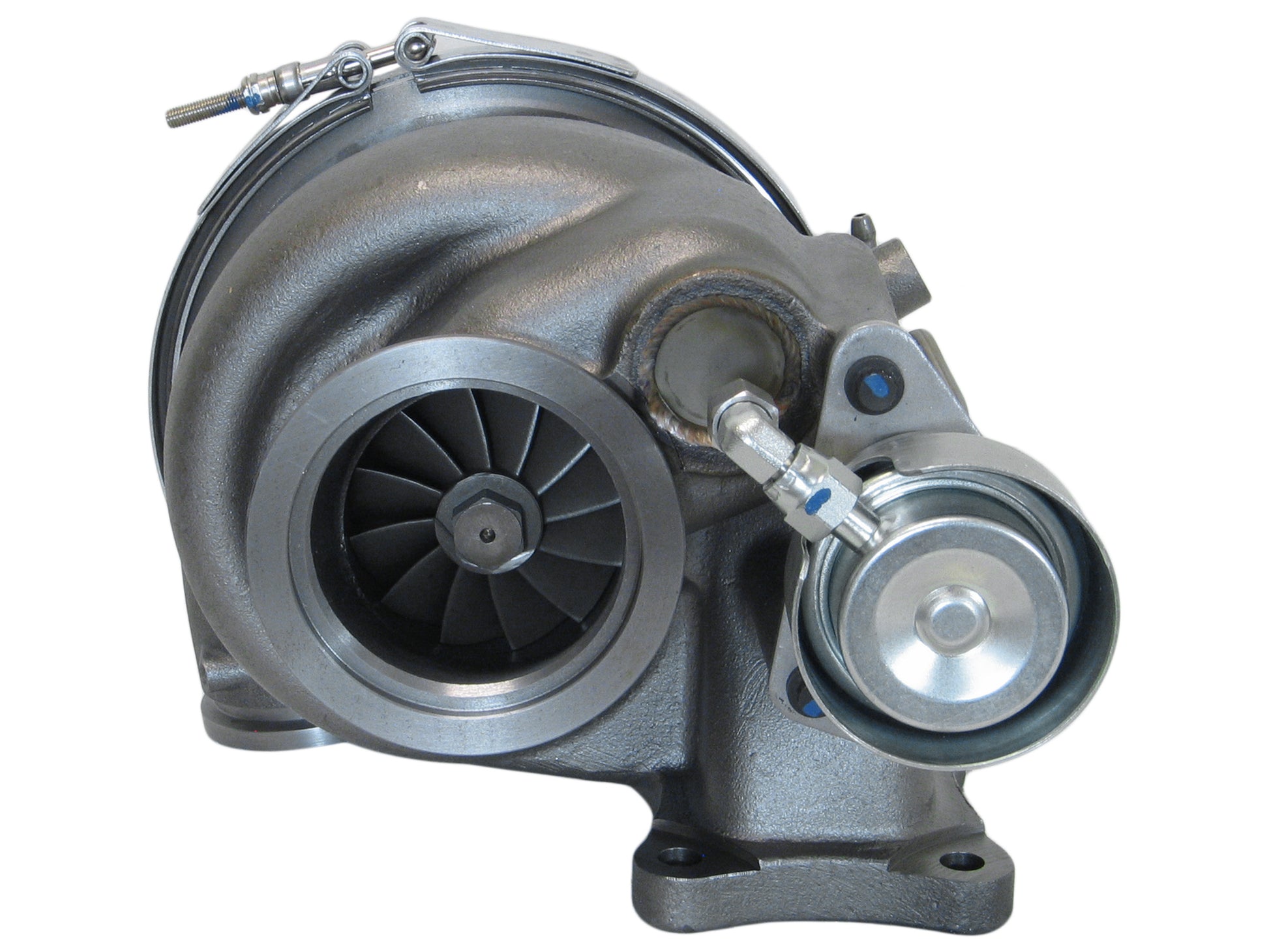

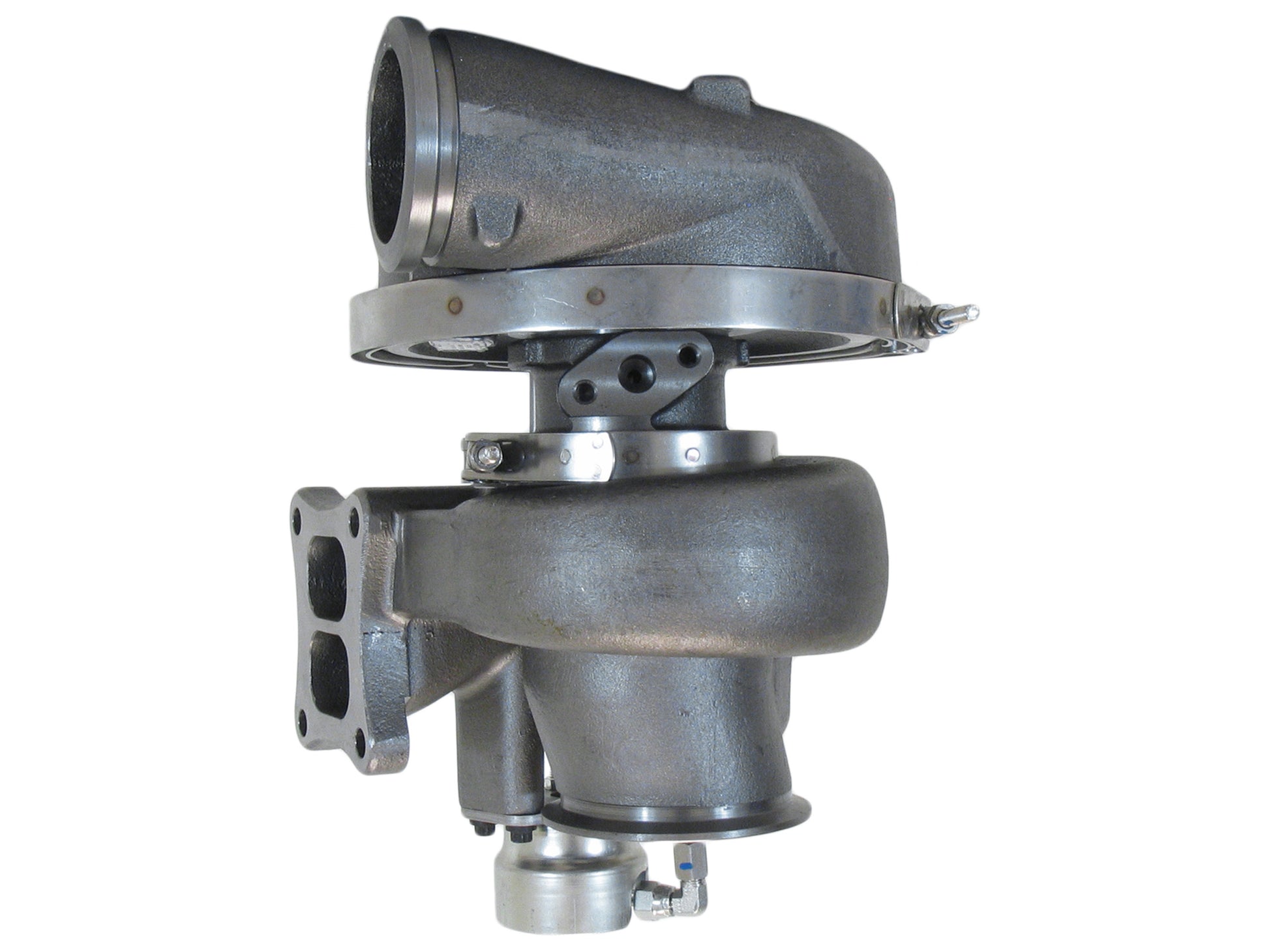

NEW GTA4088BS Turbo CAT Highway Truck C13 C15 12.5L Diesel Engine 752538-5013SKU: TP01-0134-36
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

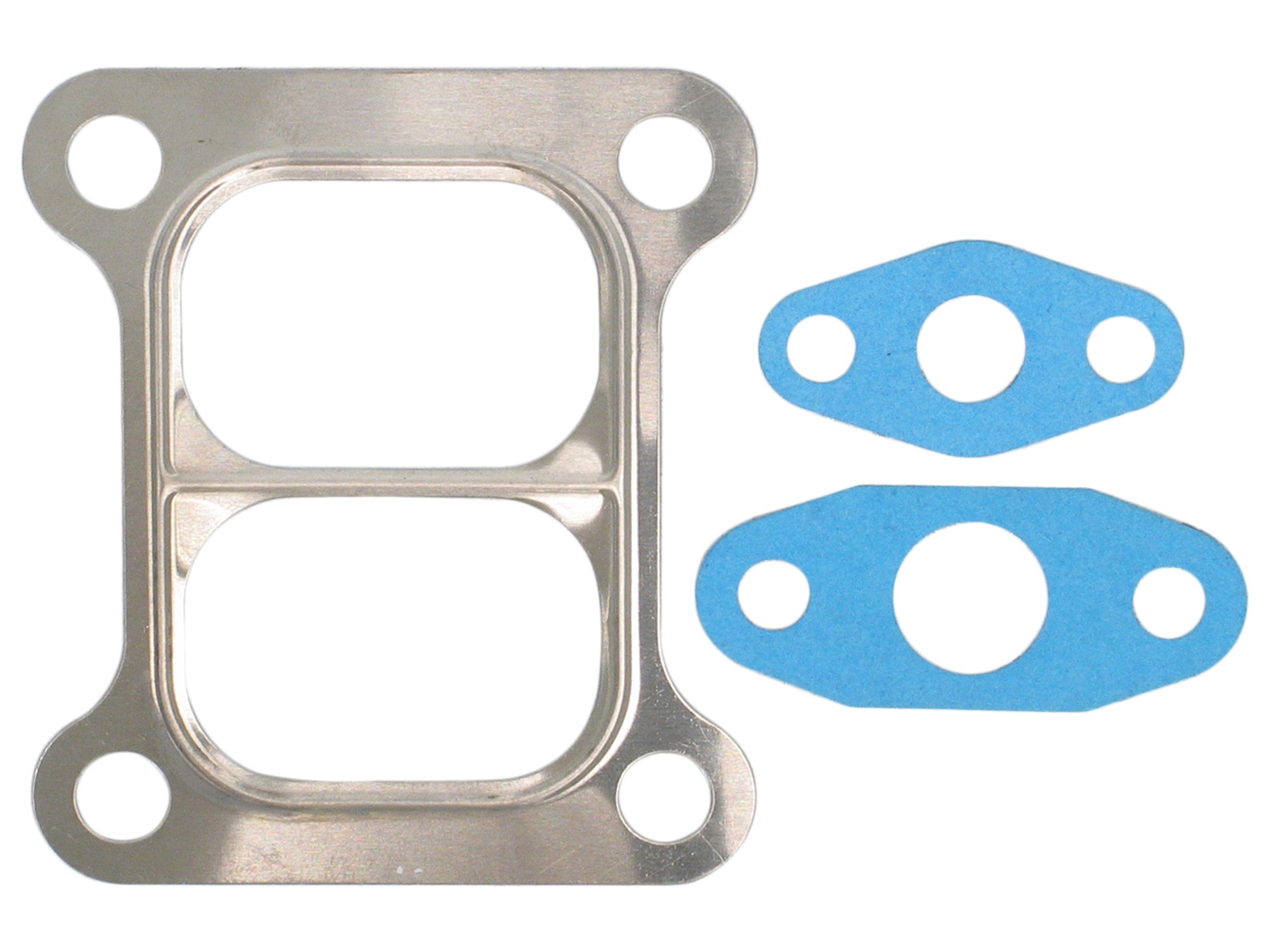

NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 752538-5013
Interchangeable Number: 752538-0013, 752538-5013S, 751211-0001, 751211-5001, 751211-5001S, 751211-0002, 751211-5002, 751211-5002S, 751211-0003, 751211-5003, 751211-5003S, 752538-0001, 752538-5001, 752538-5001S, 752538-0002, 752538-5002, 752538-5002S, 752538-0003, 752538-5003, 752538-5003S, 752538-0004, 752538-5004, 752538-5004S, 752538-0005, 752538-5005, 752538-5005S, 752538-0006, 752538-5006, 752538-5006S, 752538-0007, 752538-5007, 752538-5007S, 752538-0008, 752538-5008, 752538-5008S, 752538-0009, 752538-5009, 752538-5009S, 752538-0010, 752538-5010, 752538-5010S, 752538-0011, 752538-5011, 752538-5011S, 752538-0012, 752538-5012, 752538-5012S, 752538-0014, 752538-5014, 752538-5014S, 752538-0015, 752538-5015, 752538-5015S, 752538-0016, 752538-5016, 752538-5016S
OEM Number: 10R-2473, 10R2473, 10R-2862, 10R2862, 10R-8733, 10R8733, 239-4020, 2394020, 239-5652, 2395652, 239-5653, 2395653, 242-1290, 2421290, 252-4588, 2524588, 252-4589, 2524589, 252-4590, 2524590, 252-4591, 2524591, 259-2397, 2592397, 259-2398, 2592398, 259-2399, 2592399, 259-2400, 2592400, 284-7707, 2847707, 284-7708, 2847708, 284-7709, 2847709, 284-7710, 2847710
Serial Number: NAC260064
Turbo Model: GTA4088BS
Engine: C13 ACERT, C15
Displacement: 12.5L, 12500 ccm
Engine Manufacturer: Caterpillar
Power: 330 kW/430 HP
Prefix: 130, JAM, KCB, LEE, CLL, TZM, 8YL, 9SZ, KCA
Angle α (Compressor Housing): 241°
Angle ß (Turbine Housing): 255°
Back Plate: 735915-0001
Bearing Housing: 763287-0001 (Oil cooled)
CHRA: 763286-0001 (763286-5001S, 735913-0003, 735913-0007, 735913-5007S)(263-3879, 2633879)
Compressor Cover: 742431-0001

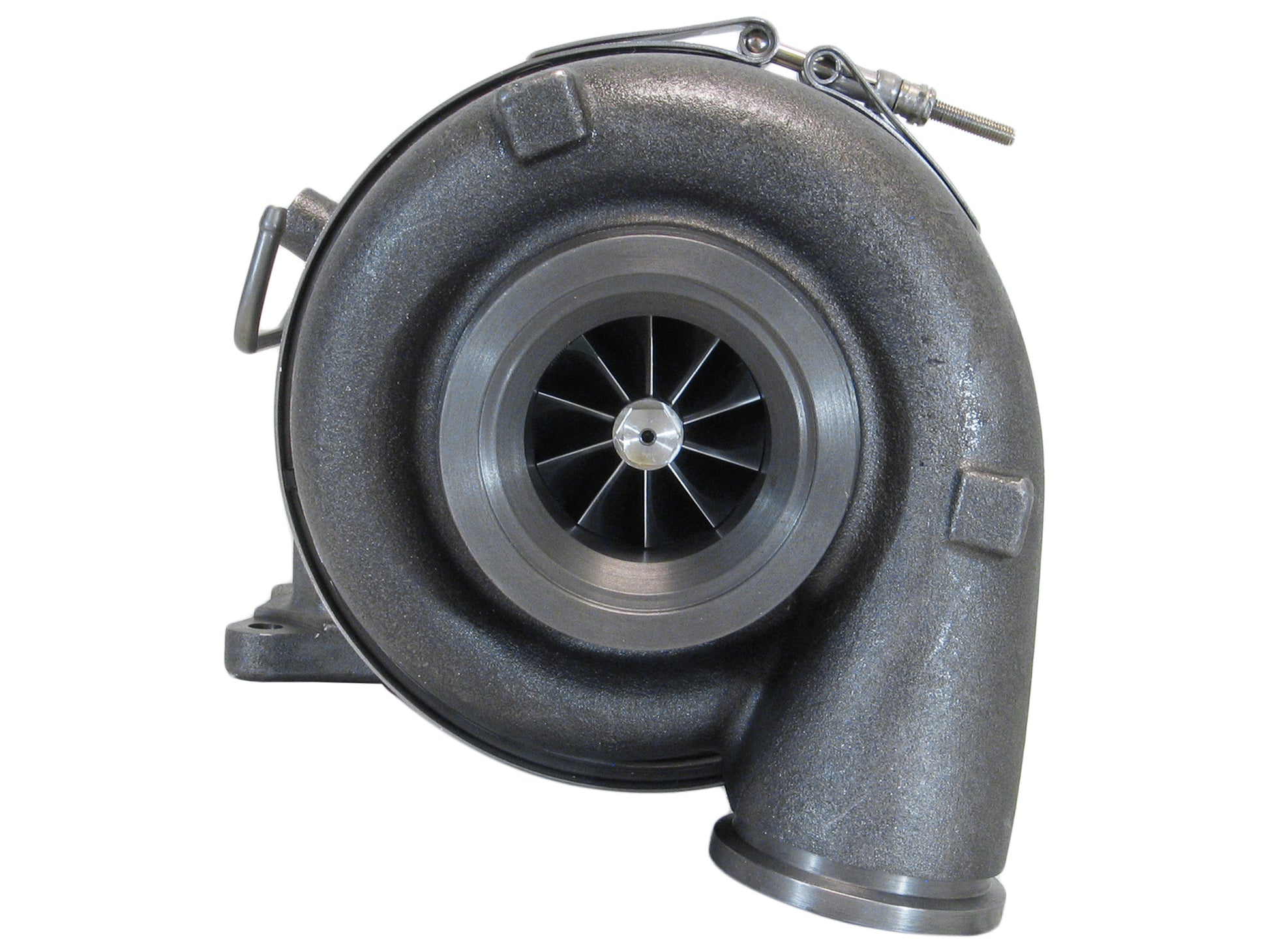

Compressor Wheel: 735648-0004 (Trim 48, 6+6 Blades, Boreless)
Heat Shield: 751209-0001
Repair Kit: 472559-0001 (709152-0001)(1102040751, 1102040752)
Turbine Housing & Wastegate Assembly: 742223-0009 (742223-0017)
Turbine Housing A/R: 1.03
Turbine Housing: 752397-0030

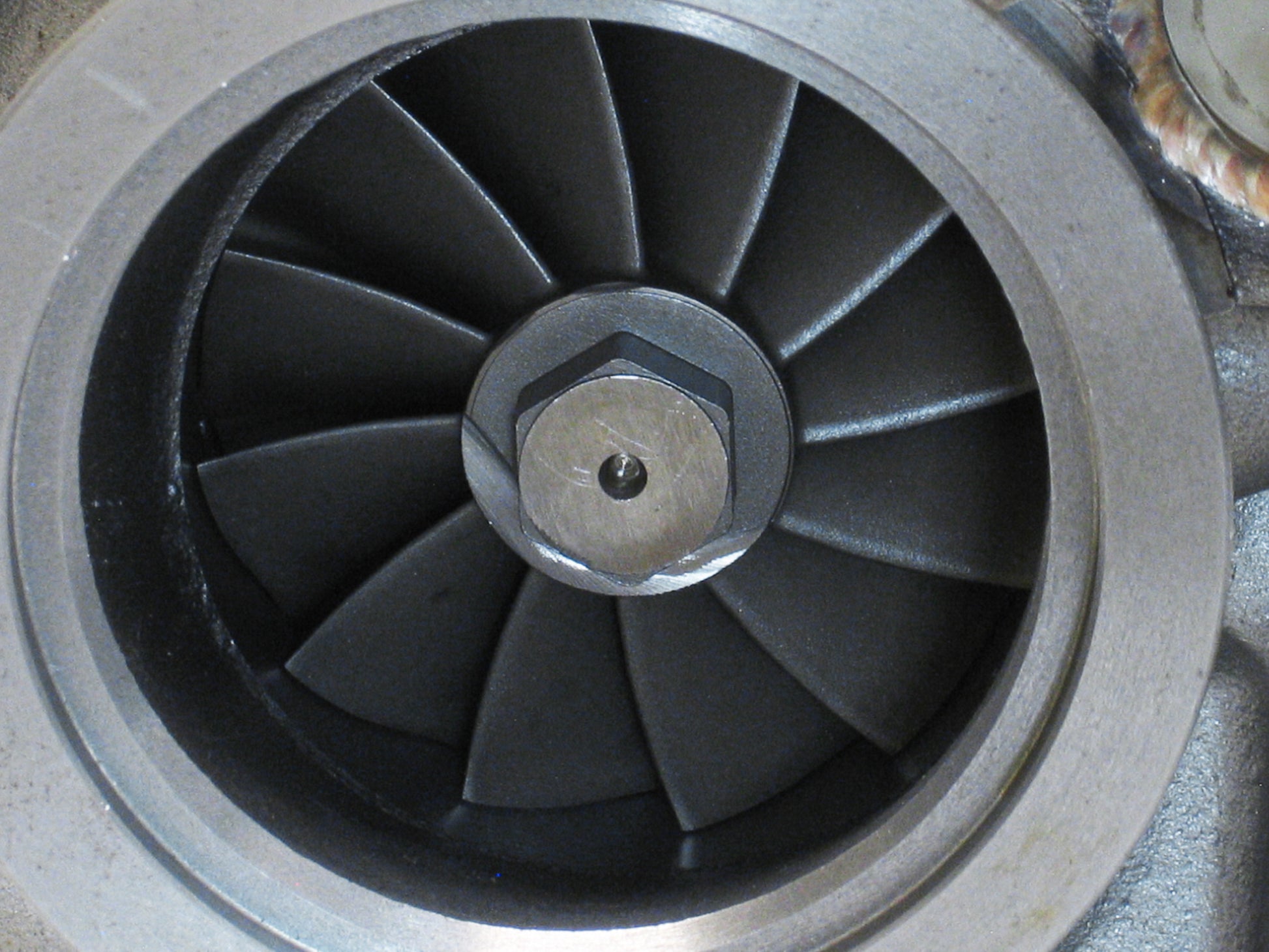

Turbine Wheel: 763326-0001 (12 Blades)$396.77
NOTE: High pressure side. Partially restricted.
2002- Caterpillar Highway Truck with C13, C15 Engine
TurboTurbos Part Number: TP01-0134-36
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
