NEW GT2560S Turbo Perkins Tier 3 Electronic Fueling CAT C4.4 Diesel 785828-5002

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

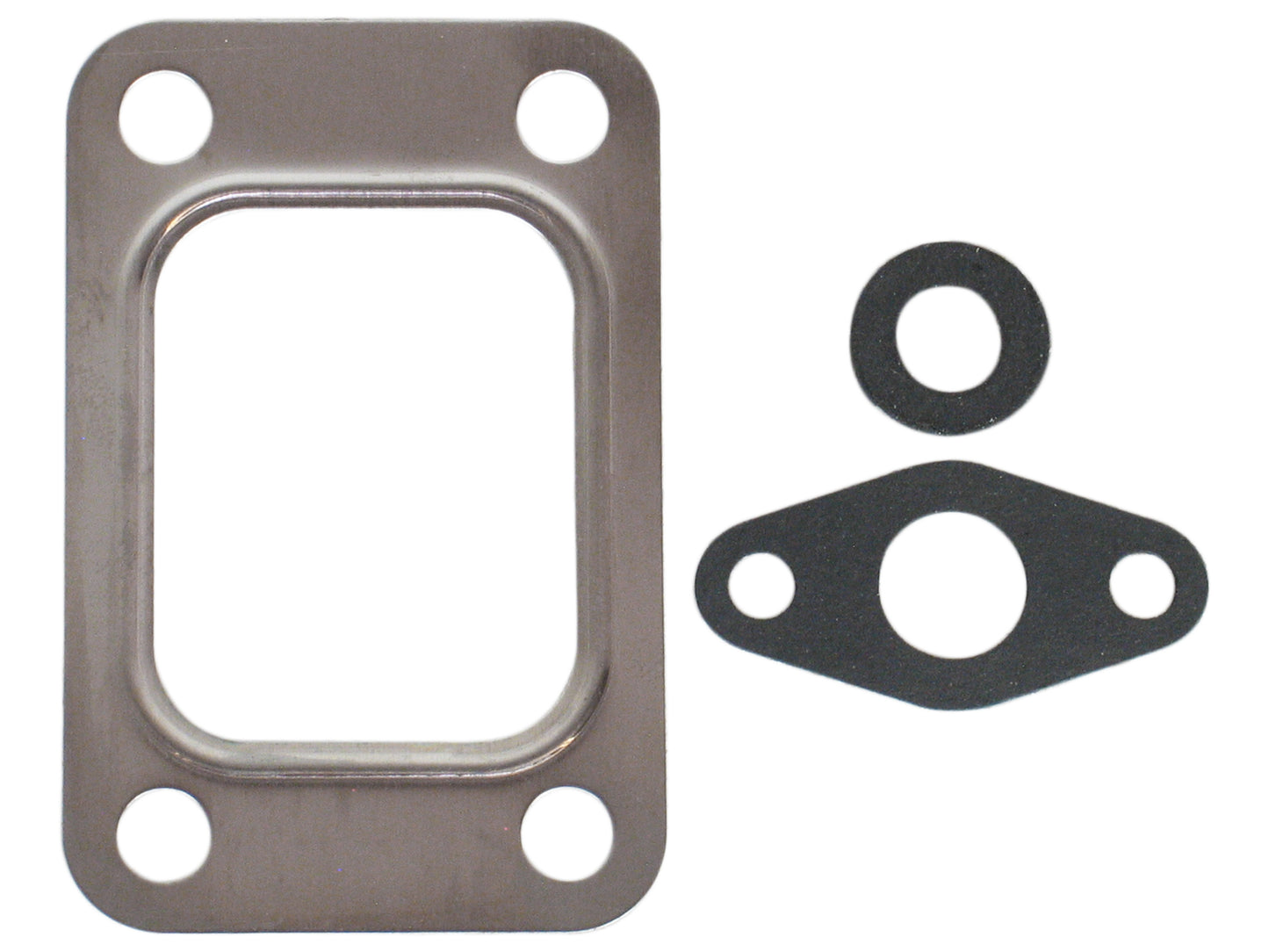

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 785828-5002
Interchangeable Number: 785828-0002, 785828-5002S, 768525-0007, 768525-5007, 768525-5007S
OEM Number: 2674A807, 316-0514, 3160514
Serial Number: QG603239B
Turbo Model: GT2560S

Year: 2006-
Engine: C4.4, EPA Tier 3 Electronic Fueling
Displacement: 4.0L, 4000 ccm, 4 Cylinders
Fuel: Diesel
Power: 141 HP
Speed: 2400 RPM

Angle α (Compressor Housing): 41°
Angle β (Turbine Housing): 105°
Back Plate: 703682-0202
Bearing Housing: 713782-0010/433275-0002/713782-0002 (1102015450)(Oil Cooled)
CHRA: 433289-0426 (433289-5426S)
Compressor Cover: 769006-0017
Compressor Wheel: 720915-0006 (Ind. 42.2 mm, Exd. 60 mm, Trim 50, 5+5 Blades, Super Back)(1102122400)
Gasket (Oil Outlet): 210553 (Paper)
Gasket (Turbine Inlet): 210658 (Inox Steel)
Heat Shield: 434686-0001
Repair Kit: 732252-0001 (1102015756)
Turbine Housing: 711739-0001
Turbine Wheel: 434717-0049 (Exd. 45.82 mm, 12 Blades)
Wastegate Settings (Lift Rod): 1.00 mm
Wastegate Settings (Pressure): 1.09-1.15 bar

Application:
2006- Perkins Various, Construction with Tier 3 Engine
Caterpillar Construction with C4.4 Engine

TurboTurbos Part Number: TP01-0141-36

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
