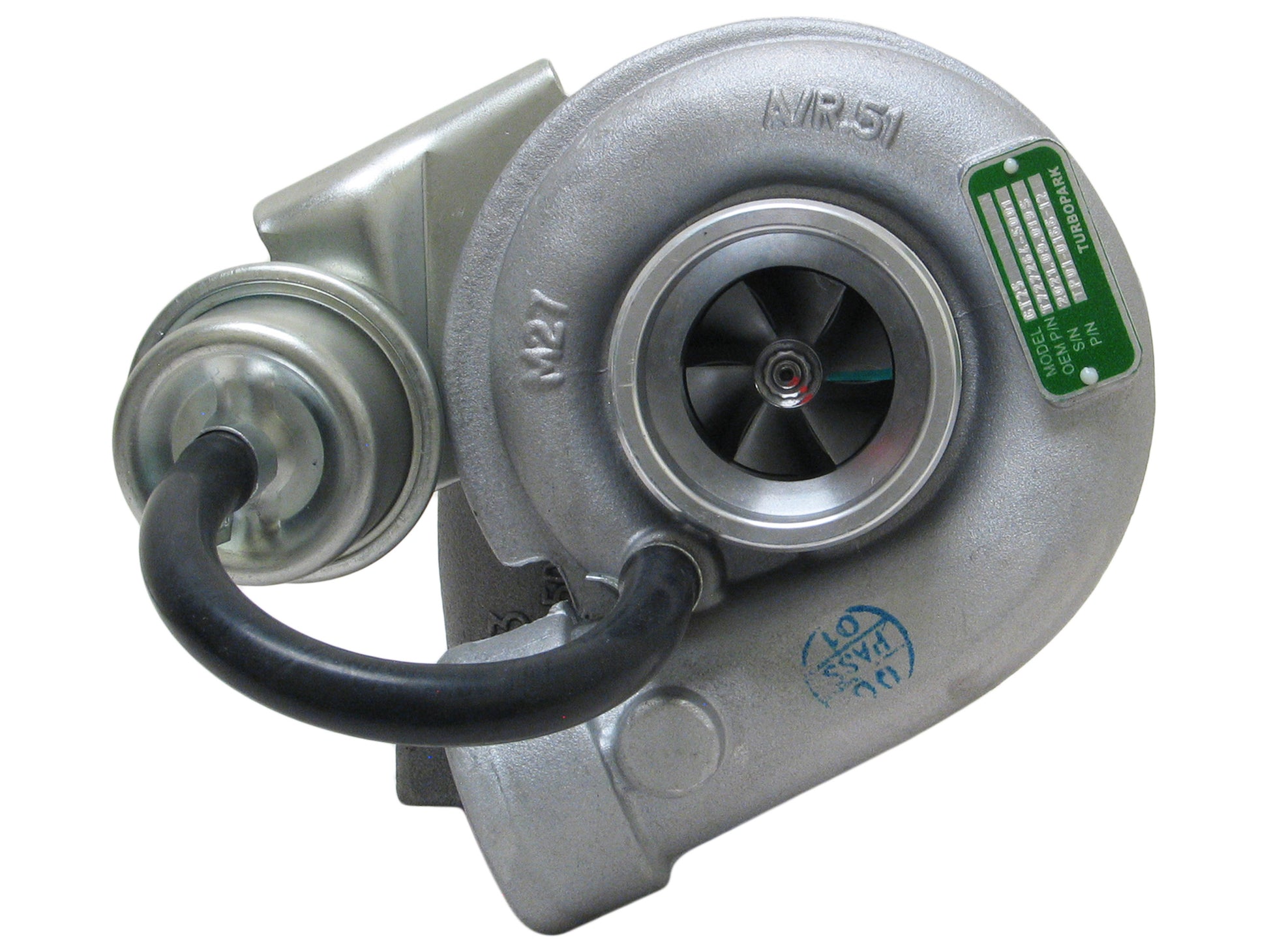

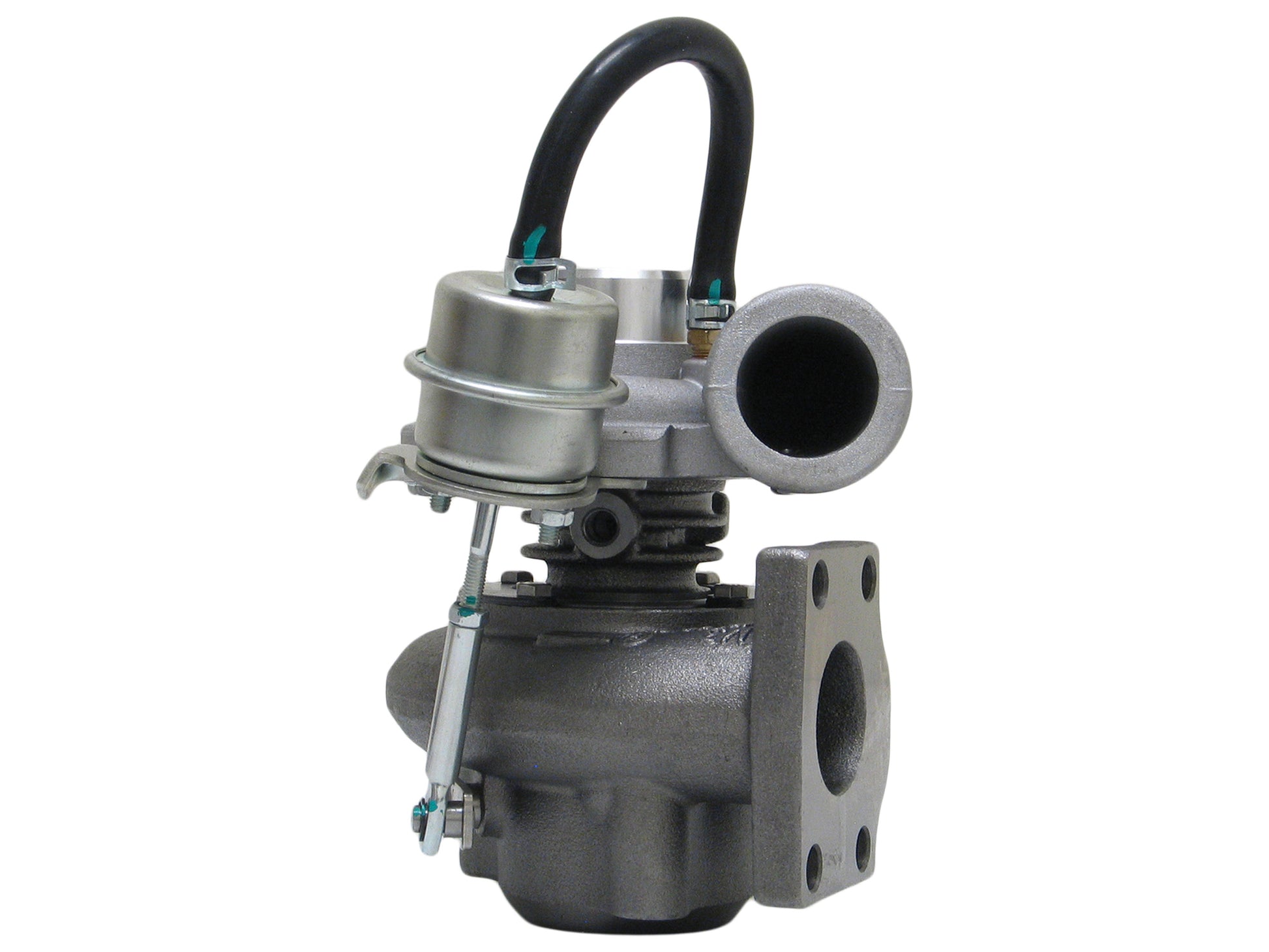

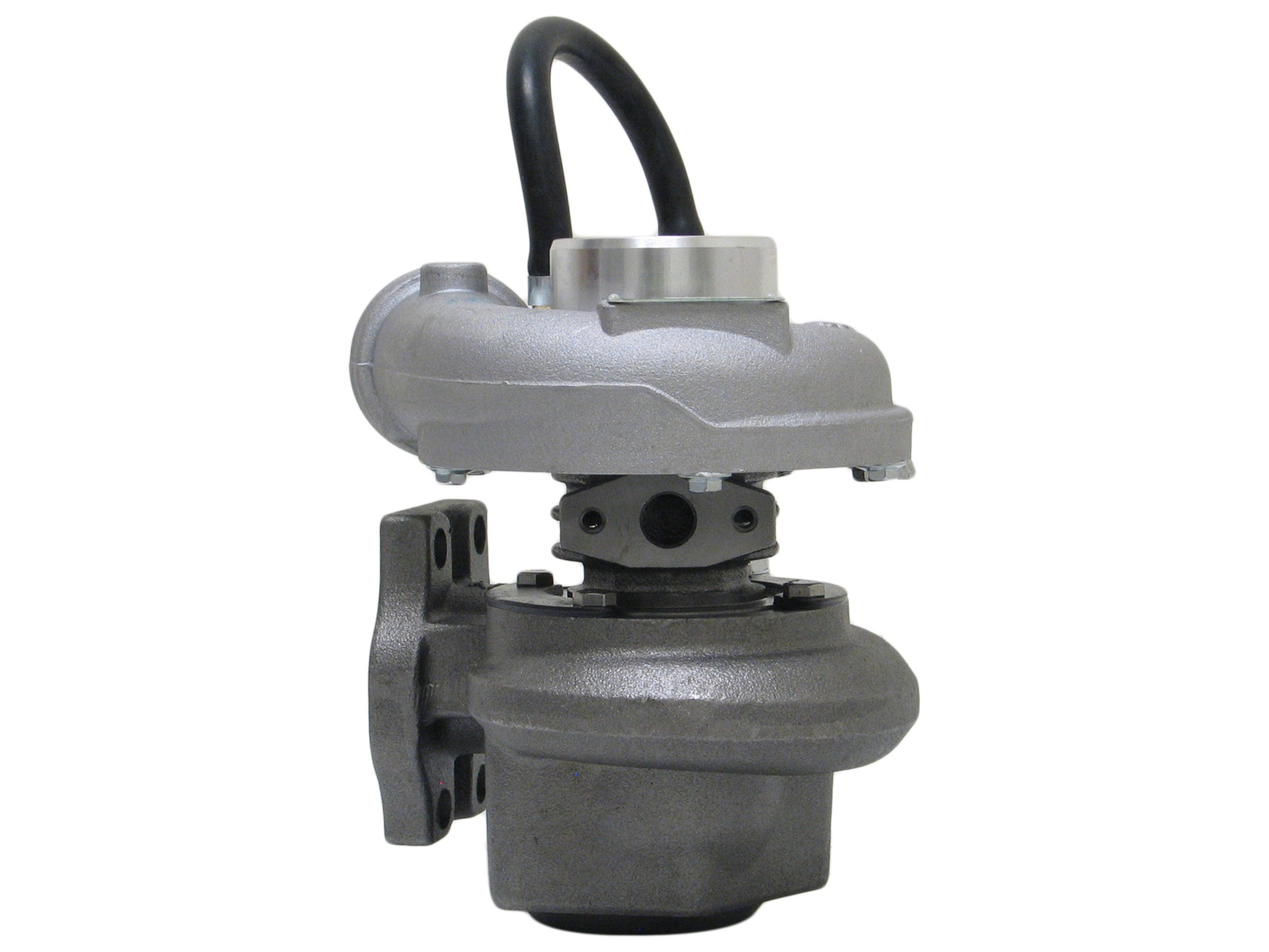

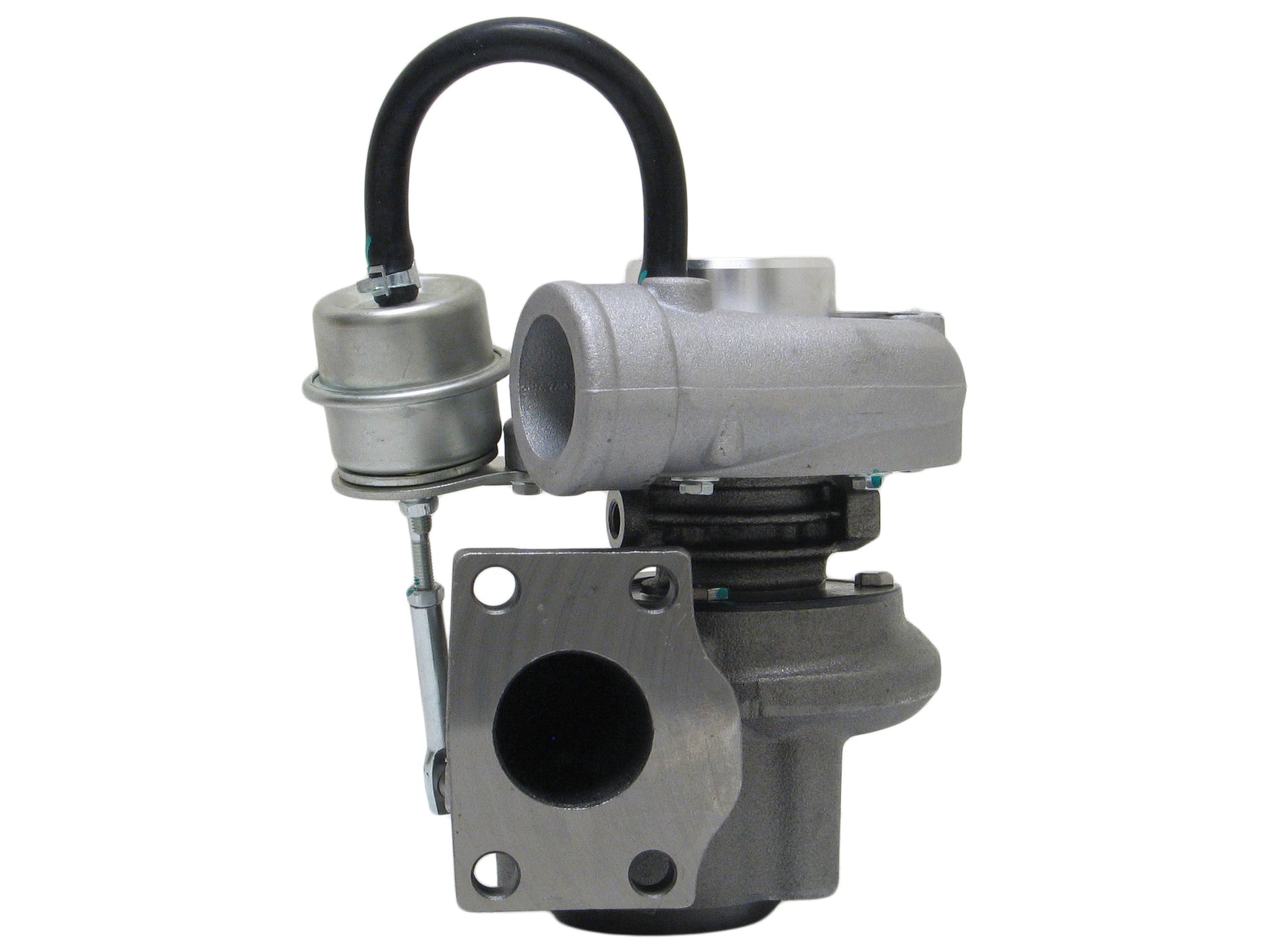

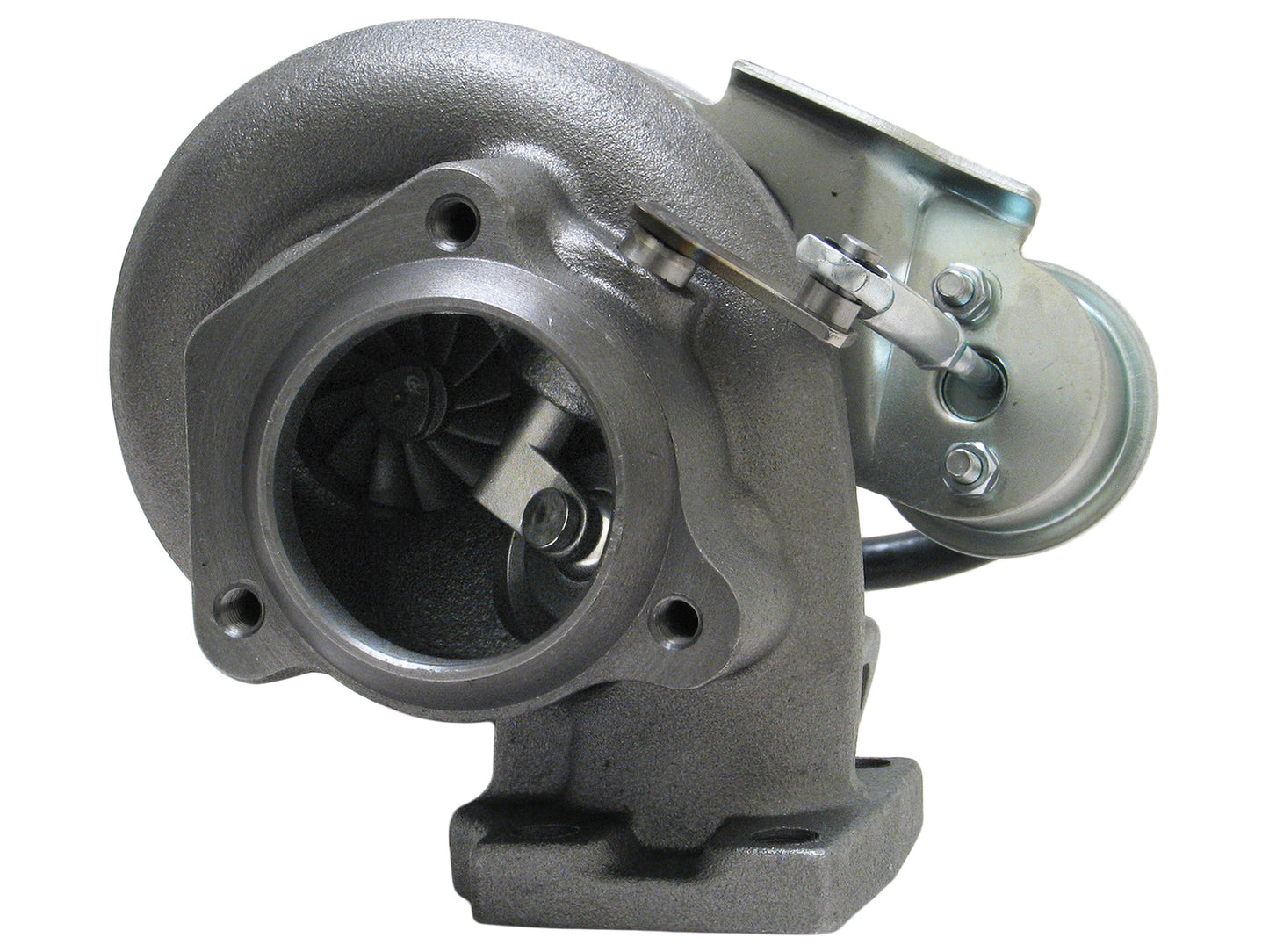

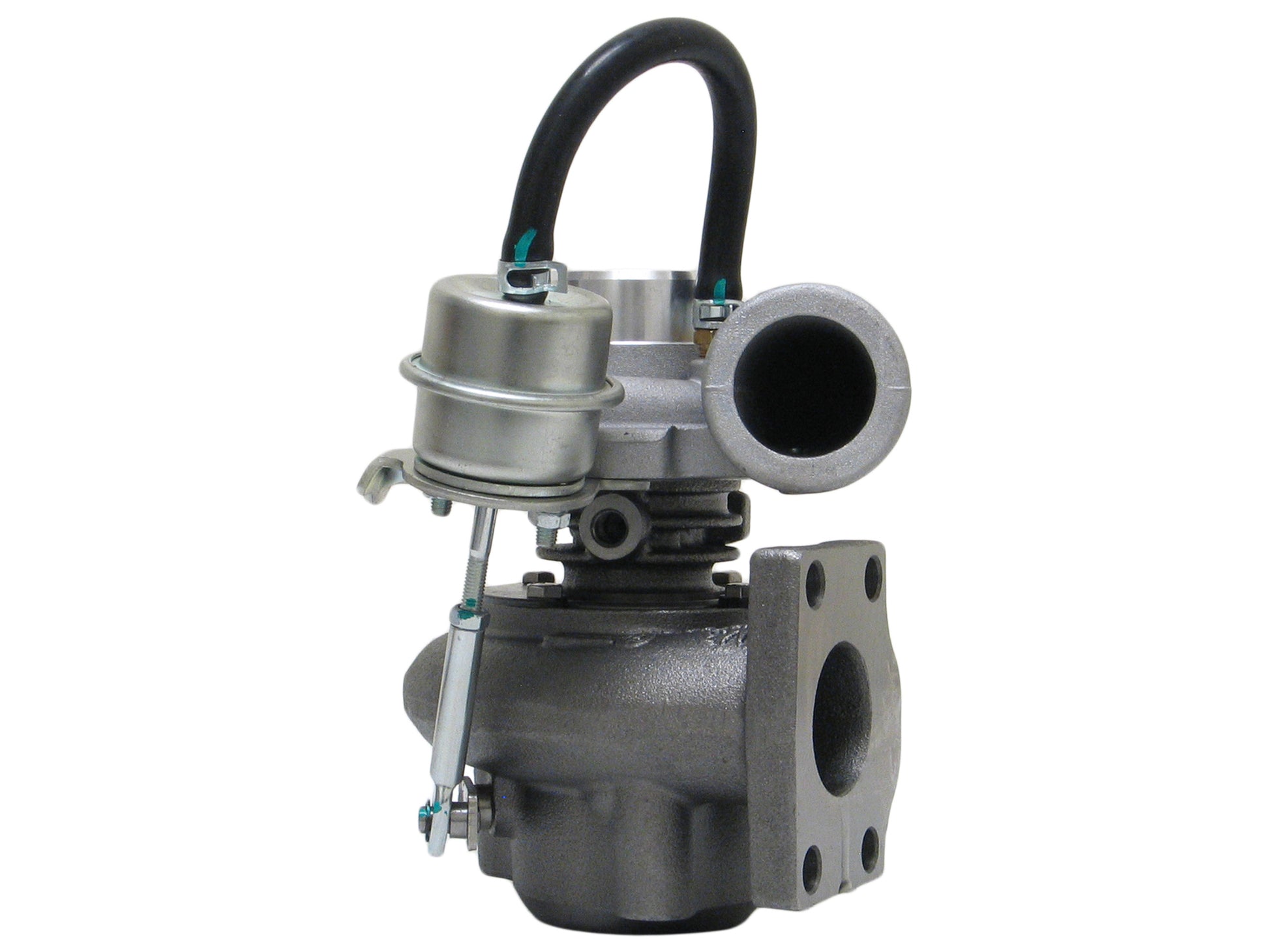

NEW GT2052S Turbo Bobcat Perkins T4.40 4.0L CAT 3304 3054T 727264-5001

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

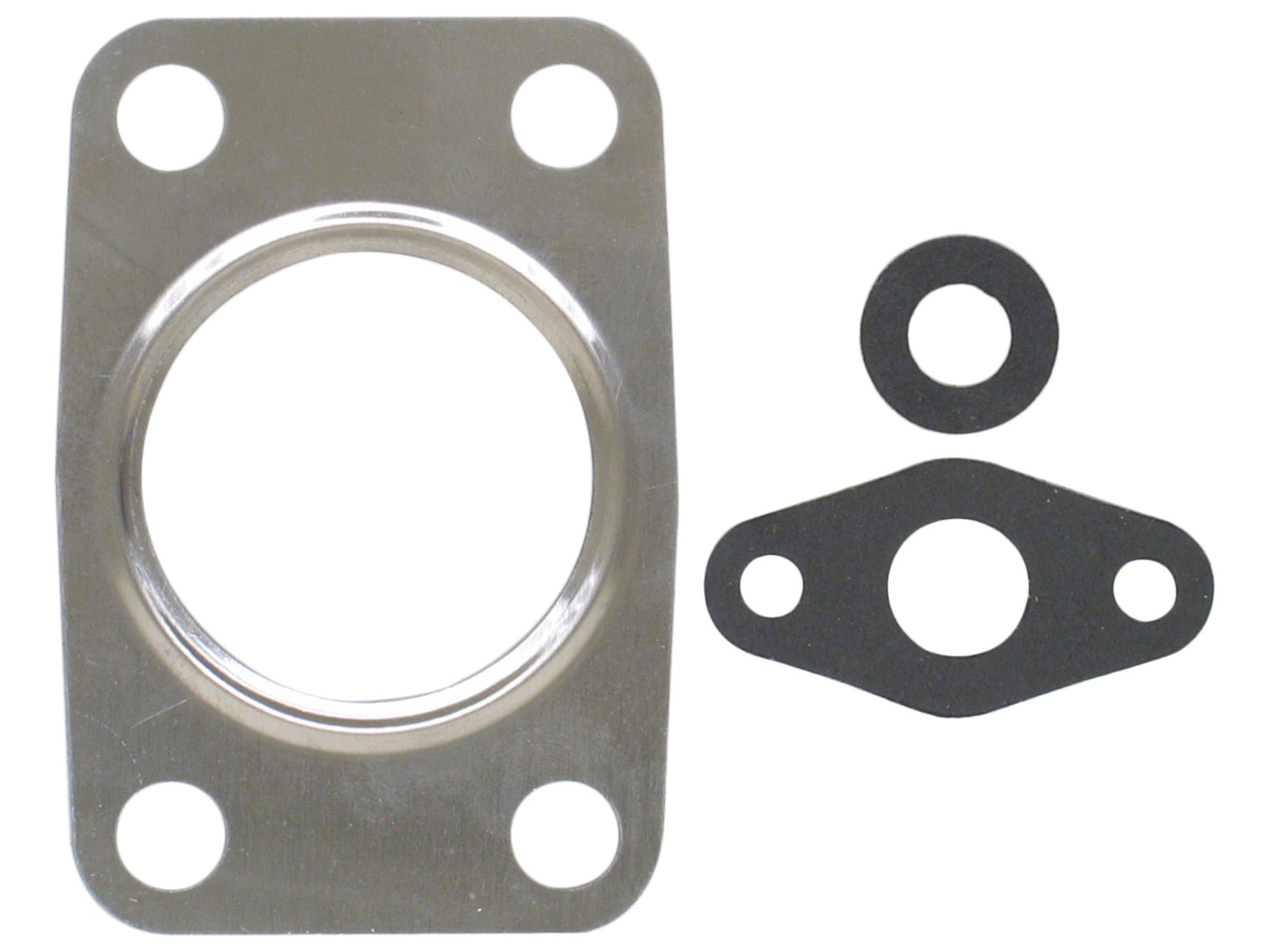

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 727264-5001
Interchangeable Number: 727264-0001, 727264-5001S, 452191-0001, 452191-5001, 452191-5001S, 452191-0002, 452191-5002, 452191-5002S, 452191-0005, 452191-5005, 452191-5001S, 727264-0002, 727264-5002, 727264-5002S
OEM Number: 10R-9569, 10R9569, 219-9766, 2199766, 2674A093, 2674A371, U2674A093
Turbo Model: GT2052S

Year: 1996-
Engine: 3054, 3054B, 3054DIT, 3054T, 3304, T4.40, T4.40 EPA Tier 1
Displacement: 4.0L, 4000 ccm, 4 Cylinders
Fuel: Diesel
Power: 107 HP

Angle α (Compressor Housing): 185°
Angle β (Turbine Housing): 105°
Actuator: 434133-0022
Back Plate: 434689-0002 (721085-0001)(1102015316/1102015314)
Bearing Housing: 433275-0002 (435793-0002, 713782-0002, 713782-0010)(1102015450)(Oil Cooled)
CHRA: 451298-0022 (451298-5022S, 451298-0043) (1102020911)
Compressor Cover: 436414-0004
Compressor Wheel: 451584-0008 (451587-0008)(Ind. 37.6 mm, Exd. 52 mm, Trim 52, 6+6 Blades, Extended Back Disc Type)(1102020408)
Gasket (Oil Outlet): 210243 (Paper)
Gasket (Turbine Inlet): 210658 (Inox Steel)
Heat Shield: 434302-0001 (434684-0001)(1102015343)
Repair Kit: 732252-0001 (1102015756)
Thrust Kit: 732248-0003
Turbine Housing A/R: 0.50
Turbine Housing: 436383-0002
Turbine Wheel: 434715-0013 (434715-0007, 434715-0023, 434715-0027, 434715-0039)(Ind. 40 mm, Exd. 47 mm, Trim 72, 12 Blades)(1102020440)
Wastegate Settings (Lift Shaft): 1.00 mm
Wastegate Settings (Pressure): 1.050-1.150 bar

Application:
1996- Perkins Industrial with T4.40 EPA Tier 1 Engine
2002- Bobcat with T4.40 Engine
Barber-Greene BG-210B, BG-225B Asphalt Paver with 3054T Engine
Caterpillar AP-800C Rubber Tire Asphalt Paver with 3054DIT Engine
Caterpillar CB-534C, CB-535B, CS-433C Vibratory Smooth Drum Roller with 3304 Engine
Caterpillar CP-433C Vibratory Compactor with 3054T Engine
Caterpillar PF-290B, PF-300B Pneumatic Tire Compactor with 3054T Engine
Caterpillar PS-200B, PS-360B Pneumatic Compactor with 3054T Engine
Caterpillar TH62, TH63, TH82, TH83, TH103 Telehandler with 3054T Engine
Industrial with 3054, 3054B Engine

TurboTurbos Part Number: TP01-0166-12

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
