NEW T04B25 Turbo IH Truck Agricultural DT466 DT466A DT466B 7.6L 409770-5019

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

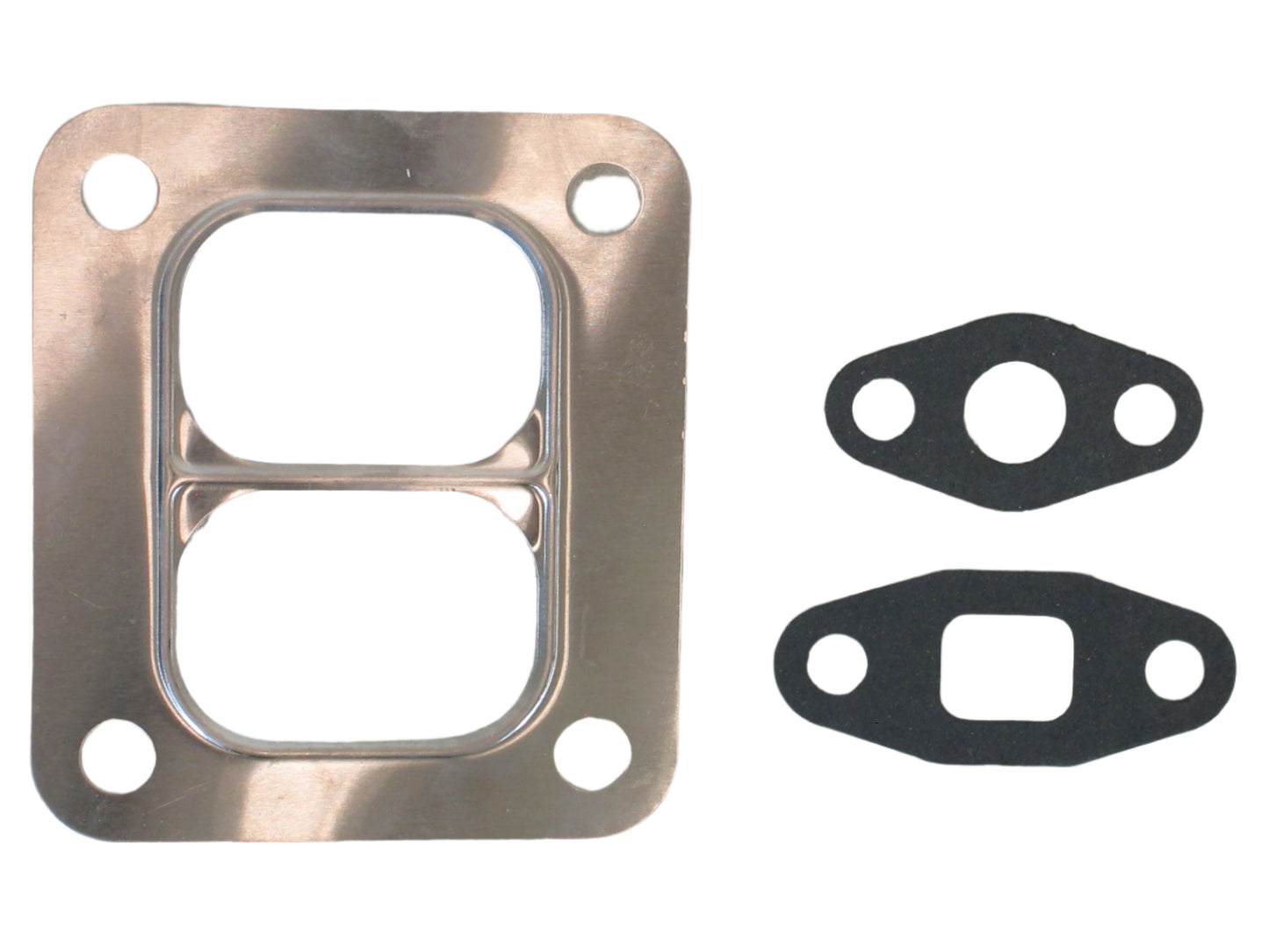

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 409770-5019
Interchangeable Number: 409770-0019, 409770-5019S, 313102, 313102R, 409770-0003, 409770-5003, 409770-5003S, 409770-0005, 409770-5005, 409770-5005S, 409770-0006, 409770-5006, 409770-5006S, 409770-0007, 409770-5007, 409770-5007S, 409770-0008, 409770-5008, 409770-5008S, 409770-0009, 409770-5009, 409770-5009S, 409770-0011, 409770-5011, 409770-5011S, 409770-0013, 409770-5013, 409770-5013S, 409770-0014, 409770-5014, 409770-5014S, 409770-0015, 409770-5015, 409770-5015S, 409770-0016, 409770-5016, 409770-5016S, 409770-0017, 409770-5017, 409770-5017S, 409770-0020, 409770-5020, 409770-5020S, 409770-0021, 409770-5021, 409770-5021S, 409770-0022, 409770-5022, 409770-5022S, 409770-0023, 409770-5023, 409770-5023S, 409770-0024, 409770-5024, 409770-5024S
OEM Number: 1806077C91, 1806078C2, 1806078C91, 1806078C92, 1806079C91, 1806079C92, 1806080C91, 1806080C92, 1806081C91, 1823573C92, 3218953R91, 684569C91, 684598C91, 684663C91, 684663C92, 684698C91, 684937C91, 691020C91, 691059C91, 735030C91, 735270C91, 749269C91, 749282C91, 991523C91, A184781
Turbo Model: T04B25

Year: 1976-
Engine: DT466, DT466A, DT466B, DT466C, DTI466A, DTI466B
Engine Manufacturer: Navistar
Displacement: 7.6L, 7600 ccm, 6 Cylinders
Fuel: Diesel
Power: 180/190/210/281/286 HP

Angle α (Compressor Housing): 265°
Angle β (Turbine Housing): 210°
Back Plate: 408045-0034 (630614C91)(4N6863, 310010, 311708, 104244-0000, 408045-0051, 408045-0006, 408206-0002)(1100040360)
Bearing Housing: 430027-0051 (186880, 186882, 407285-0018, 430027-0031, 430027-0035)(Oil Cooled)
CHRA: 408105-0156 (408105-5156S, 408105-0215, 408105-5215S)(684356C92, 991530C91, 684357C91)
Compressor Cover: 408274-0224 (684366C1)
Compressor Wheel: 409179-0024 (684364C1)(Ind. 54 mm, Exd. 69.95 mm, 8+8 Blades, Flat Back with Ext. Hub)
Gasket (Oil Inlet): 210023 (409026-0001, 409036-0000, 409266-0001, 3519762, 3500681, 3709737, 3755739, 420641, 210023-0000, 55739, 147837)(1900000037)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 210021-0000, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 409123-0002 (310694, 407294-0001)(Inox Steel)
Gasket Kit: 215079
Heat Shield: 409299-0001 (409299-0000)
Repair Kit: 468100-0000 (3524796, 168984, 2W0716, 6N7236, 310063, 188401-0000, 188006-0000)(1100040750)
Turbine Housing A/R: 1.15
Turbine Housing: 432183-0002 (630675C1)
Turbine Wheel: 446905-0005 (407276-0006, 407276-0019, 410188-0003, 410188-0006, 410188-0037, 446905-0002, 446905-0007, 446905-0010, 451309-0003, 451309-0004)(Ind. 73.99 mm, Exd. 64.61 mm, 11 Blades)(1100016090)
Turbo Technology: Free Floating

Application:
1976- International Loadstar, Cargostar, 5050 ProStar, S Series, 8500 MT Truck with Navistar DT466, DT466B Engine
1976-86 IH with Navistar DT466A (466 CID 16D- 180 HP) Engine
1982- Agricultural, Industrial with Navistar DT466A, DT466B Engine
IH 3588 Dresser, 4386 Agricultural Tractor, 1480 Combine with Navistar DT466B Engine
International Agricultural, Industrial with Navistar DTI466B Engine

TurboTurbos Part Number: TP01-0174-12

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
