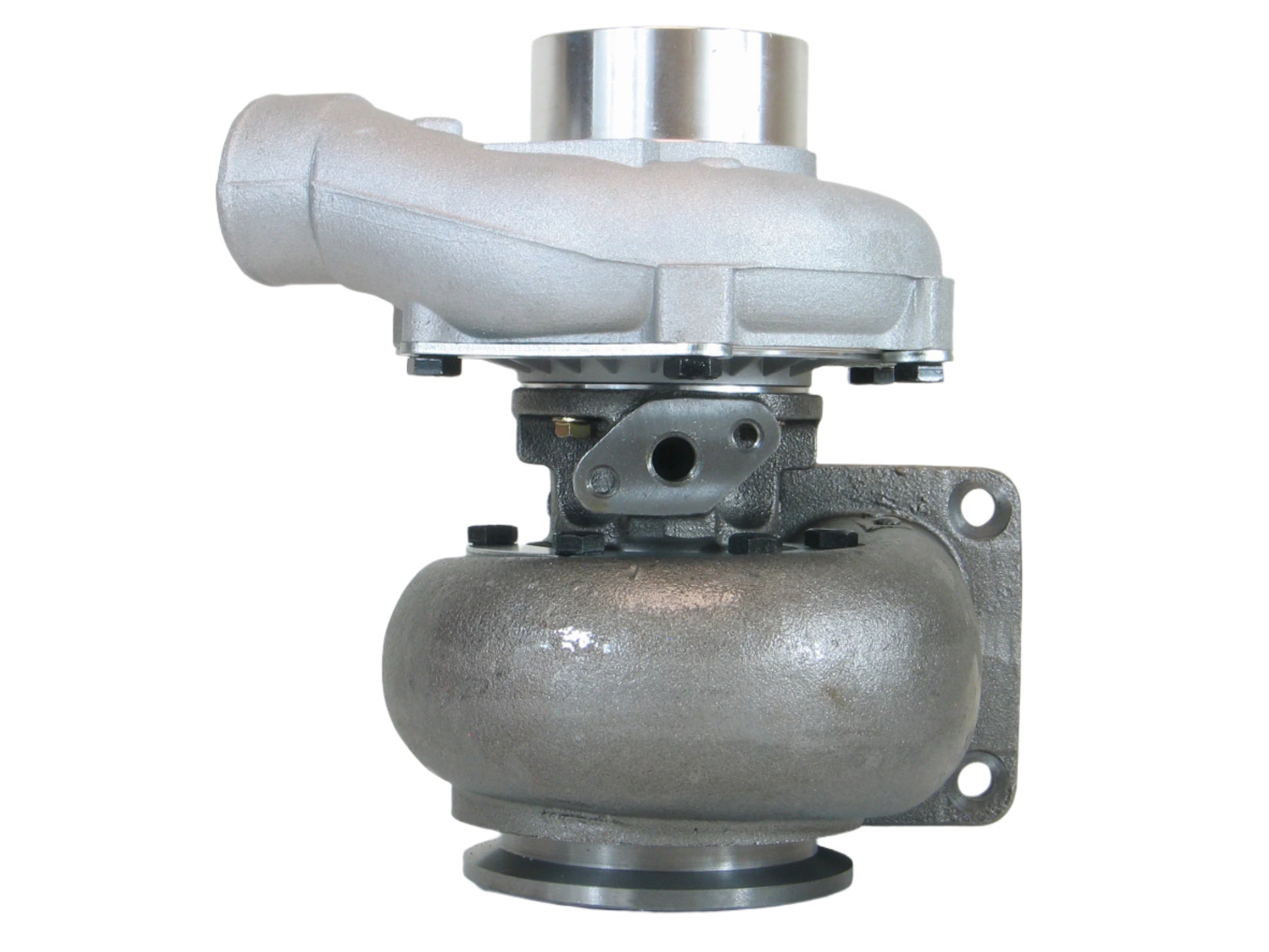

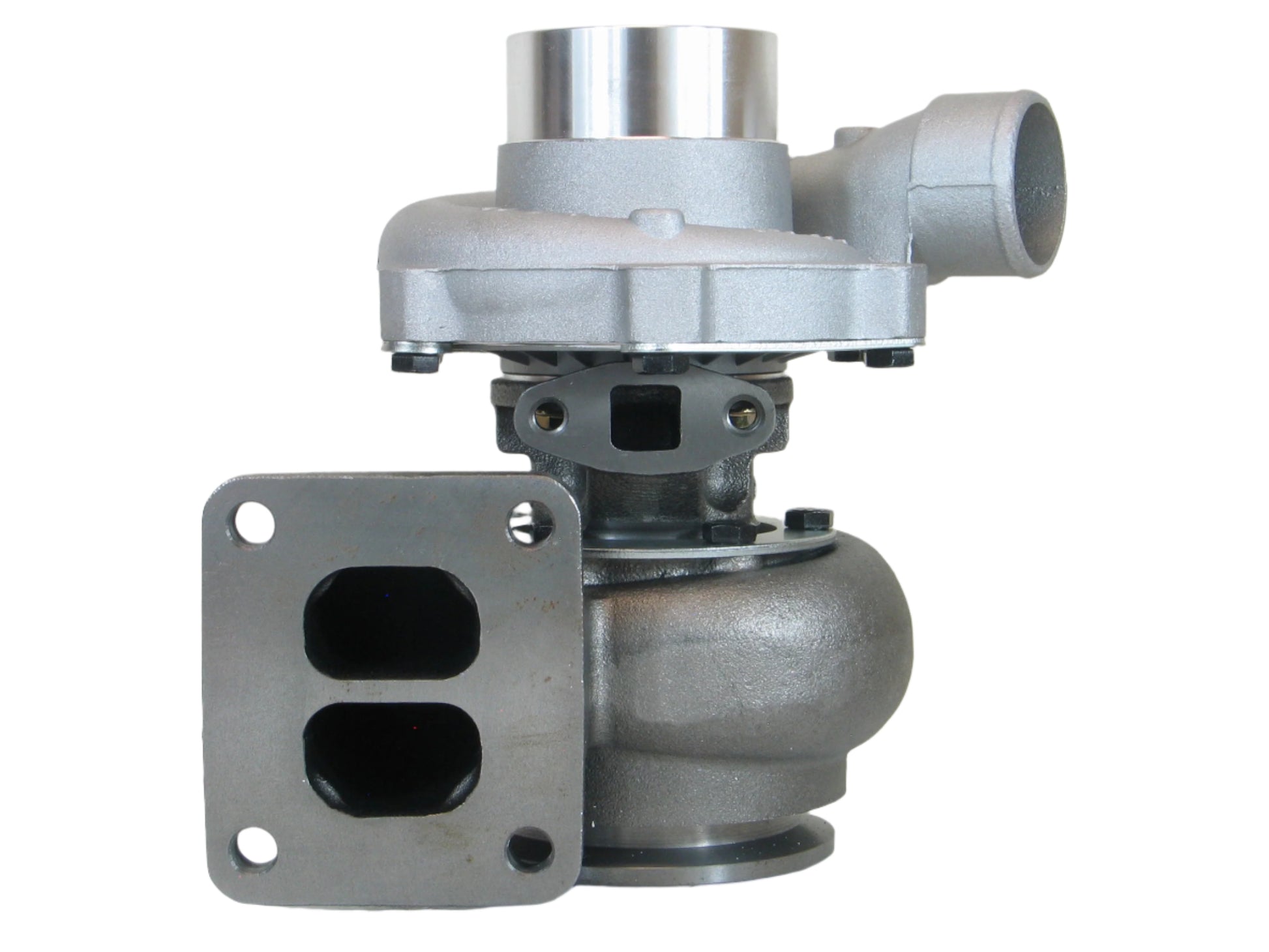

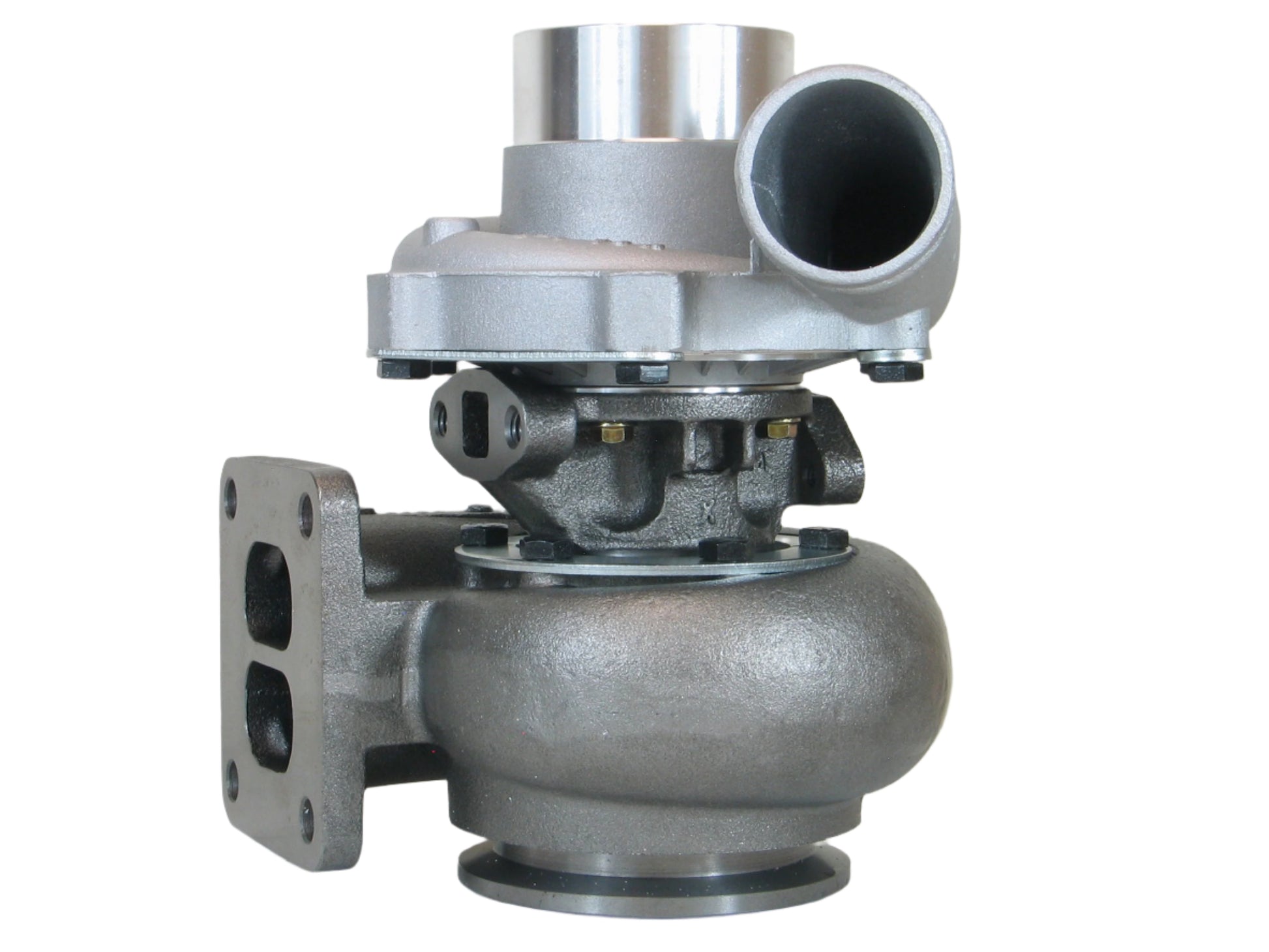

NEW T300-08 Turbo John Deere Construction Equipment 4045T 4.5L 471049-5002

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 471049-5002
Interchangeable Number: 471049-0002, 471049-5002S, 318615, 471049-0001, 471049-5001, 471049-5001S, 471049-0003, 471049-5003, 471049-5003S, 471049-0008, 471049-5008, 471049-5008S, 471049-0012, 471049-5012, 471049-5012S
OEM Number: RE540549, RE540663, RE556695, RE564495, RE567044, RE59379, RE59997, RE59999, RE60069, RE64927, RE70995, SE500268
Turbo Model: T300-08

Year: 1996-
Engine: 4045, 4045T
Displacement: 4.5L, 4500 ccm, 4 Cylinders
Fuel: Diesel
Power: 125 HP
Speed: 2400 RPM

Angle α (Compressor Housing): 336°
Angle β (Turbine Housing): 0°
Back Plate: 409629-0012
Bearing Housing: 430027-0020 (407285-0034)(Oil Cooled)(1900011197O)
CHRA: 446311-0006 (446311-5006S)(3990315002)

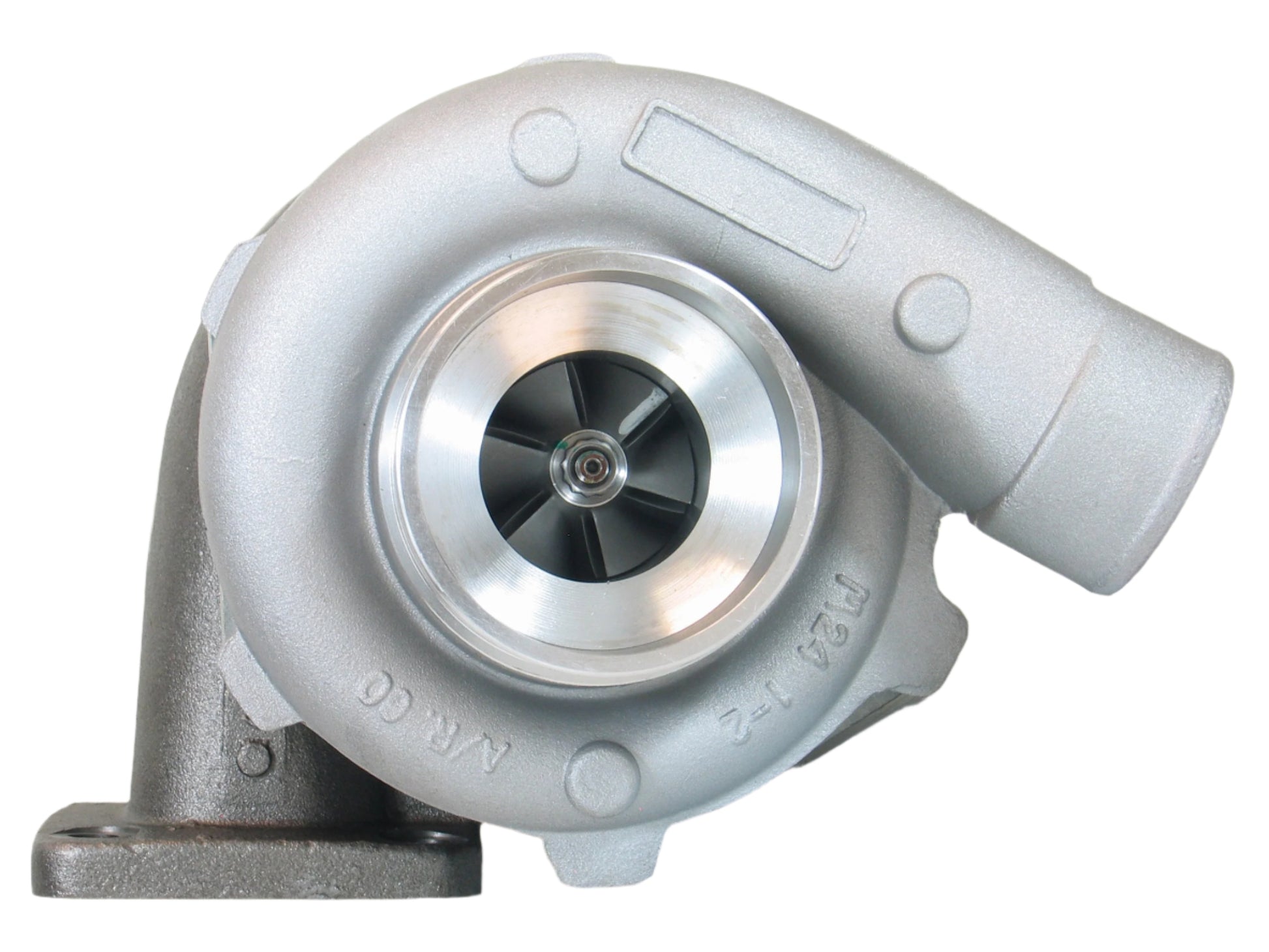

Compressor Cover: 446341-0003
Compressor Wheel: 446340-0003 (Ind. 41.75 mm, Exd. 63 mm, Trim 44, 5+5(6+6) Blades, Super Back)(1200016743, 1200016561)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 407294-0001 (310694, T30820, 312617)
Gasket Kit: 318418 (3534516, 3545576, 403240, 22505129)(2090505081)
Heat Shield: 409627-0001 (409627-0000, 103121-0000)(1100030340)
Repair Kit: 468139-0000 (1100030750, 5000010041)(Dynamic)
Turbine Housing A/R: 0.81

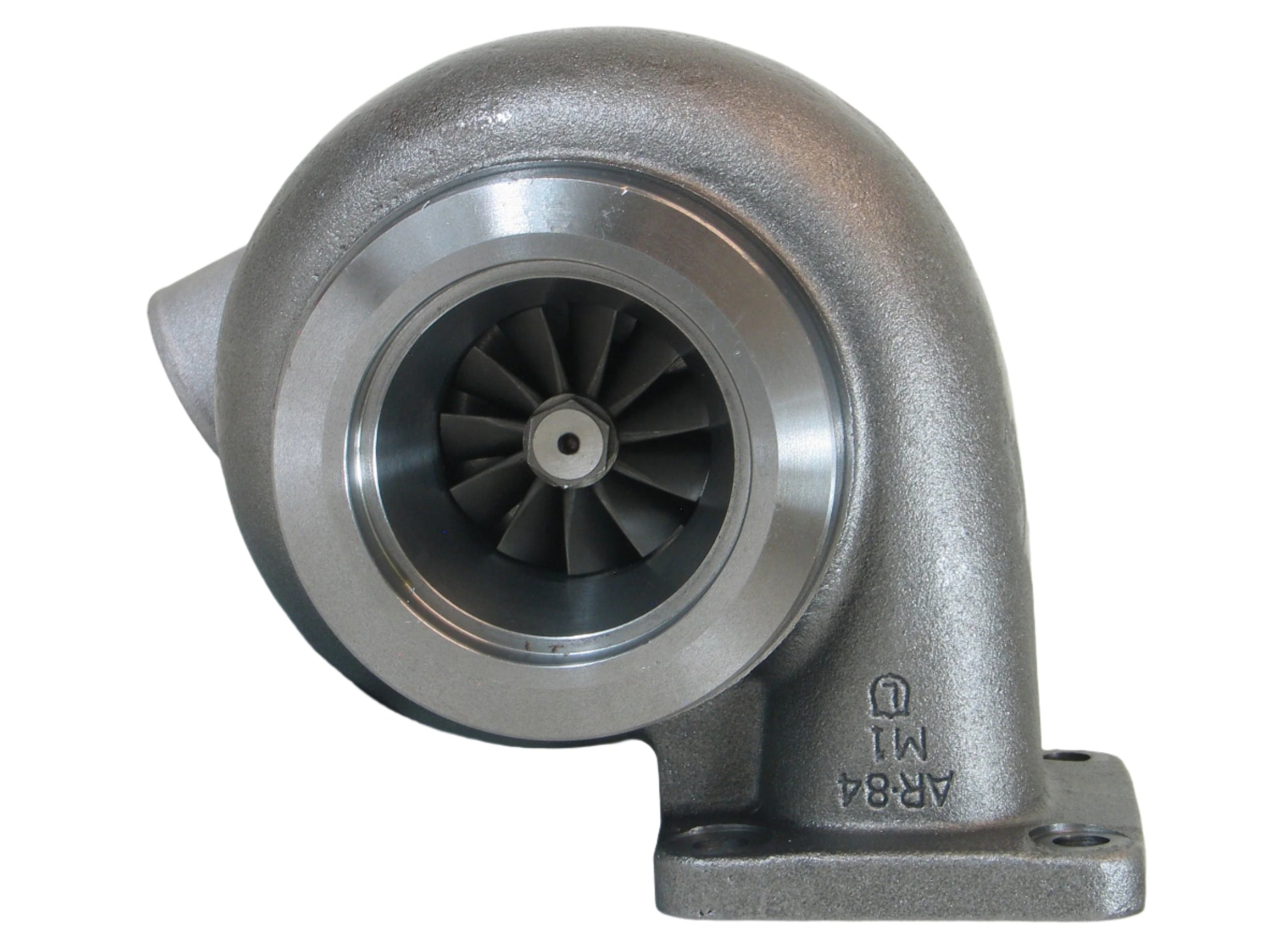

Turbine Housing: 447467-0023
Turbine Wheel: 445812-0001 (Ind. 54.5 mm, Exd. 61.55 mm, Trim 79, 10 Blades)(1100016532)

Application:
1996- John Deere 350 Agricultural Tractor with 4045T Engine
1996- John Deere Construction Equipment with 4045T Engine
John Deere 3200, 3400 Telehandler

TurboTurbos Part Number: TP01-0191-07

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
