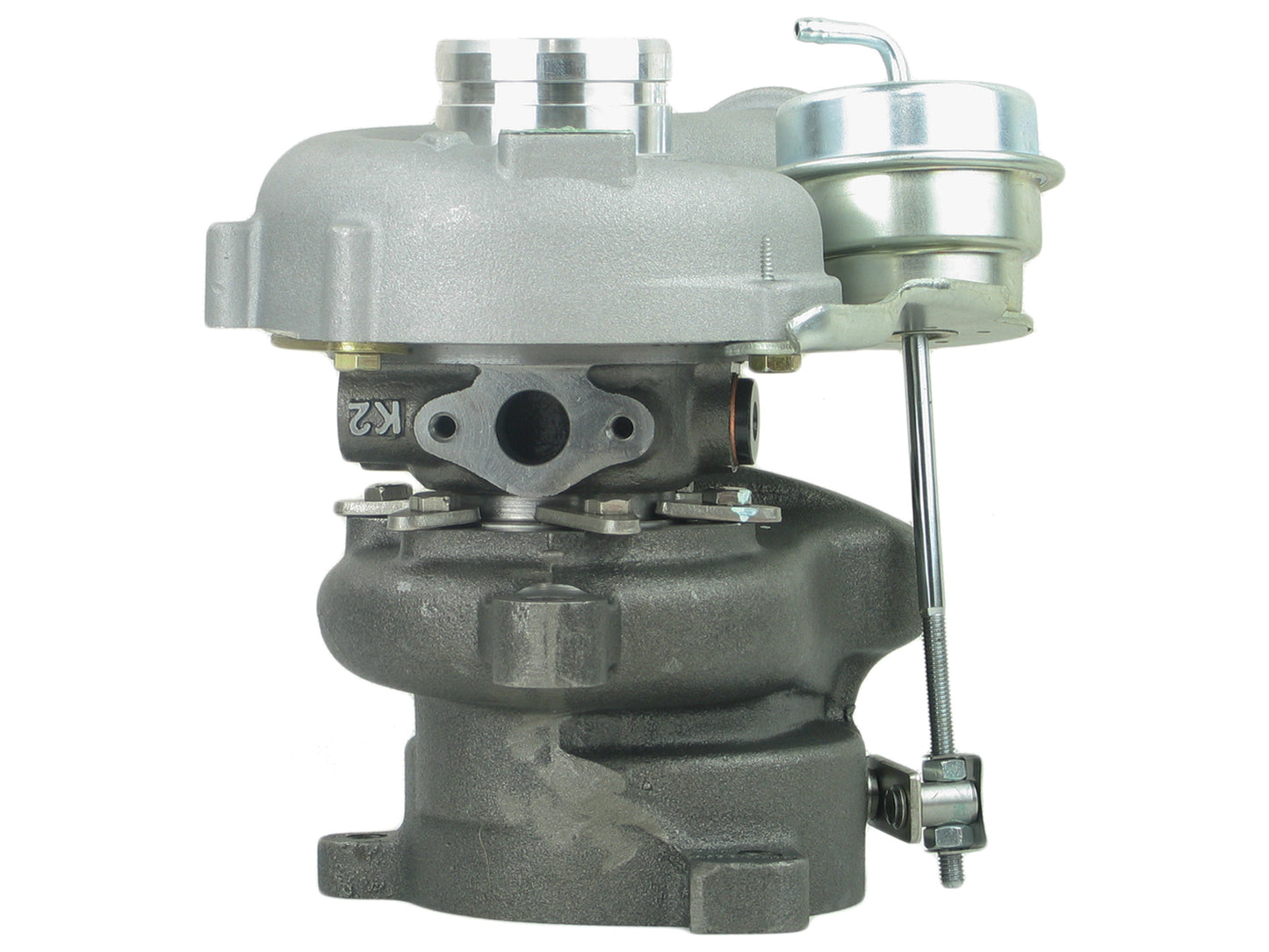

NEW K04 Turbo Audi S3 TT Seat Leon Cupra R 1.8L AMK APX Gas Engine 53049700022

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 53049880022
Interchangeable Number: 5304-988-0022, 5304 988 0022, 53049700022, 5304-970-0022, 5304 970 0022, 53049700020, 5304-970-0020, 5304 970 0020, 53049880020, 5304-988-0020, 5304 988 0020
OEM Number: 06A145704P, 06A145704PX, 06A145704PV
Turbo Model: K04, K04-2275ECD5.82KCAXH

Year: 1999-12
Engine: AMK, AMK APX, 1.8-5V quer/transversal
Displacement: 1.8L, 1781 ccm
Fuel: Gas
Power: 154 kW/210 HP
Speed: 5900 RPM

Angle α (Compressor Housing): 305°
Angle β (Turbine Housing): 190°
Actuator: 58251104082
Back Plate: 53041515708 (1302003306)
Bearing Housing (Water Cooled): 53041500015/53041500009/53041500006/53041500017 (1302003460)
CHRA: 53047100507 (5304-710-0507, 1302004907)
Compressor Cover: 53041015030
Compressor Wheel (Milled Titanium): 53041232015/53041232013/53041232203 (1302003411)(Ind. 41.86 mm, Exd. 56.06 mm, 4+4)
Gasket (Oil Outlet): 210317 (Paper)
Gasket (Turbine Inlet): 210646 (INOX Steel)
Gasket (Turbine Outlet): 210676 (INOX Steel)
Heat Shield: 53041652000 (1302003341)
Repair Kit: 53037110000 (1302003752)
Turbine Housing A/R: 5
Turbine Housing: 53041008003
Turbine Wheel: 53041205015/53041205010 (Ind. 50 mm, Exd. 42 mm, 12 Blades)(1302004437)
Wastegate Settings (Lift Shaft): 5.50 mm
Wastegate Settings (Pressure): 0.50 bar

NOTE: Intercooler, water cooled bearing housing, with ESP.

Application:
1999-12 Audi S3 1.8 T with AMK Engine
1999-12 Audi TT 1.8 T (8N) with AMK, APX Engine
2002-03 Seat Leon 1.8 T Cupra R with AMK Engine

TurboTurbos Part Number: TP02-0022-08

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
