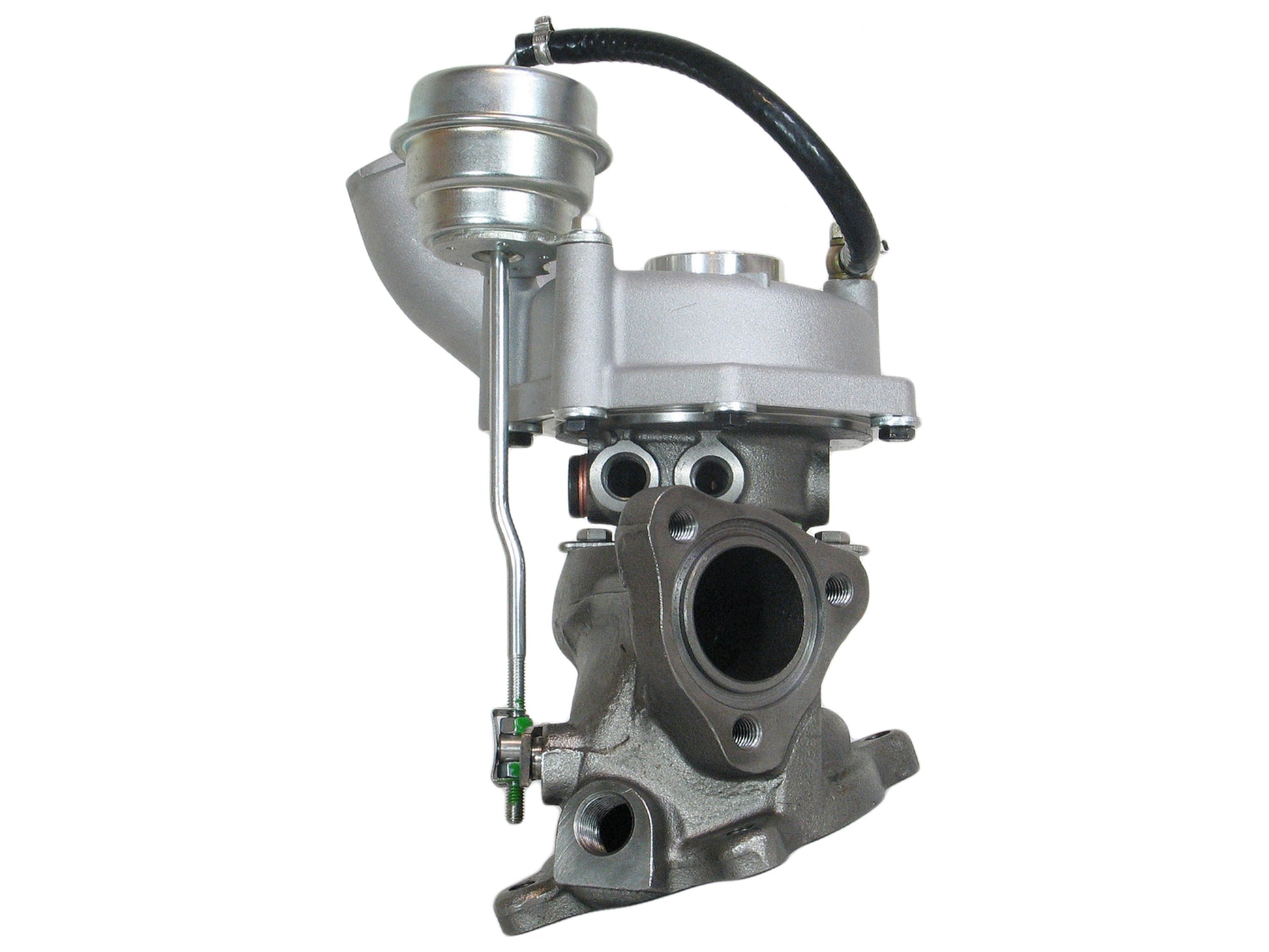

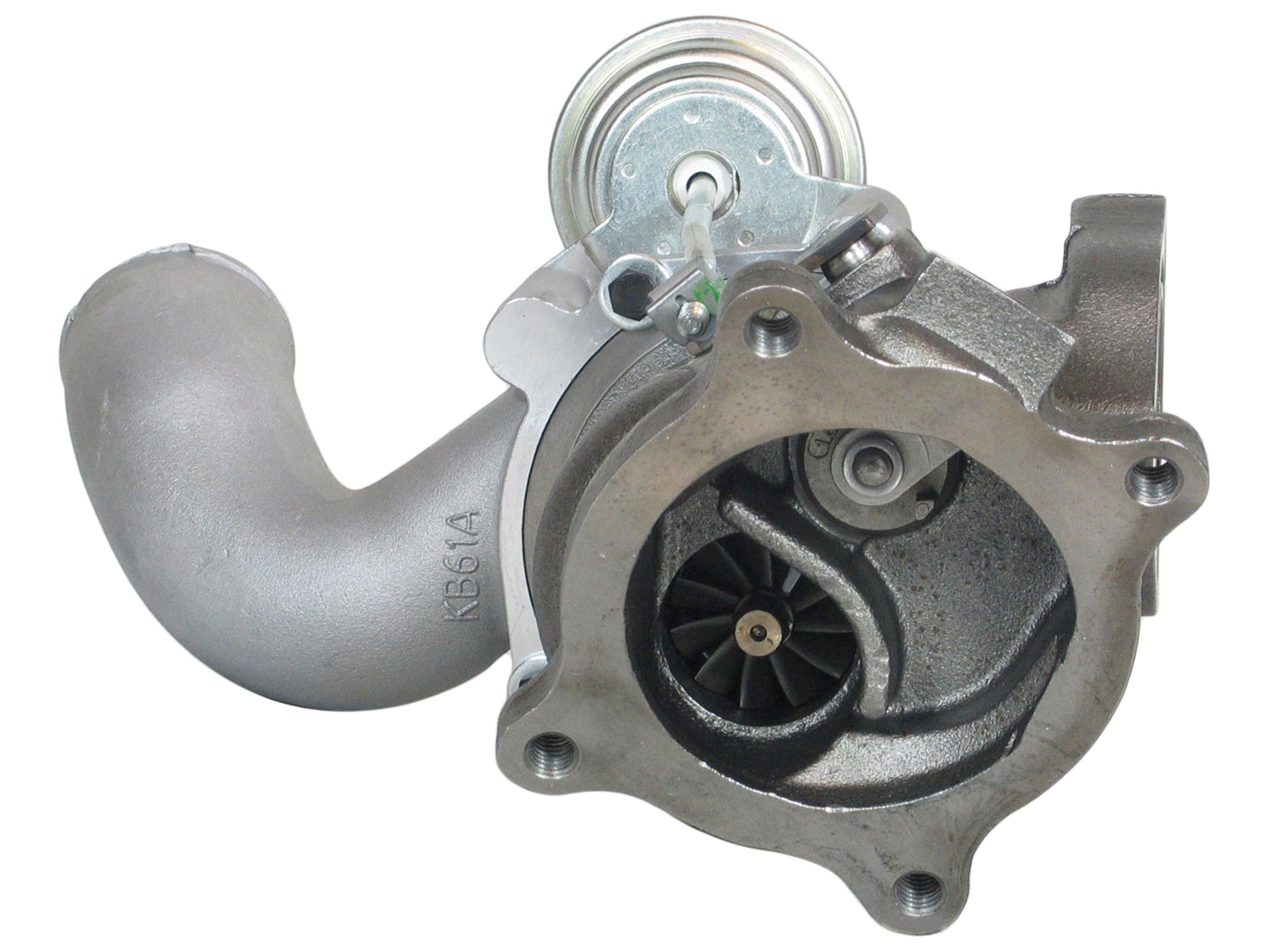

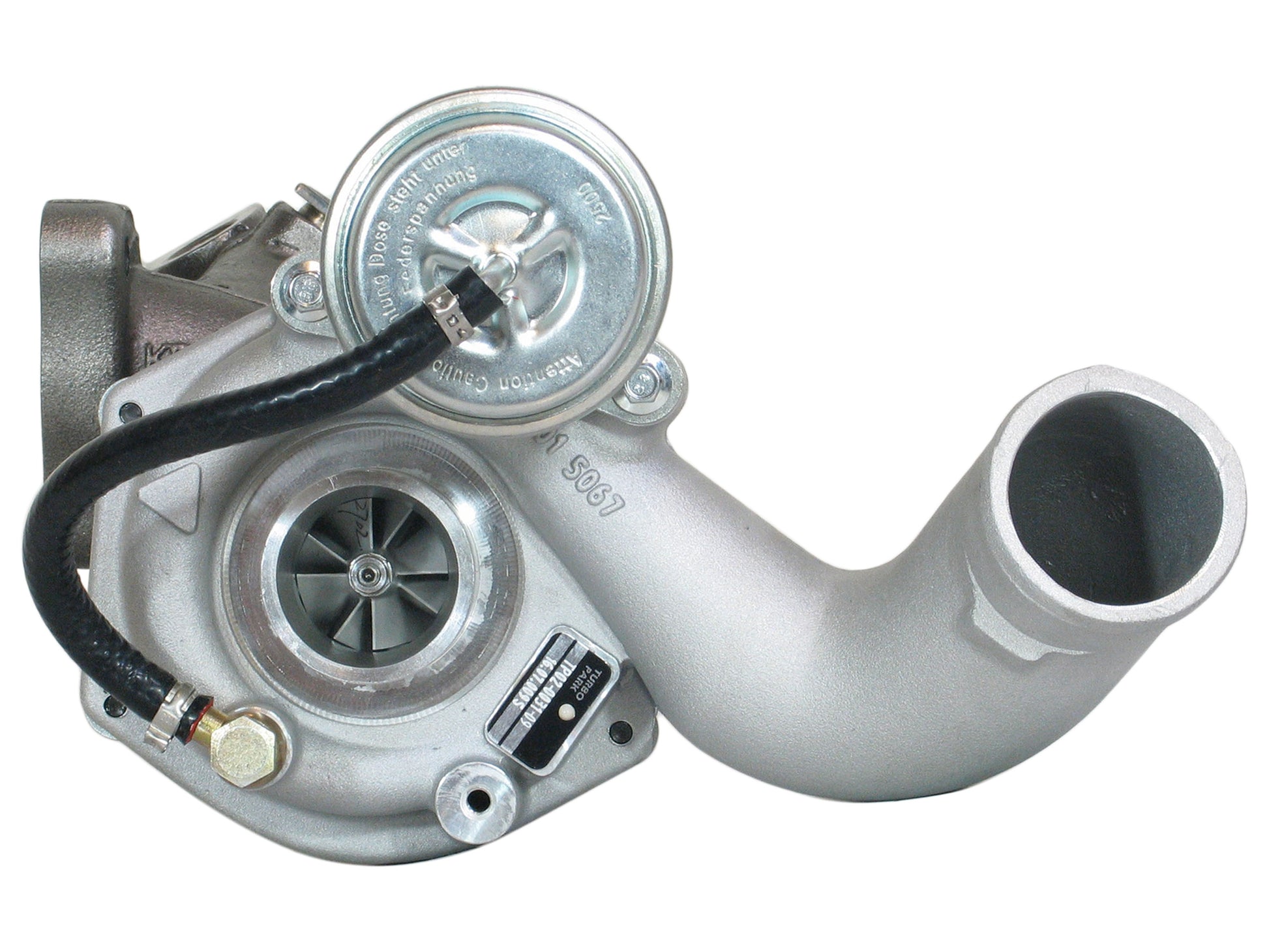

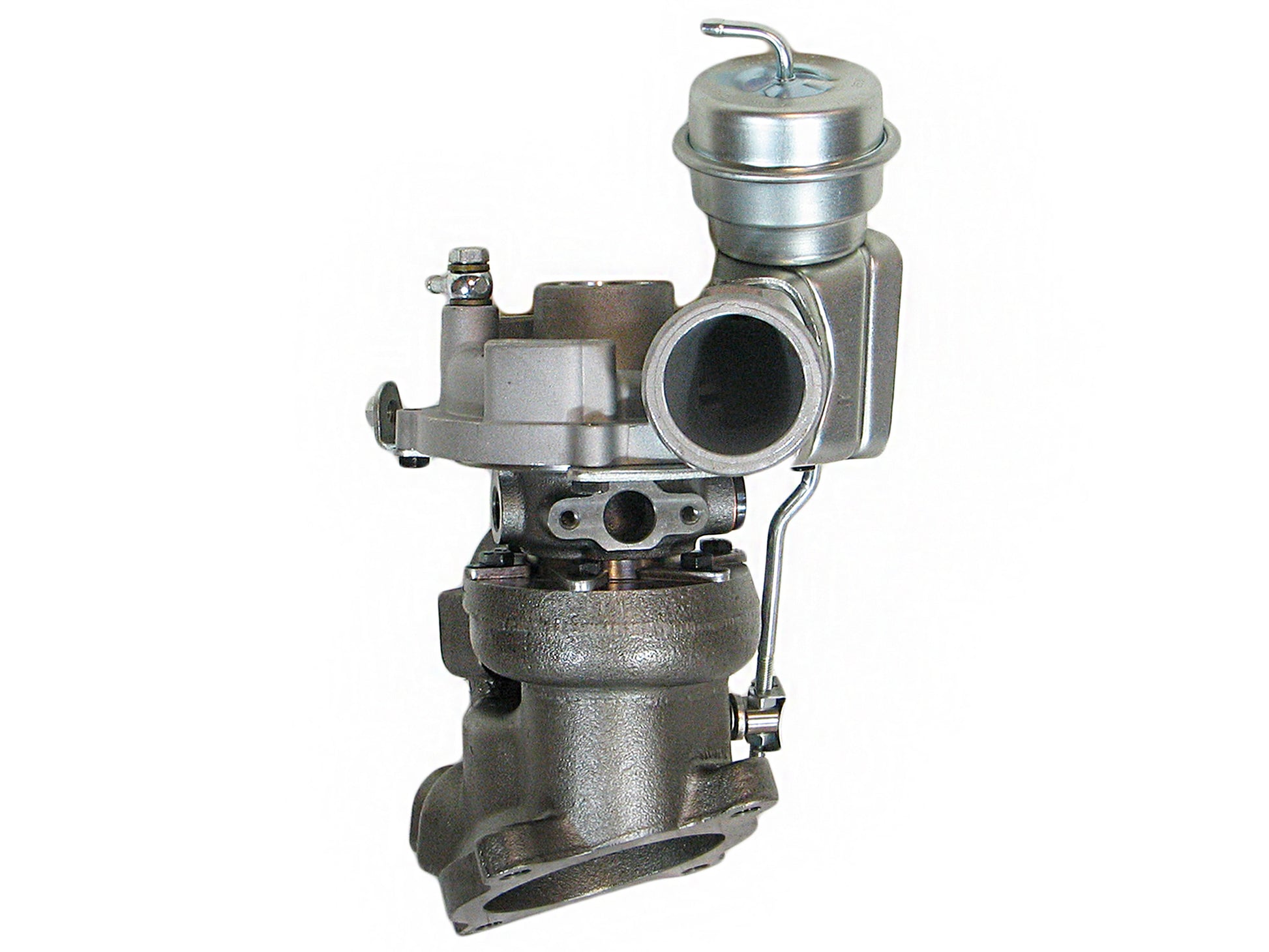

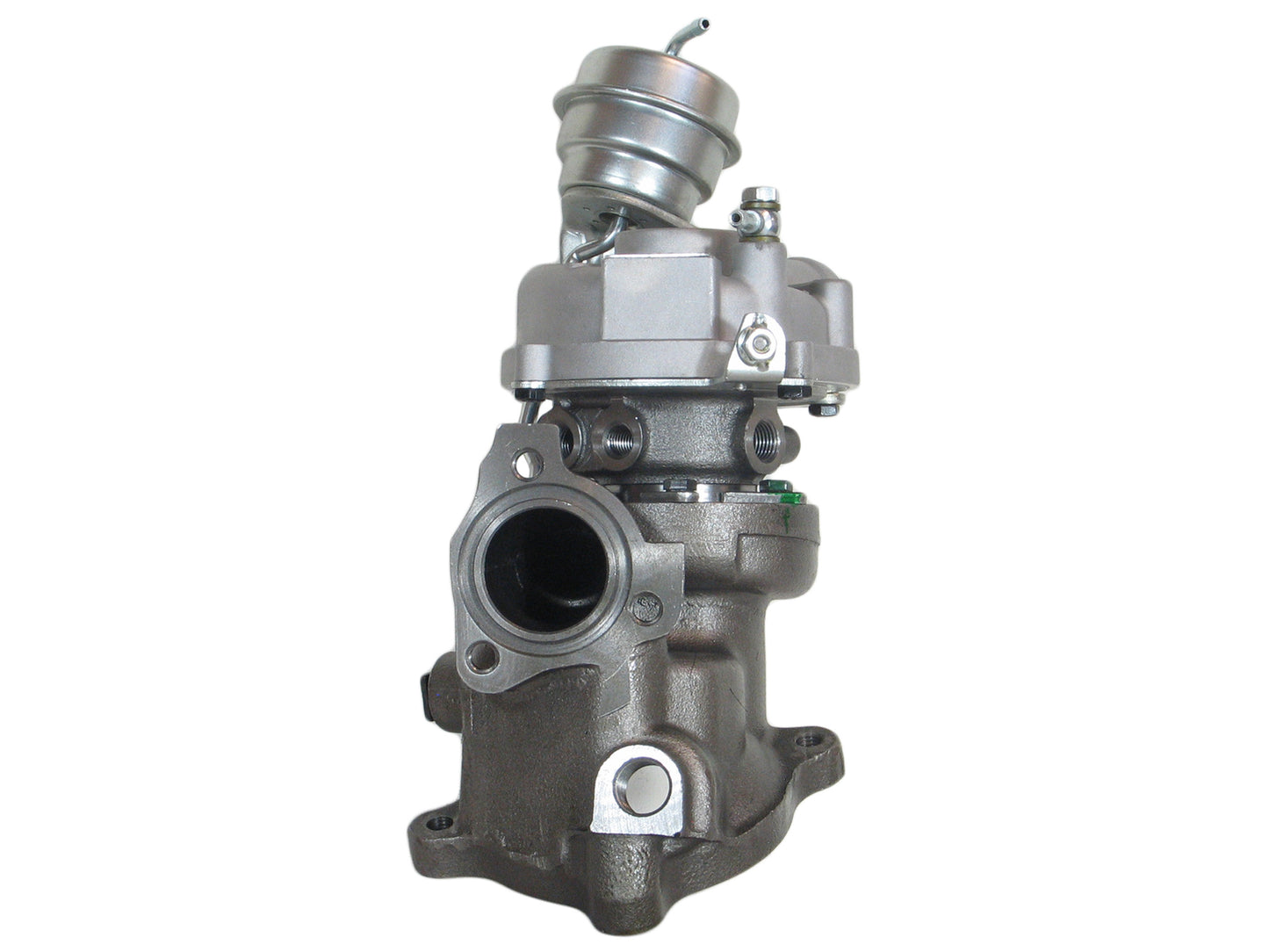

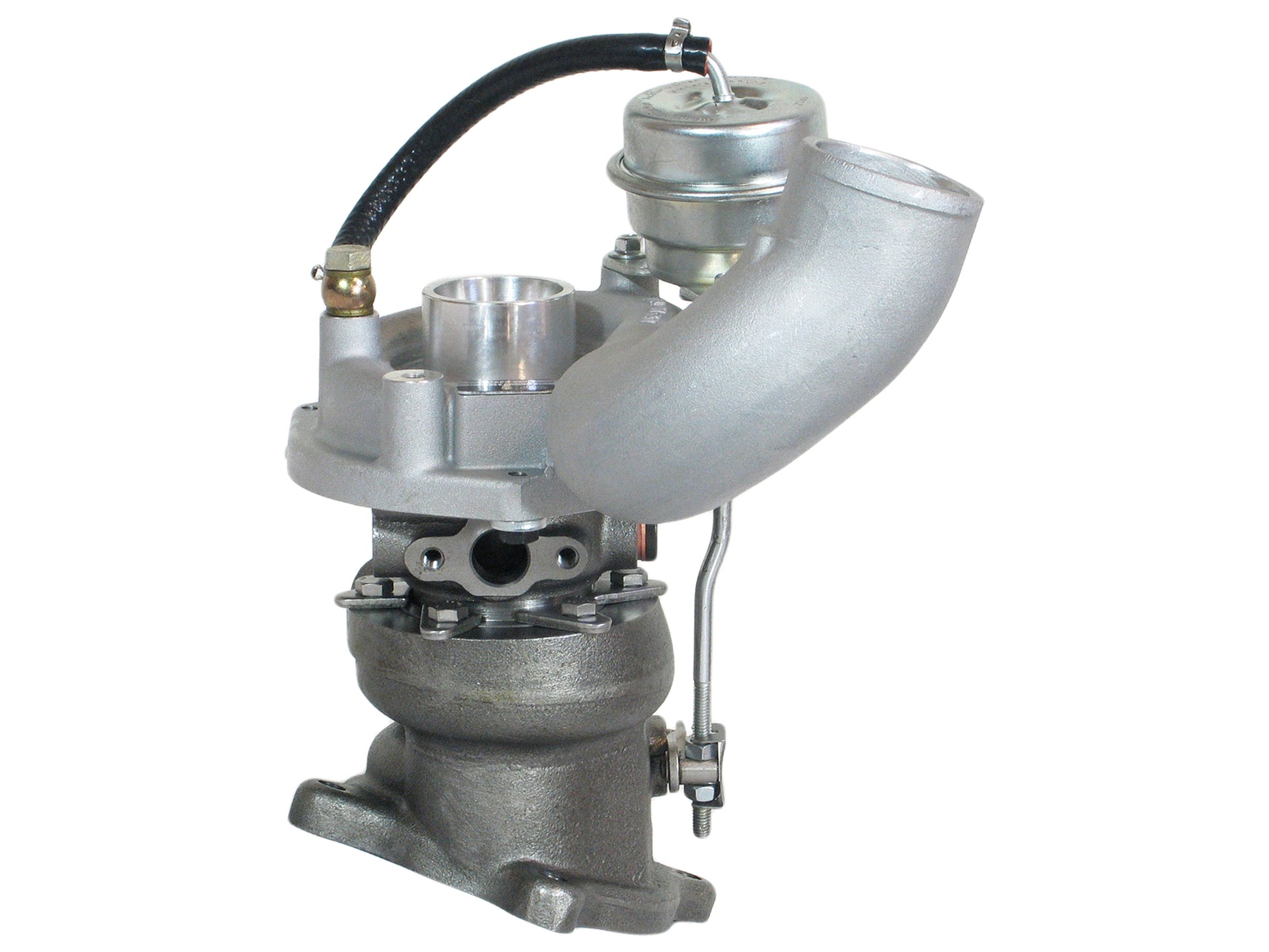

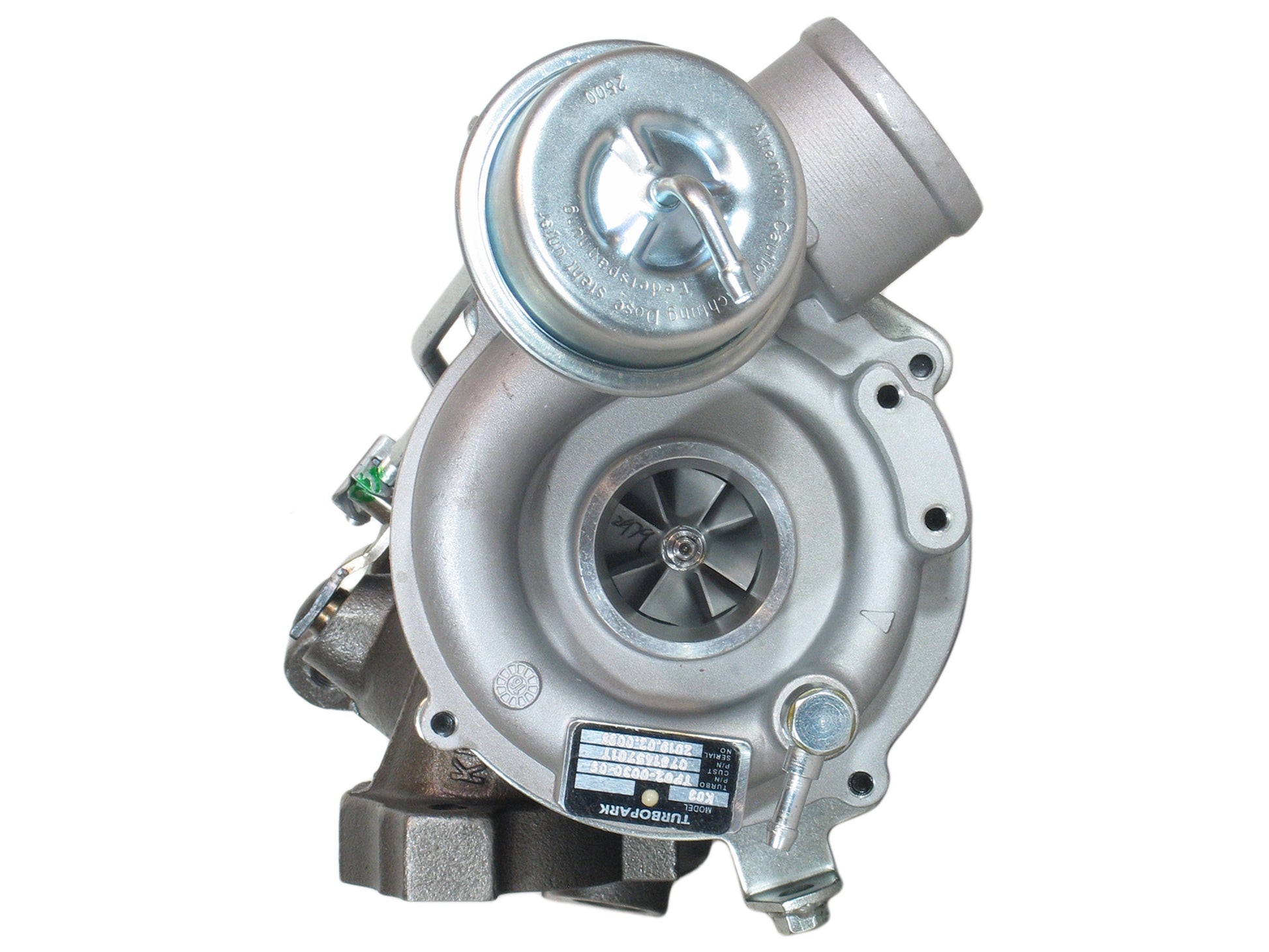

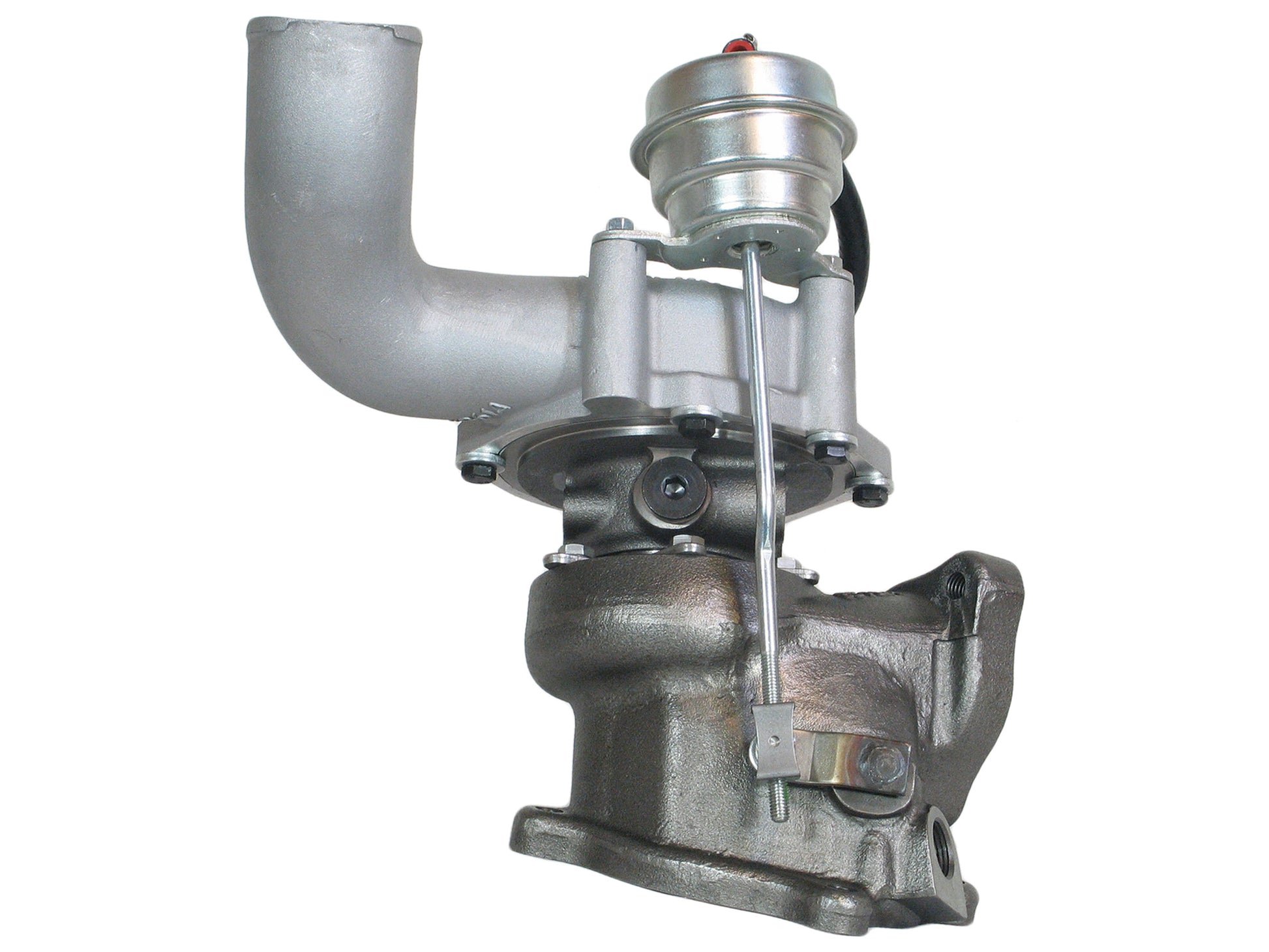

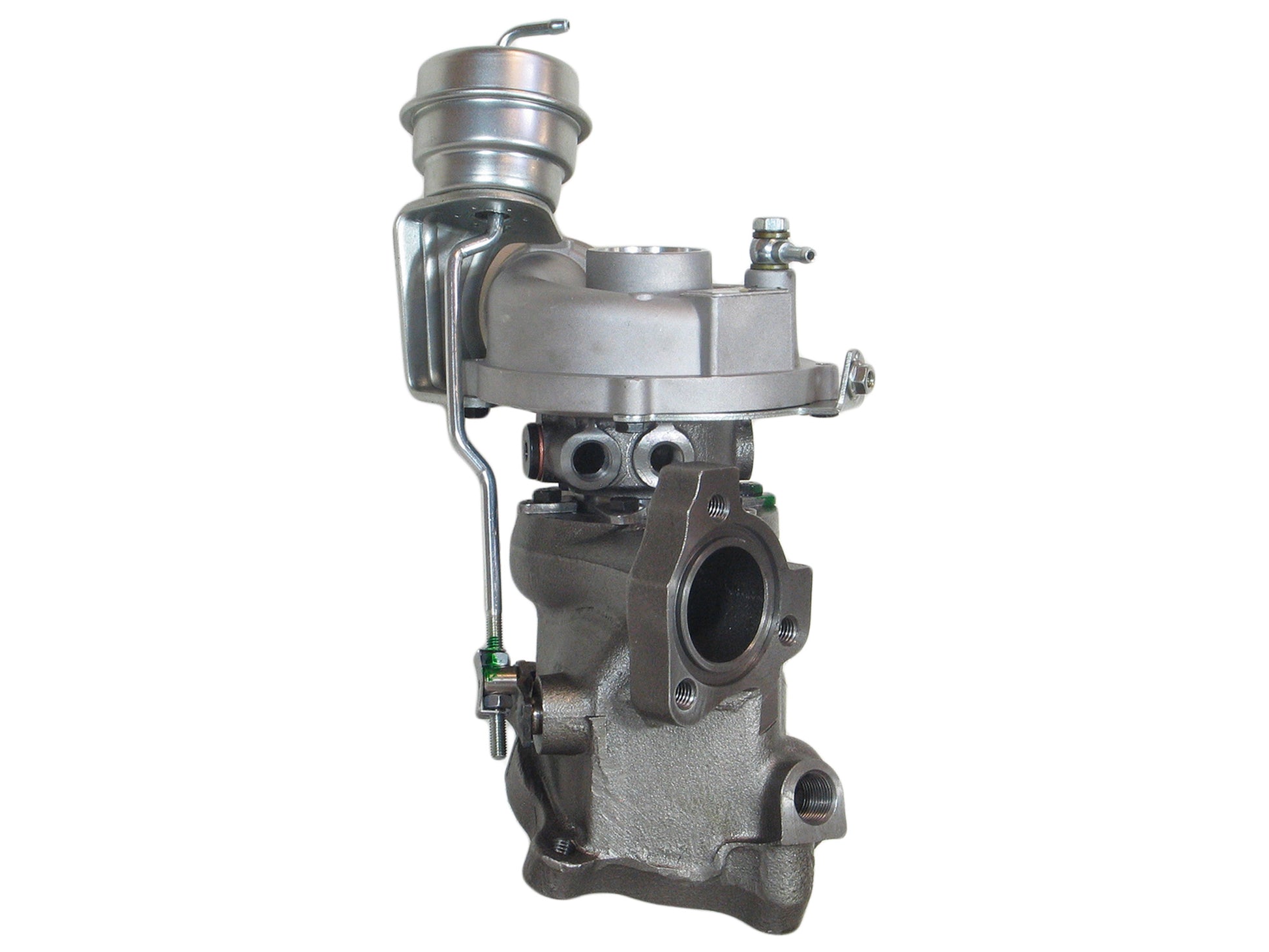

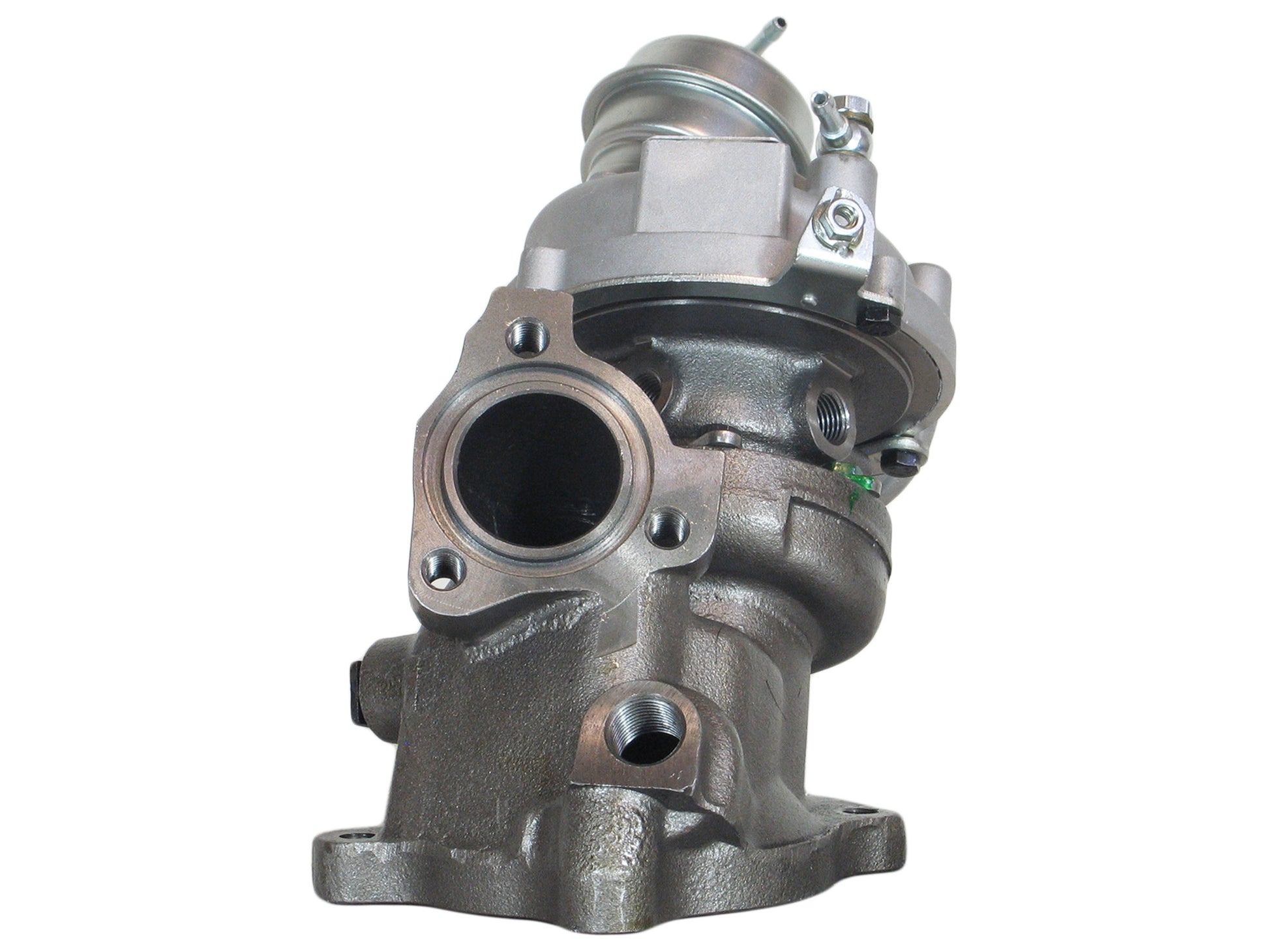

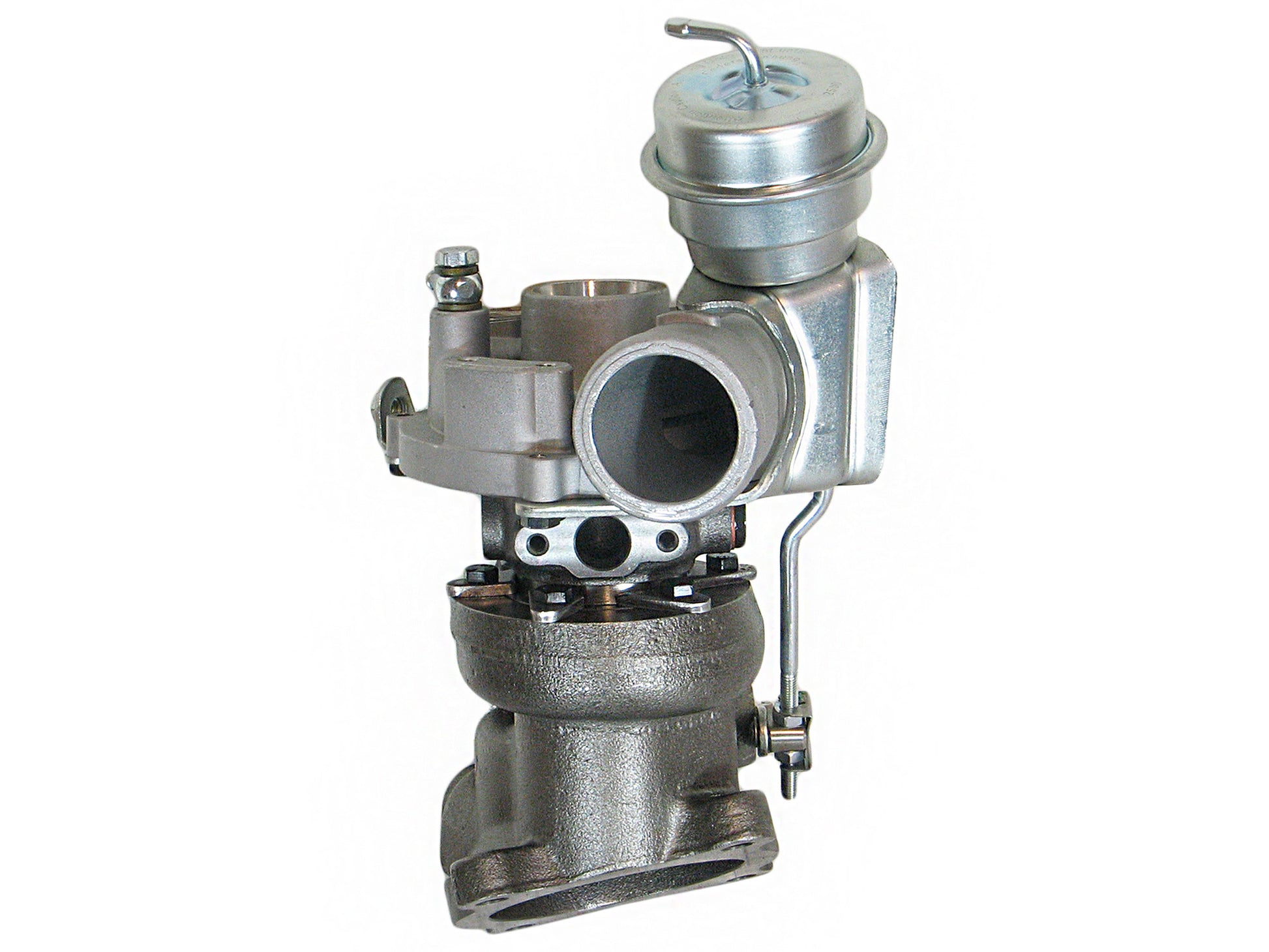

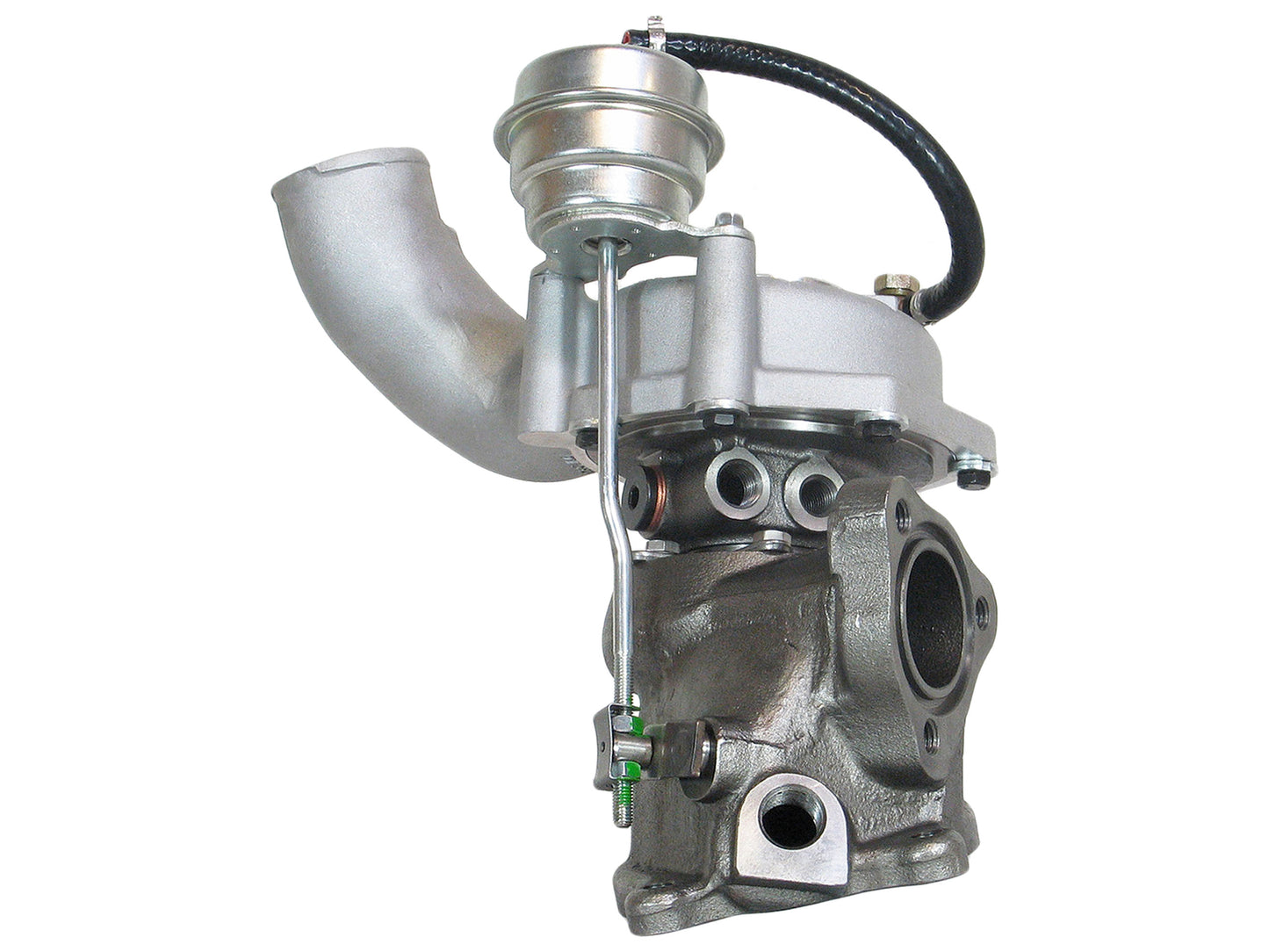

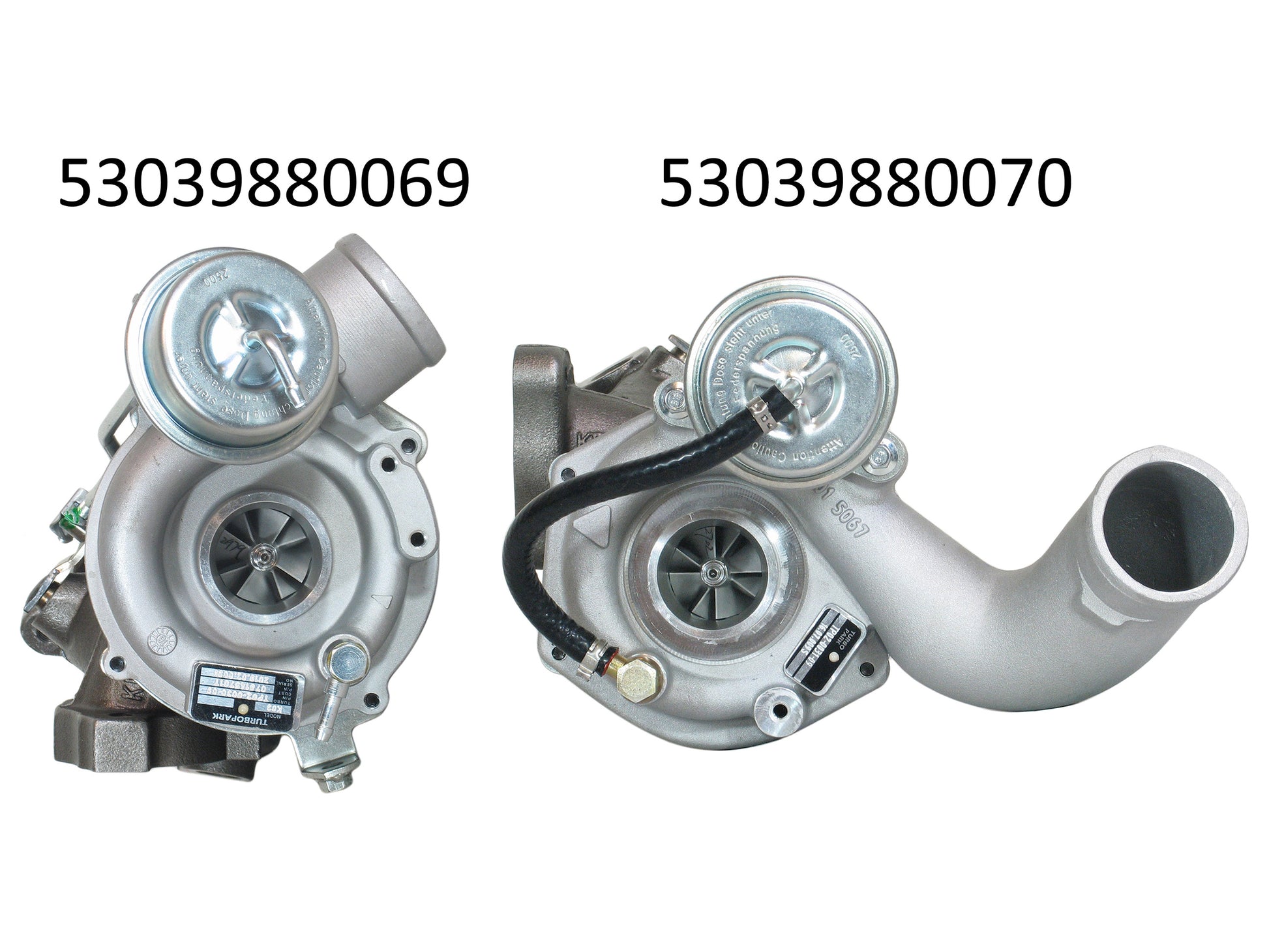

NEW Pair K03 Turbocharger Audi A6 allroad 2.7L V6 5V Engine 53039700069-0070SKU: TP02-0030-0031-09
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

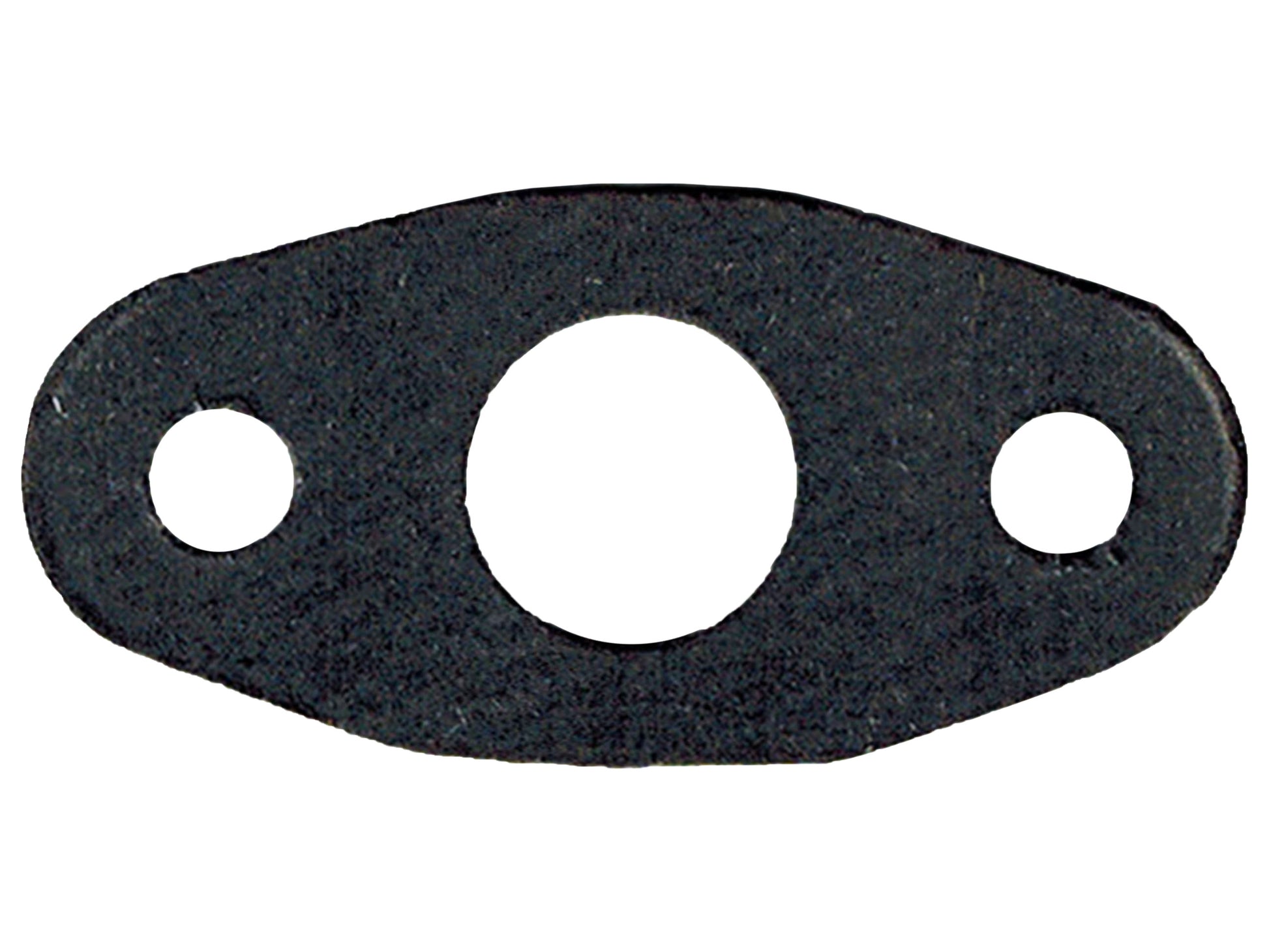

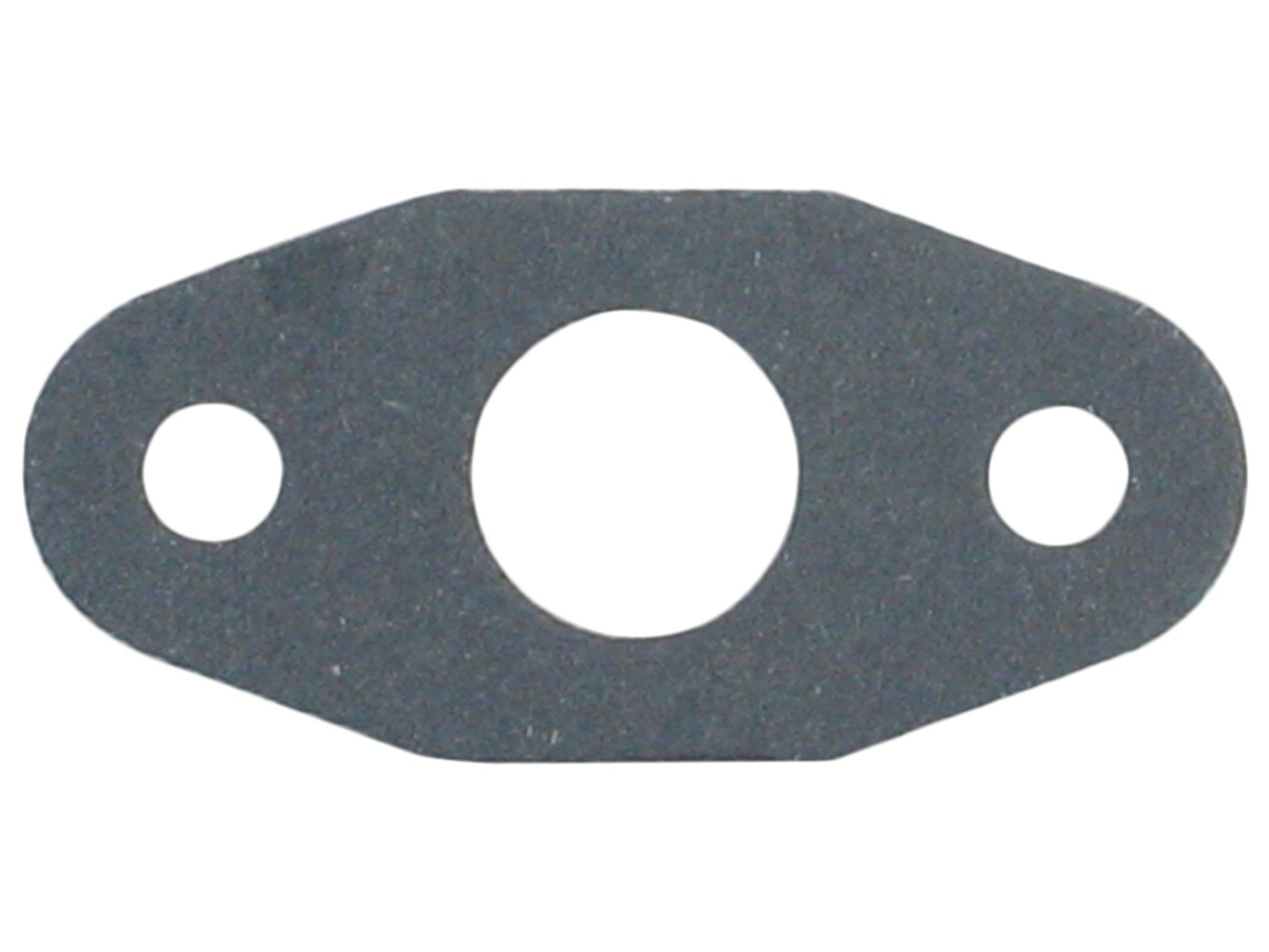

NOTE: This turbocharger package also comes with the gaskets.
Fits the following:

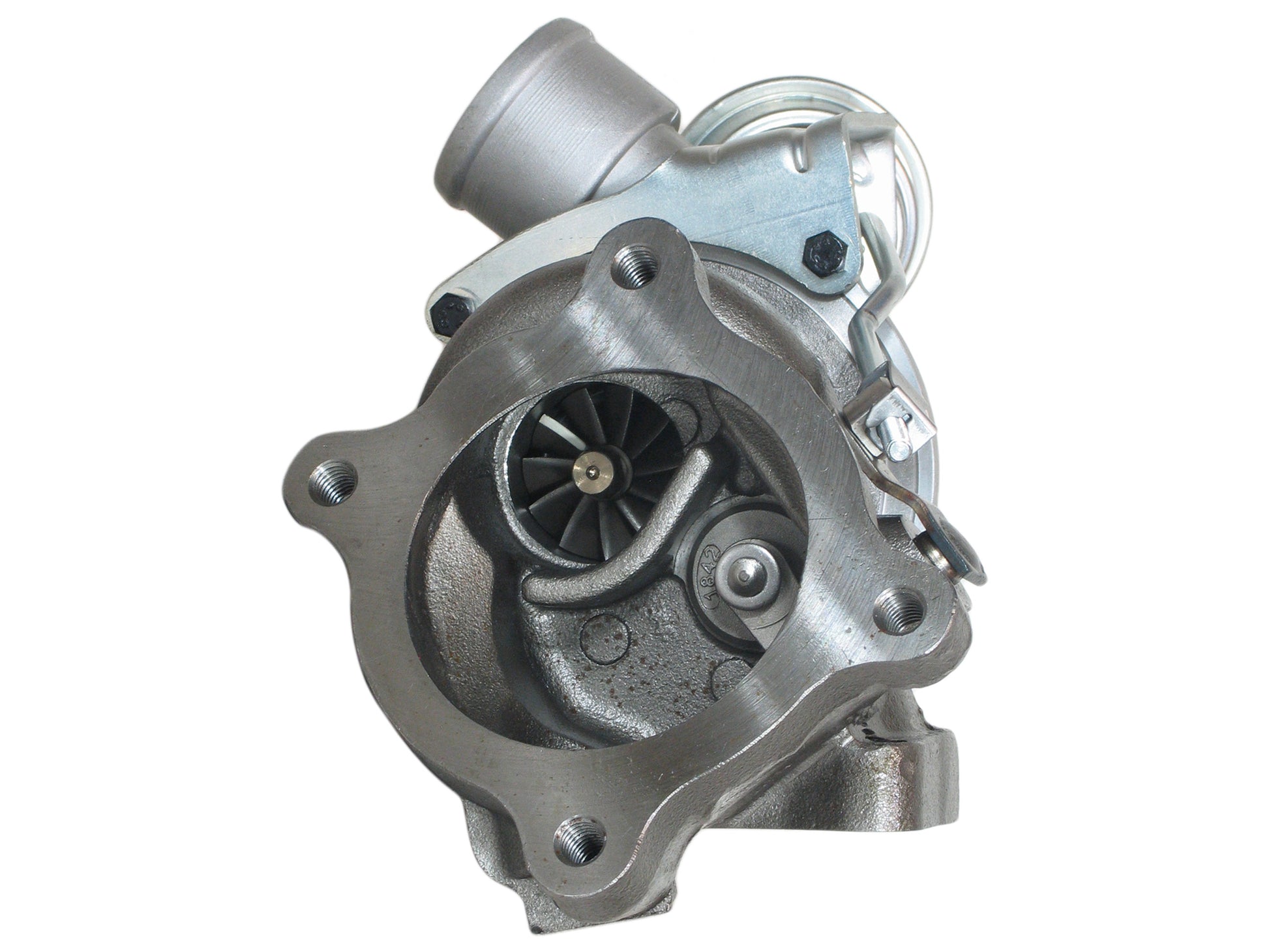

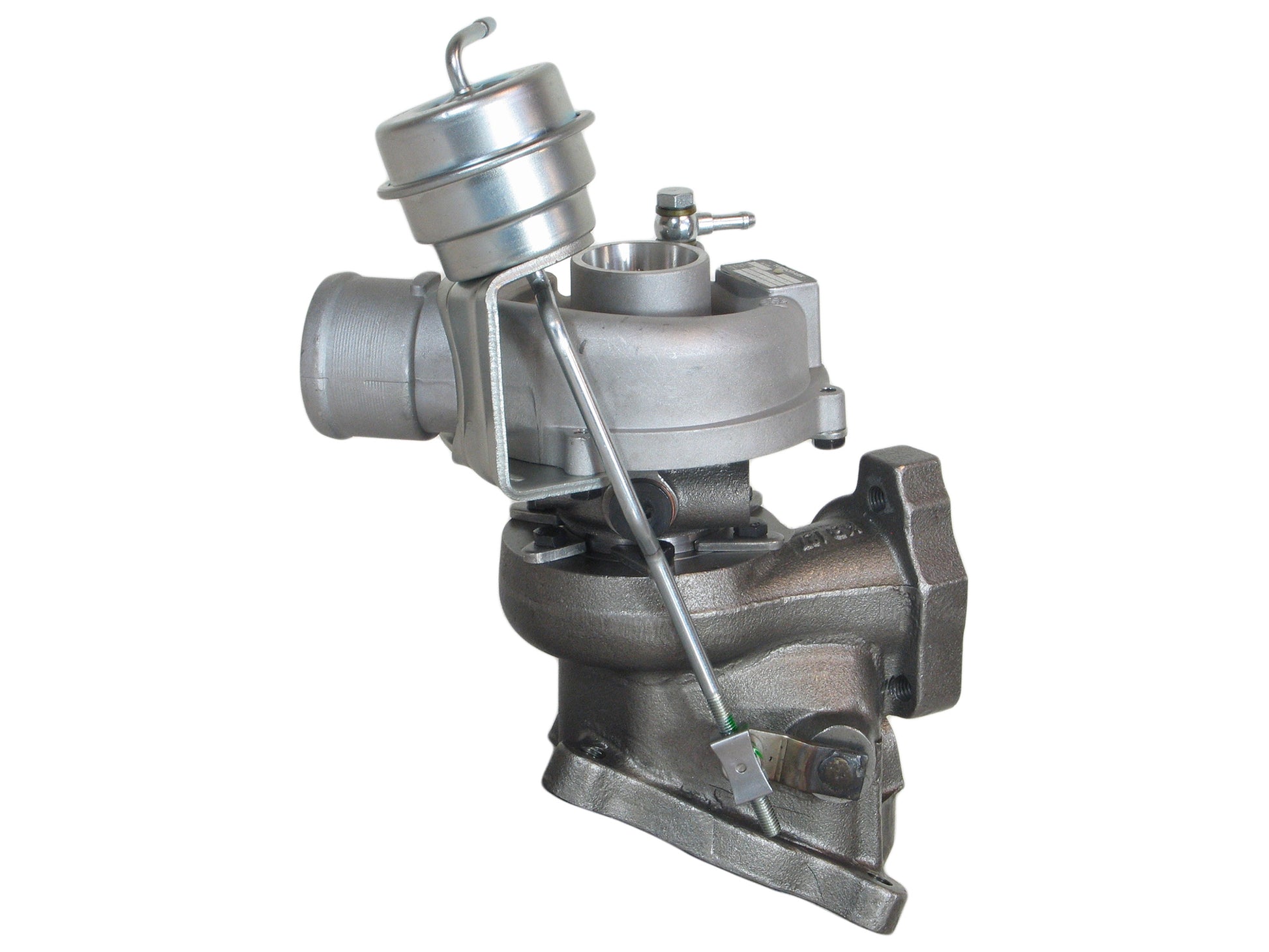

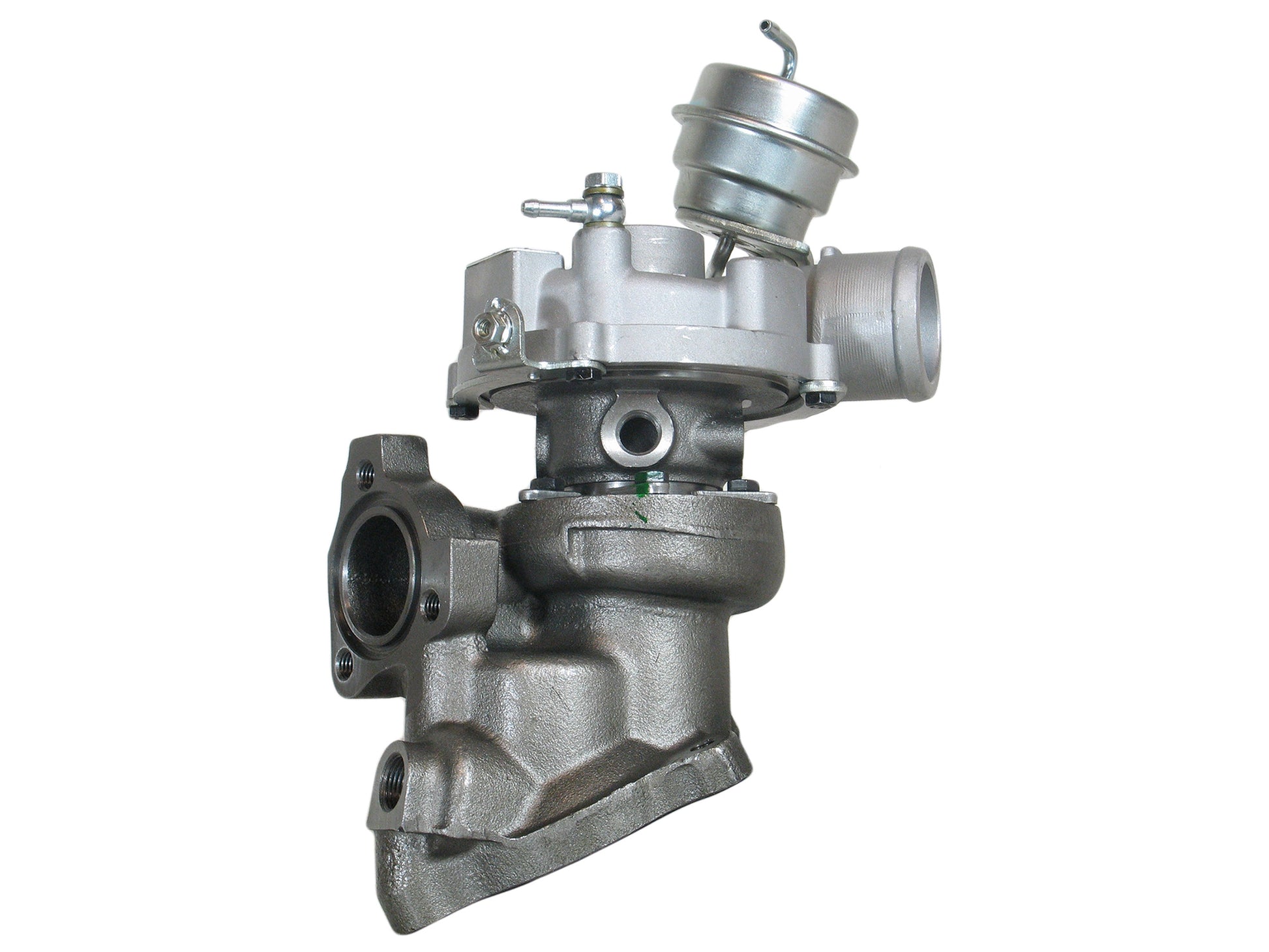

Part Number: 53039880069
Interchangeable Number: 5303-988-0069, 5303 988 0069, 53039700069, 5303-970-0069, 5303 970 0069
OEM Number: 078145703Q, 078145703T
Angle α (Compressor Housing): 217.1°
Angle ß (Turbine Housing): 105.2°
Compressor Cover: 53031015005
Turbine Housing: 53031009110
NOTE: Intercooler, water cooled bearing housing, left side.

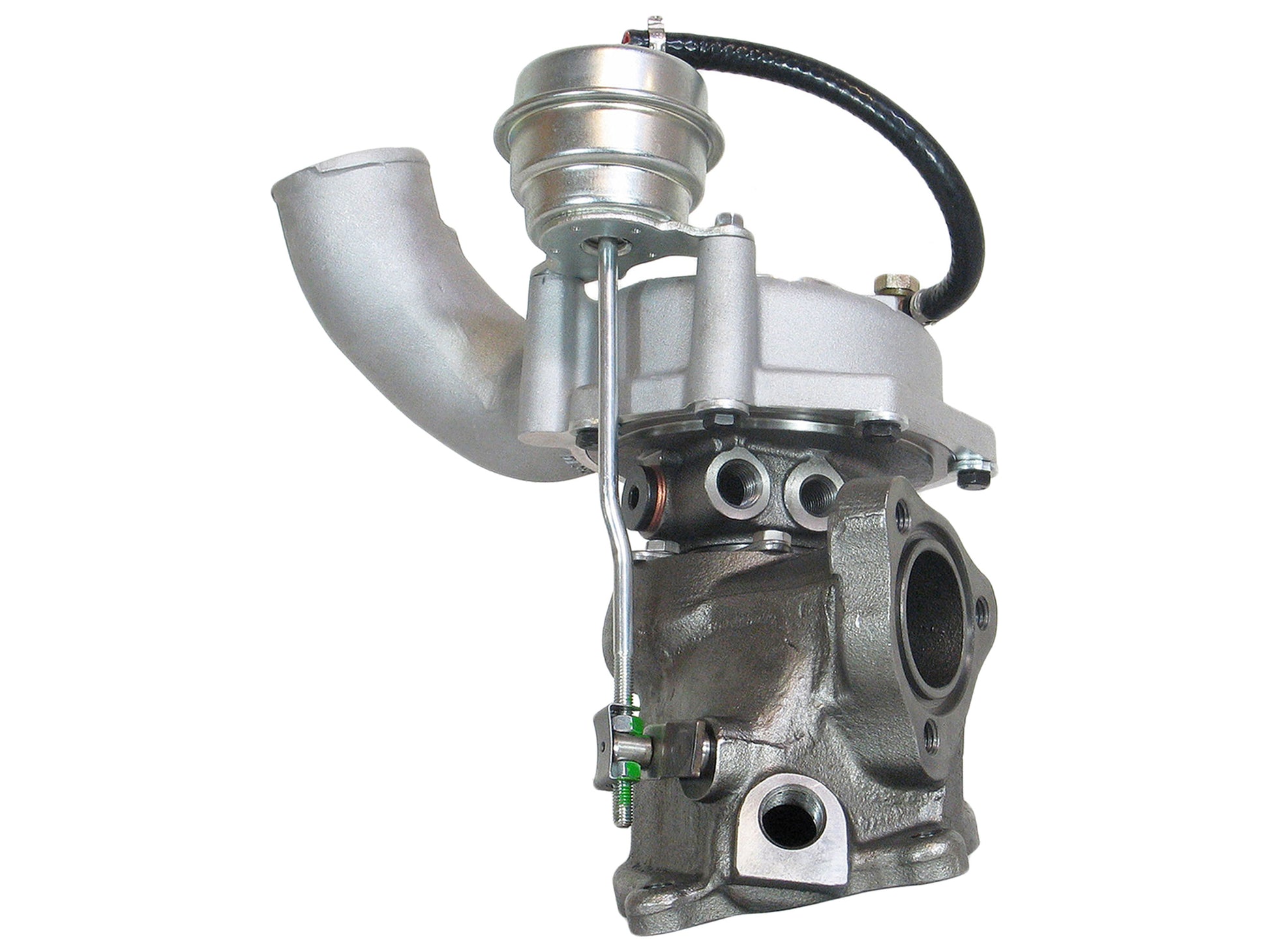

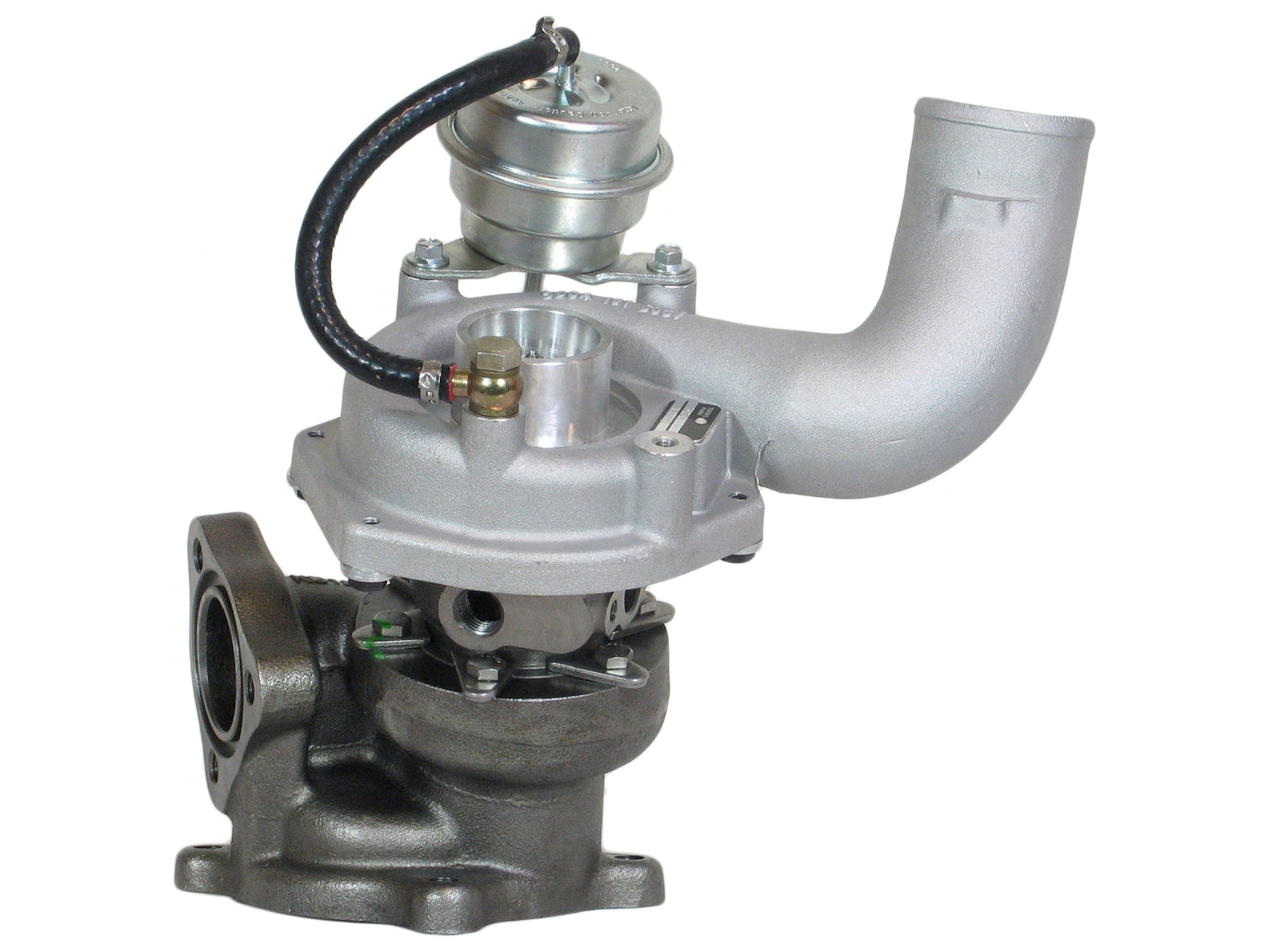

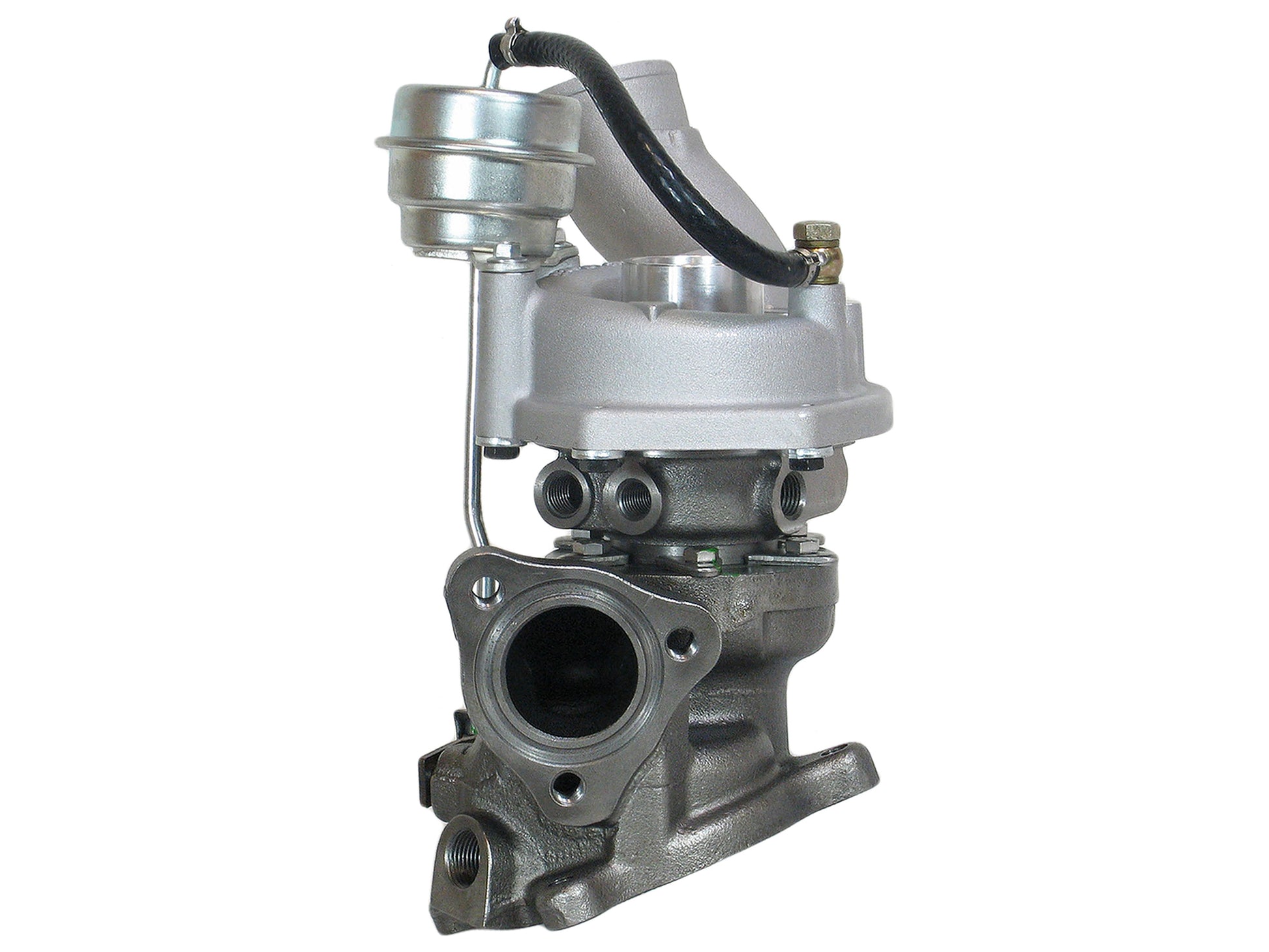

Part Number: 53039880070
Interchangeable Number: 5303-988-0070, 5303 988 0070, 53039700070, 5303-970-0070, 5303 970 0070
OEM Number: 078145702T, 078145704Q, 078145704T
Angle α (Compressor Housing): 214.9°
Angle ß (Turbine Housing): 0°
Compressor Cover: 53031015013
Turbine Housing: 53031009111
NOTE: Intercooler, water cooled bearing housing, right side.
Extra Info for Both Turbos:
Turbo Model: K03, K03-1870EXA4.82KCAXK
Displacement: 2.7L, 2700 ccm, V6 Cylinders
Power: 184 kW/247 HP
Speed: 5600 RPM
Back Plate: 53041515703 (1302003303)
Bearing Housing: 53041500009 (53041500006, 53041500015, 53041500017)(1302003460, 203070002)(Water Cooled)
CHRA: 53037100509 (5303-710-0509)(1302003909)
Compressor Wheel: 53031232011 (53031232003, 53031232004)(Ind. 31.45 mm, Exd. 44.96 mm, 4+4 Blades, Super Back)(1302003401)
Heat Shield: 53031652000 (1302003340, 206030001)
Repair Kit: 53037110000 (706832-0001)(1302003752)
Turbine Housing A/R: 4

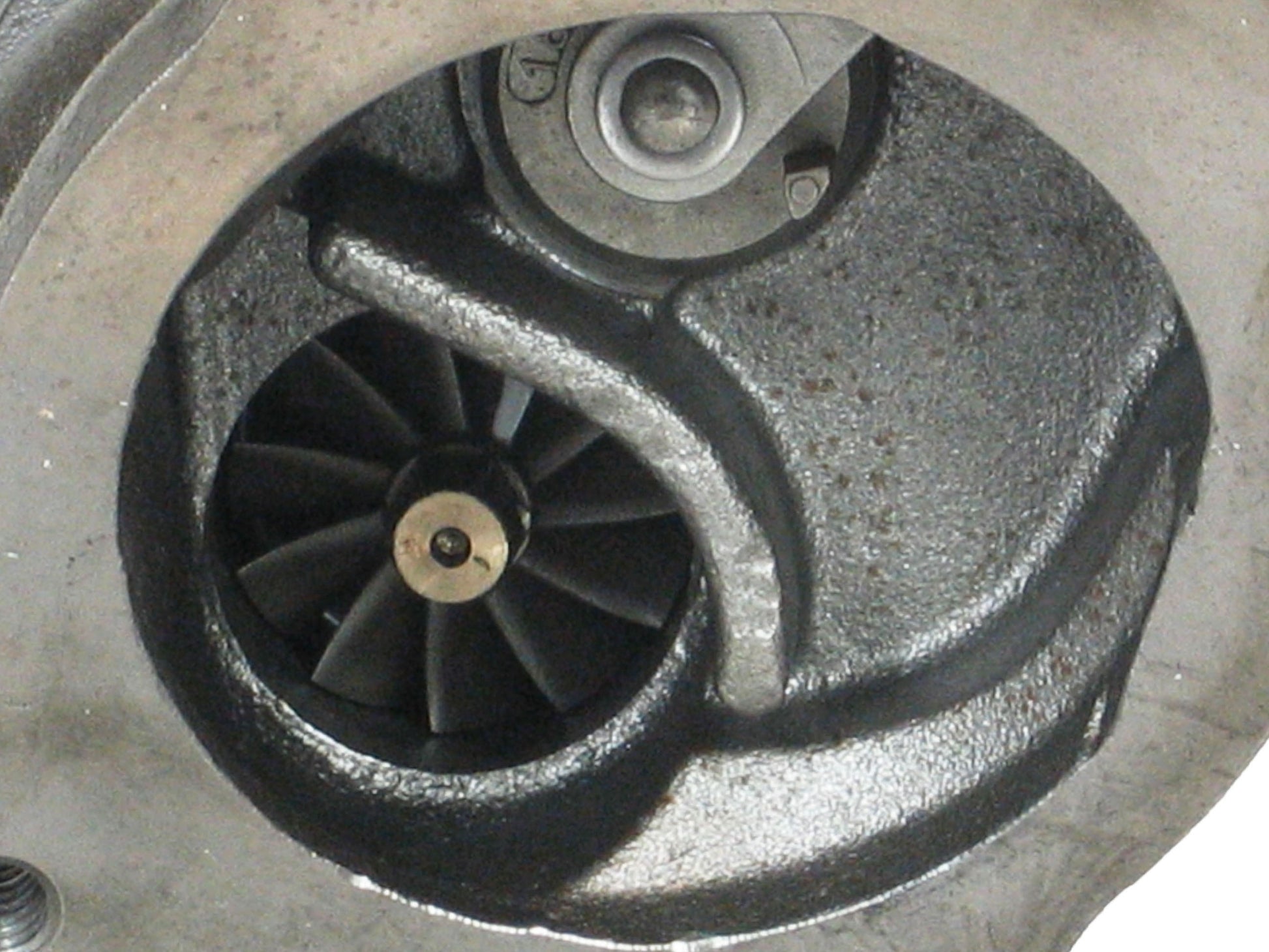

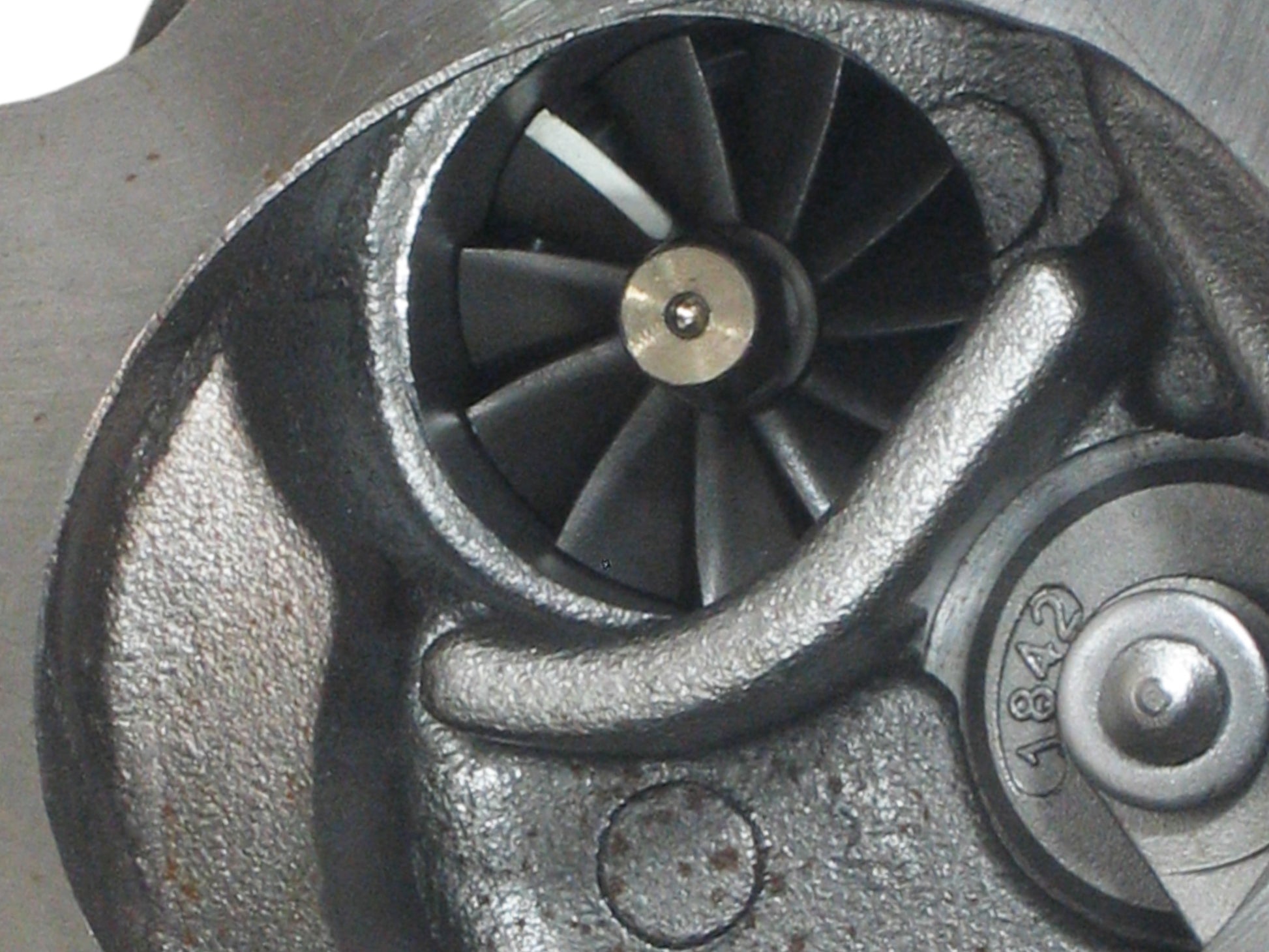

Turbine Wheel: 53031205029 (53031205000, 53031205002, 53031205008, 53031205010, 53031205012, 53031205013, 53031205017, 53031205023, 53031205025, 53031205027, 5303120-5037)(Ind. 45.03 mm, Exd. 37.82 mm, 11 Blades)(1302003438, 201050005)
2002- Audi A6, Allroad with 2.7L TDI Biturbo, V6, 5V Engine
TurboTurbos Part Number: TP02-0030-0031-09
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
