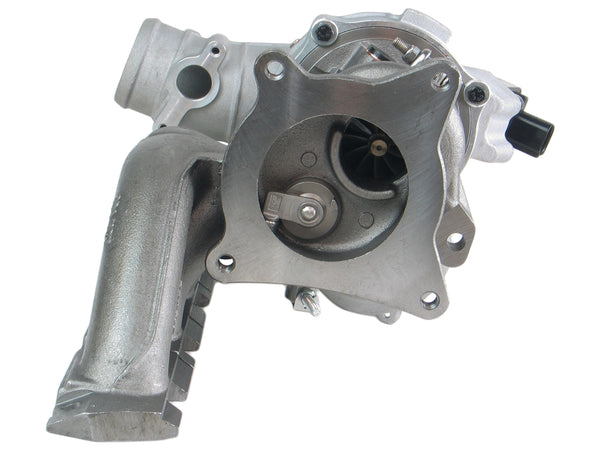

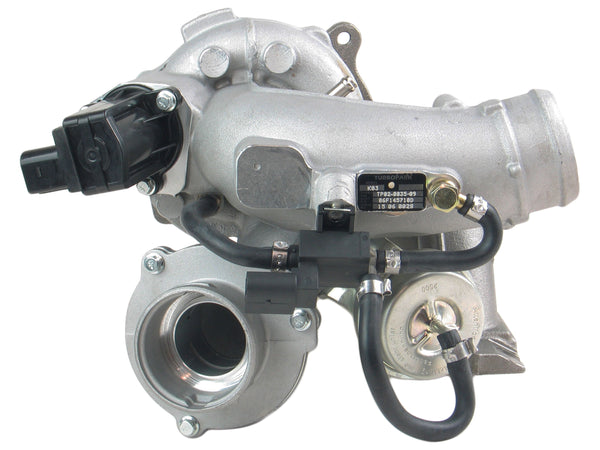

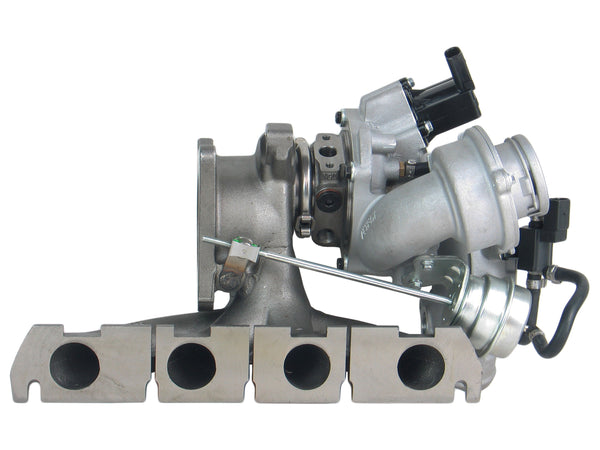

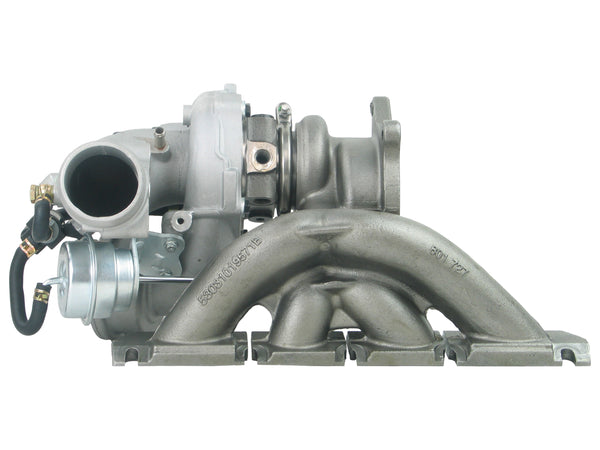

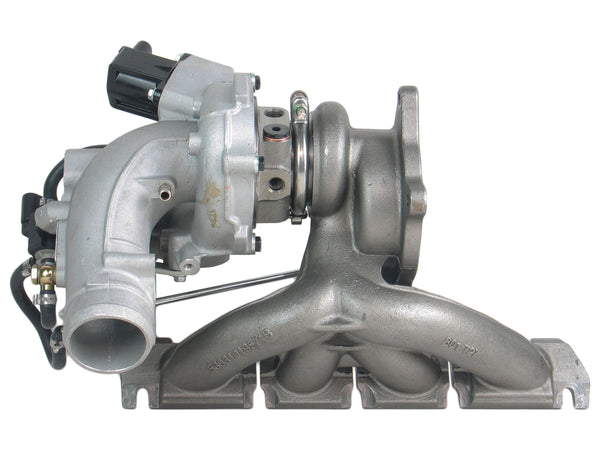

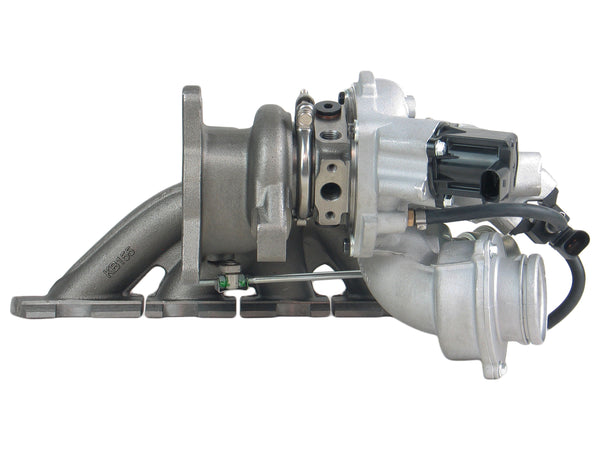

NEW K03 Turbocharger Audi TT VW Jetta Passat 2.0L Engine 53039700105 TurboSKU: TP02-0035-09
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 53039880105
Interchangeable Number: 5303-988-0105, 5303 988 0105, 53039700105, 5303-970-0105, 5303 970 0105
OEM Number: 06F145701D, 06F145701E, 06F145701G, 06F145701H
Turbo Model: K03, K03-2080DCB5.88KCAXK
Engine: BWA-BPY, TFSI quer/transversal
Engine Manufacturer: Audi
Displacement: 2.0L, 1984 ccm
Power: 147 kW/200 HP
Speed: 6000 RPM
Actuator: 58251104168 (2061016634)
Back Plate: 53041515716 (1300016042)
Bearing Housing (Water Cooled): 53031500003 (53041500025)(1900011235C)
CHRA: 53037100526 (5303-710-0526)(1302003926, 1000030185)
Compressor Cover: 53041515225 (53041005032)
Compressor Recirculation Valve (Electrical): 59001107018 (59001107044)
Compressor Wheel: 53041232036 (53041232080, 53041232223)(Ind. 41 mm, Exd. 54 mm, 6+6 Blades, Billet, Super Back)(1200016319)
Frequency Valve (Electronic): 59001096003
Heat Shield: 53031652002 (53031652008, 53031652009, 53031652021, 53031652022)(2030016037)
Repair Kit: 53037110001 (5000040005)
Turbine Housing A/R: 5
Turbine Housing with Manifold: 59001095205
Turbine Wheel: 53031205023 (53031205037, 53031206504, 53031208514, 53031208515)(Ind. 44.95 mm, Exd. 40.33 mm, 11 Blades)(1100030031B)
NOTE: Intercooler, integrated manifold, water cooled bearing housing.
2005- Skoda Octavia II with 2.0L TSI BWA-BPY Engine
2005- Volkswagen Eos with 2.0L TFSI BWA-BPY Engine
2005- Volkswagen Jetta V with 2.0L TFSI BWA-BPY Engine
2006- Audi TT with 2.0L TFSI (8J) BWA-BPY Engine
2006- Volkswagen Passat B6 with 2.0L TSI BWA Engine
2006-09 Seat Leon with 2.0L TFSI BWA-BPY Engine
2006-09 Seat Toledo III with 2.0L TFSI BWA-BPY Engine
TurboTurbos Part Number: TP02-0035-09
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
