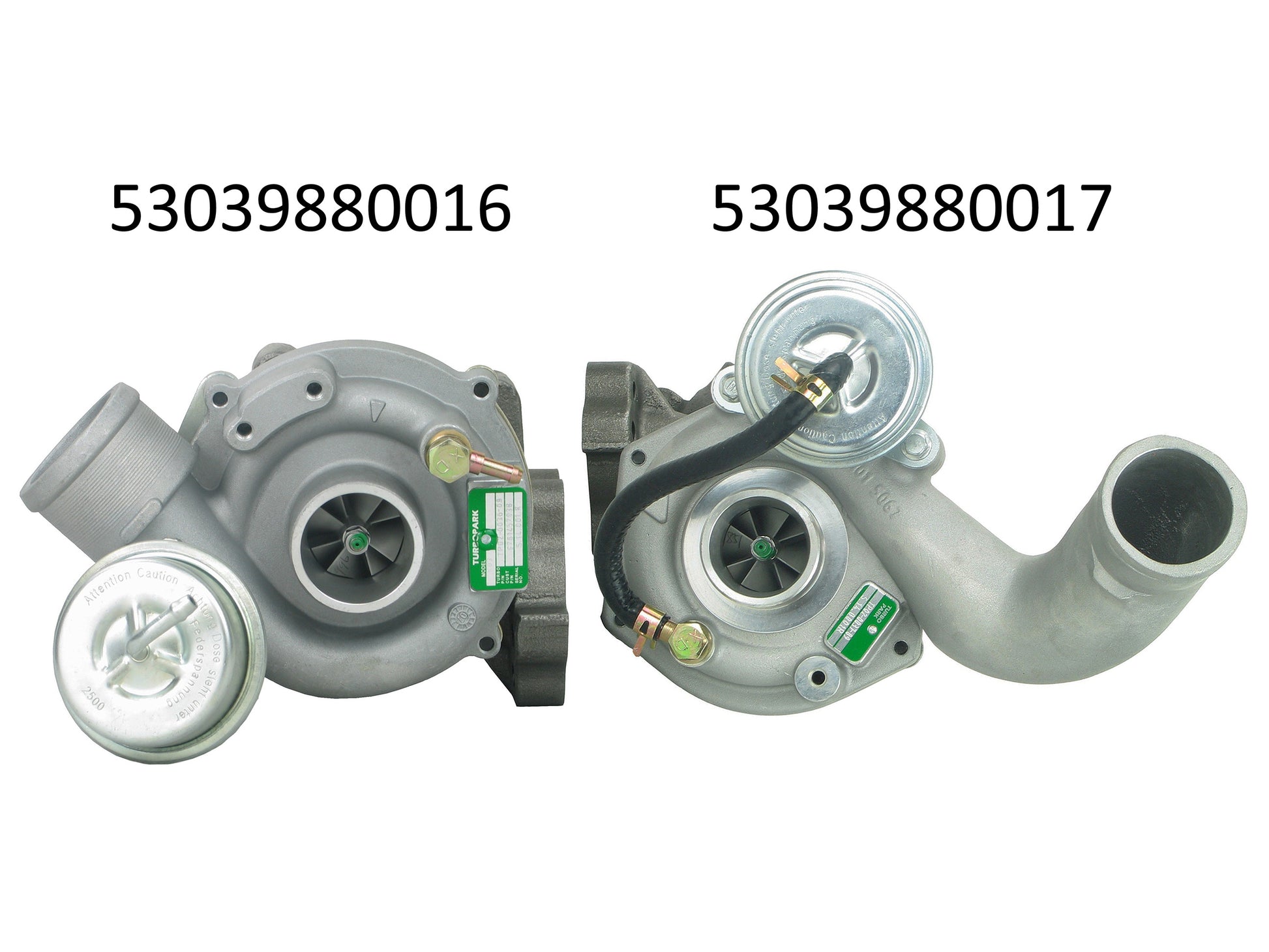

NEW Pair K03 Turbocharger Audi S4 A6 allroad AGB AJK ARE BES 53039700016-0017SKU: TP02-0036-0037-09
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:

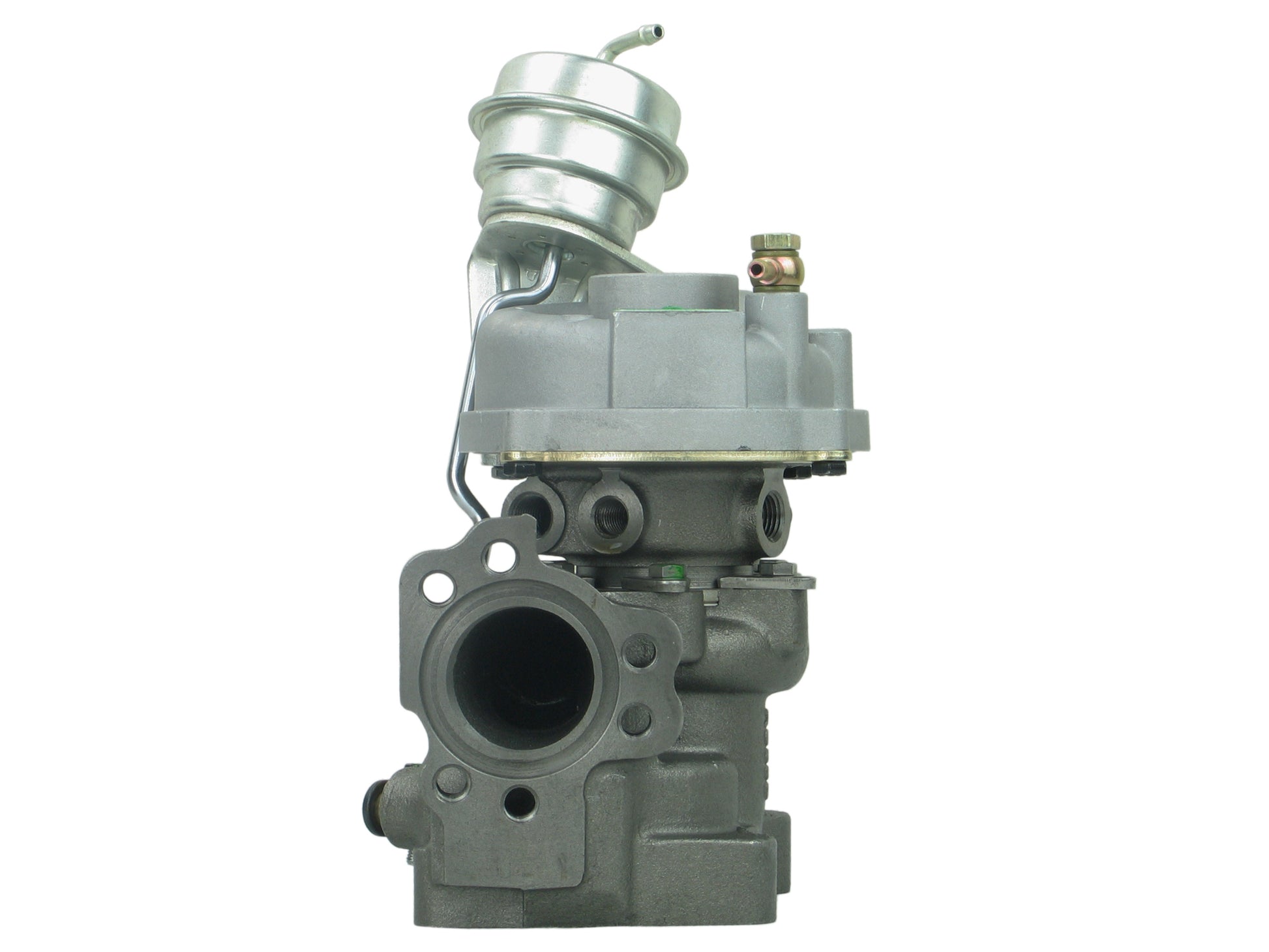

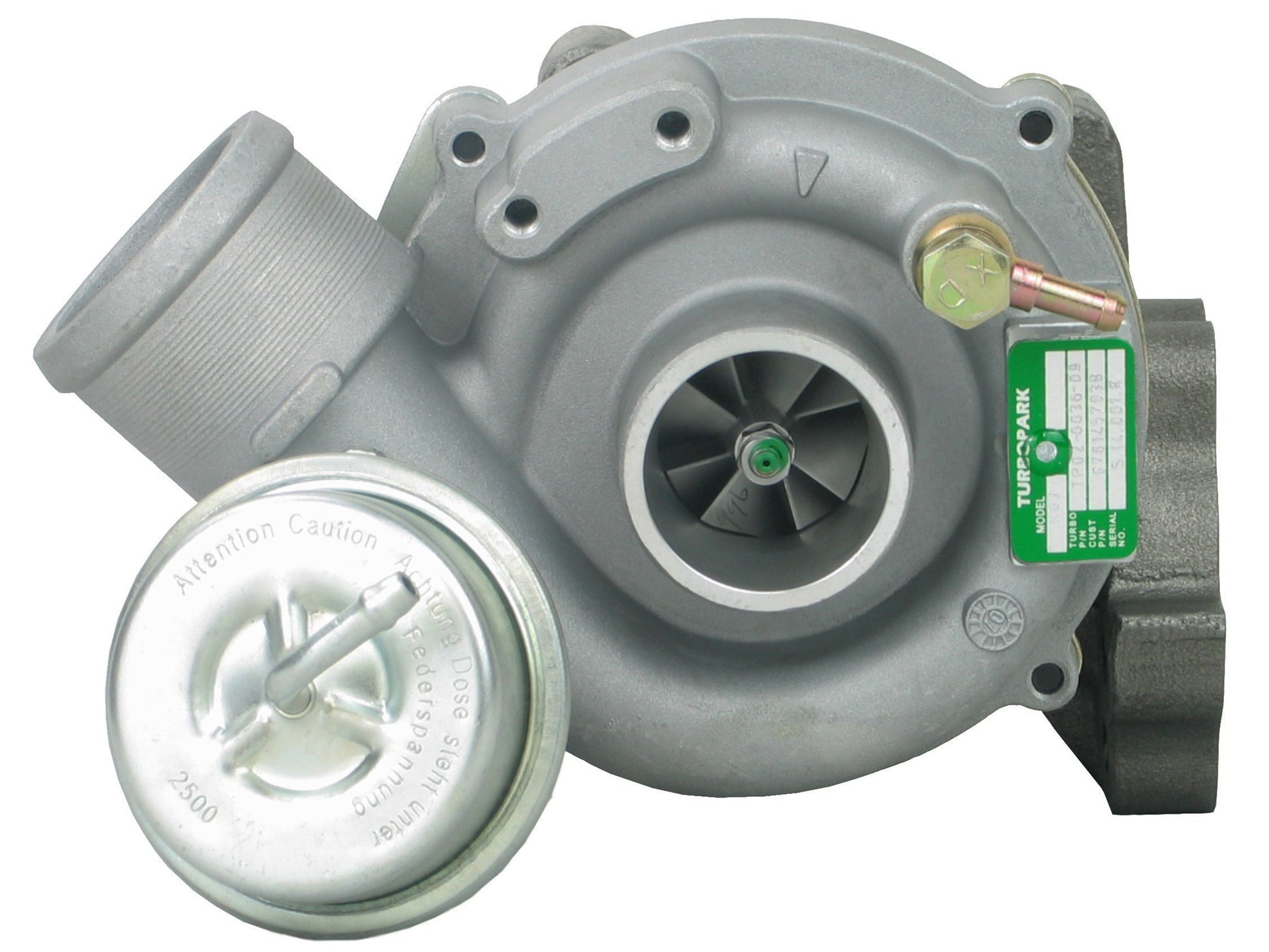

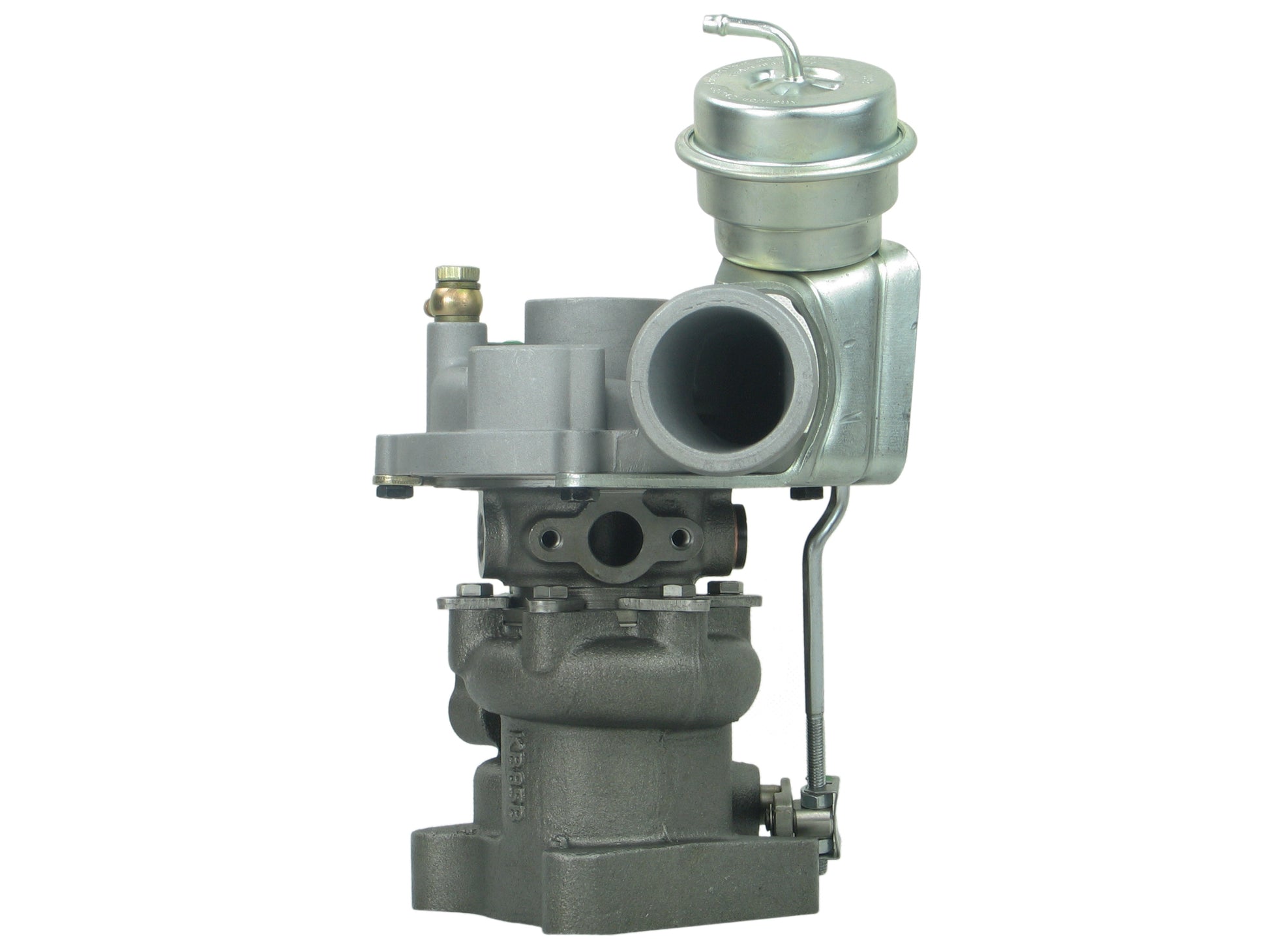

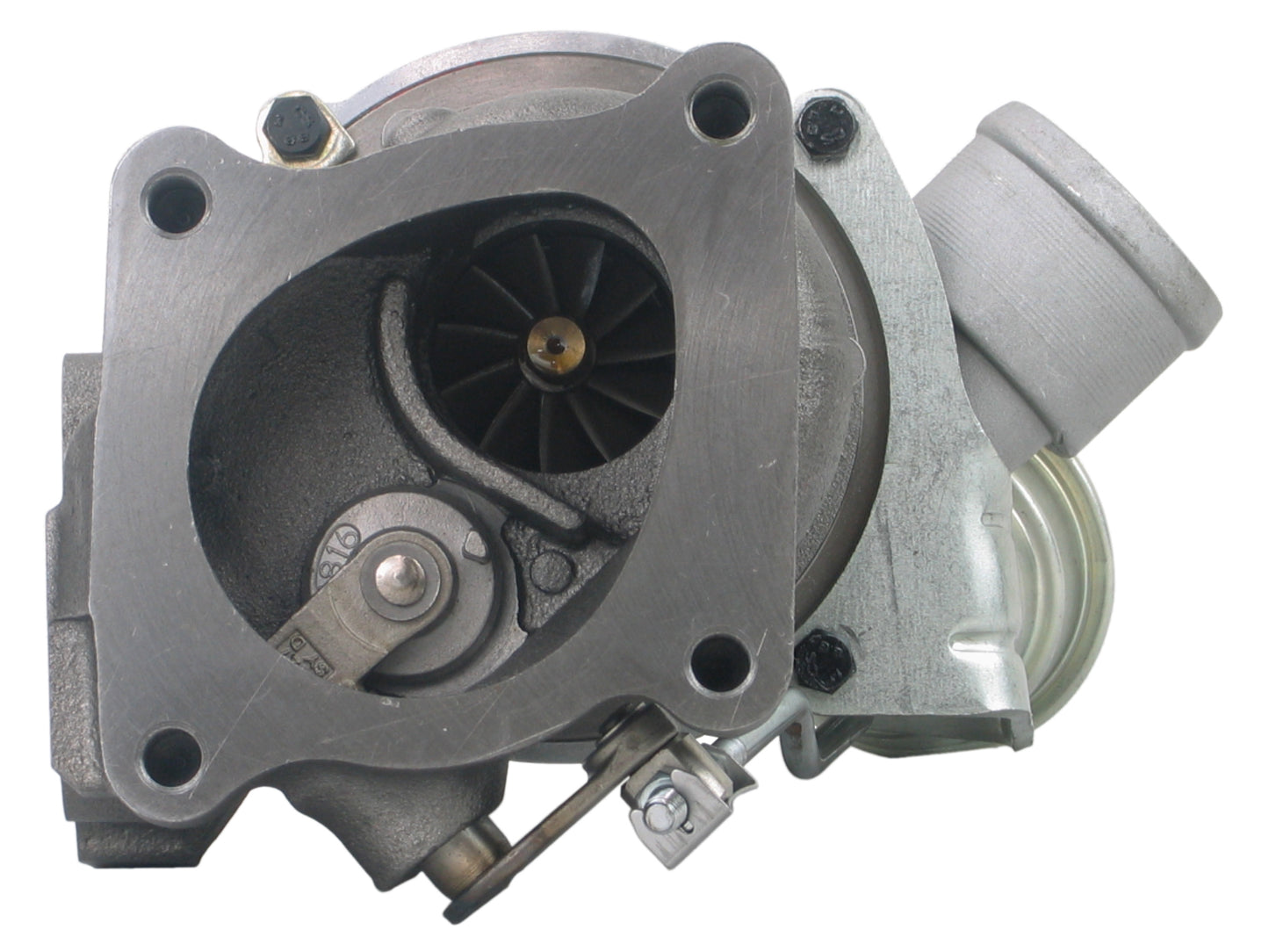

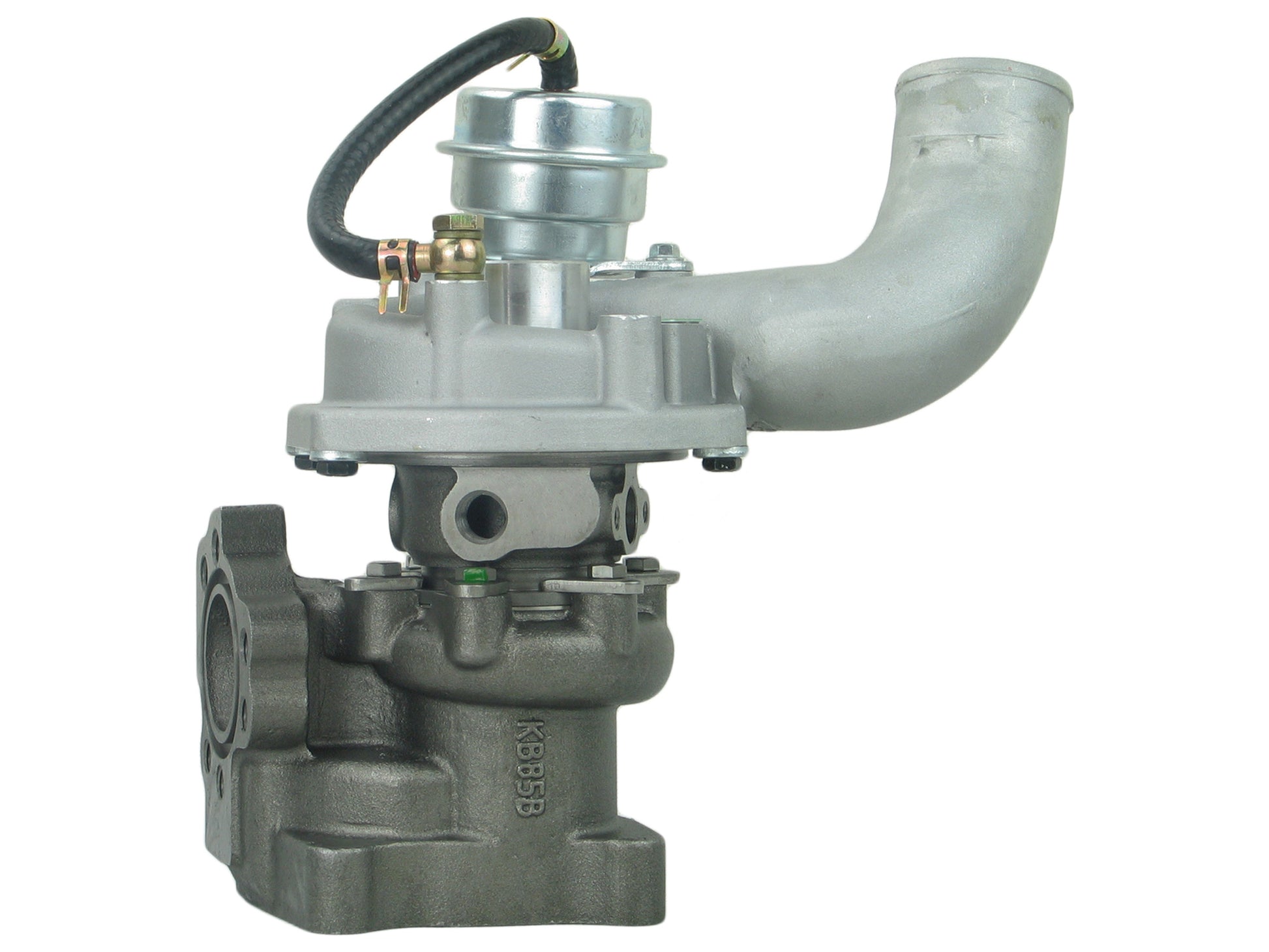

Part Number: 53039880016
Interchangeable Number: 5303-988-0016, 5303 988 0016, 53039700016, 5303-970-0016, 5303 970 0016
OEM Number: 078145701H, 078145701L, 078145701R, 078145701S, 078145703B, 078145703C, 078145703D, 078145703H, 078145703L, 078145703R, 078145703S
Angle α (Compressor Housing): 217.1°
Angle ß (Turbine Housing): 105.2°
Compressor Cover: 53031015005
NOTE: Intercooler, water cooled bearing housing, left side.

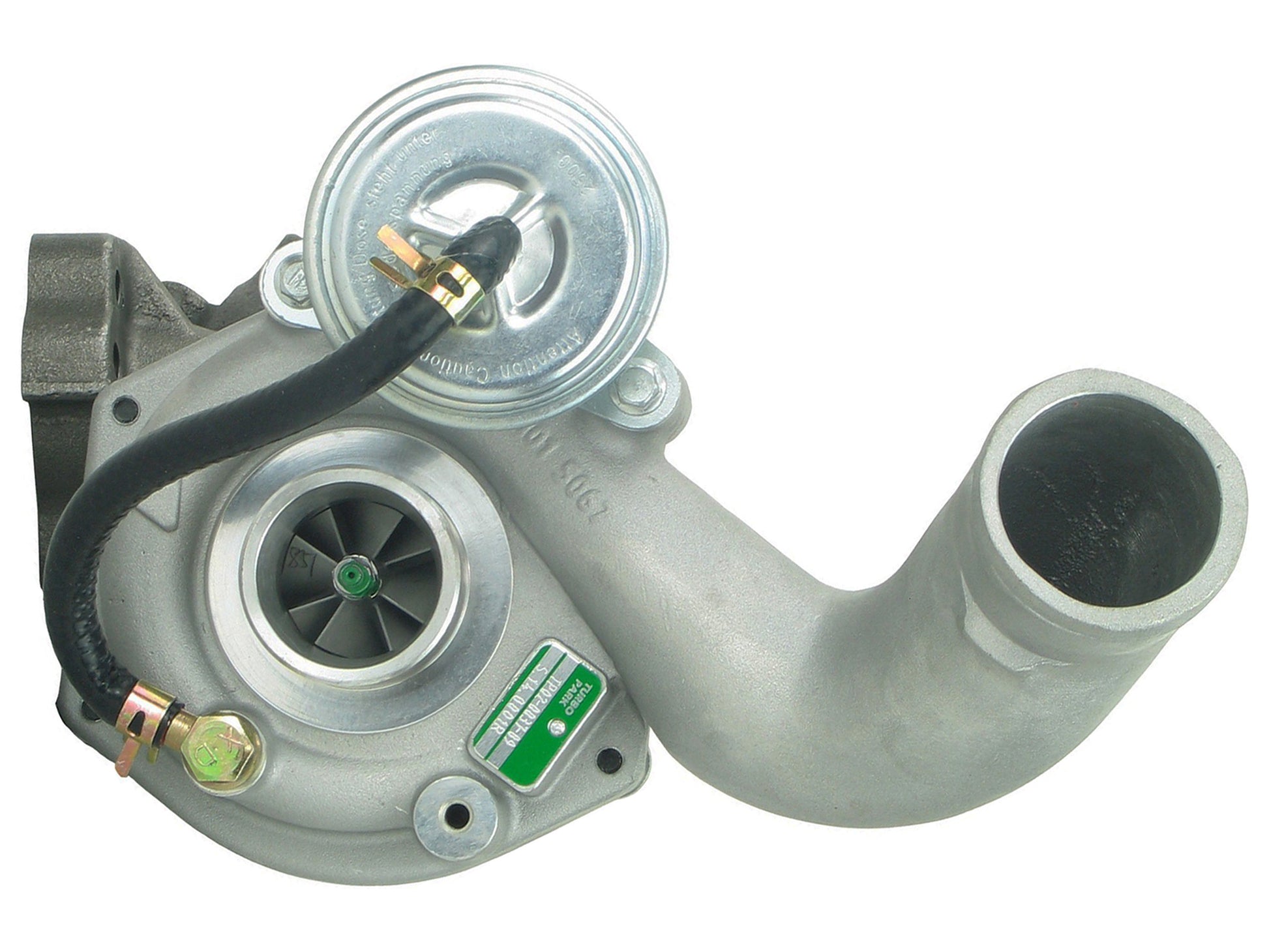

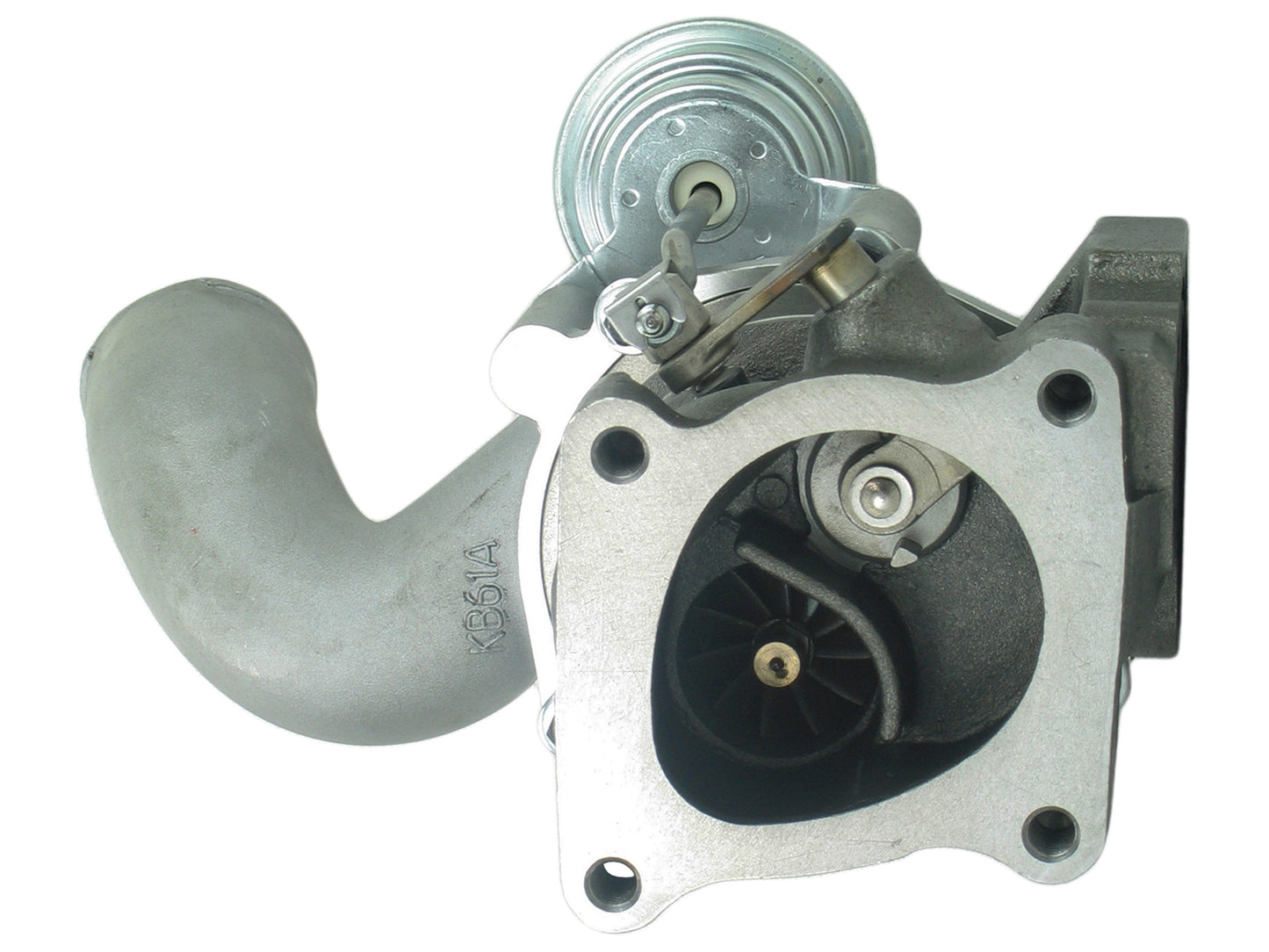

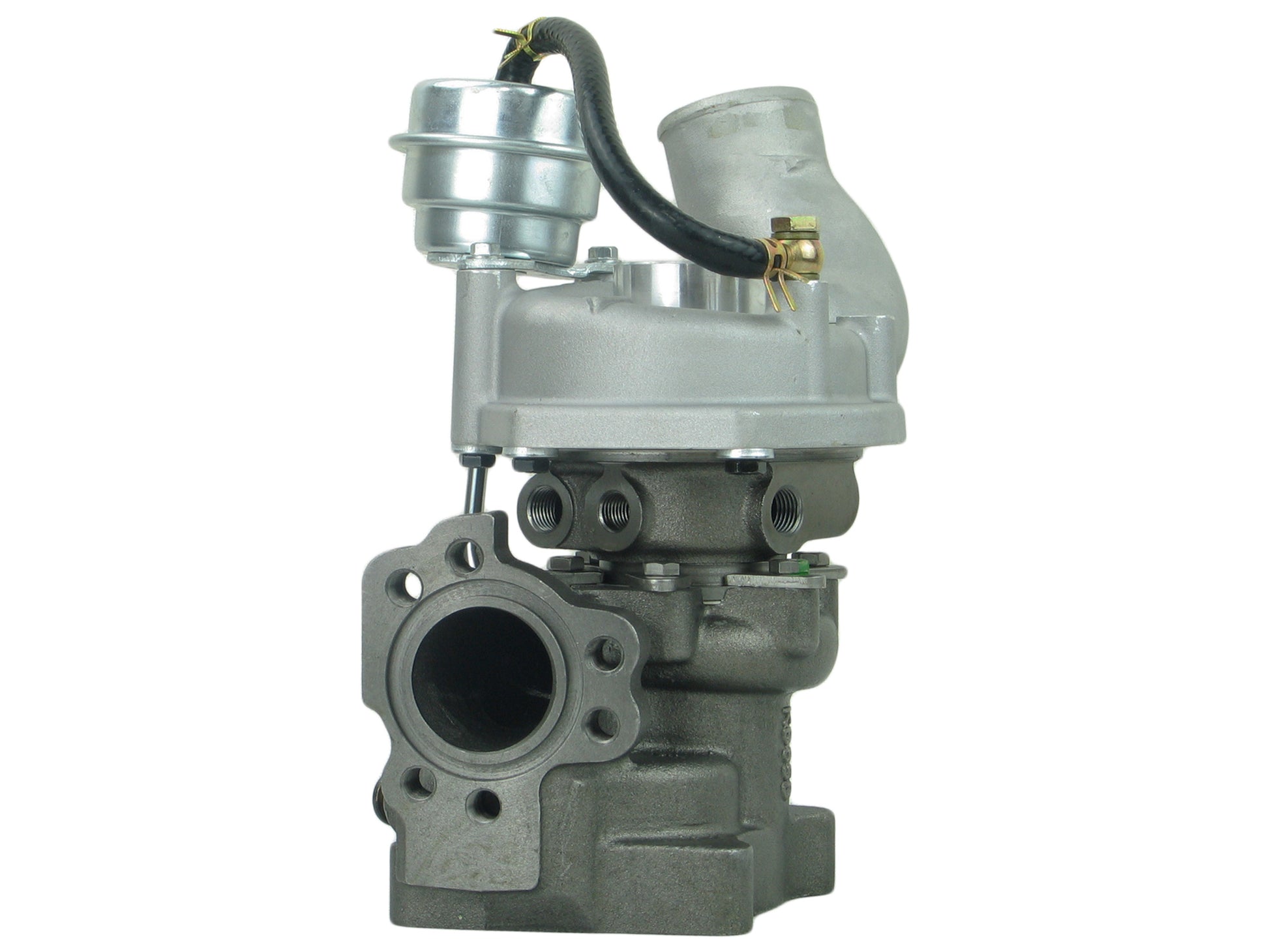

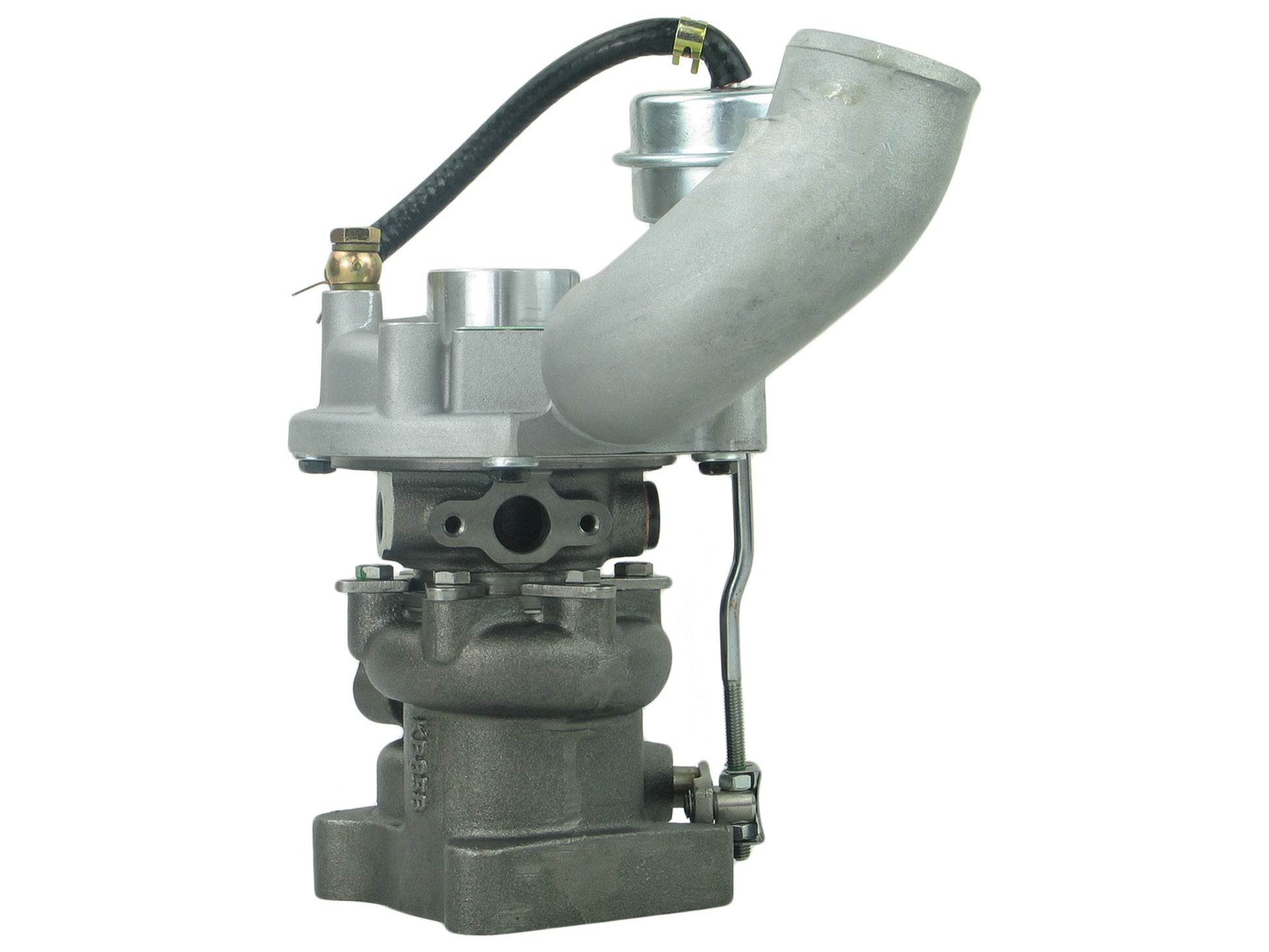

Part Number: 53039880017
Interchangeable Number: 5303-988-0017, 5303 988 0017, 53039700017, 5303-970-0017, 5303 970 0017
OEM Number: 078145702H, 078145702L, 078145702R, 078145702S, 078145704B, 078145704C, 078145704D, 078145704H, 078145704L, 078145704R, 078145704S
Angle α (Compressor Housing): 214.9°
Angle ß (Turbine Housing): 0°
Compressor Cover: 53031015013
NOTE: Intercooler, water cooled bearing housing, right side.
Extra Info for Both Turbos:
Turbo Model: K03, K03-1870EXA4.82KCAXK
Engine: AJK, ARE, BES, AGB
Displacement: 2.7L, 2671 ccm, V6 Cylinders
Power: 169 kW/230 HP, 184 kW/250 HP, 195 kW/265 HP
Speed: 6000 RPM
Back Plate: 53041515703 (1302003303)
Bearing Housing: 53041500009 (53041500006, 53041500015, 53041500017)(1302003460, 203070002)(Water Cooled)
CHRA: 53037100509 (5303-710-0509)(1302003909)
Compressor Wheel: 53031232011 (53031232003, 53031232004)(Ind. 31.45 mm, Exd. 44.96 mm, 4+4 Blades, Super Back)(1302003401)
Heat Shield: 53031652000 (1302003340, 206030001)
Repair Kit: 53037110000 (706832-0001)(1302003752)
Turbine Housing A/R: 4
Turbine Housing: 53031008008
Turbine Wheel: 53031205029 (53031205000, 53031205002, 53031205008, 53031205010, 53031205012, 53031205013, 53031205017, 53031205023, 53031205025, 53031205027, 5303120-5037)(Ind. 45.03 mm, Exd. 37.82 mm, 11 Blades)(1302003438, 201050005)
1997-11 Audi A6 with AJK, ARE, BES, AGB Engine
1997-11 Audi A6 Allroad with AJK, ARE, BES, AGB Engine
1997-11 Audi S4 with AJK, ARE, BES, AGB Engine
TurboTurbo's Part Number: TP02-0036-0037-09
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
