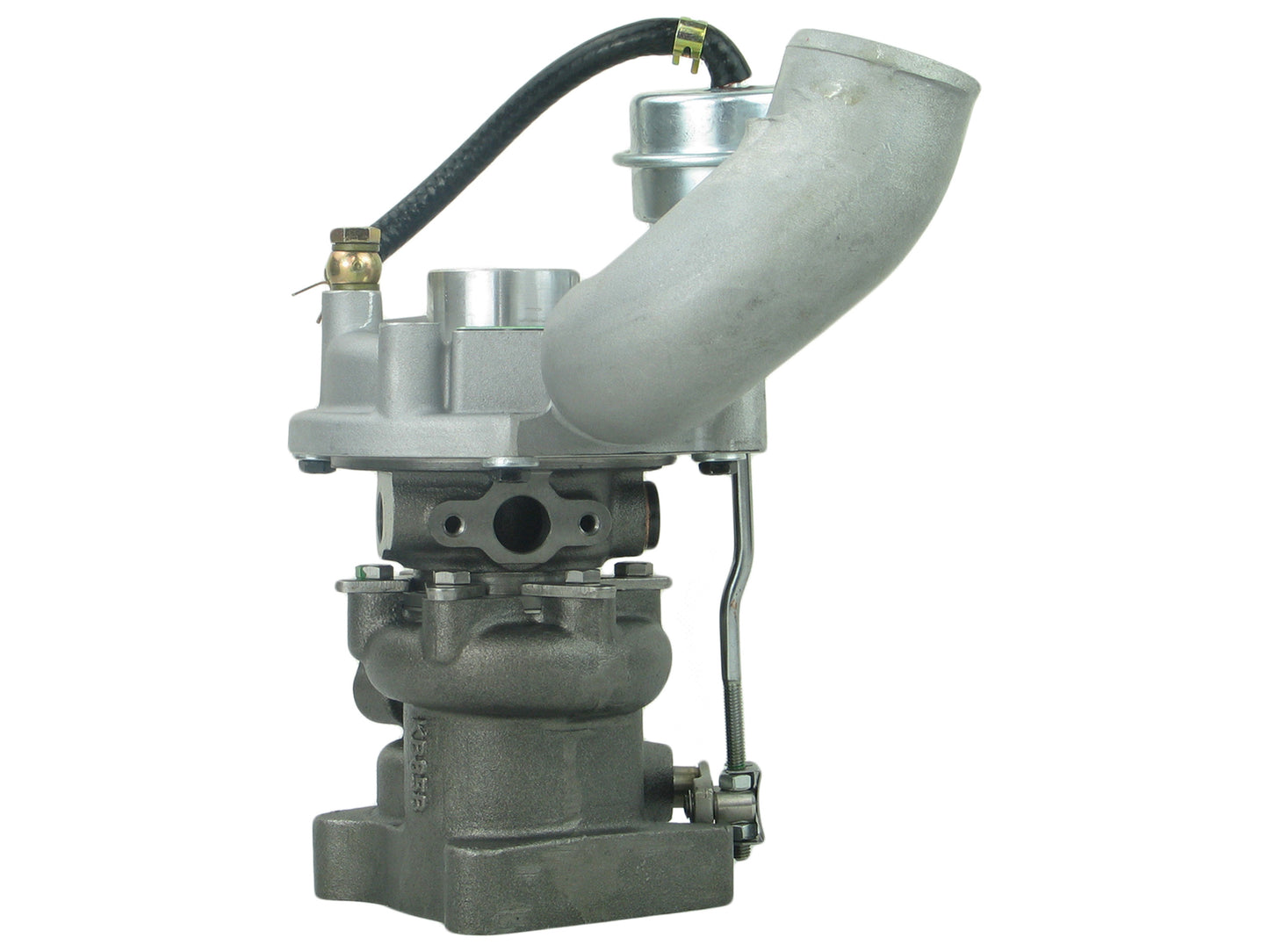

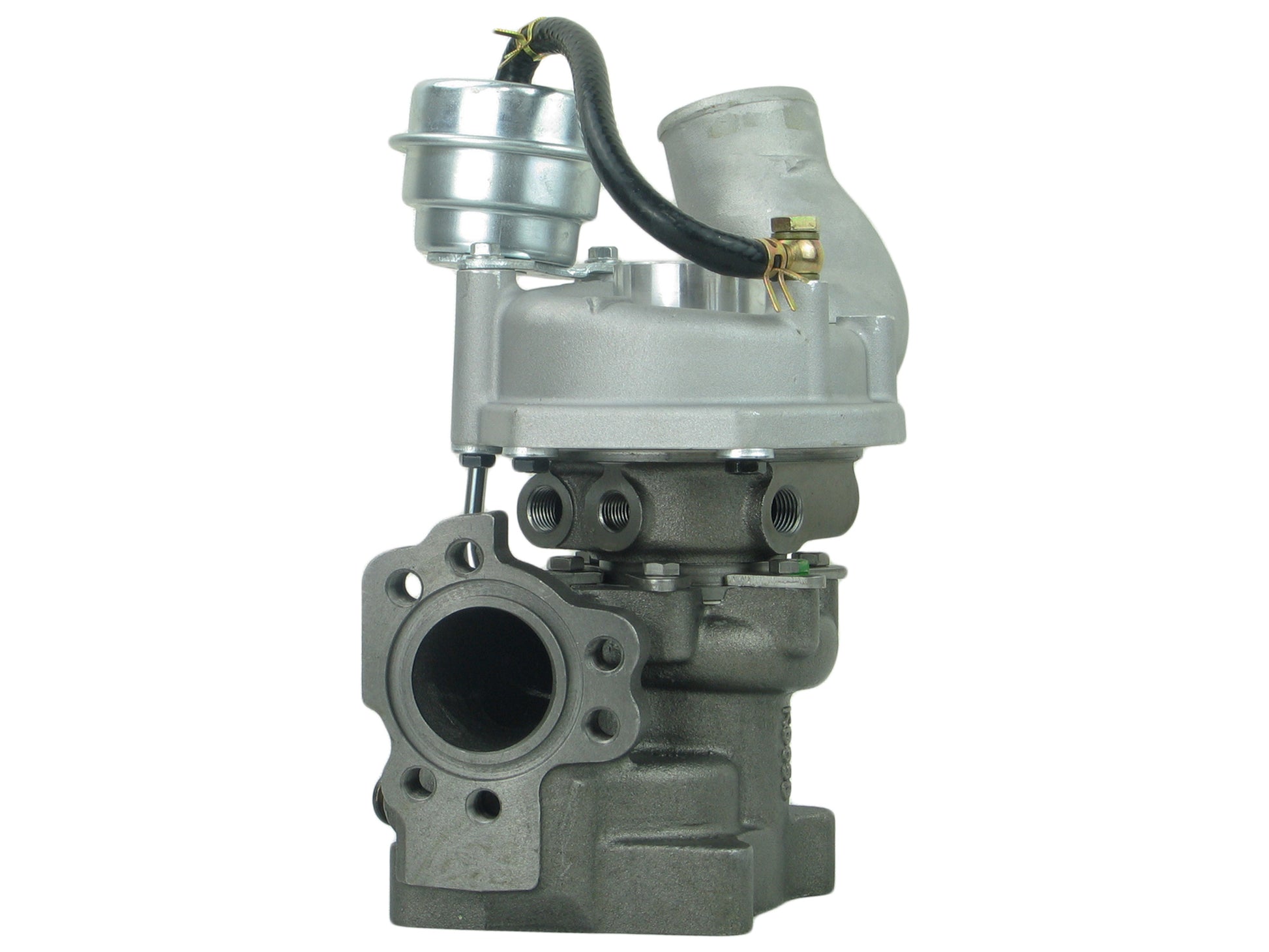

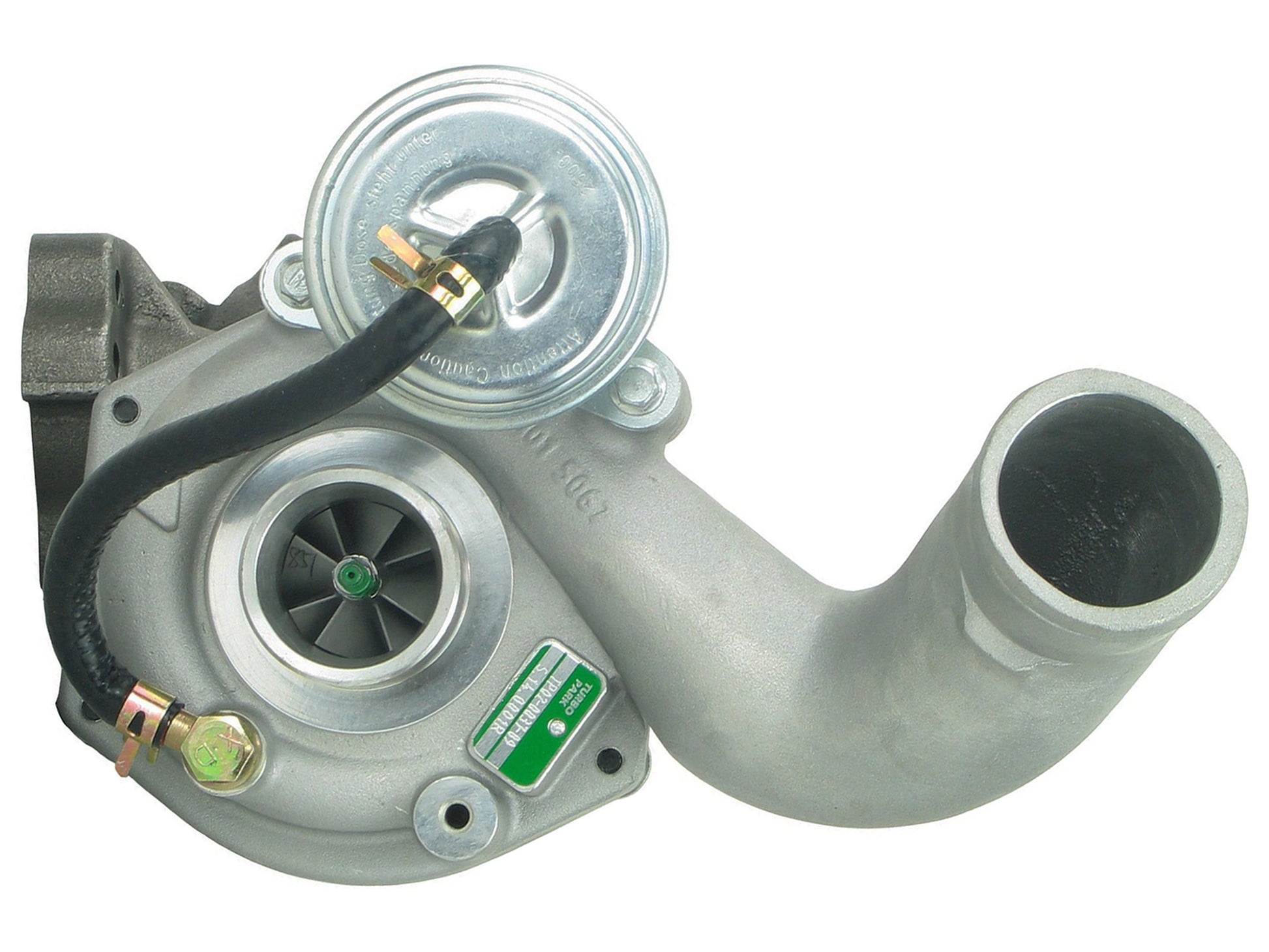

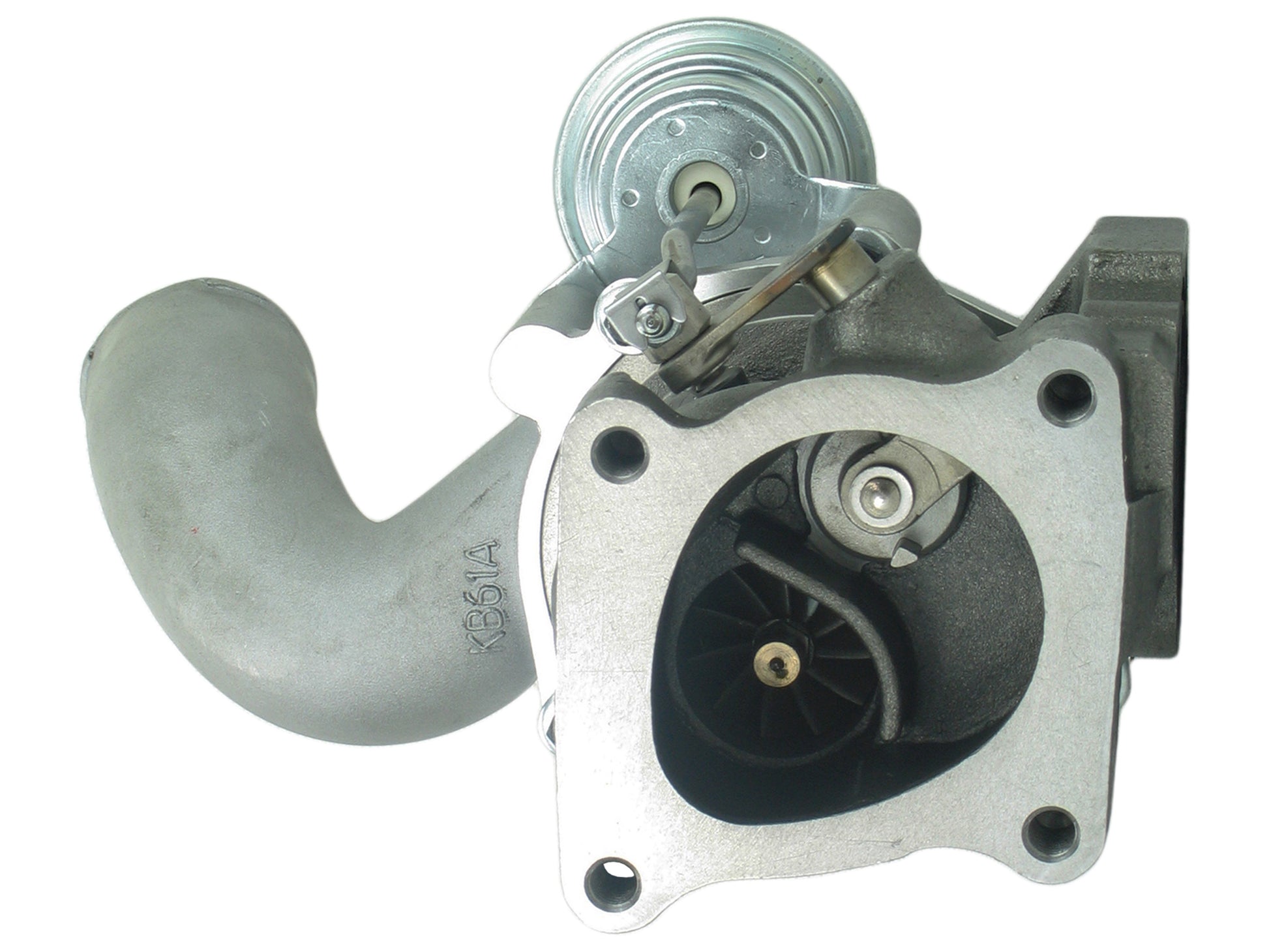

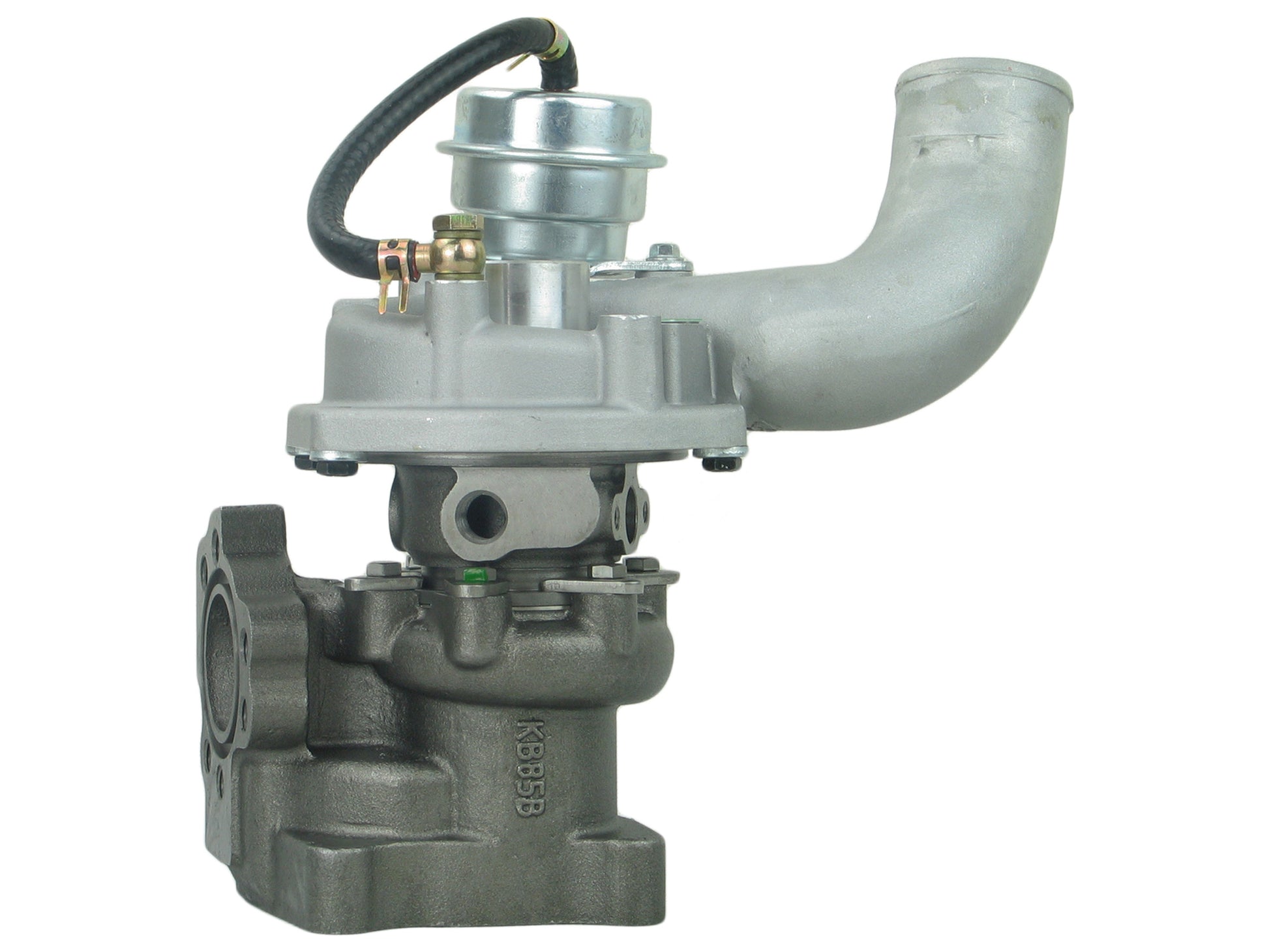

NEW K03 Turbocharger Audi A6 S4 AJK ARE BES AGB 2.7L Engine 53039700017 TurboSKU: TP02-0037-09
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.
NOTE: This 2.7L engine uses two turbos for boosting. This is the right side turbocharger and the left side is 53039700016.
Fits the following:
Part Number: 53039880017
Previous Version: 5303-988-0017, 5303 988 0017
OE Number: 078145704D, 078145704L, 078145704S, 078145704R, 078145704H, 078145702H, 078145702L, 078145702R, 078145702S, 078145704B, 078145704C
Description: Audi A6 T (C5)
Manufacturer Part Number: 53039700017, 5303-970-0017, 5303 970 0017
CHRA: 53037100509 (5303-710-0509)(1302003909)
Turbo Model: K03-1870EXA4.82KCAXK
Engine: AJK, ARE, BES, AGB
Displacement: 2.7L, 2671 ccm, V6 Cylinders
RPM Max: 6000
Angle α (compressor housing): 214.9°
Angle β (turbine housing): 0°
Bearing Housing: 53041500009 (53041500006, 53041500015, 53041500017)(1302003460, 203070002)(Water Cooled)
Turbine Wheel: 53031205029 (53031205000, 53031205002, 53031205008, 53031205010, 53031205012, 53031205013, 53031205017, 53031205023, 53031205025, 53031205027, 5303120-5037)(Ind. 45.03 mm, Exd. 37.82 mm, 11 Blades)(1302003438, 201050005)
Comp. Wheel: 53031232011 (53031232003, 53031232004)(Ind. 31.45 mm, Exd. 44.96 mm, 4+4 Blades, Superback)(1302003401)
Back plate: 53041515703 (1302003303)
Heat shield Number: 53031652000 (1302003340, 206030001)
Repair Kit: 53037110000 (706832-0001)(1302003752)
Turbine Housing: 53031008008
Compressor Cover: 53031015013
Turbine Housing AR: 4
NOTE: Intercooler; watercooled bearing housing; Right side
1997-11 Audi A6 with AJK, ARE, BES, AGB Engine
1997-11 Audi A6 Allroad with AJK, ARE, BES, AGB Engine
1997-11 Audi S4 with AJK, ARE, BES, AGB Engine
TurboTurbos Part Number: TP02-0037-09
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
Any questions or concerns, please feel free to email or call us.
For our Warranty / Return Policy, please see our Policies at the top of the website.
