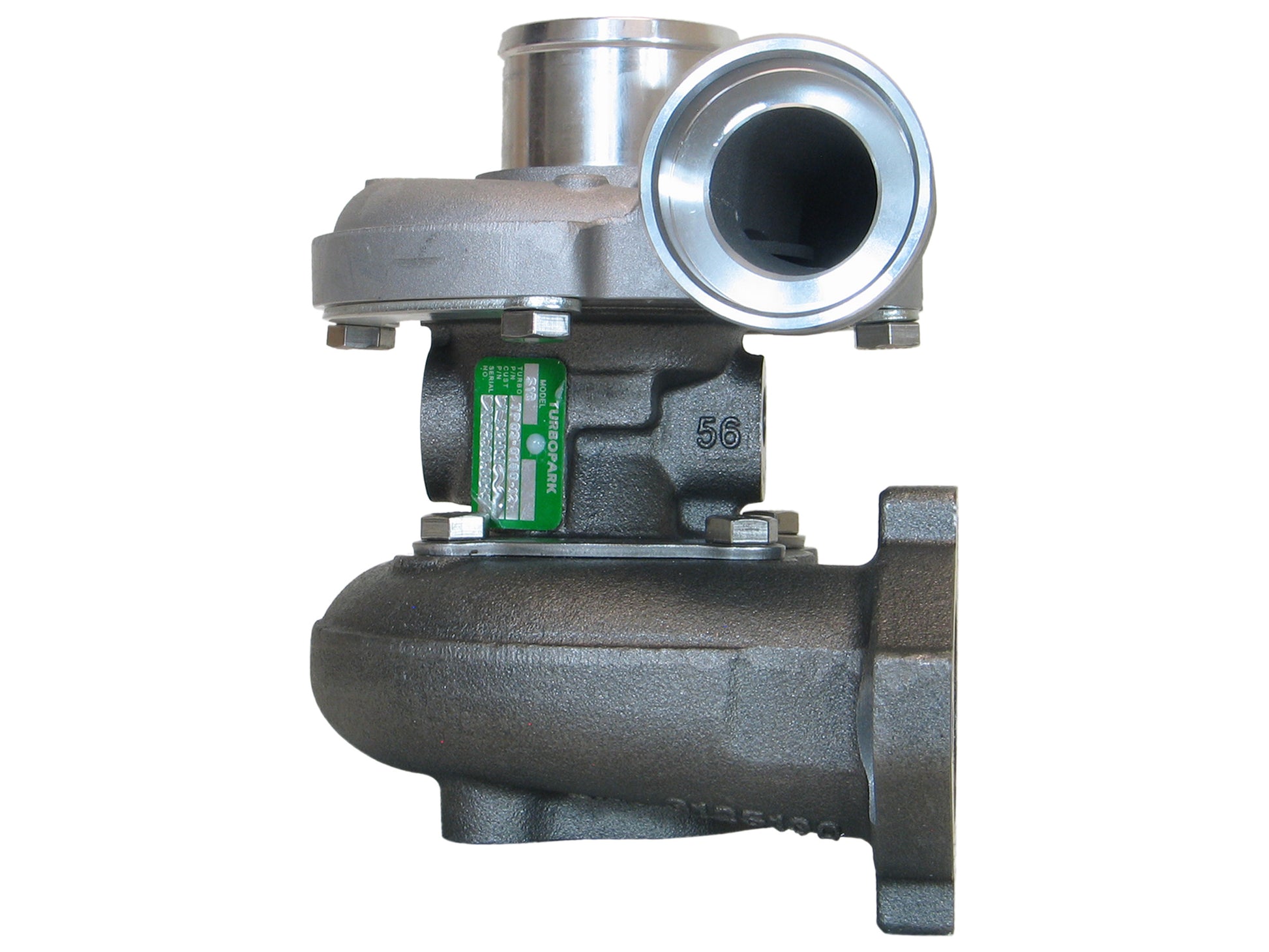

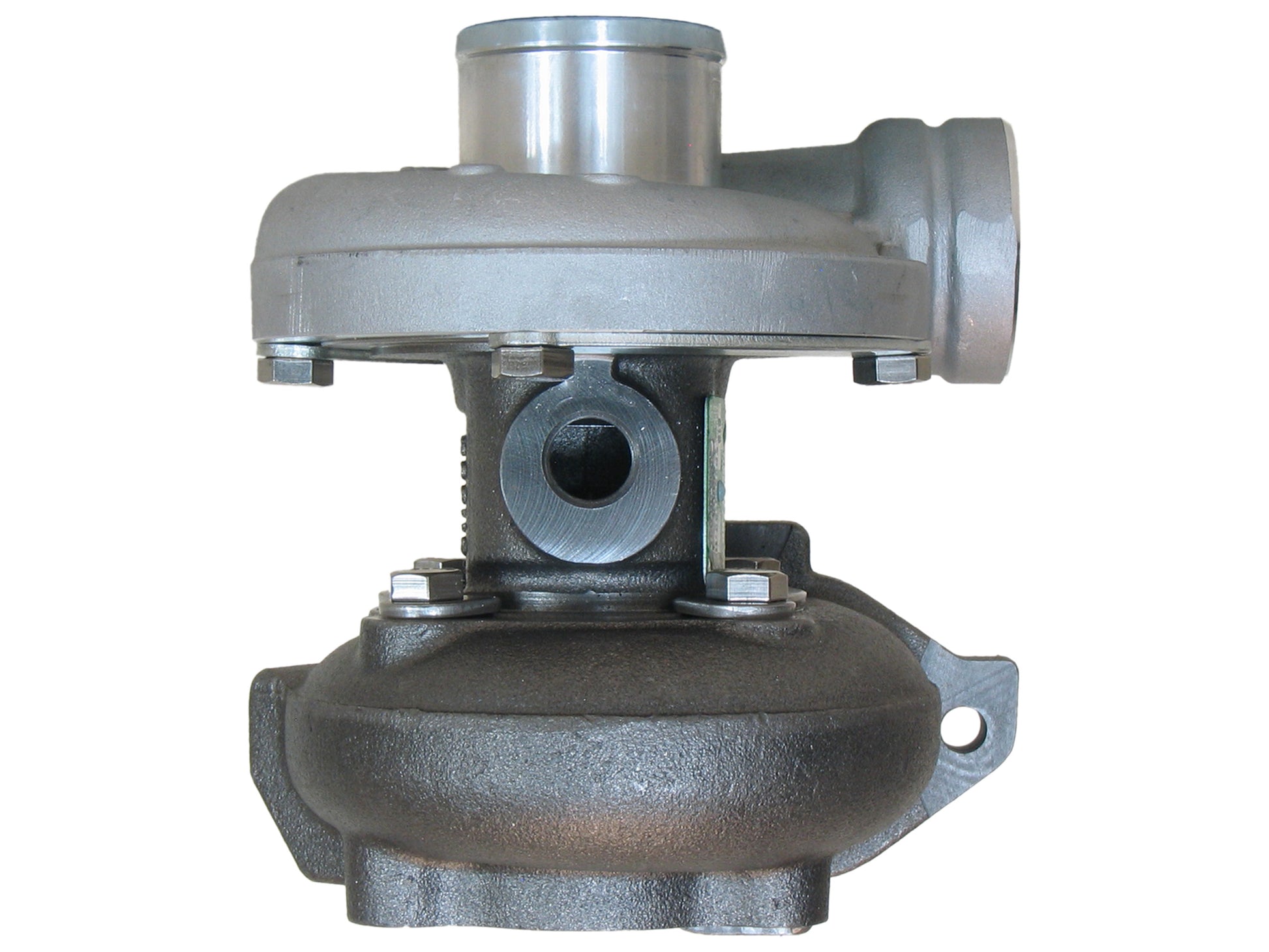

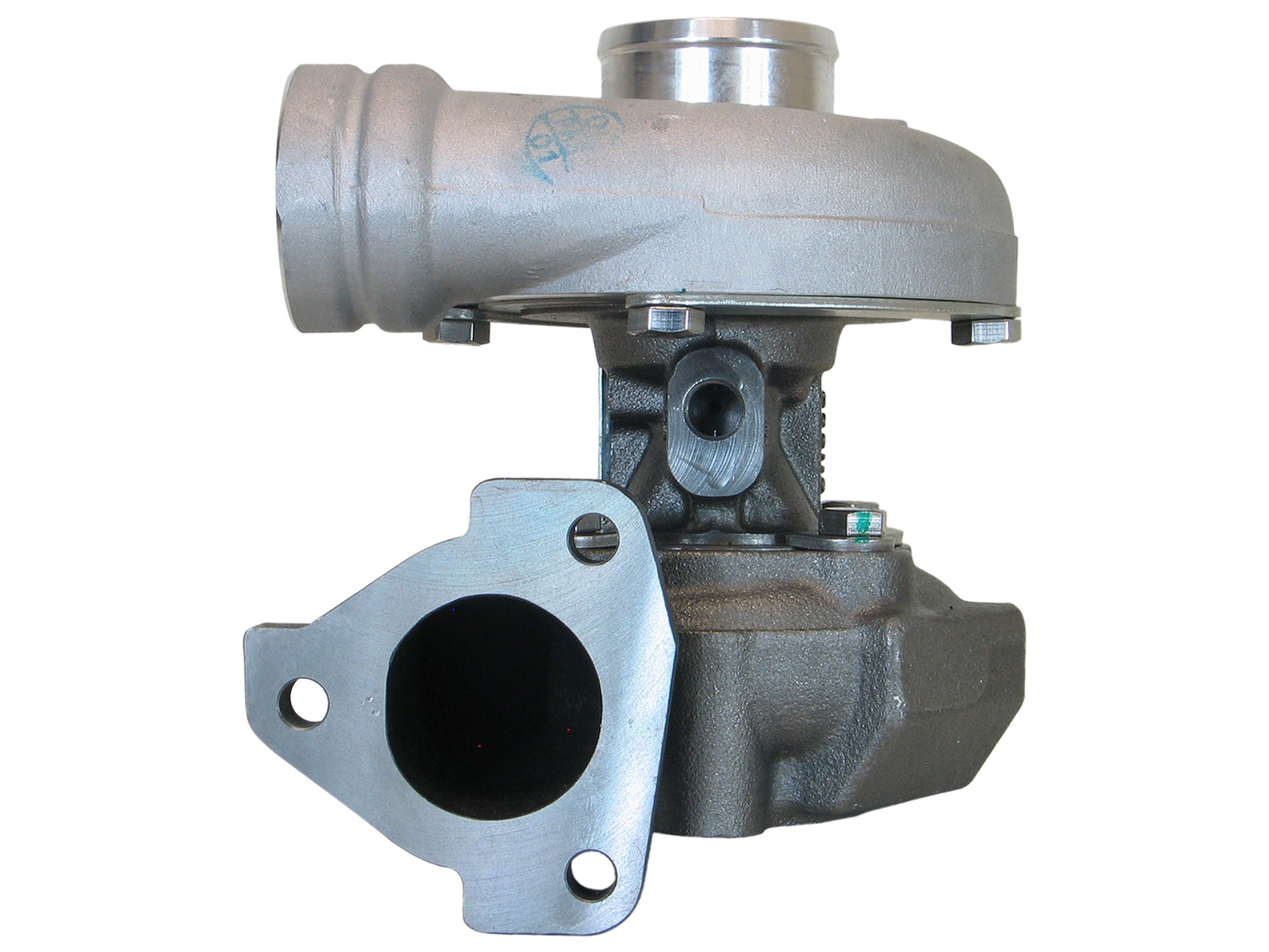

NEW S1B Turbo Deutz Industrial BF4M1012 BF4M1012C BF4M1012E 3.19L Diesel 313818

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

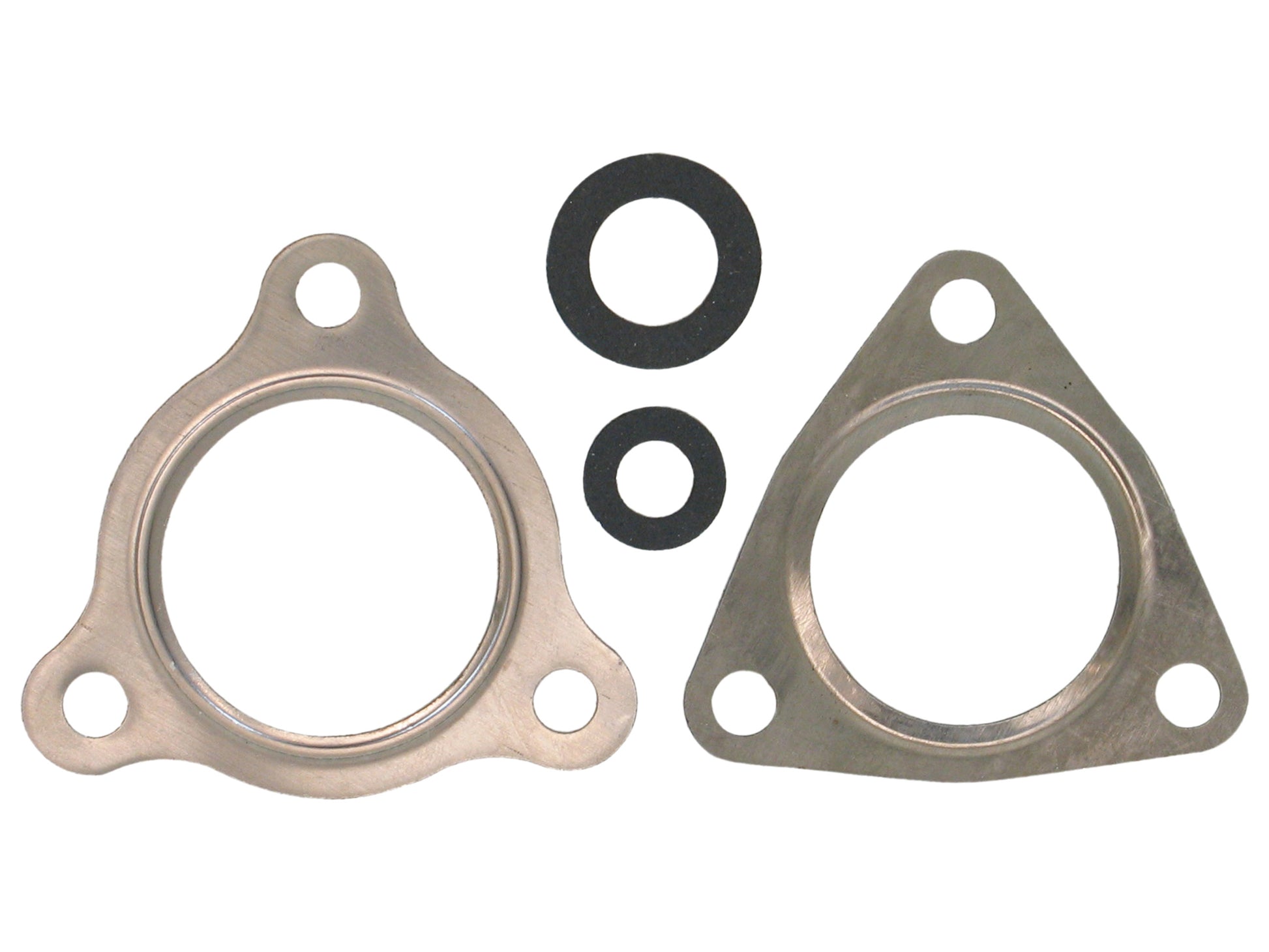

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 313818
Interchangeable Number: 312470, 312491, 313360, 313363, 313367, 313368, 313369, 313733, 314328, 315846, 315847, 315853, 315855, 315856, 315862, 315863, 315865, 315867
OEM Number: 04195745KZ, 04195746KZ, 04198476KZ, 04198542KZ, 04198543KZ, 04198553KZ, 04198554KZ, 04204383KZ, 04206302KZ, 04209162KZ, 04209163KZ
Turbo Model: S1B

Year: 1992-12
Engine: BF4M1012, BF4M1012C, BF4M1012E, BF4M1012E/EC, BF4M1012EC
Displacement: 3.19L, 3190 ccm
Fuel: Diesel
Power: 66/72/78 kW, 88/96/105 HP
Speed: 2100/2500/2650 RPM

Angle α (Compressor Housing): 13/55/102/147/165/283.5/284/295/325°
Angle β (Turbine Housing): 30/90/171.5/172/249/351.5/352°
Back Plate: 315910 (196872)(1252201300, 1800016064)
Bearing Housing: 313040 (1900011213)
CHRA: 313275 (314776)(1252201300, 1000070019)

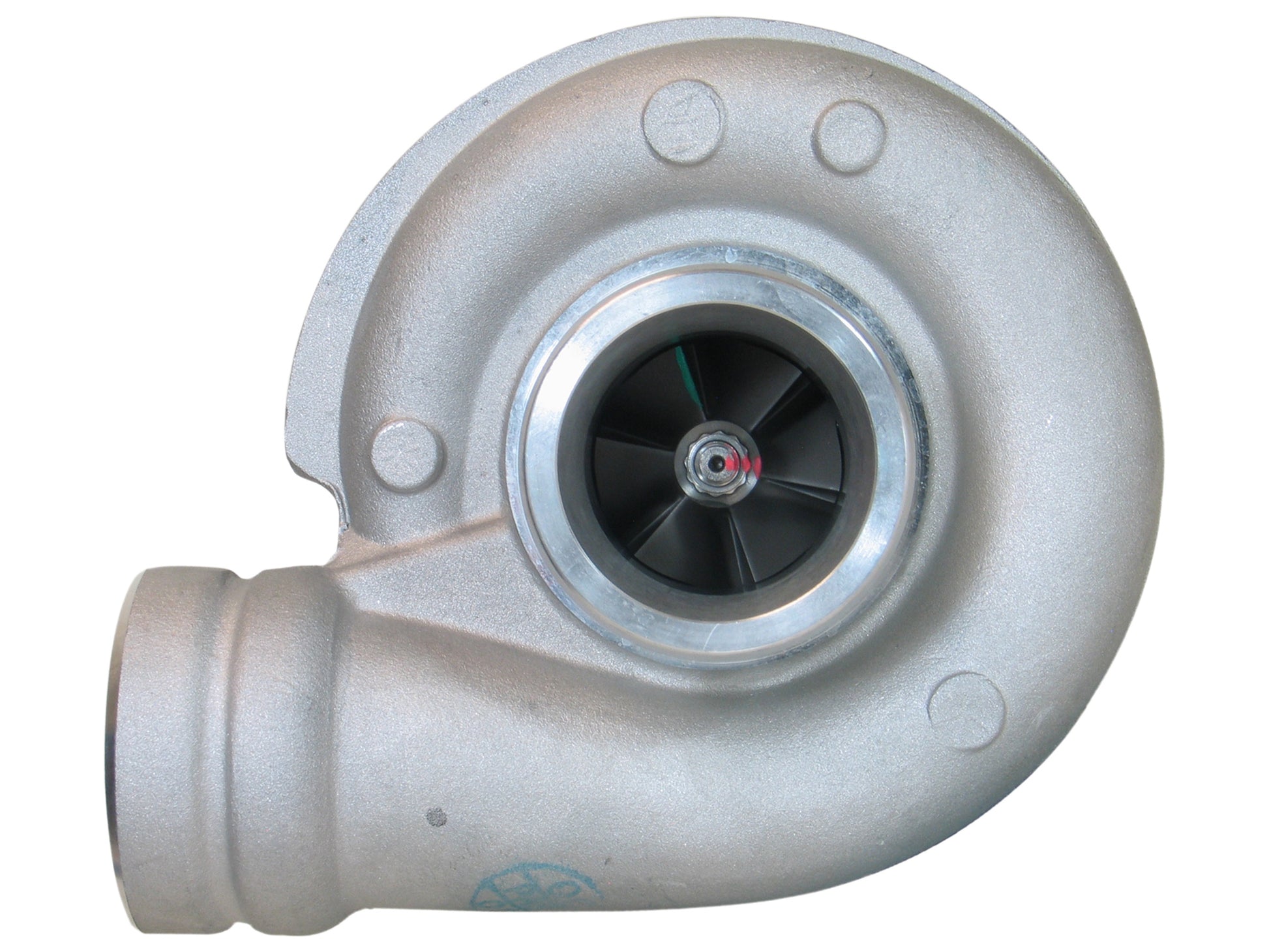

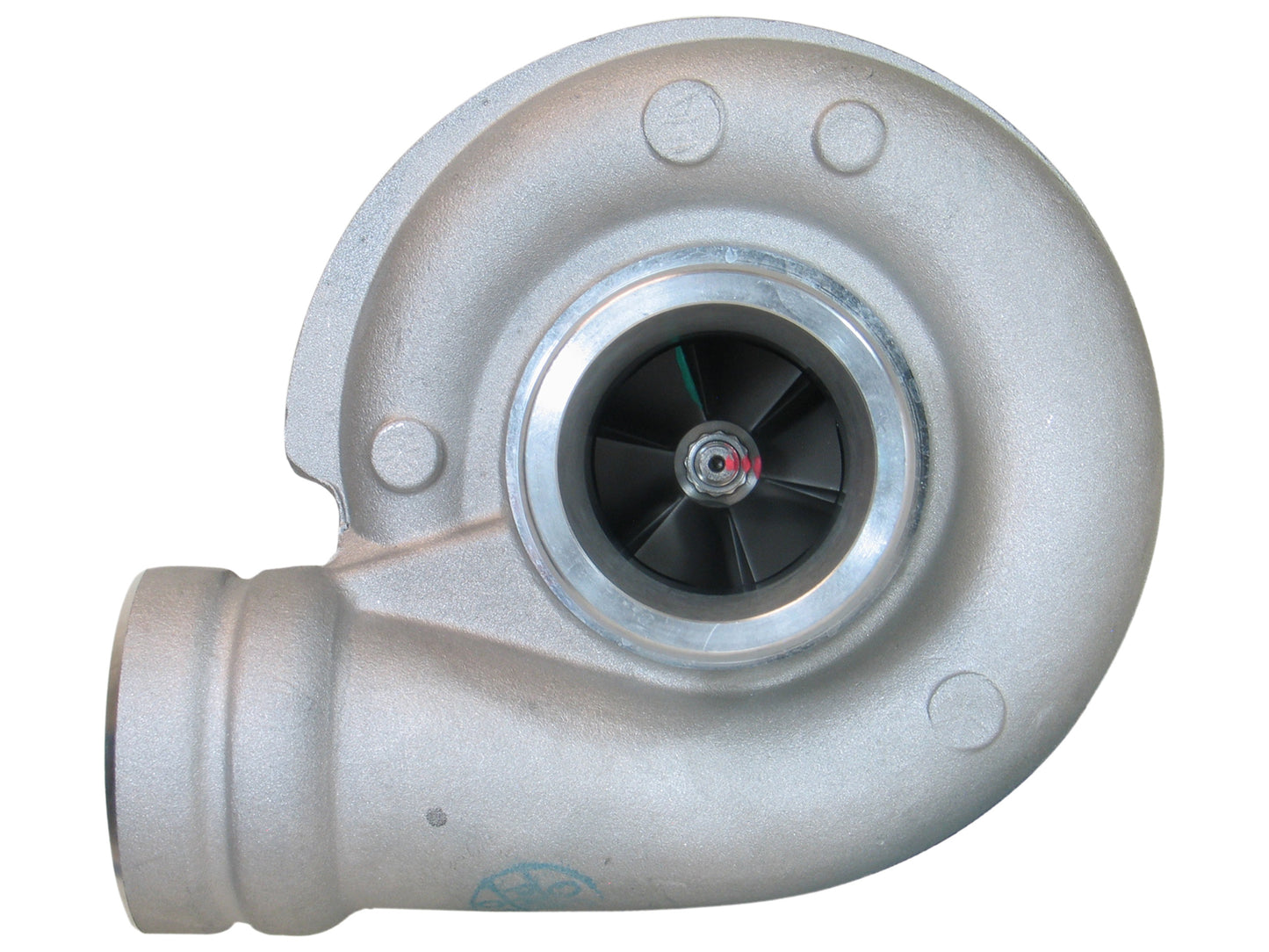

Compressor Cover: 316662
Compressor Wheel: 313018 (Ind. 34.31 mm, Exd. 48.31 mm, 6+6 Blades, Super Back)(1200016306)
Gasket (Turbine Inlet): 210218 (Stainless Steel)
Gasket (Turbine Outlet): 210227 (Steel)
Heat Shield: 311863 (1252201340, 2030016099)
Mounting Gaskets: 318421 (2090505146)
Repair Kit: 318374 (1252201750, 5000030016)

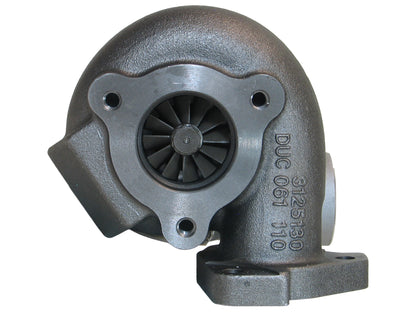

Turbine Housing: 312655
Turbine Wheel: 312880 (Ind. 47 mm, Exd. 40 mm, 12 Blades)(1100016215)

Application:
1992-10 Deutz Industrial with BF4M1012 Engine
1992-10 Deutz Industrial with BF4M1012C Engine
1993-12 Deutz Industrial with BF4M1012E Engine
1997-01 Deutz Industrial with BF4M1012E Engine
1997-01 Deutz Industrial with BF4M1012EC Engine
1997-01 Deutz Various with BF4M1012E/EC Engine

TurboTurbos Part Number: TP03-0180-12

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
