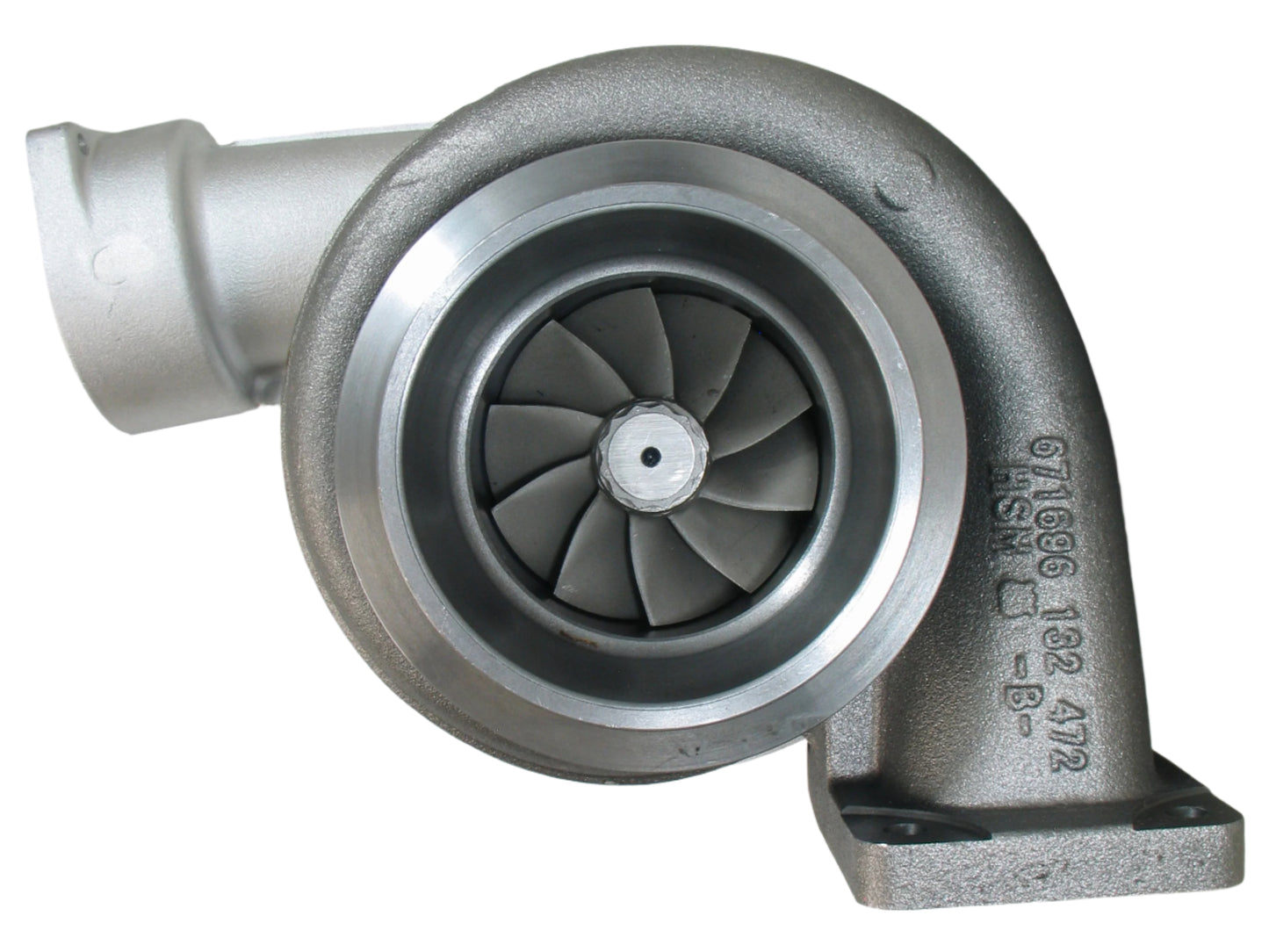

NEW S4DS027 Turbo CAT Earth Moving 3406B Diesel Engine 178065 199351

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

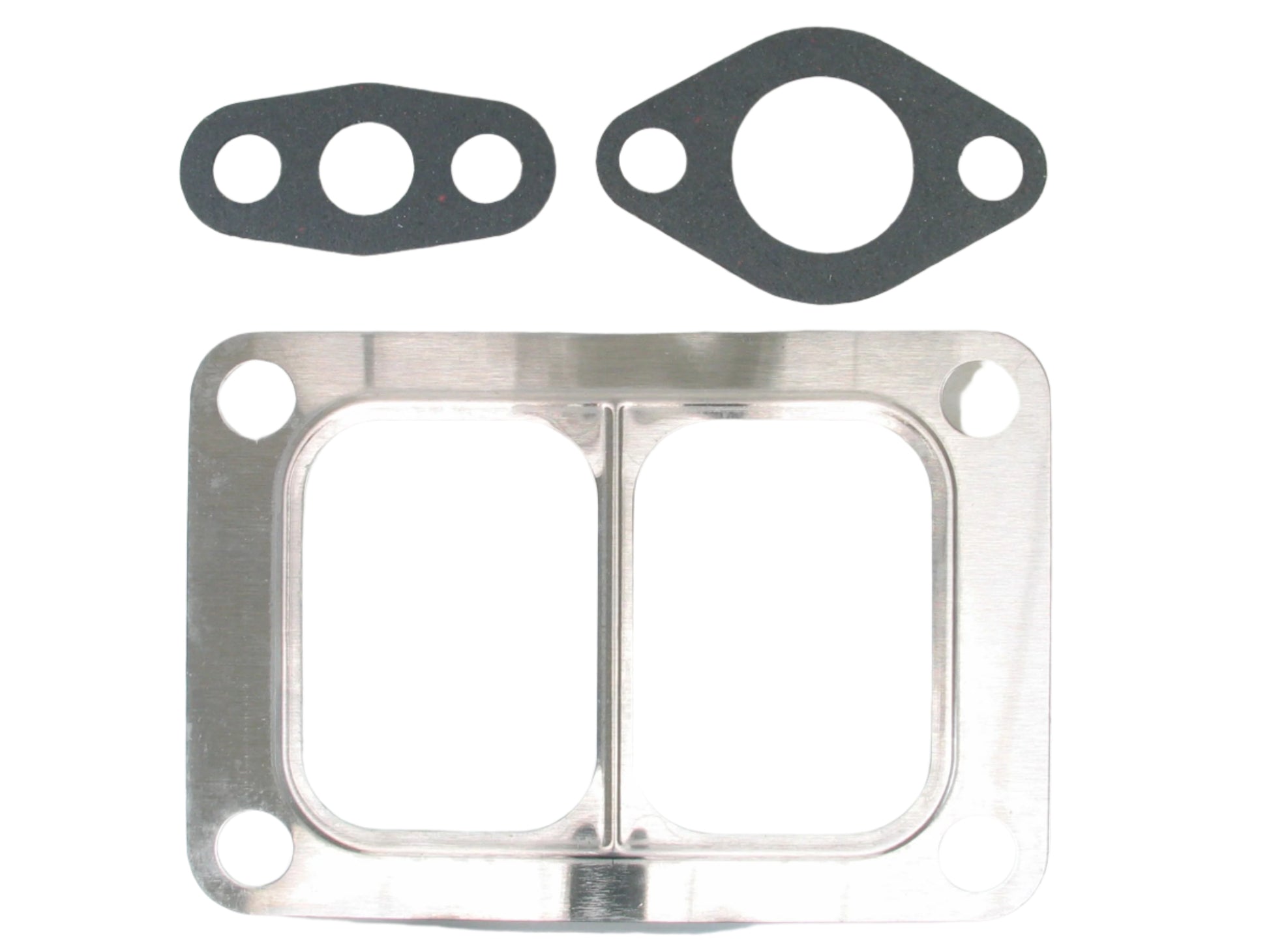

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 199351
Interchangeable Number: 178065, 178065R, 199351R, 478065, 499351
OEM Number: 0R-5189, 0R5189, 0R-6235, 0R6235, 4P-5189, 4P5189
Serial Number: CK22422
Turbo Model: S4DS027

Year: 1990-08
Engine: 3406B
Power: 257 kW/350 HP
Speed: 2200 RPM
Fuel: Diesel

Angle α (Compressor Housing): 292°
Angle β (Turbine Housing): 82°
CHRA: 199352 (178260, 199352R, 478260, 499352)(0R6035, 0R6236, 1070008R, 4P5190)(1000070030)
Bearing Housing: 199143 (196661, 194031, 199144, 196534, 7C7611, 4P3627, 7C0067)(Oil Cooled)(1900011342)
Turbine Wheel: 168755 (4W7351)(Ind. 78.59 mm, Exd. 91 mm, Trim 12.28, 10 Blades)(1100016332)
Compressor Wheel: 169413 (4P3624, 141-2010)(Ind. 73.53 mm, Exd. 100.18 mm, Trim 10.34, 7+7 Blades, Super Back)(1200016466)
Back Plate: 197651 (51135, 5S4556, 142066, 49162-22500, 52321523000, 52321523001, 143044-0000)(1250403300, 1800016004)
Heat Shield: 187517 (4W7355)(2030016142)
Repair Kit: 318350 (318409, 311603, 166086, 318351, 318355, 166753)(4W7344)(1250040751, 5000030123)
Turbine Housing: 199353
Compressor Cover: 199117
Gasket Kit: 318417
Gasket (Turbine Inlet): 132040 (409377-0000, 210087-0000, 202873, 205396, 205396, 3500683, 210017-0000, 409038-0000, 1S4295, 9749)(1900000003)
Gasket (Oil Inlet): 210019 (409266-0004, 210019-0000, 201049, 129119, 409266-0003)(Paper)
Gasket (Oil Outlet): 210018 (3519763, 129120, 210018-0000, 201048, 157602, 3037537)(Paper)

Application:
1990-08 Caterpillar Earth Moving with 3406B Engine

TurboTurbos Part Number: TP03-0233-07

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
