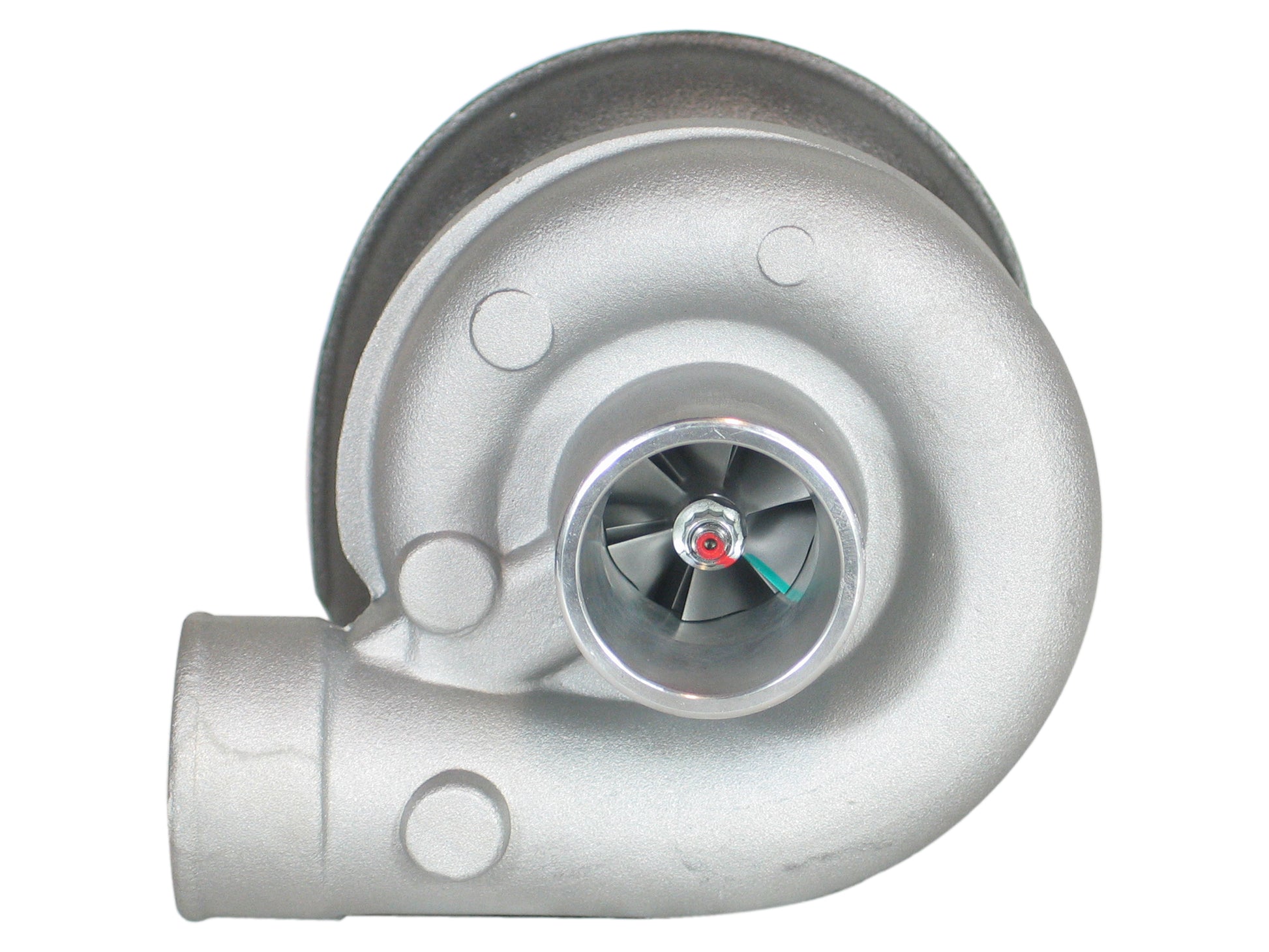

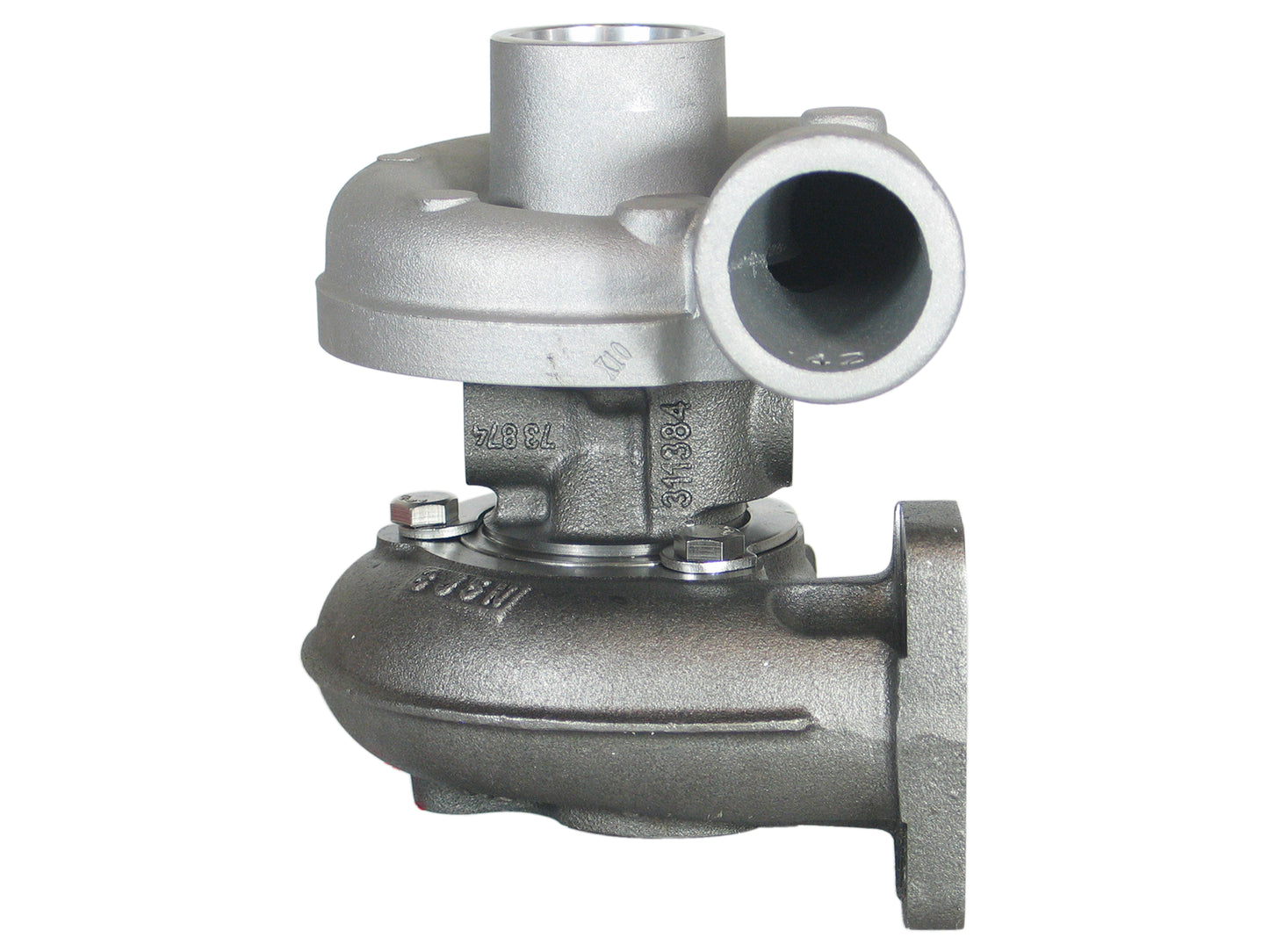

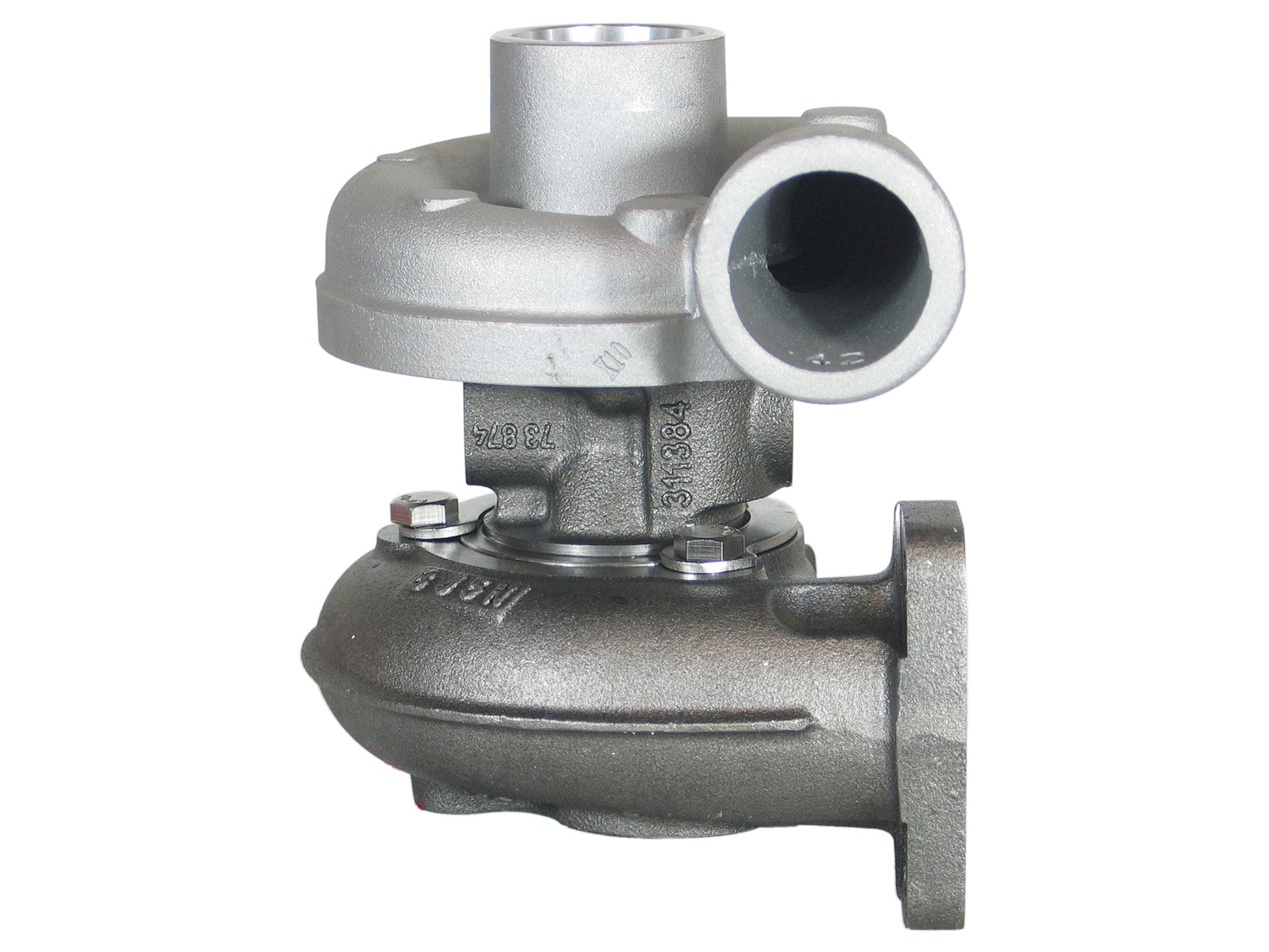

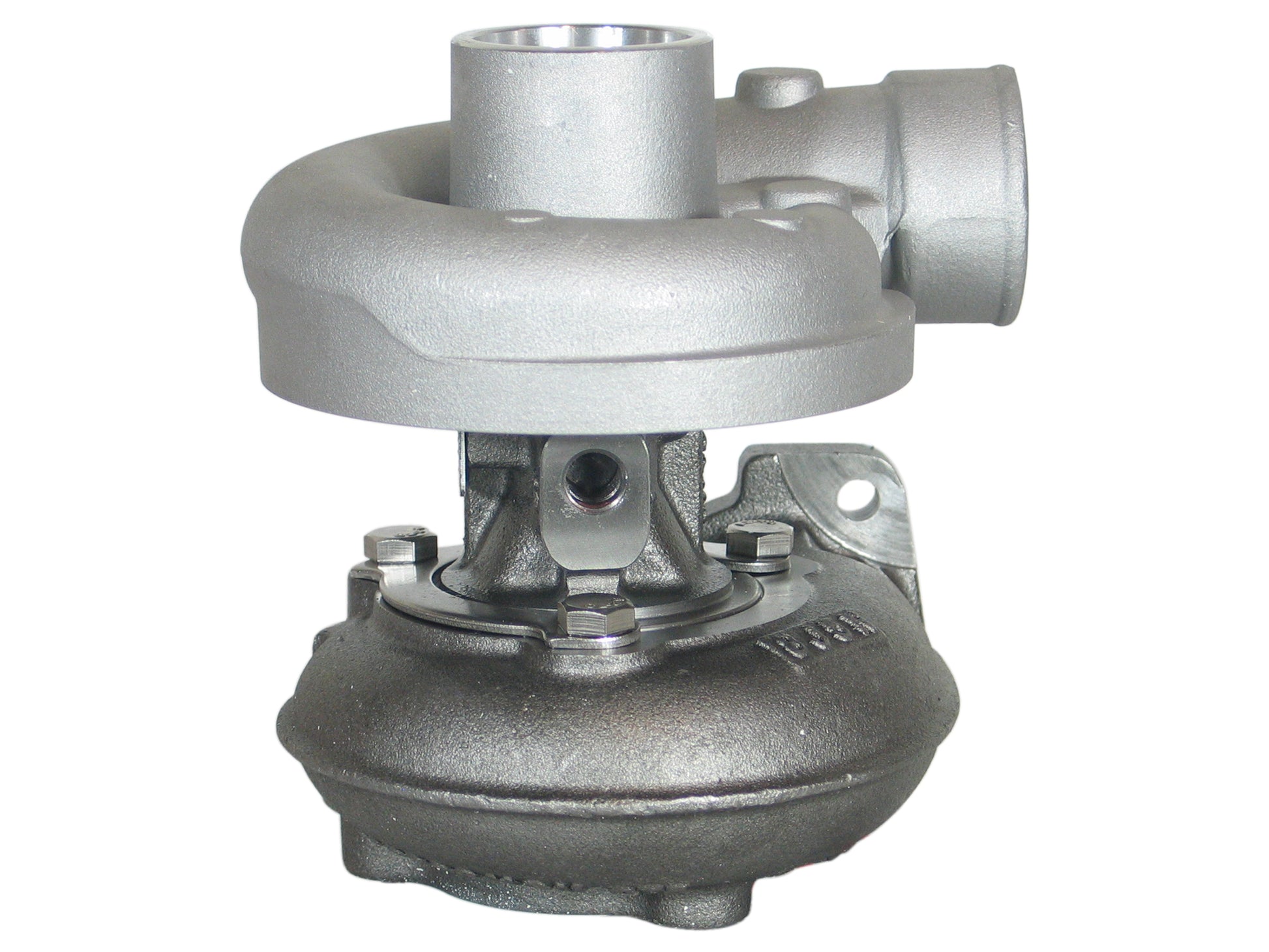

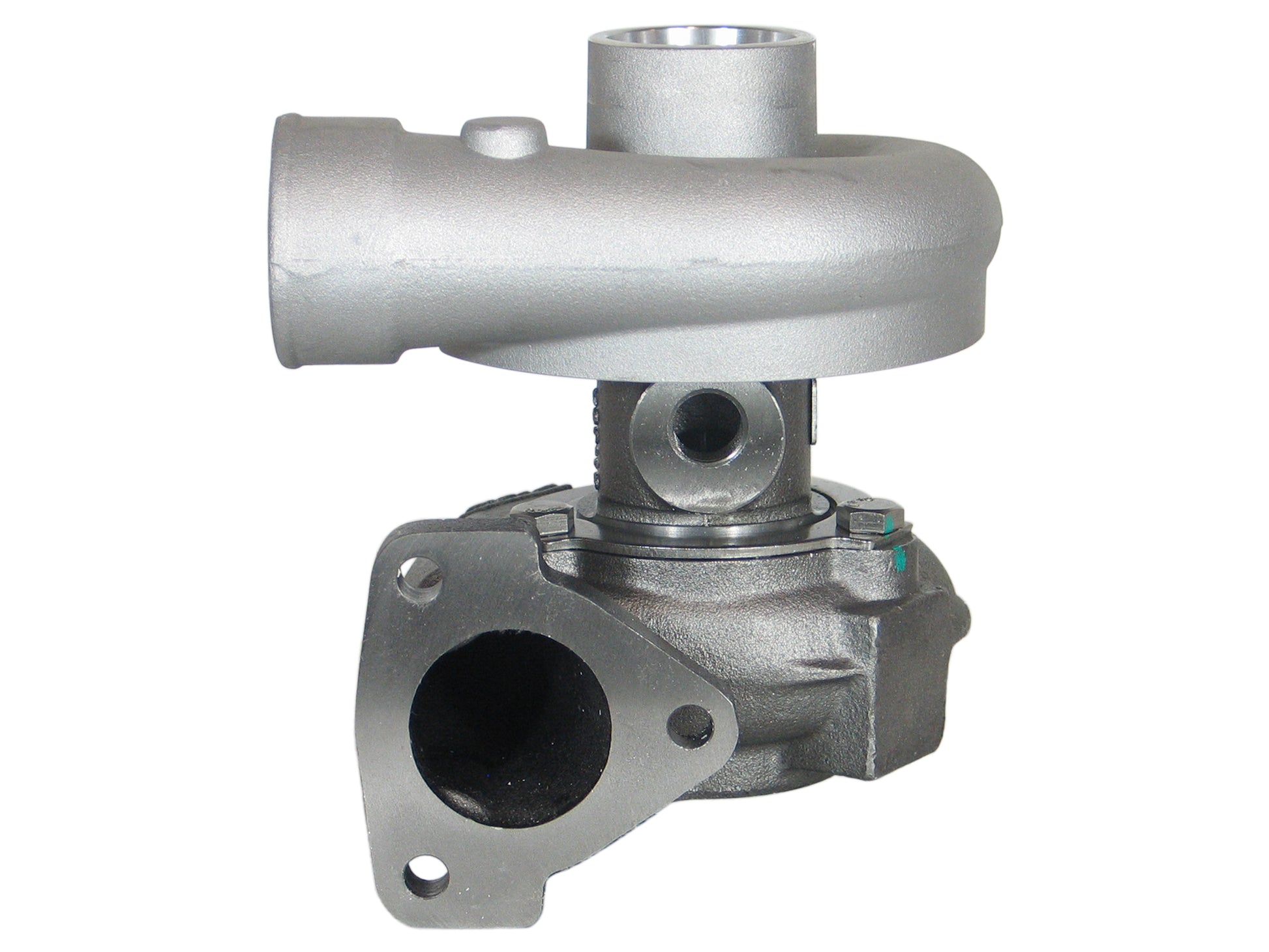

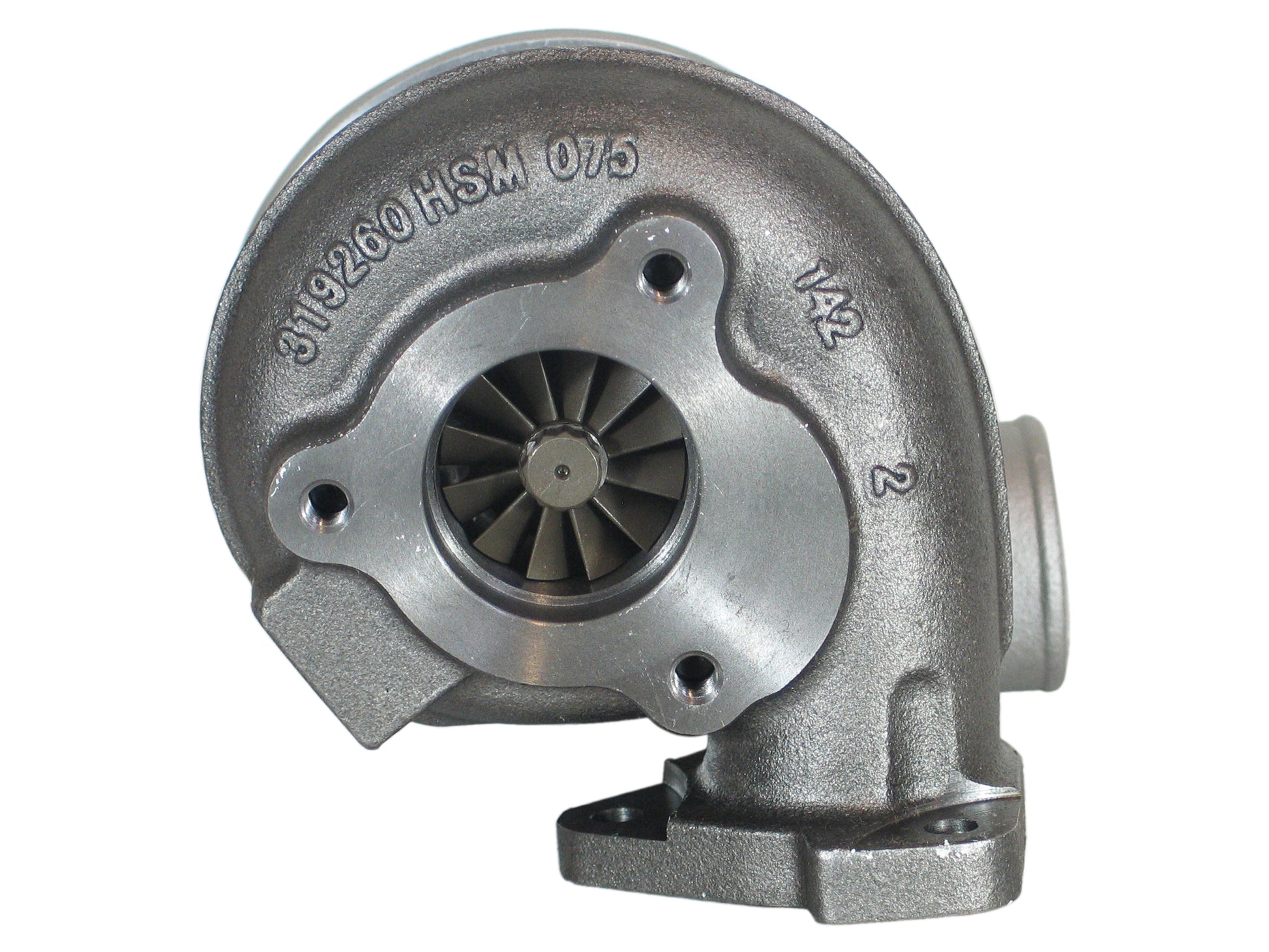

NEW S1B Turbo Bobcat 873 Loader BF4L1011 Deutz Marine BF4L1011F 2.9L 317960SKU: TP04-0102-12
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

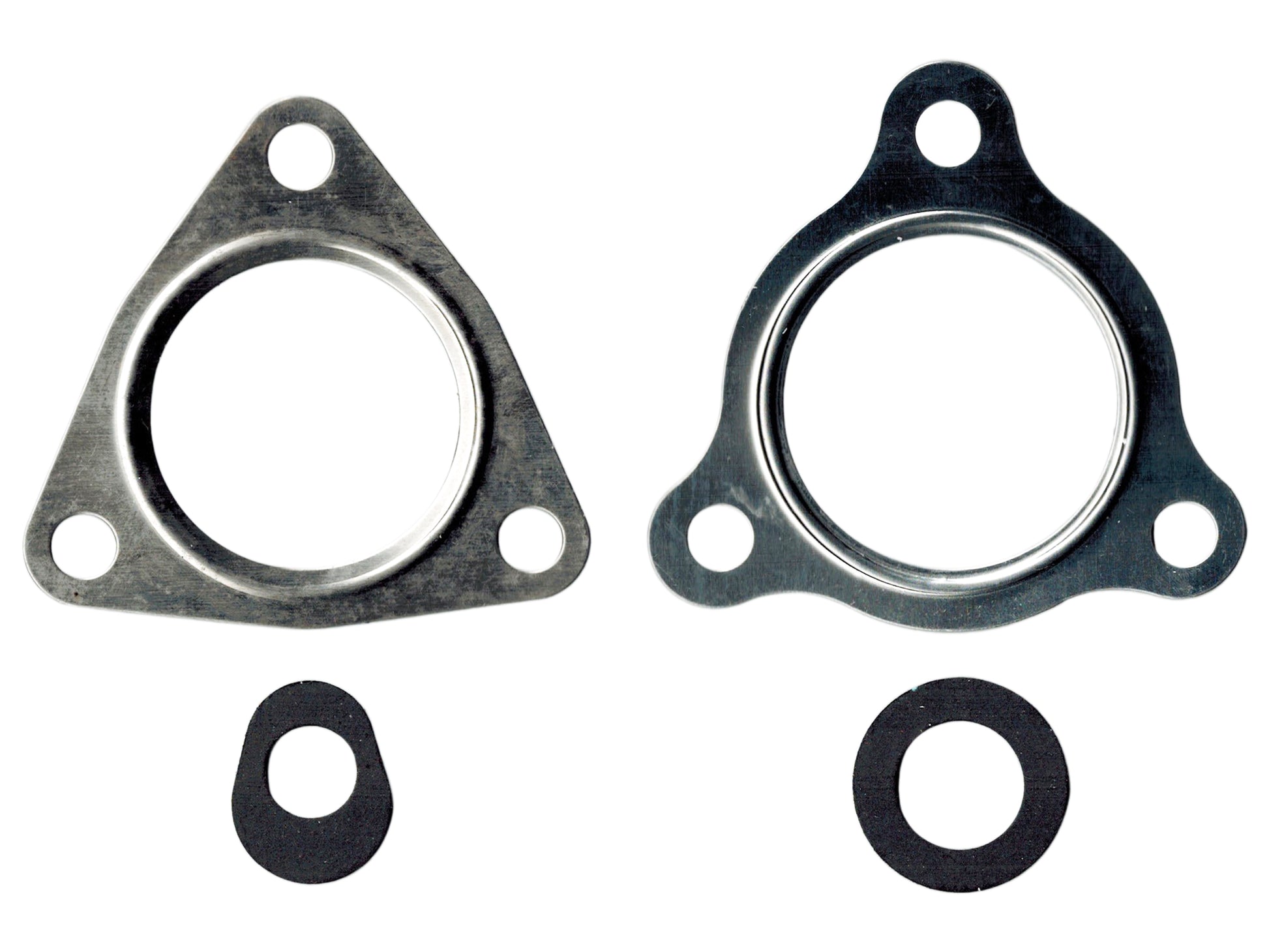

NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 317960
Interchangeable Number: 313834, 314225, 314993, 316692, 317908, 317909, 317910, 53149706702, 5314 970 6702, 5314-970-6702, 53149886702, 5314 988 6702, 5314-988-6702
OEM Number: 04173990KZ, 04174891KZ, 04176324KZ, 04176561KZ, 04272462KZ, 04272463KZ, 04272464KZ, 4173990KZ, 4174891KZ, 4176324KZ, 4176561KZ, 4272462KZ, 4272463KZ, 4272464KZ
Turbo Model: S1B
Engine: BF4L1011, BF4L1011F, BF4L1011T, BF4M1012
Engine Manufacturer: Deutz KHD
Displacement: 2.9L, 2730/2900 ccm
Power: 61 kW/82 HP
Speed: 2800 RPM
Angle α (Compressor Housing): 279/282/305°
Angle ß (Turbine Housing): 169/171/225°
Back Plate: 315910 (196872)(1252201300, 1800016064)
Bearing Housing: 313040 (1900011213)
CHRA: 313275 (314776)(1252201300, 1000070019)
Compressor Cover: 311872
Compressor Wheel: 313018 (Ind. 34.31 mm, Exd. 48.31 mm, 6+6 Blades, Super Back)(1200016306)
Gasket (Turbine Inlet): 210218 (Stainless Steel)
Gasket (Turbine Outlet): 210227 (Steel)
Heat Shield: 311863 (1252201340, 2030016099)
Mounting Gaskets: 318421 (2090505146)
Repair Kit: 318374 (1252201750, 5000030016)
Turbine Housing A/R: 0.61
Turbine Housing: 317937
Turbine Wheel: 312880 (Ind. 47 mm, Exd. 40 mm, 12 Blades)(1100016215)
1999-11 Bobcat 873 Skid Steer Loader with BF4L1011 Engine
1999-11 Deutz Marine with BF4L1011F Engine
1999-11 Deutz Various with BF4M1012 Engine
TurboTurbos Part Number: TP04-0102-12
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
Any questions or concerns, please feel free to email or call us.
For our Warranty / Return Policy, please see our Policies at the top of the website.
