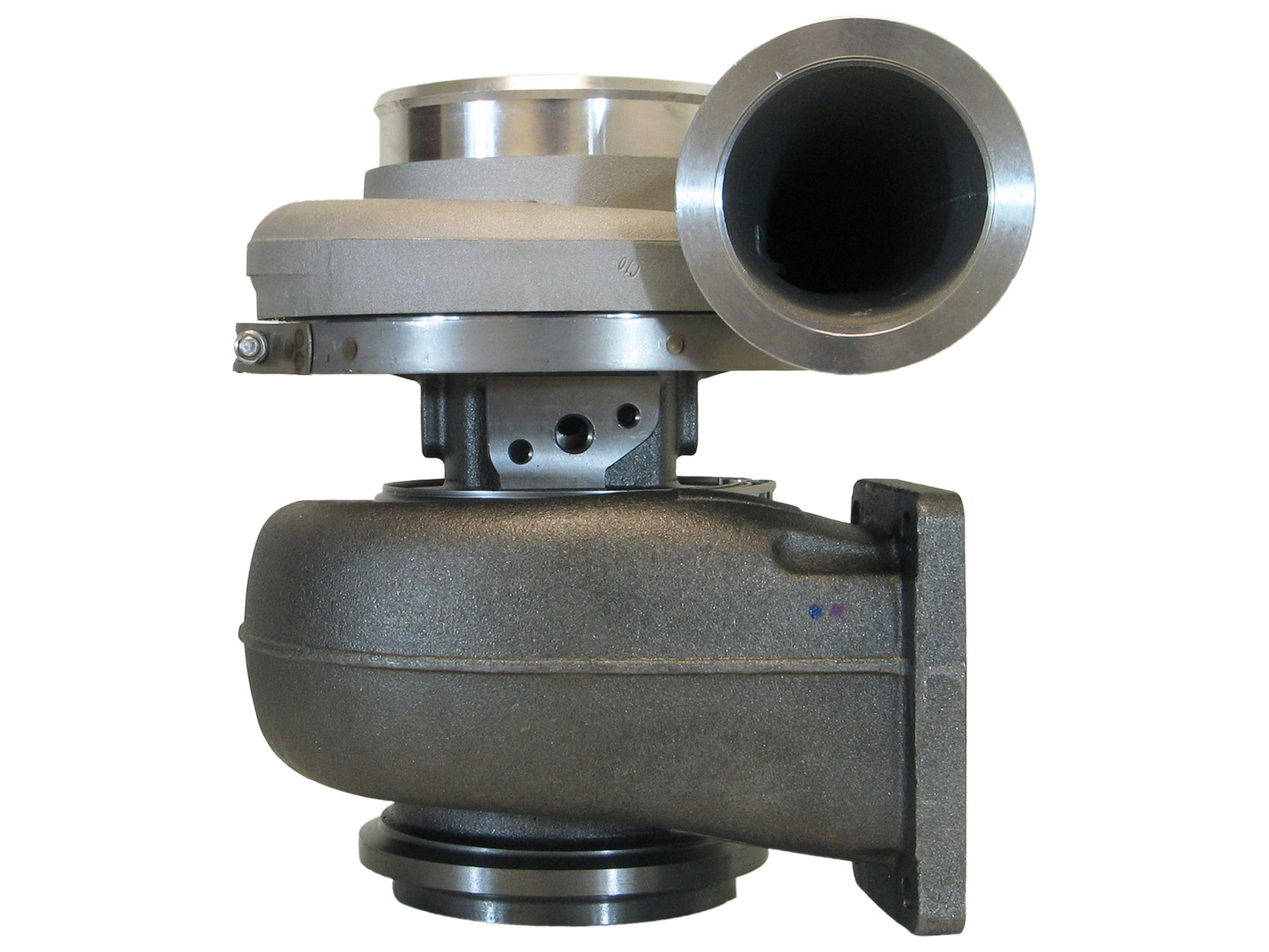

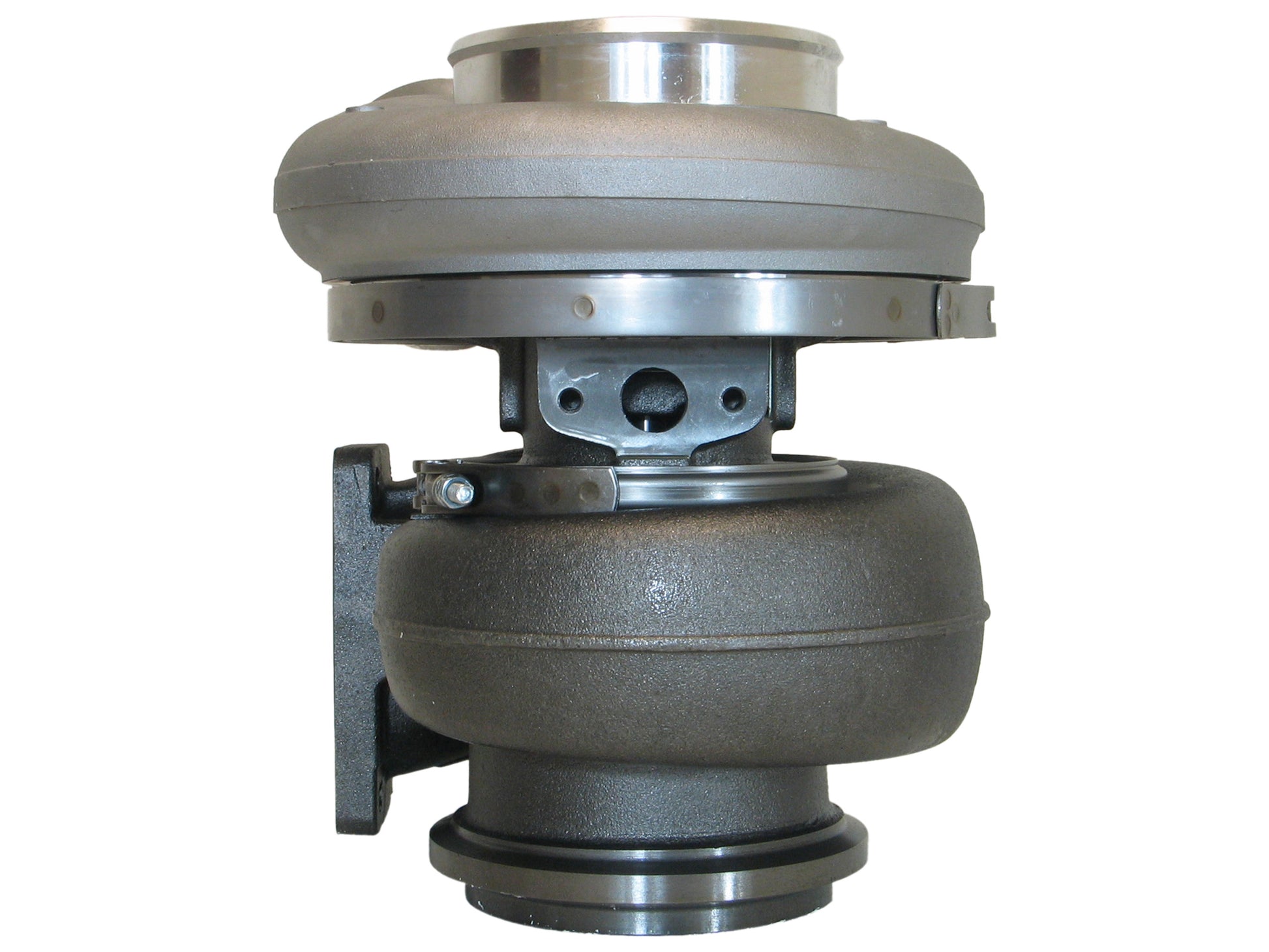

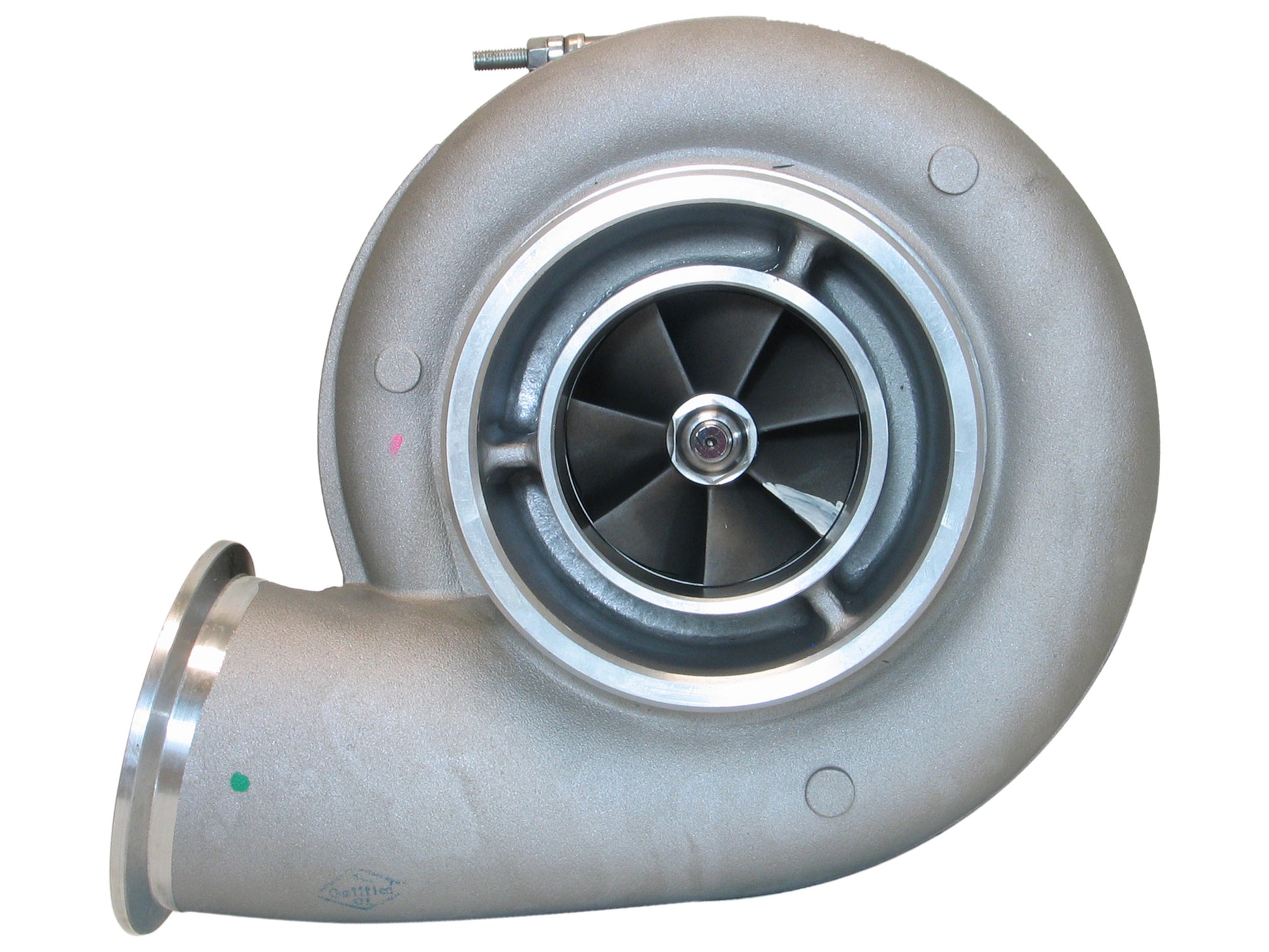

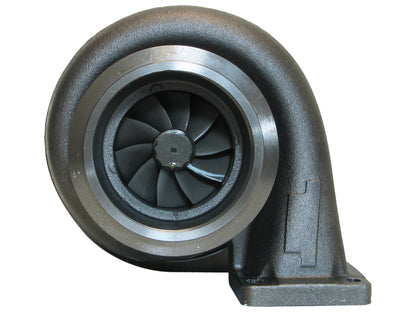

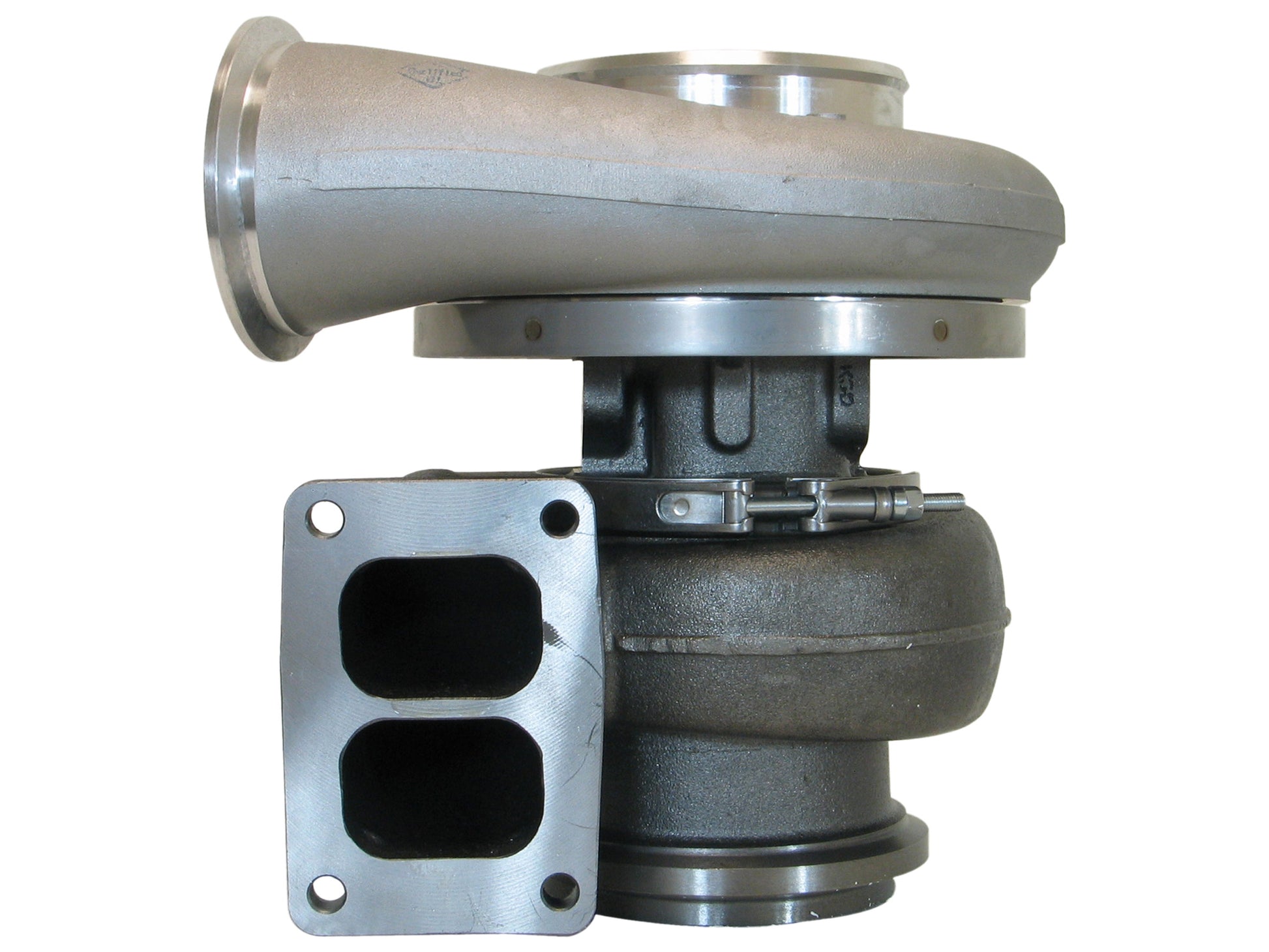

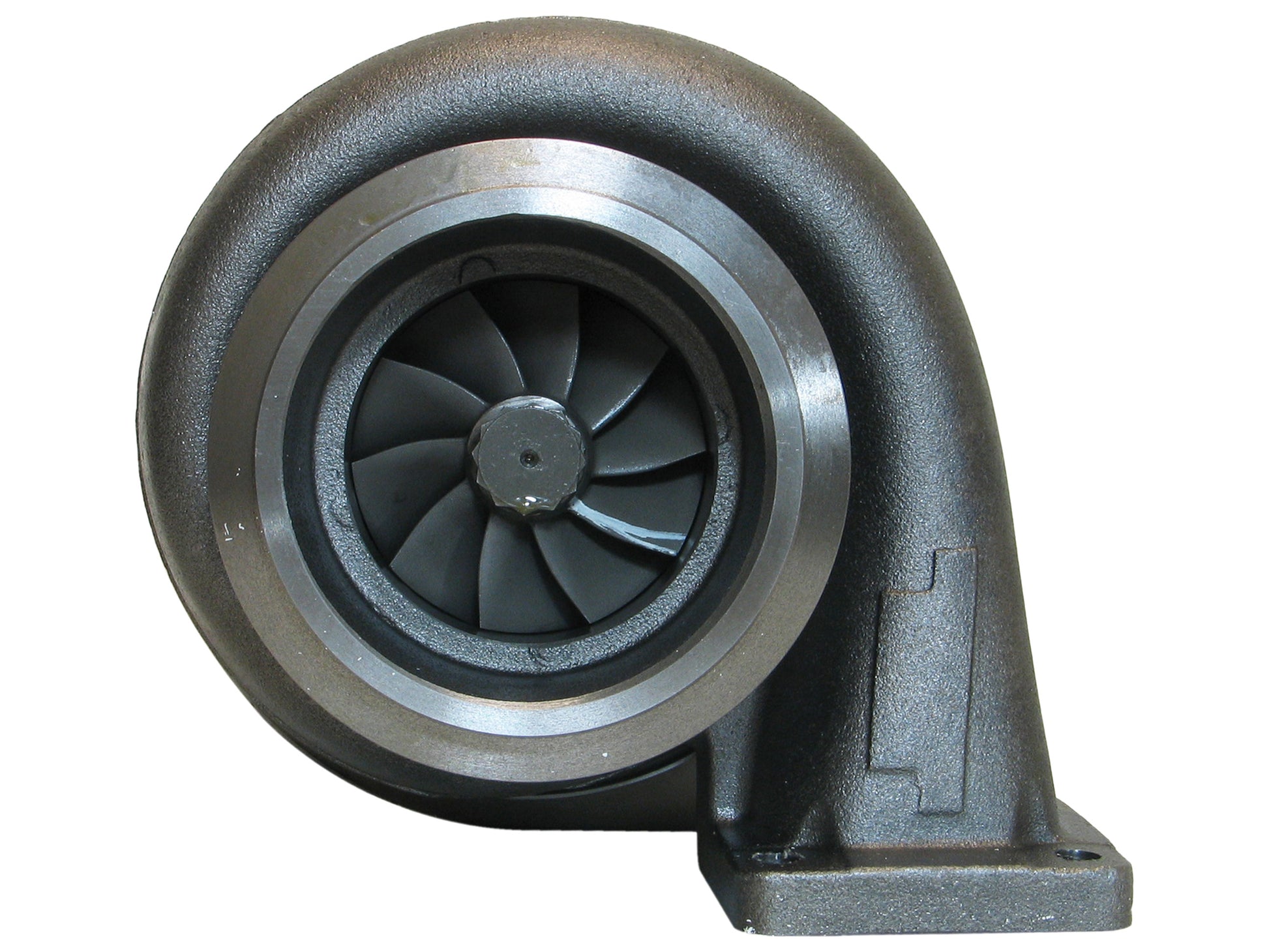

NEW S400S062 Upgrade Turbo Detroit Diesel Series 60 12.7L Engine 171702

NEW DIRECT REPLACEMENT PERFORMANCE UPGRADE TURBOCHARGER

This is a NEW DIRECT REPLACEMENT PERFORMANCE UPGRADE TURBOCHARGER. This is an exact, direct fit replacement turbo.

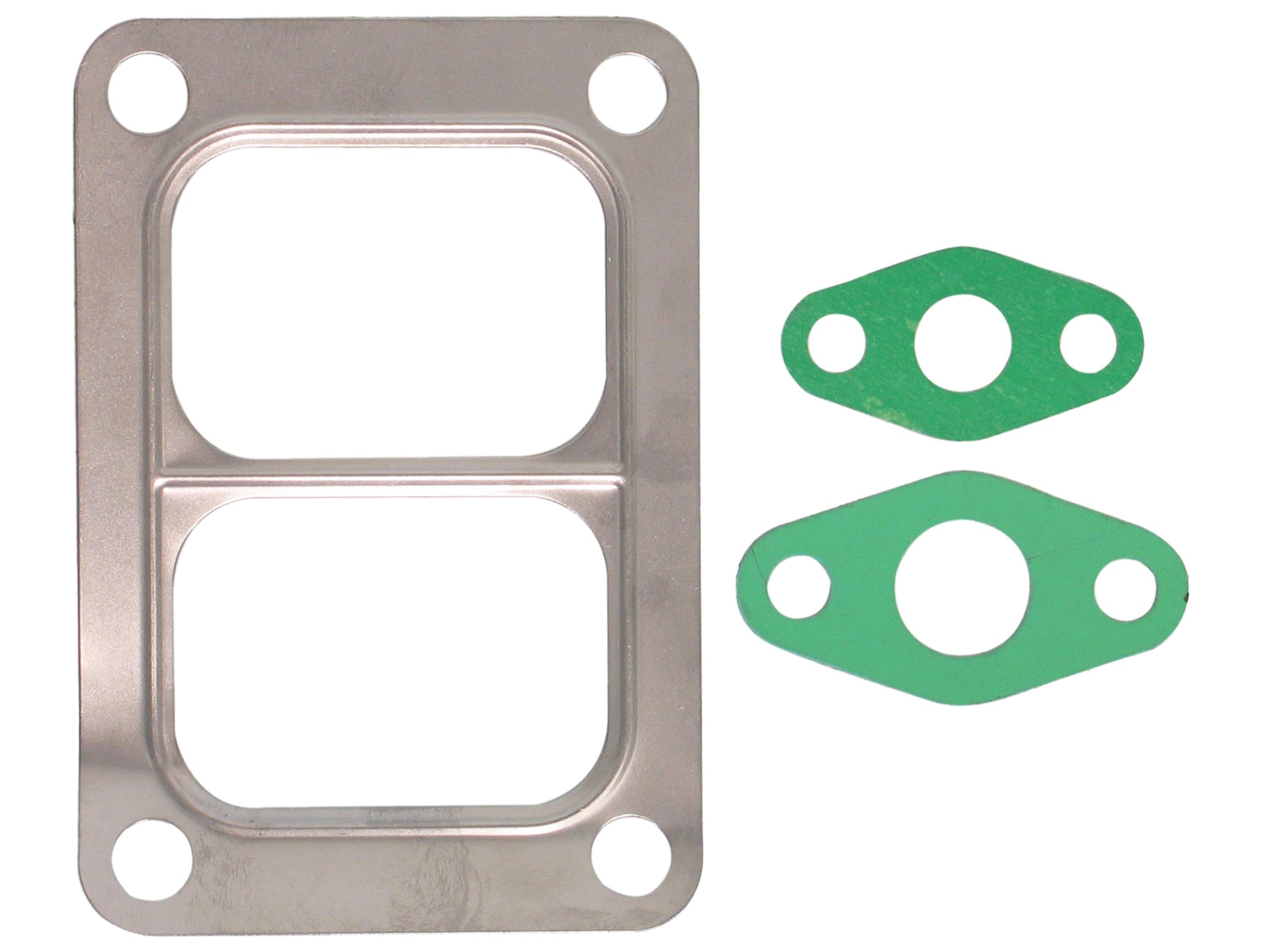

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 171702
Interchangeable Number: 466713-0005, 466713-5005, 466713-5005S, 466713-0006, 466713-5006, 466713-5006S
OEM Number: 23518588, 23518597, 23523197, 2585838C91
Turbo Model: S400S062, S400SX4

Year: 2000-08
Engine: Series 60
Engine Manufacturer: DDC-MTU, Detroit Diesel
Displacement: 12.7L, 12700 ccm
Fuel: Diesel
Power: 373/410 kW, 500/550 HP
Speed: 2100 RPM

Back Plate: 167783
Bearing Housing: 171695 (Oil Cooled)(1900011493)
CHRA: 171703 (171703R, 471703)(1000070097)
Compressor Housing: 171687
Compressor Wheel (Hipped): 171691
Compressor Wheel Inducer: 2.94 in (74.56 mm)
Compressor Wheel Outside Diameter: 3.94 in (100.17 mm)
Gasket Kit: 318417
Heat Shield: 167789 (2030016012)
Repair Kit: 176391 (318396, 318397)(1253400750, 5000030020)
Service Kit (360° Thrust Bearing): 14007110003 (1400-711-0003)
Service Kit (Standard): 176391
Turbine A/R: 1.32
Turbine Housing A/R: 1.32
Turbine Housing Flange: T6 Inlet
Turbine Housing Inlet Configuration: Volute, Twin Flow
Turbine Housing: 171698
Turbine Wheel Exducer: 3.47 in (88.05 mm)
Turbine Wheel Outside Diameter: 3.77 in (95.70 mm)
Turbine Wheel: 171689

PRODUCT FEATURES:

- Twin hydrodynamic journal bearings.
- Extended tip technology compressor wheel.
- Twin scroll turbine housing.
- Adjustable compressor and turbine housing orientation.
- Compressor cover recirculation grooves.

NOTE:

- Complete replacement turbo.
- Internal parts not interchangeable.

Application:
2000-08 Gen Set with DDC-MTU Series 60 Engine
2000-08 Navistar, International Harvester Truck with DDC-MTU Series 60 Engine
2000-08 Truck with DDC-MTU Series 60 Engine

TurboTurbos Part Number: TP04-0171-26

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
