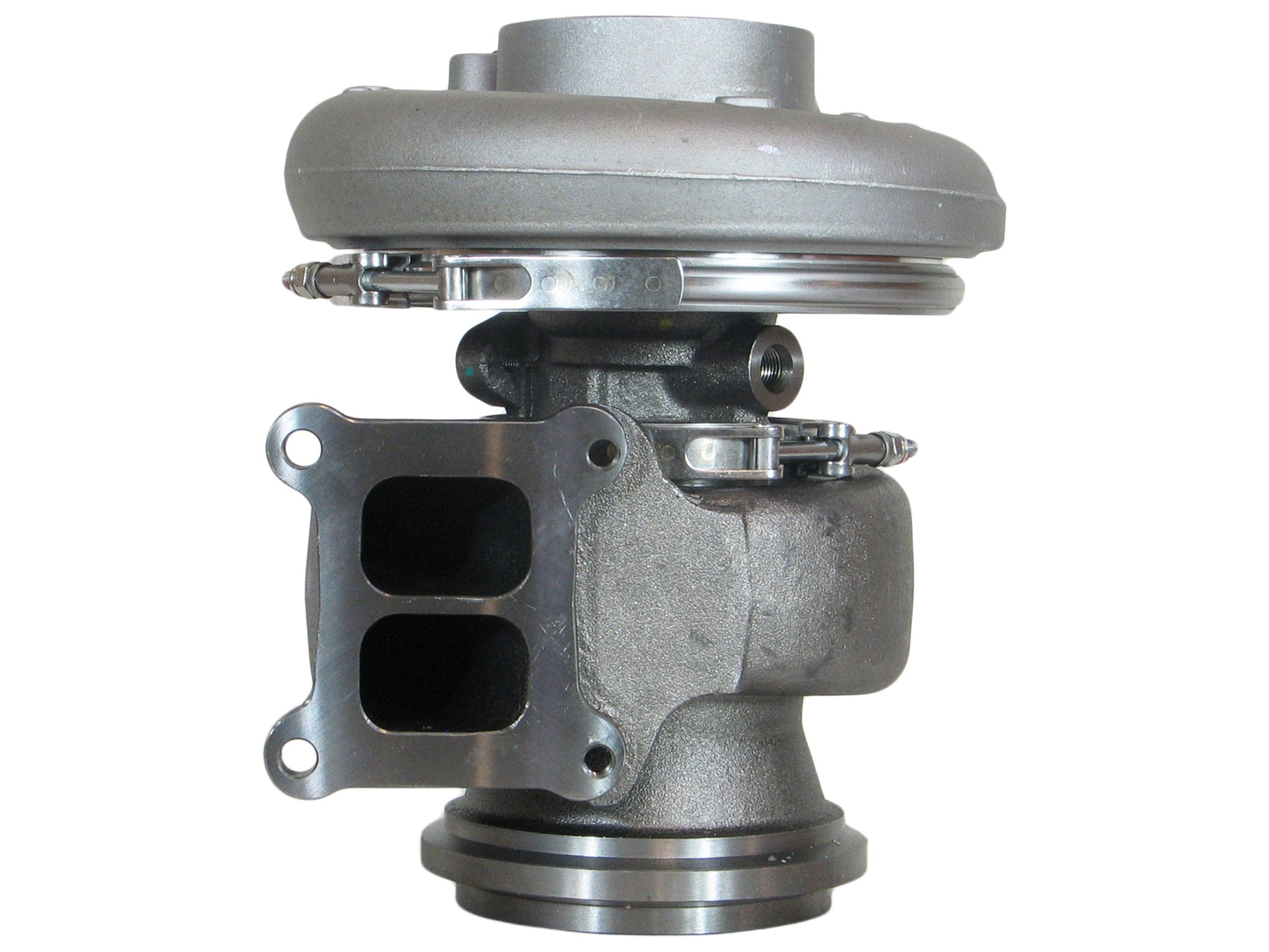

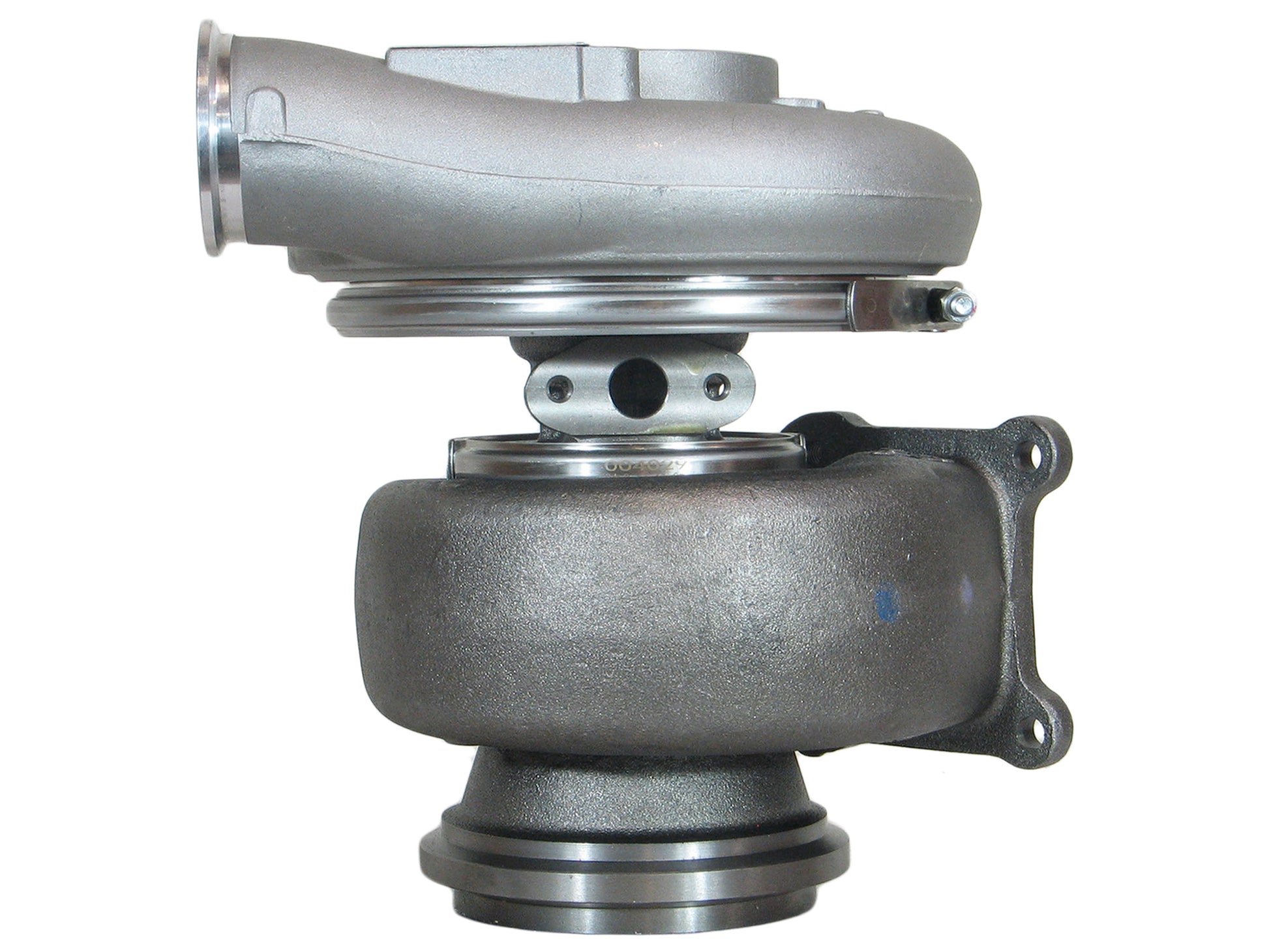

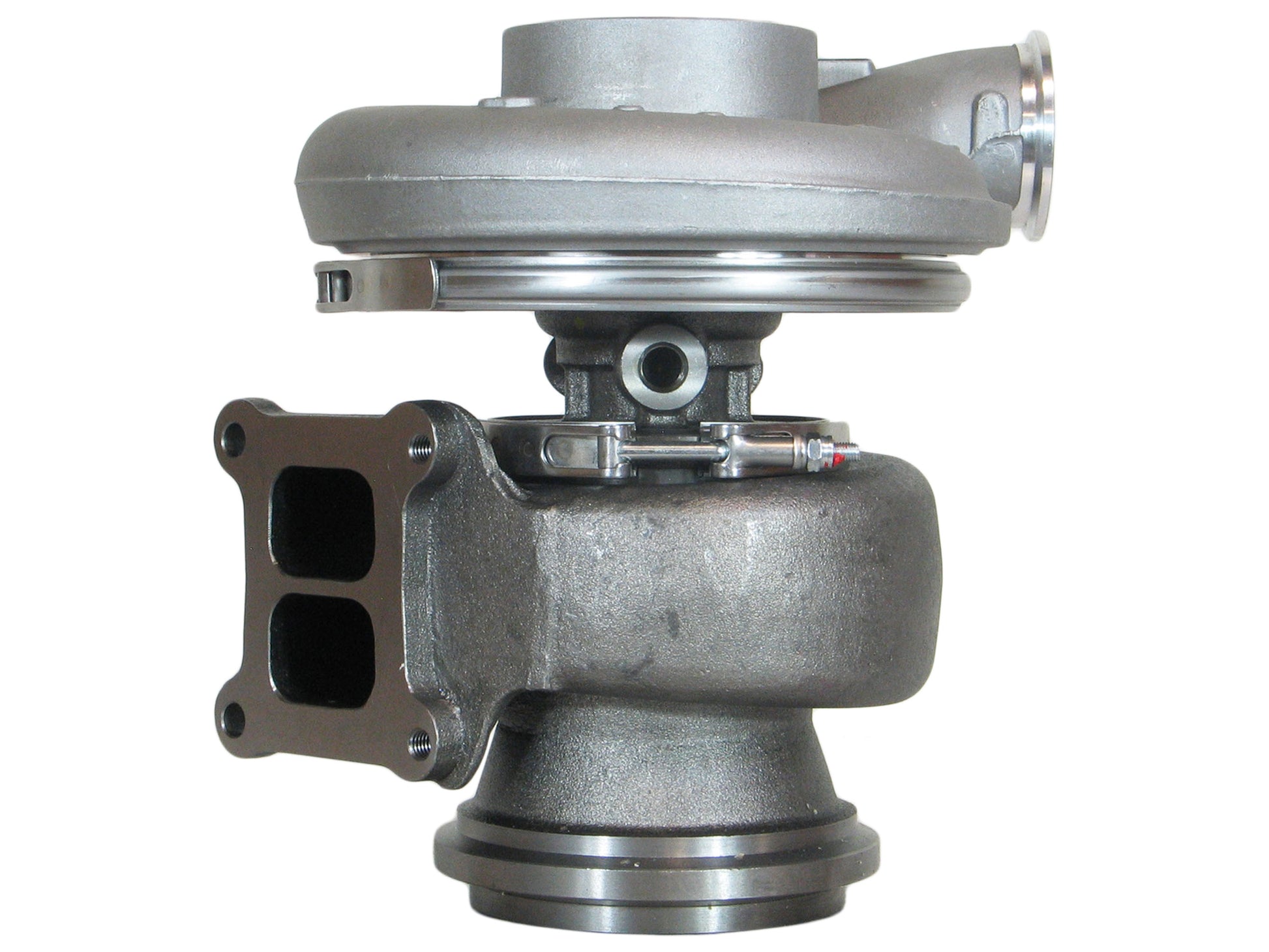

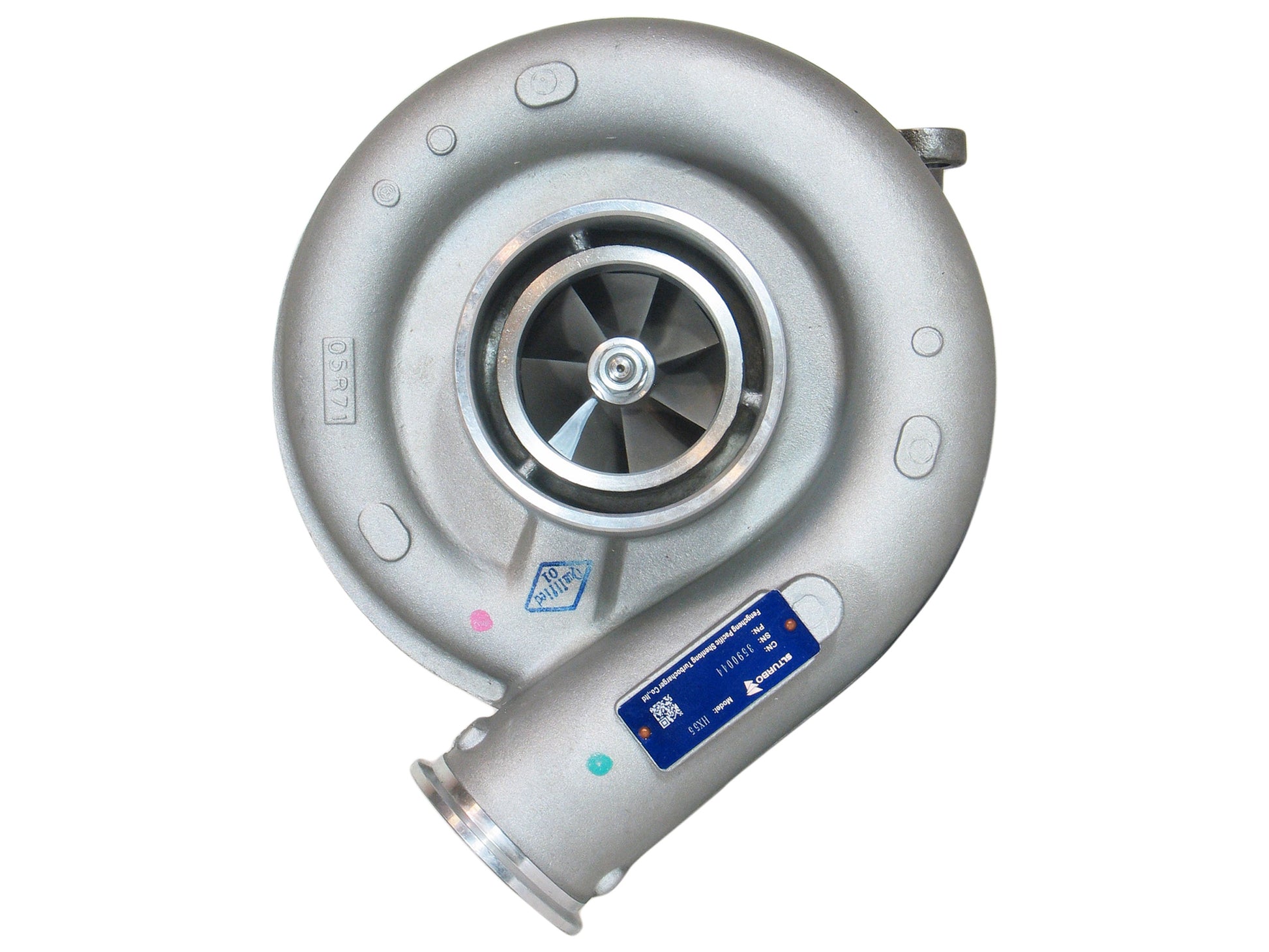

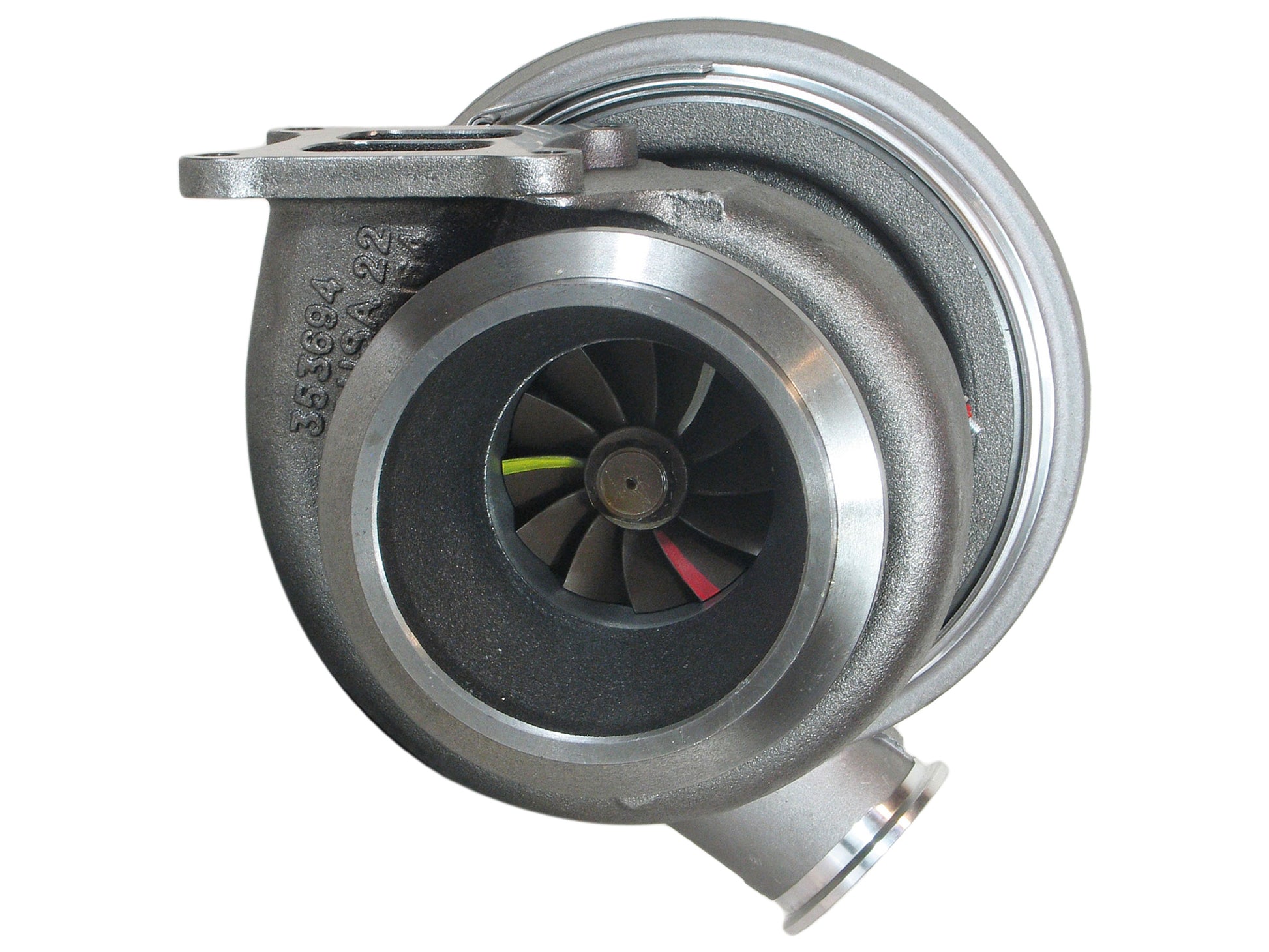

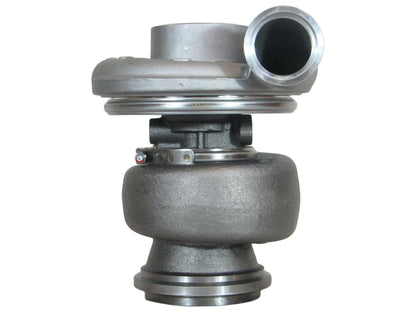

NEW HX55 Turbo International Truck Bus Cummins ISM ISME M11 11.0L Diesel 3590044SKU: TP05-0011-26
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 3590044
Interchangeable Number: 2834419, 3536995, 3536996, 3590045, 3593606, 3593607, 3599045, 3780171, 3788312, 4033813, 4033813H, 4039173, 4046031
OEM Number: 3800471, 3800471RX, 3803938
Turbo Model: HX55-E9861L/H22E11D, HX55
Engine: B5.9-C, ISM, ISME380 20, ISME Euro 2, ISME Euro 3, ISME, M11
Engine Manufacturer: Cummins
Displacement: 11.0L, 1100 ccm
Angle α (Compressor Housing): 8/153/264/330°
Angle ß (Turbine Housing): 90/92/130°
Back Plate: 3528096 (1153055300)
Bearing Housing: 3535704
CHRA: 3580726 (1153055900)
Compressor Cover (Noise Baffle): 3595516
Compressor Cover (Ring): 3531238
Compressor Cover: 3594775
Compressor Wheel: 3534329/4041666 (Ind. 65.1 mm, Exd. 99.06 mm, 12 Blades)
Gasket (Oil Outlet): 129119 (1900000035)(201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)
Gasket (Oil Outlet): 210060 (311585, 148062, 2475013)(Paper)
Gasket (Turbine Inlet): 409123-0002 (310694)(Inox Steel)
Heat Shield: 3529846/3533038 (1153055340)
Repair Kit: 3580762/3575181 (1153055750)
Turbine Housing: 3536942
Turbine Wheel: 3535983 (Ind. 85.8 mm, Exd. 76.95 mm, 12 Blades)(1153055436)
1996-99 Truck, Bus with Cummins ISM, ISME, M11 Engine
1999-09 Truck, Bus with Cummins M11 Engine
2007-12 Truck, Bus with Cummins ISM, ISME, ISME Euro 2, ISM Euro 3, M11 Engine
International with Cummins ISM, ISME, M11 Engine
TurboTurbos Part Number: TP05-0011-26
