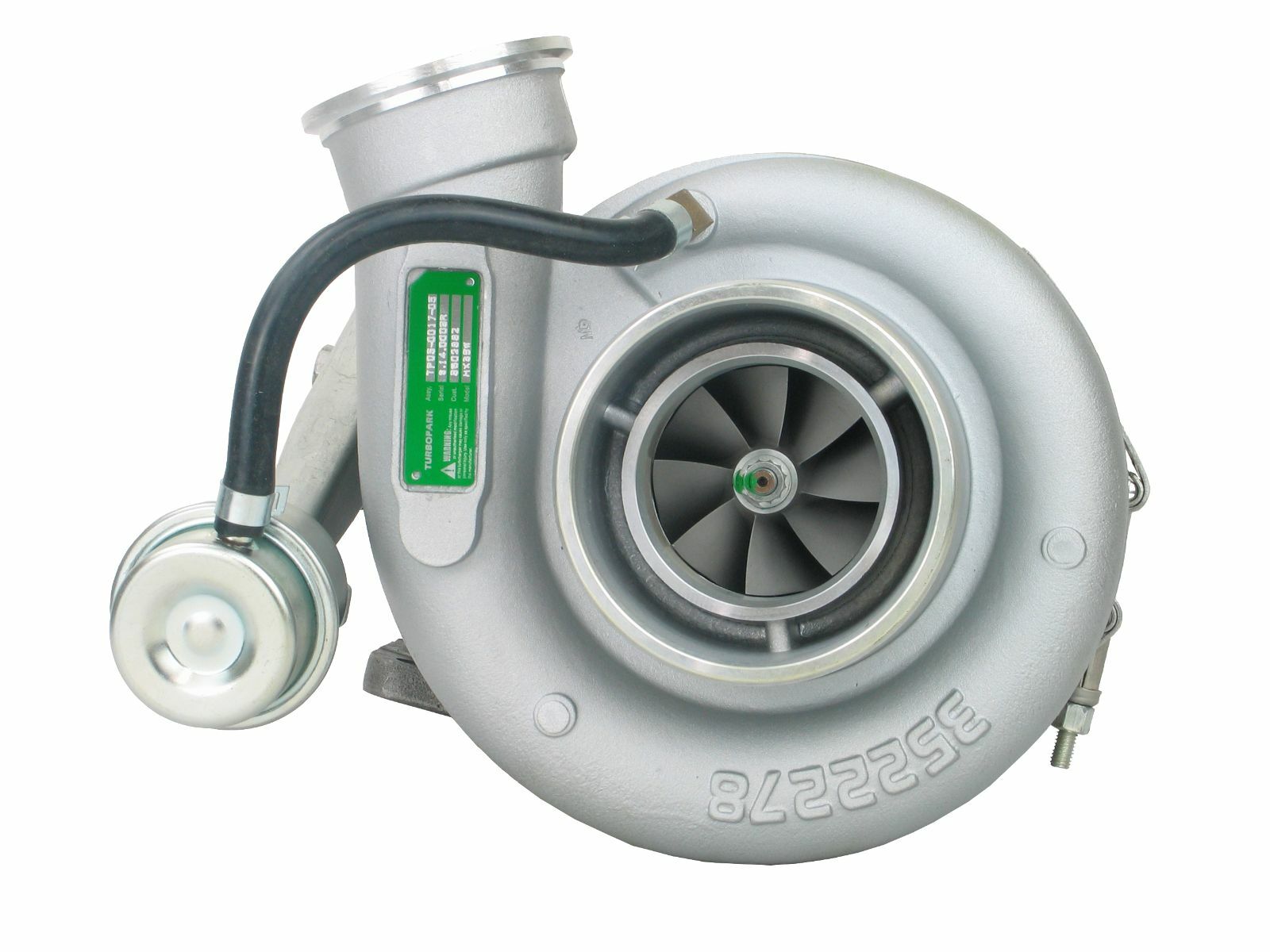

NEW HX35W Turbocharger Dodge Ram Truck Cummins 5.9L 6BTAA Diesel Engine 3539369SKU: TP05-0017-05
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 3539369
Previous Part Number: 3534919, 3532490, 3538414
OE Number: 3802678, 3802841, 3802992
Description: Truck w/ auto trans
Applications: 1992-12 Dodge Ram, Truck with Cummins 6BTAA Engine
CHRA: 3537815 (3575215)
Turbo Model: HX35W, HX35W-L8274M/E12BC11
Manufacturer Part Number: 3534920, 3538415, 3532491, 3539370
Displacement: 5.9L, 5900 ccm
Engine Manufacturer: Cummins
KW: 180/210 HP
Angle α (compressor housing): 118°
Angle β (turbine housing): 130°
Bearing Housing: 3532632 (4027869, 4027443)(84.50 mm)
Turbine Wheel: 3519336 (3595832)(Ind. 70. mm, Exd. 60. mm, 11 Blades)(1152301435)
Comp. Wheel: 3599593 (3537167)(Ind. 56. mm, Exd. 83. mm, 8+8 Blades, Super back)
Back plate: 3530923 (1154351300)
Heat shield Number: 3519302 (1152301340)
Repair Kit: 3575169 (1153035750)
Turbine Housing: 4030458
Compressor Cover: 3591006
Gasket (turbine inlet): 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006)
Gasket (Cover plate): 3535001
Gasket (oil outlet): 210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper)
Replaced by: 3539370
TurboTurbos Part Number: TP05-0017-05
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
