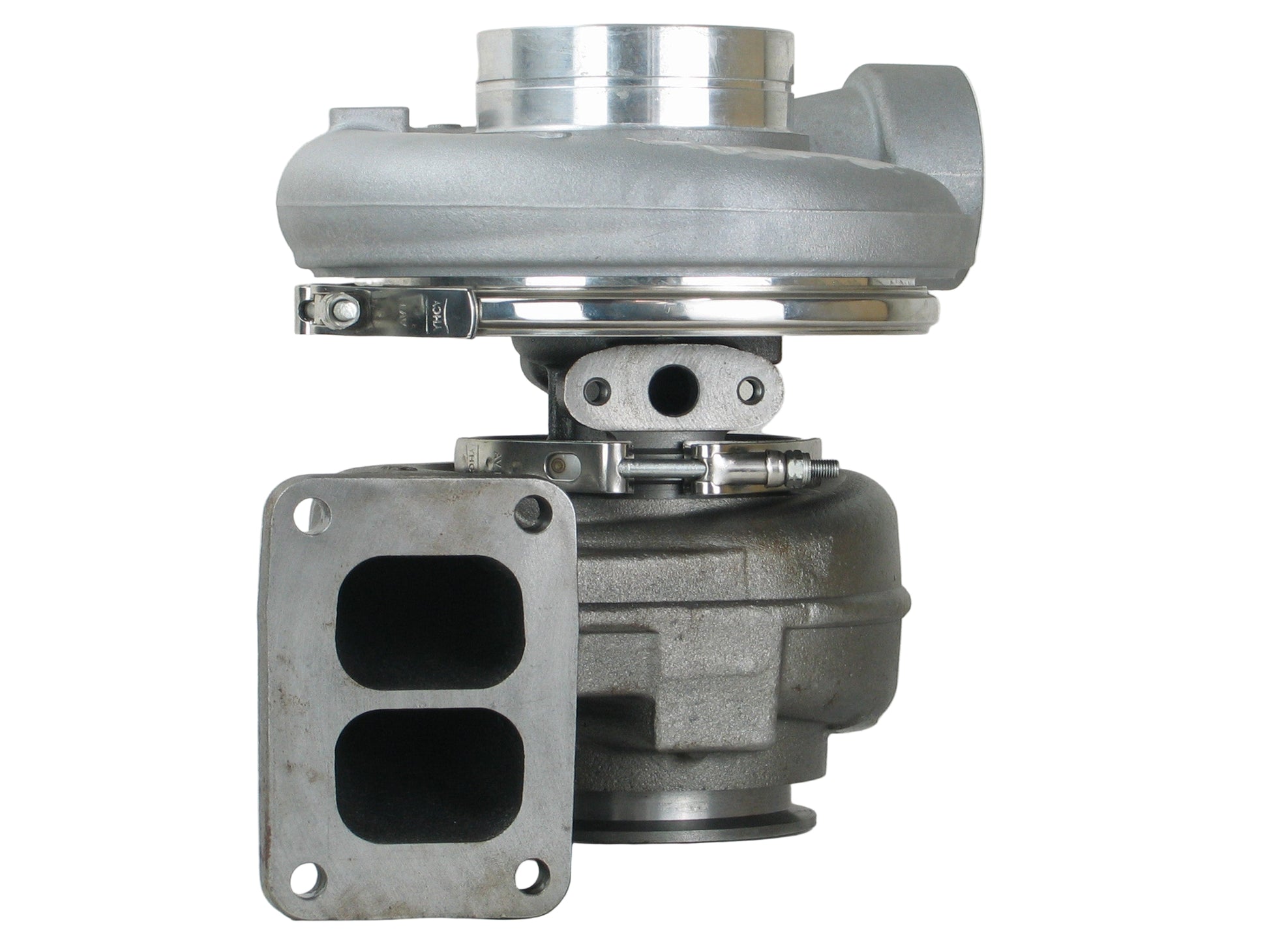

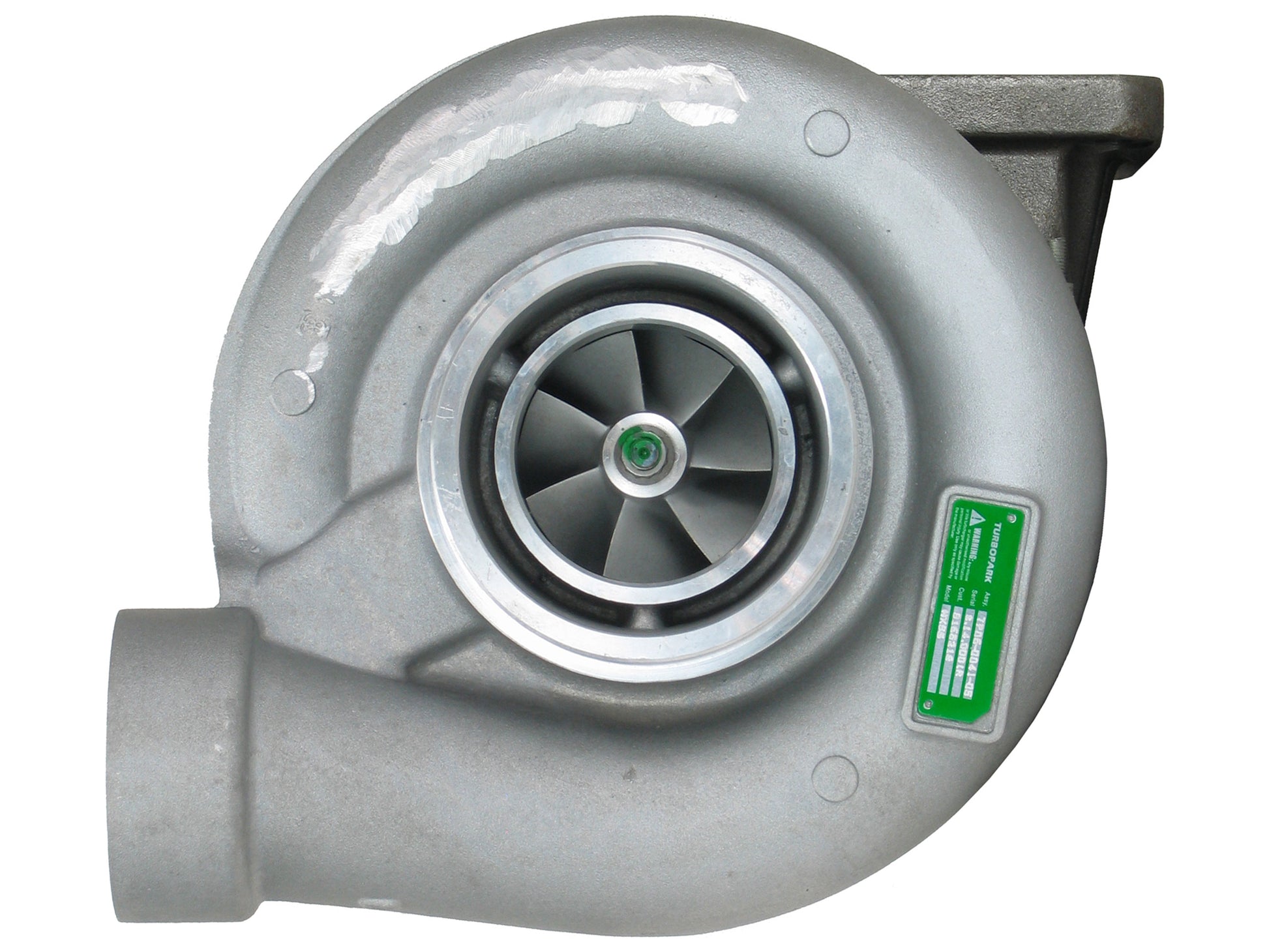

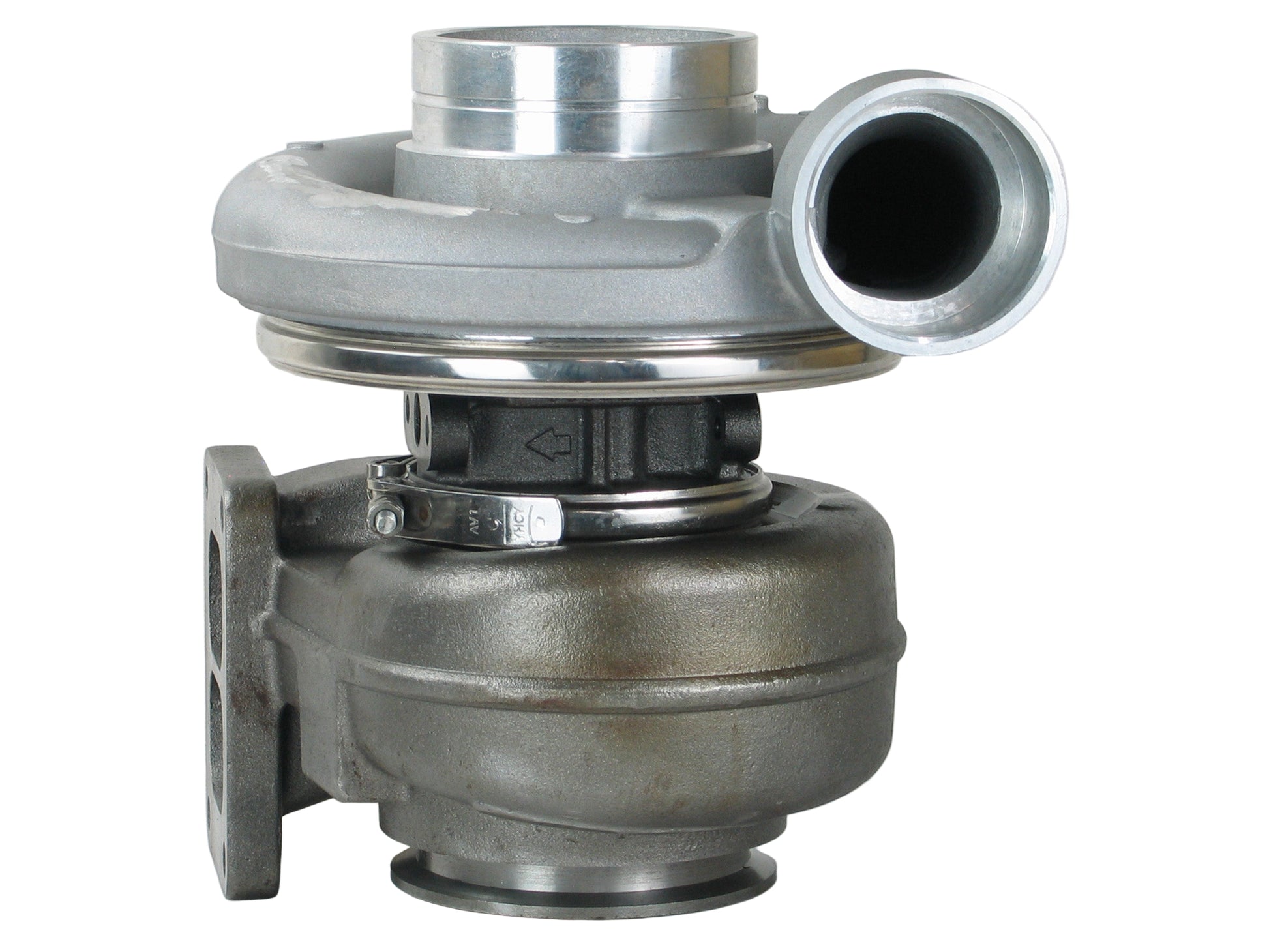

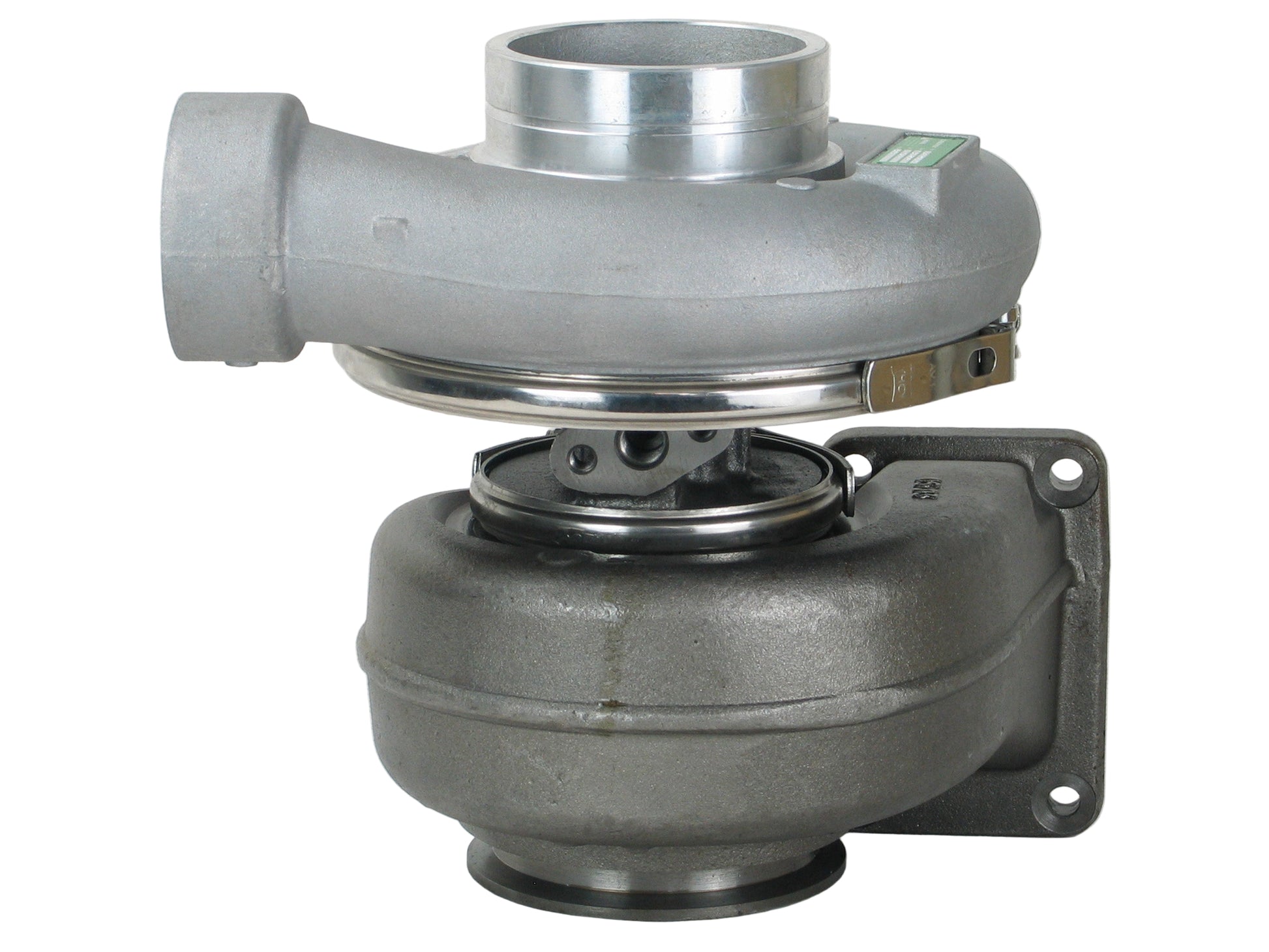

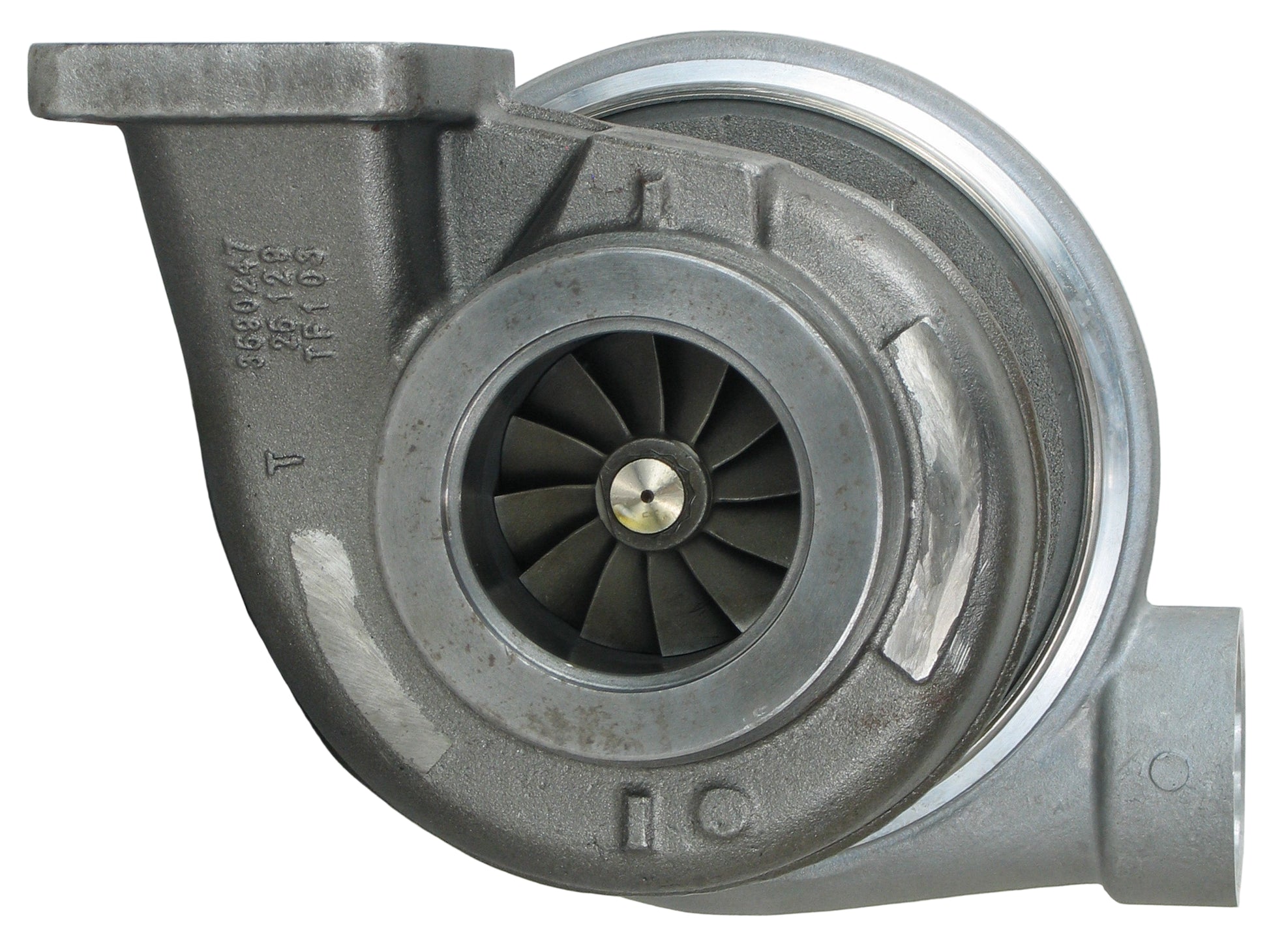

NEW HX55 Turbo Volvo Truck FH12 FM12 Truck D12 D12C D380 12.14L Engine 3591077SKU: TP05-0041-05
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 3591077
Interchangeable Number: 3531858, 3532692, 3533544, 3533545, 3533546, 3537913, 3591077-D, 3591077D, 3591078, 3591949, 4049337H, 452164-0001, 452164-5001, 452164-5001S, 712922-0002, 712922-5002, 712922-5002S
OEM Number: 1676089, 1677098, 1677725, 1677726, 3165219, 425720
Serial Number: W060807595
Turbo Model: HX55-E9861E/T25VB15A, HX55
Engine: D12, D12C, D380 Euro 3
Displacement: 12.14L, 11950 ccm, 6 Cylinders
Power: 385-425 HP
Angle α (Compressor Housing): 130°
Angle ß (Turbine Housing): 180°
Back Plate: 3528096 (1153055300)
Bearing Housing: 3590231/4039258
CHRA: 4027027 (1153055902)
Compressor Cover: 3591065
Compressor Wheel: 4041666 (Ind. 65 mm, Exd. 99 mm, 7+7 Blades)
Gasket (Oil Inlet): 147837 (210023)
Gasket (Oil Outlet): 210060 (2475013)
Gasket (Turbine Inlet): 409038-0000 (132040, 52231083002)
Heat Shield: 3529846/3533038 (1153055340)
Repair Kit: 3580762/3575181 (1153055750)
Turbine Housing: 4039644
Turbine Wheel: 3533543/4038182 (Ind. 86 mm, Exd. 80 mm, 12 Blades)(1153055435)
1998-01 Volvo FH12, FM12, Truck with D12C Engine
TurboTurbos Part Number: TP05-0041-05
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
