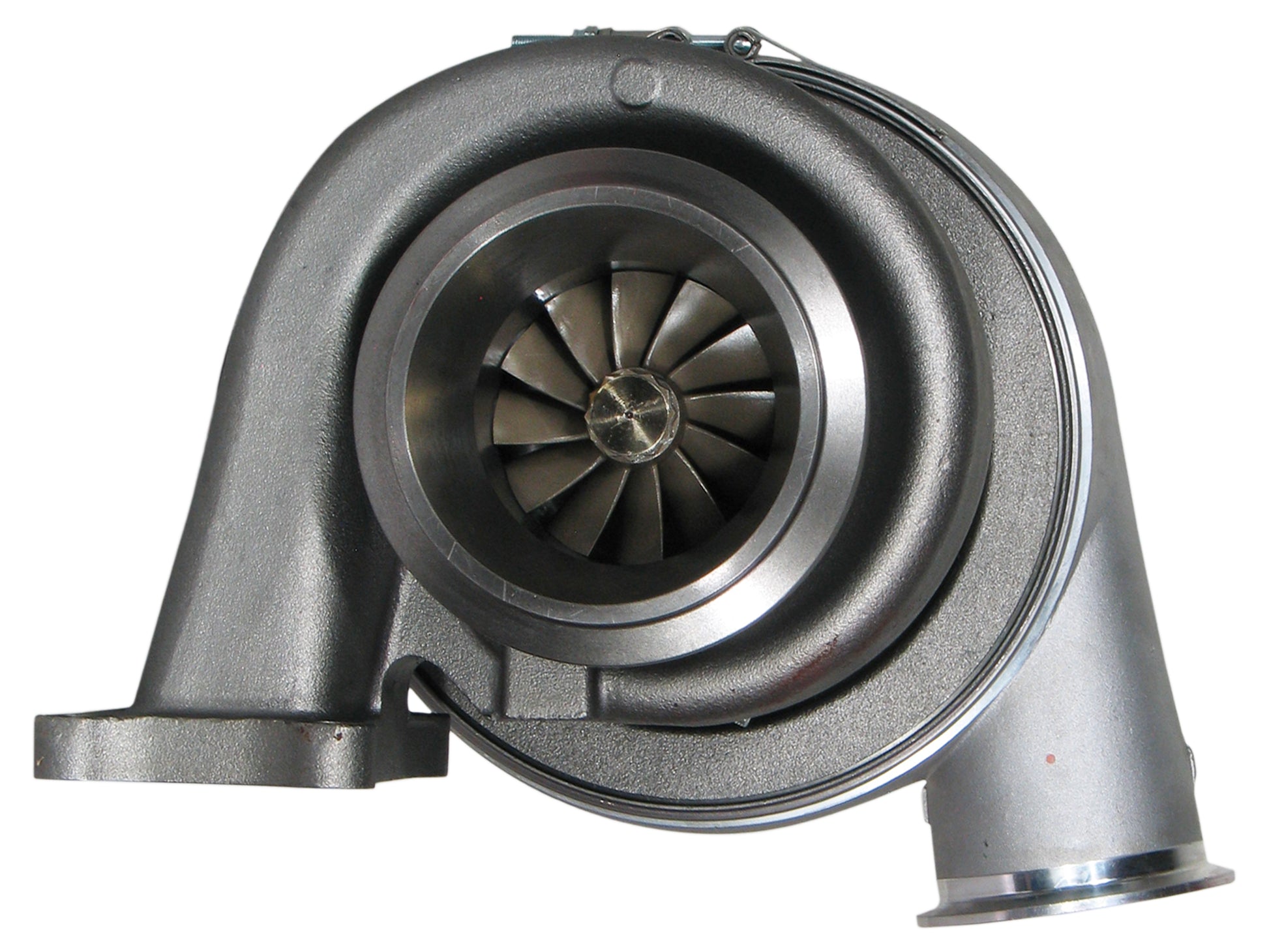

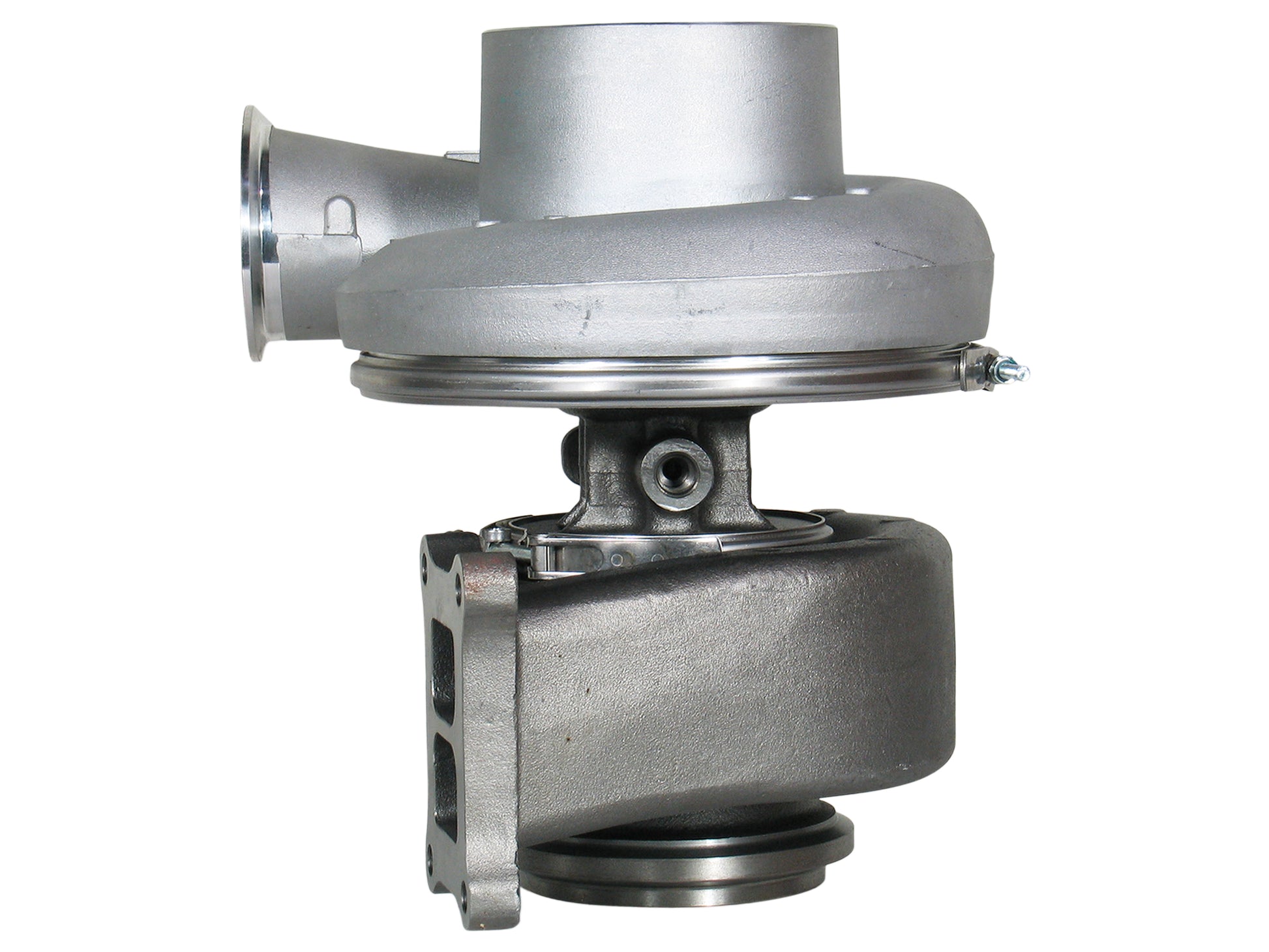

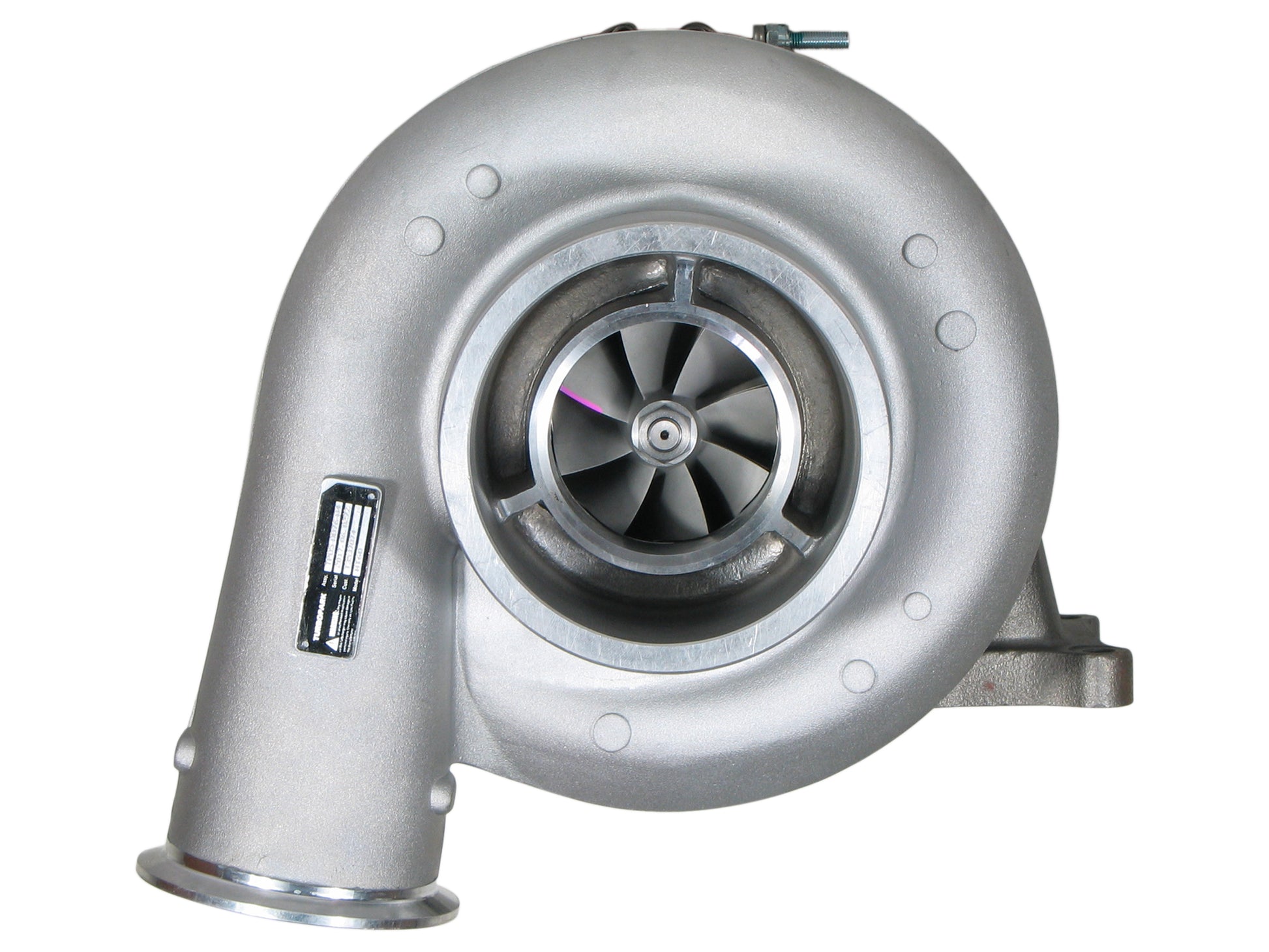

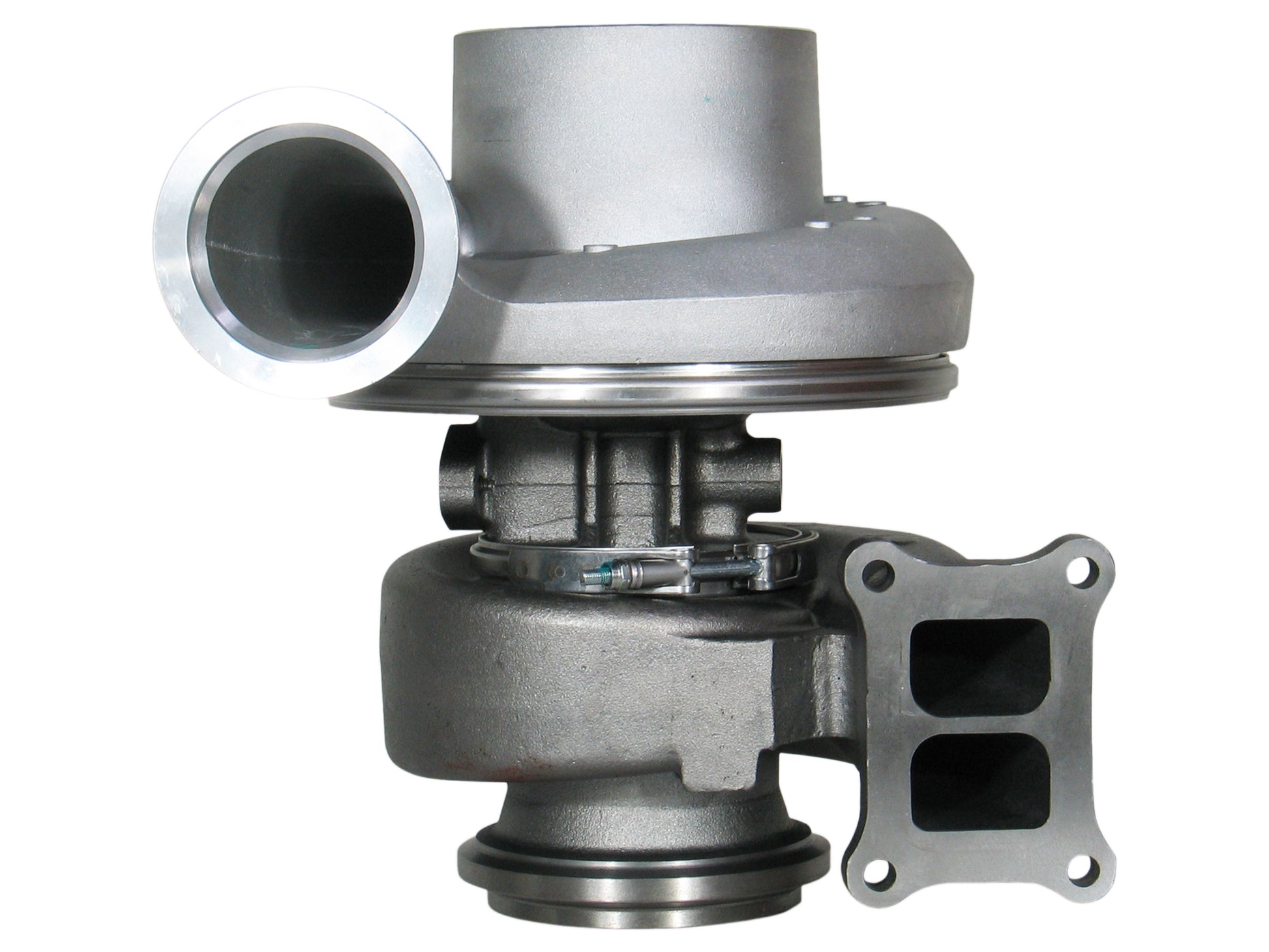

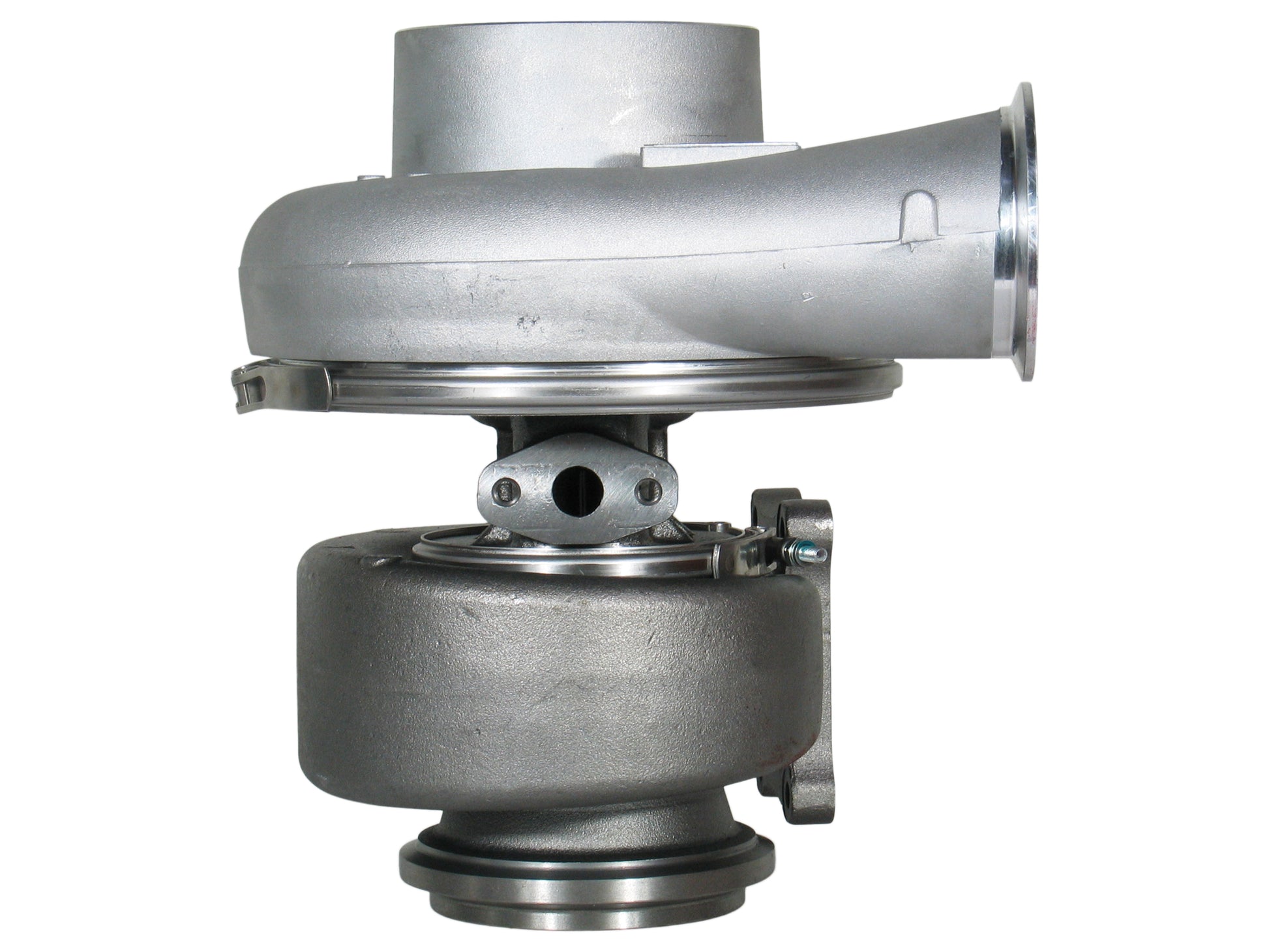

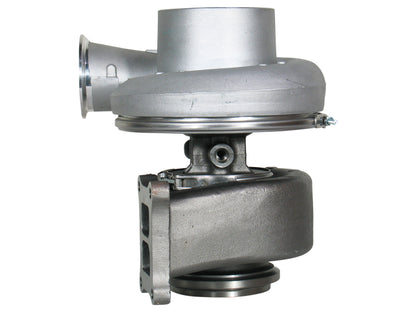

NEW HT60 Turbo Volvo Truck Industrial Cummins N14 NE1 Engine 3804502 3537074SKU: TP05-0076-04
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

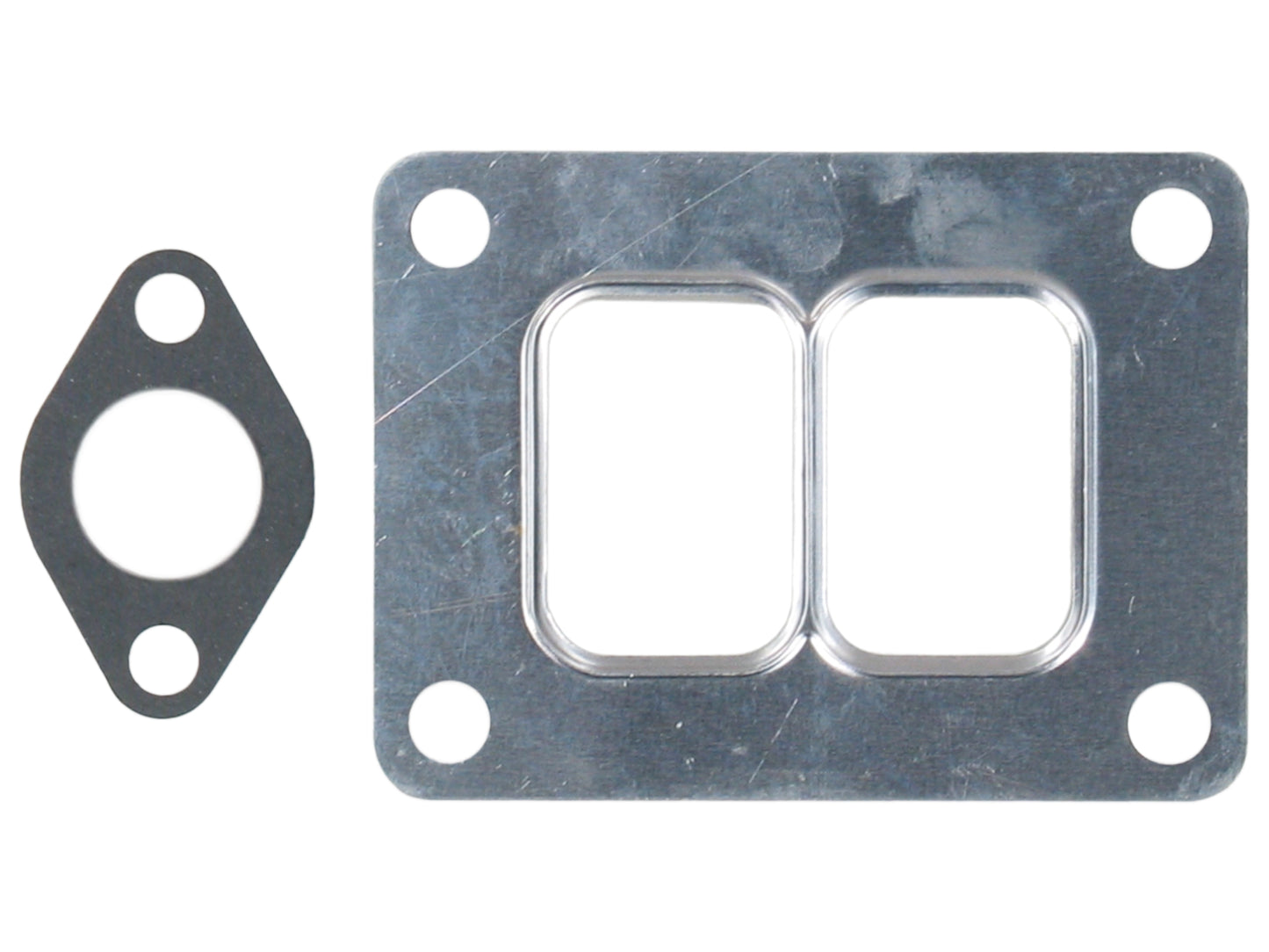

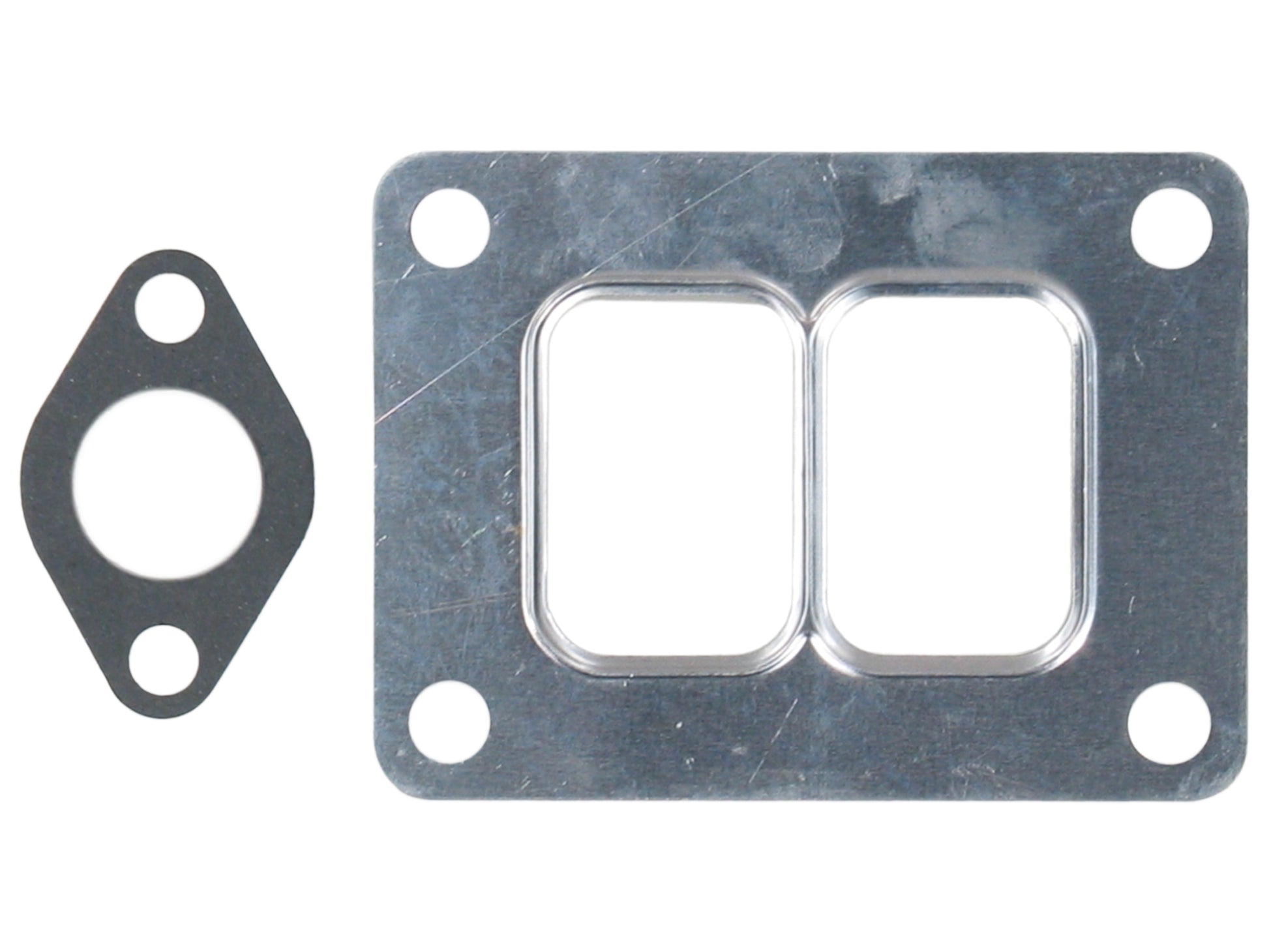

NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 3537074
Interchangeable Number: 172035, 3536263, 3536811, 3592512, 3592512H, 3592512HX, 3592678
OEM Number: 3592512, 3804502
Turbo Model: HT60, HT60-N0881A/AJ26K1
Engine: N14, N14 NE1, N14 NE1 Euro 2
Engine Manufacturer: Cummins, Volvo
CPL Number (N14): 2025, 2026, 2143, 2390, 2398, 2591
CPL Number (N14-R): 2575
CPL Number (N14E-R): 2388
CPL Number (N530E): 2228, 2306, 2492
CPL Number (NTA14-E): 2391, 2592
Angle α (Compressor Housing): 0°
Angle β (Turbine Housing): 360
Back Plate: 3759618 (3500710, 59618, 166084, 168084, 183472, 143144-0000)(1150704300)
Bearing Housing: 3536097
Compressor Wheel: 3527047 (3523226, 167051) (Ind. 73.5 mm, Exd. 109 mm, 8+8 Blades, Super Back)(1152304401)
Gasket (Oil Outlet): 210018 (3519763, 129120, 210018-0000, 201048, 157602, 3037537)(Paper)
Gasket (Turbine Inlet): 210532 (Inox Steel)
Gasket Kit: 3800266
Heat Shield: 3519155 (18373, 351915500)
Repair Kit: 3575230 (3545669)(1152304750, 1153060752)
Turbine Housing A/R: 27
Turbine Wheel: 3594952 (3522075, 196370)(Ind. 97 mm, Exd. 86.4 mm, 12 Blades)(1152304435)
1998- Volvo Truck, Industrial, Various with Cummins N14 NE1 Engine
TurboTurbos Part Number: TP05-0076-04
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
