HX25W Turbo CASE Backhoe Loader: 580SM, 590SM, 580SM+, 580 Super M Series II Iveco Industrial Generator 3599350SKU: TP05-0105-12
NEW DIRECT REPLACEMENT TURBOCHARGER
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

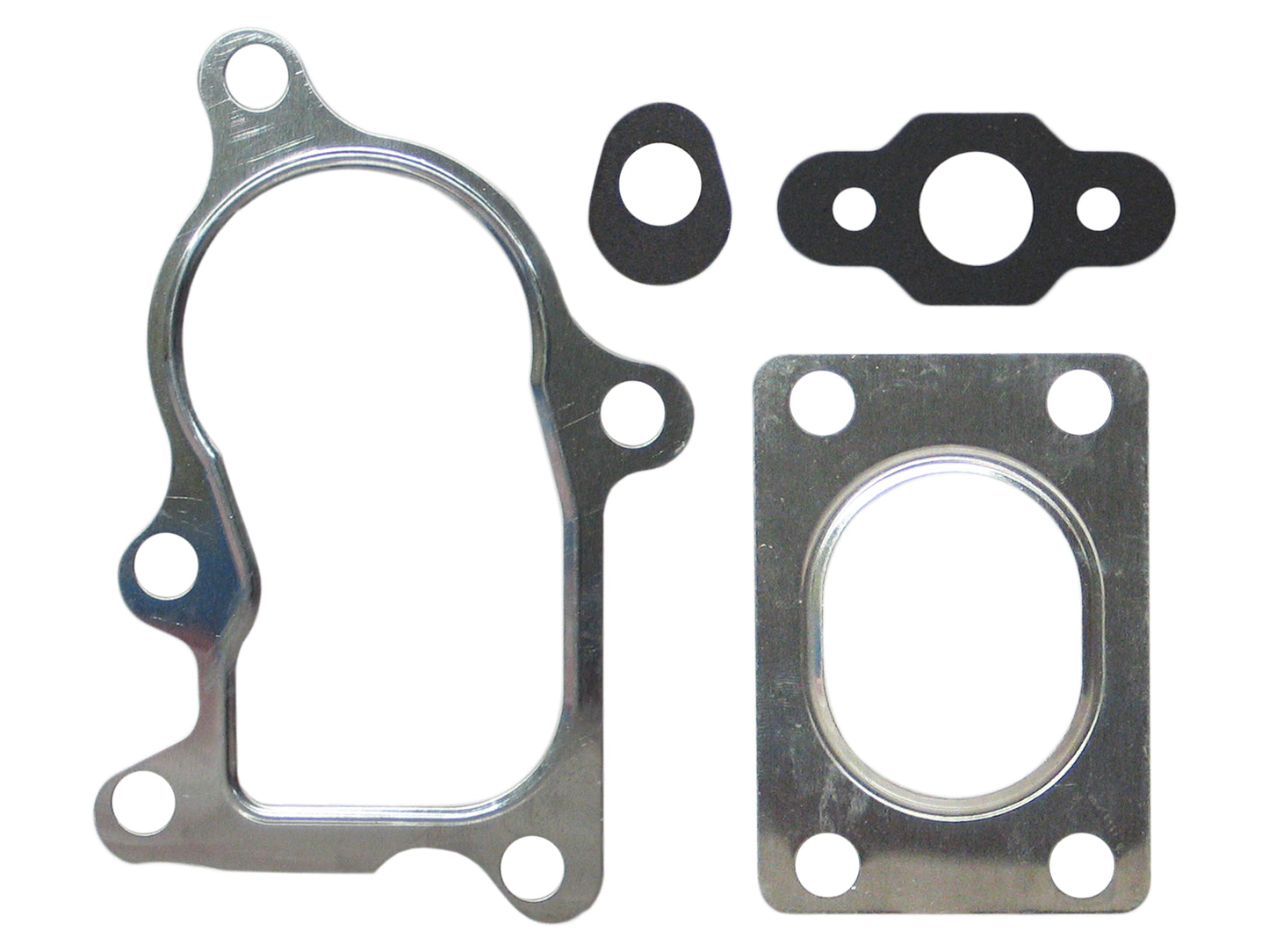

NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 3599350
Interchangeable Number: 3599351, 4033163, 4033163H, 4042194, 4033163H, 3599350, 4042194, 3599351, 1700320414, 170-032-0414, 2852068, 2852068R, 3599350, 3599351
4033163, 4033163H, 4042194,
OEM Number: 2852068, 504061374, 504061374, 504061374R
Turbo Model: HX25W, HX25W-TB11K/AO85BXL
Engine: 4 CYL 2V TC CASE Engine P70 P85
Engine Manufacturer: CDC (Consolidated Diesel Company)
Displacement: 3.9L, 3900 ccm, 4 Cylinders
Power: 99 HP
Angle α (Compressor Housing): 175°
Angle ß (Turbine Housing): 360°
Back Plate: 49135-00044 (1153025300)(S/Back)
Bearing Housing: 49189-26400 (1153025450)(Oil Cooled)
CHRA: 3539071 (1153025901)
Compressor Cover: 3599254
Compressor Wheel: (Ind. 38.76 mm, Exd. 55.88 mm, 6+6 Blades, Super Back)(1153025400)
Gasket (Oil Outlet): 210243 (Gasket Paper)
Gasket (Turbine Inlet): 210218 (Stainless Steel)
Gasket (Turbine Outlet): 210889 (Stainless Steel)
Heat Shield: 49183-19300 (11530253408)
Repair Kit: (1153025751)
Turbine Housing: 4036441
Turbine Wheel: 49189-30100 (Ind. 51.96 mm, Exd. 45.67 mm, 12 Blades)(1153025435)
2002-07 Iveco Backhoe Loader, Industrial, Generator with CDC 4 CYL 2V TC Engine
CASE Backhoe Loader: 580SM, 590SM, 580SM+, 580 Super M Series II
TurboTurbos Part Number: TP05-0105-12
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
Any questions or concerns, please feel free to email or call us.
For our Warranty / Return Policy, please see our Policies at the top of the website.
