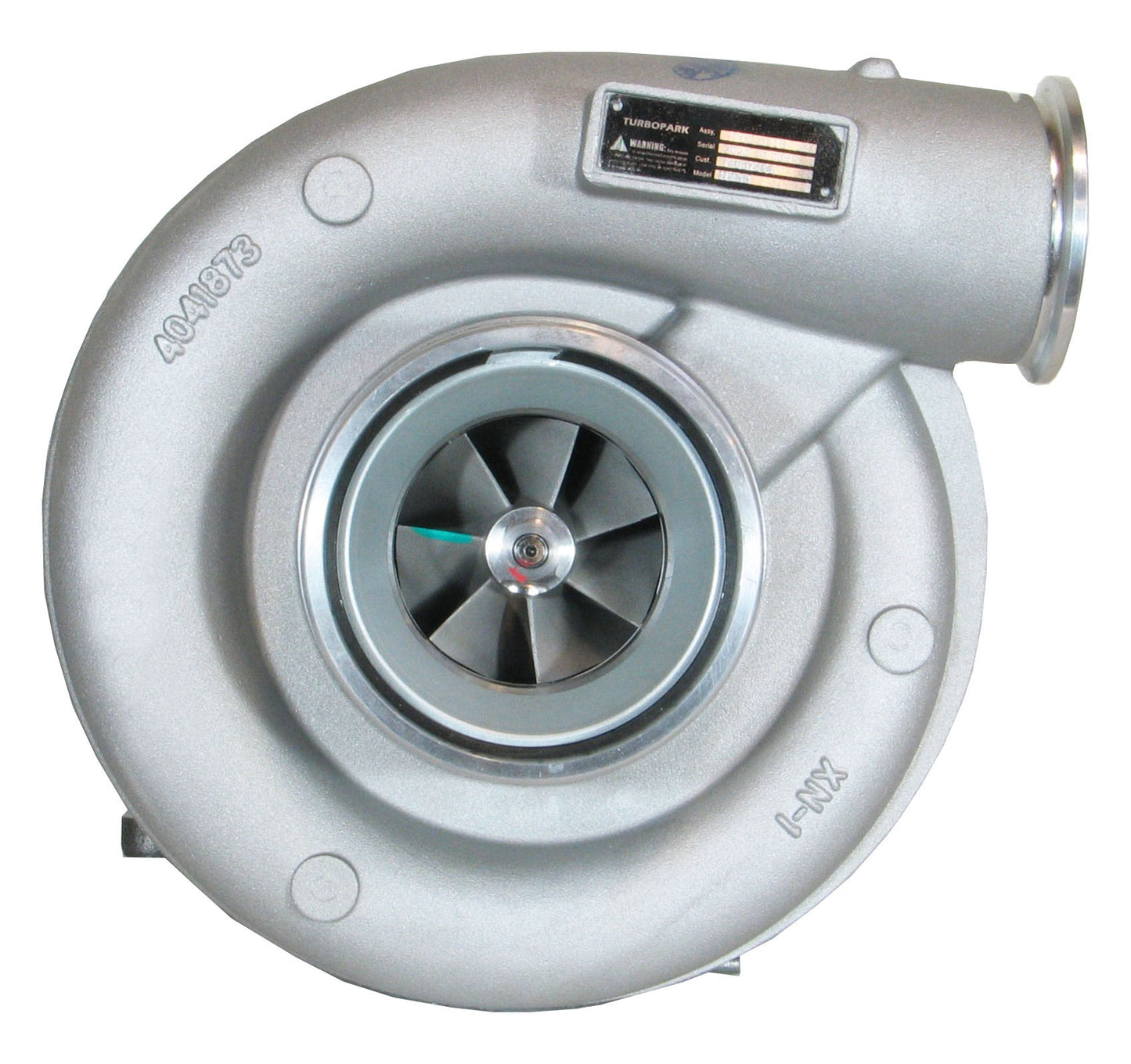

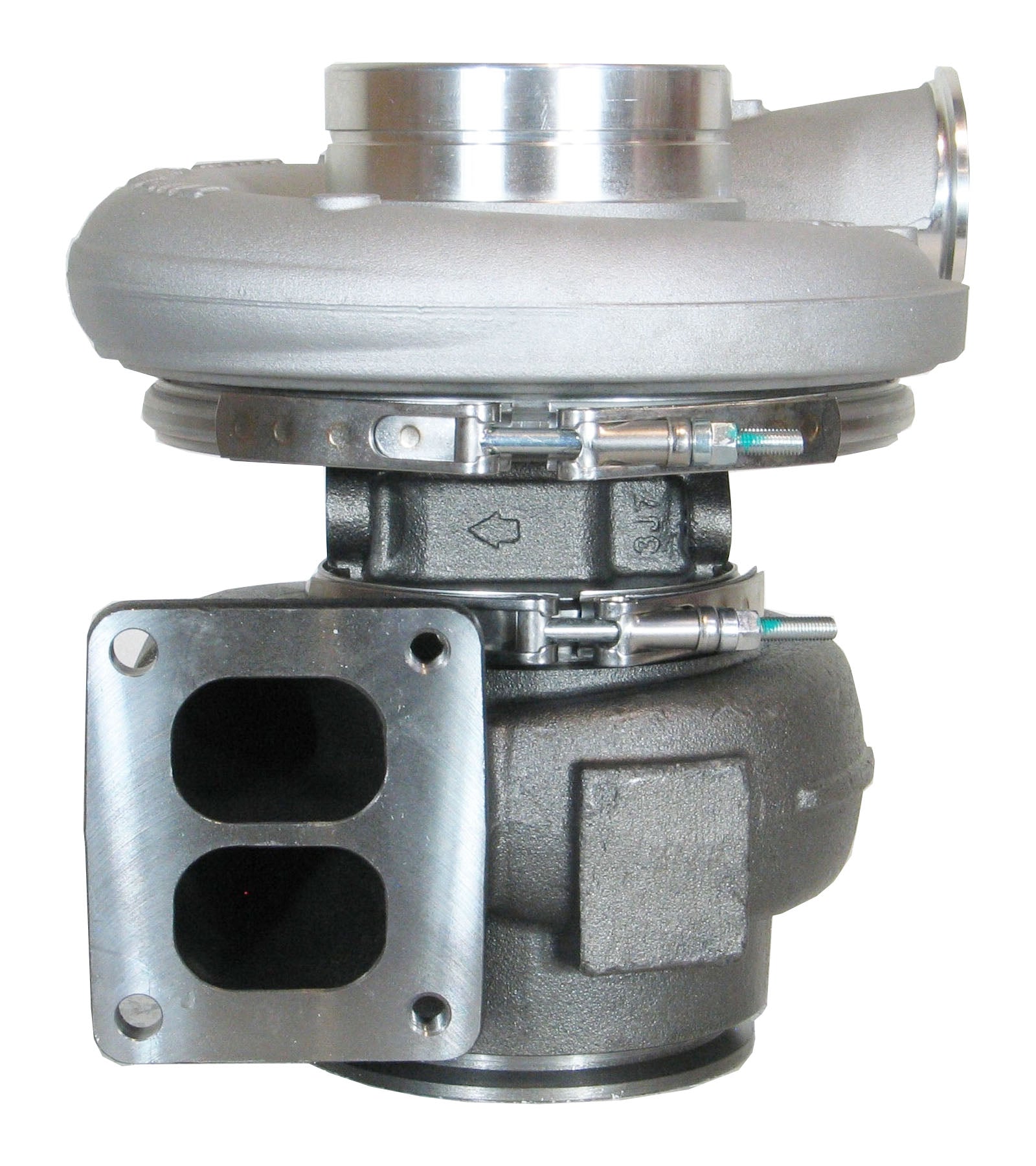

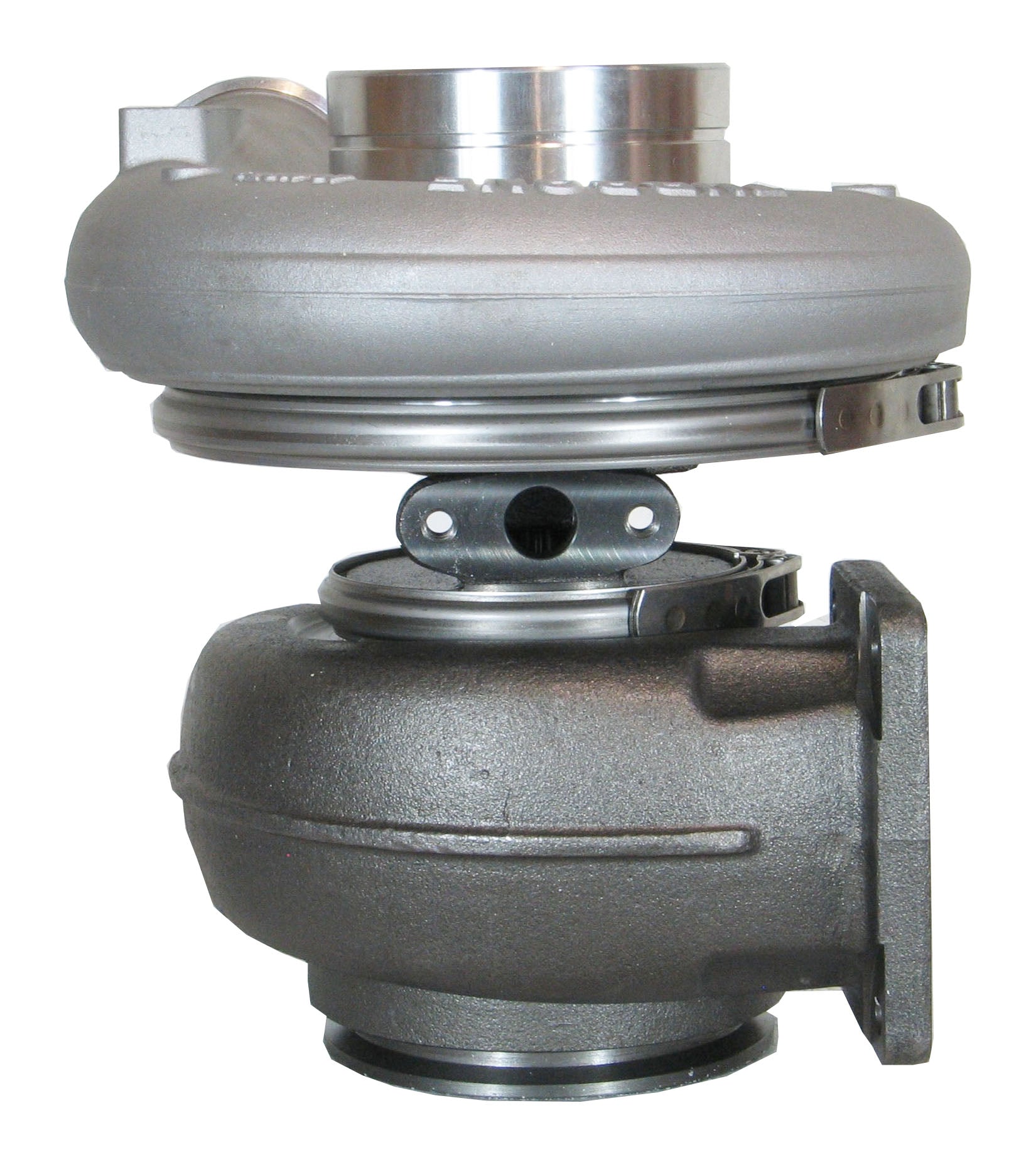

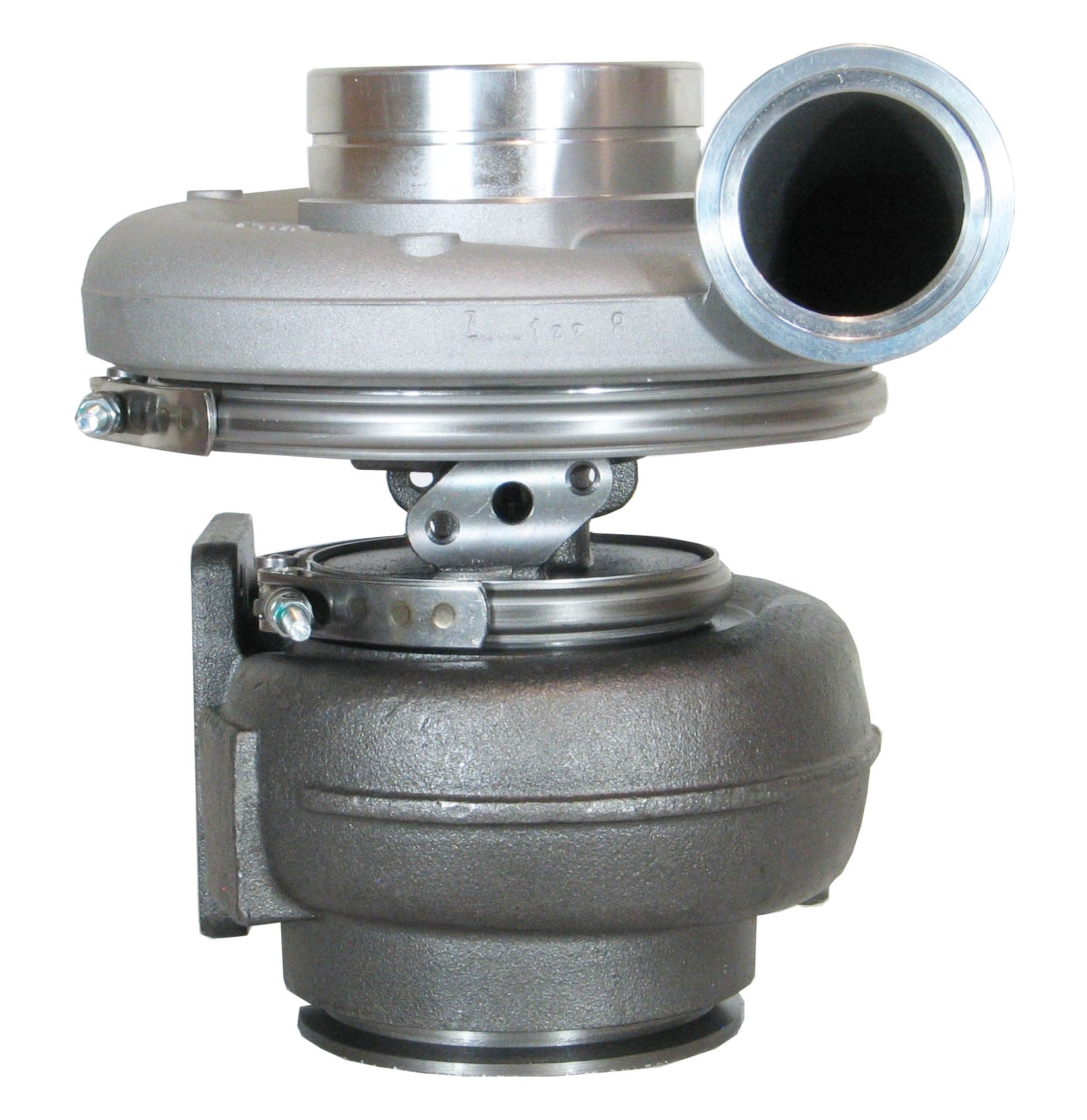

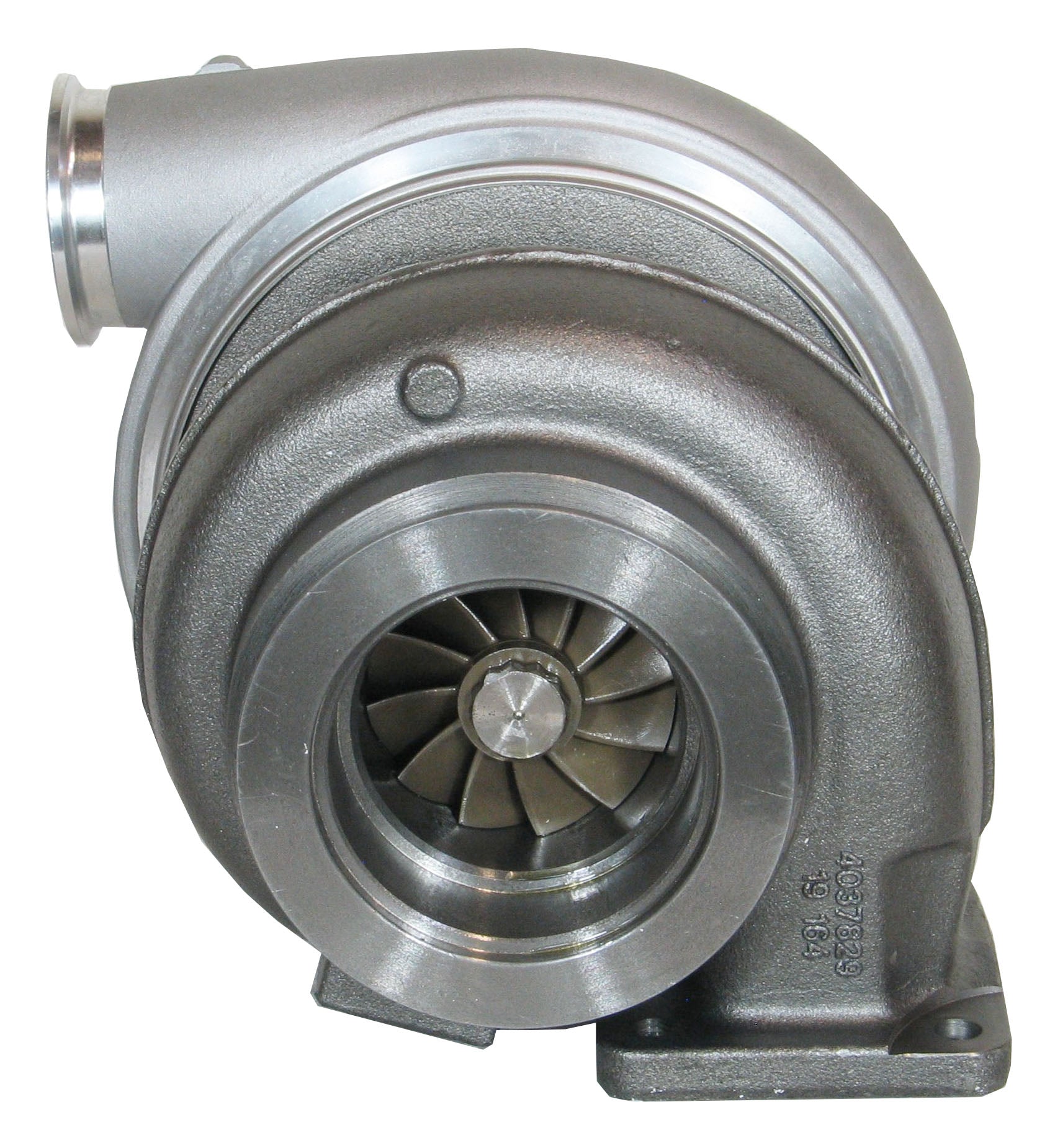

NEW HX55 Turbo Volvo Articulated Hauler Dump Truck D12 12.1L Diesel 4037344SKU: TP05-0115-12
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

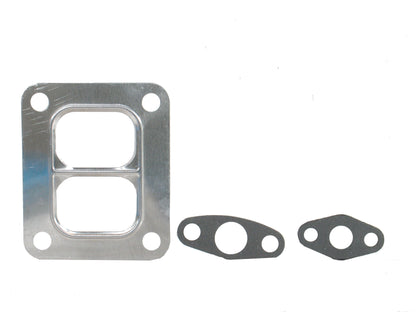

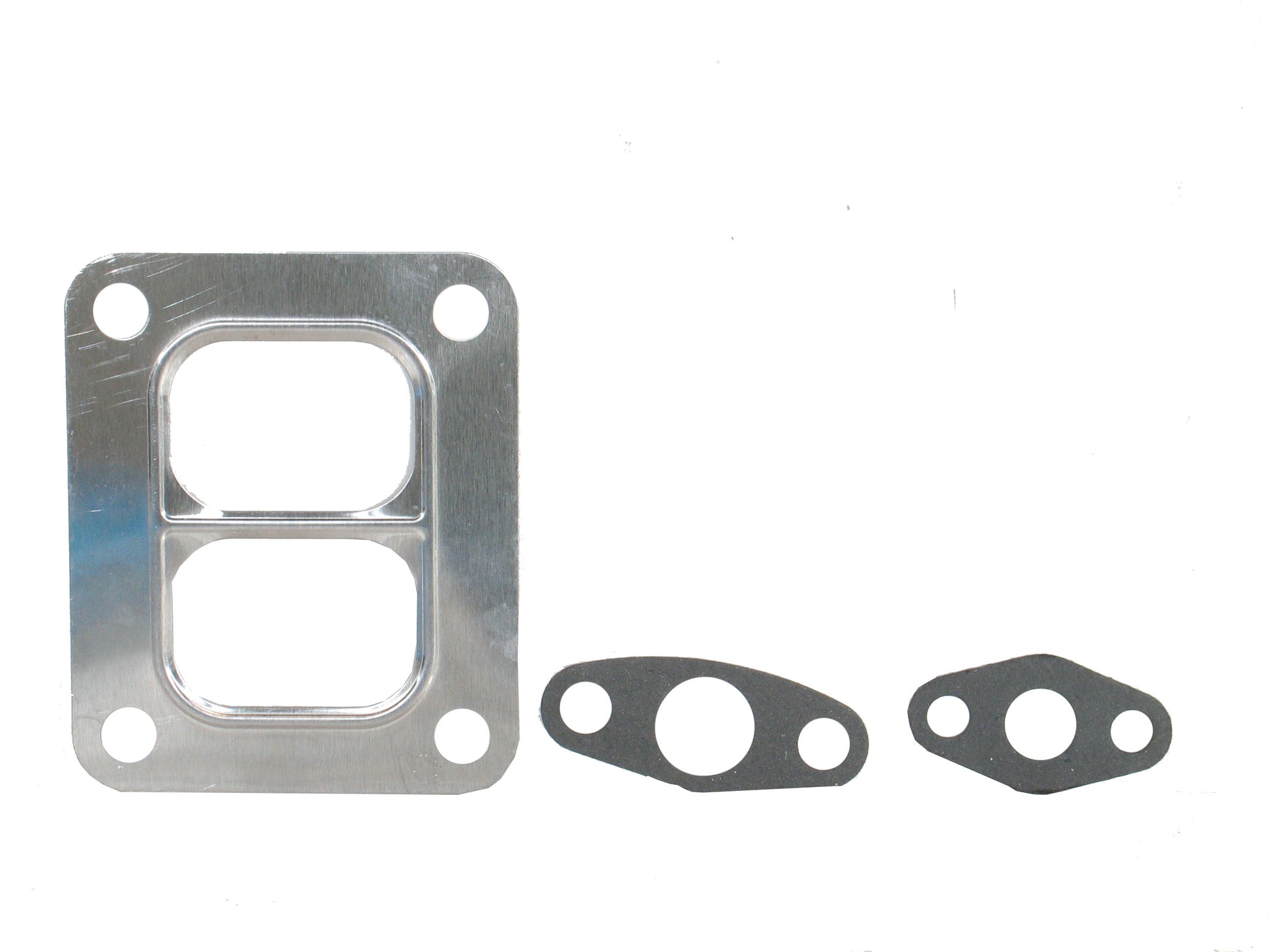

NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 4037344-D
Interchangeable Number: 3792500, 4031293H, 4037344, 5550149
OEM Number: 11423083, 11423084, 11423085, 11423338, 3587945, 4031293, 4037340, 4037342, 4041615, 4044351, 9011423684
Turbo Model: HX55, HX55-D98K66RAV/B86N84PU19QX
Engine Manufacturer: Volvo
Displacement: 12.1L, 1200 ccm
Angle α (Compressor Housing): 317.5°
Angle β (Turbine Housing): 270°
Back Plate: 3528096 (352809600)(1153055300, 1800016024)
Bearing Housing: 3590231 (4039258)(Oil Cooled)(1153055451, 1900011253B)
CHRA: 4027894 (4027894H)(1000020173T)
Compressor Cover: 4038841
Compressor Wheel: 4036558 (Ind. 64.99 mm, Exd. 99 mm, Trim 5.79, 7+7 Blades, Super Back)(1200016217T)
Gasket (Oil Inlet): 129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 52231586500, 129120)(1900000035)
Gasket (Oil Outlet): 210060 (409267-0003, 409267-0002, 129120, 1S4810, 201048, 3709738, 3500682, 3519763, 210060-0000, 51914, 148062, 311585)(1900000025)
Gasket (Turbine Inlet): 409123-0002 (Inox Steel)
Heat Shield: 3533038 (3529846)(1153052340)
Repair Kit: 3580762 (3575181)(1153055750, 5000020023)
Turbine Housing: 4038060
Turbine Wheel: 4030008 (Ind. 86 mm, Exd. 72 mm, Trim 12.26, 12 Blades)(1100016125B)
Volvo Articulated Hauler with D12 Engine
Volvo Dump Truck (Off-Highway) with D12 Engine
Volvo Industrial with D12 Engine
Volvo Truck with D12 Engine
TurboTurbos Part Number: TP05-0115-12
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
