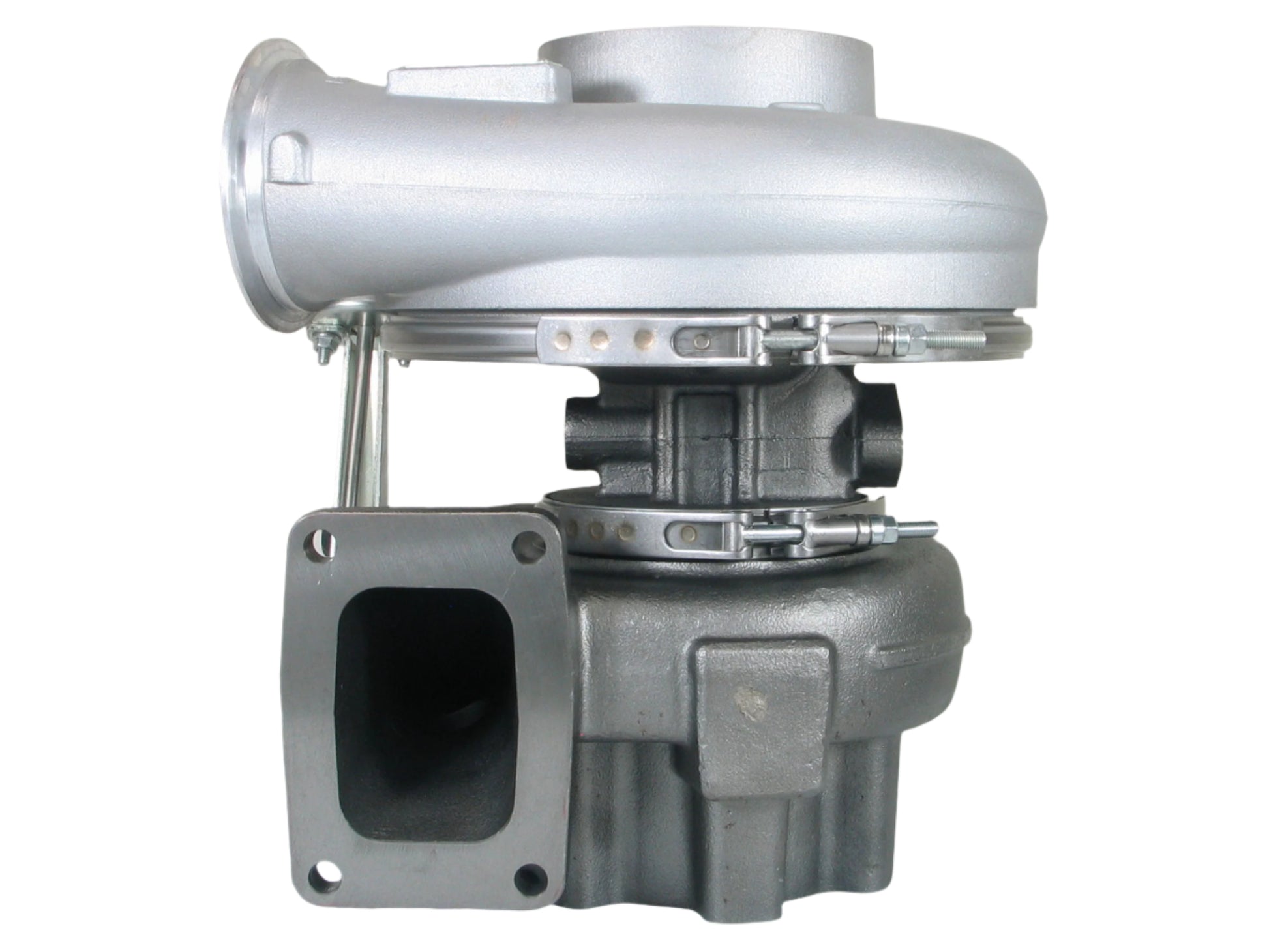

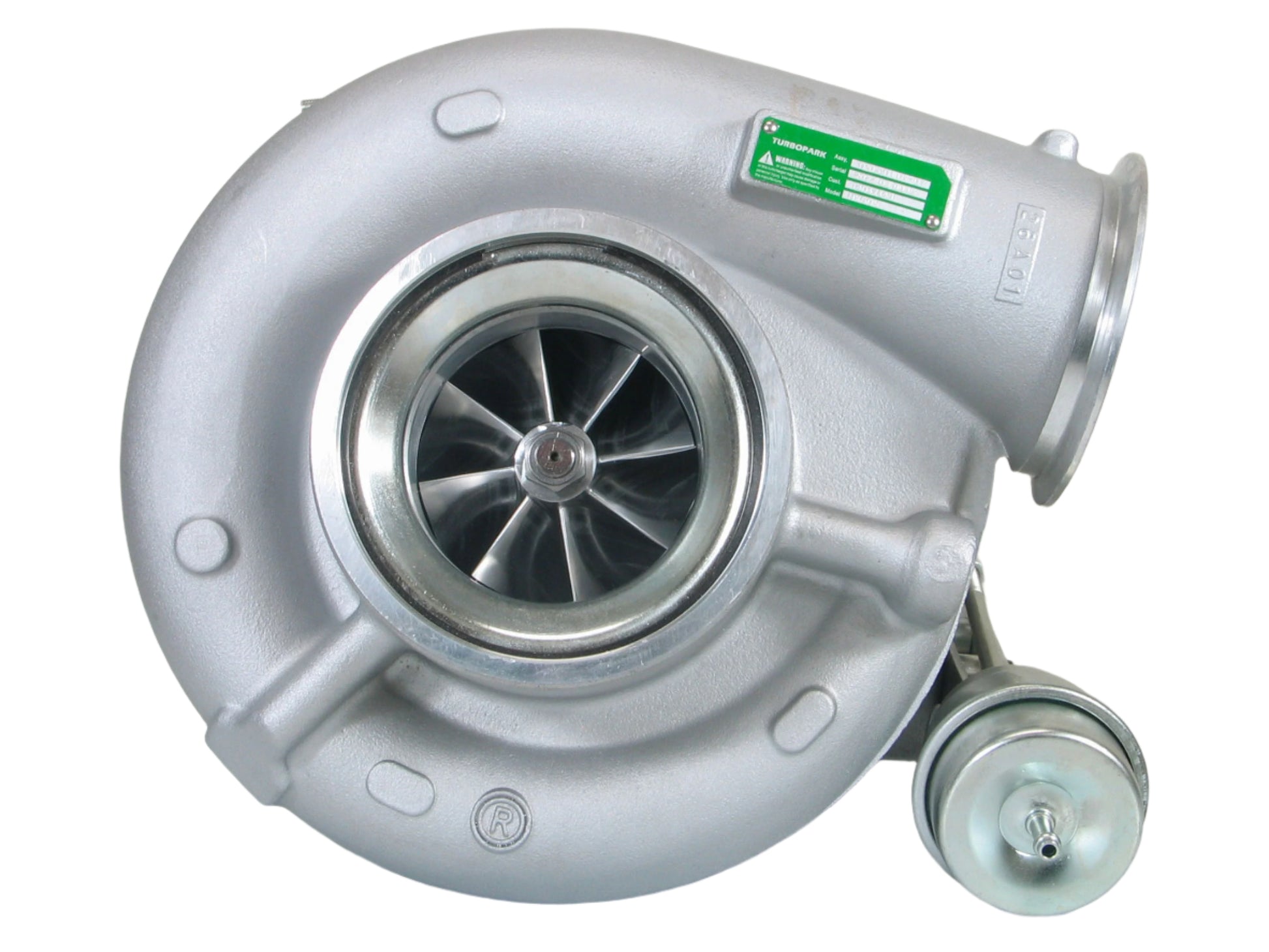

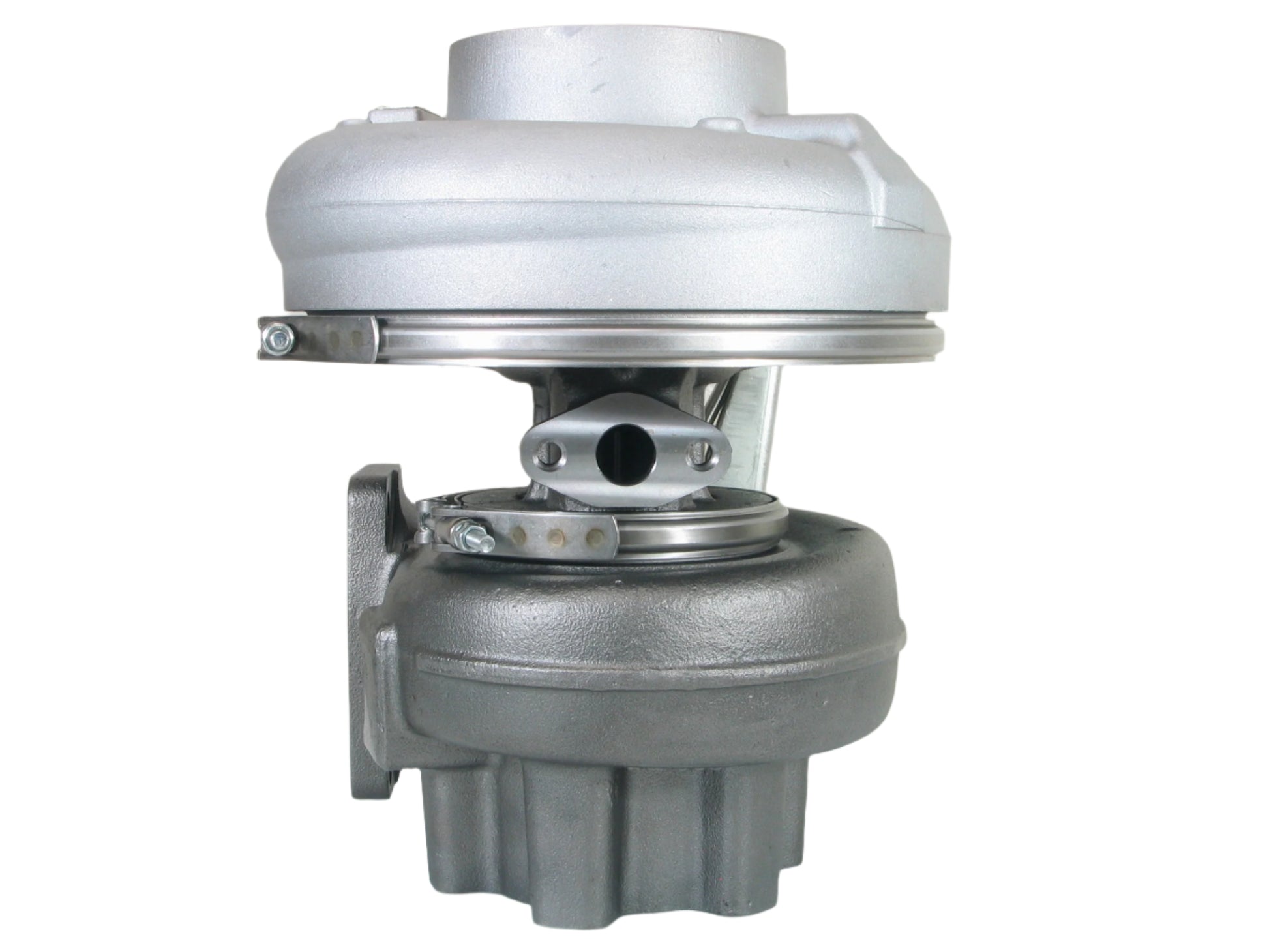

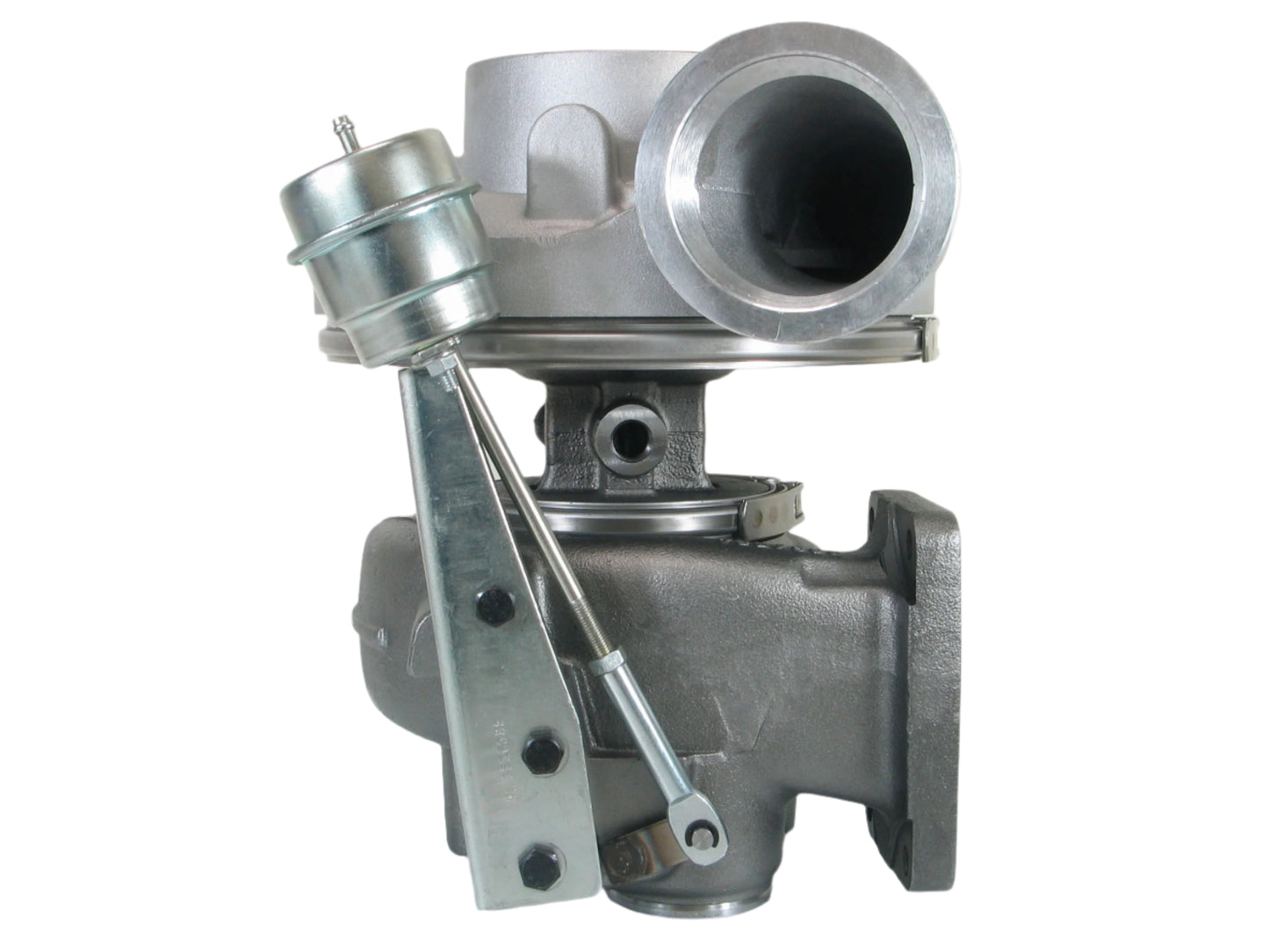

NEW HX60W Turbo Truck Industrial Cummins QSX CPL-3088 CM570 ECM 4955813 4047148SKU: TP05-0116-12
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 4047148
Interchangeable Number: 3594488, 3598762, 4038498, 4041154, 4047153H, 4089970NX, 4089970RX, 4955216NX, 4955216RX, 4955813NX, 4955813RX
OEM Number: 3594490, 3594491, 3594492, 3598763, 3598764, 3598765, 4024937, 4038500, 4038501, 4038502, 4041155, 4041156, 4041157, 4047152, 4047153, 4047154, 4089298, 4089970, 4955216, 4955813
Turbo Model: HX60W
Engine: QSX, QSX15, QSX15 Tier 3
Engine Manufacturer: Cummins
Angle α (Compressor Housing): 270°
Angle ß (Turbine Housing): 90/137/270°
Back Plate: 3531917 (1250403300)
Bearing Housing: 3536802 (Oil Cooled)
CHRA: 3768546 (4038499, 4038499H)
Compressor Wheel: 4040285 (353465, 3534650H, 353465000)(Ind. 80 mm, Exd. 113 mm, Trim 8.74, 8+8 Blades, Super Back)

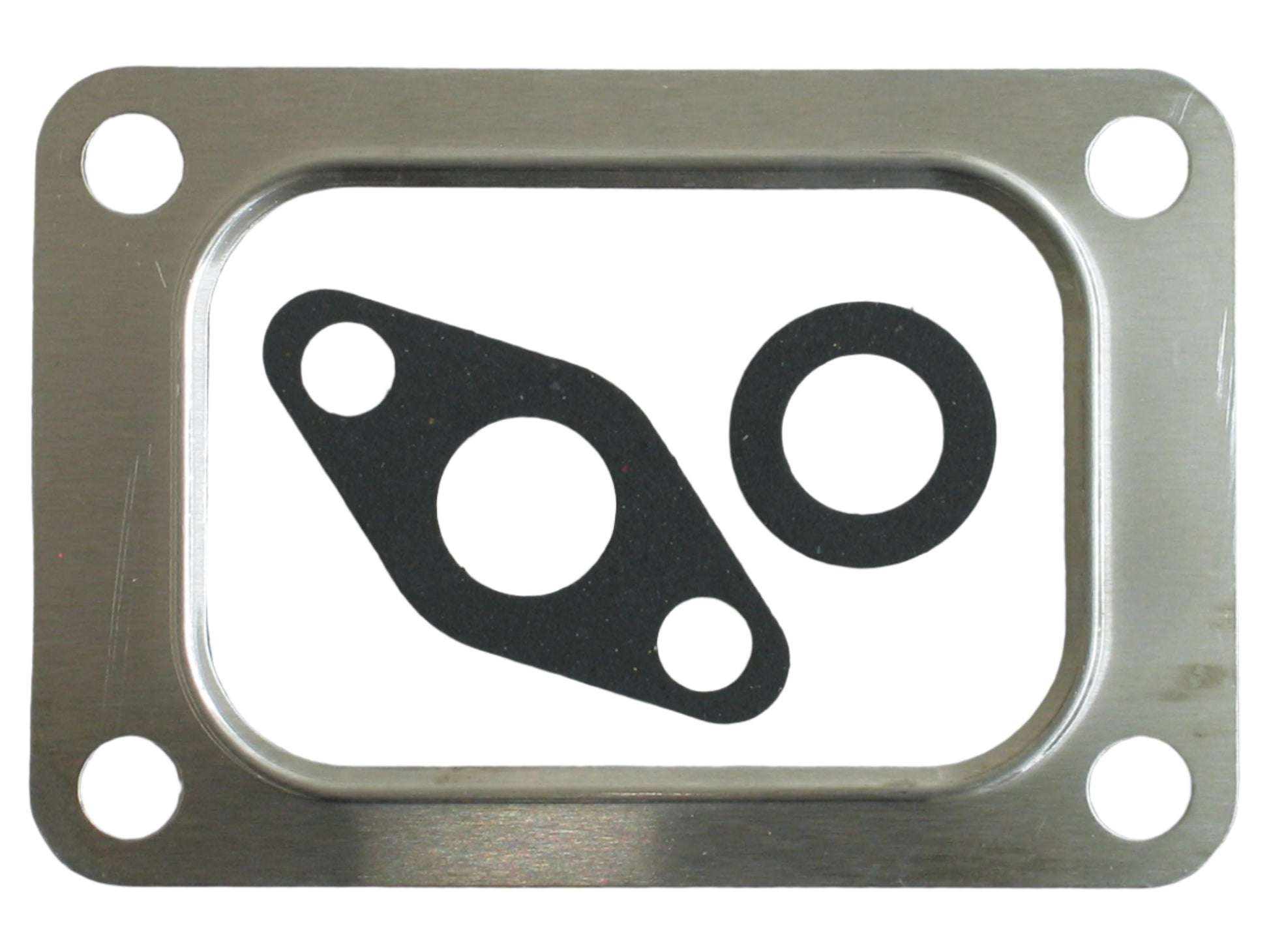

Gasket Kit: 3545577
Heat Shield: 3519155 (18373)(351915500)
Repair Kit: 3545345 (4027881, 3580568, 4027880)(1153060750)

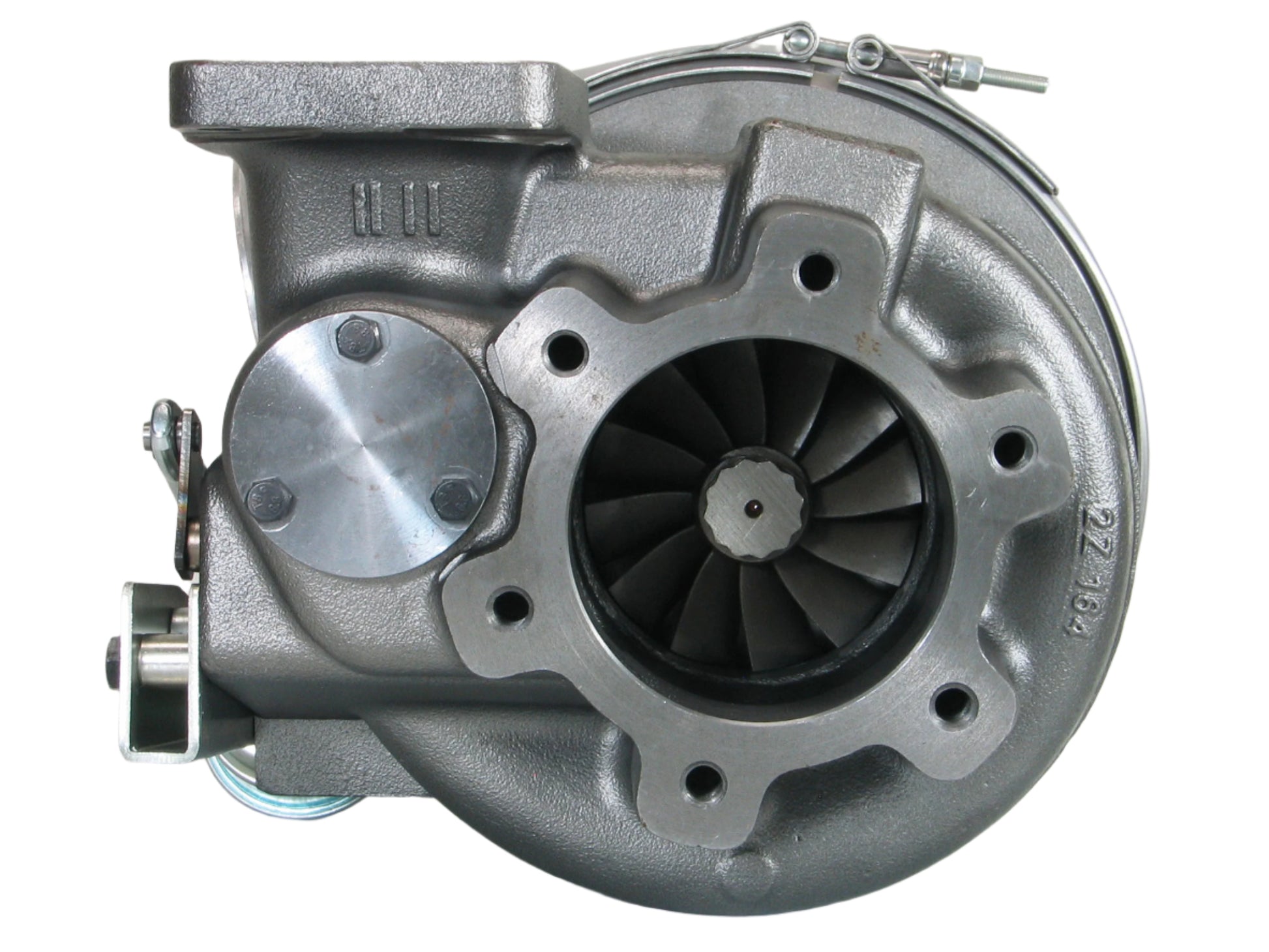

Turbine Wheel: 3533025 (3533025H, 353302500)(Ind. 97 mm, Exd. 86.3 mm, Trim 16.9, 12 Blades)(1153060435)
2002-10 Truck with Cummins QSX Engine
Cummins CPL-3088, CM570 ECM (Electronics Control Unit)
Industrial with Cummins QSX, QSX15 Engine
TurboTurbos Part Number: TP05-0116-12
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
