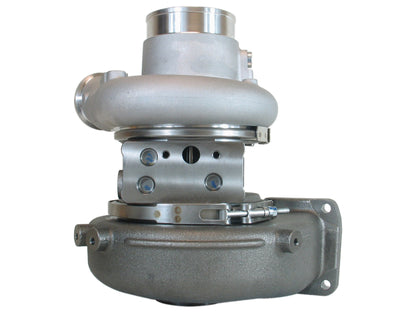

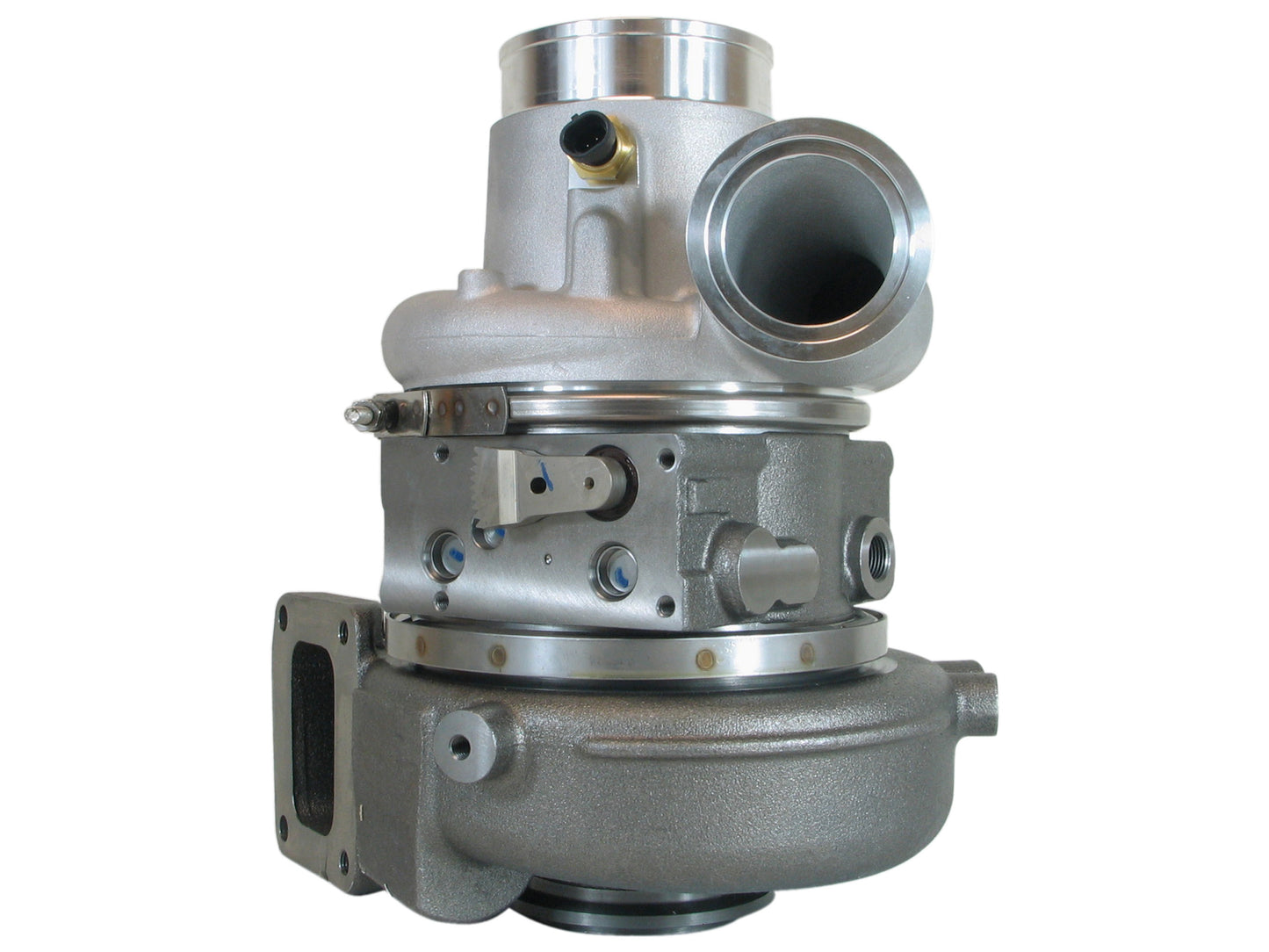

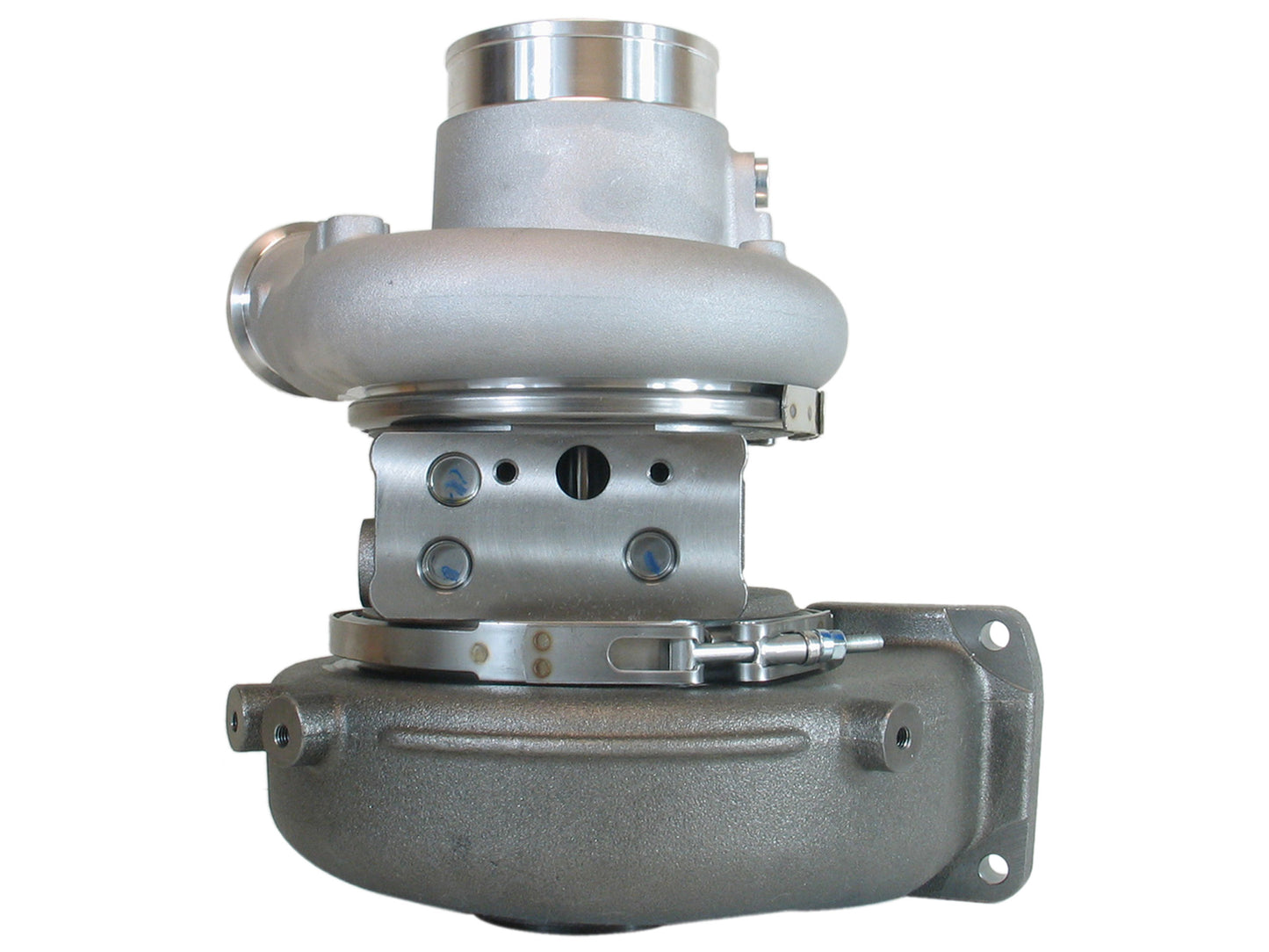

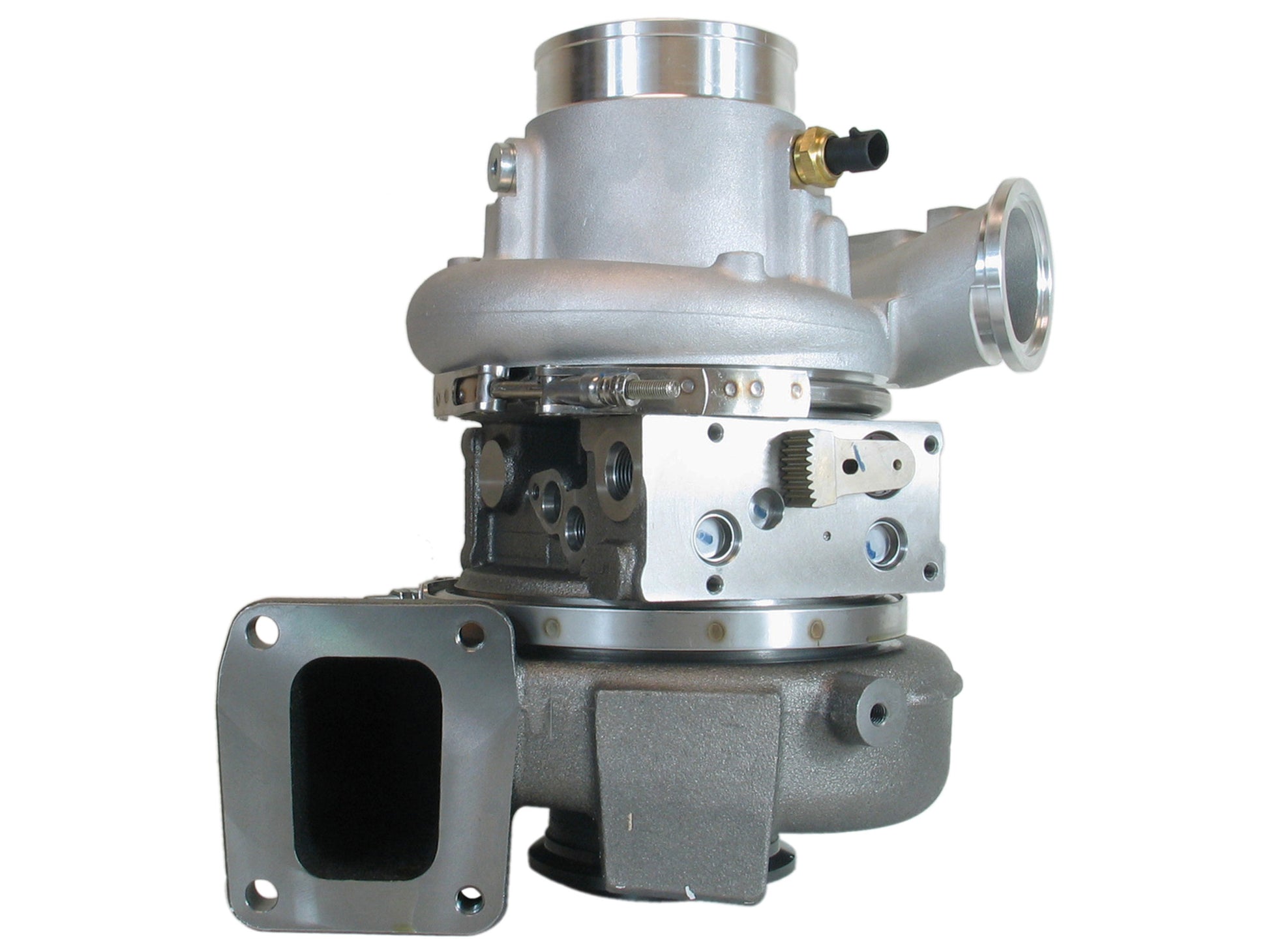

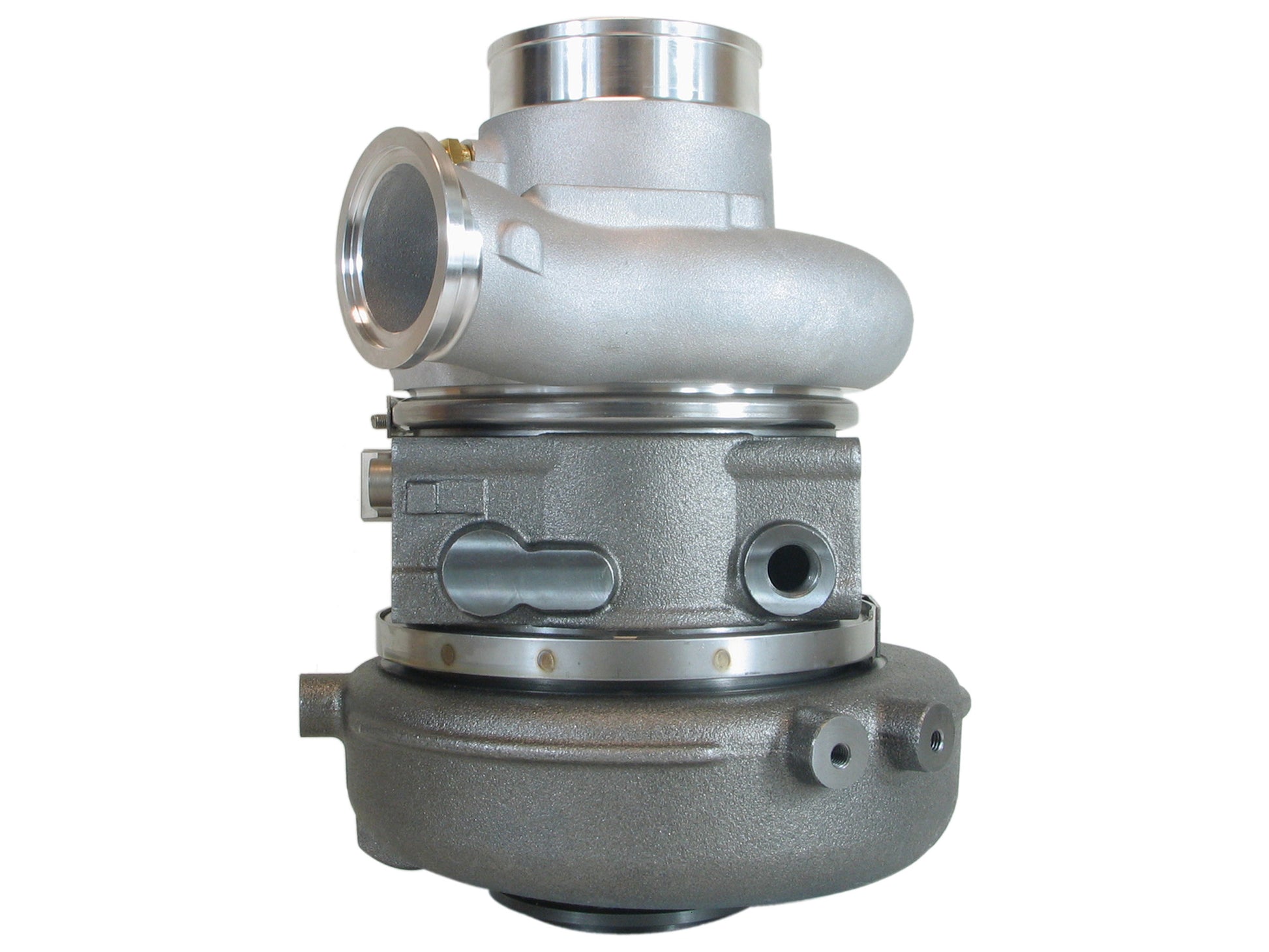

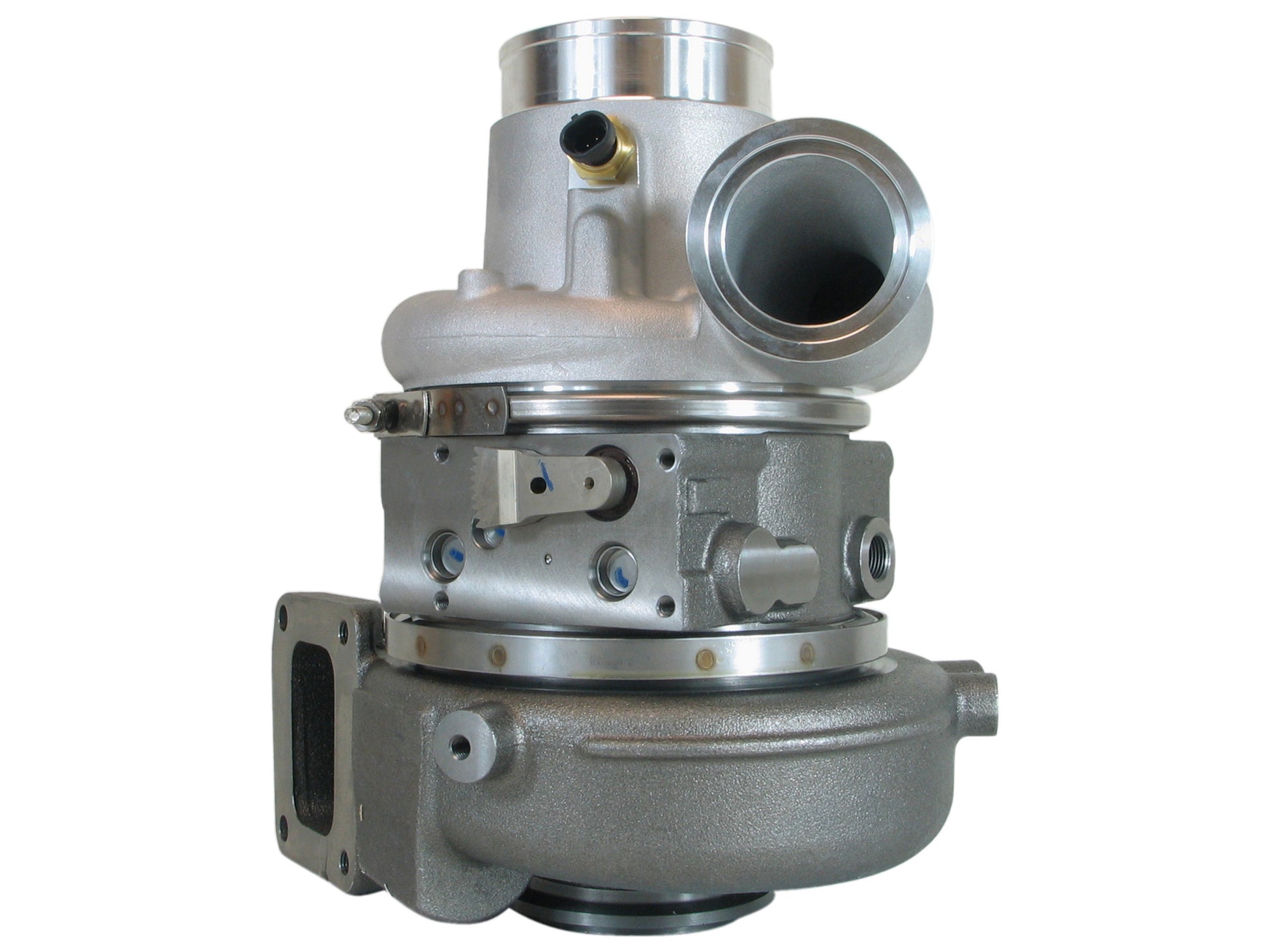

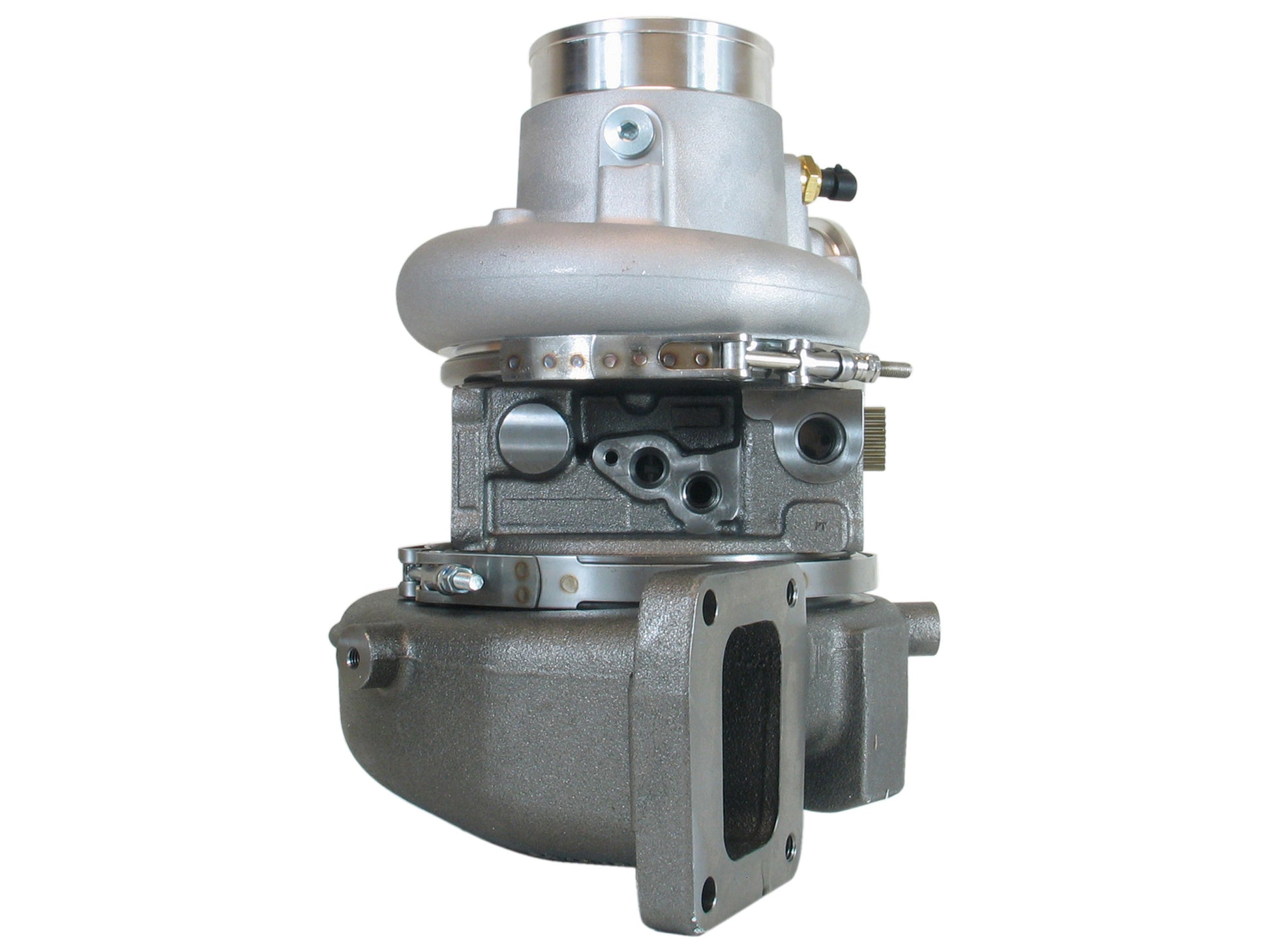

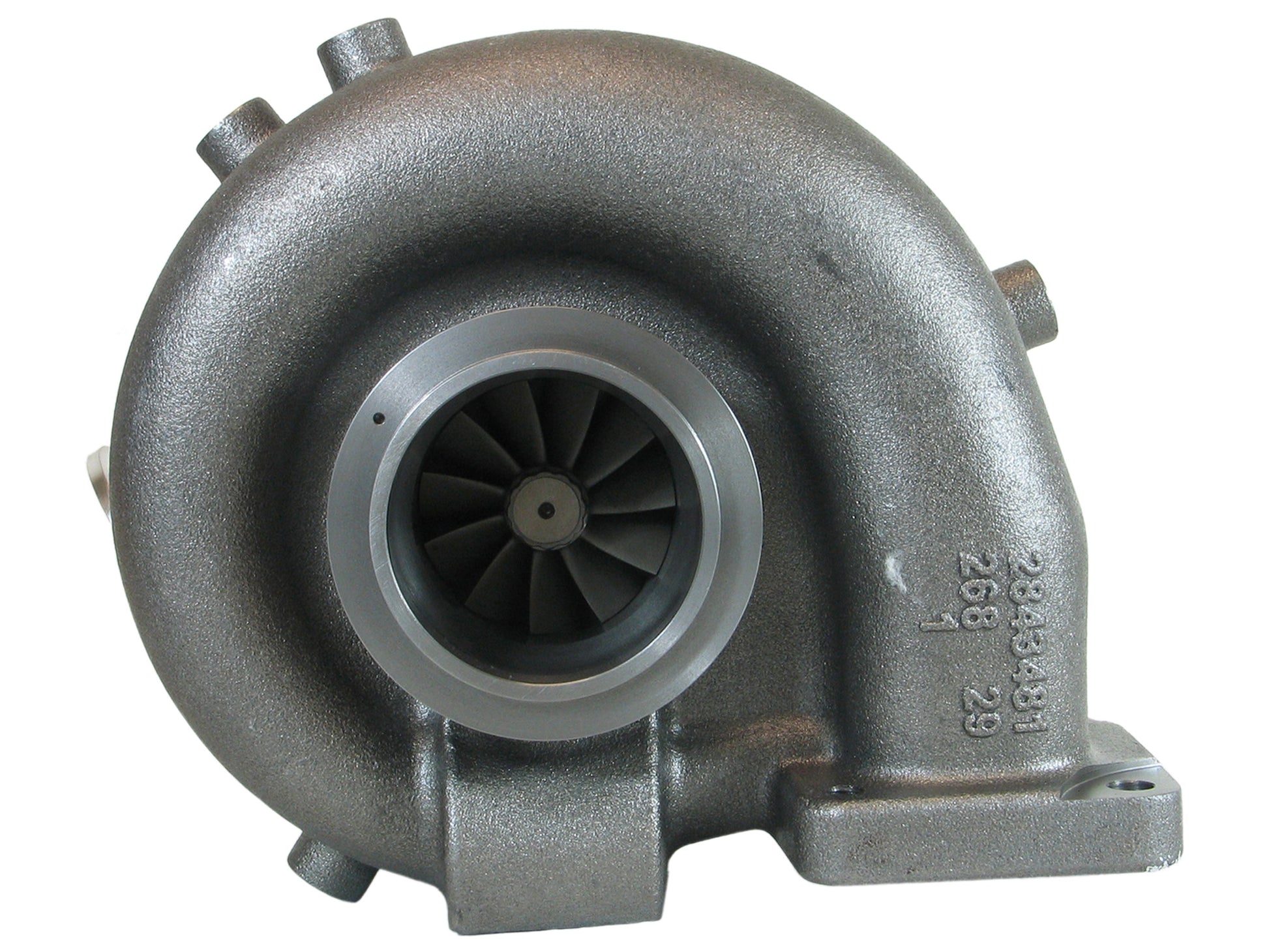

NEW HE400VG Turbo Truck Cummins ISX QSX 15.0L Diesel Engine 2882111

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 2882111
Interchangeable Number: 2840007, 2841220, 2841222, 2843481, 2881807, 2882004, 2882004NX, 2882110, 2882110NX, 288211100, 288211100HX, 2882111NX, 2882111RX, 3768194, 3773561, 3773569, 3792586, 3792586H, 3792586HX, 5350503, 5501259, 5501278
OEM Number: 2841221, 2843893, 3768191, 3773562, 3773566, 3783568, 3792584, 8773568
Turbo Model: HE400VG, HE451VE

Year: 2005-10
Engine: ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X114, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102
Engine Manufacturer: Cummins
Displacement: 15.0L, 1500 ccm
Fuel: Diesel

Angle α (Compressor Housing): 275°
Angle β (Turbine Housing): 155°

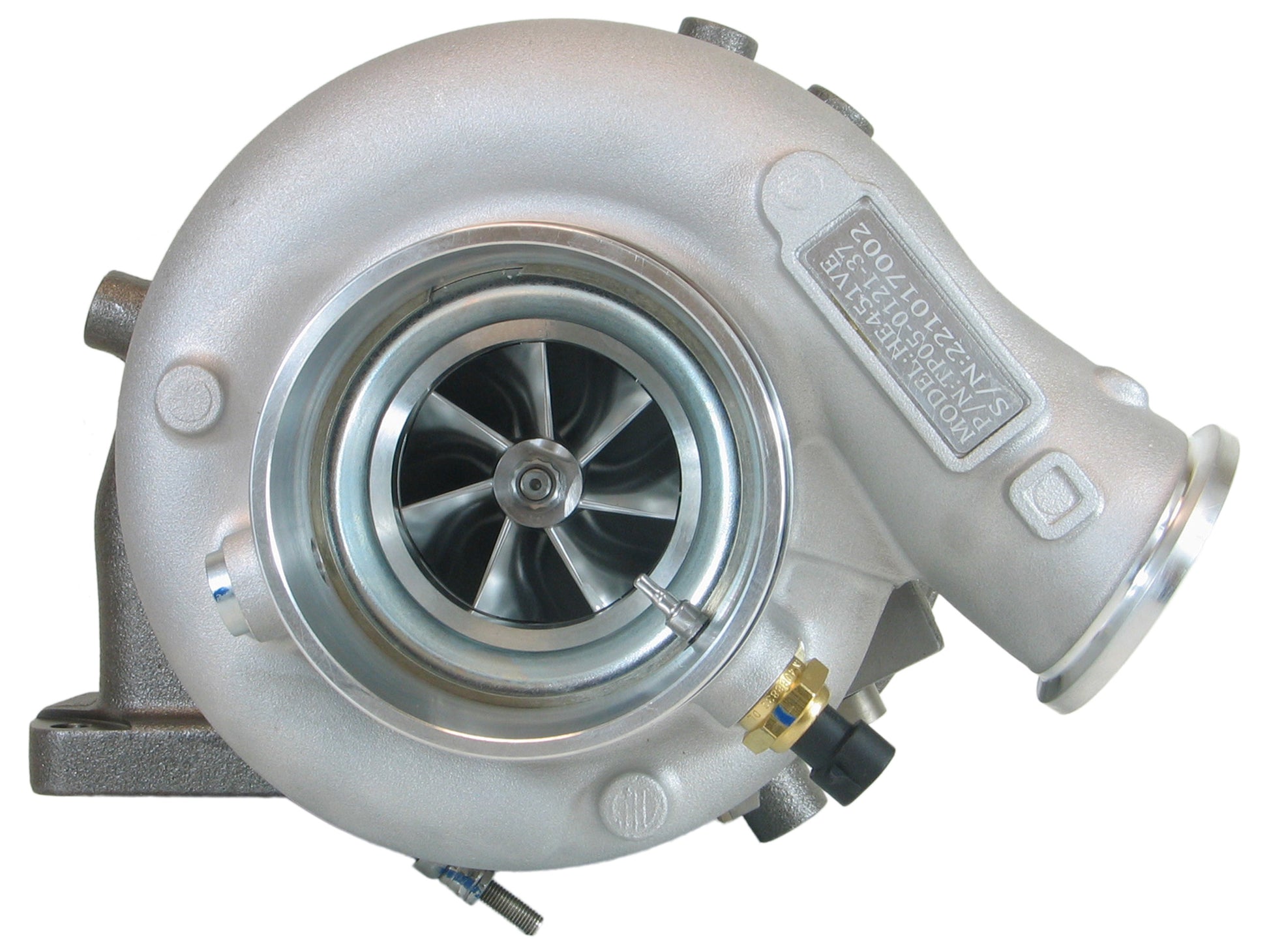

Compressor Wheel: (Ind. 61.95 mm, Exd. 92.96 mm, 7+7 Blades, Super Back)
Electronic Actuator: 4034289H
Gasket Kit: 3685535
Speed Sensor Kit: 4034201H
Turbine Housing A/R: VGT
Turbine Wheel: 2840238RX (Ind. 66.35 mm, Exd. 71.28 mm, 11 Blades)

Application:
2005-15 Various Trucks with Cummins ISX, QSX Engine

TurboTurbos Part Number: TP05-0121-37

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
