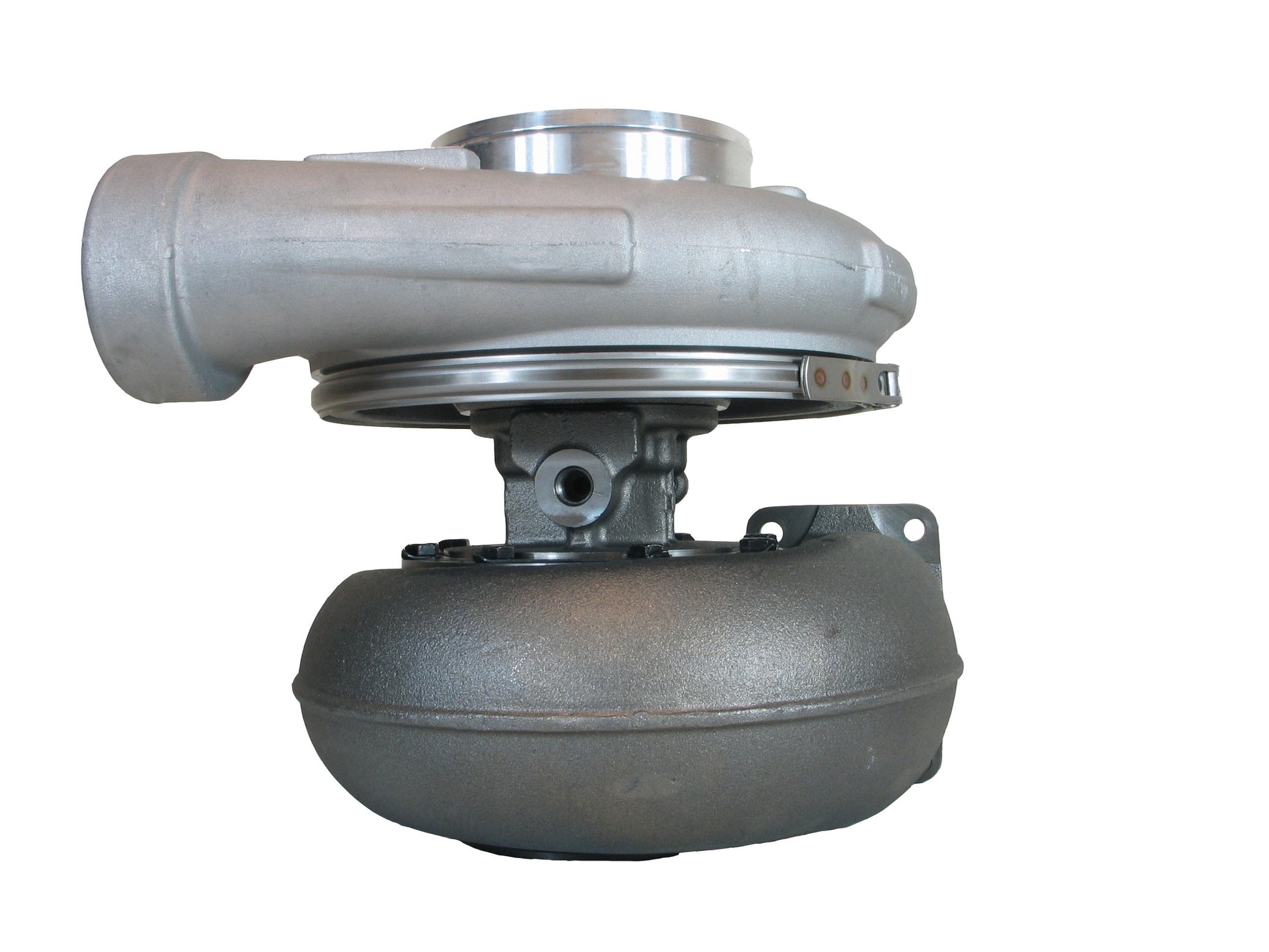

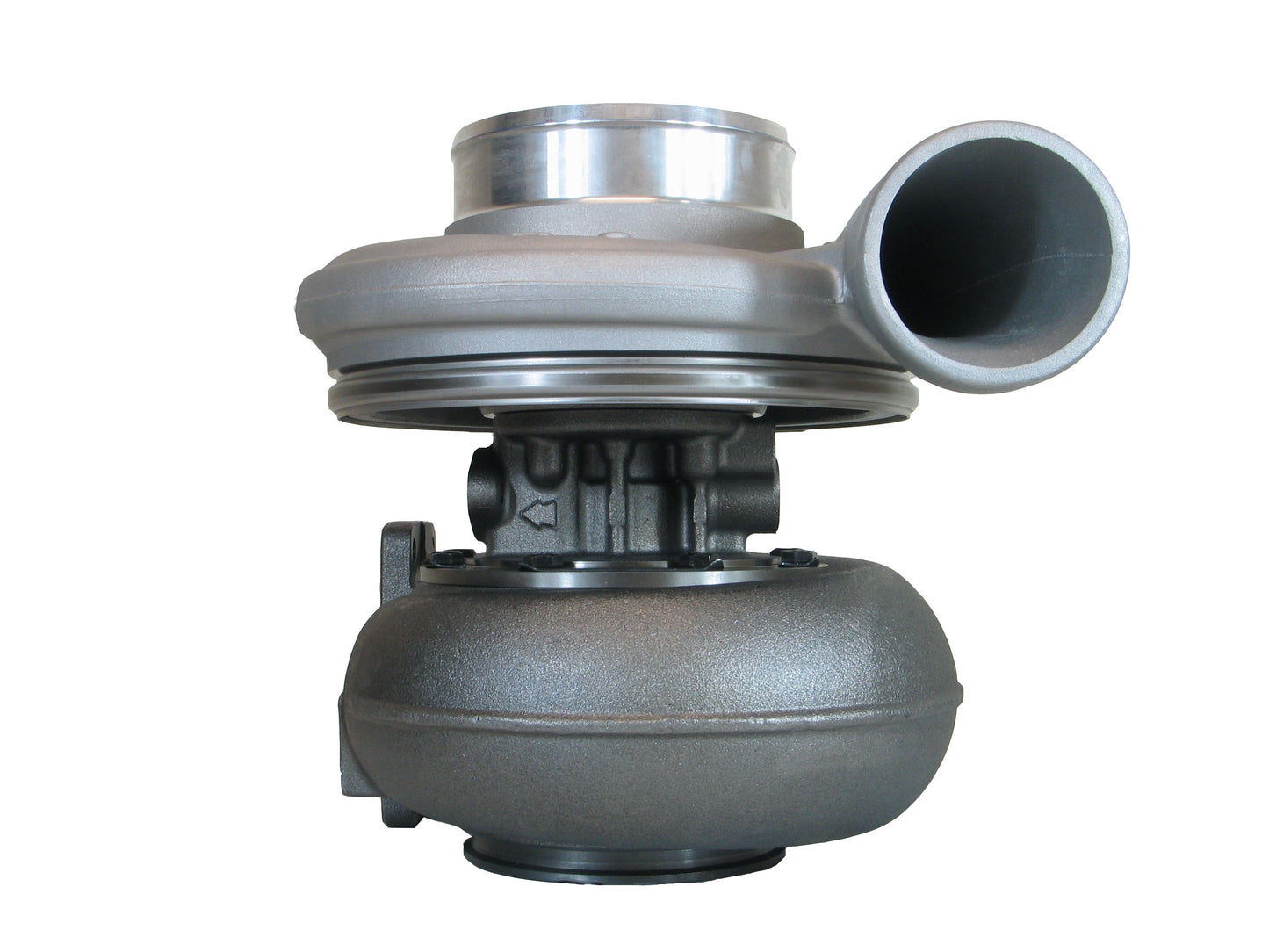

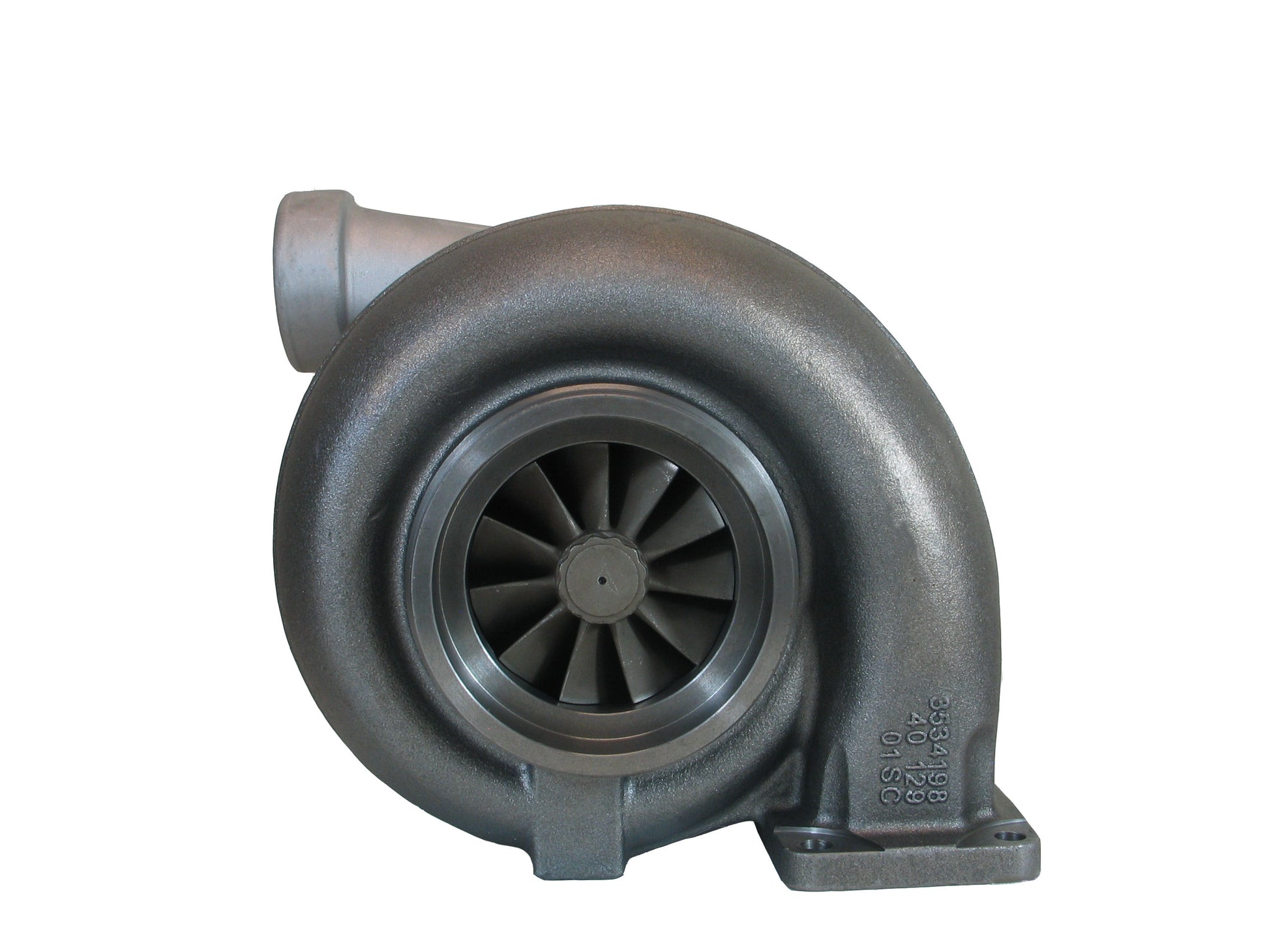

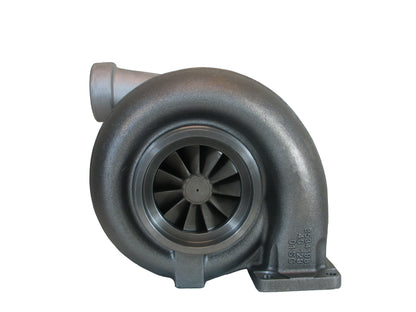

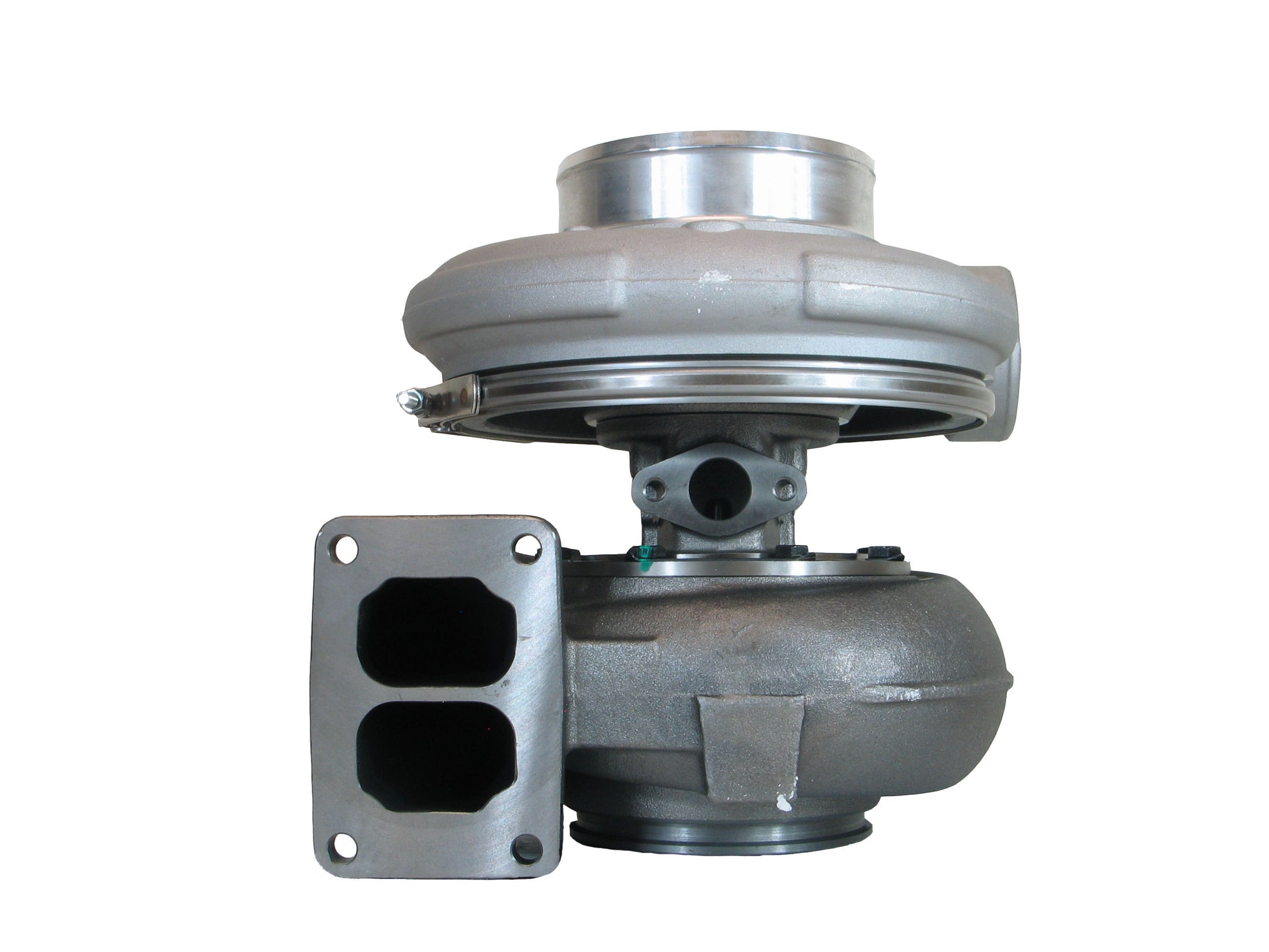

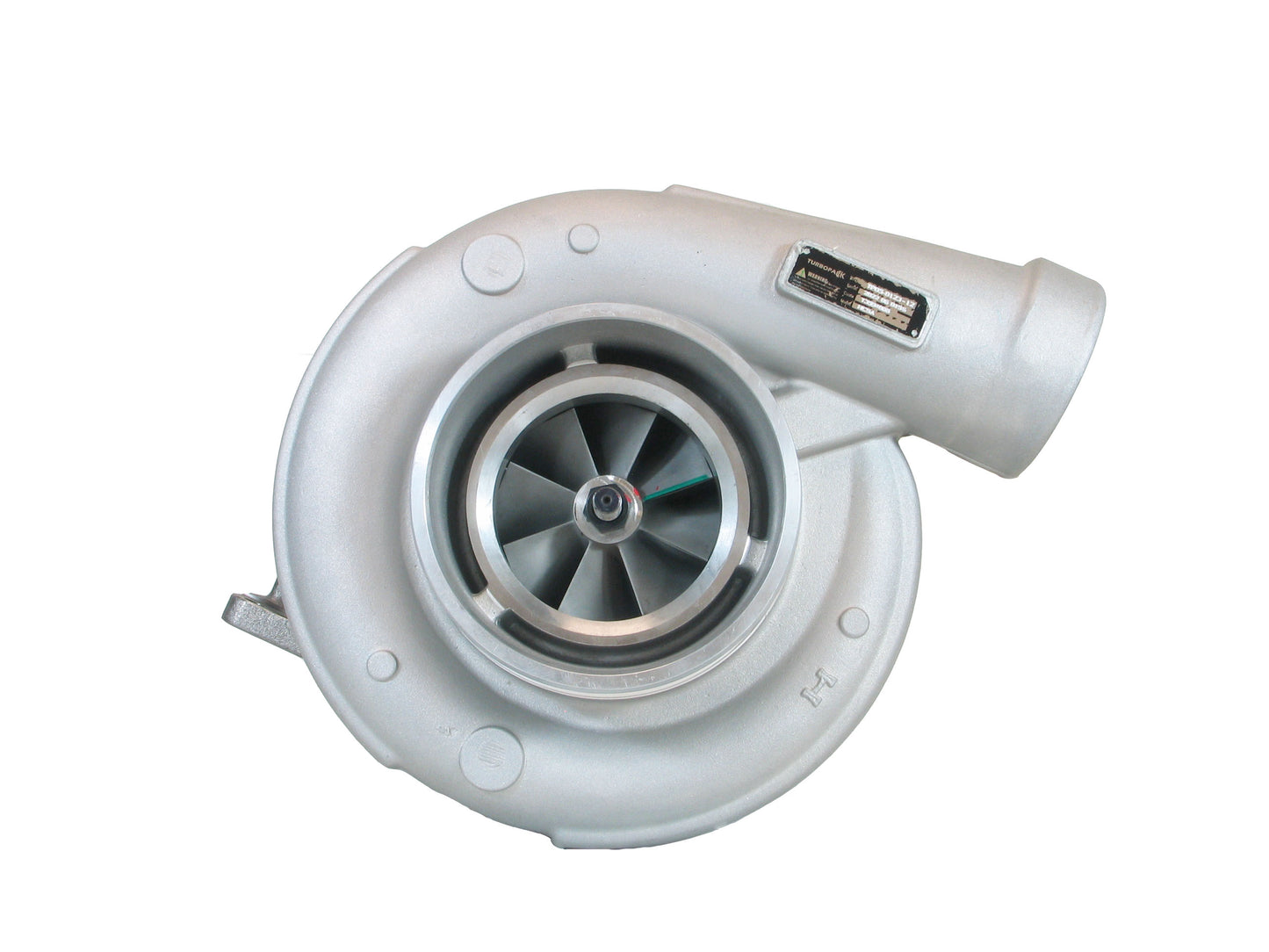

NEW DIRECT REPLACEMENT TURBOCHARGER
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 3594085
Interchangeable Number: 3525504
OEM Number: 3525505, 3525506, 3525507, 3592523, 3594086, 3594087, 3594088, 3594089, 3803015, 3803103, 503525504
Turbo Model: HC5A, HC5A-2731U/B40D3
Year: 2000-
Engine: KT-19, KT1150, KT38, KTA19, KTA38
Engine Manufacturer: Cummins
Displacement: 19.0L, 1900 ccm
Fuel: Diesel
Power: 450-525/925-1050 HP
Angle α (Compressor Housing): 19/201/247/249.5°
Angle β (Turbine Housing): 22.5/67.5/360°
Back Plate: 3524862 (352486200)
Bearing Housing: 3595036
CHRA: 3594216
Compressor Cover: 3525546
Compressor Wheel: 3523553 (352355300)
Gasket (Turbine Inlet): 311698 (Inox Steel)
Gasket Kit: 4032509
Heat Shield: 3536588 (1153080340)
Repair Kit: 3545647 (3575236)(1152105750)
Turbine Housing: 3534201
Turbine Wheel: 3521033 (Ind. 129 mm, Exd. 95.4 mm, 11 Blades)(1152105435)
Application:
2000- Industrial with Cummins KT-19, KT1150, KT38, KTA19, KTA38 Engine
TurboTurbos Part Number: TP05-0123-12
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
