TurboTurbos
NEW HX55W Turbo Industrial Non-Road Vehicles Cummins QSM 2/3 QSM11 11.0L 4043707
NEW HX55W Turbo Industrial Non-Road Vehicles Cummins QSM 2/3 QSM11 11.0L 4043707
SKU:TP05-0129-12
Regular price
$1,395.00
Regular price
$0.00
Sale price
$1,395.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Orders ship Monday-Friday, usually within 24 hours of purchase.
International shipping subject to VAT and/or other import tax calculated during checkout.

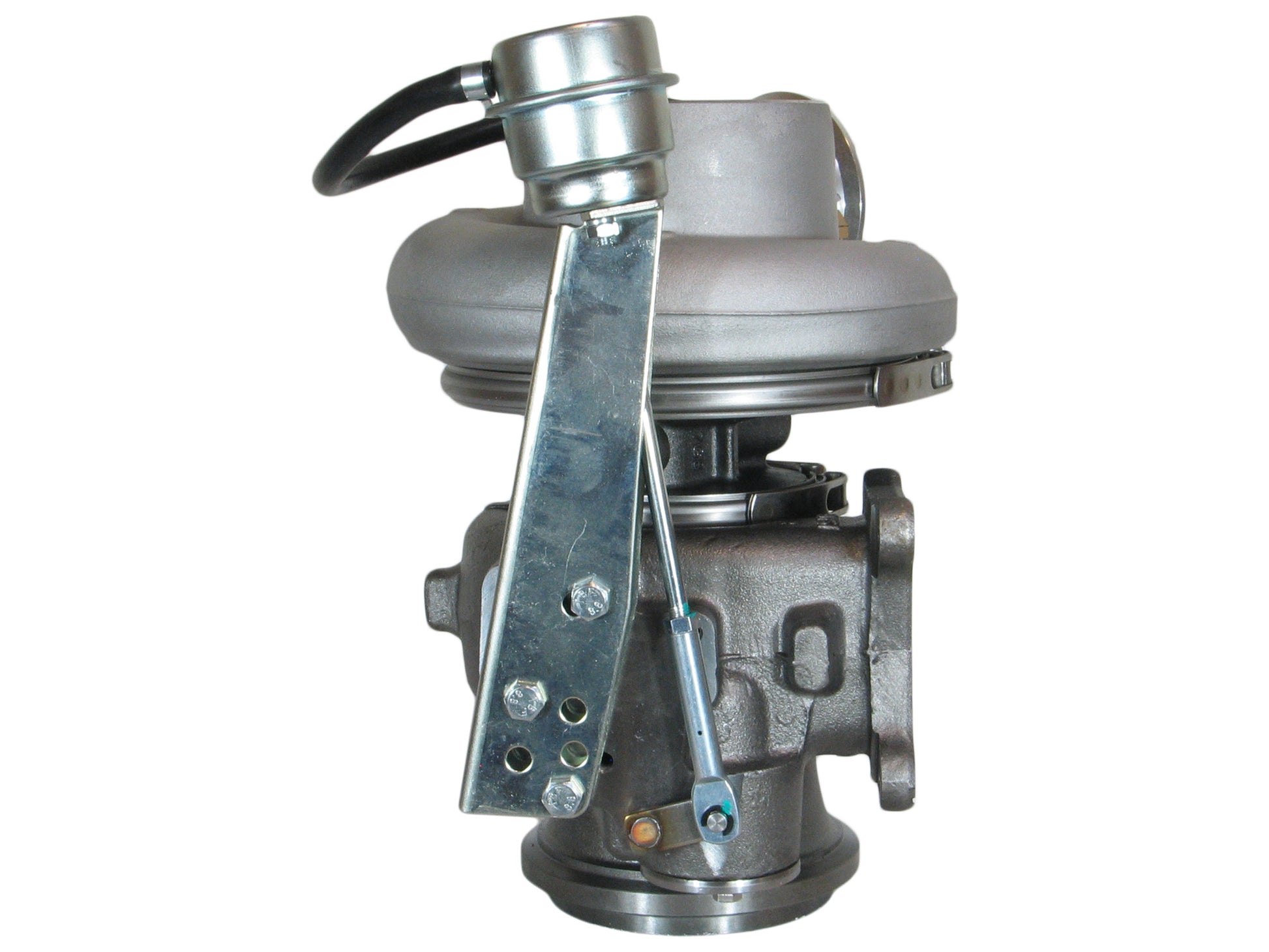

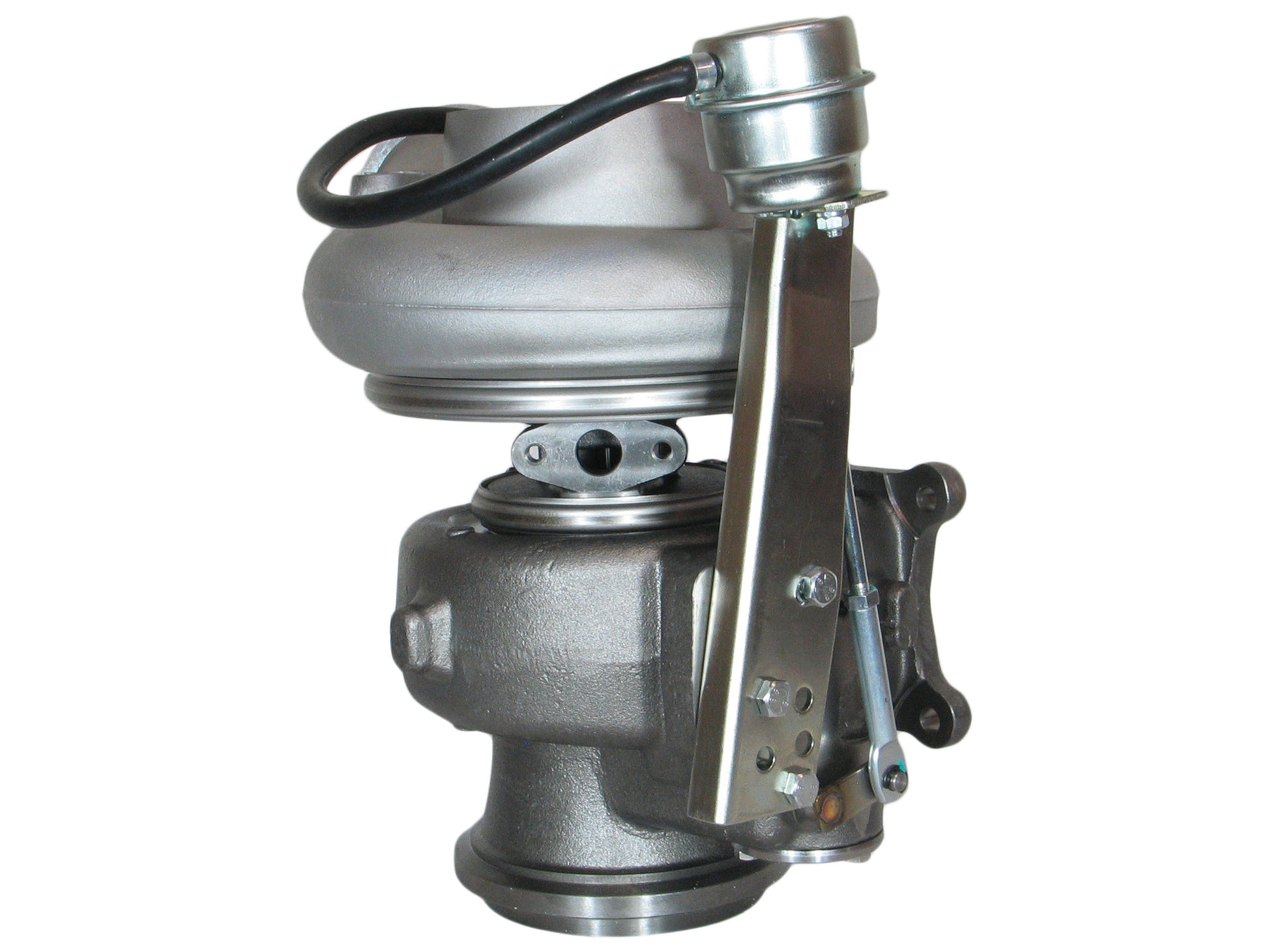

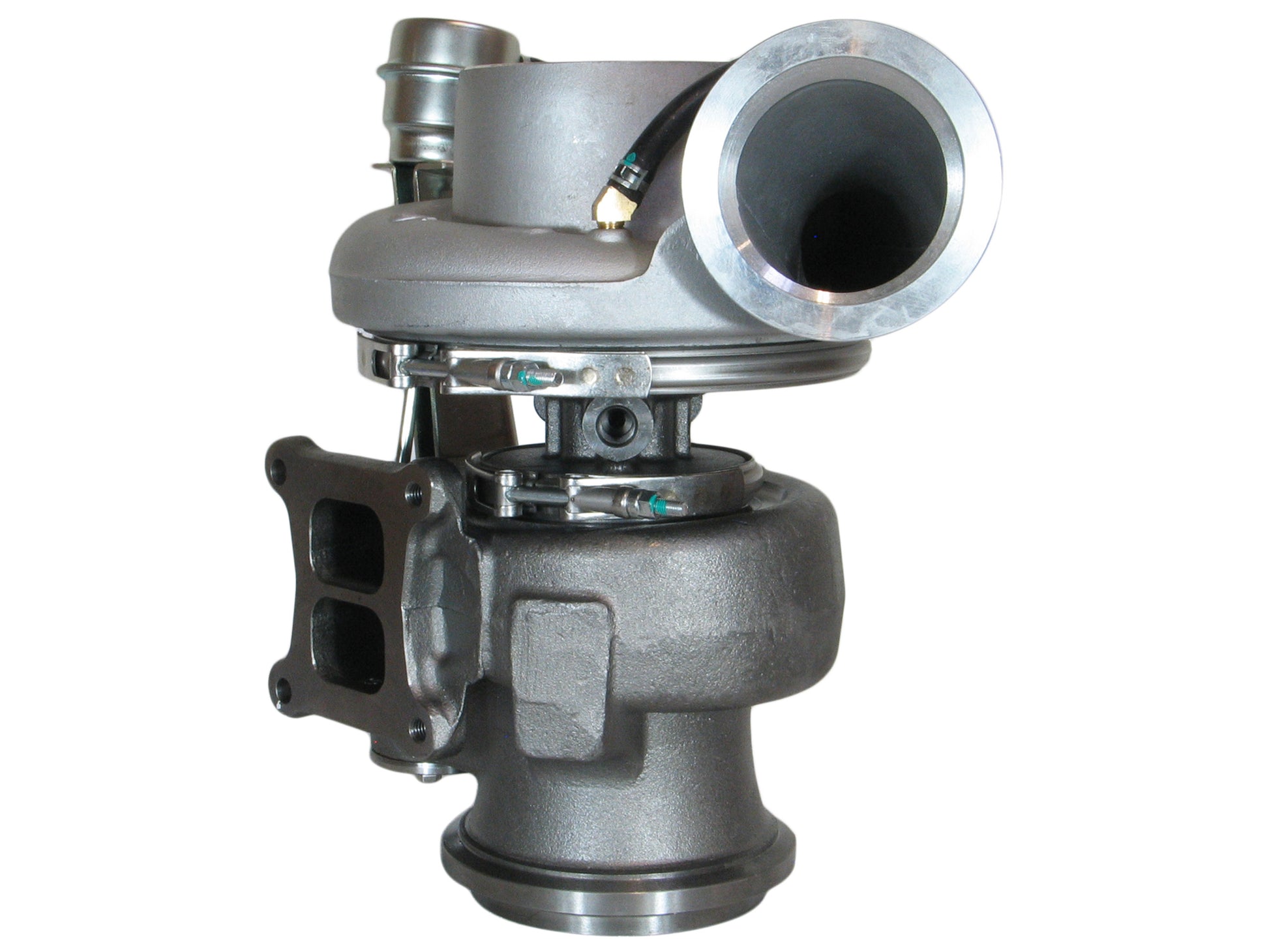

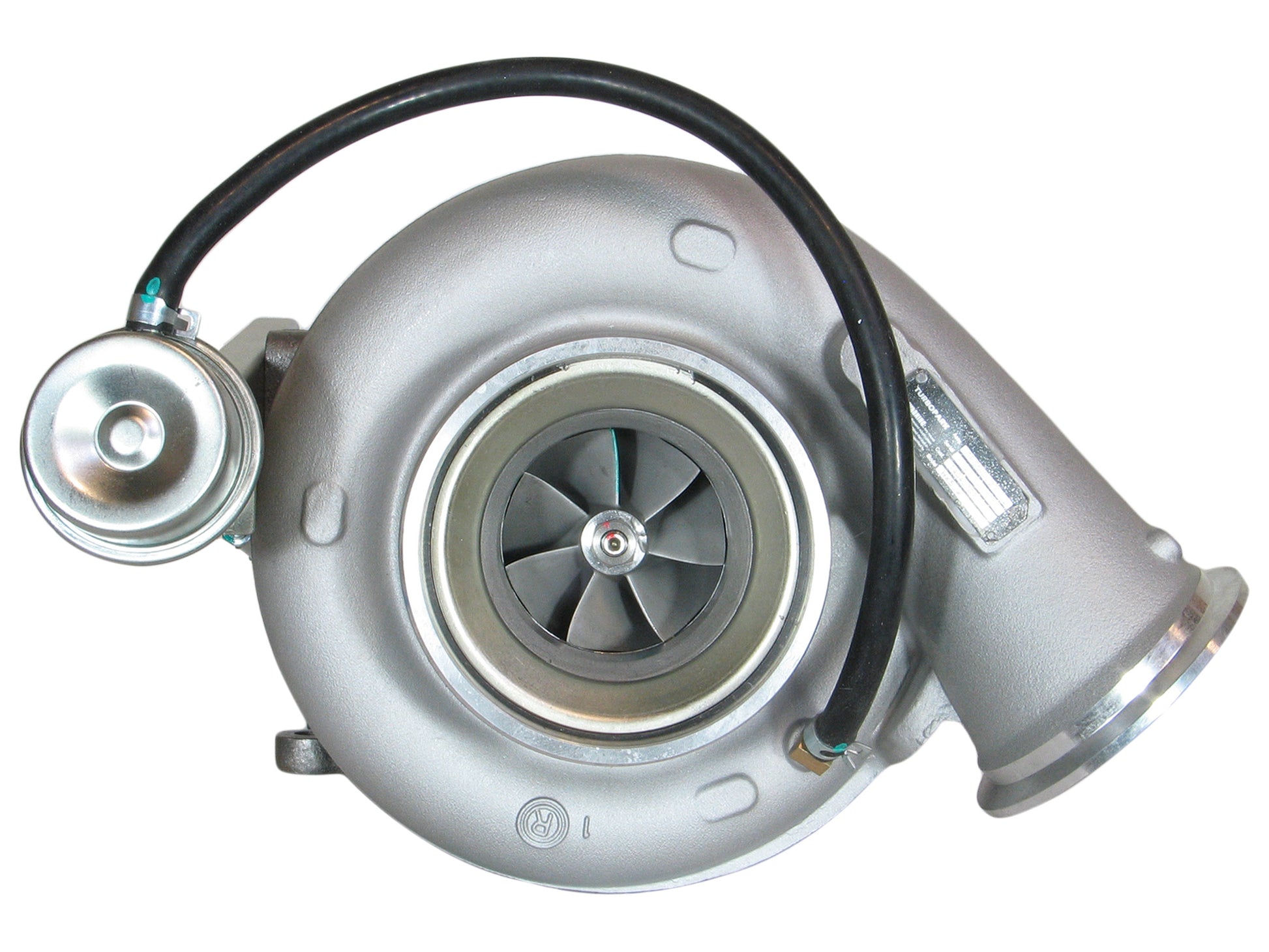

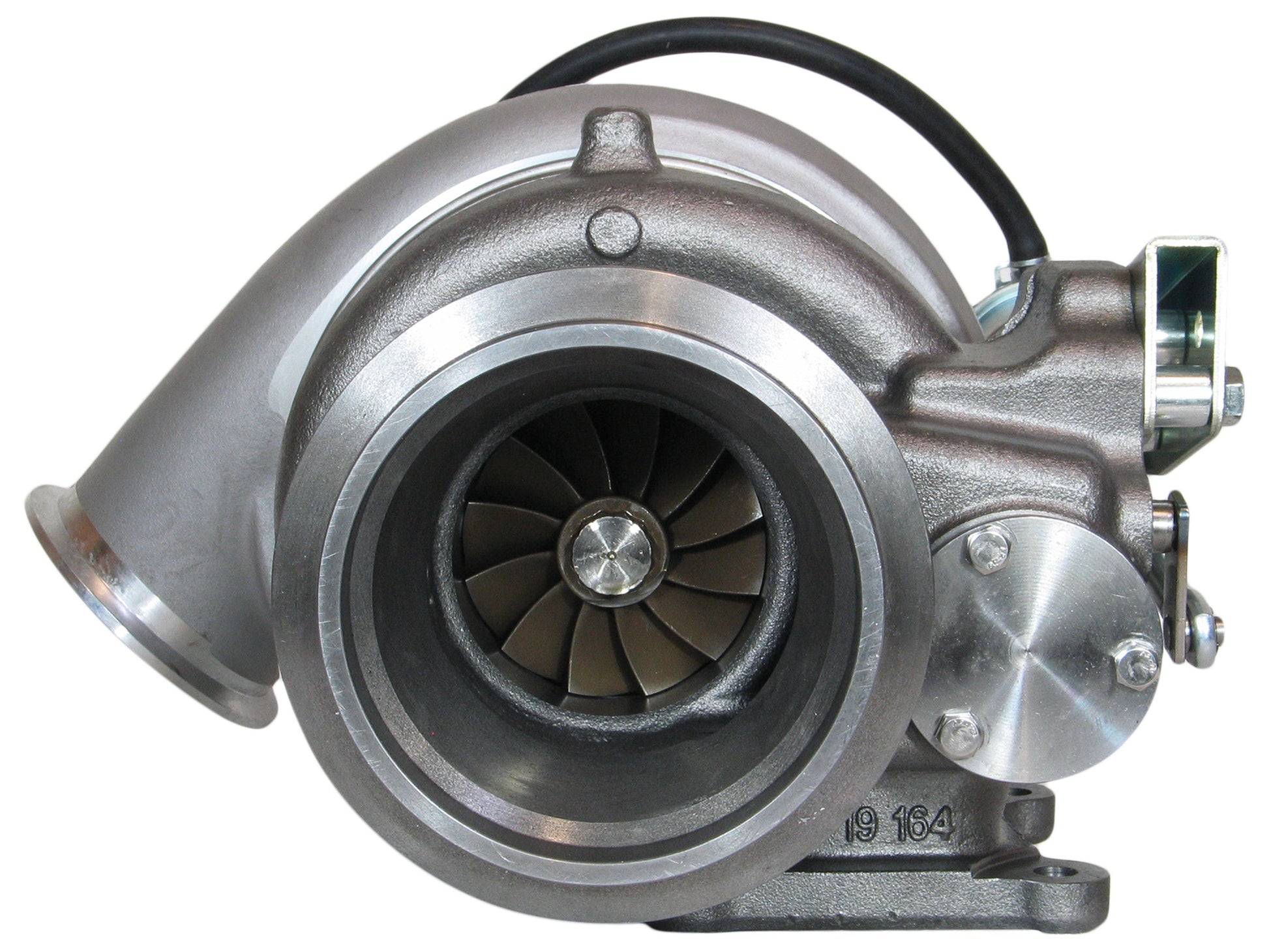

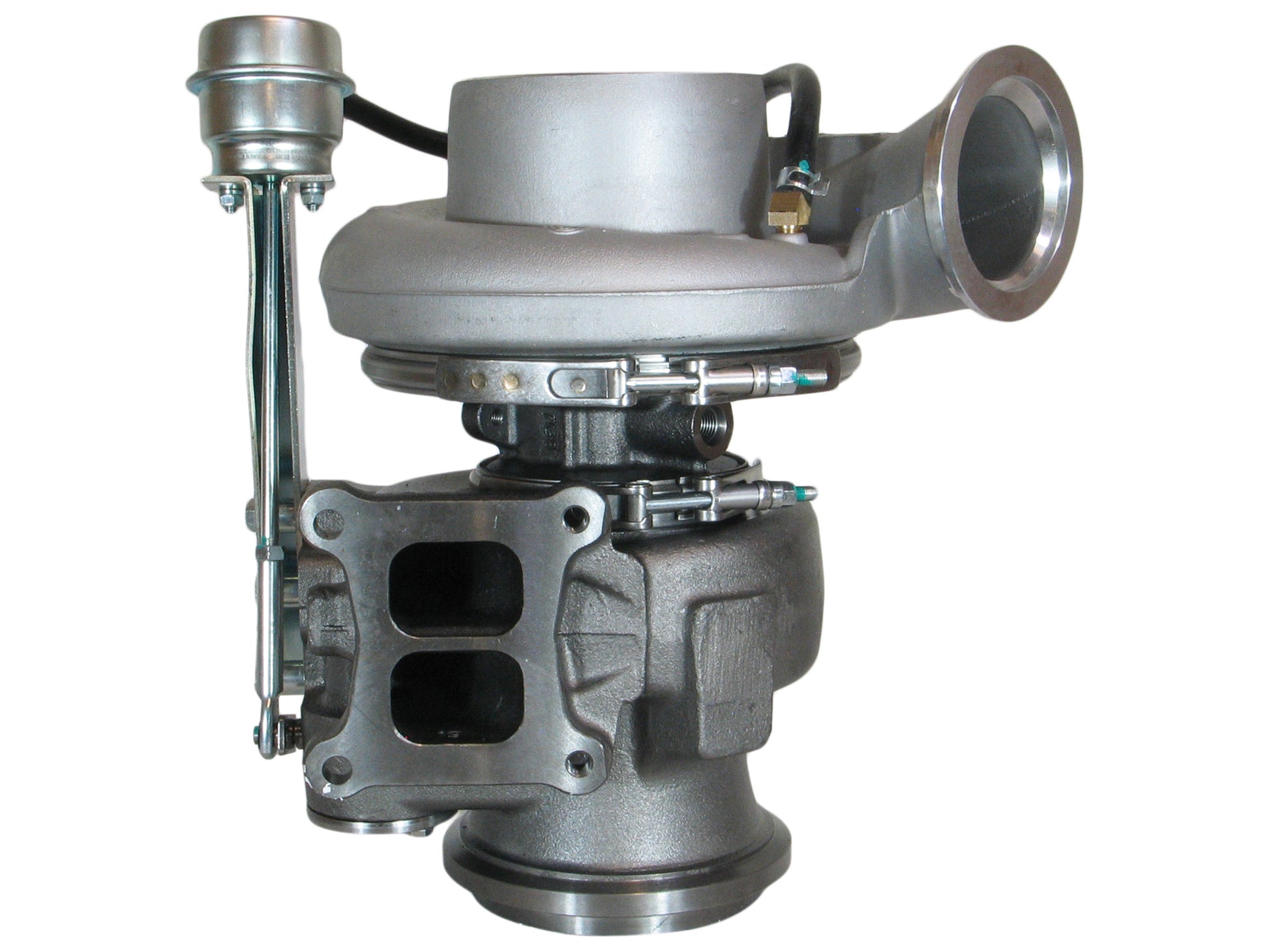

NEW DIRECT REPLACEMENT TURBOCHARGER
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

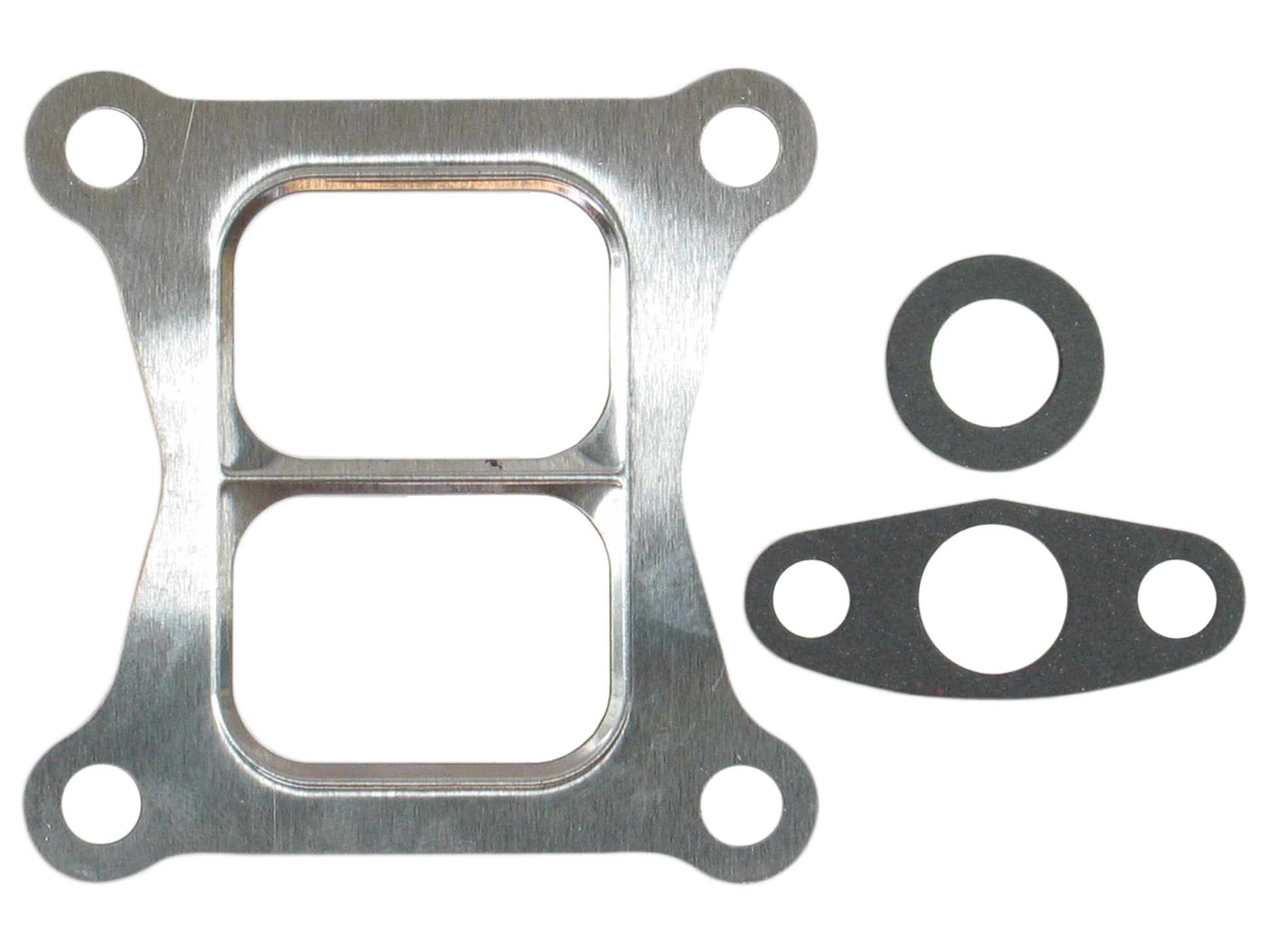

NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 4043707
Interchangeable Number: 3792807, 3792809H, 4035893H, 4036915, 4037625, 4037626H, 4039067, 4089885, 4089885H, 435229800, 435229800HX, 4352298H, 4352298NX, 4352298RX, 4955714, 4955714NX, 4955714RX
OEM Number: 3792809, 4035893, 4037626, 4039068, 4043708, 4089858, 4352298
Turbo Model: HX55W, HE500WG
Engine: ISM, M11, QSM, QSM11, QSM 11 QSM2, QSM3, QSM2/3, QSM 2/3 Tier 3
Engine Manufacturer: Cummins
Displacement: 11.0L, 6 Cylinders In-line
Fuel: Diesel
CPL Number: 8543, 8544, 8545, 8546, 8608
Angle α (Compressor Housing): 264°
Angle β (Turbine Housing): 130°
Actuator: 4037622
Back Plate: 3528096 (1153055300)
Bearing Housing: 3535575 (353557500, 3535704)(Oil Cooled)
CHRA: 4032690 (4032690H, 3768413)
Compressor Cover: 4036914
Compressor Wheel: 4035887 (3596135)(4036317)(Ind. 71 mm, Exd. 99.01 mm, Trim 51, 6+6 Blades)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper)
Gasket (Turbine Inlet): 409039-0000 (409039-0001, 210019, 2405022, 210847)(1900000006)(Inox Steel)
Gasket (Turbine Outlet): 210245 (Inox Steel)
Gasket Kit: 4032517
Heat Shield: 3529846 (3533038)(1153055340)
Repair Kit: 3580762 (3575181, 3533038)(1153055750, 5000020023)
Turbine Housing: 3592774
Turbine Wheel: 3535983 (Ind. 85.8 mm, Exd. 76.95 mm, 12 Blades)(1153055436, 1100016122B)
Application:
2005-02 Industrial with Cummins QSM 2/3 Tier 3 Engine
Hyster RS45-31CH ReachStacker Container Handler
Non-Road Vehicles with Cummins QSM11 Engine
TurboTurbos Part Number: TP05-0129-12
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.
NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 4043707
Interchangeable Number: 3792807, 3792809H, 4035893H, 4036915, 4037625, 4037626H, 4039067, 4089885, 4089885H, 435229800, 435229800HX, 4352298H, 4352298NX, 4352298RX, 4955714, 4955714NX, 4955714RX
OEM Number: 3792809, 4035893, 4037626, 4039068, 4043708, 4089858, 4352298
Turbo Model: HX55W, HE500WG
Engine: ISM, M11, QSM, QSM11, QSM 11 QSM2, QSM3, QSM2/3, QSM 2/3 Tier 3
Engine Manufacturer: Cummins
Displacement: 11.0L, 6 Cylinders In-line
Fuel: Diesel
CPL Number: 8543, 8544, 8545, 8546, 8608
Angle α (Compressor Housing): 264°
Angle β (Turbine Housing): 130°
Actuator: 4037622
Back Plate: 3528096 (1153055300)
Bearing Housing: 3535575 (353557500, 3535704)(Oil Cooled)
CHRA: 4032690 (4032690H, 3768413)
Compressor Cover: 4036914
Compressor Wheel: 4035887 (3596135)(4036317)(Ind. 71 mm, Exd. 99.01 mm, Trim 51, 6+6 Blades)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper)
Gasket (Turbine Inlet): 409039-0000 (409039-0001, 210019, 2405022, 210847)(1900000006)(Inox Steel)
Gasket (Turbine Outlet): 210245 (Inox Steel)
Gasket Kit: 4032517
Heat Shield: 3529846 (3533038)(1153055340)
Repair Kit: 3580762 (3575181, 3533038)(1153055750, 5000020023)
Turbine Housing: 3592774
Turbine Wheel: 3535983 (Ind. 85.8 mm, Exd. 76.95 mm, 12 Blades)(1153055436, 1100016122B)
Application:
2005-02 Industrial with Cummins QSM 2/3 Tier 3 Engine
Hyster RS45-31CH ReachStacker Container Handler
Non-Road Vehicles with Cummins QSM11 Engine
TurboTurbos Part Number: TP05-0129-12
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
